backup camera output to aftermarket radio

Discussion in '2nd Gen. Tacomas (2005-2015)' started by smithjas1, Oct 25, 2017.

  1. Oct 25, 2017 at 5:24 AM
    #1
    smithjas1

    smithjas1 [OP] Member

    Joined:
    Aug 12, 2017
    Member:
    #226637
    Messages:
    7
    Gender:
    Male
    Vehicle:
    2011 Tacoma SR5 V6 4X4 Dbl Cab TRD Sport
    So I am considering getting a Kenwood eXcelon DDX594 head unit which has an RCA input for a rear camera. Could I convert the output from the backup camera to RCA and run it to the radio?

  2. Oct 25, 2017 at 5:31 AM
    #2
    SweatyTaco

    SweatyTaco Member

    Joined:
    Oct 25, 2017
    Member:
    #234044
    Messages:
    5
    Vehicle:
    Tacoma
    All of em
    Hey! Check this out. May be what you're looking for!

    Watch "How To Wire Factory Backup Camera to Aftermarket Head Unit - Toyota Tacoma" on YouTube
    https://youtu.be/_aULuiHvdjc

    Norton, longspear and MOBB1N like this.
  3. Oct 25, 2017 at 5:50 AM
    #3
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    2,925
    Gender:
    Male
    eastern MA
    Vehicle:
    09 SR5 4.0L 4x4
    I did that exact thing and it's been working well for years.

  4. Oct 25, 2017 at 5:57 AM
    #4
    Mr. Projekt

    Mr. Projekt Well-Known Member

    Joined:
    Oct 23, 2016
    Member:
    #200511
    Messages:
    6,543
    Gender:
    Male
    First Name:
    Caleb
    Harpers Ferry, WV
    Vehicle:
    2018 DCSB TRD OR 6MT in Cement
    @ilubtimmyhos let's do this!!!

  5. Oct 25, 2017 at 6:09 AM
    #5
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,842
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat

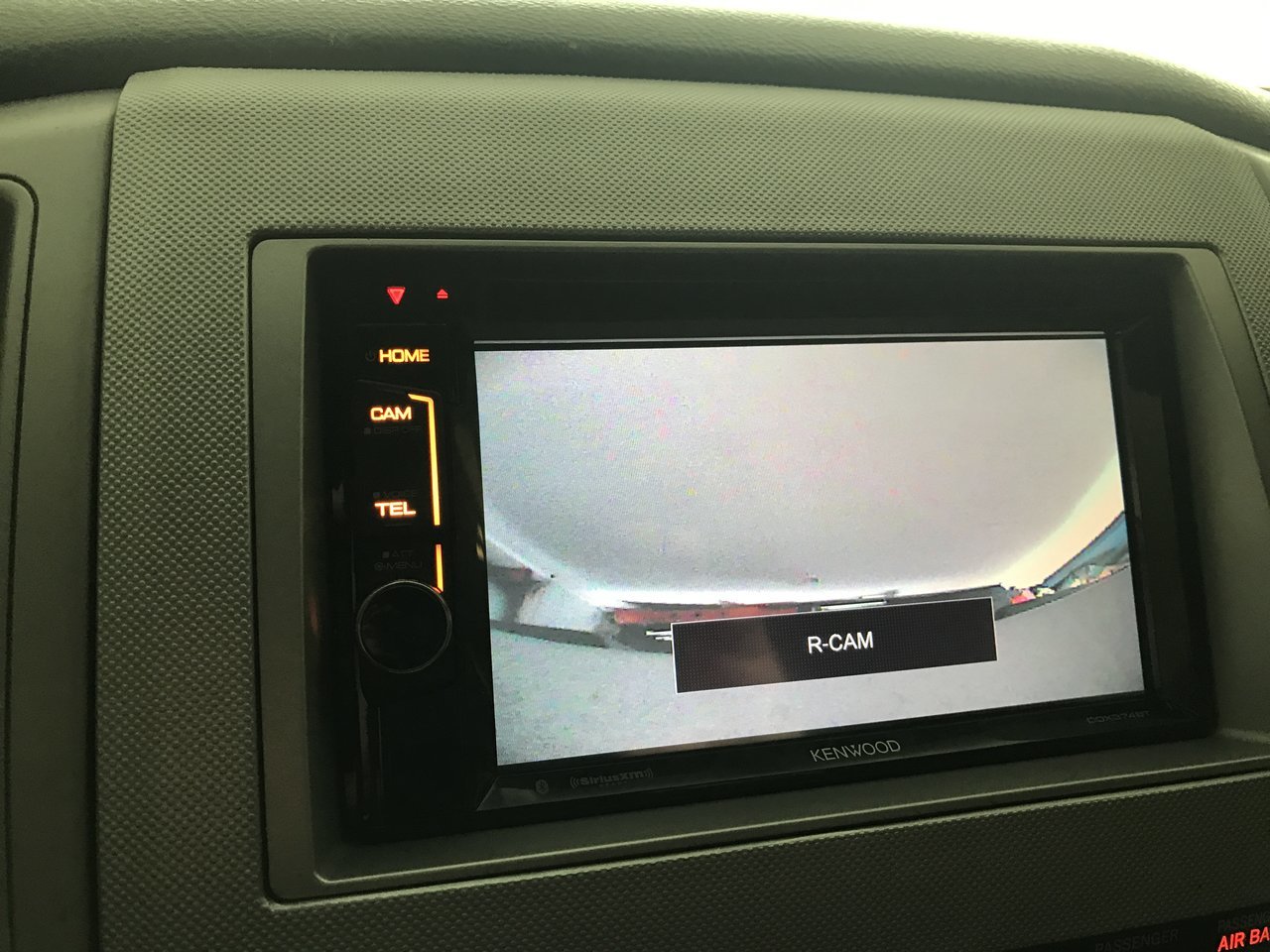

    I've got the same hu in my 2011 and yes there is a thread on here about how to do it. I'll see if I can find it for you. It will likely have some lines of distortion as most have experienced. Also if you go with the Maestro idatalink install kit this unit does some vehicle diagnostics as pictured.


    tomwil and SweatyTaco like this.
  6. Oct 25, 2017 at 6:19 AM
    #6
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,842
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
  7. Oct 25, 2017 at 7:59 AM
    #7
    smithjas1

    smithjas1 [OP] Member

    Joined:
    Aug 12, 2017
    Member:
    #226637
    Messages:
    7
    Gender:
    Male
    Vehicle:
    2011 Tacoma SR5 V6 4X4 Dbl Cab TRD Sport
    TacoDawgfan,

    Very nice! I have a 2011 tacoma so this is very helpful. The video is for a 2014. Are there any differences? Also could you give the a model number for the "Maestro idatalink install kit" I would need? To make sure I understand that will work for the backup camera and the auto diagnostics?

  8. Oct 25, 2017 at 8:11 AM
    #8
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,842
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat

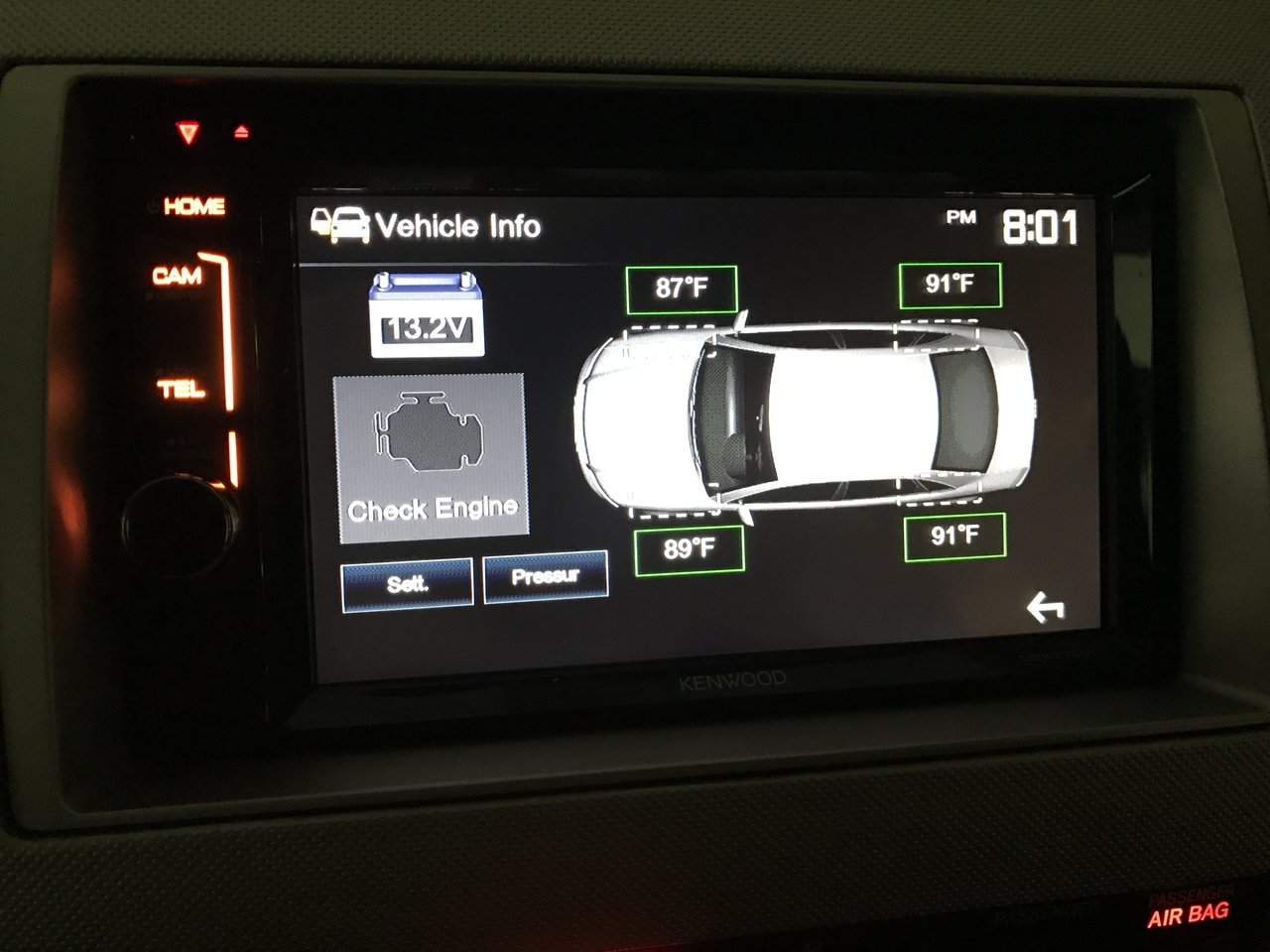

    The maestro only gives the power lead for the camera, you still have to tap into the source for the video feed per the thread. The maestro doesn't provide that.

    The thread I posted worked for me as for the video feed for the camera. So I can't really say or remember about any difference in the year model right off. The maestro gave me the power lead I needed to activate the camera but once I tried to wire it the way the thread showed for some reason the maestro lead wouldn't work any more. So mine is done as per the thread. I only tried the other way to see if I could make the camera work anytime rather than just in reverse which didn't work and I got tired of messing with it and just left it alone.

    As for the model I'm not sure if this matters but mine is the JBL with the factory amp/sub so keep that in mind. But if you go to Crutchfield.com they will provide you what you need. That is where I bought mine. Let me check for the model and get back to you. If I remember correctly I had a 2nd piece for mine being the JBL system though for the factory amp.

  9. Oct 25, 2017 at 8:24 AM
    #9
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,842
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    The idatalink maestro inface module part # I used is ADS-MRR

    The wiring harness part # HRN-RR-T01

    It is pricey and to be honest the vehicle diagnostics doesn't do that much. I really like the tire pressure readout but that's mostly all I use but I did want it since I read a lot of people had issues retaining the steering wheel controls with the regular wiring harness. Didn't want to lose that.

  10. Oct 25, 2017 at 9:09 AM
    #10
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    2,925
    Gender:
    Male
    eastern MA
    Vehicle:
    09 SR5 4.0L 4x4
    Question for you maestro people, does the maestro unit provide power continuously to the camera or do you still need to do the "camera anytime" mod? As mine right now is hooked up (no maestro, I have an aswc unit) the camera only has power in reverse and a few mins after shifting to drive. I've not done the mod to make it continuous power and I've been thinking of buying the maestro unit.

  11. Oct 25, 2017 at 9:33 AM
    #11
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,842
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Still need the anytime mod

  12. Oct 25, 2017 at 10:42 AM
    #12
    ilubtimmyhos

    ilubtimmyhos Brewer

    Joined:
    Oct 13, 2016
    Member:
    #199650
    Messages:
    3,299
    Gender:
    Male
    First Name:
    Adam
    Haymarket, VA
    Vehicle:
    2012 Blue Tacoma 4x4 Pre-Runner
    4x4 Conversion w/ FJ T-Case, King 2.5 Extended Travel Coilovers w/ JBA UCAs, King 12" 2.0 Smoothies w/ BAMF relocate in the rear, OME Dakar leaf pack, 4.56 gears w/ ARB air locker, Archive Hammer Hangers w/ crossbar brace, ARB Snorkel, Custom Bed cap w/ Roofnest Sparrow XL, Retrofit Headlights, Wrapped in 3M Satin Perfect Blue
    I had the stuff with me last time! Lol. Let's do it when I come by for the other stuff.

  13. Oct 25, 2017 at 12:14 PM
    #13
    electra_boogaloo

    electra_boogaloo Well-Known Member

    Joined:
    Aug 14, 2016
    Member:
    #194522
    Messages:
    107
    Gender:
    Male
    Vehicle:
    2007 Double Cab Long Bed
    what camera is everyone using? i have hookups on my HU for reverse and front facing cams, but every single aftermarket camera i look at on Amazon gets horrible reviews. i'd like to not have to replace it every couple years.

  14. Oct 25, 2017 at 1:51 PM
    #14
    smithjas1

    smithjas1 [OP] Member

    Joined:
    Aug 12, 2017
    Member:
    #226637
    Messages:
    7
    Gender:
    Male
    Vehicle:
    2011 Tacoma SR5 V6 4X4 Dbl Cab TRD Sport
    so in the video at the 1:12 mark he talks about the 3 connections. Where do those come from? I assume they are not just laying behind the radio.

  15. Oct 25, 2017 at 7:42 PM
    #15
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,842
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    My memory just isn't that good so I don't want to lead you wrong but go through the thread I posted. It tells you how to wire it up and there was some different opinions/experiences about the camera turn on lead. I did the rca cable where I soldered the end and plugged into the camera feed under the kick panel on the drivers side and T tapped the power source in that same connector. If you go with the Maestro you shouldn't even have to do that one. I was trying to explain about that in the prior post but it's kinda hard to explain. But that is only 2 wires. I don't remember a 3rd for the bu camera.

    There was also the issue of the factory camera in the mirror only being 6v rather than 12v and people used or made a part to convert the power down to 6v. I didn't do this. Maybe I'm wrong here but my instanding is the rear view monitor is 6v but the hu is 12v so imo there is no need to do this. So you use your own judgement on that.

    I just think you need to read through the thread to get a feel and understanding of what you need to do. I don't mind trying walk you through it, just that I don't remember exactly how I wired mine and don't want to steer you wrong. Good luck!

  16. Dec 1, 2017 at 5:01 AM
    #16
    smithjas1

    smithjas1 [OP] Member

    Joined:
    Aug 12, 2017
    Member:
    #226637
    Messages:
    7
    Gender:
    Male
    Vehicle:
    2011 Tacoma SR5 V6 4X4 Dbl Cab TRD Sport

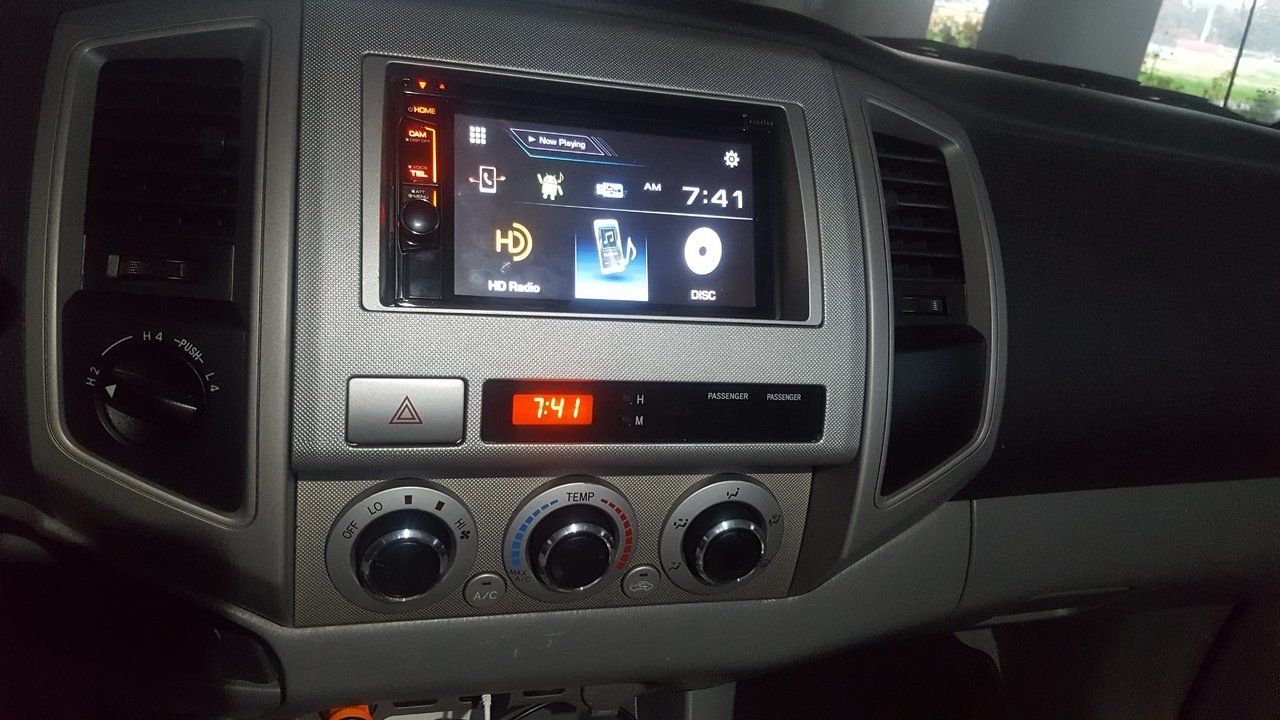

    Finally done with mine. Don't have the rear view camera hooked up yet. Need some connectors. Other than that, it's great. I like the matching textured look of the Metra kit, but it seems a bit flimsy. didn't like the plastic brackets. Oh well, as long as they last. I also like there is no gap around the radio, it looks really tight.


  17. Dec 1, 2017 at 6:46 AM
    #17
    jv_74

    jv_74 Well-Known Member

    Joined:
    Dec 7, 2016
    Member:
    #204258
    Messages:
    361
    Gender:
    Male
    First Name:
    Jesse
    Filthadelphia
    Vehicle:
    2015 DCSB Silver Sky Metallic
    I just finished my install yesterday with the maestro. Cut the factory backup camera harness and spliced it on to the 4 wires coming off of the maestro, and it works. I didn't have to do the anytime mod :notsure:

  18. Dec 1, 2017 at 8:24 AM
    #18
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    2,925
    Gender:
    Male
    eastern MA
    Vehicle:
    09 SR5 4.0L 4x4
    Does it work all the time though? Or just for those 3 or 4 mins that the stock camera has power after shifting into drive?

  19. Dec 1, 2017 at 8:31 AM
    #19
    jv_74

    jv_74 Well-Known Member

    Joined:
    Dec 7, 2016
    Member:
    #204258
    Messages:
    361
    Gender:
    Male
    First Name:
    Jesse
    Filthadelphia
    Vehicle:
    2015 DCSB Silver Sky Metallic
    That I don't know if I've confirmed, I'm quite sure that any time I needed the camera and wasn't in reverse, it was within the 3-4min. Nonetheless it still serves it's purpose as a backup camera as far as I'm concerned. I'll update if I can confirm it doesn't work after that window -

  20. Dec 7, 2017 at 3:32 PM
    #20
    jv_74

    jv_74 Well-Known Member

    Joined:
    Dec 7, 2016
    Member:
    #204258
    Messages:
    361
    Gender:
    Male
    First Name:
    Jesse
    Filthadelphia
    Vehicle:
    2015 DCSB Silver Sky Metallic

    I think I’ve learned what the side effect is to doing it this way. In the first 3-4min of shifting to drive, my backup camera randomly pops on my Pioneer HU. However, I did confirm the camera does have power whenever the ignition is turned. Works all the time when I switch to it on the HU.

    kingston73 likes this.
