Backup camera question

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Coffeezombie, Nov 13, 2017.

  1. Nov 13, 2017 at 11:51 AM
    #1
    Coffeezombie

    Coffeezombie [OP] New Member

    Joined:
    Nov 12, 2017
    Member:
    #235765
    Messages:
    3
    Gender:
    Male
    First Name:
    Kelly
    Short story, the flood from hurricane Harvey ate my Tundra. So, after State Farm bought it, I bought a 2014 Tacoma. I've read all the documentation in the manual about the backup camera but it doesn't work on the radio screen. So when I looked at the camera itself in the tailgate latch, it looks like it is folded up/closed. It looks like a toggle (see pic). No lens to be seen. I don't want to force it by prying since it is all plastic so is there something I'm missing?

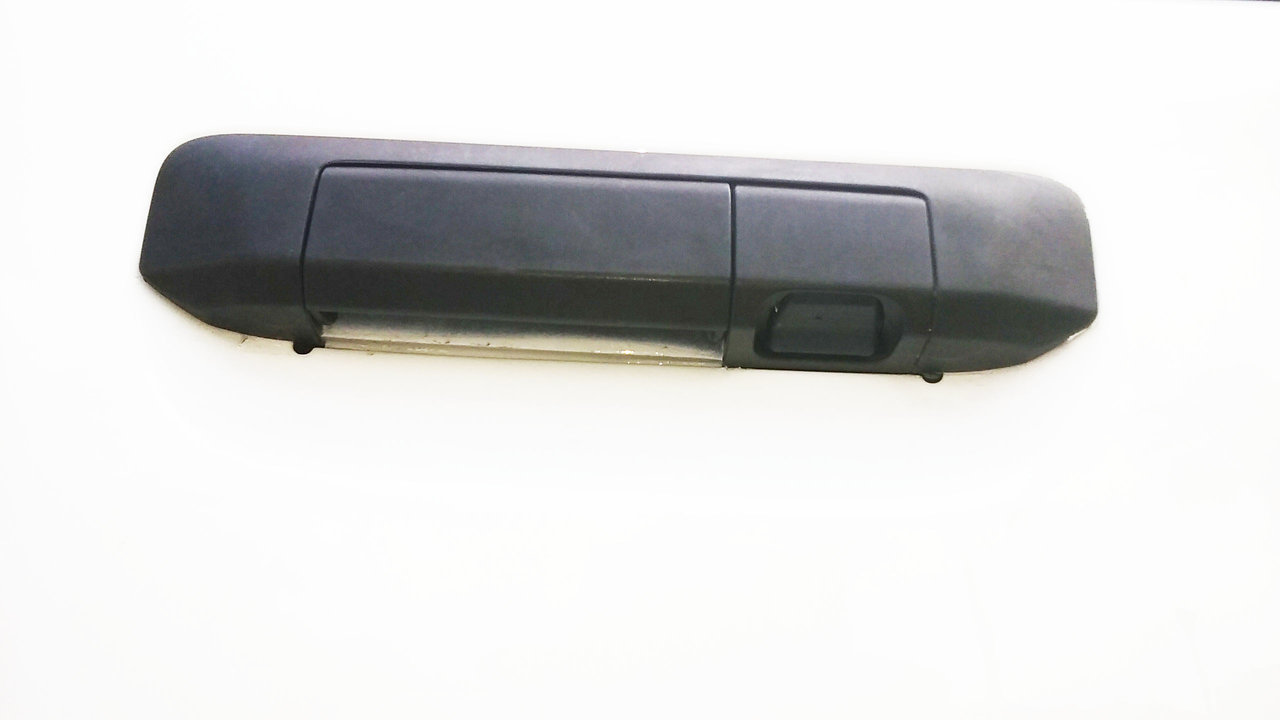

    Tacoma Tailgate Latch.jpg

  2. Nov 13, 2017 at 11:53 AM
    #2
    Unchained 5150

    Unchained 5150 Well-Known Member

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    41,917
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    You don't have a camera, you have the plug that goes over the camera when it is removed.

  3. Nov 13, 2017 at 11:53 AM
    #3
    redcon

    redcon Well-Known Member

    Joined:
    May 6, 2017
    Member:
    #218362
    Messages:
    182
    Gender:
    Male
    First Name:
    Dave
    Southern PA
    Vehicle:
    2012 AC 4x4 Base 2.7L/5MT
    *If So Equipped

    My '12 doesn't have a backup camera either-- I think it came with a package in the SR5 and up.

  4. Nov 13, 2017 at 11:55 AM
    #4
    Unchained 5150

    Unchained 5150 Well-Known Member

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    41,917
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
  5. Nov 13, 2017 at 11:56 AM
    #5
    Clearwater Bill

    Clearwater Bill Retire from work, but not from life.

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    13,900
    Gender:
    Male
    First Name:
    Billy
    Clearwater Florida
    Vehicle:
    '13 5 lug base AC w/convenience package
    A few OE parts from fancy trucks
    You have no camera. Open the tailgate and make sure it's prewired before proceeding.

    Not sure where it would display. My '13 still uses the mirror. If that's where it's supposed to display for you, you need to confirm that its prewired by pulling the overhead cubby and finding the wires.

    I have a base 5 lug. Adding the camera, mirror and wiring trim to the mirror was easy peasy PnP.

    Camera from eBay, mirror from forum Sale section, trim from dealer.

  6. Nov 13, 2017 at 11:56 AM
    #6
    Unchained 5150

    Unchained 5150 Well-Known Member

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    41,917
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    14 is in the Head Unit

    Clearwater Bill likes this.
  7. Nov 14, 2017 at 5:53 AM
    #7
    Coffeezombie

    Coffeezombie [OP] New Member

    Joined:
    Nov 12, 2017
    Member:
    #235765
    Messages:
    3
    Gender:
    Male
    First Name:
    Kelly
    I'll check but I'm pretty sure it's wired. When I lower the tail gate I see wiring going in that direction and there is a sticker on the bed liner warning to uncouple the camera wiring before removing the tail gate. It sure is an awesome truck though. So much easier to park than the big-@ss Tundra I had before.

    Clearwater Bill likes this.
  8. Nov 14, 2017 at 10:13 AM
    #8
    Tcomaboy

    Tcomaboy Well-Known Member

    Joined:
    Sep 12, 2010
    Member:
    #43160
    Messages:
    3,039
    Gender:
    Male
    TX
    Vehicle:
    2010 PreRunner Sr5 TRD LongBed
    All you need to do is buy the camera unit itself, remove that little piece of plastic, and install it. You are probably all wired so it should really just be plug and play.

    Oem camera is less than $100

  9. Nov 27, 2017 at 4:10 AM
    #9
    Coffeezombie

    Coffeezombie [OP] New Member

    Joined:
    Nov 12, 2017
    Member:
    #235765
    Messages:
    3
    Gender:
    Male
    First Name:
    Kelly
    Thanks, I'll give it a shot. Recieved the camera the other day.

  10. Dec 3, 2017 at 11:47 AM
    #10
    Oldsalt65

    Oldsalt65 New Member

    Joined:
    Oct 26, 2017
    Member:
    #234198
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2014 grey tacoma base 4cyl auto trans
    none
  11. Dec 3, 2017 at 2:54 PM
    #11
    winkeldc

    winkeldc Active Member

    Joined:
    Feb 23, 2016
    Member:
    #179134
    Messages:
    33
    Vehicle:
    2014 Reg Cab 4x4
    Not all 2014s have the right wiring. Mine didn't, but itbis a base reg cab so I never have anything in it. You need to pry back the wiring loom and look to see how many wires are running to the tailgate.

    Did the camera work?

  12. Dec 4, 2017 at 3:49 AM
    #12
    Oldsalt65

    Oldsalt65 New Member

    Joined:
    Oct 26, 2017
    Member:
    #234198
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2014 grey tacoma base 4cyl auto trans
    none
    No, the camera didn't work. Looked like six wires at the tailgate plug. Also, there is a plug connection coming from the tailgate behind the bumper on the passenger side that is connected and wrapped. It joins the main bundle (tail lights etc.) going forward.

  13. Dec 4, 2017 at 3:55 AM
    #13
    Stemmy

    Stemmy Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215220
    Messages:
    224
    Gender:
    Male
    First Name:
    Rob
    Pennsylvania
    Vehicle:
    2013 Pyrite Mica DCLB SR5
    my '13 has it, originally it displayed in the rear view mirror but I bought a conversion harness and now it displays in the head unit, which IMO is much better even with losing the backup lines.

  14. Dec 4, 2017 at 5:10 AM
    #14
    winkeldc

    winkeldc Active Member

    Joined:
    Feb 23, 2016
    Member:
    #179134
    Messages:
    33
    Vehicle:
    2014 Reg Cab 4x4
    That plug at the tailgate, going into the main loom, probably only has the one wire then going forward to the cab then. That's the wiring that you would look to see if there are six wires going forward. If I remember correctly all trucks have six wires going from the bumper to the tailgate latch, but only a lucky few had the six wires going from the bumper to the cab.

  15. Dec 4, 2017 at 7:14 AM
    #15
    Oldsalt65

    Oldsalt65 New Member

    Joined:
    Oct 26, 2017
    Member:
    #234198
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2014 grey tacoma base 4cyl auto trans
    none
    Thanks. Now I know where to look. Need to get hold of a Tacoma wiring diagram. I actually don't need a backup cam. It's just an interesting project to keep my brain in shape. I'm kinda old.

  16. Dec 4, 2017 at 1:11 PM
    #16
    Oldsalt65

    Oldsalt65 New Member

    Joined:
    Oct 26, 2017
    Member:
    #234198
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2014 grey tacoma base 4cyl auto trans
    none
    You're right. Only one wire(Blue). Seems odd. willing to bet that the others are cut off and stuffed into the bundle going further up. Will take some delicate surgery to find out. Will let you all know if I find them.

  17. Dec 4, 2017 at 1:15 PM
    #17
    nudavinci64

    nudavinci64 Well-Known Member

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    1,934
    Gender:
    Male
    First Name:
    Robert
    San Mateo, CA
    Vehicle:
    13 TRD OffRoad 4x4
    Money Pit....
    I still cant get used to the screen in the dash. I like where it is in the mirror. I wired it up so its in both places.

    Stemmy likes this.
  18. Dec 4, 2017 at 4:26 PM
    #18
    Stemmy

    Stemmy Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215220
    Messages:
    224
    Gender:
    Male
    First Name:
    Rob
    Pennsylvania
    Vehicle:
    2013 Pyrite Mica DCLB SR5
    after I did the conversion it took me probably 2 weeks to stop looking at the rear view mirror every time I used reverse lol.

  19. Dec 4, 2017 at 4:31 PM
    #19
    nudavinci64

    nudavinci64 Well-Known Member

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    1,934
    Gender:
    Male
    First Name:
    Robert
    San Mateo, CA
    Vehicle:
    13 TRD OffRoad 4x4
    Money Pit....
    I bet. I thought it wa genius to our it in the rear view mirror since you should be looking three anyway. It is mice to have it in the radio too. Radio gets washed out easier than the mirror. Sun hits it like crazy. Easy mod to hit both of you add it down the line.

    Stemmy likes this.
