Backup camerA

Discussion in '1st Gen. Tacomas (1995-2004)' started by farmer_kyle, Oct 18, 2016.

  1. Oct 18, 2016 at 9:27 AM
    #1
    farmer_kyle

    farmer_kyle [OP] Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168081
    Messages:
    67
    Gender:
    Male
    Vehicle:
    2004 Tacoma sr5
    3.5" (adjusted to 4.5") fabtech suspension lift. 15x8 procomp 252 crawlers. 32x11.5 BFG Ko2's.
    Hey guys I'm looking on Amazon for a backup camera and monitor. I was thinking that since my radio headunit has a video input, maybe I just just use that instead of getting another monitor to clutter my dash up. How would I wire it so that when I shift into reverse, my headunit displays mthe backuo cera angle without pausing my music or disconnecting my phone from the USB port? (USB port is connected behind the unit and runs under the console to beside my cup holder so it isn't pictured).... Is that too much trouble? If so, I guess I should just get a seperate minitor. What to you all think?

    Any help is much appreciated


  2. Oct 18, 2016 at 9:58 AM
    #2
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Since your head unit has a video-in port, that usually signifies it's for a backup camera. Look into the settings on your head unit that says anything about a backup camera, that usually means your unit has the capability of doing so. My head unit has an video input for the backup camera, and an input for the brake light harness (to detect if you're in reverse). Your unit may be different, but mine works by detecting voltage through the brake lights and triggering the unit to switch to video. I didn't bother hooking this wire up so I just manually turn the camera on the unit by going into settings.

    I wired a single video cable from the head unit under the carpet, under the door running boards, into a cable grommet under the door. I zip-tied it to the brake light wiring harness (absolute PITA) and ran it to my license plate where I mounted it. I spliced the 5v rail from the backup light in the taillight assembly to power it, thus the camera only turns on when the backup light is on (when in Reverse).

  3. Oct 18, 2016 at 10:39 AM
    #3
    farmer_kyle

    farmer_kyle [OP] Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168081
    Messages:
    67
    Gender:
    Male
    Vehicle:
    2004 Tacoma sr5
    3.5" (adjusted to 4.5") fabtech suspension lift. 15x8 procomp 252 crawlers. 32x11.5 BFG Ko2's.
    Oh okay cool. This was very helpful. Thank ya!

  4. Oct 18, 2016 at 10:40 AM
    #4
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    No problem, make sure you have a whole bunch of zip ties and a side cutter or you're gonna have a bad time.

  5. Oct 18, 2016 at 10:45 AM
    #5
    devinzz1

    devinzz1 Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    5,843
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    96 extended cab sr5
    cxracing turbo, fic6, methanol injection, 5100s/eibachs, skyjacker leafs, rear 5125s, no-slip rear locker, 35" grabber x3, magnaflow muffler, throttle body spacer, retrofit headlights, trans cooler, bed lined exterior, excessive stereo etc...
    For the wiring harness within the unused wires there would be a reverse sensing wire. it will either be labled or shown in the manual.

  6. Oct 18, 2016 at 12:22 PM
    #6
    OneWheelPeel

    OneWheelPeel Well-Known Member

    Joined:
    May 19, 2016
    Member:
    #187371
    Messages:
    2,232
  7. Oct 18, 2016 at 12:24 PM
    #7
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    My head unit actually has an input for a front camera. I have the backup camera that mounts to the license plate screws.

    OneWheelPeel likes this.
  8. Oct 18, 2016 at 12:28 PM
    #8
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
  9. Oct 18, 2016 at 12:31 PM
    #9
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Could you elaborate? I want to have my backup camera powered on demand, not only in Reverse. I don't feel like zip-tying a wire all the way to the taillights again.

  10. Oct 18, 2016 at 12:37 PM
    #10
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake

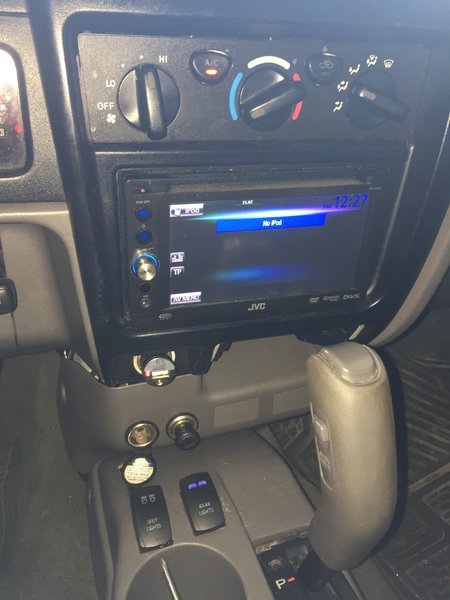

    Zip tied a wire all the way haha. In one of the empty switch holes left of my steering wheel I put in a switch. Then when I wired it up I ran the camera power to the camera and also connected the reverse sensing wire to the switch. This makes it so that when the switch is on the camera will come on and the radio will switch over to camera mode. I know that some cameras video cables have power built into them so you only have one wire to run back.

    EDIT: I got an add a fuse to tap into the fuse box behind the coin holder. I did this so he switch leds are only on when the truck is

    [​IMG]

  11. Oct 18, 2016 at 1:02 PM
    #11
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Wow, they do make switches for everything. What would I wire the reverse sensing leads on the radio to again? I don't recall.

  12. Oct 18, 2016 at 1:06 PM
    #12
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    On my radio I believe it was a blue wire. When the radio senses ~12v to that wire it automatically switches to show what the camera is showing.

  13. Oct 18, 2016 at 1:08 PM
    #13
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    So I would just tap into a 12v source (backup lights) and tie it into the sensing wire? From what I understand, you run a 12v cable from the taillights and combine the positive wire with the sensing wire.

  14. Oct 18, 2016 at 1:12 PM
    #14
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    If you want it to turn on the camera when ever you want you will need a separate 12v supply than the reverse lights.. Thats why I added a fuse on the inside so both the camera and the radio get the 12v power independent from the reverse lights. I will try to draw a quick diagram of what I did.

  15. Oct 18, 2016 at 1:13 PM
    #15
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Right now I have it tapped into the reverse lights. Say I gave it a constant 12v source (like from the fusebox), how would I wire the switch?

  16. Oct 18, 2016 at 1:25 PM
    #16
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    If it is a simple switch like the unlit black one in my picture its easy.

    On one pin of the switch you have the 12v power from the fuse box. Then the other pin you connect the power out of the switch to both the camera and to the radio. The power to the camera and radio both come from the same pin.

    Diagrams coming soon

  17. Oct 18, 2016 at 1:30 PM
    #17
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    Diagram of the switch wiring (simple switch with no led lighting). Switches with lights in them will have more pins. If you wire your camera and sensing wire to a switch with its own 12v power you will not need to tap into the taillights anymore. this will also allow you to turn the camera on when ever you want.

    • Pin 1 in the diagram is where the 12v power comes from the fuse box to the switch
    • Pin 2 in the diagram is where both the camera and sensing wire 12v power leaves the switch when the switch is on
    [​IMG]

    Diagram of the "big picture"

    [​IMG]

  18. Oct 18, 2016 at 1:39 PM
    #18
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    41,556
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Say you had a switch with backlighting, how would it be hooked up in that case?

  19. Oct 18, 2016 at 1:48 PM
    #19
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    Depends on how advanced the switch is. I used to have one that only had 3 pins

    • Top pin - Ground for backlight circuit (makes it so that when the switch is at on position the light turns on as well)
    • Middle pin - Power out to accessories
    • Bottom pin - Power in to the switch


    This is the switch I have now. It has 5 pins on the back of it. With my switch the lower text that says "Rear Camera" lights up as soon as the truck turns on and the amber led behind the picture of the camera turns on when the camera is on.

    Here is the diagram for the switch and the a picture of the things the pins do.

    • Both pin 7 & 8 go to ground (this grounds the circuit for the LED lights in the switch only)
    • Pin 2 is the incoming 12 power
    • Pin 3 is the outgoing to camera and switch
    • Pin 6 is the power to the led light that turns on when the truck turns on (gives power the the LED light that lights up with the power is given to the switch)


    [​IMG]


    [​IMG]

    Last edited: Oct 18, 2016
    BartMaster1234 likes this.
  20. Nov 7, 2016 at 10:29 PM
    #20
    RPM SoCal

    RPM SoCal New Member

    Joined:
    Nov 7, 2016
    Member:
    #201843
    Messages:
    4
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    Tacoma SR5 double cab Long
    v6 4.0l

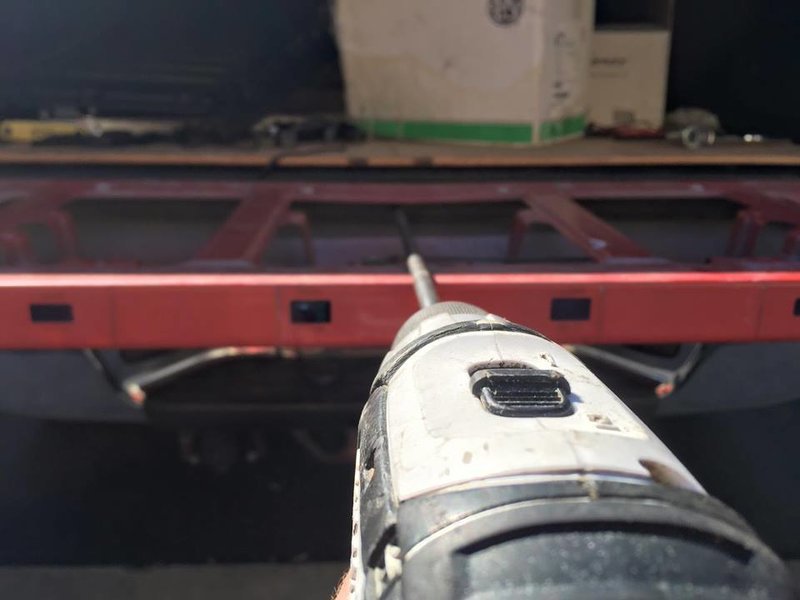

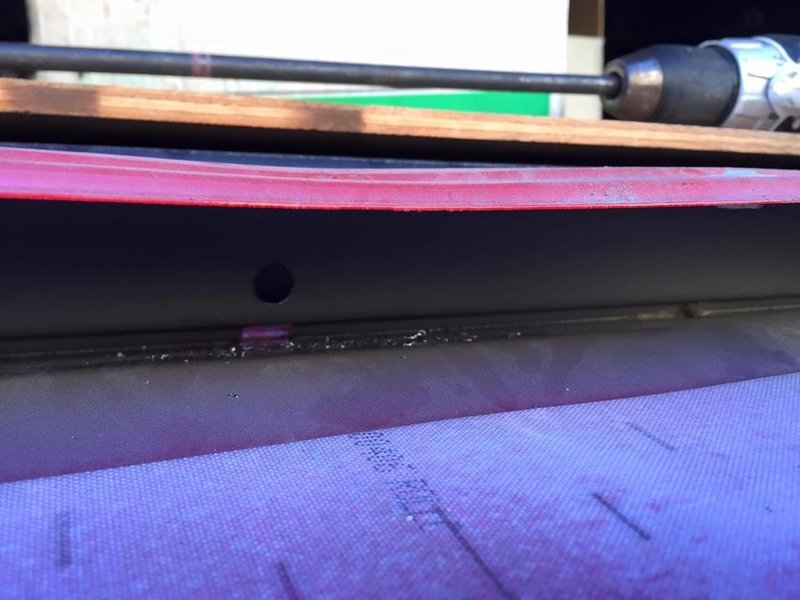

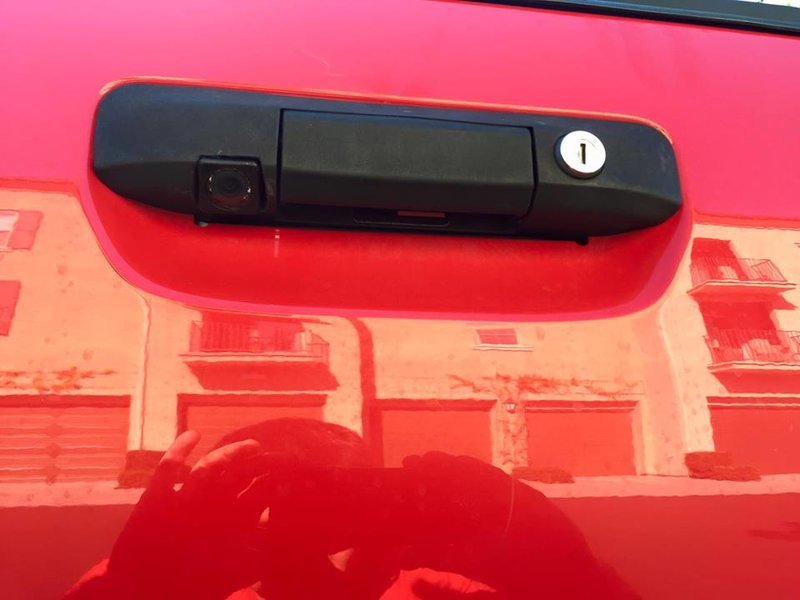

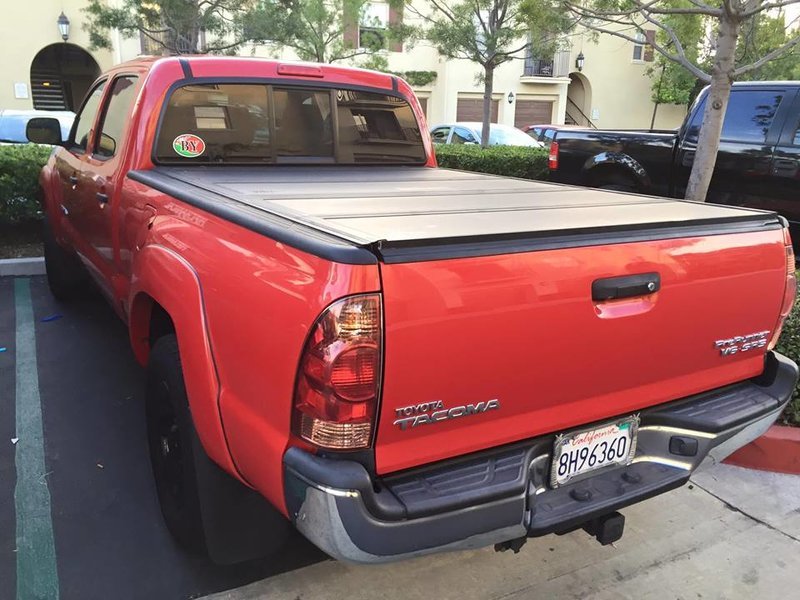

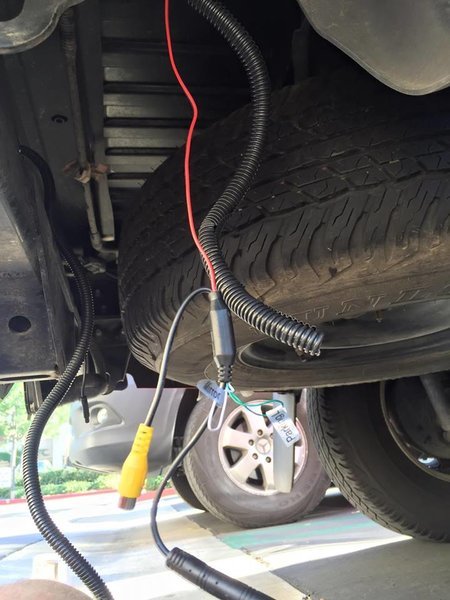

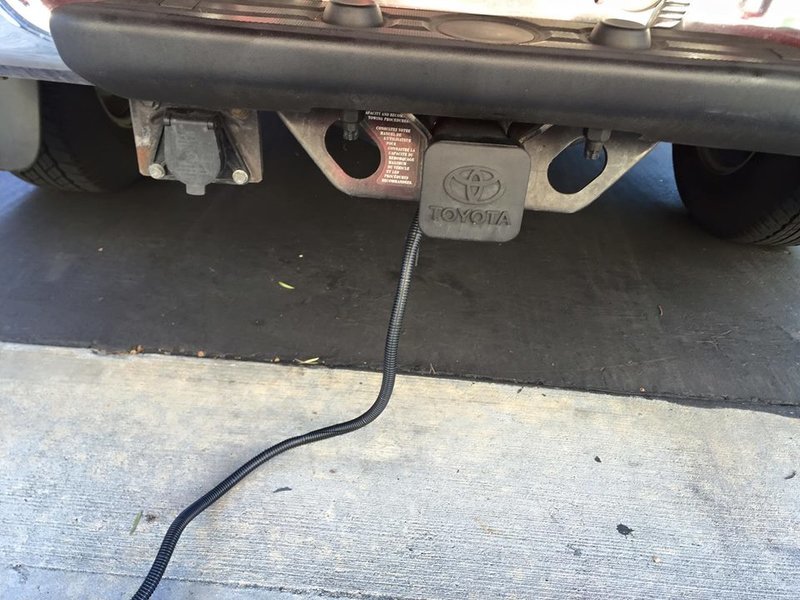

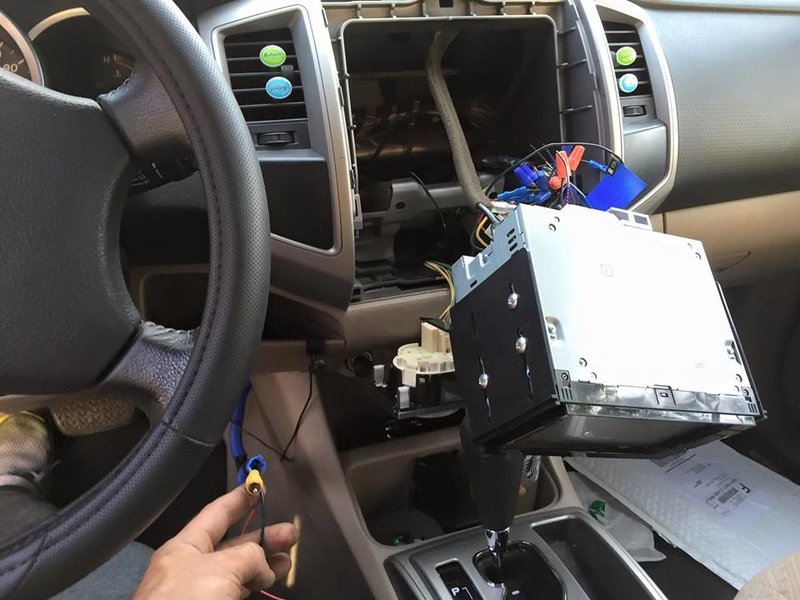

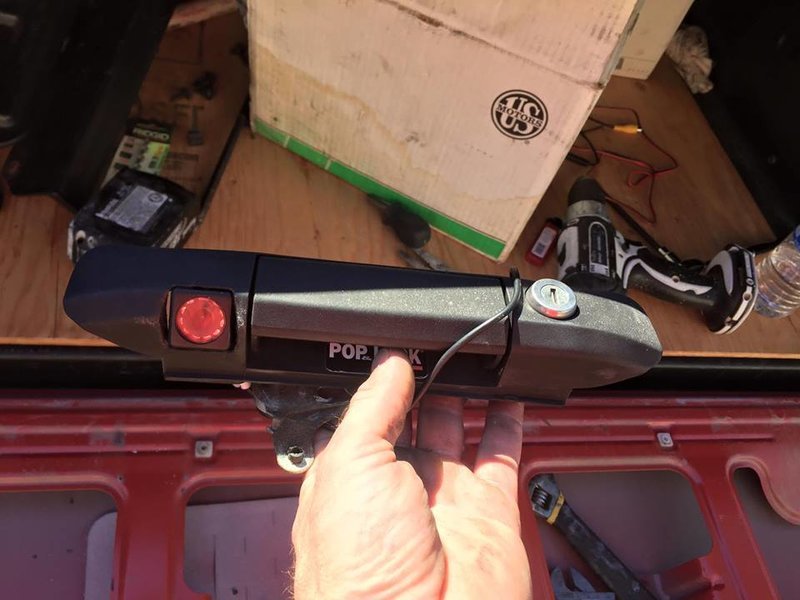

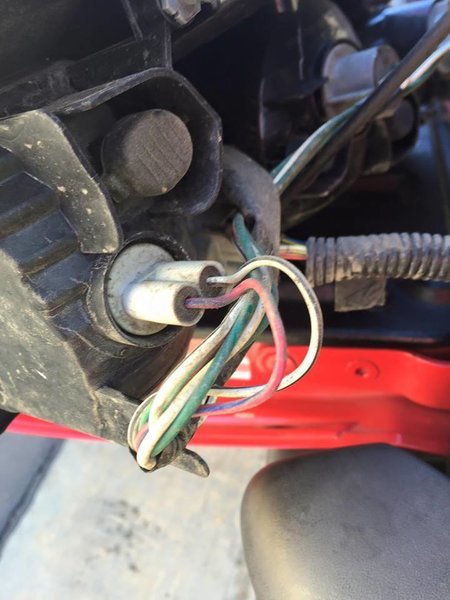

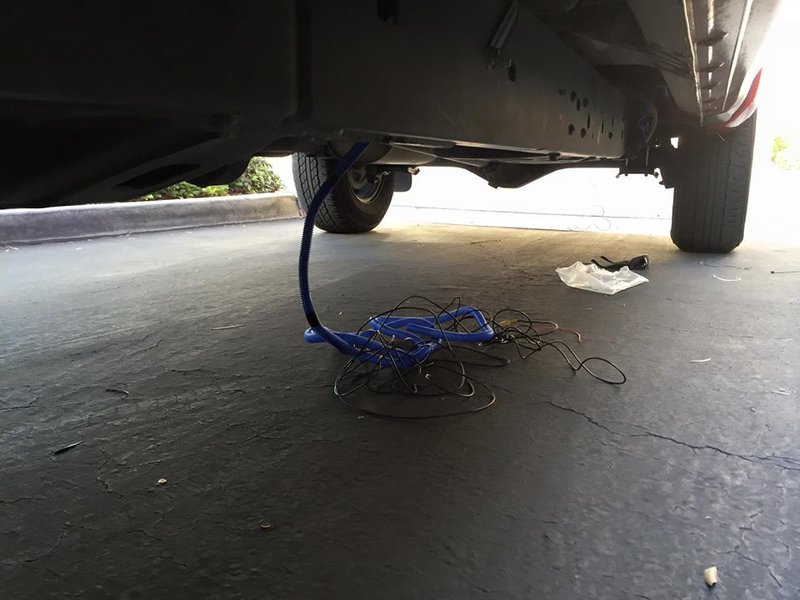

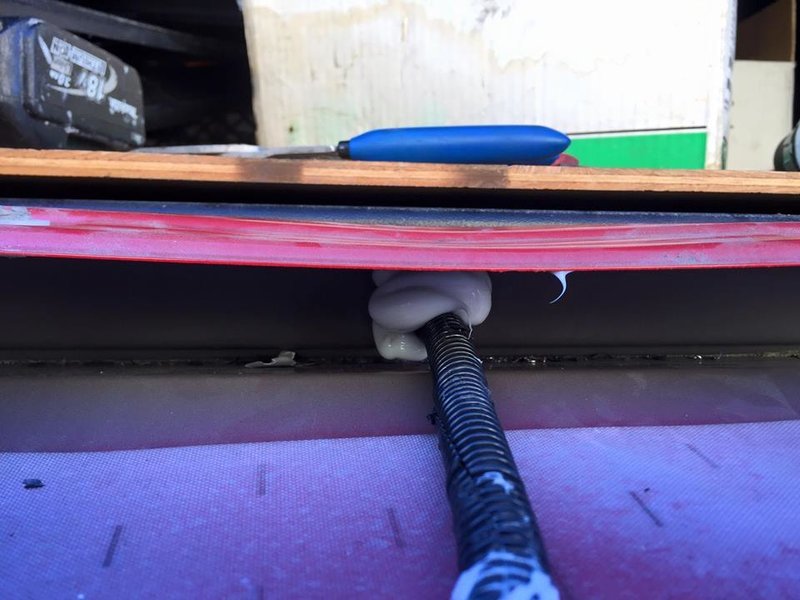

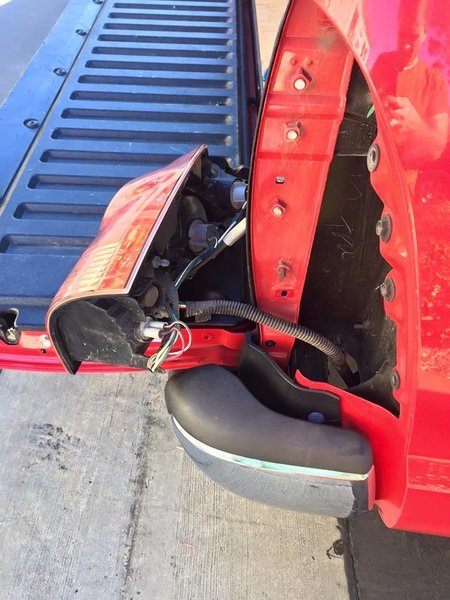

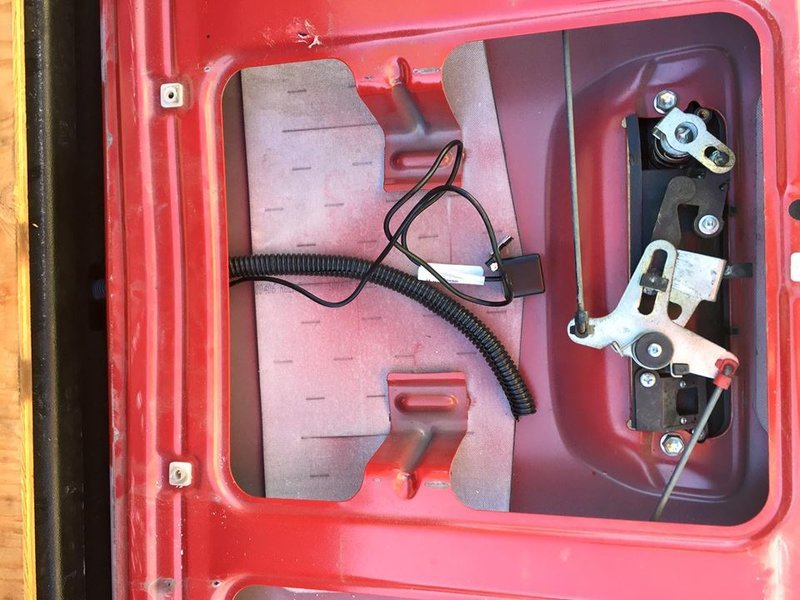

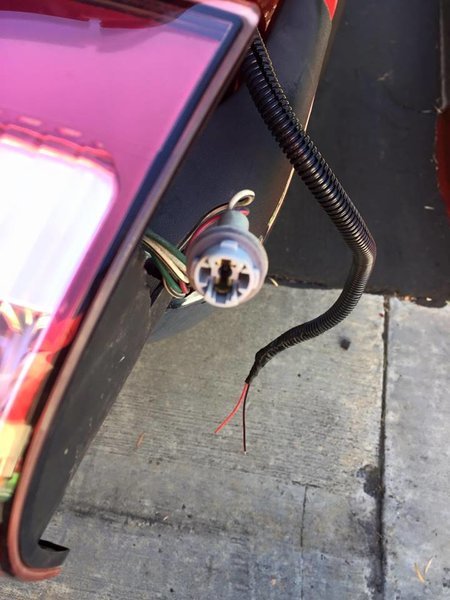

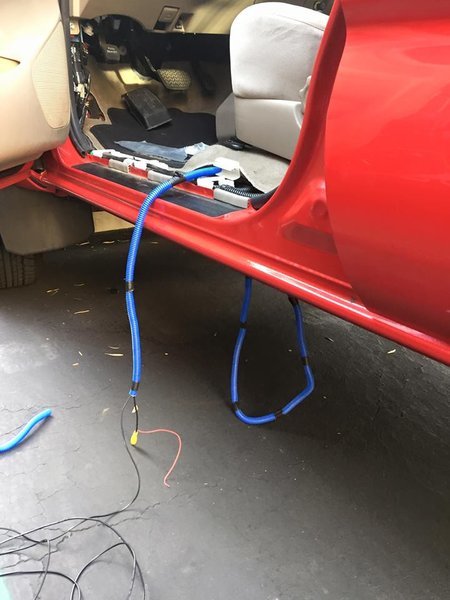

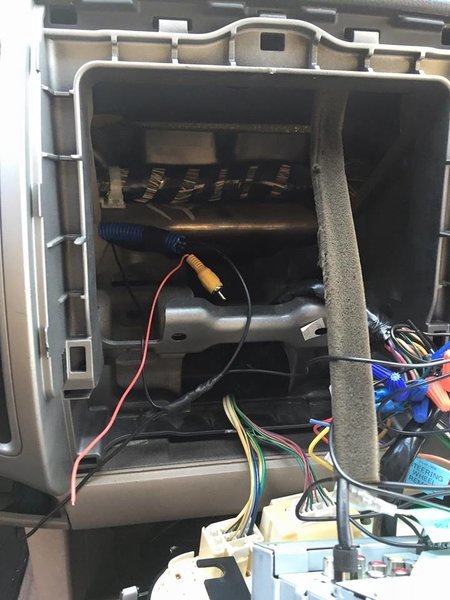

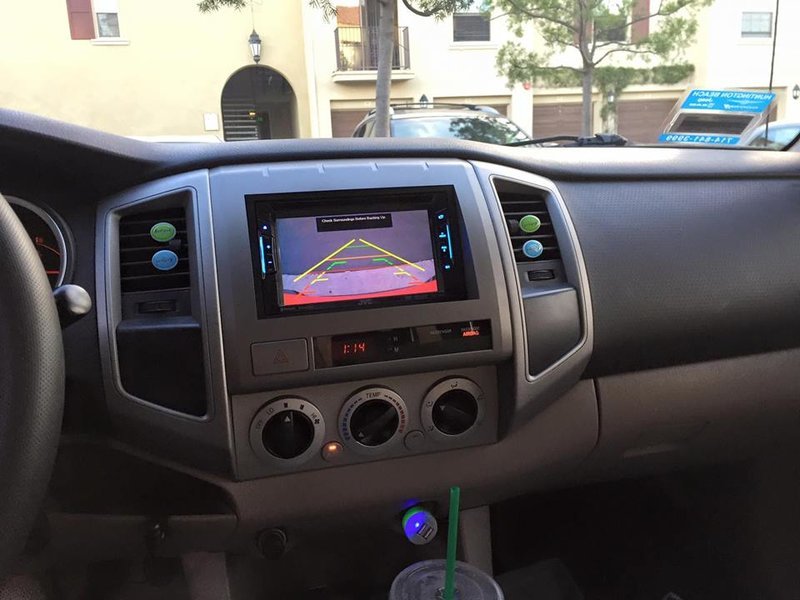

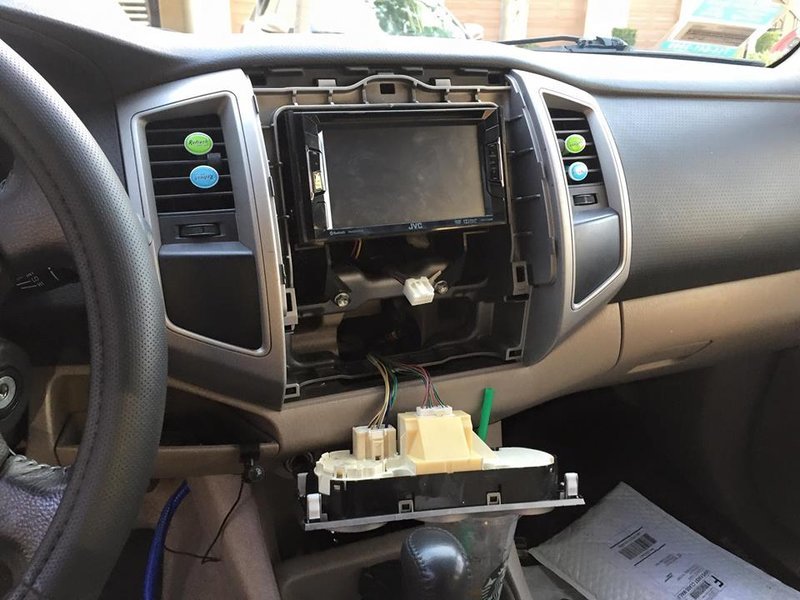

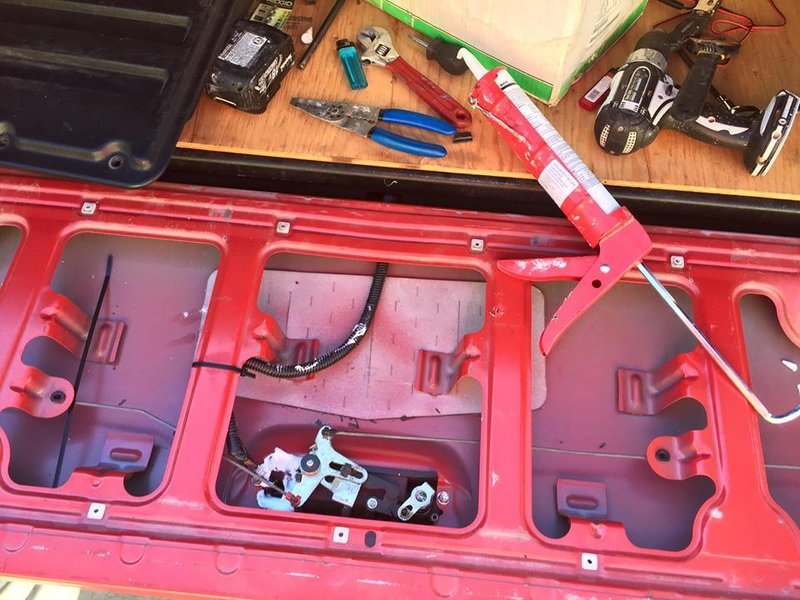

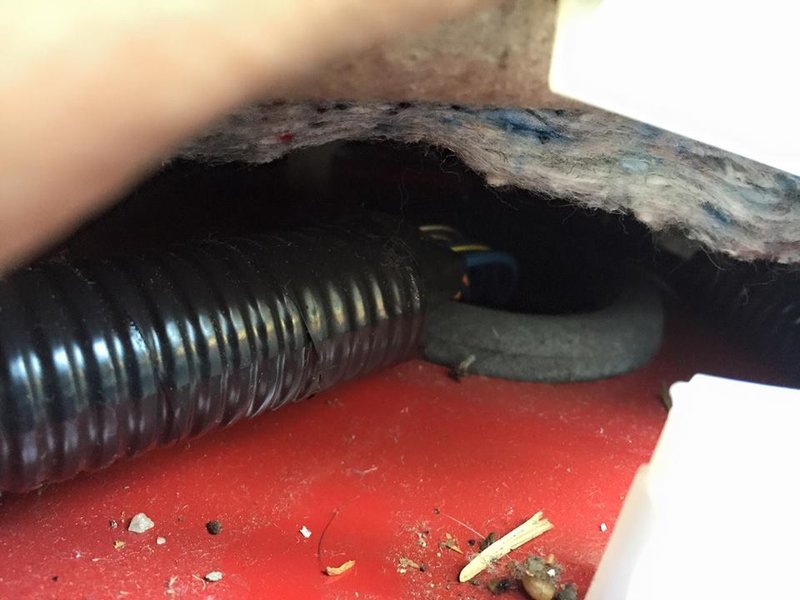

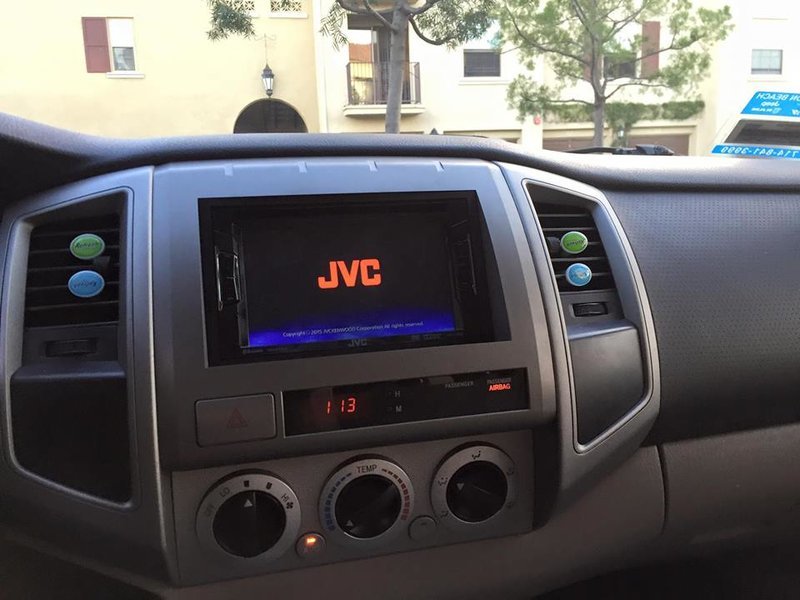

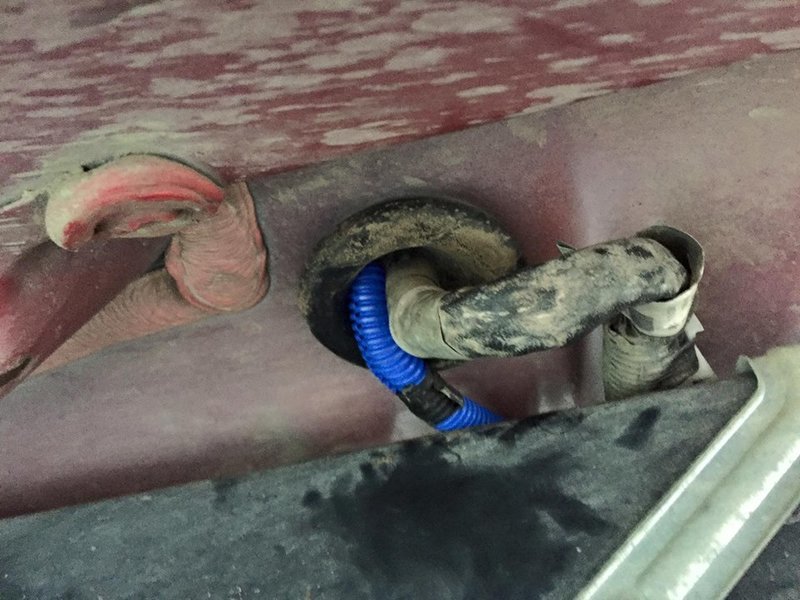

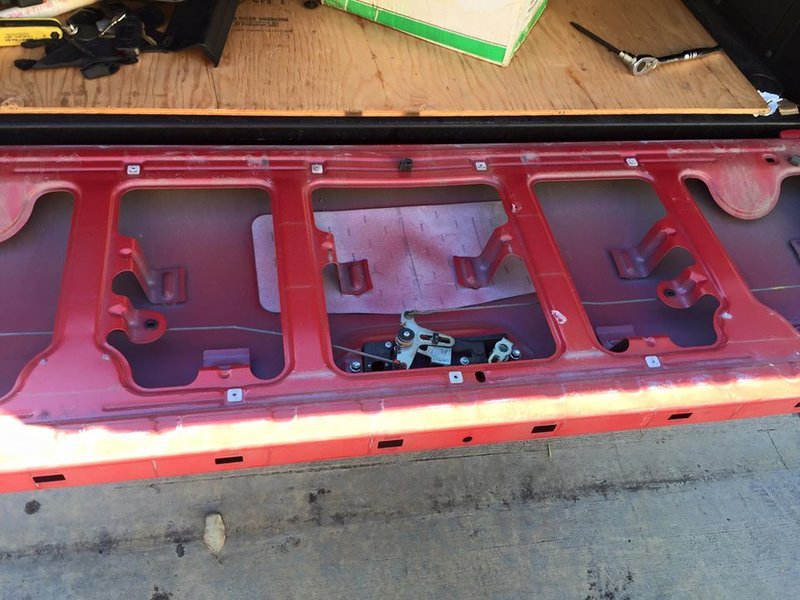

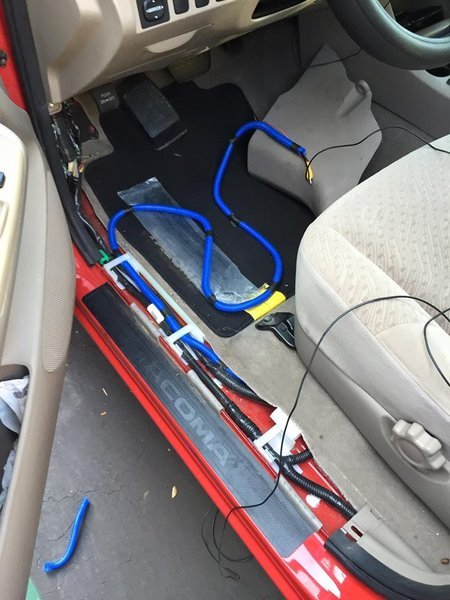

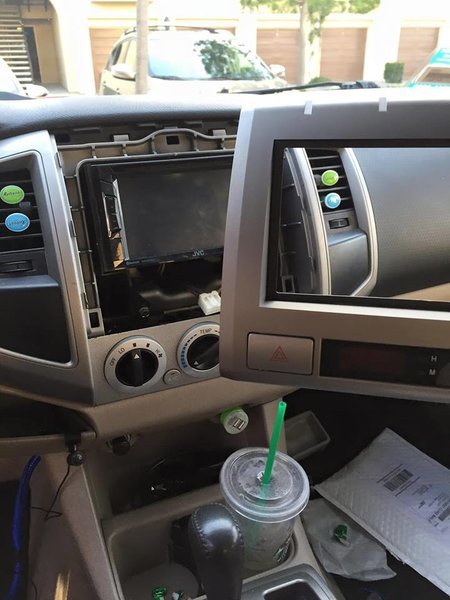

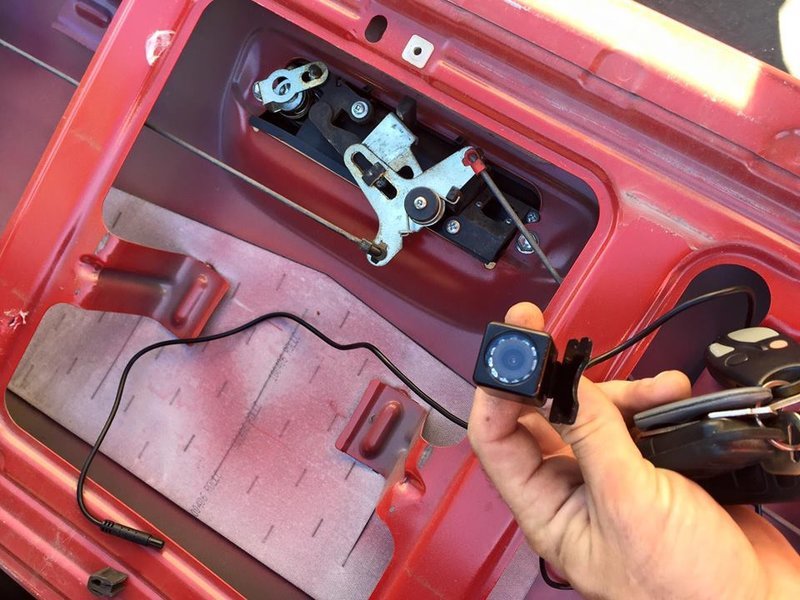

    Don't judge for wire nuts behind my radio, Ill redo it. wired up my back up camera 2007 double cab long. Ran trigger wire to the radio in same conduit with RCA cable - why not since Im running2.jpg 3.jpg 4.jpg 5.jpg RCA anyways.35.jpg1.jpg6.jpg8.jpg10.jpg11.jpg13.jpg12.jpg14.jpg15.jpg16.jpg17.jpg18.jpg20.jpg21.jpg22.jpg25.jpg26.jpg28.jpg30.jpg31.jpg32.jpg33.jpg34.jpg39.jpg333.jpg

    99SuperTaco4x4 likes this.
