Bad Suspension or Twisted Frame??

Discussion in 'Suspension' started by DUCKSHOT, Apr 23, 2013.

  1. Apr 23, 2013 at 8:01 PM
    #1
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    01 Tacoma stock, original suspension and has been like this since I bought it 7 years ago. What is the cause to this? Any ideas?
    Putting an OME lift with new leaf packs hopefully soon. If it doesn't fix the problem I'd rather not spend the money. Suspension is shot so I have to replace it either way.

    [​IMG]

  2. Apr 23, 2013 at 8:07 PM
    #2
    Ronn

    Ronn Well-Known Member

    Joined:
    Oct 5, 2010
    Member:
    #44253
    Messages:
    207
    Gender:
    Male
    First Name:
    Ron
    Northern Ontario
    Vehicle:
    2007 DCLB 4x4 SR5
    Westin bullbar, KC slimlites, Mini D2S headlight retrofit, 5100 front @ 1.75 and 5100 rear, Wheelers HD leaf pack

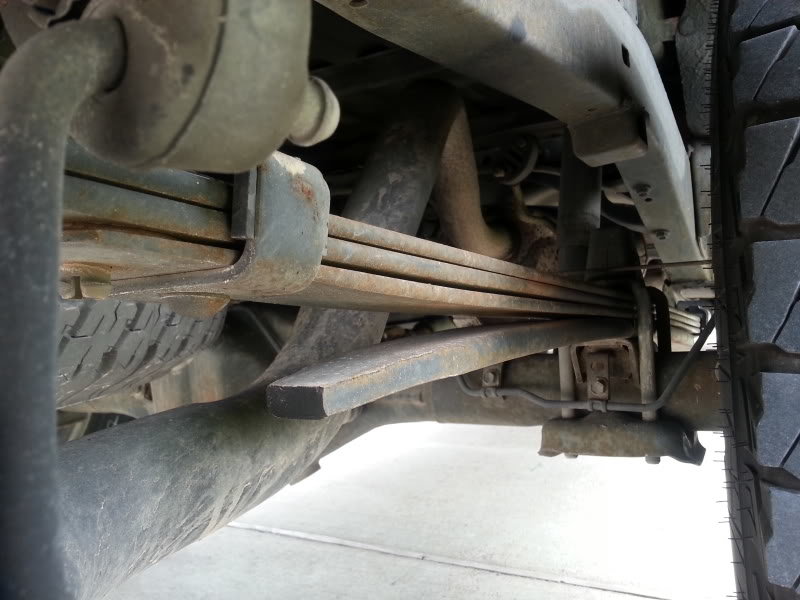

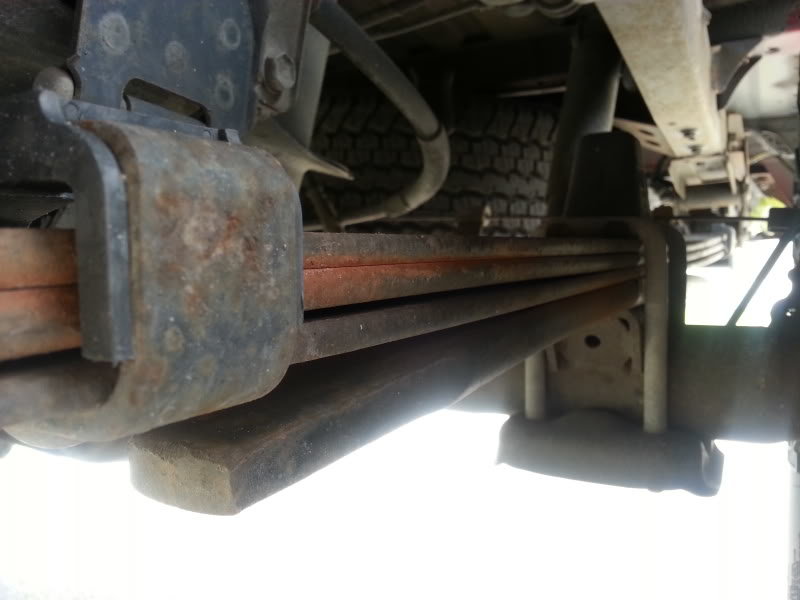

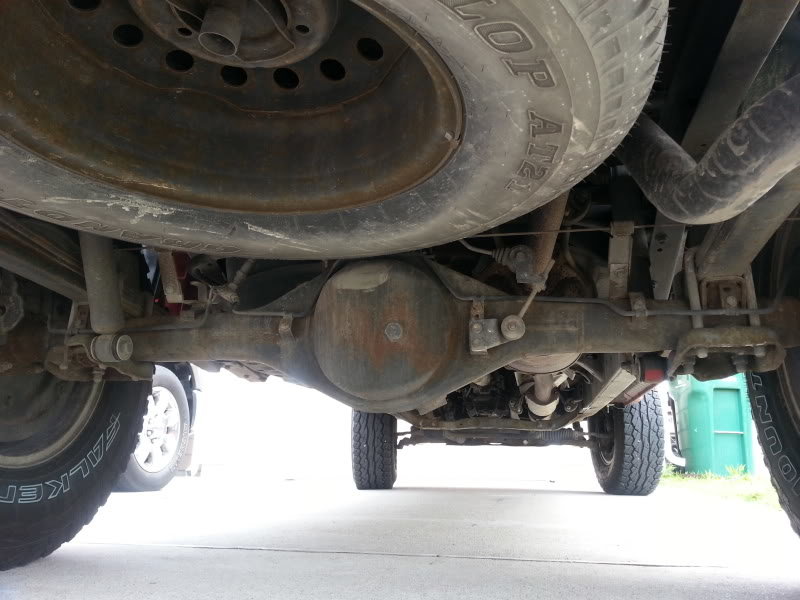

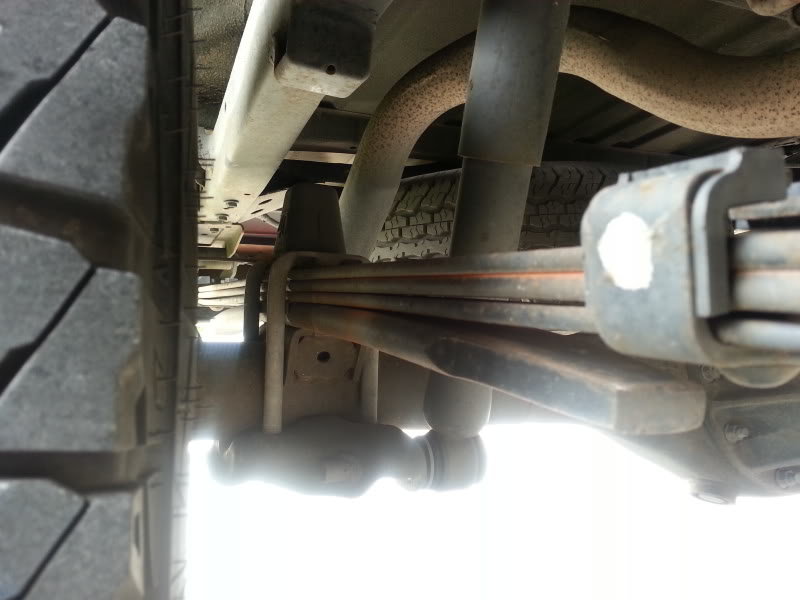

    Post pics from underneath the truck

  3. Apr 23, 2013 at 8:10 PM
    #3
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Anything specific I need to get in the shot or any angles I should be at?

  4. Apr 24, 2013 at 6:29 PM
    #4
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
  5. Apr 24, 2013 at 6:36 PM
    #5
    Boone

    Boone Vaginas are rad.

    Joined:
    Jul 16, 2012
    Member:
    #82731
    Messages:
    5,758
    Gender:
    Male
    First Name:
    Chris
    Boone, NC
    Vehicle:
    '12 DCLB MGM Sport 4x4
    K&N, charcoal filter delete, ABS kill switch, YWM. 5100's @2.5'', Progressive AAL, Wet Okole Covers, Weather Tech Liners, 285/75/16 KM2's, FJ Anthracite Trail Teams, MGM HLM...
    From the pics, looks to be spring issues. Without having detailed frame pics or measurements to look over, go with springs since you said you already plan on doing them. Check it out after and keep us updated.

    And nice ass-mouth. Chit must be custom, no?

  6. Apr 24, 2013 at 6:39 PM
    #6
    Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,110
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    dayam.. those springs are pretty flat.

  7. Apr 25, 2013 at 4:35 PM
    #7
    Ronn

    Ronn Well-Known Member

    Joined:
    Oct 5, 2010
    Member:
    #44253
    Messages:
    207
    Gender:
    Male
    First Name:
    Ron
    Northern Ontario
    Vehicle:
    2007 DCLB 4x4 SR5
    Westin bullbar, KC slimlites, Mini D2S headlight retrofit, 5100 front @ 1.75 and 5100 rear, Wheelers HD leaf pack
    Looks like it could be the springs. There is less distance between the bumpstomp and the frame on the passenger side compared to the drivers side. But, from the original picture the box is off by quite a bit. Almost makes me think box mount. Also do you hear any clunks while going down the road while hitting bumps? A picture of the rear shackles and rear box mount where it attaches to the frame at the very rear would be helpful.

    Last edited: Apr 25, 2013
  8. Apr 25, 2013 at 6:09 PM
    #8
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    13,740
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2007 4.0L 4x4 TRD Sport Access Cab A
    Advantage Torza top (tri-fold), Husky floor mats, RuffTuff seat covers, C2C hood struts, Homelink mirror, USA Spec PA15-Toy (120gig Classic & 8gig nano), Garmin Nuvi 660, Protecta Bed mat, Pop-n-lock, TSB Springs, Scangauge II, Heated drivers seat, Fumoto drain valve, Aries pushbar, PIAA 540 fog lights, Hood scoop grahics, Flowmaster 50 series dual catback exhaust, RainX Latitude windshield wipers, Husky rear floor liner (ontop of folded down seats). Console Vault.
    Take a look at your shackles. One of your shackles could be locked up and not moving freely. Compare both shackles and the positions they are sitting in. They should both look about the same an in the same position on both sides. The shackle bolts and the sleeves inside will often rust together and they can't flex. You may want to jack up the rear end and 'watch' the shackles move up/down as the suspension moves.

    Chances are - when you change your leaf springs, I'm willing to bet you'll have to cut the shackle bolts just to free the shackles. Been there done that...

    Last edited: Apr 25, 2013
  9. Apr 26, 2013 at 5:35 AM
    #9
    Mossy

    Mossy Mechanic for Honda

    Joined:
    Dec 31, 2012
    Member:
    #94122
    Messages:
    580
    Gender:
    Male
    First Name:
    billy
    san antonio, TX
    ProComp lift Borla exhaust Borla air filter Nfab bars
    Could be the frame. Mine looked like that too and I could never get the alignment right, took it to the body shop and had it put on frame machine. Got bad news that day!!! Mine was bent all over the place. Called my insurance and they bought the truck because the frame guy wasn't sure if he could get it completely straight

  10. Apr 26, 2013 at 11:54 AM
    #10
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner

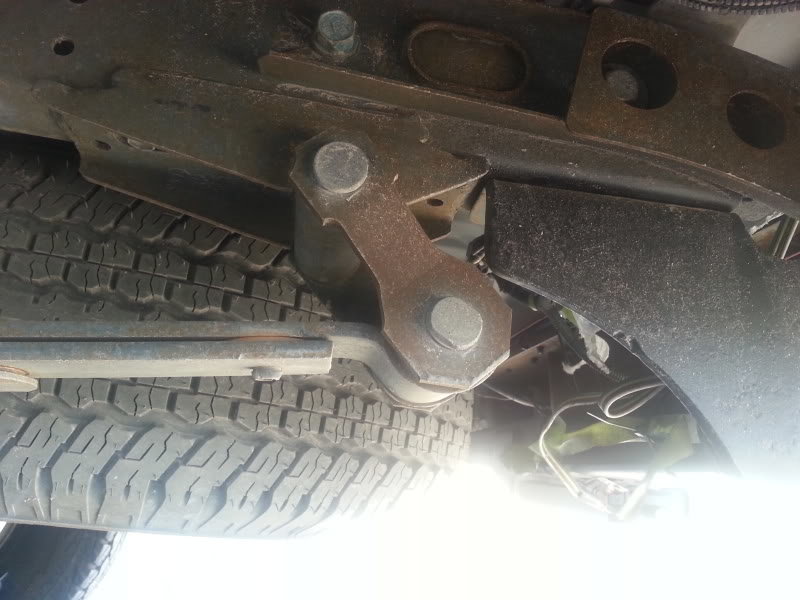

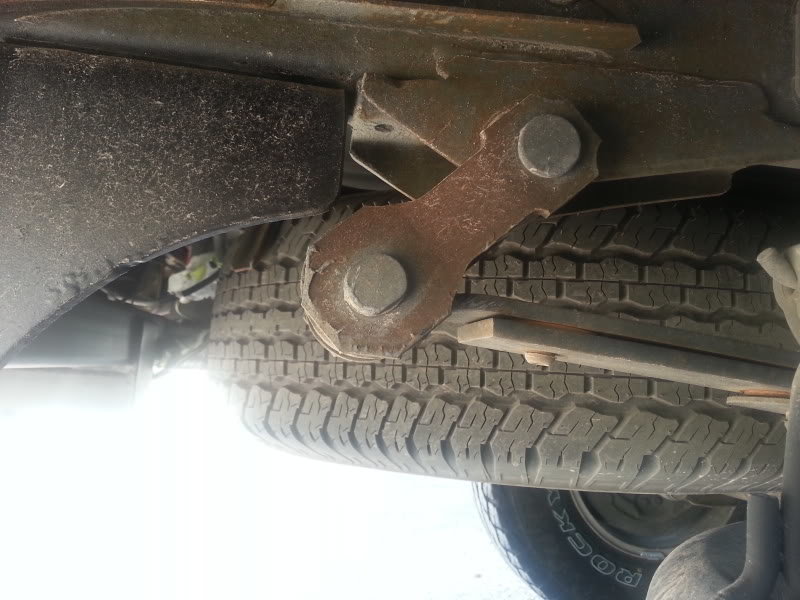

    So here is a pic of the shackles. They look the same ro me. Should I get new ones when I redo the suspension?


    [​IMG]

    [​IMG]

  11. Apr 28, 2013 at 6:42 AM
    #11
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Come on guys I need some help here please.
    If this is just a suspension issue then I'll get the 3" OME lift I want. If it's a twisted frame then I'm gunna keep it stock.
    Need to replace the suspension ASAP.

  12. Apr 28, 2013 at 7:06 PM
    #12
    Ronn

    Ronn Well-Known Member

    Joined:
    Oct 5, 2010
    Member:
    #44253
    Messages:
    207
    Gender:
    Male
    First Name:
    Ron
    Northern Ontario
    Vehicle:
    2007 DCLB 4x4 SR5
    Westin bullbar, KC slimlites, Mini D2S headlight retrofit, 5100 front @ 1.75 and 5100 rear, Wheelers HD leaf pack
    I responded the other day but for whatever reason my post didn't show up. I think it's that passenger side leaf spring. The shackle looks like it's pushed back further than the drivers side. Same principle as a leaf flexing, it becomes flat(longer) and pushes the shackle back. In your case the spring looks worn out(more flat) and is pushing the shackle back. I don't think it's a case of a mount being rusted because the underneath of your truck looks pretty decent.

    The only way to find out if you have a twisted frame is to obtain the OEM specifications for the frame(the factory service manual should have that) and get underneath the truck and measure. It will list specific spots on the frame and what the distance should be. How does the truck drive? Pretty straight or does it pull?

    Last edited: Apr 28, 2013
  13. Apr 28, 2013 at 7:33 PM
    #13
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    I'm thinking it's the shackle and the spring. Smaller gap on the passenger side comapred to driver side.
    The truck drives straight and never had any issues with alignment.
    Now to compile a list of parts I need for the lift!!

  14. Apr 28, 2013 at 7:40 PM
    #14
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

    Calm down man !!....:) Looking at the rear its pretty obvious that your springs need help, what I find strange is that its the pass. side thats drooped out & not the dr. side, hmm interesting, anyway your pass. spring is more fatigued, but both surely have linear warping you can see it, your choices are to rebuild it, with either a standard AAL (probably short term fix) custom build your springs (permanent fix) or name brand springs (permanent fix) most will tell you to just fork out the $$$$$$$$ for new set. which ever way you go you need to educate yourself so you can make an informed choice to fit your needs

  15. Apr 28, 2013 at 7:41 PM
    #15
    Ronn

    Ronn Well-Known Member

    Joined:
    Oct 5, 2010
    Member:
    #44253
    Messages:
    207
    Gender:
    Male
    First Name:
    Ron
    Northern Ontario
    Vehicle:
    2007 DCLB 4x4 SR5
    Westin bullbar, KC slimlites, Mini D2S headlight retrofit, 5100 front @ 1.75 and 5100 rear, Wheelers HD leaf pack
    My money is down on that :thumbsup: let us know how it turns out!

  16. Apr 28, 2013 at 7:44 PM
    #16
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    yup, spring issue. Mine were that flat at 160k when I replaced them.

  17. Apr 28, 2013 at 7:45 PM
    #17
    teamamerica

    teamamerica Get off your horse and drink your milk.

    Joined:
    Oct 19, 2012
    Member:
    #89345
    Messages:
    728
    Gender:
    Male
    az
    Vehicle:
    2012 tundra rockwarrior
    none yet
    how long has it been like that? and have you done anything worthy of twisting the frame? if it's just lived it's life as a street truck and you havnt been in any major accident, it's 99% the suspension.

  18. Apr 28, 2013 at 7:52 PM
    #18
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    I bought the truck in 06 I think and no accidents with me behind the wheel. I was in an accident before but don't know what.
    Oh yeah, I'm Going with an OME 3" lift w/Dakar leaf pack.
