BAMF 3rd Gen Grille insert install

Discussion in 'Bay Area Metal Fabrication' started by JLee, May 16, 2016.

  1. May 16, 2016 at 11:17 AM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,291
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Here are the installation instructions for installing in drop in grille insert.

    Tools needed

    small ratchet.
    10mm socket
    11/32 socket
    T 20 torx
    Flat head and Phillips screw driver

    Step 1

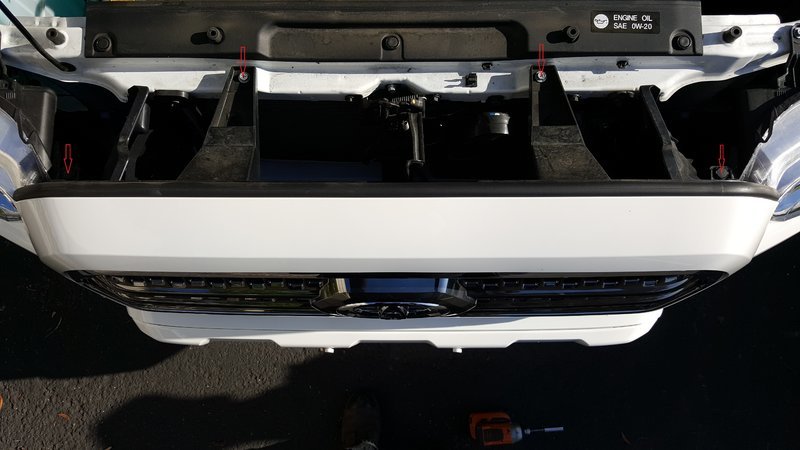

    Remove the grille from the truck by simply removing the two bolts on the top of the picture with the 10mm socket and the two push pins at the lower section of the picture.

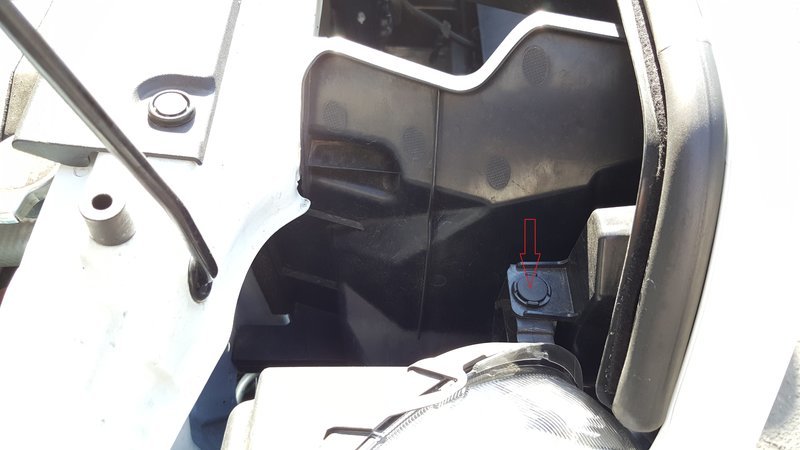

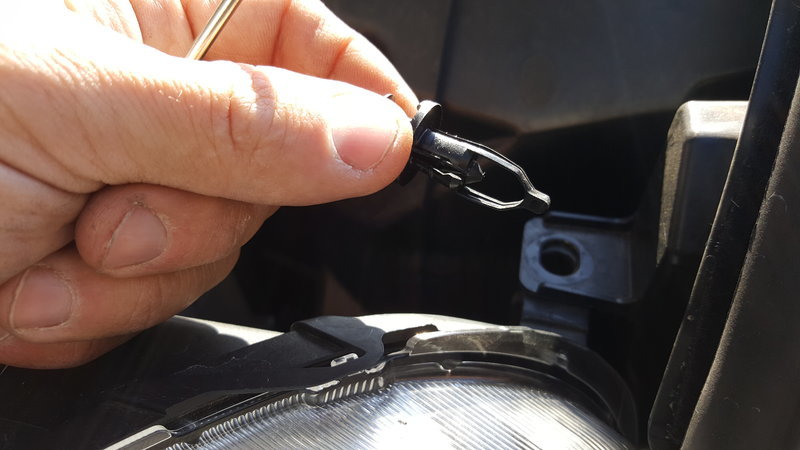

    Close up of the locking push pins.

    Don't pry the whole thing up just the little round tab.

    And then they just pull out.

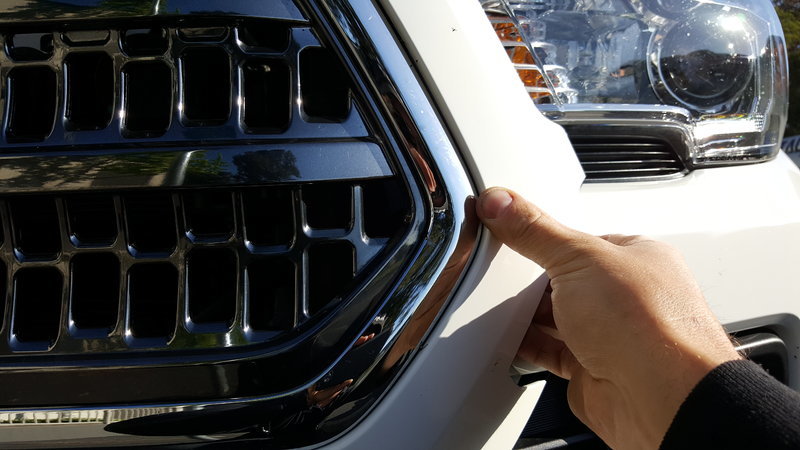

    Then just grab the side of the grille and pull firmly the grille should just pop off.

    Step 2

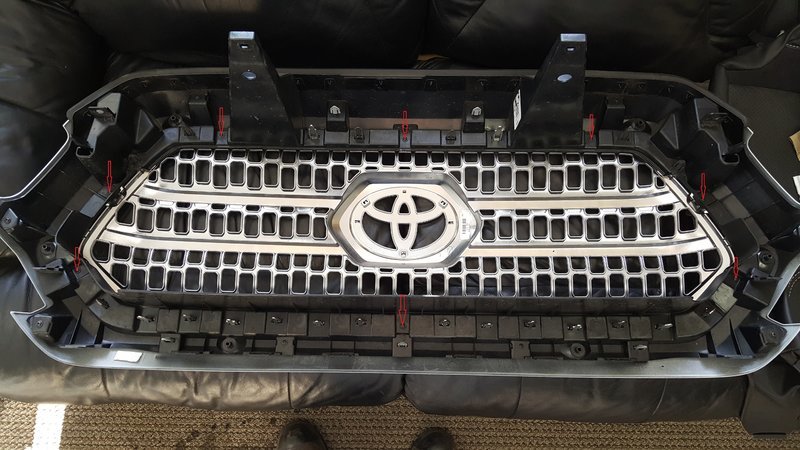

    Once the grille is removed set it on a clean surface and remove these screws.


    Now that the screws are out you will need to start popping out the insert and bezel.

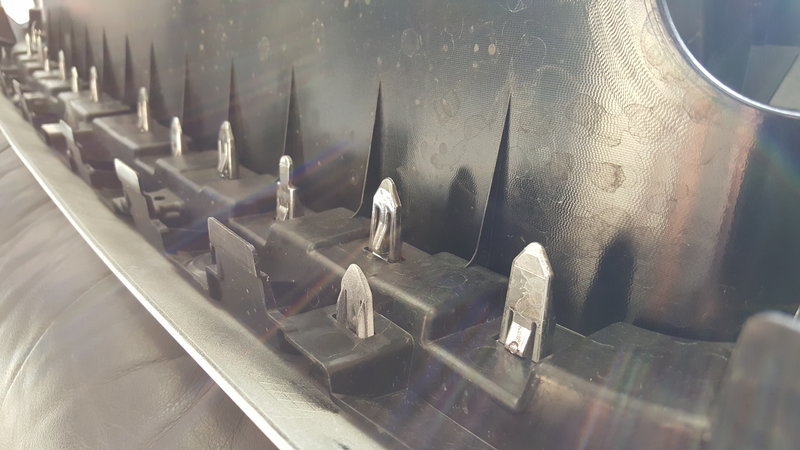

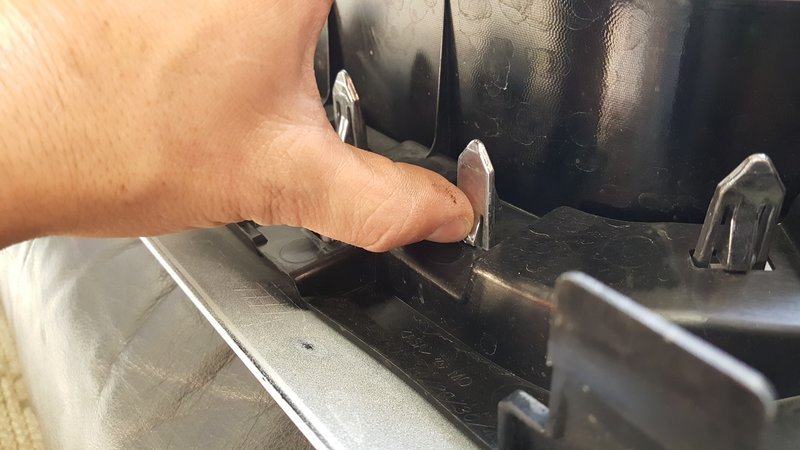

    Just apply slight pressure wile pulling from the front of the grille one tab at a time starting with the bezel tabs first. Work your way around the grille being careful not to snap off one of the tabs.

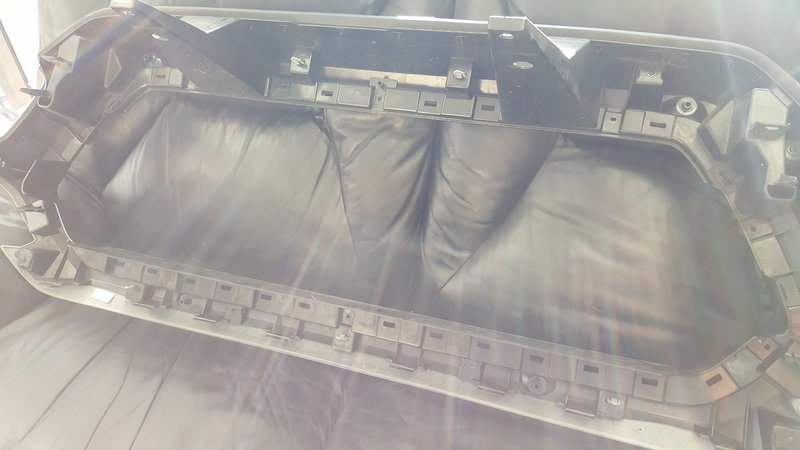

    Once removed it should look like that.

    Step 3
    The next steps is to install the rubber grommets, drop the BAMF insert in and bolt it up with the supplied hardware. NOTE all you need to do is get it snug over tightening the bolts will only cause deformation of the factory surround, the insert or both. you have to do some pulling to get the insert to pop in its a very snug fit so put one end in and pull the surround not the other side to allow the room to pop it in.

    The insert is cold rolled mild steel if you scratch the coating you will need to touch it up or it will rust. The mounting bolts can cut into the coating if not installed with caution.

    We also have 3 reports of the factory plastic surround getting a stress crack over time. Additional steps may be needed to prevent this from happening.

    There is a little notch in the plastic that is a fatigue point that might need to be reinforced from the back side to support the insert. More so in extreamly cold areas of the country.

    Here is a fiber glass repair kit that could be used on the back side of the plastic
    surround to strengthen the weak areas prone to cracking. https://www.amazon.com/3M-Fiberglas...-1&keywords=bondo+fiberglass+resin+repair+kit


    The grille is pushing 15lbs and very ridged from it's design and wont flex like the plastic. If off roading/Hard driving the plastic can fatigue as well causing the plastic clips that mount the grille to break.


    Rubber grommet install.

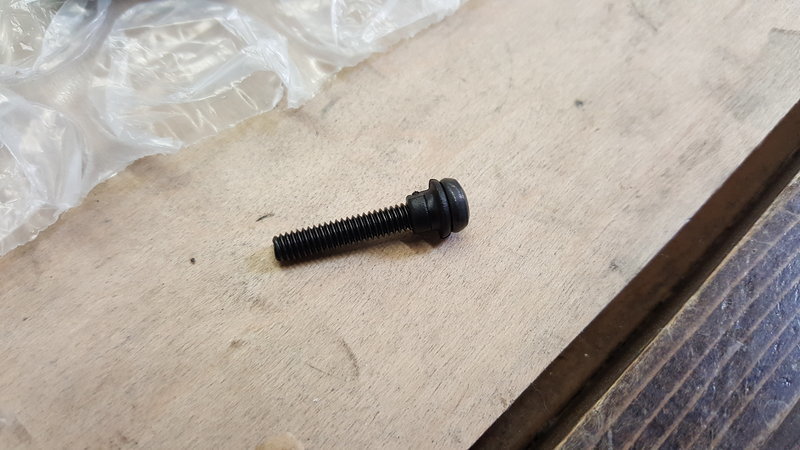

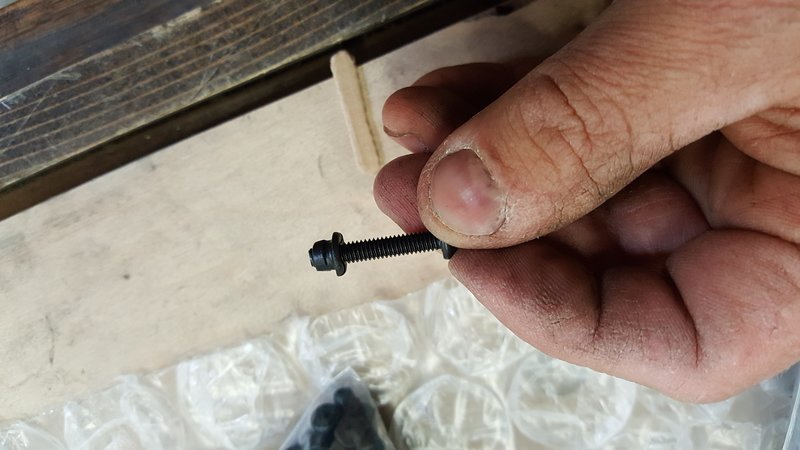

    Thread them into the bolts like so.

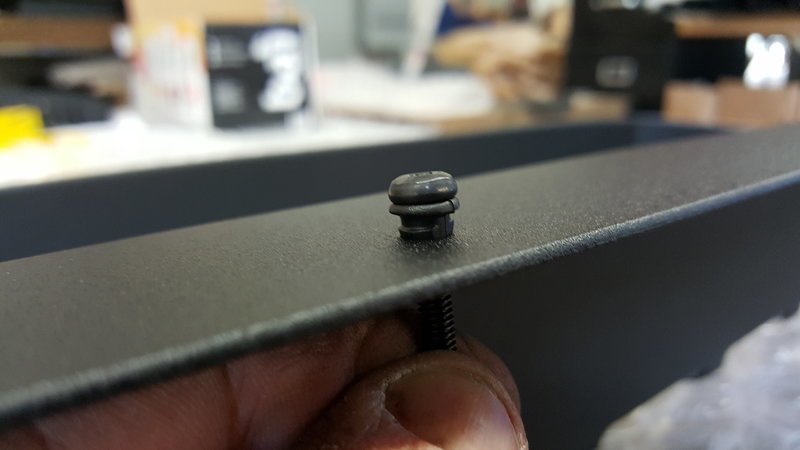

    After the grommets are installed wiggle the bolts into place on the insert holes. They take some effort on take your time. just wiggle back and fourth and turn they will pop in.

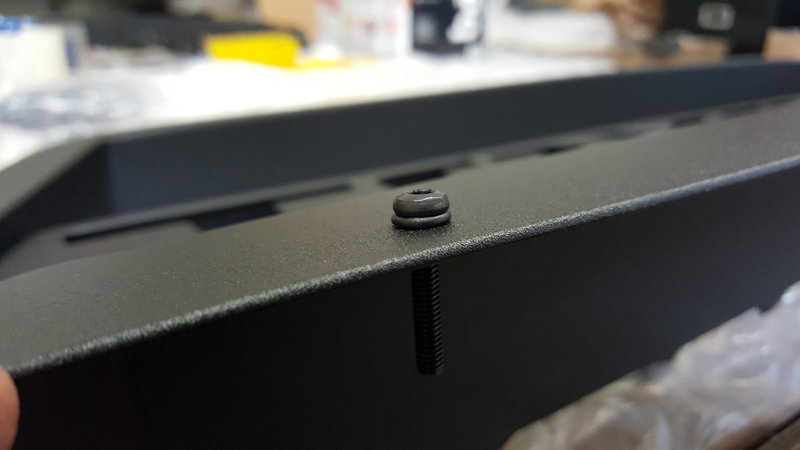

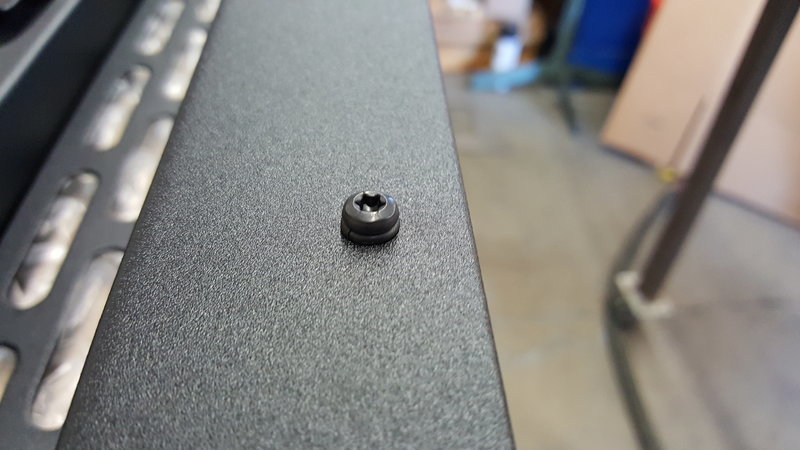

    This is fully seated

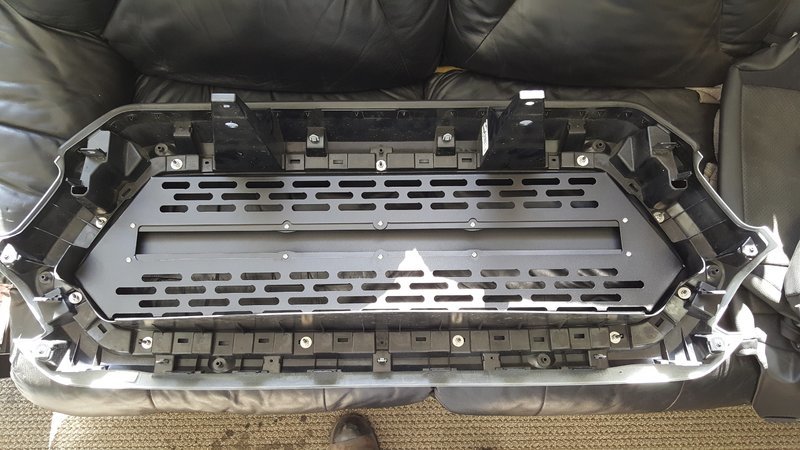

    Now you can bolt it up.

    Once the inset is bolted into place re-install the grille back into the truck.

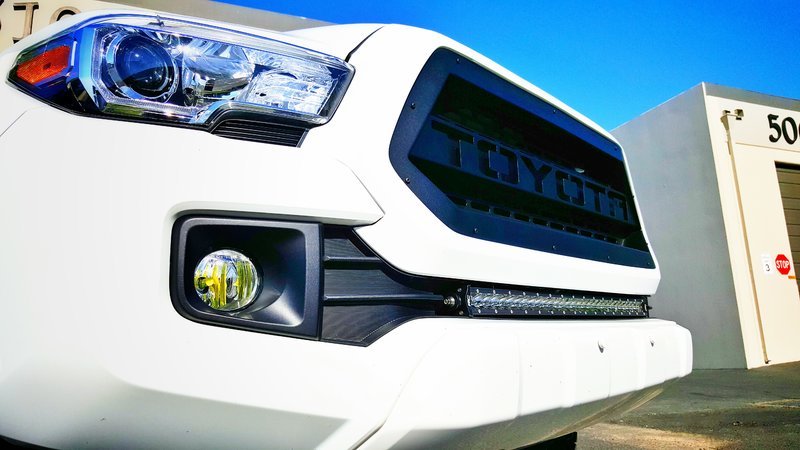

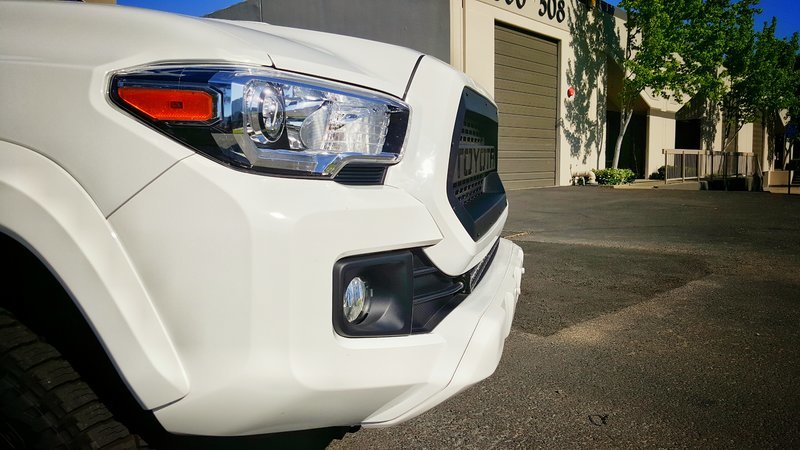

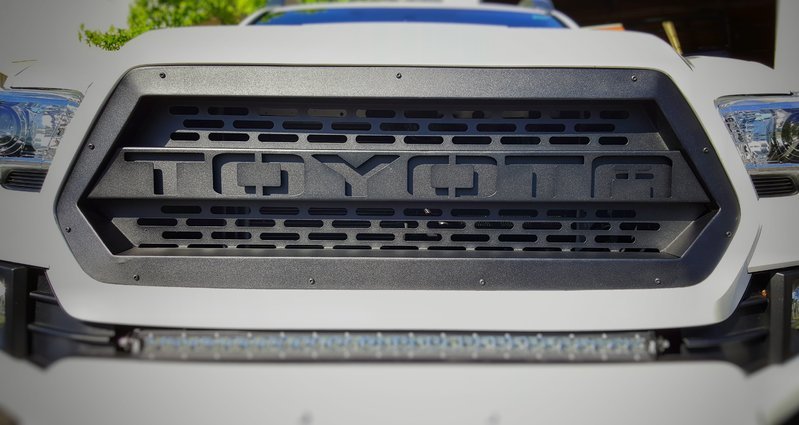

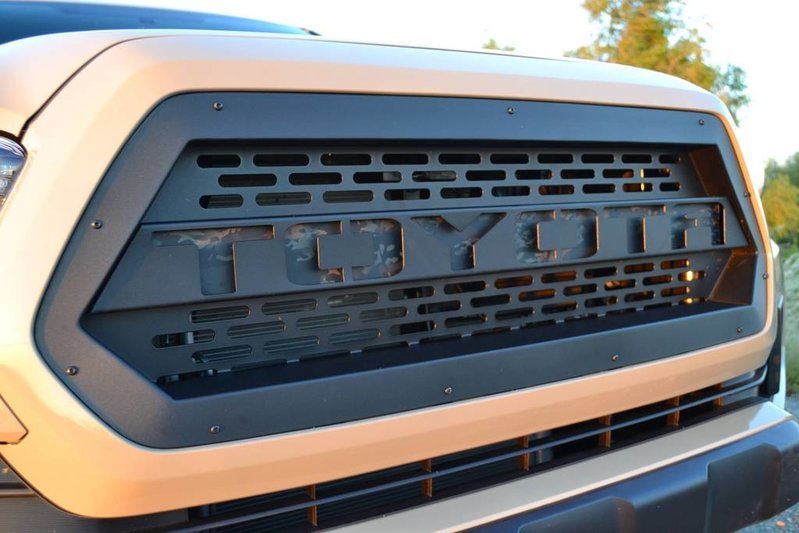

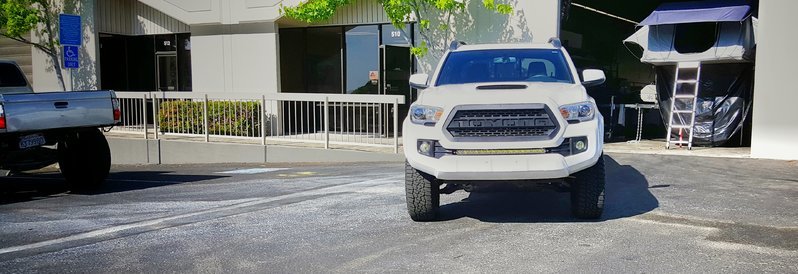

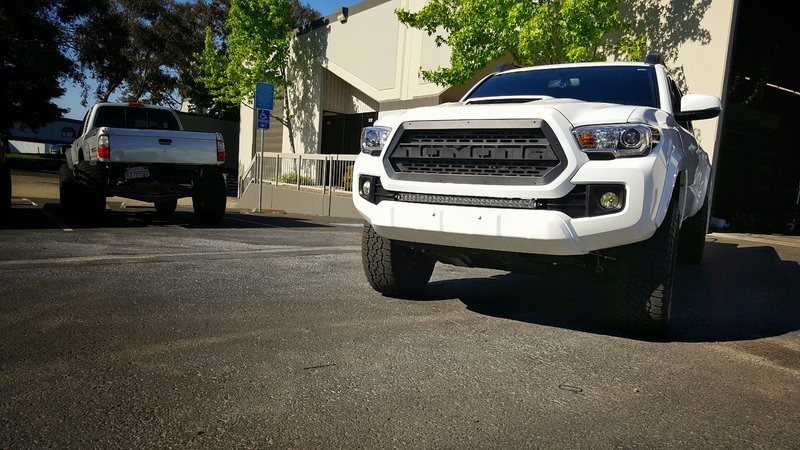

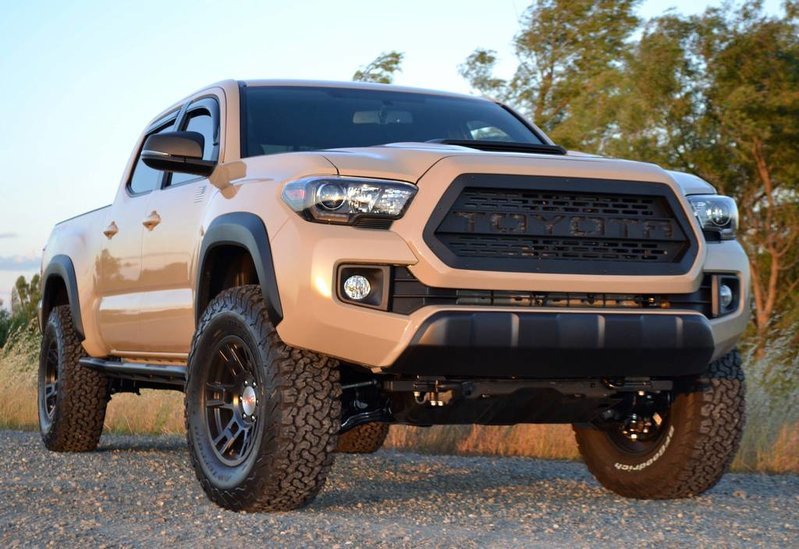

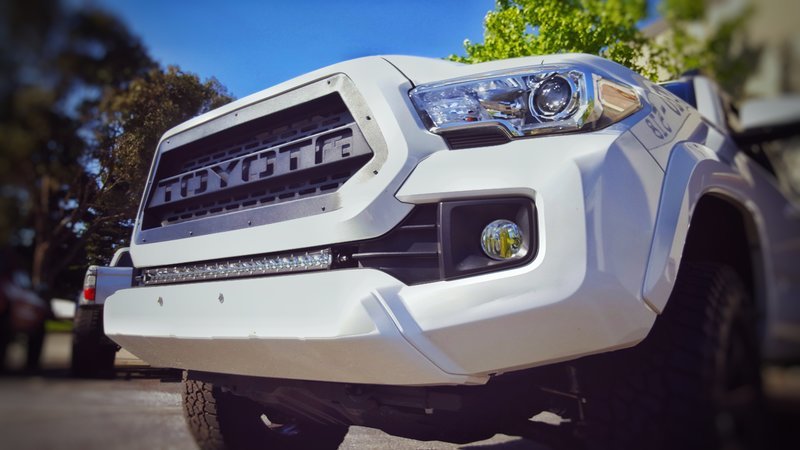

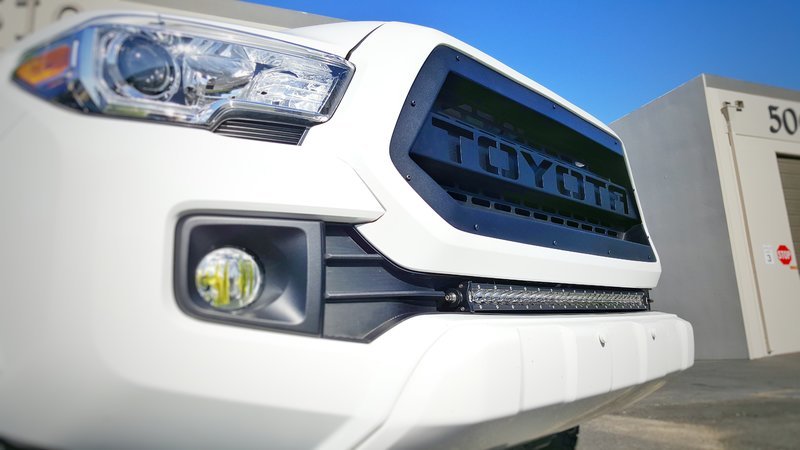

    And another awesome install!

    Last edited: Feb 23, 2017
  2. May 16, 2016 at 12:43 PM
    #2
    madsand

    madsand wanderer

    Joined:
    Oct 26, 2012
    Member:
    #89874
    Messages:
    3,357
    Gender:
    Male
    First Name:
    sandz
    Costa Mesa, CA
    Vehicle:
    2012 DBLCB LB sports 4x4 SC
    Icon 2.5" Remote Reservoir Extended Travel CDCV Icon tubular UCA Icon add a leaf Method NV wheels Nitto trail grappler MT 285/70/17 Weather Tech floor mat All Pro rock slider
    Oh wow that's bitchin! Nice work OP!

  3. May 17, 2016 at 5:08 AM
    #3
    SOSHeloPilot

    SOSHeloPilot My 1st Muscle Car

    Joined:
    Mar 31, 2009
    Member:
    #15422
    Messages:
    6,448
    Gender:
    Male
    U.S.A.
    Vehicle:
    2021 RAV4, XLE & 2020 C-HR
    Missing My Last Tacoma --- Had 12 Toyota trucks in the past and many other Toyota cars too.
    .
    ... ^^^ ... Nice Grille and writeup
    .

    Taco Fan likes this.
  4. May 17, 2016 at 5:11 AM
    #4
    Dhugh00s

    Dhugh00s Active Member

    Joined:
    Mar 20, 2016
    Member:
    #181791
    Messages:
    42
    Gender:
    Male
    First Name:
    Dustin
    Little rock ar
    Vehicle:
    2016 Tacoma dbl cab SR5 Inferno
    3 ready lift 20 inch rockstar2 with ko2 katzkin black with orange stitching and orange perforated inserts
    Can't wait to install my own this Grille really sets the front off

  5. May 18, 2016 at 9:12 AM
    #5
    007TRUCK

    007TRUCK Well-Known Member

    Joined:
    Dec 15, 2014
    Member:
    #144338
    Messages:
    597
    Gender:
    Male

    Ohhhh yeah!!!

  6. May 27, 2016 at 5:17 PM
    #6
    dragonle87

    dragonle87 Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67492
    Messages:
    88
    Gender:
    Male
    Atlanta, GA
    Vehicle:
    '13 DCLB TRD Sport
    LOOKS FREAKING AWESOME.
    No 2nd Gen Though? :(

  7. May 27, 2016 at 5:20 PM
    #7
    bwonger

    bwonger Unknown Member

    Joined:
    Oct 7, 2015
    Member:
    #166048
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Brian
    Santa Barbara, CA
    Vehicle:
    2016 DCSB 4x4 OR Super White
    Whelp. Guess you have to buy a third Gen to go with the grill!

    Heepspo and imbushman! like this.
  8. Jun 4, 2016 at 4:33 PM
    #8
    dragonle87

    dragonle87 Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67492
    Messages:
    88
    Gender:
    Male
    Atlanta, GA
    Vehicle:
    '13 DCLB TRD Sport
    This may sound corny.... But add some type of lights behind the TOYOTA grille where it light up the words?

    betoman, G-Force and Taco Fan like this.
  9. Jun 8, 2016 at 1:03 PM
    #9
    Skeeter42

    Skeeter42 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188300
    Messages:
    135
    Gender:
    Male
    Colorado
    Vehicle:
    2017 TRD OR DCSB 4WD Quicksand (MT)
    Is the color choice insert, the piece visible through toyota/tacoma lettering cut out, removable? Say, if I wanted to paint the insert a different color at a later date...

  10. Jun 8, 2016 at 1:48 PM
    #10
    Dhugh00s

    Dhugh00s Active Member

    Joined:
    Mar 20, 2016
    Member:
    #181791
    Messages:
    42
    Gender:
    Male
    First Name:
    Dustin
    Little rock ar
    Vehicle:
    2016 Tacoma dbl cab SR5 Inferno
    3 ready lift 20 inch rockstar2 with ko2 katzkin black with orange stitching and orange perforated inserts
    Yes

  11. Jul 19, 2016 at 2:35 PM
    #11
    Mmaneen

    Mmaneen Active Member

    Joined:
    Nov 17, 2015
    Member:
    #169905
    Messages:
    28
    Gender:
    Male
    First Name:
    Matthew
    Vehicle:
    2016 Taco OR

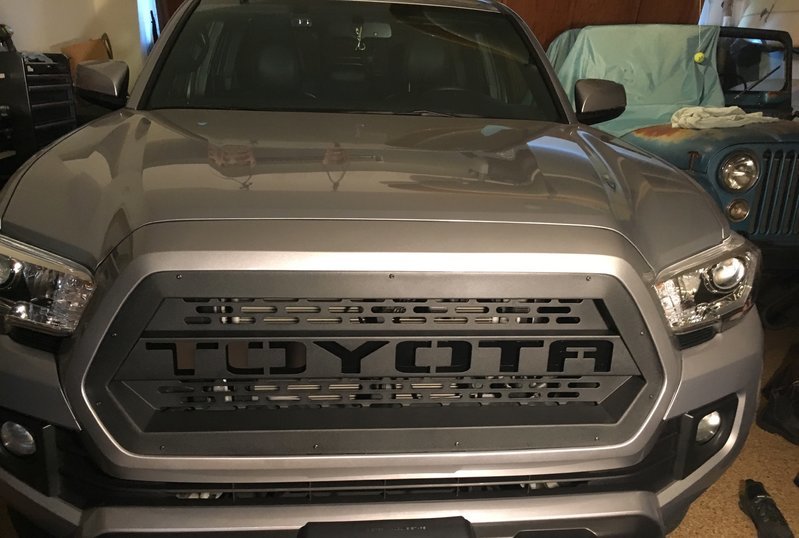

    Bad picture...outstanding grill. Super happy with the flat black on gloss black lettering.


    lpfe42, Jaggerbub, RBfastback and 2 others like this.
  12. Jul 19, 2016 at 2:38 PM
    #12
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,291
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Looks great on the sliver truck I'm glad people are choosing contracting colors from their truck color :thumbsup:

  13. Jul 20, 2016 at 6:34 PM
    #13
    UrbanT@co

    UrbanT@co Taco FANatic

    Joined:
    Nov 17, 2015
    Member:
    #169949
    Messages:
    3,915
    Gender:
    Male
    First Name:
    Craig
    Bay Area
    Vehicle:
    '16 DCSBOR 4x2
    * BAMF Grille *50% tint driver/passenger front window * NFAB steps * Bakflip F1 tonnaeu * Bed extender * Bed mat * Weathertech digital floor mats * Black reflective Tacoma tailgate decal

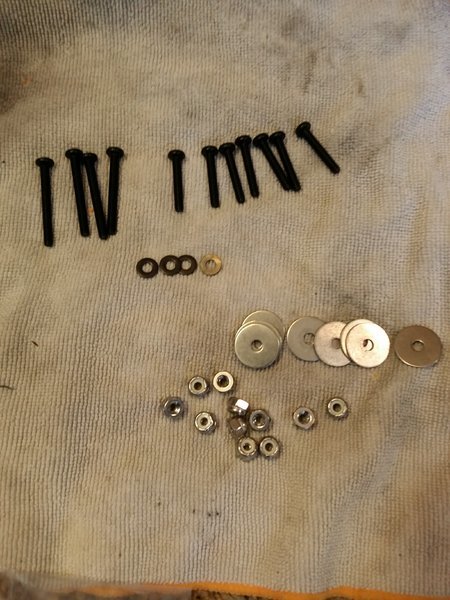

    Is there specific holes that use the longer screws? And what do I do with the small black washers?


  14. Jul 20, 2016 at 6:59 PM
    #14
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,291
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Yes on the top and bottom of the grille the holes on edge. You will see the other ones are too short for those locations. The small washers are for spots that you can't fit the fender wagers. You can also sand the fender washers down to fit if you like.

  15. Jul 20, 2016 at 7:00 PM
    #15
    UrbanT@co

    UrbanT@co Taco FANatic

    Joined:
    Nov 17, 2015
    Member:
    #169949
    Messages:
    3,915
    Gender:
    Male
    First Name:
    Craig
    Bay Area
    Vehicle:
    '16 DCSBOR 4x2
    * BAMF Grille *50% tint driver/passenger front window * NFAB steps * Bakflip F1 tonnaeu * Bed extender * Bed mat * Weathertech digital floor mats * Black reflective Tacoma tailgate decal
    Thank you.

  16. Jul 20, 2016 at 9:35 PM
    #16
    Schumacher-Roofing

    Schumacher-Roofing New Member

    Joined:
    Jul 20, 2016
    Member:
    #192511
    Messages:
    2
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2016 TRD Sport
    6 inch lift, 20 in rims
    I have a TRD sport in silver. That's great looking. Where did you purchase that grill?

  17. Jul 20, 2016 at 9:45 PM
    #17
    UrbanT@co

    UrbanT@co Taco FANatic

    Joined:
    Nov 17, 2015
    Member:
    #169949
    Messages:
    3,915
    Gender:
    Male
    First Name:
    Craig
    Bay Area
    Vehicle:
    '16 DCSBOR 4x2
    * BAMF Grille *50% tint driver/passenger front window * NFAB steps * Bakflip F1 tonnaeu * Bed extender * Bed mat * Weathertech digital floor mats * Black reflective Tacoma tailgate decal
    Hey Jim. Here's the link.

  18. Jul 20, 2016 at 9:53 PM
    #18
    Schumacher-Roofing

    Schumacher-Roofing New Member

    Joined:
    Jul 20, 2016
    Member:
    #192511
    Messages:
    2
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2016 TRD Sport
    6 inch lift, 20 in rims
  19. Jul 20, 2016 at 10:17 PM
    #19
    MTNHABITOVERLAND

    MTNHABITOVERLAND Well-Known Member

    Joined:
    Feb 4, 2016
    Member:
    #231542
    Messages:
    1,594
    Gender:
    Female
    Vehicle:
    2016 Tacoma Camper Build Instagram: @mountainhabit
    Vagabond Outdoors Camper
    Ermagerd...I can't wait!!!

  20. Nov 21, 2016 at 1:06 PM
    #20
    Steinkek

    Steinkek Well-Known Member

    Joined:
    Nov 9, 2013
    Member:
    #116217
    Messages:
    116
    Gender:
    Male
    First Name:
    Kris
    Bend,OR
    Yes!!!! So stoked to have this on the truck!
