Discussion in '1st Gen. Builds (1995-2004)' started by bayareataco, Jul 21, 2013.

Page 50 of 79
  1. May 14, 2016 at 6:39 PM
    #981
    Qrtrtilt

    #981
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.

    Thanks dood. I am getting better always room for improvement.

    Qrtrtilt, May 14, 2016
    #981
    omaguz likes this.
  2. May 14, 2016 at 6:50 PM
    #982
    Qrtrtilt

    #982
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.

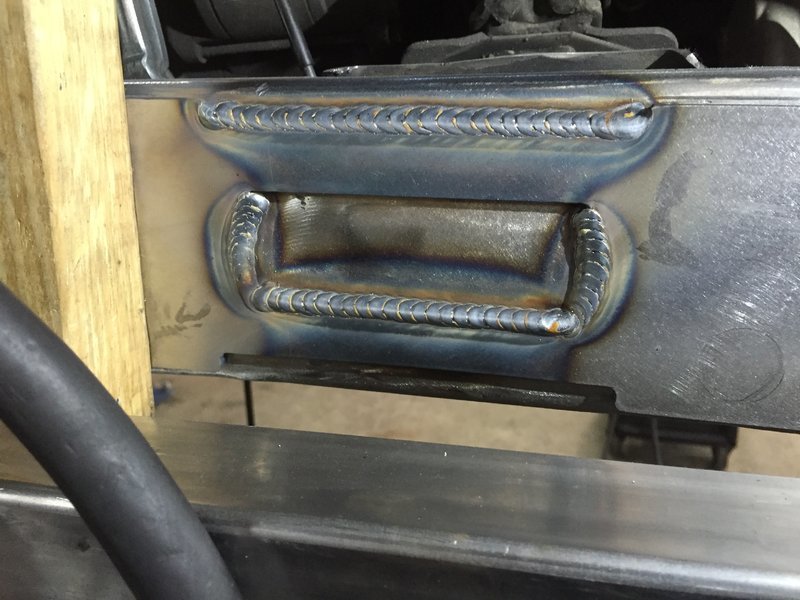

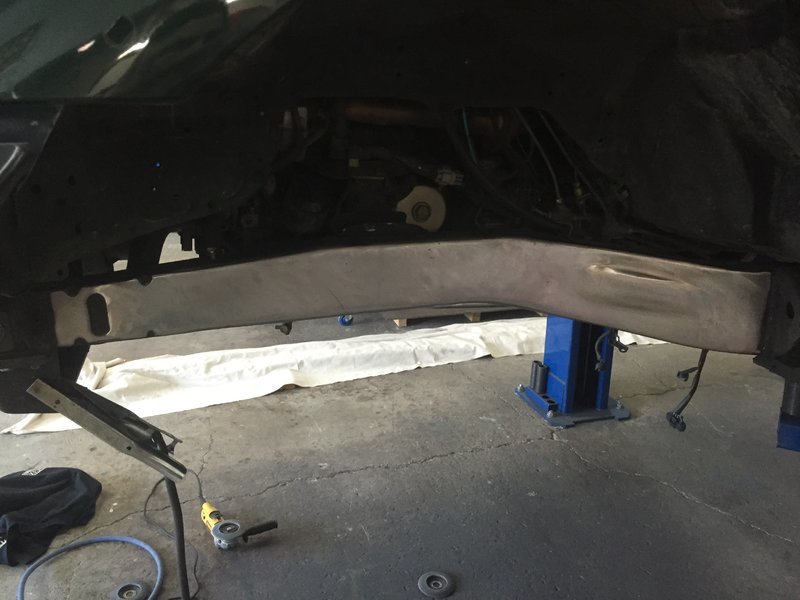

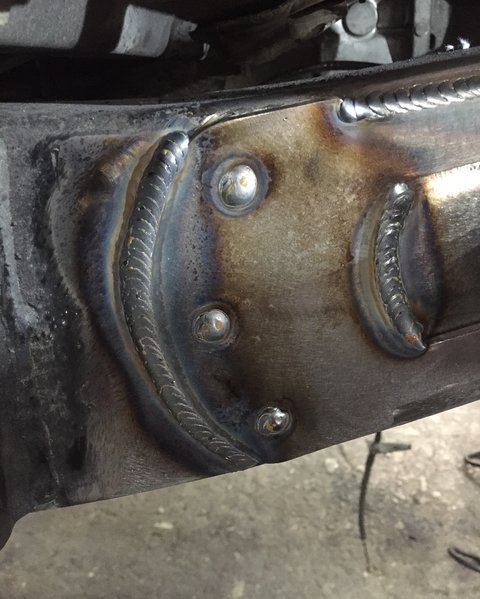

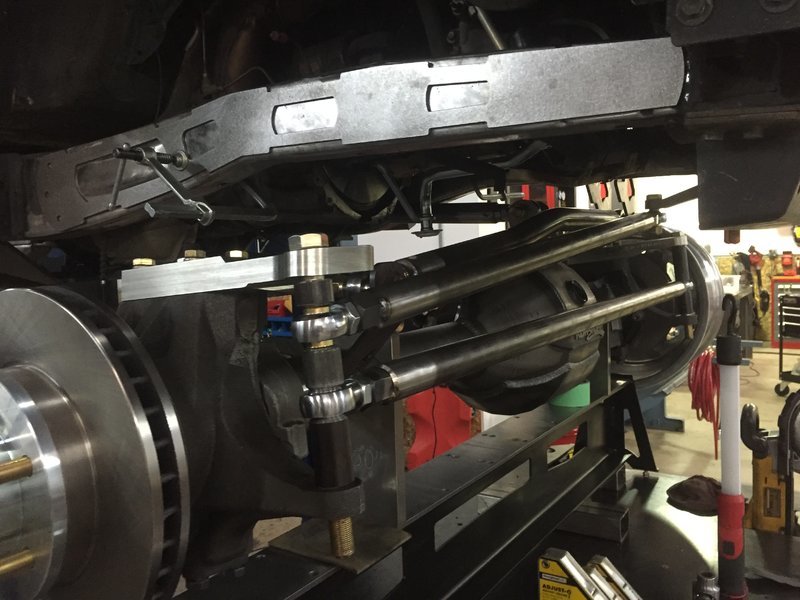

    Ok so here's some tech for a few folks asking how this thing was built. This the frame plate I designed and built. First step was to completely rid the frame of all ifs components. Both inside and out. I did so with a hypertherm 30 plasma. I am good with the plasma but not good enough To not gouge or blow threw in few spots. So after I ground all the frame flat. I tack welded up all the low spots and the areas I had poked thru. I also went threw and patched and plug welded all the factory holes. I knew I had frame plates going on and didn't want to have a edge land on a factory hole. The plates are 10 Ga pickled and oiled 1018 steel. I used 10 ga because the factory frame is also 10 ga which measures out to .134 which is a tad thicker then 1/8". So combined my new outer frame rail is .268 slightly thicker then 1/4". Which combined with the fully boxed frame the shock tower and future potential of a engine cage I felt it was more then enough. I also designed the edges of these plates to have "steps" as to break up a full 48" long weld and so I could weld in sequences keeping the factory frame from pretzeling.



    Last edited: May 14, 2016
    Qrtrtilt, May 14, 2016
    #982
    stumbles, SCSPerformance, bayareataco[OP] and 13 others like this.
  3. May 14, 2016 at 6:55 PM
    #983
    Fernando

    #983
    Fernando Hammerdown

    Joined:
    Aug 25, 2012
    Member:
    #85507
    Messages:
    23,448
    Gender:
    Male
    First Name:
    Fernando
    Sacramento
    Vehicle:
    04 Tacoma DC 4x4
    Too many, See Build
    Those welds give me a boner

    Fernando, May 14, 2016
    #983
    Large, Qrtrtilt, TacoVio and 2 others like this.
  4. May 14, 2016 at 8:42 PM
    #984
    Nickel

    #984
    Nickel Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91659
    Messages:
    1,345
    Gender:
    Male
    First Name:
    Diego
    Rio Rancho New Mexico
    Vehicle:
    2013 T/X TRD
    does turning tires to black wall out count? How bout added snug top rebel.
    Wow! What incredible work!

    Nickel, May 14, 2016
    #984
    Qrtrtilt likes this.
  5. May 15, 2016 at 4:36 AM
    #985
    mach1man001

    #985
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    NOICE

    mach1man001, May 15, 2016
    #985
    Qrtrtilt likes this.
  6. May 15, 2016 at 8:57 PM
    #986
    Broke Okie Ty

    #986
    Broke Okie Ty Well-Known Member

    Joined:
    Aug 27, 2014
    Member:
    #137043
    Messages:
    1,136
    Gender:
    Male
    First Name:
    Ty
    California/Oregon/ Now in Montana
    Vehicle:
    01 trd with some stuff
    Armor, winch, other stuff
    I might have missed it but are you making and selling those frame plates?

    Broke Okie Ty, May 15, 2016
    #986
  7. May 16, 2016 at 8:16 AM
    #987
    Qrtrtilt

    #987
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.

    I do make these in house and per order
    I was thinking about offering them as a kit. Both in 1/8" and 3/16". All Cnc cut The driver side includes the steering box mount and machined sleeves. I need to make a few tweaks so they can be a bit more universal. If you're interested shot me a message. :thumbsup:

    Qrtrtilt, May 16, 2016
    #987
    Bentrodder likes this.
  8. May 16, 2016 at 8:35 AM
    #988
    Qrtrtilt

    #988
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.

    Thanks guys.

    Qrtrtilt, May 16, 2016
    #988
  9. May 16, 2016 at 8:37 AM
    #989
    Qrtrtilt

    #989
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.
    Hahaha:rofl:

    Qrtrtilt, May 16, 2016
    #989
  10. May 16, 2016 at 8:46 AM
    #990
    mach1man001

    #990
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma

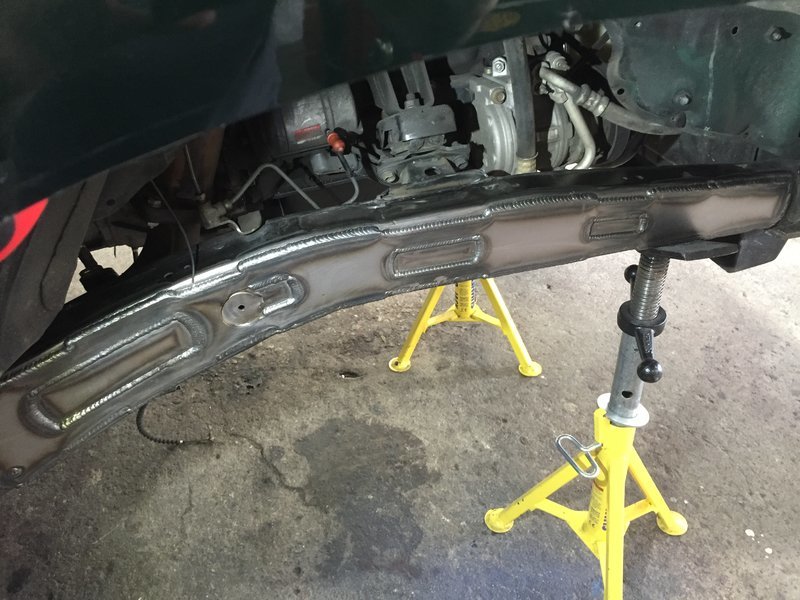

    Quick question. Are those plates fully welded on? Looks like it in this picture but I don't see any welds around the circle

    [​IMG]

    mach1man001, May 16, 2016
    #990
  11. May 16, 2016 at 8:52 AM
    #991
    Qrtrtilt

    #991
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.
    The circle is where the shock hoop will mount. I fabricated all the parts then weld out. The shock hoop and gussets are on the bench now getting tig welded together then I'll weld them to the frame.

    Qrtrtilt, May 16, 2016
    #991
  12. May 16, 2016 at 8:53 AM
    #992
    mach1man001

    #992
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    :thumbsup: got it. Are you bracing the shock hoop from the rear too?

    mach1man001, May 16, 2016
    #992
  13. May 16, 2016 at 8:56 AM
    #993
    Qrtrtilt

    #993
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.
    As in a cross brace over the motor?

    Qrtrtilt, May 16, 2016
    #993
  14. May 16, 2016 at 9:06 AM
    #994
    mach1man001

    #994
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    Yeah that's one way to do it. Others just send a piece down to the frame/crossmember

    mach1man001, May 16, 2016
    #994
  15. May 16, 2016 at 9:07 AM
    #995
    mach1man001

    #995
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    Like this

    [​IMG]

    mach1man001, May 16, 2016
    #995
  16. May 16, 2016 at 9:28 AM
    #996
    Qrtrtilt

    #996
    Qrtrtilt Well-Known Member

    Joined:
    Jan 15, 2015
    Member:
    #146411
    Messages:
    141
    Gender:
    Male
    First Name:
    Cody
    Petaluma
    Vehicle:
    84 first gen
    Cut up and sitting in a pile waiting for me.
    Both sides of the shock hoop
    Have large .25" plate gussets that span the width of the frame.

    Qrtrtilt, May 16, 2016
    #996
  17. May 16, 2016 at 10:02 AM
    #997
    mach1man001

    #997
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    Sweet

    mach1man001, May 16, 2016
    #997
  18. May 17, 2016 at 8:38 AM
    #998
    bayareataco

    #998
    bayareataco [OP] Well-Known Member

    Joined:
    Aug 15, 2012
    Member:
    #84860
    Messages:
    3,503
    Gender:
    Male
    First Name:
    Jimmy
    Petaluma
    Vehicle:
    2021 Tacoma TRD OR

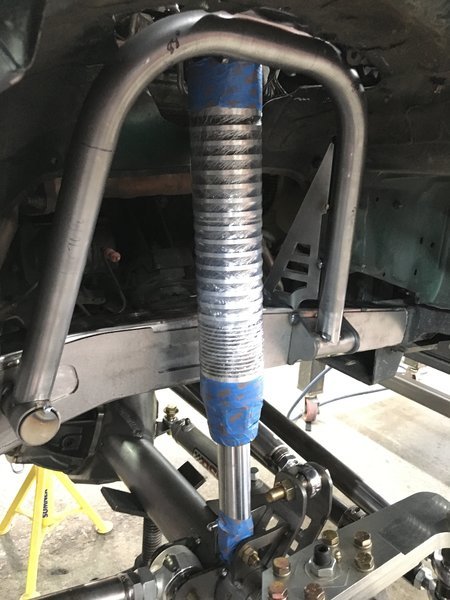

    You can see one of the gussets in this picture

    Also I want to apologize to everyone for my lack of attention to this thread, I moved, am getting married and busier than I've ever been with work! Excuses excuses I know, but thanks to Cody for stepping in a making some awesome posts. Him and I will have to sit down one night with a beer and write this out!

    bayareataco, May 17, 2016
    #998
    TheSpeediTurtle, FirstGen Jer, Qrtrtilt and 3 others like this.
  19. May 17, 2016 at 8:39 AM
    #999
    mach1man001

    #999
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,309
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    Nice, and ODI's? Sweet!

    mach1man001, May 17, 2016
    #999
  20. May 17, 2016 at 9:08 AM
    #1000
    BYJOSHCOOK

    #1000
    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    27,894
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Builds
    Full write-up? :cookiemonster:

    BYJOSHCOOK, May 17, 2016
    #1000
