Bed Dimensions for Sleeping Set-Up

Discussion in '2nd Gen. Tacomas (2005-2015)' started by colinm12, Aug 28, 2013.

  1. Aug 28, 2013 at 4:58 PM
    #1
    colinm12

    colinm12 [OP] Well-Known Member

    Joined:
    Aug 28, 2013
    Member:
    #111384
    Messages:
    121
    Gender:
    Male
    Cana-Duh
    Vehicle:
    2010 TRD Sport
    WeatherTech mats, Spyder LED Tail Lights
    Hey All,

    I have a fairly new (to me) 2010 with a 6ft bed and since I just got a canopy, want to rig up a sleeping set-up. I'm off tomorrow night for a road trip so I plan to keep it super simple; 2 2x6 planks in the grooves and a sheet on top of that.

    My question: Has anybody taken the measurements for these pieces?
    Do you have any recommendations about type of wood, thickness, etc?

    I know some folks have put together some very intricate systems but for now I'm just trying to set up a plank above the wells to throw a mattress on.

    Thanks!!

  2. Aug 28, 2013 at 5:02 PM
    #2
    jw1983

    jw1983 Well-Known Member

    Joined:
    Sep 18, 2011
    Member:
    #63738
    Messages:
    3,038
    Gender:
    Male
    First Name:
    Jason
    Alberta
    Vehicle:
    13' Tacoma Access 4x4 OR
    If you search there is one poster who did a camping set up with his canopy. It was a year or two ago now.

  3. Aug 28, 2013 at 5:13 PM
    #3
    Blueitrgsr

    Blueitrgsr Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60495
    Messages:
    1,485
    Gender:
    Male
    First Name:
    Brad
    Gainesville, Fl
    Vehicle:
    2006 Reg Cab 4wd
    Some bilsteins, OME 885's, and an AAL.

    I built one in mine and slept on it once. It sucked. No head room and im only 5'4. It was a waste, great idea. But just isn't useable.

    snowmanwithahat likes this.
  4. Aug 28, 2013 at 5:15 PM
    #4
    Blueitrgsr

    Blueitrgsr Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60495
    Messages:
    1,485
    Gender:
    Male
    First Name:
    Brad
    Gainesville, Fl
    Vehicle:
    2006 Reg Cab 4wd
    Some bilsteins, OME 885's, and an AAL.
    I now just throw an air mattress between the wheel wells and sleep like a king. By the time you put a mattress on top of platform there isn't room for you.

  5. Aug 28, 2013 at 5:31 PM
    #5
    Drainbung

    Drainbung Somedays you are the show....

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    5,358
    Gender:
    Male
    First Name:
    Bob
    Fallon, NV
    Vehicle:
    10 DCLB
    TRD Fleshlight

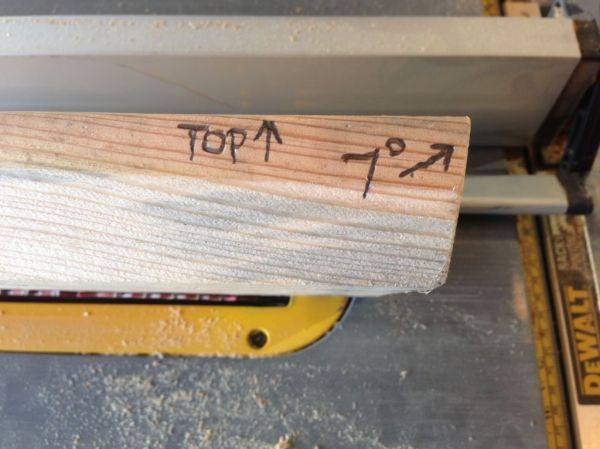

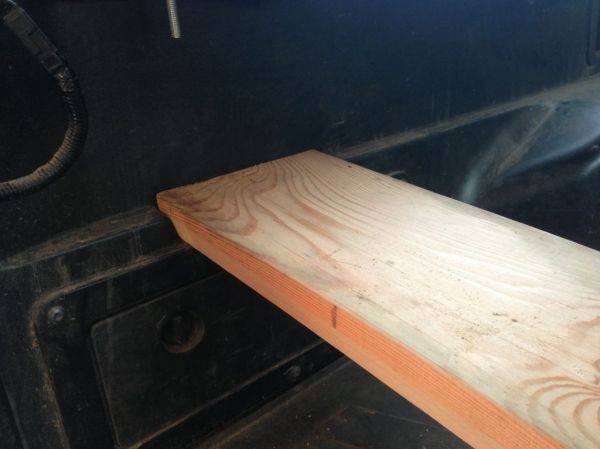

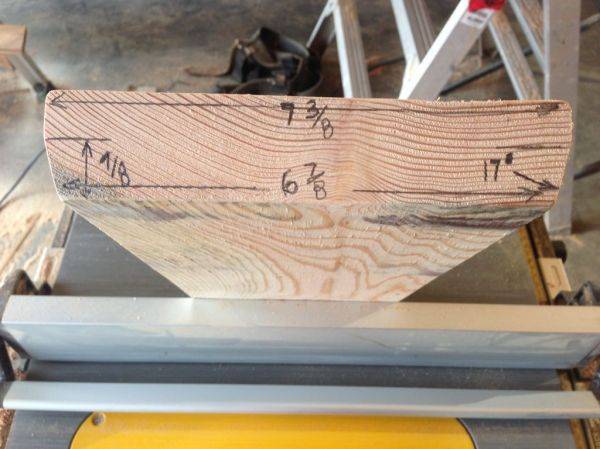

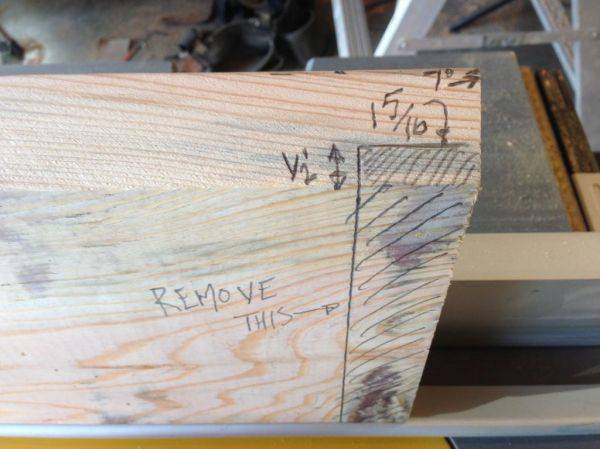

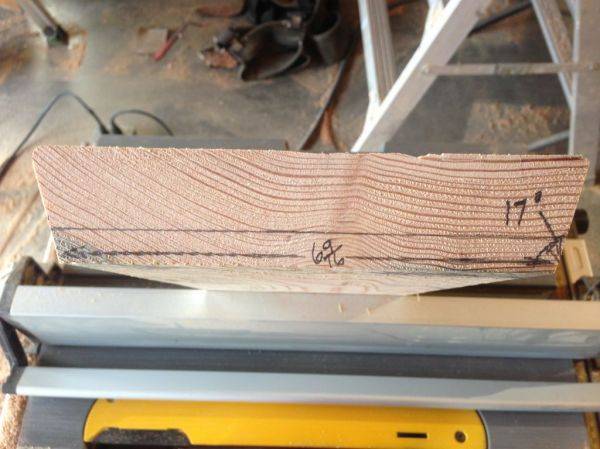

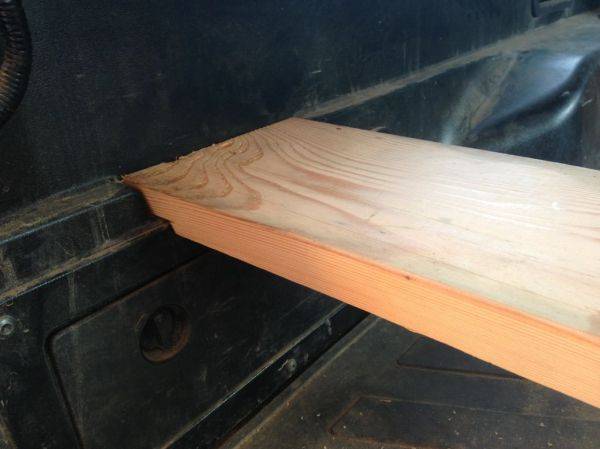

    For a quick 2X6 across the bed in the provided pockets it's 57". Use the search and there's a lot of info out there.


    I used 1.5 PVC to make a frame and attached a plywood cover. The "main" frame is set up as a single bunk and has connectors that attach a second frame for a full bed setup. The 1.5" rides perfectly in the ribs of the bed so it can't move anywhere once you close the tailgate. The 4-way PVC connectors are available online ( http://www.pvcplans.com/pvc-suppliers.htm ) if you want to do the full bed. I have the cut list as a PDF file if anyone needs it. It's a hell of a lot lighter than lumber.
    Attached Thumbnails [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Last edited: Aug 29, 2013
    OZ-T, ruffridha9, kidsmoke and 10 others like this.
  6. Aug 28, 2013 at 5:37 PM
    #6
    OZ-T

    OZ-T You chose ... poorly

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    45,548
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    http://www.tacomaworld.com/forum/showthread.php?p=6752255#post6752255

  7. Aug 28, 2013 at 5:42 PM
    #7
    dman597

    dman597 Well-Known Member

    Joined:
    Jun 30, 2009
    Member:
    #19105
    Messages:
    1,098
    Gender:
    Male
    First Name:
    Doug
    maryland
    Vehicle:
    2012 DC 4X4 SPORT w/Tow
    6" Pro Comp Lift,295-75-R17,access rollup,Tint,front hitch,nfab step bars
  8. Aug 28, 2013 at 5:51 PM
    #8
    Blueitrgsr

    Blueitrgsr Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60495
    Messages:
    1,485
    Gender:
    Male
    First Name:
    Brad
    Gainesville, Fl
    Vehicle:
    2006 Reg Cab 4wd
    Some bilsteins, OME 885's, and an AAL.
    My Coleman twin air mattress fits great between the wheel wells. And there's stil plenty of room in all 4 corners to keep the gear you need in arm reach.

    Sidney Vicious likes this.
  9. Aug 28, 2013 at 6:50 PM
    #9
    TanaTaco

    TanaTaco Well-Known Member

    Joined:
    Mar 23, 2013
    Member:
    #100409
    Messages:
    352
    Gender:
    Male
    First Name:
    James
    Montana
    Vehicle:
    05 TRD Offroad 4x4
    OME complete kit with dakars, LR UCAs, Seat covers, weathertechs, anytime foglight mod, ABS kill switch, locker anytime mod, powered sub, halos, leer topper, aux/ipod hookup.
    This. Couldnt agree more

    BMWags likes this.
  10. Aug 29, 2013 at 12:04 AM
    #10
    Blueitrgsr

    Blueitrgsr Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60495
    Messages:
    1,485
    Gender:
    Male
    First Name:
    Brad
    Gainesville, Fl
    Vehicle:
    2006 Reg Cab 4wd
    Some bilsteins, OME 885's, and an AAL.
    Seemed like a great idea when I was building it. It was great having a place I could hide stuff from prying eyes underneath the platform. But unless you've got one of those tall camper shells it just sucks. Now I have thrown around the idea of building a "platform" on half of the bed and leave the other half open. But I just can't decide if it's worth it. I've seen some pretty good looking setups on expedition portal but alot of those guys are using vans or full size trucks. That's just my .02.

  11. Jun 27, 2015 at 4:59 PM
    #11
    HunterD

    HunterD New Member

    Joined:
    Jun 27, 2015
    Member:
    #158278
    Messages:
    3
    Gender:
    Male
    First Name:
    Darrell
    Vehicle:
    2009 Tacoma Access Cab with 6ft Bed and Elevated Leer Shell
    Hey Drainbung,
    How do I get that cuts list PDF? I love the lightweight nature of your pvc raised sleeping platform design.
    --Darrell--SLC, UT

  12. Jul 1, 2015 at 11:01 PM
    #12
    romafern

    romafern Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33279
    Messages:
    795
    Gender:
    Male
    First Name:
    Rob
    80918 Let's meet!
    Vehicle:
    I need to buy a Tepui tent!
    I need to buy a Tepui tent!
    Drainbung,

    awesome idea!! Could you add me to the list as well??? Extremely interested on doing this for my Taco. Seems light enough and better than utilizing wood!


    Thanks!

  13. Jul 2, 2015 at 9:10 AM
    #13
    bcubed

    bcubed Well-Known Member

    Joined:
    Jun 2, 2014
    Member:
    #131097
    Messages:
    192
    Gender:
    Male
    First Name:
    Brent
    Calgary AB

    2 - 1x6 at 57". I used SPF as it was easy to get. I think a 1x6 fits a lot better than a 2x6, but again, don't have the wood in front of me. If you use a 2x6 you'll be above the lip that runs around the bed (assuming that is in a 2010 taco?)
    2 - 48"x28.5" plywood. I did two as it's pretty well impossible to fit a 57" piece in by itself. Cut the plywood to 57, then ripped it in half.
    2 - 20ish x 28.5 plywood. I don't remember the exact dimension. Short enough to close the tailgate and still have a bit of carpet overhanging. Have to trim the edge that is near the tailgate as the lip comes off.

    I used 5/8's sheets. Seems plenty strong.

  14. Jul 3, 2015 at 10:57 PM
    #14
    TacoDan723

    TacoDan723 Well-Known Member

    Joined:
    Jun 20, 2015
    Member:
    #157821
    Messages:
    278
    Gender:
    Male
    First Name:
    Dan
    Pacific Northwest
    Vehicle:
    2015 MGM Tacoma Limited
    I like the PVC bed. Very lightweight idea! ;)

  15. Jul 6, 2015 at 11:20 AM
    #15
    bcubed

    bcubed Well-Known Member

    Joined:
    Jun 2, 2014
    Member:
    #131097
    Messages:
    192
    Gender:
    Male
    First Name:
    Brent
    Calgary AB
    Do you have a canopy? Guess impossible was a bit far, but the way I do it takes virtually no effort to get it in. Also allows me to set up half of it and save space for boxes and stuff while traveling.

  16. Jul 6, 2015 at 12:10 PM
    #16
    raggedphoto

    raggedphoto Well-Known Member

    Joined:
    Mar 7, 2015
    Member:
    #150350
    Messages:
    220
    Gender:
    Male
    Oregon
    Vehicle:
    DCSB 07 Desert Sand Mica
    For long haul vs short crawl
    I built a deck from ply with a pull out drawer that worked well but ended up building a new one with a metal frame. The 5' bed isnt idea to sleep in but if I go corner to corner it works alright. No head room but hey all I need is to pass out after skiing all day so I can can get right back at it the next day. It also works great for the dog, gear under and he can run around in the back like a mad man. IMG_3329.jpg IMG_3333.jpg IMG_3335.jpg

    surfingflo and Dj Suisav like this.
  17. Nov 28, 2015 at 12:42 PM
    #17
    foothillbilly

    foothillbilly New Member

    Joined:
    Nov 28, 2015
    Member:
    #170870
    Messages:
    2
    Gender:
    Male
    Vehicle:
    still working toward that
    That looks quite a bit better than what I made for my minivan. If I could get that PDF, I'd appreciate it.

  18. Nov 28, 2015 at 5:34 PM
    #18
    HunterD

    HunterD New Member

    Joined:
    Jun 27, 2015
    Member:
    #158278
    Messages:
    3
    Gender:
    Male
    First Name:
    Darrell
    Vehicle:
    2009 Tacoma Access Cab with 6ft Bed and Elevated Leer Shell
    FYI, the more I look at this the more I think I'd rather make it out of 2"x2" wood. Using wood means I can add extra stuff more easily but just screwing things into the wood. I got the plans for this PVC project but life got in the way and I've been dragging my feet on the project. But now that winter is here I'm getting serious about. Especially since I think I'll be going to Wyoming on a hunt next year. I'll post is regardless of what materials I use.

  19. Nov 28, 2015 at 5:37 PM
    #19
    OZ-T

    OZ-T You chose ... poorly

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    45,548
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    2x2 is pretty flimsy

    MPA2point0 likes this.
  20. Nov 28, 2015 at 5:43 PM
    #20
    foothillbilly

    foothillbilly New Member

    Joined:
    Nov 28, 2015
    Member:
    #170870
    Messages:
    2
    Gender:
    Male
    Vehicle:
    still working toward that
    Are those plans available somewhere? Having worked with both wood and PVC, I have good reasons for using PVC as much as I can. It's easier to work with, requires less tools, and is quicker (at least when I'm doing it). The result is lighter, and thus easier for me to handle. (I have developed some health issues over the years.) I have not needed to attach things to the PVC until a small recent project. I drilled and bolted that one. It was pretty easy.
