Bed LED strip light install using dome light circuit, lots of pics on wire routing

Discussion in 'Lighting' started by doughboy, Mar 30, 2014.

  1. Mar 30, 2014 at 9:57 PM
    #1
    doughboy

    doughboy [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    I've read pretty much all threads about LED strip light install in the truck bed. Each install is different, you don't have to follow other people's install exactly. Just add a little creativity and install it to suit your needs. This is how I did mine.

    Objective: low cost, no drilling, no cutting wires, automatically turns off.

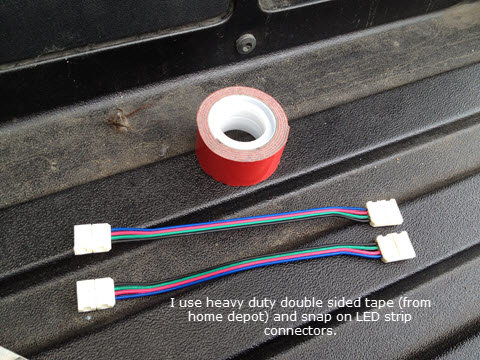

    Parts: 20 feet wire loom, 25 feet duplex wire (I used speaker wires), 3 meter LED strip, LED strip connectors, 3M heavy duty double sided tape.

    Home depot sells 10 feet wire loom for $2.50. I got a 20 foot length from ebay for $5. Do not pay any more than this.

    Home depot sells the 3M heavy duty double sided tape, I forgot how much since I got it a while back. Make sure to get the one with the red backing.

    I got the LED strip ($10) and LED connector ($2.27 for 5 pieces) from ebay.

    Wiring description.
    I wired the LED strip light to the interior light circuit. This means when the interior dome light is on, the LED strip lights are on. The benefit of this is no switch is needed, and the light will never stay on if you somehow forget to turn the switch off if you used a switch. Since I changed my map and dome lights to LED, adding the LED strip to the same circuit will not overload the circuit, which uses a 7.5amp fuse.

    This is the dome light circuit. Connect the positive wire to the fuse, and a negative wire to the dome light ground circuit.


    This is the fuse panel in the driver side kick panel. Connect a wire to pin 9 of the lower left connector harness. Pin 9 is the top row, fourth from the left on the connector. The wire color should be light blue or blue. You can use any method you prefer to tap into that wire. I simply tinned the end of the wire with some solder and inserted it into the pin 9 hole on the connector, then used some electric tape to secure the wire to the harness.

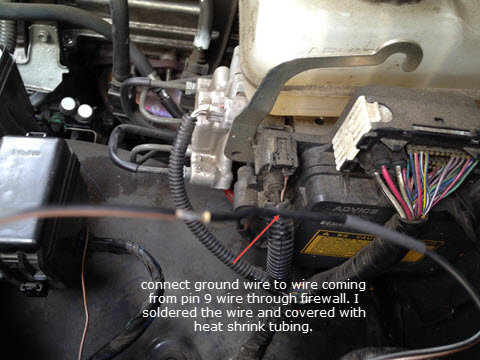

    You will then need to route this wire through the firewall to the engine compartment. You can do this by inserting a 2feet long solid wire through the tube where the hood release cable comes out through the firewall. Then attach the ground wire to the solid wire and pull it out through the firewall.

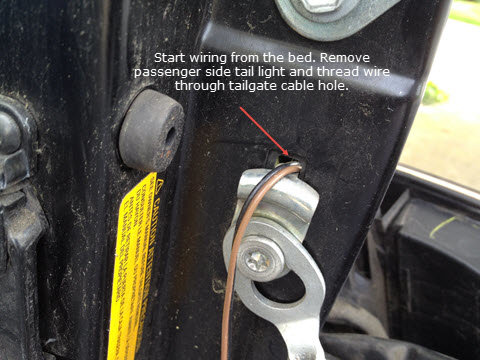

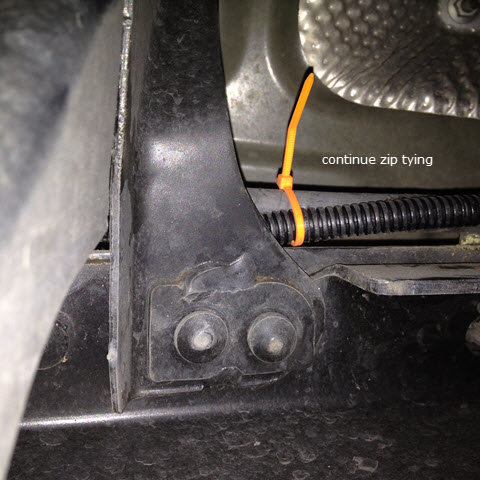

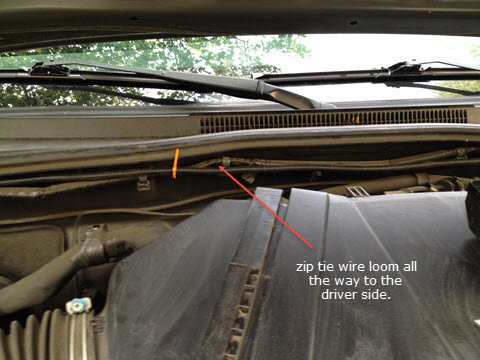

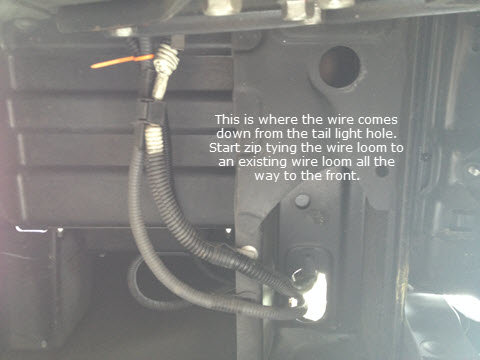

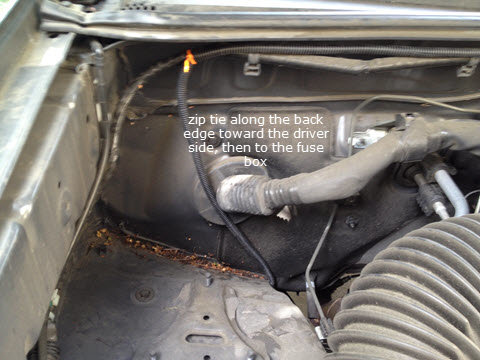

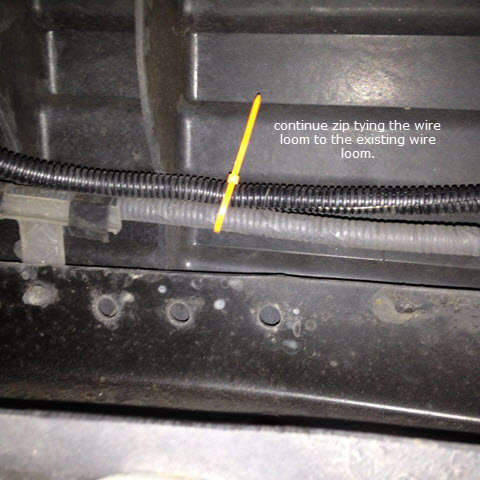

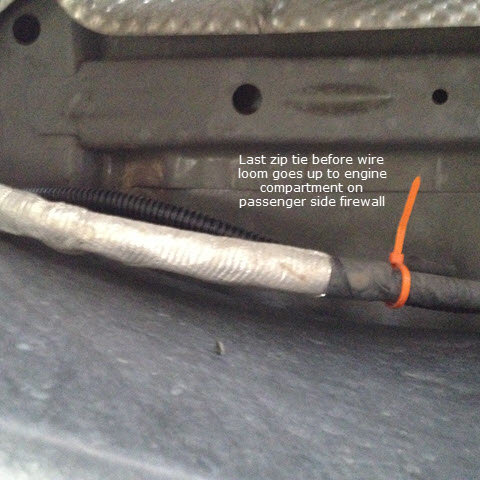

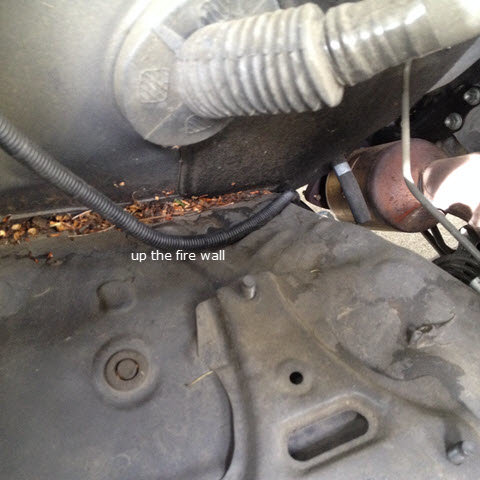

    The next series of pictures show how to route the wire from the truck bed to the engine compartment. I start from the passenger side tail light.

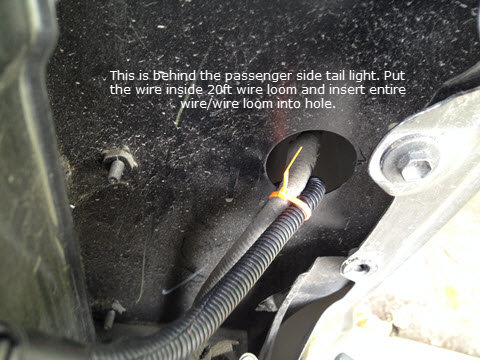

    use the hole behind the tail light, not the one below.

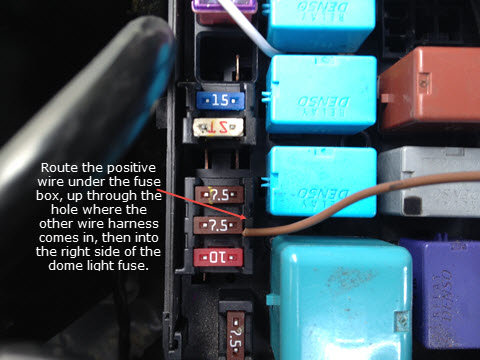

    you can use add-a-circuit if you want. I simply stripped the insulation, removed the dome light fuse, insert the stranded wire into the right side of the fuse, then re-installed the fuse.

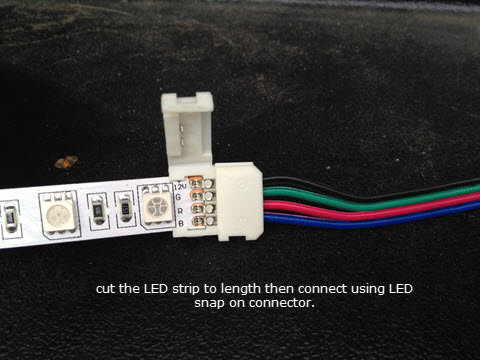

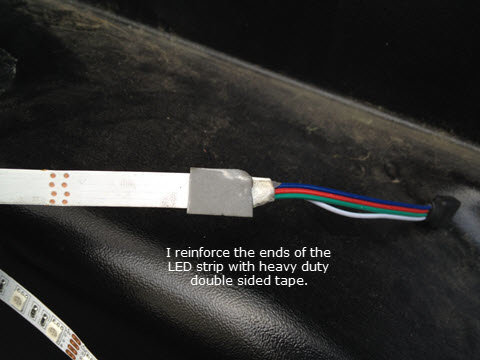

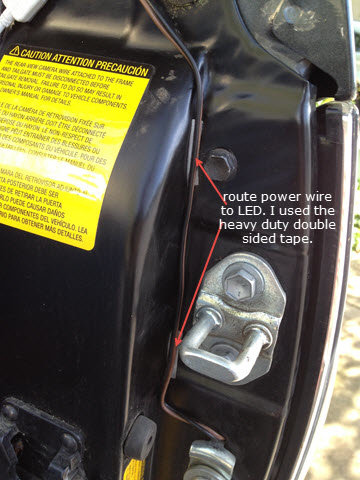

    On to the LED strip installation. This is actually the easy part. You can buy LED strips and the connector cheap on ebay. I got the RGB strip with a controller. If you get a white LED strip, it will only have two wire connection, +12 and ground.

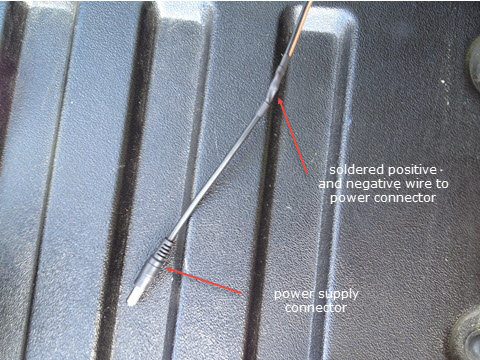

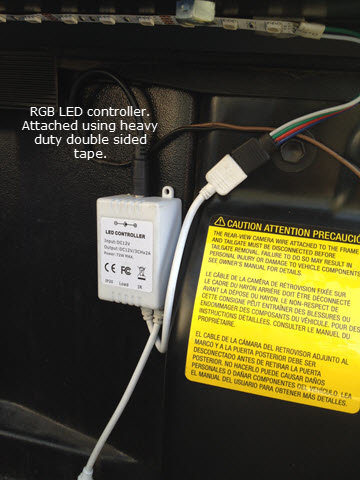

    Since I am using an RGB LED controller, I need to connect the wires to a power supply connector. If you use a white LED, you just need to connect the +12 and ground wires to the LED strip.



    video.
    http://youtu.be/Ebl-CrzdZ1g

  2. Apr 18, 2014 at 5:27 PM
    #2
    doughboy

    doughboy [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights

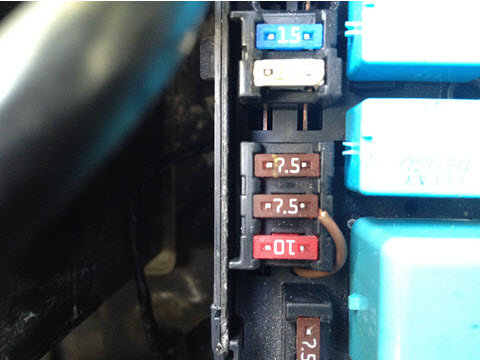

    since I had the engine compartment fuse box fuse panel off the box, I re-routed the bed light power wire under the fuse panel and out a hole near the dome fuse for a cleaner look,


    Its quite easy to remove the panel from the box. There are 6 tabs holding the panel to the box. Just use something to hold the tabs out and the fuse panel slides right off.

  3. Apr 21, 2014 at 10:46 AM
    #3
    stump jumper

    stump jumper Well-Known Member

    Joined:
    Aug 23, 2010
    Member:
    #42106
    Messages:
    2,477
    Gender:
    Male
    First Name:
    Bill
    Texas
    Vehicle:
    2017 Tundra 4x4 CM TSS
    I ran my wire in to the bed under the bed rail cap. I used some heat shrink tubing to protect the wire and the butt connectors I used to join the feed from the cab sit in the stake pocket. I worked out real neat.

  4. Aug 29, 2014 at 6:51 PM
    #4
    packrobottom

    packrobottom Well-Known Member

    Joined:
    Mar 11, 2010
    Member:
    #33040
    Messages:
    256
    Gender:
    Male
    First Name:
    Pack
    Vehicle:
    Sky Silver SR5 DC v6 with sport mods
    Do you need a diode for this and does it matter if you take 12v from in the cab instead of dome light fuse in engine bay gonna do this for foot well LEDs

  5. Aug 30, 2014 at 11:35 AM
    #5
    doughboy

    doughboy [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights

    No diode. Just curious why you think you need a diode. The D in LED is for diode.

  6. Aug 30, 2014 at 7:14 PM
    #6
    ssilence

    ssilence Well-Known Member

    Joined:
    Aug 12, 2014
    Member:
    #135979
    Messages:
    125
    Gender:
    Male
    Middle Georgia
    Vehicle:
    2012 Tacoma Pre-Runner
    Pop and Lock
    Where did you get the schematic from? I would like to get a full set of wiring diagrams/schematics.

  7. Sep 8, 2014 at 6:46 PM
    #7
    TuckGraham

    TuckGraham Keep it straight

    Joined:
    Nov 30, 2013
    Member:
    #117625
    Messages:
    615
    Gender:
    Male
    First Name:
    Tuck Graham
    Colorado
    Vehicle:
    SR5 TRD Tacoma
    Overland
  8. Dec 19, 2014 at 8:47 PM
    #8
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,422
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Imphedup likes this.
