Bed lighting question

Discussion in 'Lighting' started by tacomathunder, Feb 17, 2012.

  1. Feb 17, 2012 at 8:49 PM
    #1
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    Ok, so i want to put led strips in the truck bed, and I'm bring to figure out what switches to use..... i want to be able to do this for example: turn the lights on from the bed, and turn them off from in the cab if i forget to turn them off....

    To do that i heard i need a 3 pole switch...

    So my question is, what is a 3 pole switch, does that mean it literally had 3 "poles" the attachment point of the wires, or does it mean something else....

    also, does anyone know if this is 3 pole?

    http://www.oznium.com/gsw-45

  2. Feb 17, 2012 at 9:33 PM
    #2
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    can anyone help me out?

  3. Feb 17, 2012 at 11:46 PM
    #3
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    one more bump before i go to bed, don't mean to be obnoxious about it, its just really killing me! really want to do this mod, and for it to look nice and clean

  4. Feb 18, 2012 at 9:56 AM
    #4
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    last bump to see if anyone can help me...

  5. Feb 18, 2012 at 10:09 AM
    #5
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,620
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Your link is a single pole switch, I think.

    You need a pair of double-pole-single-throw switches.

    When I did mine, I wired up an indicator light in the cab in parallel with the bed lights so I don't leave it on accidentally.

  6. Feb 18, 2012 at 10:20 AM
    #6
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,620
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    I uploaded a schematic picture to TW live, you can look at it there.

    If you feel particularly ambitious, paste the photo back into this thread. But that's a pain via tapatalk.

  7. Feb 18, 2012 at 10:24 AM
    #7
    Bobbb

    Bobbb "Rumors of Bob, but never Bob. It is Bob, right?"

    Joined:
    Sep 14, 2011
    Member:
    #63498
    Messages:
    1,204
    Gender:
    Male
    First Name:
    Bob
    Bob
    Vehicle:
    Bob
    Tundra TRD/OR
    Yup, that is a single-pole/single throw switch which will not do what you're looking for. I don't have a source for the correct switch, but here's something to explain what you're trying to do-

    http://en.wikipedia.org/wiki/Multiway_switching

  8. Feb 18, 2012 at 10:45 AM
    #8
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    [​IMG]

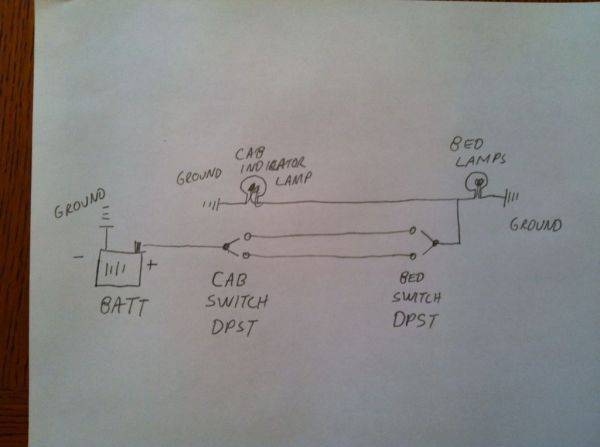

    theres the schematic he uploaded to TW live, I'm starting to understand now....now if only i could find a stock looking double pole single throw switch

  9. Feb 18, 2012 at 10:53 AM
    #9
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
  10. Feb 18, 2012 at 12:38 PM
    #10
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows

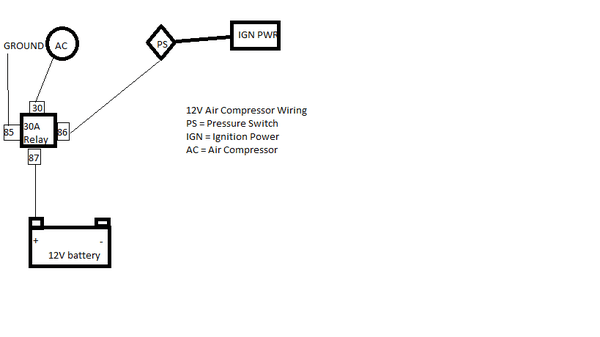

    if you want to eliminate the oh shit, and if your going to use that for any amount of power consumption do not forget a relay, your cab switch can be powered from an ignition wire, and than that ignition wire could run through the switch to the power side of the relay kind of like this

    [​IMG]

  11. Feb 18, 2012 at 12:39 PM
    #11
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
  12. Feb 18, 2012 at 1:14 PM
    #12
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    Im not really that adept in wiring, so what exactly would the relay do? just so I have everything straight

  13. Feb 18, 2012 at 3:08 PM
    #13
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows

    if youve wired amp's before its the same concept as that

    soo the reason i like them is, it makes the source power not come from the switch, it also gives you overamp protection

    so in theory you can take a power source from your ignition which will add minimal load therefore also isolating having to put yet another fuse in your ignition line

    this way also make it so you take power directly from your battery and run your own fuse sizing according the max current on the lights

    i can draw a little better diagram if you like, which may make it a little less confusing, im not using any technicial PI&D symbols because to the untrained eye they can be confusing

  14. Feb 18, 2012 at 3:10 PM
    #14
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
  15. Feb 18, 2012 at 3:15 PM
    #15
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
  16. Feb 18, 2012 at 9:36 PM
    #16
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,620
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Personally, I went straight from the battery, so no need for a relay.

    This is because I don't want to have to go around to the cab and stick a key in the ignition, just to load/unload the bed at night.

    Yes the downside is they can drain the battery. This is why I put an indicator light in the cab, so I don't accidentally bump the switch and leave them on.

  17. Feb 18, 2012 at 10:53 PM
    #17
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    That's the correct diagram. The correct term for the switches you need is "single pole, double throw" or "SPDT" There will be three terminals on the switch. They come with or without a center "off" position. For your application, get the one without the center "off". You should be able to find a plastic rocker switch in that configuration.

  18. Feb 18, 2012 at 11:47 PM
    #18
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    Awesome! so just for reference, the one i linked above won't work for that correct?

  19. Feb 19, 2012 at 8:34 AM
    #19
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,620
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    I alway get DPST and SPDT but the diagram on Wikipedia right now shows DPST as the one needed.

    In any case, you'll be able to tell by looking at the switch. It will NOT have a built in indicator light, and it WILL have 3 terminals (not 4) on the back.

  20. Feb 19, 2012 at 9:44 AM
    #20
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    Yeah, the one you linked appears to have only two terminals. SPDT will have three terminals if it's an unlighted switch.

    SPDT normally does not have internal indicator light. And if you find one that does, it likely won't work right for what you're trying to do. It's possible to find one with a light that can be independently wired, but it's hard, and you're better off just going unlighted with a seperate indicator if desired.
