Bed Rack Ideas

Discussion in 'Garage / Workshop' started by malander, Dec 20, 2011.

  1. Dec 20, 2011 at 1:22 PM
    #1
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    So I'll be starting up a pretty simple bed rack build next semester for my engineering class. I want it to stand out in some way from some of the other designs I've seen, but I'm not quite sure how I want to do that. These are the things I'd like it to feature...

    -Spare tire mount
    -Hi-lift jack mount
    -Light mounts
    -Antennae mount
    -Possibly room for some jerry can mounts

    Also thinking about welding together some tool boxes that would be attached/welded to the sides and hang down into the bed. Any thoughts/advice is appreciated and I will update this thread with the designs I come up with. This will probably be a slow process since I have to do it as a research and design project in class, but I've already put a bit of thought into it and want to get started soon.

  2. Dec 20, 2011 at 1:36 PM
    #2
    Alpha Q Up

    Alpha Q Up Well-Known Member

    Joined:
    Aug 18, 2011
    Member:
    #61921
    Messages:
    2,295
    Gender:
    Male
    First Name:
    Ruben
    San Jose
    Vehicle:
    2003 4WD DC Tacoma
  3. Dec 20, 2011 at 6:19 PM
    #3
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Thanks for the link. I'm thinking having a place to mount my bike in there would be nice too. That might take a little creativity but I'll find a way to make it work.

  4. Dec 20, 2011 at 8:16 PM
    #4
    Alpha Q Up

    Alpha Q Up Well-Known Member

    Joined:
    Aug 18, 2011
    Member:
    #61921
    Messages:
    2,295
    Gender:
    Male
    First Name:
    Ruben
    San Jose
    Vehicle:
    2003 4WD DC Tacoma

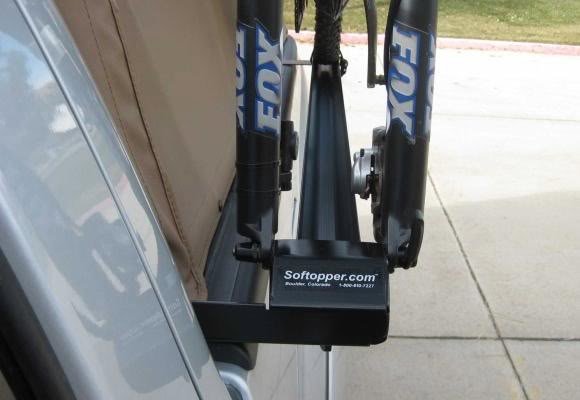

    Not sure how obstructive this would be...

    [​IMG]

    [​IMG]

  5. Dec 21, 2011 at 9:52 AM
    #5
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    That's a really good idea. I may play around with something like that. How does the bike hold up with moderate speed turns and bumps and what not? Sweet bike btw...I love specialized bikes

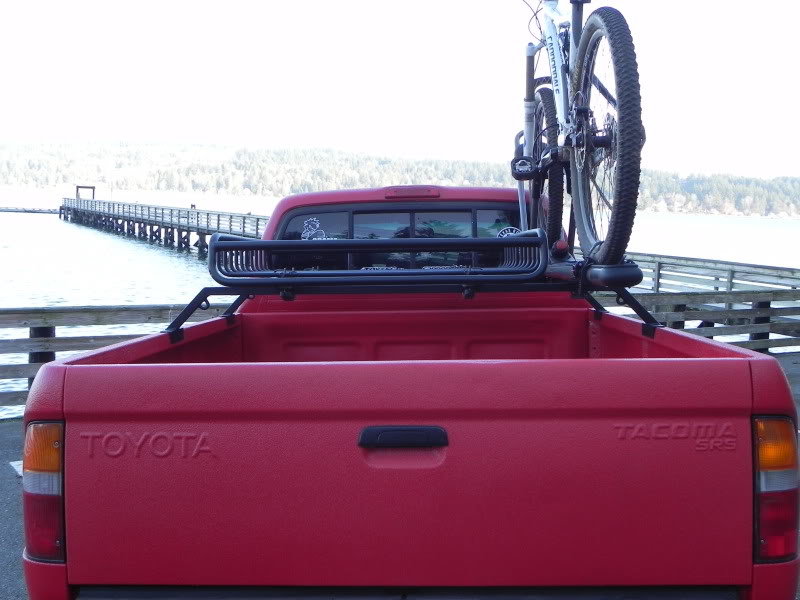

  6. Dec 25, 2011 at 10:28 AM
    #6
    acidfly

    acidfly Well-Known Member

    Joined:
    Jun 20, 2009
    Member:
    #18706
    Messages:
    313
    Gender:
    Male
    First Name:
    Kevin
    Kitsap, Wa
    Toytec 3" lift, 4.88 gears, ARB locker, Elite front/rear bumper with sliders, Fully LineXed, Custom bedrack
  7. Dec 30, 2011 at 12:34 PM
    #7
    tacomaforlife

    tacomaforlife Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20265
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Robbie
    AIKEN, SC
    Vehicle:
    Its a Toyota what more is there to say.....
    TRD S/C 3" sky jacker suspension lift,33" kumho road venture mt kl71's 16" 320c pacer wheels,billet grill,EBC slotted and dimpled rotors,super 44 muffler with gutted cat,smoked l.e.d. tail lights, deck plate mod with K&N filter,fog/blinker mod,cobra cb with 4' firestick antenna/100W PA,clear corners with l.e.d bulbs,55w back up lights,urd O2 sim., blue l.e.d bulbs behind gauge cluster.
  8. Dec 30, 2011 at 3:33 PM
    #8
    ffemt2987

    ffemt2987 Shut up Hippie!

    Joined:
    May 22, 2010
    Member:
    #37601
    Messages:
    1,173
    Gender:
    Male
    First Name:
    Austin
    Golden
    Vehicle:
    black
    Icon CO's, Dakar rear, All-Pro front bumper, Xrc8, ARB rear locker, relentless IFS skid, 4x4 inno sliders, softopper, air freshener.

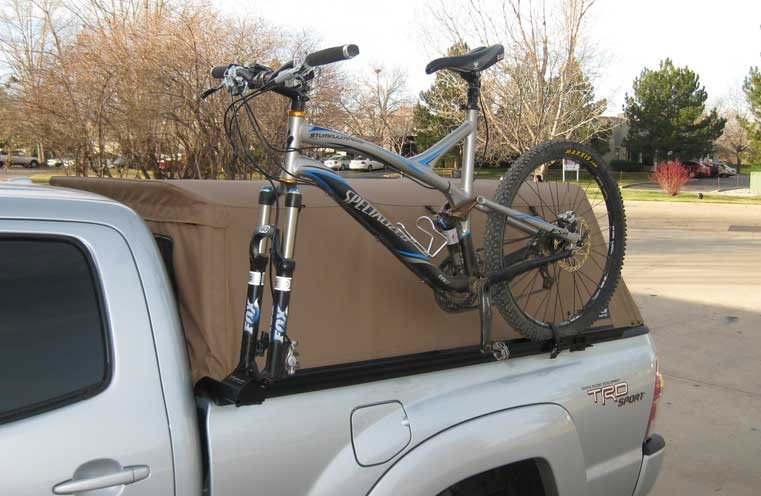

    Here's my set up...


  9. Dec 30, 2011 at 3:43 PM
    #9
    w8n4mud

    w8n4mud There's a mod for that!

    Joined:
    May 23, 2008
    Member:
    #6831
    Messages:
    6,204
    Gender:
    Male
    First Name:
    Albert
    San Diego, CA
    Vehicle:
    2015 Subaru WRX
    Bilsteins 5100's (Front & Rear), GrillCraft, Line-X'ed Skid Plate & Bumper Valence, Blacked out hood scoop, Avid Light Bar and much more.
    ^ I like the set up. Wanting to do something similar (eventually). Good luck. Just out of curiosity, but would you have the ability to custom make a rear bumper similar to a style of a jeep (Call of Duty model). The bumpers on this Jeep are kick ass!
    [​IMG]
    Something with moderate piping on the sides, style, functionality and most importantly a step for accessibility. This is the only pic I could find. Just in case you felt barking up this venture. :D Good luck though in what ever you decide.

  10. Feb 8, 2012 at 1:46 PM
    #10
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    I did some brainstorming and I'm thinking of running a hoop that follows the body by the back glass. I could mount the bike forks higher up on that hoop so there would be more bed space for a spare. I could also figure out a track that would allow me to run the bike up and attach it, then lift it up (on a hinge) and make it sit flat on the tire carrier frame. This would also let me run lights up top.

  11. Feb 8, 2012 at 1:48 PM
    #11
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Sexy but I don't think it'll happen sorry haha all the tube bending will be done by a friend since we don't have one and I need to get my first project done before I can start this one

  12. Feb 8, 2012 at 6:54 PM
    #12
    pAP

    pAP ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb

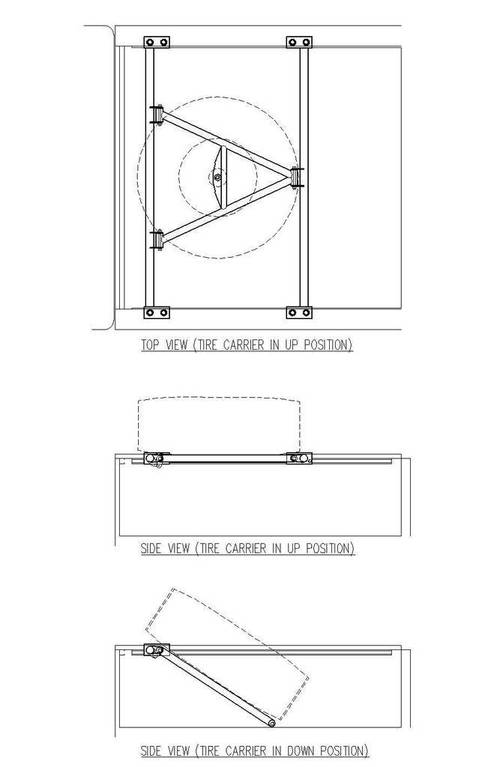

    not sure if you seen this before. Its a bit of a recycled idea I recreated. You can mount all kinds of stuff to the bed bars. This design allows for full bed space below the rails when needed and when not, full view out the rear window for daily driving. There are tabs welded into each corner of the bar to bed cleat connection for antennas and lights. I have auto cad drawings of it if you want. :D

    [​IMG][​IMG]
    [​IMG]
    [​IMG]

  13. Apr 5, 2012 at 5:47 PM
    #13
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,030
    Gender:
    Male
    First Name:
    FTR
    CNY
  14. Apr 23, 2012 at 8:34 PM
    #14
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    That's a great idea I knew I saw that somewhere and I thought about incorporating that in my design but didn't have the space. Ive rethought my design since I don't have much time left in this class (other projects took longer than expected) so its going to be a bit more simple but hopefully I can post up pictures of my cad drawings. Space is a big factor now that I have a tool box so I don't think I'll be doing the hoop and I may ditch the spare tire mount or not. I liked the bike mounts on the bed rails but the rails are really skinny on the first gens and would be shorter with a tool box on. I'm thinking ill make two bike mounts horizontal to the bed and put the tire mount in. I'll be able to carry one bike and a tire and a tool box or two bikes and a tool box.

  15. Jun 19, 2012 at 7:18 PM
    #15
    Mrpolo83

    Mrpolo83 New Member

    Joined:
    Jun 15, 2012
    Member:
    #80744
    Messages:
    3
    Gender:
    Male
    First Name:
    Marco
    Kentucky
    Vehicle:
    08 TRD Sport
    6 inch FabTech lift, 33 x 12.5 Toyo rough country M/T, KMC XD rockstar, westin bull bar, KC Fog Lights, rough country nerf bars, auto start/alarm, kenwood/garmin DVD system, blackout tint, debadged with blackout emblems, tuxedo cover
    chris: where did you come across those bars for your rack build and what hardware did you use to bolt it to the existing toyota rail system? Thanks. I'm looking for a simple design like that for my kayaks and other rack systems

  16. Jun 20, 2012 at 6:43 AM
    #16
    pAP

    pAP ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    I made those bed rails out of 1.75" tubing and welded 2"X3" angles to the ends. The angles are fastened to the rail with bolts and t slot nuts.
