Bed Rack Prototype 1

Discussion in 'Off-Roading & Trails' started by A_Rob, Jul 1, 2020.

  1. Jul 1, 2020 at 5:02 PM
    #1
    A_Rob

    A_Rob [OP] Member

    Joined:
    Apr 17, 2020
    Member:
    #325014
    Messages:
    12
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2020 Quicksand OR
    ToyTec Boss 2.0 with ToyTec Leaf Kit TRD Pro 17" wheels 285/70 Nitto Terra Grapplers

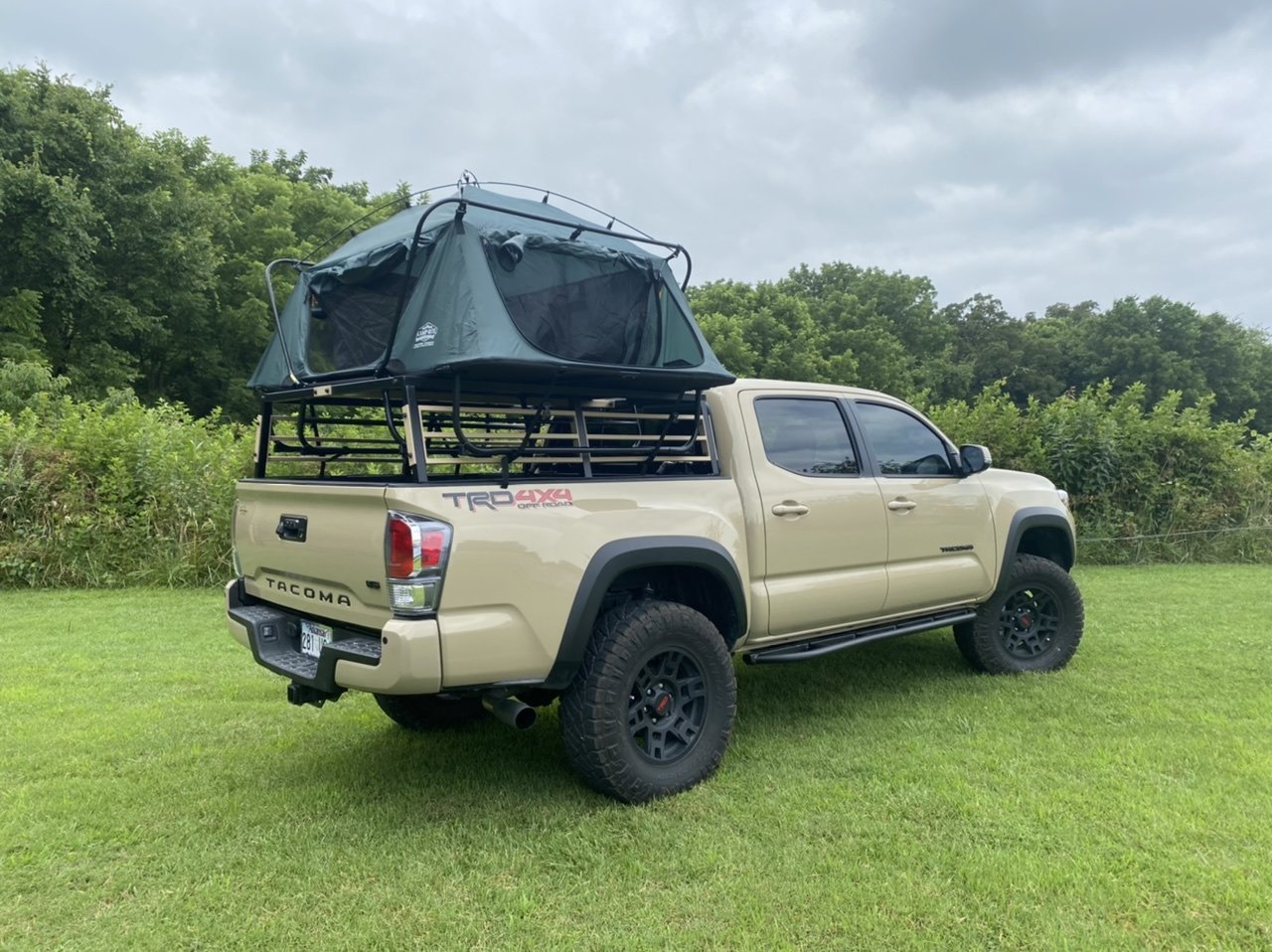

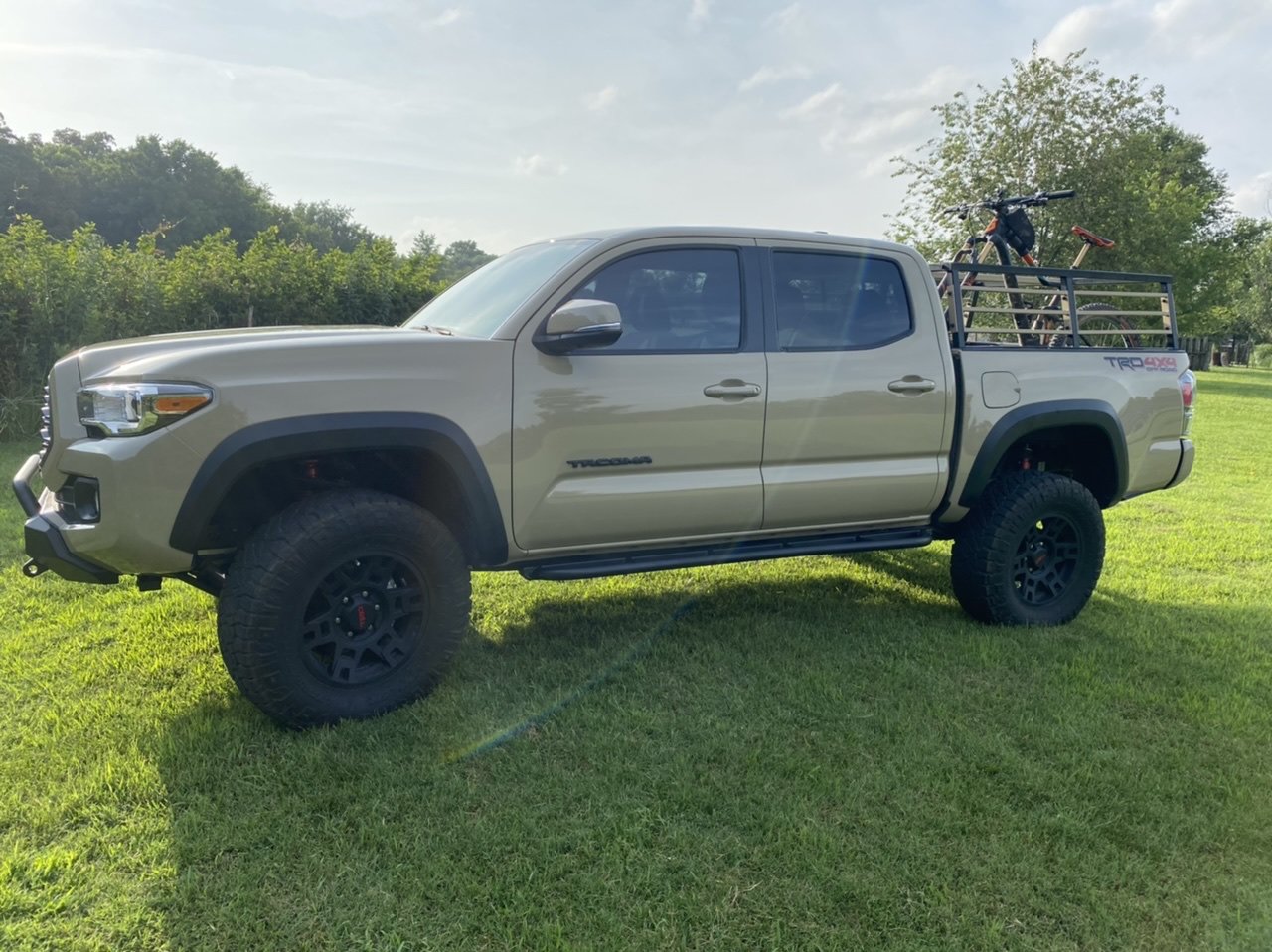

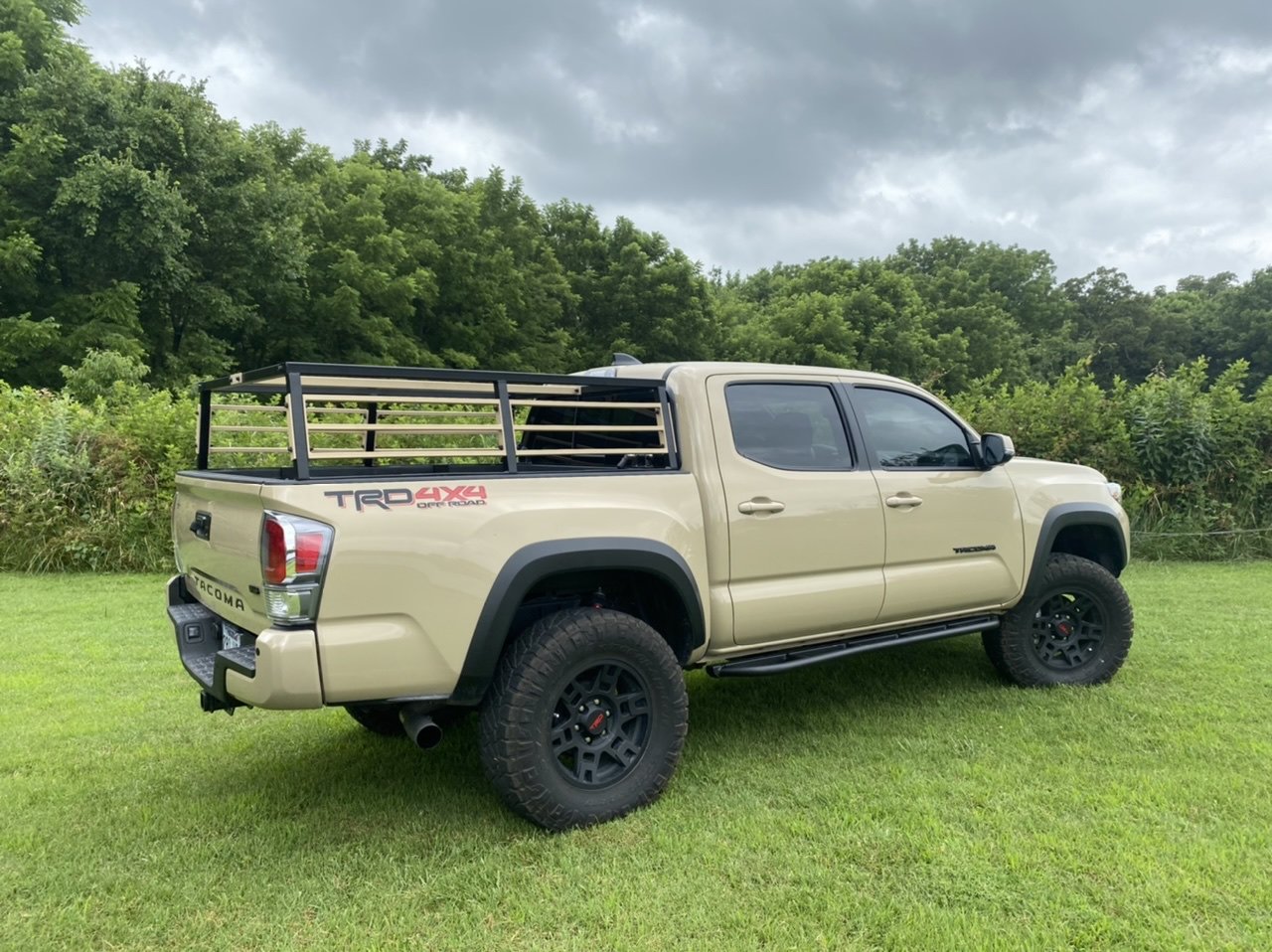

    I got my first prototype rack back from powder coating today. Happy with the results, but there are some small improvements to be made to the next one. These are mainly with clearance issues on the side racks.

    The design features removable side rails with each of the 4 segments designed to hold 100 lbs of gear. A longitudinal upper central member for my cot tent (much cheaper and lighter than a dedicated roof top tent). High strength steel tubing that can take high loads with minimal deflection (hang whatever your want). A design that allows fork mounted bike carry inside the rack. A modular design that allows multiple color combinations if desired. And it’s easily installed and removed by one person. In addition, the longitudinal member and rear upper cross member can be unbolted and removed for hauling tall loads.

    Let me know your thoughts and what you would like to see on a rack like this.

    61D4F3EB-EDA8-4353-B449-46444883F361.jpg 3A8843CB-6B45-4965-ADF5-53C7702CAB73.jpg 61D4F3EB-EDA8-4353-B449-46444883F361.jpg 2DBB8E03-67D0-4DA7-B533-923AC6E67FE6.jpg

  2. Jul 1, 2020 at 5:06 PM
    #2
    A_Rob

    A_Rob [OP] Member

    Joined:
    Apr 17, 2020
    Member:
    #325014
    Messages:
    12
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2020 Quicksand OR
    ToyTec Boss 2.0 with ToyTec Leaf Kit TRD Pro 17" wheels 285/70 Nitto Terra Grapplers

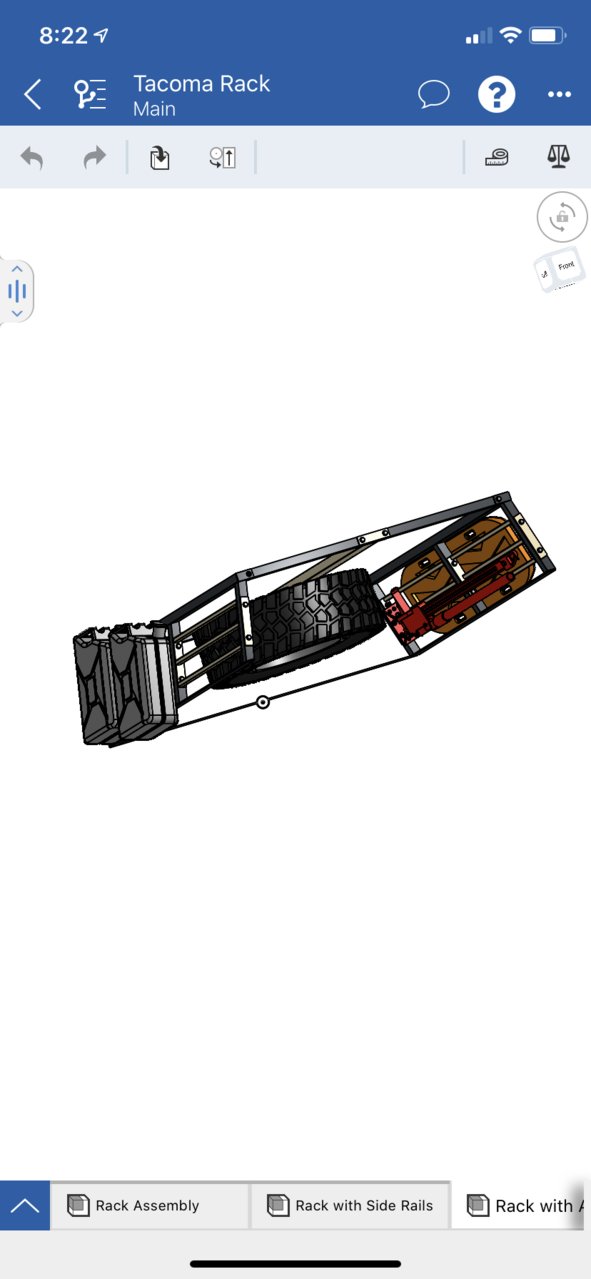

    Here’s a pic of the CAD file showing accessories and tool clearances. 4CF1D7A1-A183-42FC-B2DA-6CD32396DBB2.jpg

  3. Jul 23, 2020 at 2:04 PM
    #3
    Catfish21

    Catfish21 Well-Known Member

    Joined:
    Dec 18, 2015
    Member:
    #172515
    Messages:
    1,678
    Gender:
    Male
    Bay Area, Ca to Fairbanks Ak.
    Vehicle:
    17' TRD Off Road 4x4
    That’s pretty good. Would you be able to generate one that goes above the cab height to be able to mount the longer wedge RTT’s? Looking for options to be able be as light as possible because I already have a high clearance rear and that ain’t light...

    A_Rob [OP] likes this.
  4. Jul 23, 2020 at 6:39 PM
    #4
    A_Rob

    A_Rob [OP] Member

    Joined:
    Apr 17, 2020
    Member:
    #325014
    Messages:
    12
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2020 Quicksand OR
    ToyTec Boss 2.0 with ToyTec Leaf Kit TRD Pro 17" wheels 285/70 Nitto Terra Grapplers
    Definitely. PM me and let’s discuss.

    Catfish21 likes this.
  5. Jul 23, 2020 at 6:46 PM
    #5
    A_Rob

    A_Rob [OP] Member

    Joined:
    Apr 17, 2020
    Member:
    #325014
    Messages:
    12
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2020 Quicksand OR
    ToyTec Boss 2.0 with ToyTec Leaf Kit TRD Pro 17" wheels 285/70 Nitto Terra Grapplers

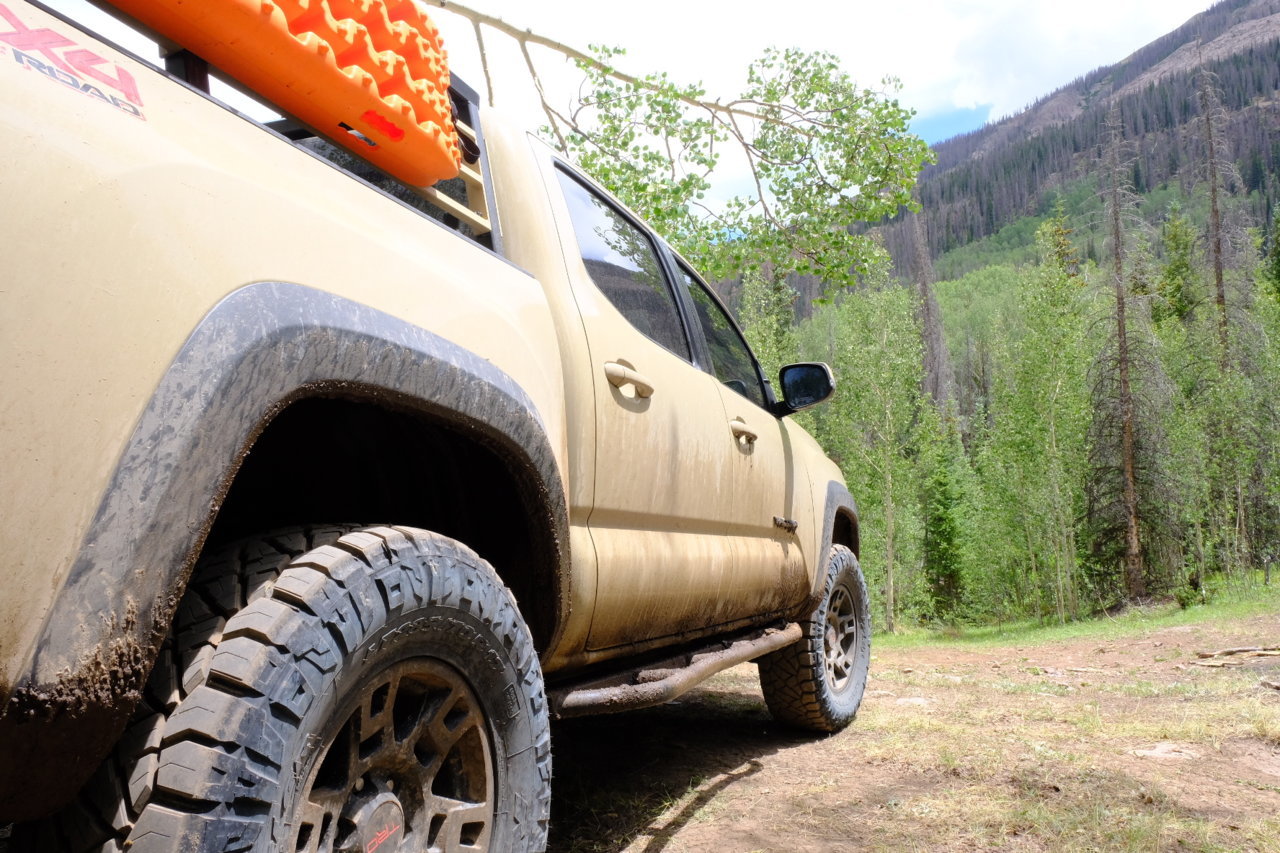

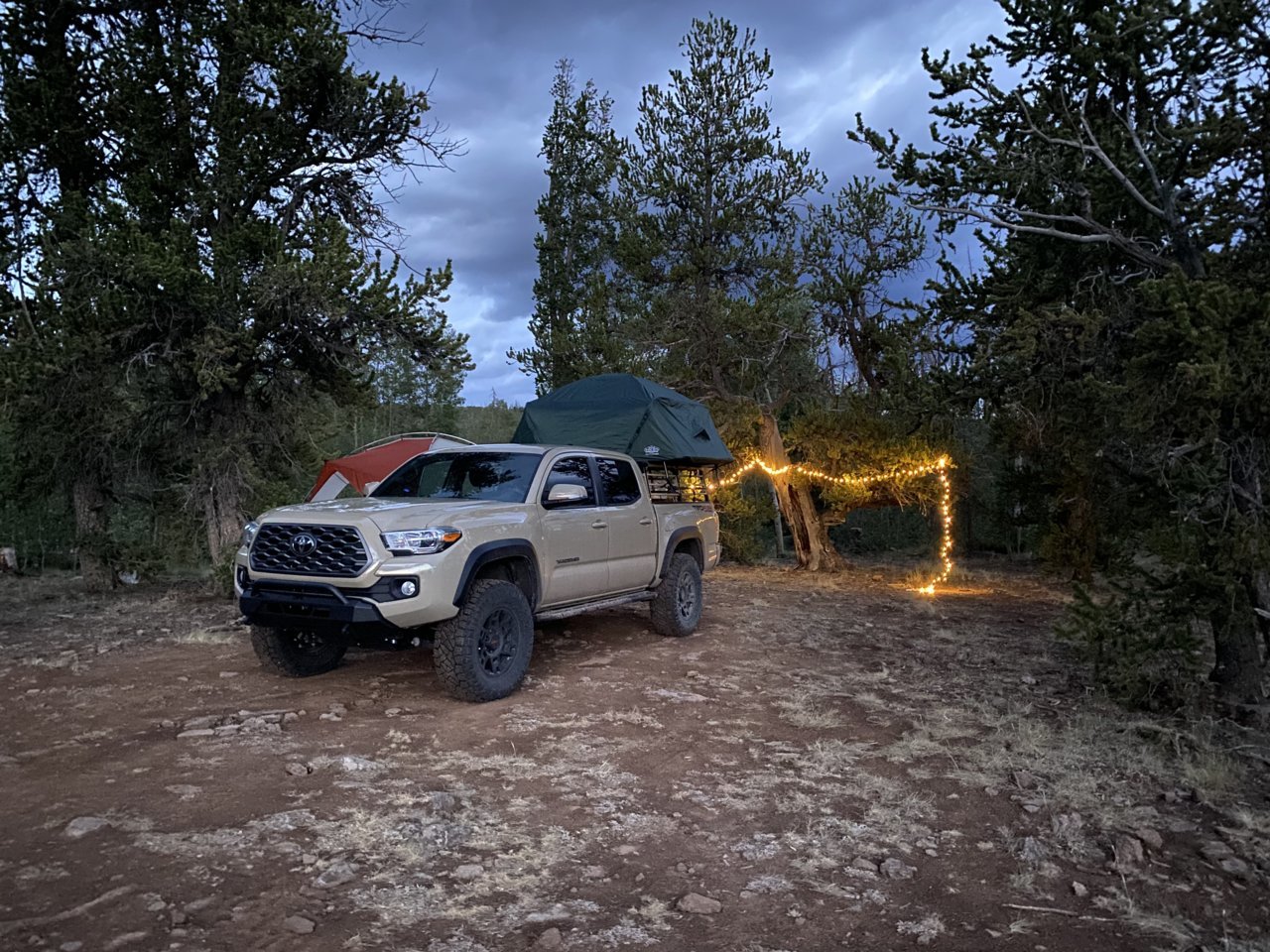

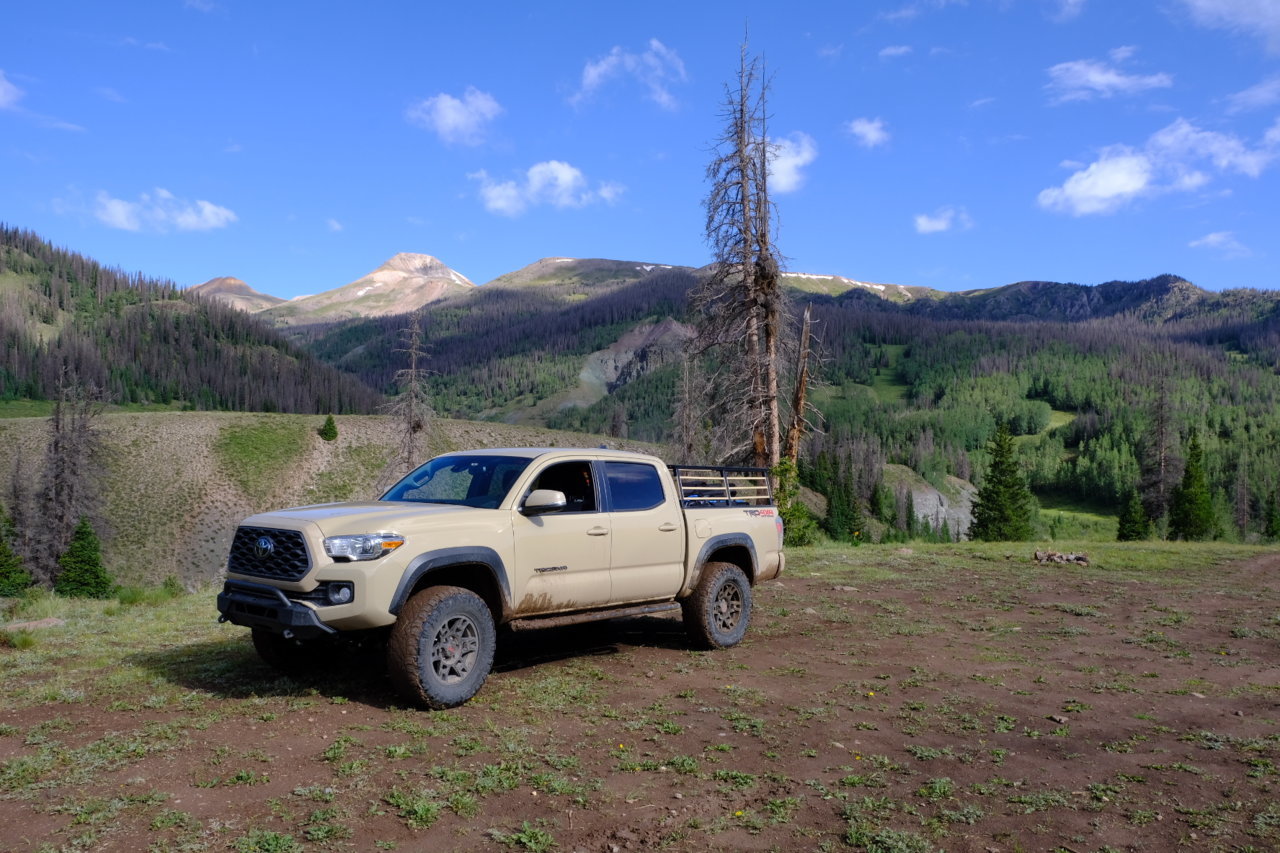

    Heading back home from ‘testing’ in Colorado. :)
    21E25E49-2E47-4C5D-BE92-8EC8008F464E.jpg 4E35609C-F2D3-4979-A428-7AEA11399023.jpgA8E33EB7-9D3B-4F0F-9AAB-717D22D344CF.jpg
