Bed racks on a budget

Discussion in '3rd Gen. Tacomas (2016+)' started by Dr. Emmett Brown, Dec 16, 2018.

  1. Dec 16, 2018 at 6:17 PM
    #1
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    In a perfect world I would drop $1k on a set of bed racks (plus shipping to Hawaii) for my truck. But my rent is more than some of your mortgages so that ain't happening. I have a RetraxPro pro MX bed cover so I'm fabricating brackets and rigid pipe to make a rack to work with my bed cover. Will show some updates and the finished product.
    All materials used are free for me!

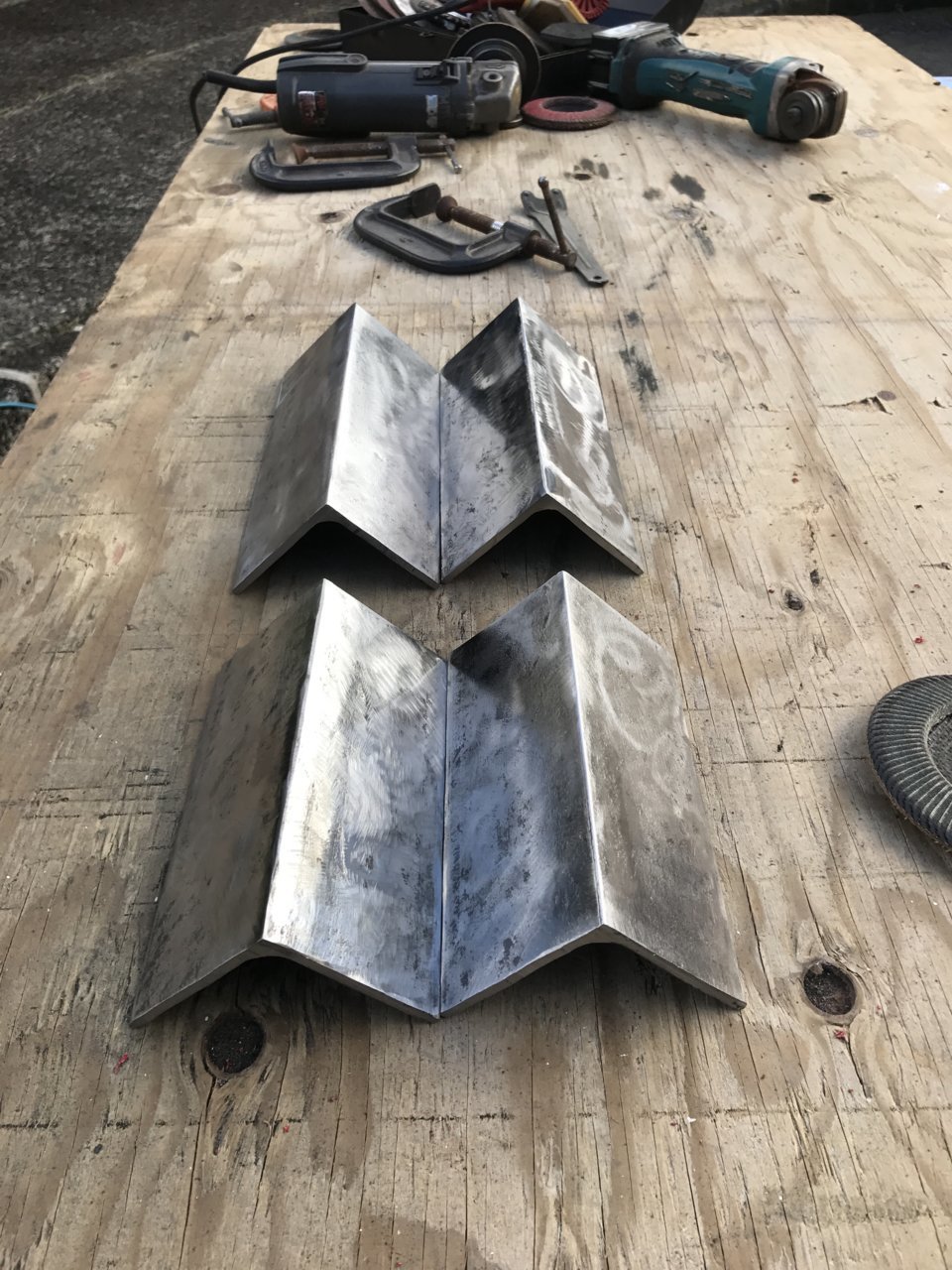

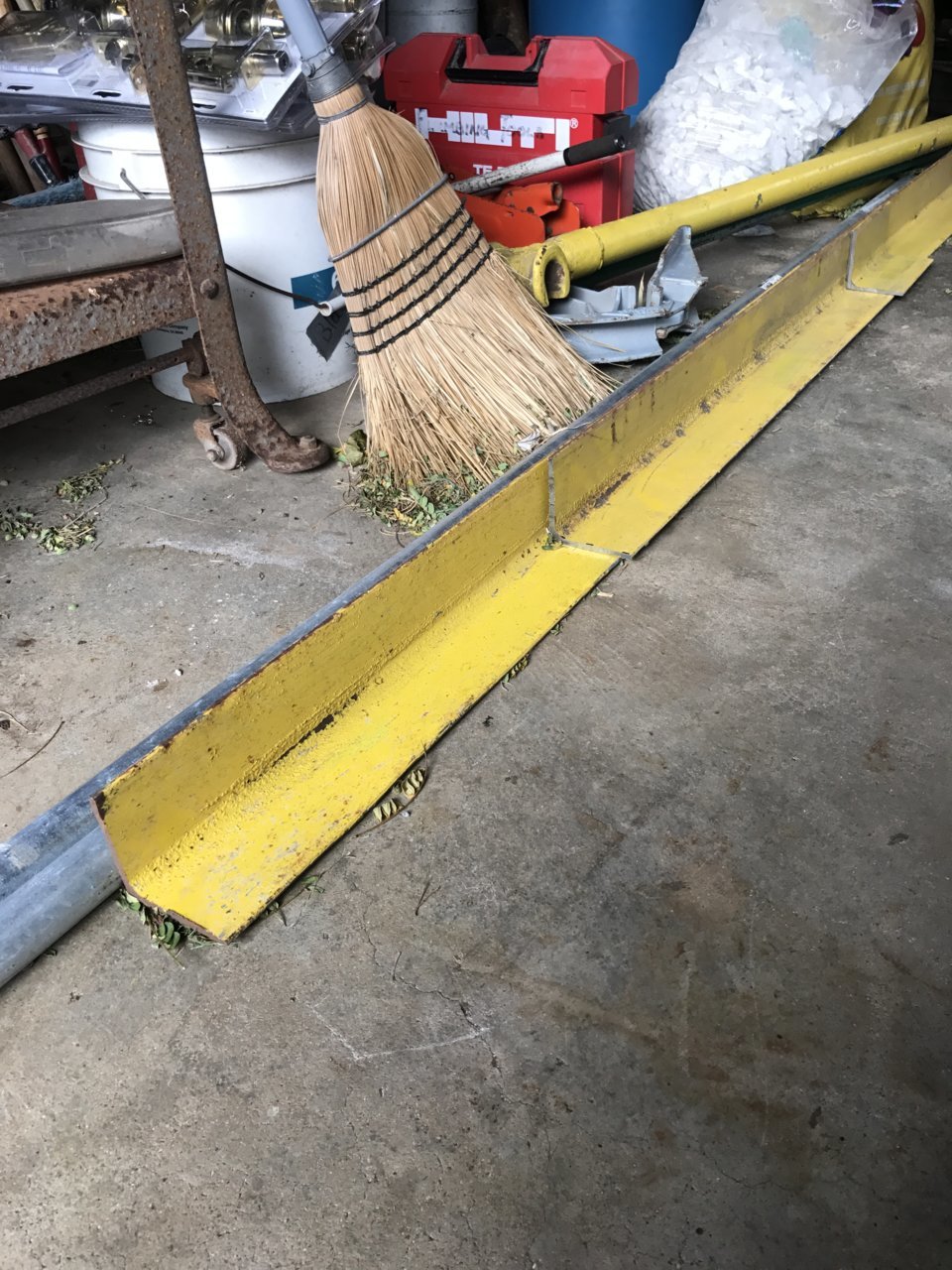

    First step, cutting 1/4" angle iron to size.


    corgimas and dangeroso like this.
  2. Dec 16, 2018 at 6:20 PM
    #2
    magicgus323

    magicgus323 Well-Known Member

    Joined:
    Mar 2, 2018
    Member:
    #246115
    Messages:
    329
    Gender:
    Male
    First Name:
    Gustavo
    Visalia Ca. East LA LBC
    Vehicle:
    2016 White Tacoma Sr 2.7
    TRD rims and suspension, TRD grill, stereo iPhone mirroring stormtrooper decal backflip bed cover painted bumper and mirror caps
  3. Dec 16, 2018 at 6:20 PM
    #3
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794

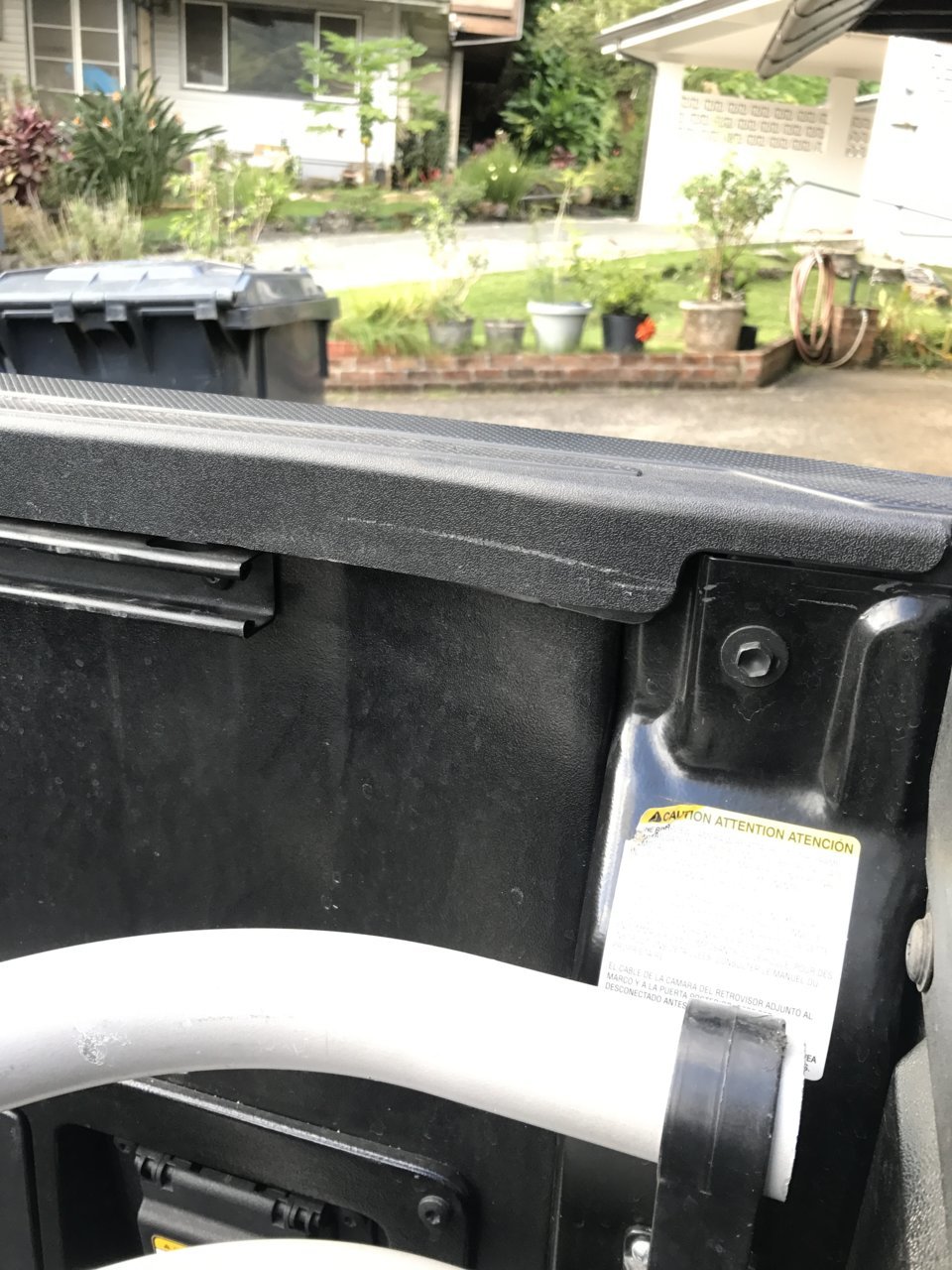

    The front brackets will utilize the in bed side rail system to bolt to. They front brackets will be up against the cabin near the canister for the bed cover when rolled up.
    The rear brackets however will have one bolt in the bed rail system and I will try to use this factory bolt for the back portion of the rear bracket. I may need to get a longer bolt due to this one only being about an inch long.


    dangeroso likes this.
  4. Dec 16, 2018 at 6:21 PM
    #4
    dangeroso

    dangeroso Model citizen. Zero discipline.

    Joined:
    Apr 4, 2018
    Member:
    #249394
    Messages:
    1,128
    Gender:
    Male
    First Name:
    Jon
    Dallas, TX
    Vehicle:
    2018 Tacoma TRD Sport 4x4
    Interesting. I’d love to see more.

    I'm planning a DIY bed rail tire mount project. I want something low profile, so I'm thinking of starting with 2 of these, spaced about 18" apart:
    http://sosoffroadconcepts.com/bed-bars/

    And then running unistrut between the rails in 3 or 4 segments:
    https://www.amazon.com/Genuine-Unis...=UTF8&qid=1537472776&sr=8-4&keywords=unistrut

    With a threaded bolt and nut to lock the wheel in place.

  5. Dec 16, 2018 at 6:22 PM
    #5
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794

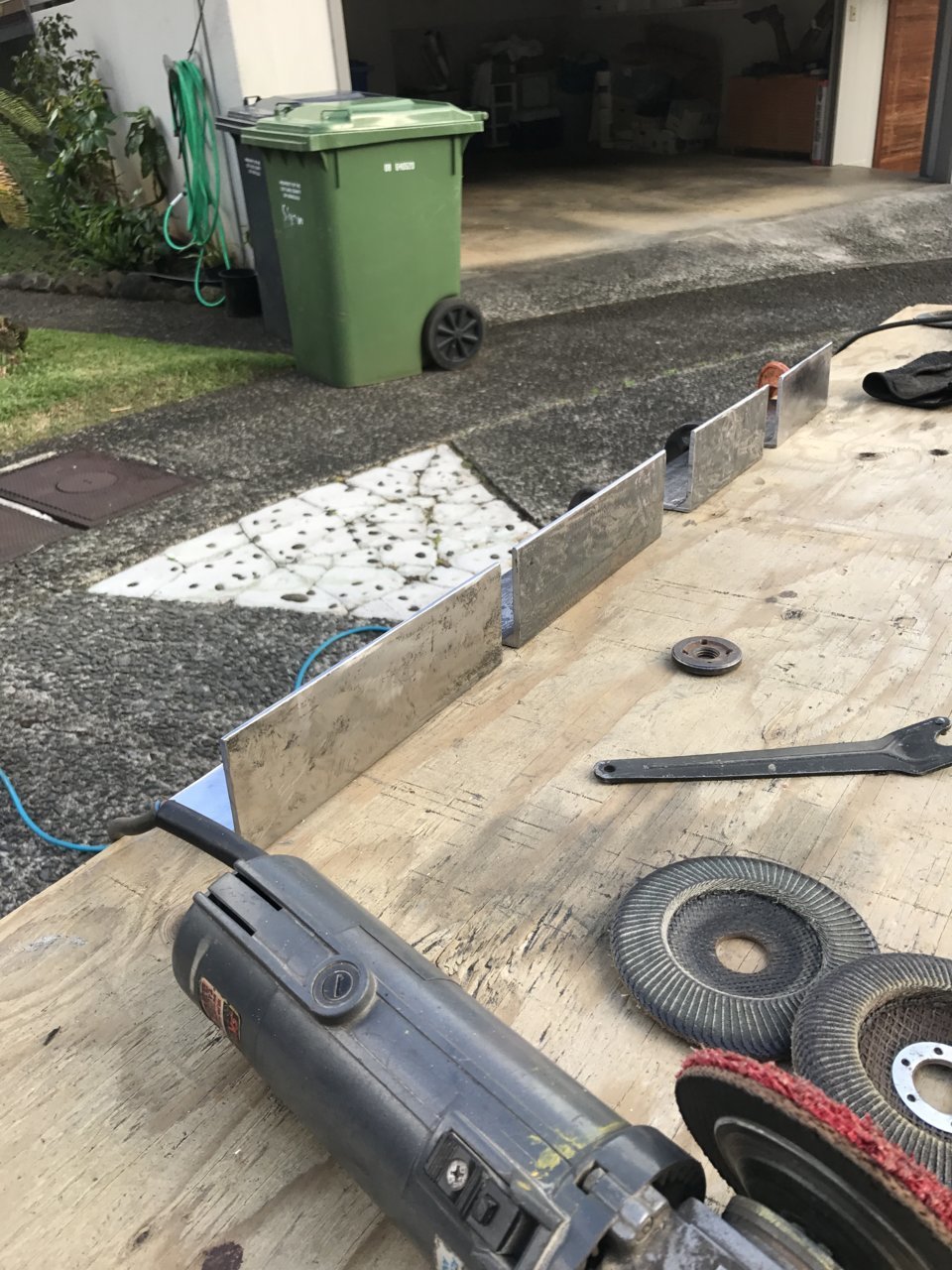

    Brackets have been cut to size and are being grinded to both a weldable and paintable surface.


    dangeroso likes this.
  6. Dec 16, 2018 at 6:38 PM
    #6
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    The way these are mounted is basically how I'm doing mine but with space to fit the bed cover.

    dangeroso likes this.
  7. Dec 16, 2018 at 6:50 PM
    #7
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
  8. Dec 16, 2018 at 10:07 PM
    #8
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    Will be calling shops locally to see prices for powder coating. Still deciding if I'm going to match my trucks color or go with flat black.

  9. Dec 29, 2018 at 6:55 PM
    #9
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794

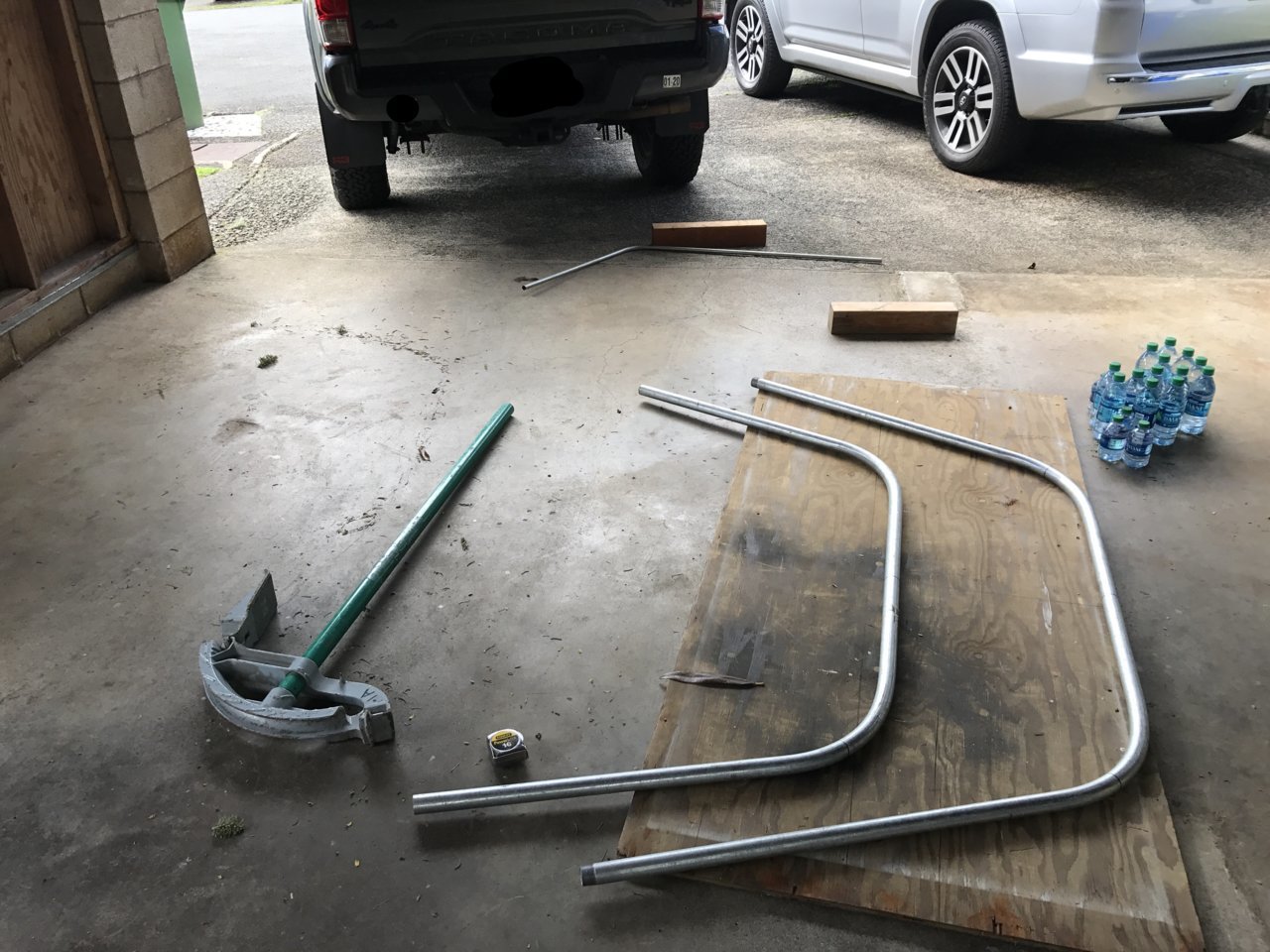

    Hand bent 1" rigid, not easy to do lol


    BFRT_King Ranch likes this.
  10. Dec 29, 2018 at 6:56 PM
    #10
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    Cut to height. These racks will be used as surf racks as well so I wanted them to be just a little higher than my roof line.


    paleh0rse, jerryb1984 and 5nahalf like this.
  11. Dec 29, 2018 at 7:06 PM
    #11
    basshole

    basshole Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265149
    Messages:
    599
    chicagoland
    Vehicle:
    2018 OR MT
    Interesting.. I dig the fact you are starting with free material. Any guesstimate on load limits of your project?

  12. Dec 29, 2018 at 8:14 PM
    #12
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    On 1" rigid conduit bent at the corners I'd say a safe guess would be at least 500 pound static rating. My brother has used 1 1/4" rigid conduit racks to haul a load and the leaf springs maxed out but the rack was still sitting perfectly.

    Side note. I wouldn't put this type of hours/labor if the material wasn't free. Haha. Not worth it.

    Edit. I will also be fabricating some bed stiffeners that will allow me to continue to use my bed extender. The bed extender has brackets that mount right where most bed stiffeners bolt up so I will make mine to fit around them. Will post pics of that later in the future

  13. Dec 31, 2018 at 9:54 AM
    #13
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794

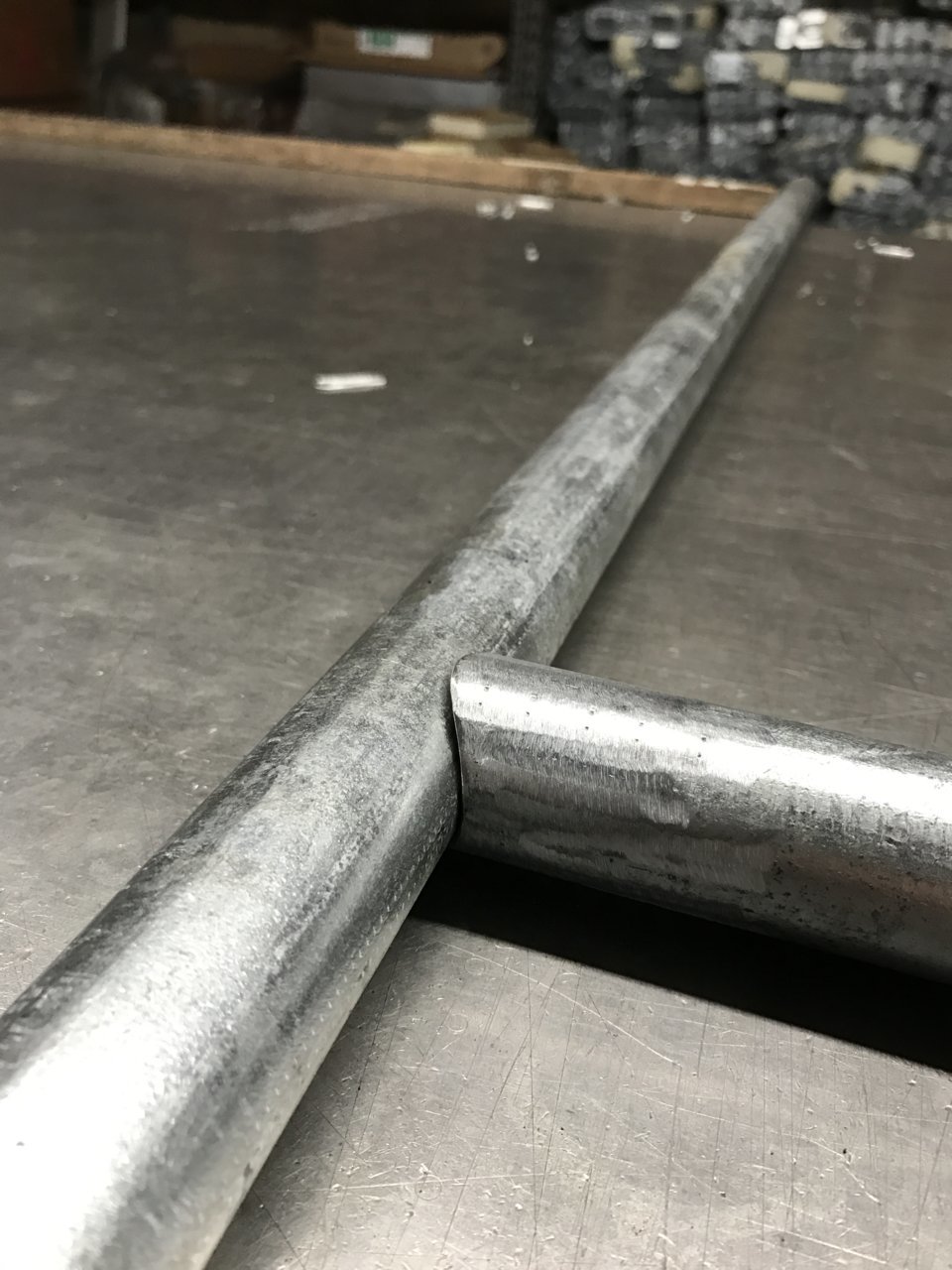

    Used a hole saw on a drill press to cut my half moon notches so that the pipes mate up flush. These will be my front to back bars which I will be using to mount the maxtrax and rotopax to.


    BFRT_King Ranch likes this.
  14. Dec 31, 2018 at 10:56 AM
    #14
    savin yours

    savin yours Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266644
    Messages:
    768
    Gender:
    Male
    First Name:
    Bryan
    SE Tx
    Vehicle:
    2018 TRD Off Road
  15. Jan 12, 2019 at 7:24 PM
    #15
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    UPDATES.

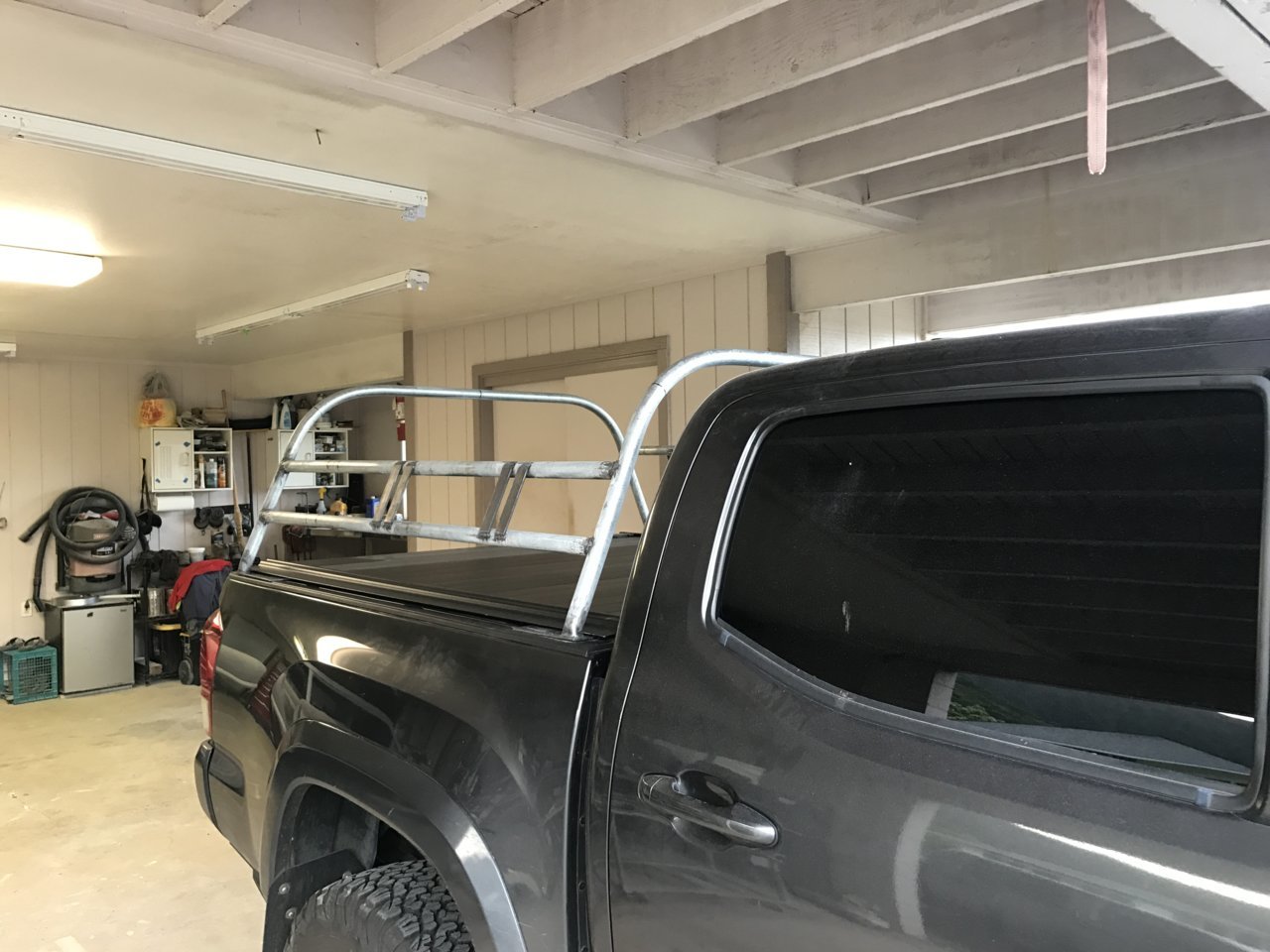

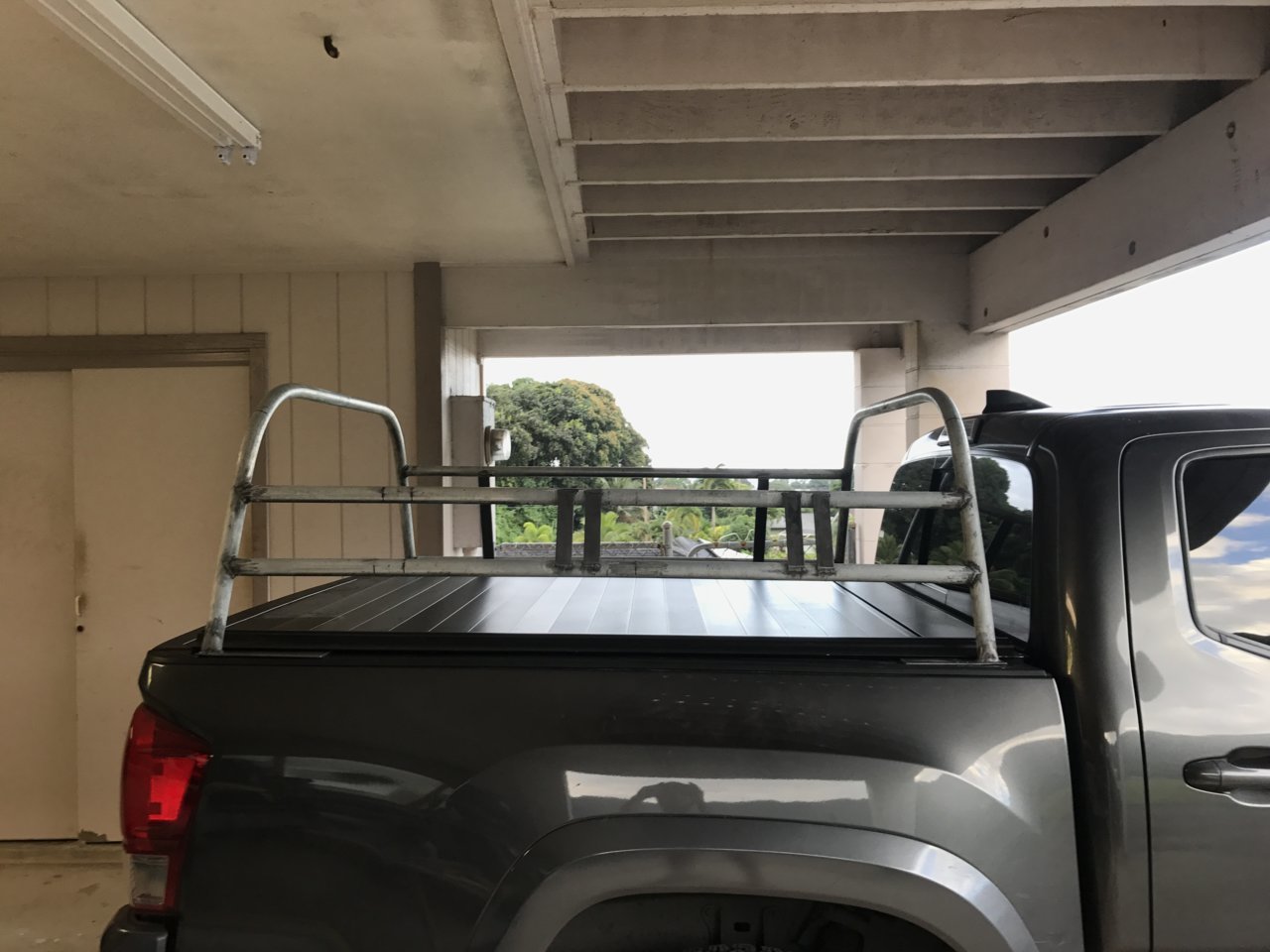

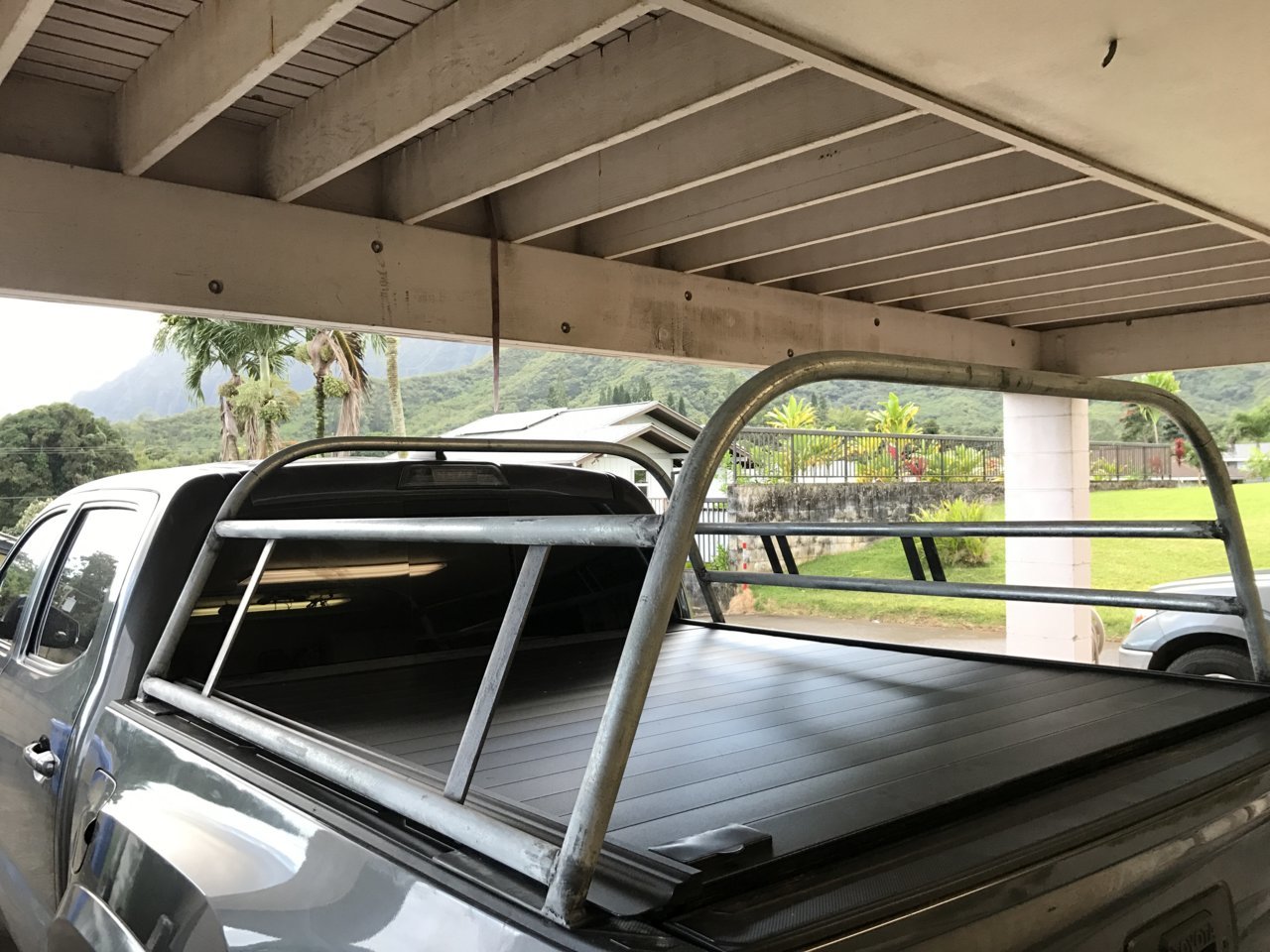

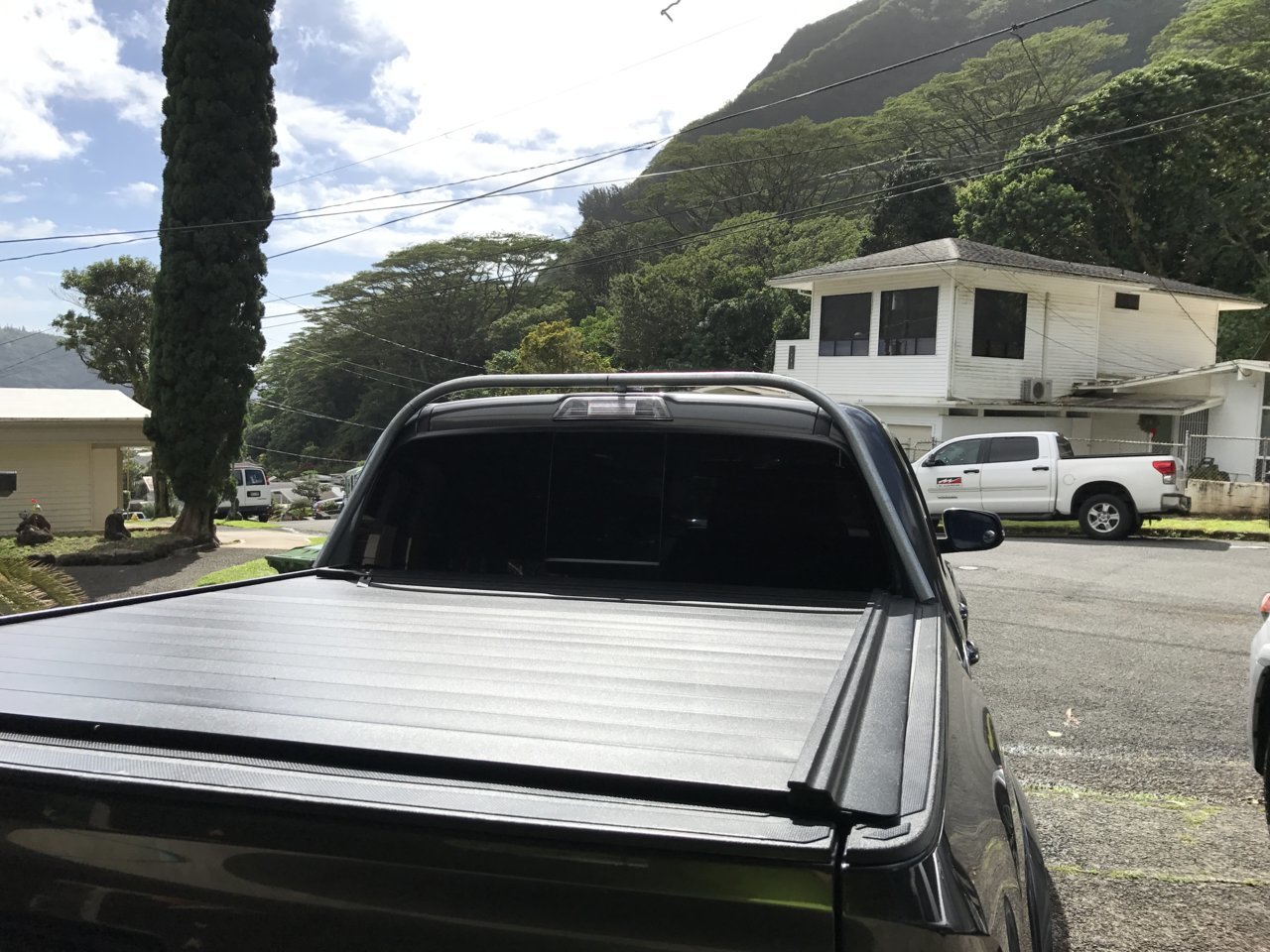

    Welded and mounted. Ready for paint!


  16. Jan 12, 2019 at 7:25 PM
    #16
    Dr. Emmett Brown

    Dr. Emmett Brown [OP] Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
  17. Jan 12, 2019 at 8:28 PM
    #17
    Chasespeed

    Chasespeed Well-Known Member

    Joined:
    Jul 17, 2018
    Member:
    #259608
    Messages:
    1,864
    Gender:
    Male
    WMass
    Vehicle:
    2018 TRD OffRoad
    Seeing how long I can keep stock(ish) OVTuned
    Not bad at all man

  18. Jan 12, 2019 at 9:06 PM
    #18
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,059
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
  19. Jan 12, 2019 at 9:26 PM
    #19
    ronin_yota

    ronin_yota Well-Known Member

    Joined:
    Apr 22, 2018
    Member:
    #251355
    Messages:
    84
    Nice work! Love seeing custom ideas come to life. Definitely get some pics up once it’s painted.

    Last edited: Jan 12, 2019
    Dr. Emmett Brown [OP] likes this.
  20. Jan 12, 2019 at 9:29 PM
    #20
    El Duderino

    El Duderino Obviously, you're not a golfer.

    Joined:
    Dec 29, 2015
    Member:
    #173469
    Messages:
    12,941
    Gender:
    Male
    First Name:
    Jeremy
    HI->PNW
    Vehicle:
    16 MGM Sport 4x4 DCSB & 19 nautical blue SR5 premium 4x4
    Stuff, things, this, an ADS
    Badass. I love the DYI on this, what color you going with.
