Bedside compressor help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by PortRoyal91, Dec 17, 2020.

  1. Dec 17, 2020 at 8:33 AM
    #1
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”

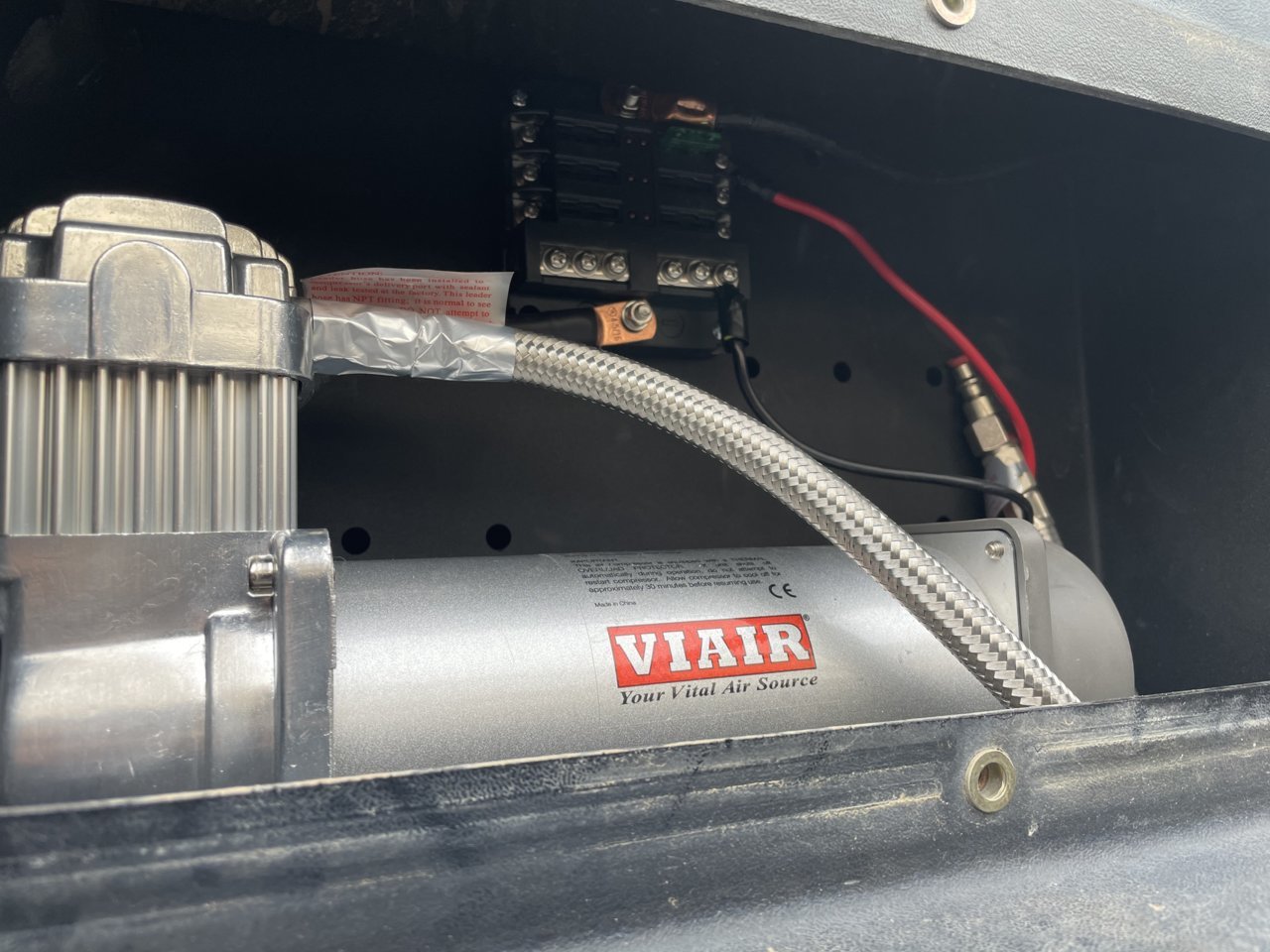

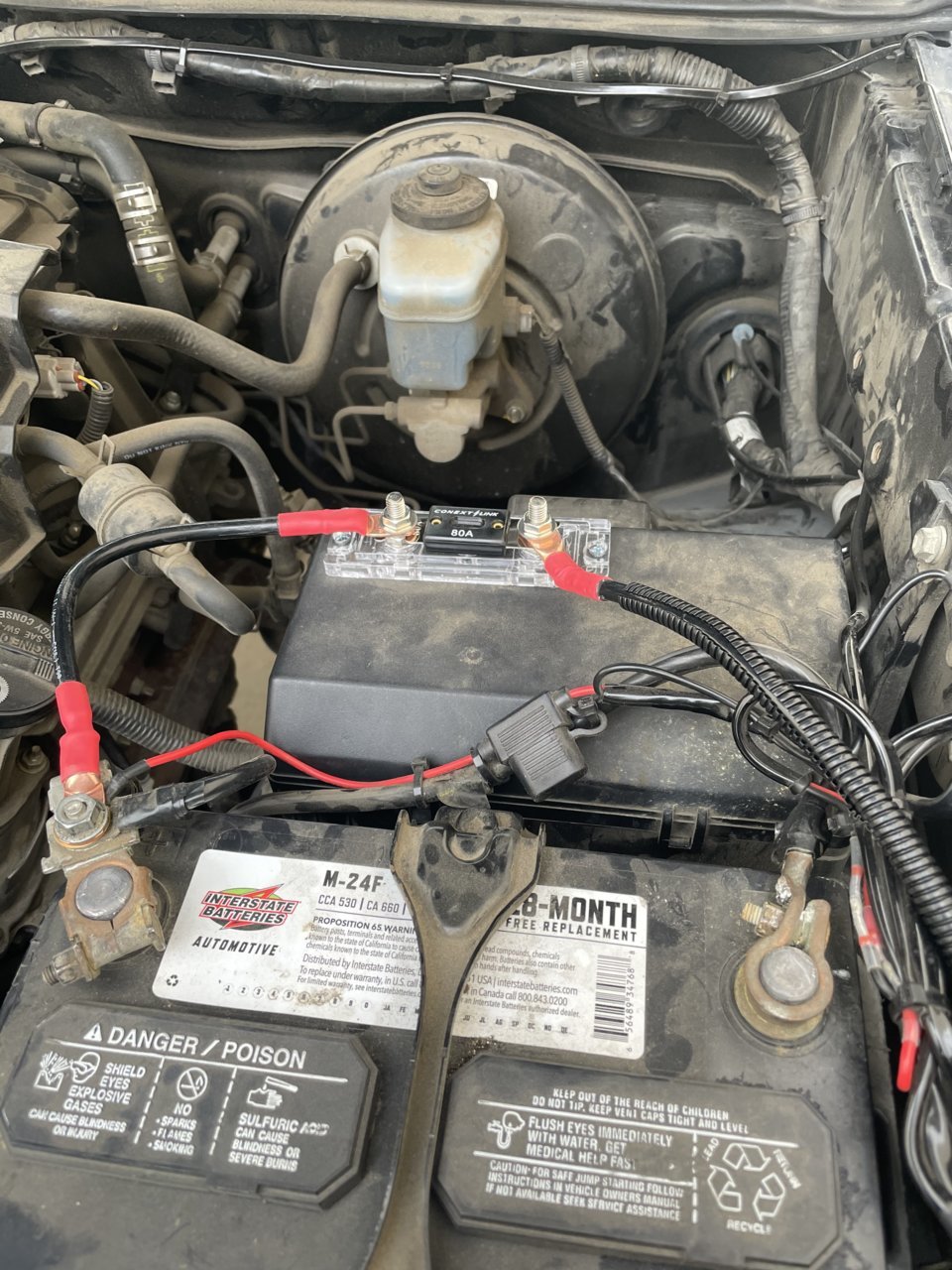

    F6C4E72A-9457-41AC-B05B-93002A2B4828.jpg 1572F509-0584-4CE1-9025-357756895F05.jpg 442CCABB-534A-414D-9D17-301054E46C6A.jpg Hey TW, got a few questions.

    So I wired up a fuse block to the bedside compressor mount, I did this so I could run my rock lights and rack lights here instead of having a ton of wires running to the front of the vehicle.

    I ended up using about 25’ of wiring so it called for something around 4ga wire for the amperage I was expecting, unfortunately the fuse block connections are much smaller so I had to improvise.

    Ran everything and crimped all of the connections correctly, but I’m not getting any power to the fuse block.

    I’m also guessing that the ground I have isn’t adequate, but I shaved off all powder coat as you can see.

  2. Dec 17, 2020 at 8:41 AM
    #2
    kn61408

    kn61408 Retired old fart

    Joined:
    Feb 2, 2013
    Member:
    #96712
    Messages:
    149
    Gender:
    Male
    western washington
    Vehicle:
    09 PreRunner DCLB sport pyrite mica
    12v always on power point mod, tailgate anti-theft, Addl bed tiedowns, flyzeye dash lights, map lites with dome lite mod, bed stiffeners, air bags, brake controller, always on fog lights,
    Time to get out the multimeter. Is your mount properly grounded? Do you have power through the 80A fuse? What is the connection on the top of the fuse block, 12vdc?

  3. Dec 17, 2020 at 8:42 AM
    #3
    Crazydave

    Crazydave Crazy Dave

    Joined:
    Sep 13, 2016
    Member:
    #197143
    Messages:
    85
    Gender:
    Male
    First Name:
    Dave
    Western PA
    Vehicle:
    2015 Tacoma SR5 DCLB
    265/75R16, Clazzio seat covers W/aftermarket heated seats, Interior lights changed to LED
    I would start with that ground. What you have wired up is not adequate. Would be best to run that ground back to the battery, or the engine block. The frame might be ok to ground to but you would be putting a lot of power through the small grounding wire that goes from the body to the frame.

    PortRoyal91 [OP] likes this.
  4. Dec 17, 2020 at 8:43 AM
    #4
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,718
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Its always a good idea to run a dedicated NEG lead back to the battery for larger loads or distribution blocks like this.

    Ive never seen one of those compressor mounts in person, but if it just mounts to the composite bed, then its not touching any metal and wont be bonded to the chassis for your negative.

  5. Dec 17, 2020 at 8:45 AM
    #5
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    This is the fuse block I used.

    https://www.amazon.com/dp/B07HDZVW3P/ref=cm_sw_r_cp_api_glc_fabc_FQ42FbVW75497?_encoding=UTF8&psc=1

    Yeah I’m waiting for my buddy to return my damn multimeter or I would’ve eliminated a lot of troubleshooting yesterday.

  6. Dec 17, 2020 at 8:46 AM
    #6
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    Yeah it just mounts to the bed, that makes sense, I was thinking it was probably the ground. Damn, didn’t want to have to run another one back to the battery.

  7. Dec 17, 2020 at 8:48 AM
    #7
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    The grounding wire is 4ga, the same as the positive running to the battery

  8. Dec 17, 2020 at 8:50 AM
    #8
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    6,532
    First Name:
    Jason
    2F23+34 Lake George, Colorado
    Vehicle:
    15 TRD Blown OffRoad
    TRD Supercharger
    This is your problem. The bedside cubby metal box you are grounded to just screwed into the composite bed, which is non-conductive and non-grounded.

  9. Dec 17, 2020 at 8:51 AM
    #9
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    For testing purposes, take your jumper cables and clamp 1 end on that ground stud and the other end on your bumper bracket.

  10. Dec 17, 2020 at 8:52 AM
    #10
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    Oh okay, I thought a piece of metal was adequate enough, as you can see I’m no electrician haha

  11. Dec 17, 2020 at 8:55 AM
    #11
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    Just to clarify, you’re saying take the negative of a jumper cable and put it on the negative of the fuse block, and then take the other negative cable and put it on the bumper bracket? Didn’t even think of that, that’ll tell me my issue rather quickly

  12. Dec 17, 2020 at 9:12 AM
    #12
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    6,532
    First Name:
    Jason
    2F23+34 Lake George, Colorado
    Vehicle:
    15 TRD Blown OffRoad
    TRD Supercharger
    Yes, just holding a wire to your ground and holding it against a clean spot on the metal frame, bumper bracket, etc will let you know if the only issue you are having is the missing ground.

  13. Dec 17, 2020 at 9:13 AM
    #13
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    Well that didn’t work, now I’ll try and run a long piece of wire to my negative terminal and see if that works.

  14. Dec 17, 2020 at 9:17 AM
    #14
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    6,532
    First Name:
    Jason
    2F23+34 Lake George, Colorado
    Vehicle:
    15 TRD Blown OffRoad
    TRD Supercharger
    Go smack your buddy and have him bring it back sooner :) This will save you a bunch of time troubleshooting.

    The connections at the battery LOOK ok, but without being there and having a multimeter, I can't diagnose over the internet...

    The fusable link looks fine, the wire connection to the battery and such looks fine.

    I would focus on the fuse block and double check your fuse(s).

  15. Dec 17, 2020 at 10:00 AM
    #15
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,871
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter
    I did something similar but like everyone said, run a ground wire directly to the engine bay.

    Personally, I used a 50a circuit breaker in the engine bay, ran 4ga power and ground cables to the driver bed cubby, then I used a distribution block like this one from Amazon for the power cable (one end goes into my bluesea distro block to power accessories) and the other directly to my compressor. I'll almost never use my accessories when my compressor is on so I won't draw too much power at once.

  16. Dec 17, 2020 at 10:08 AM
    #16
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”

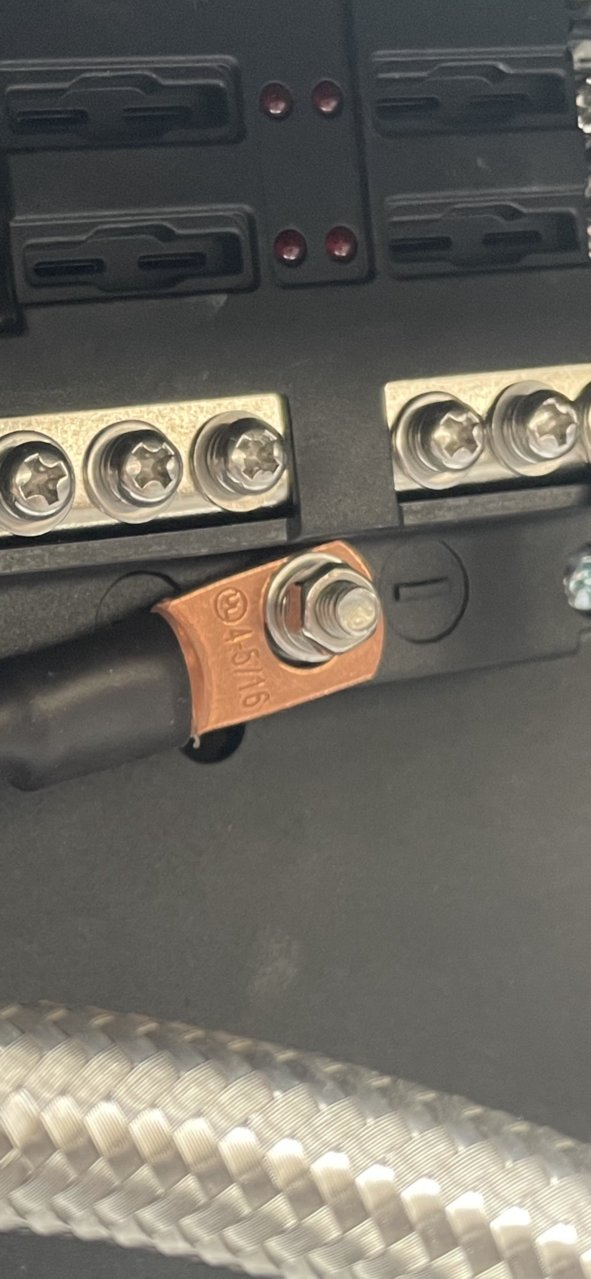

    I appreciate the help man, so I realized you can’t get a close-up of the fuse block, this is what I’m worried about: the ring terminal on the fuse block is quite small and doesn’t cover the entire ring connector from the wire, and I didn’t know if they made smaller ring connectors for 4ga wire.


  17. Dec 17, 2020 at 10:15 AM
    #17
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,718
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    For the purpose of troubleshooting that wont matter, but in the long run youll want to replace it with one of these when you make the run up to the battery. Probably #10 or 1/4"
    https://crimpsupply.com/compressionlugs?terminal_wiresize_range=1789

  18. Dec 17, 2020 at 10:34 AM
    #18
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    Oh this is exactly what I was looking for! Had absolutely no idea they made these for this big of a gauge, you’re a lifesaver

  19. Dec 17, 2020 at 10:37 AM
    #19
    PortRoyal91

    PortRoyal91 [OP] Well-Known Member

    Joined:
    Jun 23, 2020
    Member:
    #332344
    Messages:
    78
    Gender:
    Male
    First Name:
    Christ
    Vehicle:
    08 access cab prerunner
    Decked, RCI Bed rack, Leveling Kit, 33”
    Any reason why they’re so pricey? $7 a pop seems a little steep for lugs
