Before you replace the blower resistor ...

Discussion in '2nd Gen. Builds (2005-2015)' started by ibJAE, Aug 7, 2010.

  1. Aug 7, 2010 at 9:24 PM
    #1
    ibJAE

    ibJAE [OP] Member

    Joined:
    Jul 4, 2009
    Member:
    #19261
    Messages:
    8
    Gender:
    Male
    ... Be sure to check the connector. It seems they have the same problem GM did back in the 80's on their blower relay. The amperage through the supply wire (white with blue trace) is too much for the size of the connector at the resistor. Due to this it appears it gets very hot then the female connector's tension to the male spade becomes weak and it burns. Thus the low and medium fan speeds will come and go. If you can wiggle the connector at the resistor and the fan goes on and off this might be the problem.

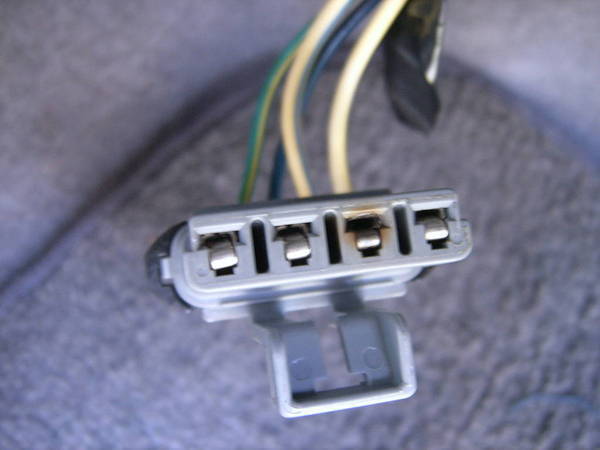

    Here is a photo of the connector:
    [​IMG]

    See how bad it is burned ...

    [​IMG]

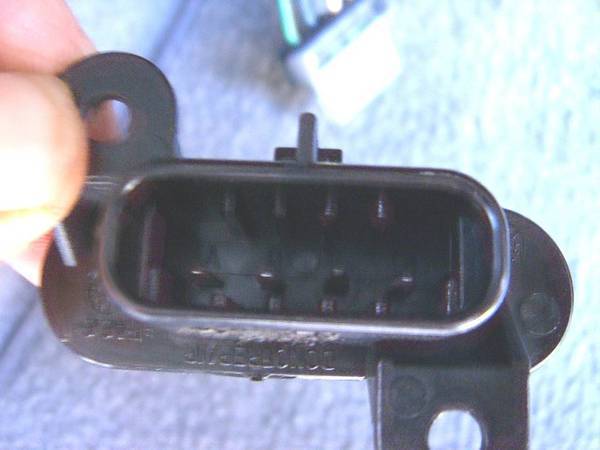

    The spades in the resistor housing are very small the one for the supply voltage should have been larger and a better style.

    [​IMG]

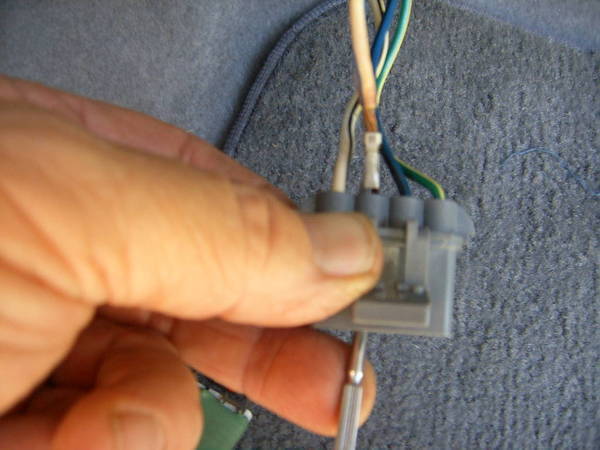

    Once you remove the black retaining clip, use the correct release tool or a very small screwdriver and release the connector from the housing. Clean it up, scrape the contact surface and bend the tab that contacts the male spade (look at it and you can figure out what to do)

    [​IMG]

    You could go buy a new connector but I tweaked the male spade a bit in the resistor so it would put tension on the female connector. These resistors appear stout but the connectors are weak. I can see where you could replace the resistor and due to the clean terminal it works ... for awhile. I think a better fix would be an updated resistor with a large male spade on that terminal and a new connector to match. I guess you could make your own. One thing, if you have the ability you could check the amperage draw of the motor to determine it is not drawing an excessive amount. But I think I am correct on the design flaw, seen it before in the 80's. :)

  2. Aug 7, 2010 at 9:38 PM
    #2
    afd23a

    afd23a Well-Known Member

    Joined:
    Sep 26, 2008
    Member:
    #9483
    Messages:
    1,810
    Gender:
    Male
    The Dynamo of Dixie
    Vehicle:
    05 Access Cab 5 Lugger
    Factory Fog Lights, Removed Secondary Air Filter, Metra Ipod Adapter, Int Wiper Stalk, Wet Okole's, URD Short Shifter, Scanguage II w/Blendmount, Fat Bob's 2.75" spacer lift, ARE topper, SP Performance Pads & Slotted Rotors, 4.10 gears
    Good find!! I wondered if this might be part of the problem with blower resistors. The symptoms sounded too much like poor contact. Since I haven't had the problem I've never looked into it.

  3. Jun 28, 2011 at 2:19 PM
    #3
    seanmccarthy1

    seanmccarthy1 Member

    Joined:
    Nov 5, 2010
    Member:
    #45770
    Messages:
    16
    Gender:
    Male
    massachusetts
    Vehicle:
    05 sr5
    VERY NICE THANKS......ONTHIRD RESISTOR

  4. Dec 17, 2011 at 12:47 PM
    #4
    DrRabbitFurHead

    DrRabbitFurHead Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,058
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    what is "the correct tool" to remove the wire?
    I'm attempting to use a small screwdriver but don't want to mess anything up. Do I depress the contact, push or something else?

  5. Jan 2, 2012 at 9:13 AM
    #5
    1904Tacoma

    1904Tacoma Herp & Derp

    Joined:
    Jan 1, 2012
    Member:
    #69760
    Messages:
    20
    Gender:
    Male
    San Diego,Ca
    Vehicle:
    06 Pre Runner SR5 TRD Off-Road
    I am also interested in knowing how you do this....please help!


  6. Jan 2, 2012 at 9:31 AM
    #6
    Superx2

    Superx2 Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51552
    Messages:
    1,628
    Gender:
    Male
    First Name:
    Joey
    Iowa
    I had a chevy before I bought my tacoma. I noticed when it was really muggy out in the summer my ac blower would condensate like a s.o.b. the condesation would drip, run, or leak onto the pig tail(the wires above) that's where it melted them. I don't know where the wires are at and am not too worried bout it. Just given ya all a heads up.

  7. Jun 18, 2012 at 2:46 PM
    #7
    KickAss

    KickAss Member

    Joined:
    Jul 7, 2008
    Member:
    #7789
    Messages:
    10
    Florida
    Vehicle:
    2005 Taco 4x4 crew longbed
    First Post, Hi, and thanks, love this thread, not only helped myself but my neighbor as well!
    OK, so here's where I am now: 2005 tacoma
    start off,
    Fan only works on high, find this thread, get the resistor, install it, perfect, fixed.
    That lasted 1 week.
    I have the telltale brown streak on the connector housing, I have cleaned it picked at it to tighten pinch on connector, added electrostatic gel, nothing, still only works on high. Doesnt work if I try to wiggle harness into resistor, so that tells me prob not that connection?
    Pull the cabin filter, its dirty, but only about 6 months old, fish around in the fan itself with my hand, it has alot of leaves in it, maybe a small handful, if that, it wasn't full or anything.
    I never had a problem til i installed the cabin filter, unbeknowst to me, there wasn't one in it when I bought it used 4 years ago.
    sooo,,, do you think the fan motor blew the resistor?
    What do you guys think?
    get another resistor, and a new fan motor? replace the harness?
    This sucks! the fan on that high is very tedious, radio has to be loud, but thank goodness, it works, I'm in orlando, FL, its just a little hot here now.
    Thanks in advance for the help!
    Charles

  8. Jul 19, 2012 at 7:20 AM
    #8
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,307
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    This looks to be the same plug that chevy uses. I will order one and find out.

  9. Jul 19, 2012 at 7:25 AM
    #9
    macgyver

    macgyver Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,603
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    Hmm.. I'll check that out. My blower motor in my '07 acts up sometimes and doesn't blow air. It takes a little kick or smack to get it working again.

  10. Jul 19, 2012 at 7:39 AM
    #10
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,307
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Total comes to $8.59, 1 plug 4 pins.

  11. Jul 25, 2012 at 6:06 PM
    #11
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,307
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    [​IMG]


    Winner winner

  12. Sep 4, 2012 at 12:49 PM
    #12
    12TRDTacoma

    12TRDTacoma Mid Traveling

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    4,333
    Gender:
    Male
    First Name:
    Roberto
    Concord, CA
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged
    I wonder if this affects the new 2012 Taco's as well, is that plug on GMC Canyon better then the stock one?

  13. Sep 4, 2012 at 12:53 PM
    #13
    ds46000

    ds46000 Well-Known Member

    Joined:
    Feb 15, 2011
    Member:
    #51206
    Messages:
    187
    Gender:
    Male
    Vehicle:
    07 PreRunner TRD Sport
    Curious about this as well. And how would you replace the male pins coming out of the resistor side? Is there a way to do that?

  14. Sep 4, 2012 at 12:56 PM
    #14
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,307
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    It's about the same. The contacts are the same size as the old one. This is mostly for those people that had plugs burn up on them and don't want to shell out what Toyota thinks they are worth.

    Supposedly there is an updated resistor though.

  15. Sep 4, 2012 at 1:26 PM
    #15
    ds46000

    ds46000 Well-Known Member

    Joined:
    Feb 15, 2011
    Member:
    #51206
    Messages:
    187
    Gender:
    Male
    Vehicle:
    07 PreRunner TRD Sport
    sandman, do you have any info regarding the new resistor, or where you heard that from, etc? I've searched here and google and can't find anything. I think this is probably the route I will need to take though.

    Thanks.

  16. Sep 30, 2012 at 7:53 AM
    #16
    DrRabbitFurHead

    DrRabbitFurHead Yeah, there's a TSB for that!

    Joined:
    Jun 18, 2009
    Member:
    #18625
    Messages:
    1,058
    Gender:
    Male
    Salem, VA
    Vehicle:
    X-treme Off Road Edition (4x4)
    Icon Extended Travel Coil Overs, Fox Rear Resi 8-Way Adjustable Shocks, Light Racing UCA's, OME Rear Leafs, M/T Classic Locks 17x9, Nitto T/G (285/70/R17), 5mm Billet Aluminum Spacers, Demello Sliders, All Pro Front Plate Bumper & IFS Skid Plate, PIAA 510's, Doug Thorley Long Tube Headers, O2 sims, Rear Timbren's & U-Bolt Flip Kit , 3* Rear Axel Shims, Extended Rear Brake Lines, 48" Hi-Lift with a ton of accessories, Wet Okoles, TRD bed mat, Borla Air Filter, Garmin Nuvi 765T, Viper 5901 remote start, 50% tint.
    Need info on the "updated resistor" please.
    Mine went out again. Did the fix about 10 months ago, same problem again.

  17. Sep 30, 2012 at 8:00 AM
    #17
    Kolunatic

    Kolunatic dont tread on me!

    Joined:
    Apr 29, 2012
    Member:
    #77862
    Messages:
    9,783
    Gender:
    Male
    Texas
    Vehicle:
    07,2wd,DC,SRD,TRD Sport,because
  18. Nov 8, 2012 at 9:47 AM
    #18
    spkrman57

    spkrman57 Taco newbie

    Joined:
    Sep 22, 2012
    Member:
    #87466
    Messages:
    11
    Gender:
    Male
    First Name:
    Ron
    Columbus,Ohio
    Vehicle:
    2012 Toyota Tacoma SR5
    I'm curious if the 2012 Taco's have updated resistors and connectors.

    As a former electronics technician I can say they probably use only minimum current carrying terminals and resistors which will fail over and over again if not upgraded!

    My old 2004 Chevy 1500 lost the different fan speeds over time. I sold it and bought a Toyota for the reliability and quality. I hope I made the right choice!

    Has anyone measured a new resistor pack and recorded the values?

    Regards, Ron

  19. Nov 28, 2012 at 2:00 PM
    #19
    TidalWave

    TidalWave I have a shovel and no one will miss you...

    Joined:
    Mar 28, 2011
    Member:
    #53889
    Messages:
    484
    Gender:
    Female
    First Name:
    Mendy
    Surprise, AZ
    Vehicle:
    05 TRD DCLB
    4" Maxtrac Spindle lift, 33" BFG A/T, Avid weld on rock sliders and rear bumper, Smoked Projector Headlights, smoked tails and fogs, HID healights and fogs, flowmaster exhaust, Wet Okoles, debadged. Ready to take your milk money.
    Sub'd. My a/c and heat only work on "high" and living in Phoenix i will need to fix this soon.

  20. Nov 28, 2012 at 4:00 PM
    #20
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,307
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I was just scouring the forum and happened across it. I don't remember where it was. try to search.

    edit: searched and found this PDF



    Less than 20 mins worth of work. I guess we all are allowed to be lazy.
