Before you replace the blower resistor ...

Discussion in '2nd Gen. Builds (2005-2015)' started by ibJAE, Aug 7, 2010.

  1. Jun 2, 2016 at 2:01 AM
    #61
    Fox 21 Alpha

    Fox 21 Alpha Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51111
    Messages:
    116
    Gender:
    Male
    First Name:
    Brendan
    Western PA
    Vehicle:
    07 Access Cab V6 6spd Off Road
    I struggled a little with this so wanted to have it up for anyone in the future that needed it.

    Note I'm using the green wire for demonstration purposes only, my power wire (the burned up white one) was too dirty to see anything haha.

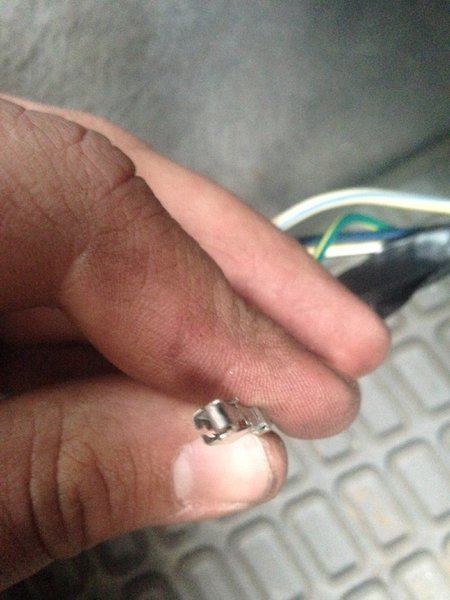

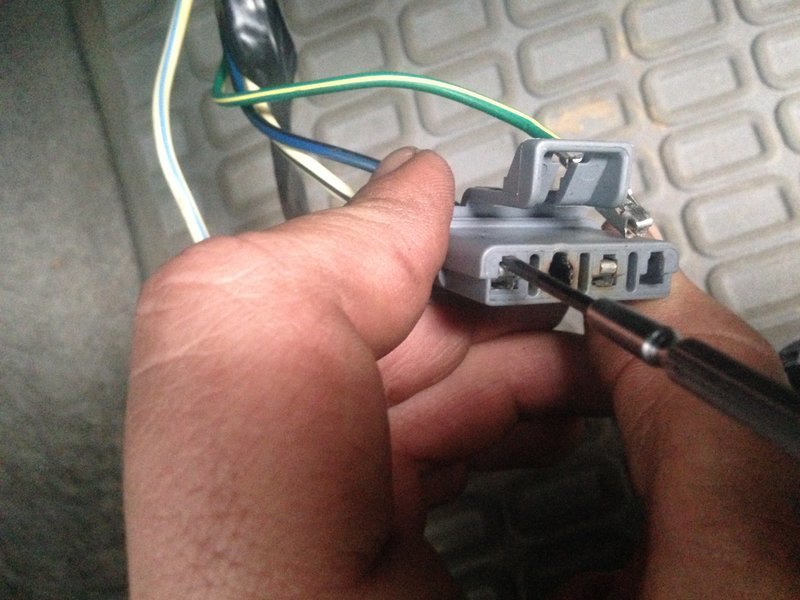

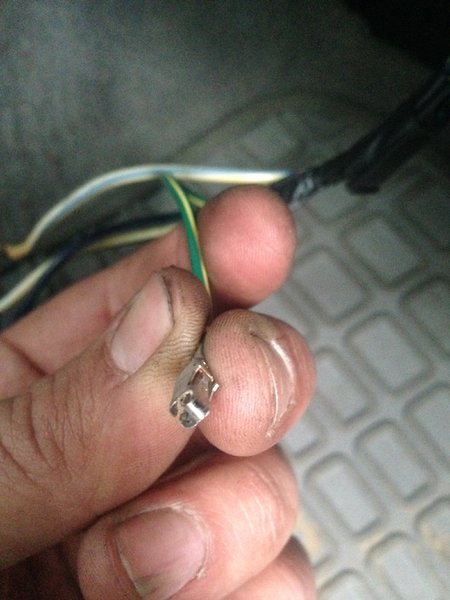

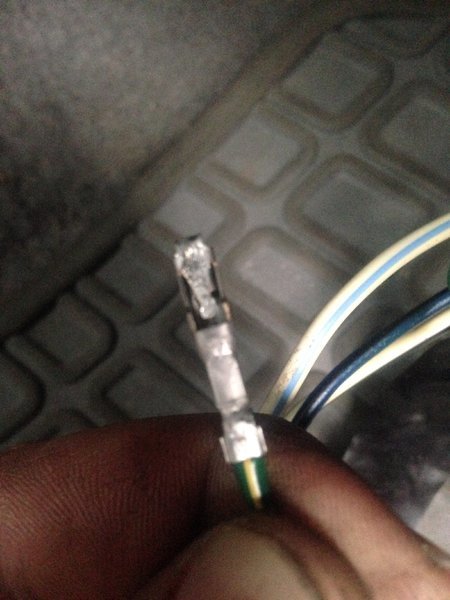

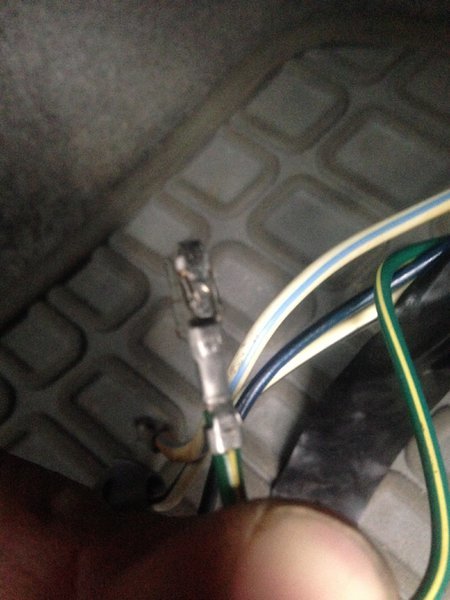

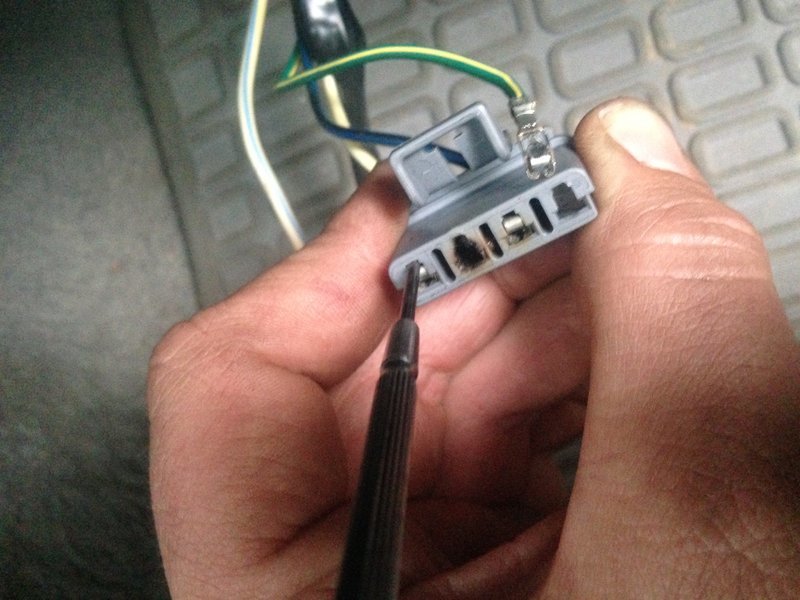

    Basically your pushing down on a small metal tab on the top of the resistor pigtail/plug. You can see it in the photos. You may need to pry it back up before your out it back together. My tab got bent down and stayed down so I had to bend it up.
    image.jpg image.jpg image.jpg image.jpg image.jpg image.jpg

  2. Jul 7, 2016 at 2:18 PM
    #62
    drstu

    drstu Member

    Joined:
    Jun 8, 2013
    Member:
    #105858
    Messages:
    14
    Gender:
    Male
    Alabama
    Vehicle:
    '13 DCSB TRD Off-Road in Super White
    Coming soon!

    Thank you a thousand times over. Was looking for this exact info through the entire thread, then found it on the last post. :) Thought that was protocol but wanted to make sure.

    I have a 2013 DCSB that I replaced resistor in about 3 months ago. Started acting up again and have determined contact issue is to blame. Ordered Mouser parts today and hope to replace the connector this weekend.

    This forum is awesome, btw.

  3. Jul 20, 2016 at 10:42 PM
    #63
    Truncali82

    Truncali82 Truncali

    Joined:
    Jun 27, 2016
    Member:
    #190717
    Messages:
    5
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2008 Tacoma TRD Sport 4x4
    American Outlaw Wheels, Spectre Cold Air Intake, Gibson Cat Back Exhaust, Bilstein Adjustable Struts, Spyder Halo Lamps, Kenwood Single Din Deck.
    Just had this issue start today. I swung by the dealer picked up a new resistor, $50 after tax. Plugged it in to test the harness since it did look burnt, new resistor worked so I figured the harnes was still good. Drove away thinking I had the problem solved then not even 10 minutes later it quit working. Brought it back to the dealer but they wouldnt allow a return. Now I'm trying to prove that I got a faulty resistor so I can get a replacement or money back. Can anyone think of a reason a resistor would burn out that fast connected to a burnt connector? The one wire was slightly toasted but the inside was intact and nothing was creating a short that I could tell. I connected the old resistor back to it and it worked although it got pretty hot so I didn't trust keeping it perminently until I had more info. My guess is that you had a faulty unit or a short in the wiring lead to rapid failure.

  4. Jul 21, 2016 at 1:51 PM
    #64
    drstu

    drstu Member

    Joined:
    Jun 8, 2013
    Member:
    #105858
    Messages:
    14
    Gender:
    Male
    Alabama
    Vehicle:
    '13 DCSB TRD Off-Road in Super White
    Coming soon!
    Truncali82,

    I did the same thing. I'm willing to bet you have the same issue I did. Turns out my older resistor was not bad at all, but I didn't discover that till after I'd already bought a new one from the stealership (mine was only $30 though). I did like you, and thought the new resistor fixed the problem. The next day on my way to work, it quit again. I'd saved the old resistor, so I unclipped the wiring harness from the blower motor and actually tinkered with the connector on the resistor. Turns out the power wire (wire C on the Delphi connector) was intermittently making contact with both resistors, old and new. If I help the wire just right, my blower motor worked fine on both resistors. Long story short, you need to replace your Delphi connector and pins. It's a cheap fix and took me about 15 minutes to do. I've linked the parts below from Mouser Electronics. They ship from Texas. Mine took about 4 business days with their processing time to get to Alabama. Anyone with basic electrical skills can replace the connector and pins. Because the parts were so cheap, I went ahead and bought enough replacement parts to do this again down the road.

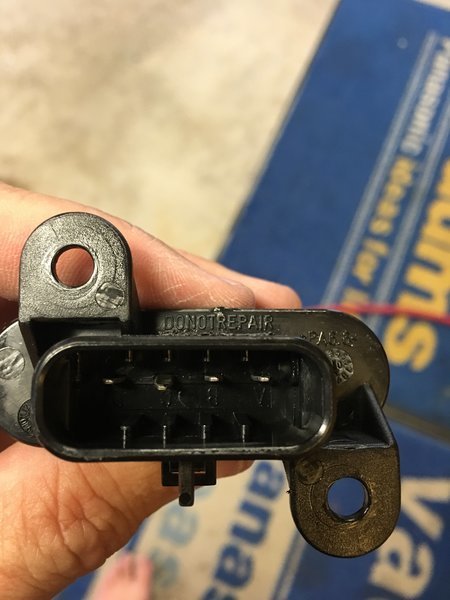

    Connector
    Pins

    Hope this helps. Happy to answer any questions you have about it. I took pics as I did it but haven't posted them yet.

  5. Jul 22, 2016 at 6:43 AM
    #65
    jsb

    jsb Member

    Joined:
    Jul 4, 2007
    Member:
    #1995
    Messages:
    11

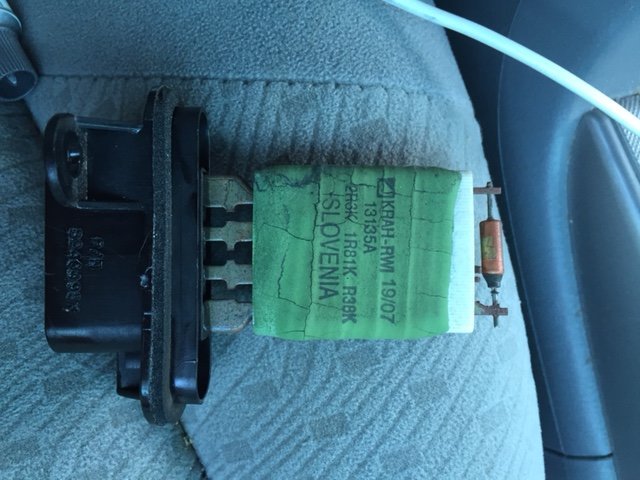

    My resistor looked pretty bad, but I just twisted the prongs in the end of the plug and reconnected....like new again.


  6. Jul 25, 2016 at 10:50 PM
    #66
    davids540i

    davids540i Well-Known Member

    Joined:
    Jan 18, 2011
    Member:
    #49502
    Messages:
    135
    Gender:
    Male
    SoCal
    Vehicle:
    2010 MGM DCSB TRD Off-Road 4x4
    Great thread. My fan had only been working on High for a while, but recently even on High the fan would stop for a second or two then come back on. With the heat recently I did NOT want to be without A/C.

    With the help of this thread and a couple others I looked at the 4 pin plug and noticed the burnt mark. But I also tried tapping/hitting the blower motor while on one of the medium fan settings and the fan would turn on, but for awhile. Then back to only working on High.

    I did three things:
    -Removed the burnt pin from the 4 pin harness and scrape and bend the pin back for better contact.
    -Removed the blower motor, pulled off the cap and sprayed the brushes with electrical contact cleaner then reinstalled.
    -Removed both pins from the 2 pin connector that connects directly to the blower motor and bent those back a little for better contact (I had noticed one of those pins was also burnt looking.)

    After putting everything back together, turned the engine on, turned the fan and A/C on and it worked at all fan speed settings!

    Now, I hope this ends up being a relatively long-term fix. So far I have not replaced any components. Just removed, cleaned, adjusted, and reinstalled.

  7. Jul 29, 2016 at 5:28 PM
    #67
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    11,882
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Ugh, mine is acting up again... wiggling works for a while. Don't want an electrical fire , if that's possible?

  8. Jul 29, 2016 at 5:43 PM
    #68
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    33,301
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Same here... Damn.

  9. Aug 23, 2016 at 8:41 PM
    #69
    knayrb

    knayrb Well-Known Member

    Joined:
    Mar 3, 2010
    Member:
    #32473
    Messages:
    1,732
    Gender:
    Male
    Somewhere in the square states
    Vehicle:
    2010 Dbl-Cab Off-Road
    Pure stock
    I know this thread is aging but my experience is similar. Twice in the last month my blower stopped working except on HI. I installed the new generation blower motor last year. Thinking it was the dreaded resistor I spend $37 at the dealer. (The one they gave me is the solid state card instead of original old coil one). Tonight I removed the plug and noticed that the "C" connector, which is the common, was burnt a little. I gave it a good shot of tuner cleaner and compressed air. I also noticed that the female "C" connector was bent more open than the other 3 pins. This is probably why it was burnt. There's been some arcing which creates corrosion which creates resistance, and resistance equals heat.

    I pulled the resistor and checked the resistance. All pins are within the ohm specs. I might be lazy but instead of risking breaking the female connector by trying to remove it, I tried a different method. I figured that instead of bending the female tighter I would bend the male pin on the resistor closer to the female. (Sound dirty, don't it). You can see on the picture the 2nd pin with the clip on the bottom is pushed down slightly. This is about the same off center as the "C" female connector gap is from the other 3. To keep the pins from arcing and corroding I was generous with the dielectric grease. I'm going to run with it for a week and then return the unopened new resistor if it works.


  10. Dec 13, 2016 at 7:10 AM
    #70
    pmosin

    pmosin Well-Known Member

    Joined:
    Feb 18, 2011
    Member:
    #51381
    Messages:
    64
    Gender:
    Male
    SoCal
    Vehicle:
    07 Access Cab 4x4 TRD 6spd
    ARE Camper shell
    Subbed, thx for the write up, will have to tackle this soon.

  11. Jan 15, 2017 at 7:43 PM
    #71
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,956
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Bumping this up just to verify the plugs are the same one the '11 Tacoma. My blower stopped working today, but if you wiggle the plug, it works on all speeds.

    Also, does anyone know if the 4th gen 4 Runners use the same plug?

  12. Jan 16, 2017 at 8:57 AM
    #72
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    11,882
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    I still have the original plug... it failed a few times on a hot September Baja trip, but wiggling it or scraping the contacts solved it. I haven't had it fail since Sept. Maybe only in hot weather with AC and not cold weather with heater on? However, the AC is on a lot longer running than the heater fan on.

  13. Mar 24, 2017 at 4:49 AM
    #73
    JSU

    JSU Member

    Joined:
    Mar 16, 2009
    Member:
    #14806
    Messages:
    24
    Gender:
    Male
    HouTex
    Vehicle:
    '07 PreRunner TRD/Sport AccessCab 4.0V6, auto
    My blower fan has similarly failed on all speeds but high which prompted an internet search which brought me here.

    A couple of good points have been made with respect to both the resistor and the pigtail plug which connects to it.

    What I haven't read yet in this thread is the necessary attention which must be given to the cabin air filter on a timely basis. If the filter becomes seriously clogged, the fan will work much harder to overcome the physical resistance. In working harder it will draw an increasingly greater current which may be the source of increased heat in the resistor and connector pins / receptacle. Dirt in the fan could be a cause of the fan motor running noisily or intermittently.

    Bottom line, keep an eye on the cabin air filter and don't let it become clogged. Your sinuses may thank you as well.

  14. May 21, 2017 at 7:48 PM
    #74
    jg805

    jg805 Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178431
    Messages:
    90
    David K likes this.
  15. May 21, 2017 at 8:40 PM
    #75
    JSU

    JSU Member

    Joined:
    Mar 16, 2009
    Member:
    #14806
    Messages:
    24
    Gender:
    Male
    HouTex
    Vehicle:
    '07 PreRunner TRD/Sport AccessCab 4.0V6, auto
    On my '07 Access Cab V6 Auto PreRunner Sport (142K miles) my AC went from intermittent to only high to not at all. I cleaned the connector pins and reformed the plug and all is again well.

    Associated with this is KEEP YOUR CABIN AIR FILTER CLEAN. I now replace mine every 10K miles. Somewhere I read that the lower AC blower outlet pumps cool air across this vital connector, keeping it cool. Perhaps I'll have an additional data point in another 100K miles. I plan to run this Taco PreRunner at least 250K miles.

    I also updated the radio head for which the CD changer completely failed to a radio head from a ~2010 to get the Accessory input. Happiness is an iPod rather than a console full of CD's. I do have to plan ahead now to load audio books to the iPod. I don't know how I lived with this Taco so long without the iPod input.

    Also had the rear leafs replaced under the recall, that only took ~8 months.

    Bottom line, if your AC fails FIRST check the plug shown earlier in this thread. You may not need to buy anything.

  16. Jul 2, 2017 at 12:34 PM
    #76
    crawdad

    crawdad Member

    Joined:
    May 30, 2014
    Member:
    #130928
    Messages:
    10
    Gender:
    Male
    First Name:
    Bruce
    Louisiana
    Vehicle:
    07 PreRunner
    I have an '07 DC PreRunner with the same switch issue, and see I have the burnt wire and pin on the connector. I had a couple questions about how to proceed.

    A. If I bought the connector and 4 pins, is the fix to remove all 4 wires, replace all 4 pins, and put them into the new connector? Why not just replace only the burnt pin?

    B. Are the pins just crimped onto the wire ends, or do they need to be soldered, or...? Is it necessary to remove the end of the burnt wire where it colored the insulation?

    C. Is this an updated connector better made to carry the amperage, or just an exact replacement?

    D. What dielectric grease is recommended here?

    Sorry for so many questions. Thank you for the intel.

  17. Jul 2, 2017 at 2:51 PM
    #77
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    11,882
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    So far, I just take a tiny screwdriver and scrape the bad pin surface a bit and re-connect it... and I go for weeks before the fan stops working in the less than full settings.
    THIS REALLY should be a RECALL item from Toyota, yes?

  18. Aug 26, 2017 at 6:50 PM
    #78
    AZ_Tacoma_2008

    AZ_Tacoma_2008 New Member

    Joined:
    Aug 1, 2017
    Member:
    #225637
    Messages:
    2
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    2008 Tacoma PreRunner standard cab, 2.7L 2TR-FE
    This is an old thread, but I'd like to add another option; the Dorman Blower Motor Resistor Kit 973-582. It comes with the resistor (updated style, not the ceramic looking one), a female connector/pigtail and four butt connector crimp terminals. I have seen these go for around $22 on the 'Net.

    MrKatanga likes this.
  19. Aug 26, 2017 at 8:37 PM
    #79
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    11,882
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Link, and photo??

  20. Aug 31, 2017 at 7:21 AM
    #80
    327

    327 Well-Known Member

    Joined:
    Dec 18, 2012
    Member:
    #93323
    Messages:
    477
    Gender:
    Male
    First Name:
    Mark
    Covington, LA
    Vehicle:
    Silver 06 4x4 TRD Sport Access cab
    TSS wheels with BFG A/T
    My fan motor has been chirping and making clicking noises for years now. I've just been putting off doing anything with it.

    It finally stopped the other day and I had to tap it to get it to work. I guess I'll have to crawl my lazy butt down there and pull the motor out and clean it.

    Mine works on every speed once I get it to start working. Should I replace the connector either way while I'm down there?
