Belt tensioner replacement DIY

Discussion in '3rd Gen. Tacomas (2016+)' started by gsingh, Jul 26, 2020.

  1. Jul 26, 2020 at 3:36 PM
    #1
    gsingh

    gsingh [OP] Active Member

    Joined:
    Apr 14, 2016
    Member:
    #184321
    Messages:
    41
    Gender:
    Male
    First Name:
    G
    Vehicle:
    2016 Toyota Tacoma TRD Sport
    2016 Tacoma Sport 4x4 3.5.

    Here are the tools I used.

    I had a rattle for a while. Every time I turned lock to lock or had the ac on. Finally traced it down to the belt tensioner. Didn't see a DIY, so I figured id make one.

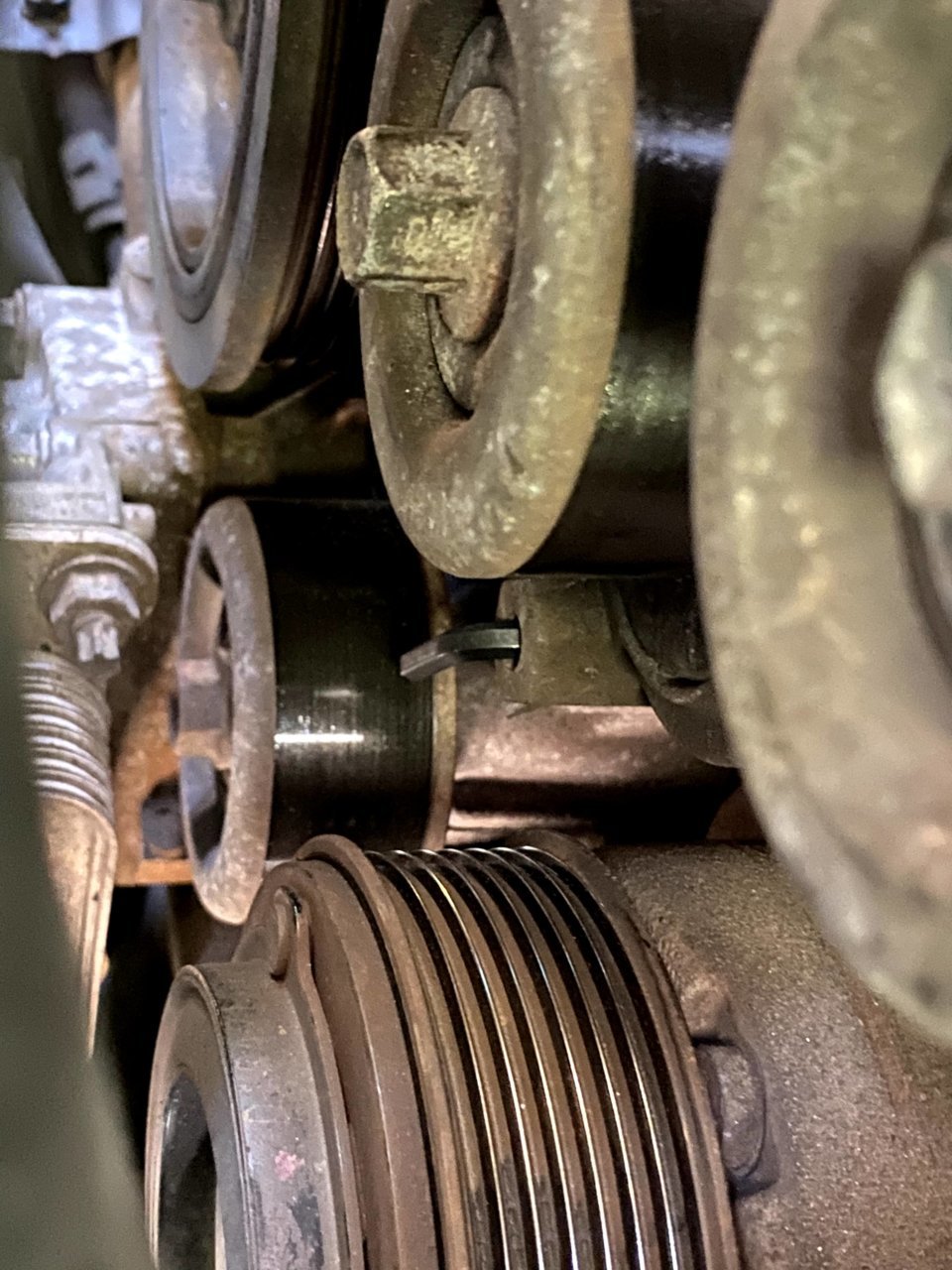

    Disconnected the battery and moved it out of the way. Turned tensioner in counter close wise and put a pin in it to lock it.

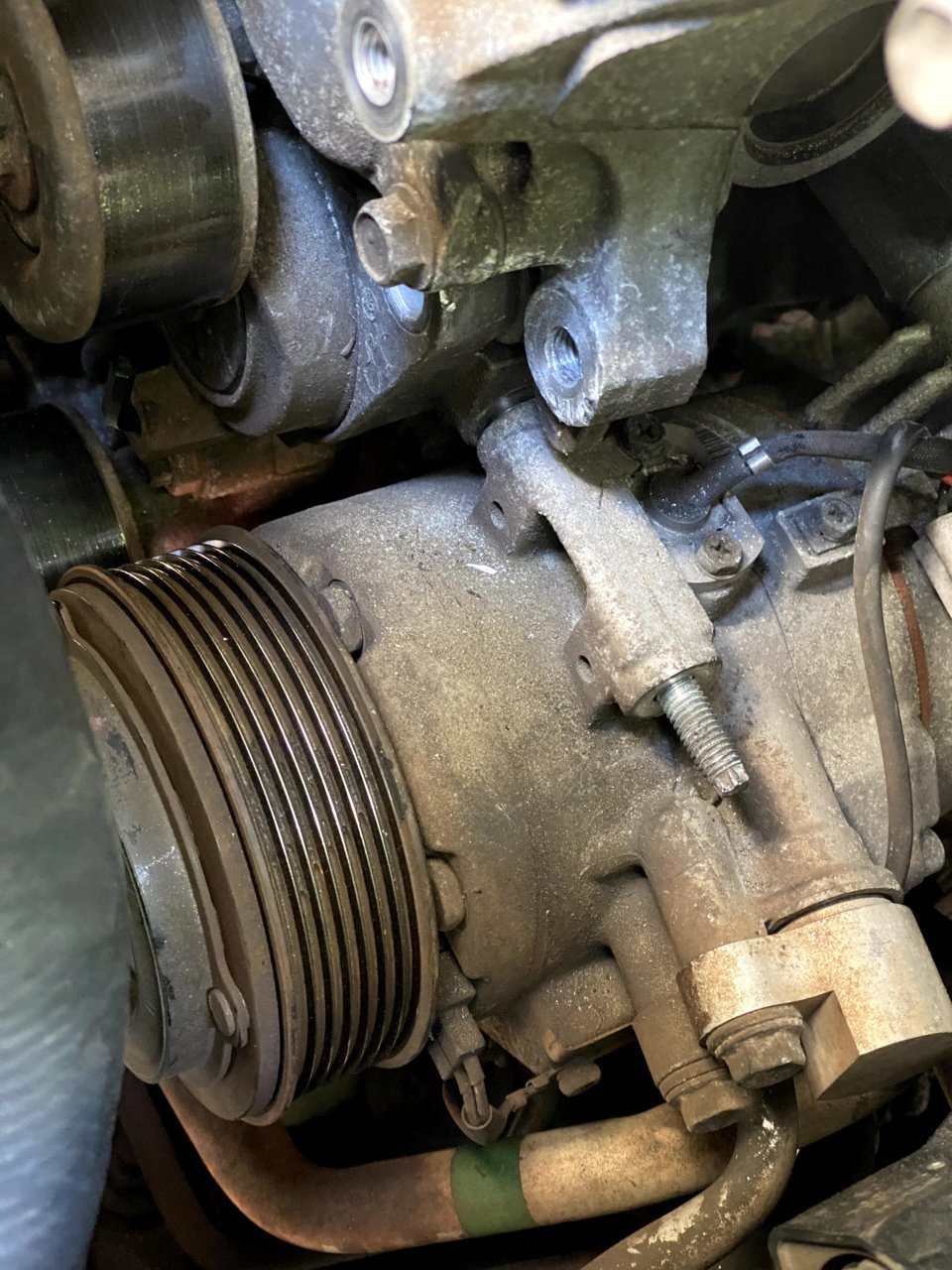

    Need to remove two 14 mm bolts from front of tensioner and one from the side. Side one goes through the ac compressor and is a nut on a stud. HIGHLY RECOMMEND HAVING A E TORX AT THIS POINT. Makes taking the stud out much easier.


    I didn't have any at the house so i ended up removing the alternator. Took me about 3-4 hours to do this with out a lift and middle of the day. Hopefully this helps out.

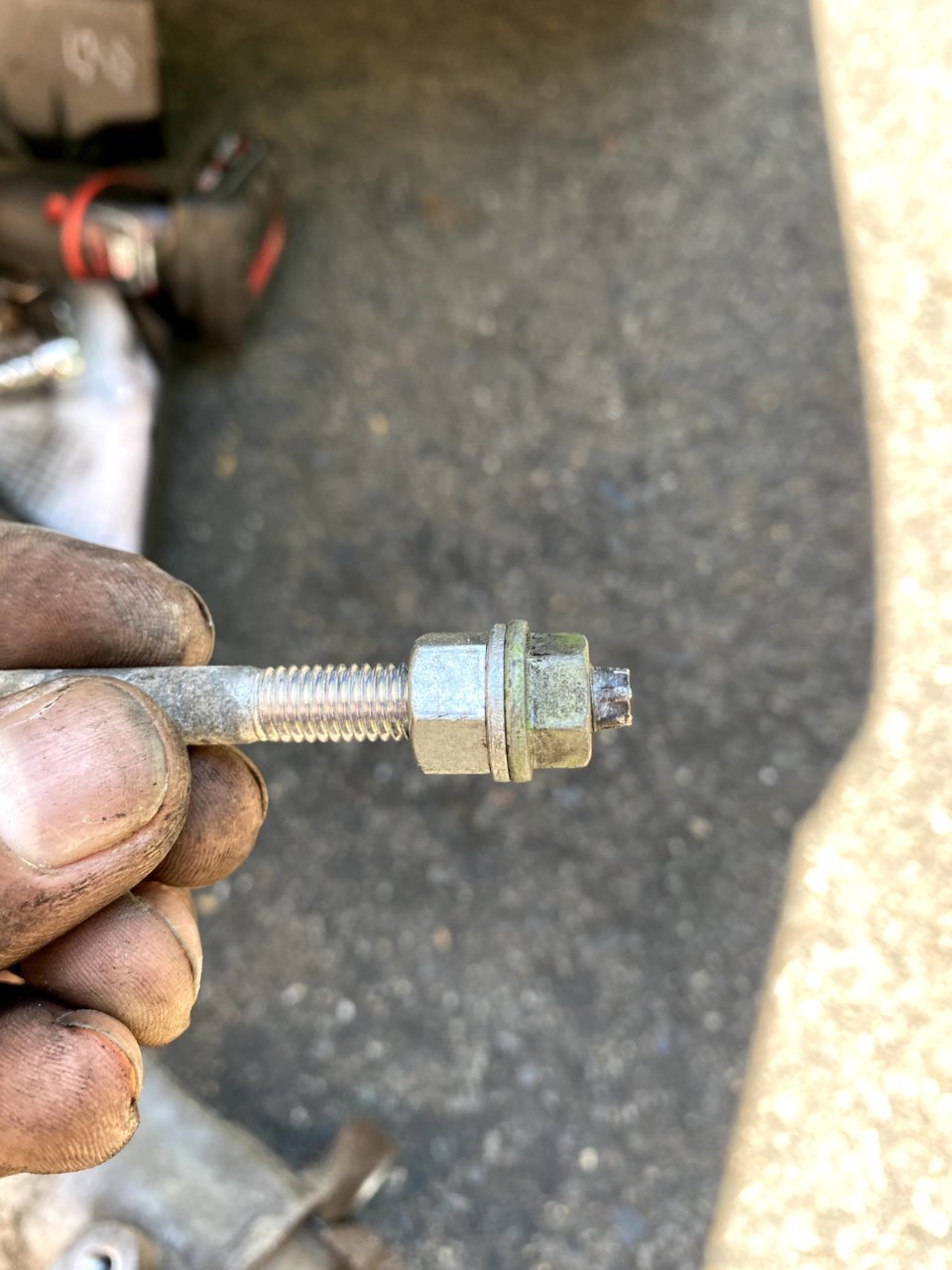

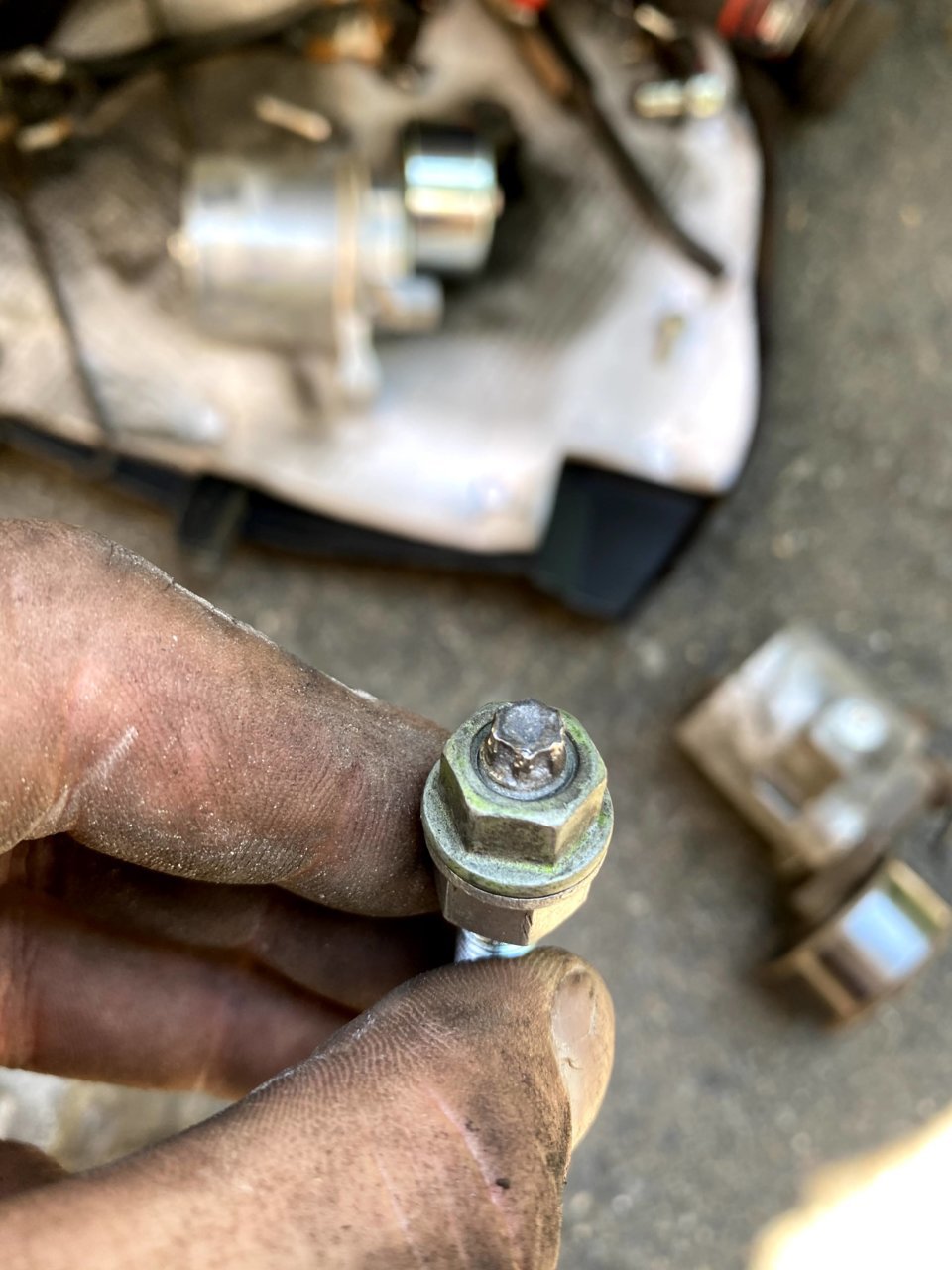

    Removed the alt and double nutted the stud, so I could take it off.
    IMG_6543 (1).jpg

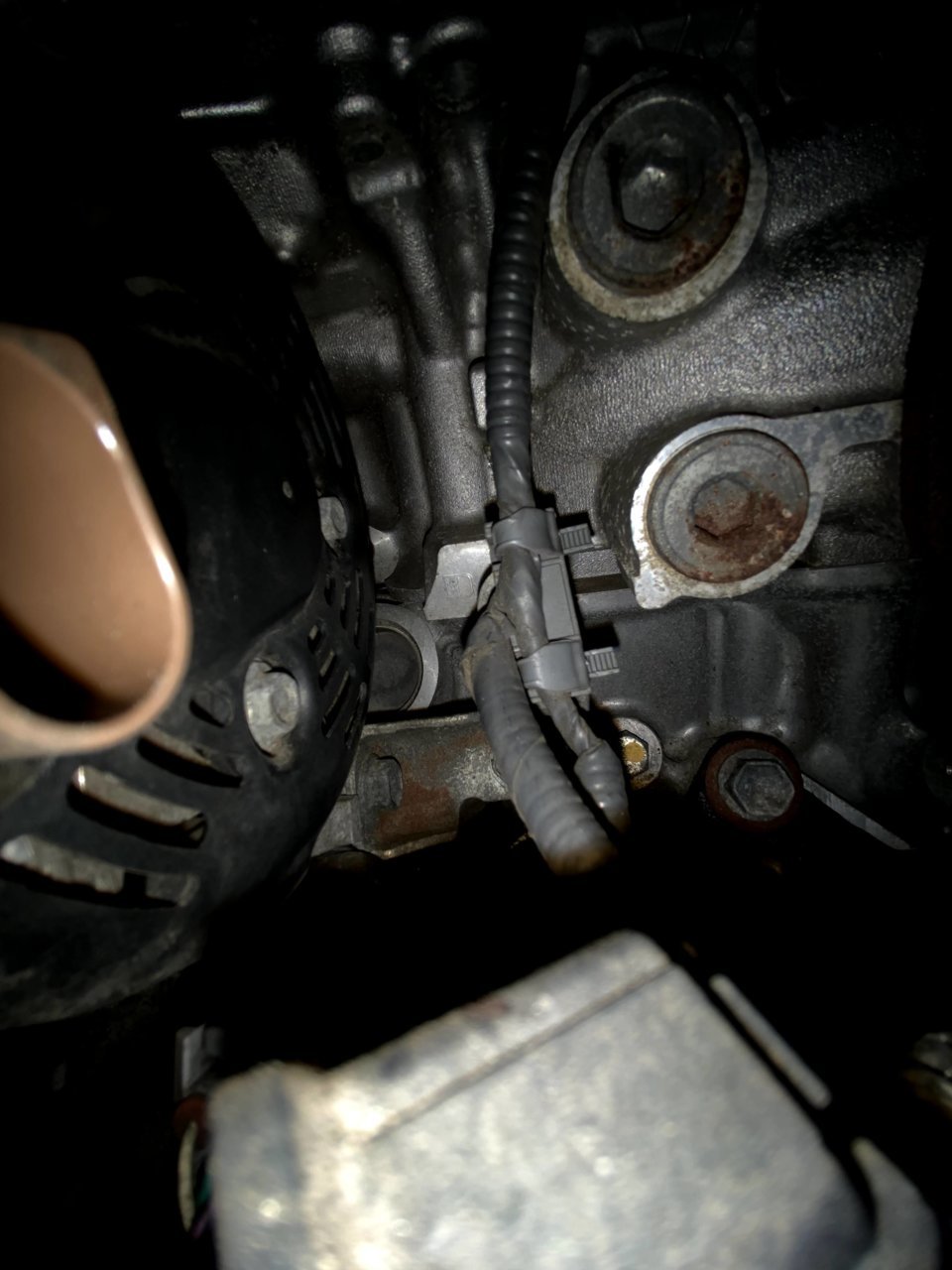

    There are 2 bolts in front of the alternator 1 long and 1 short. There is also a thing bolt from behind. very difficult to see, I took it off by feeling and it was a PITA.

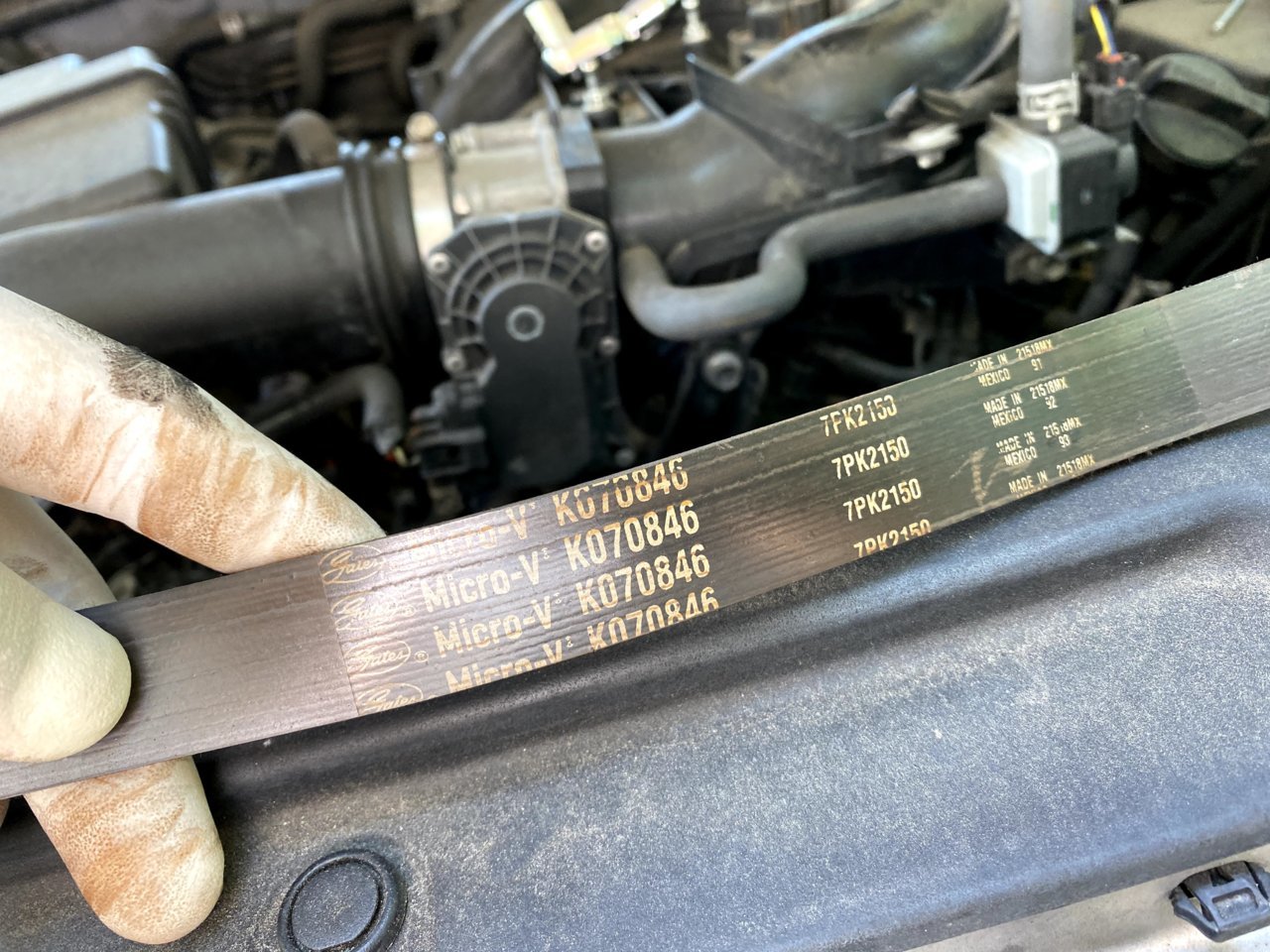

    Aftermarket belt if any one needs it.

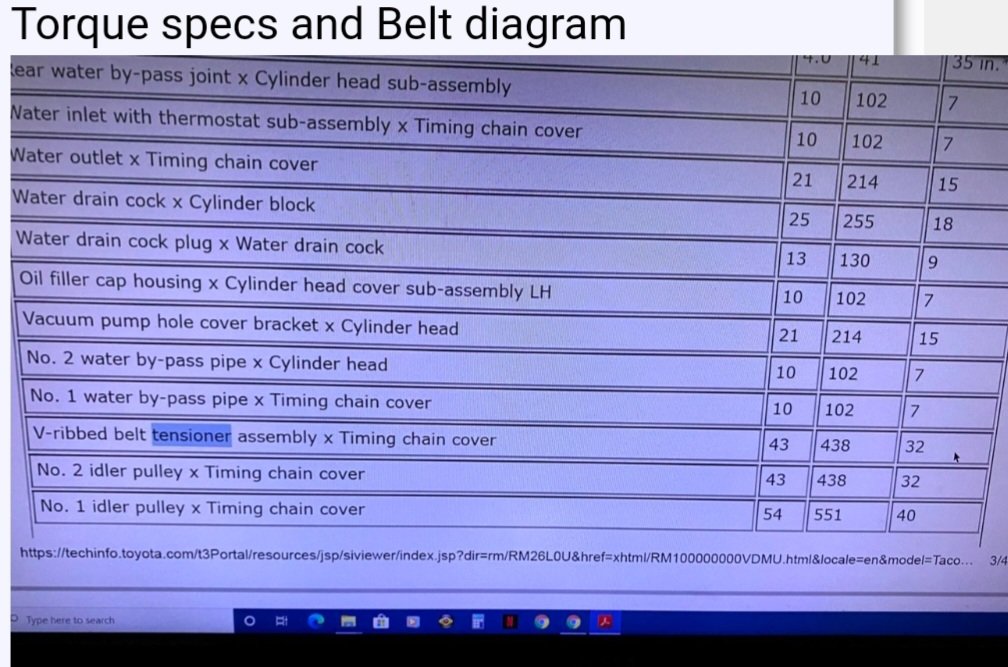

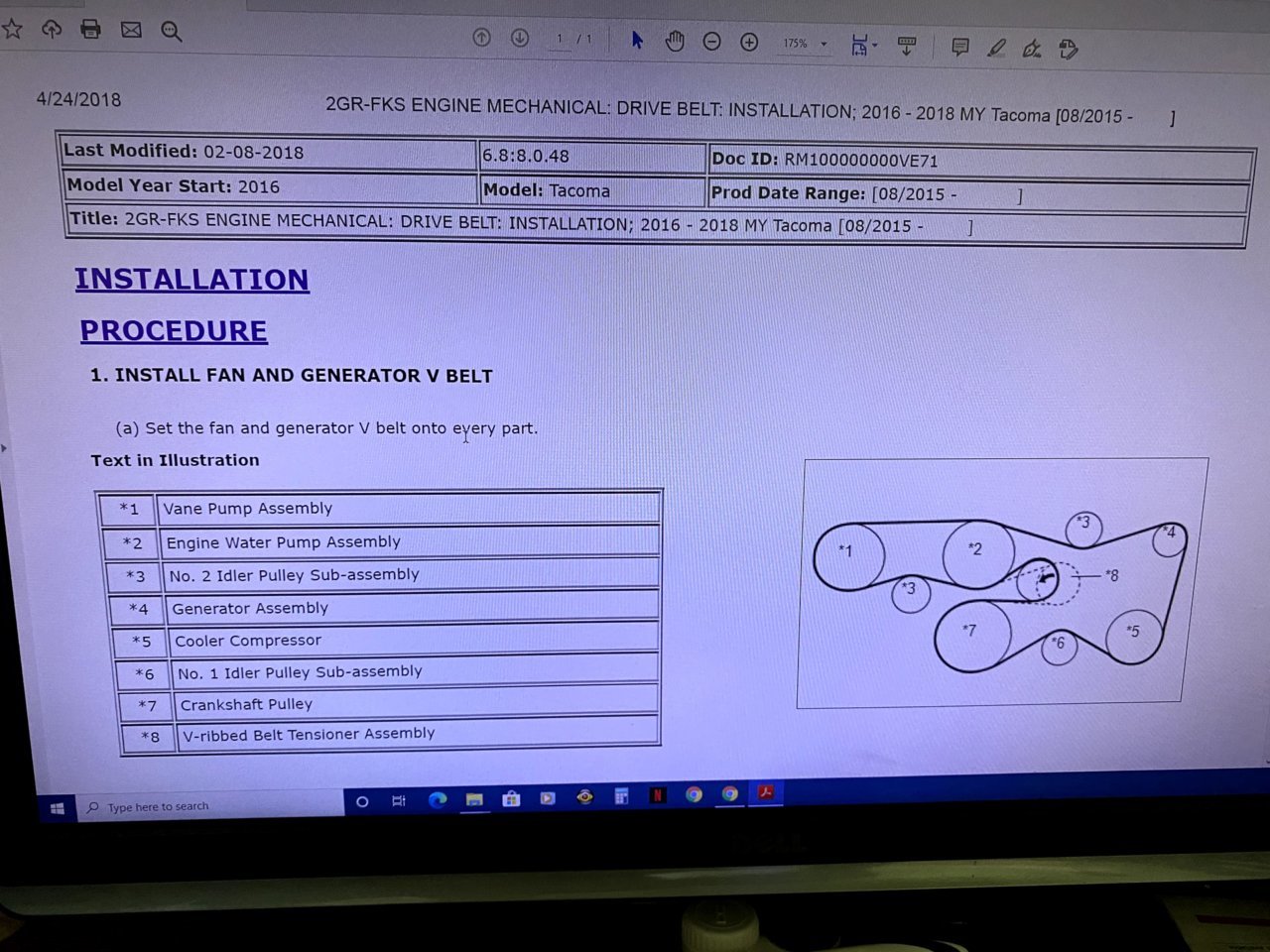

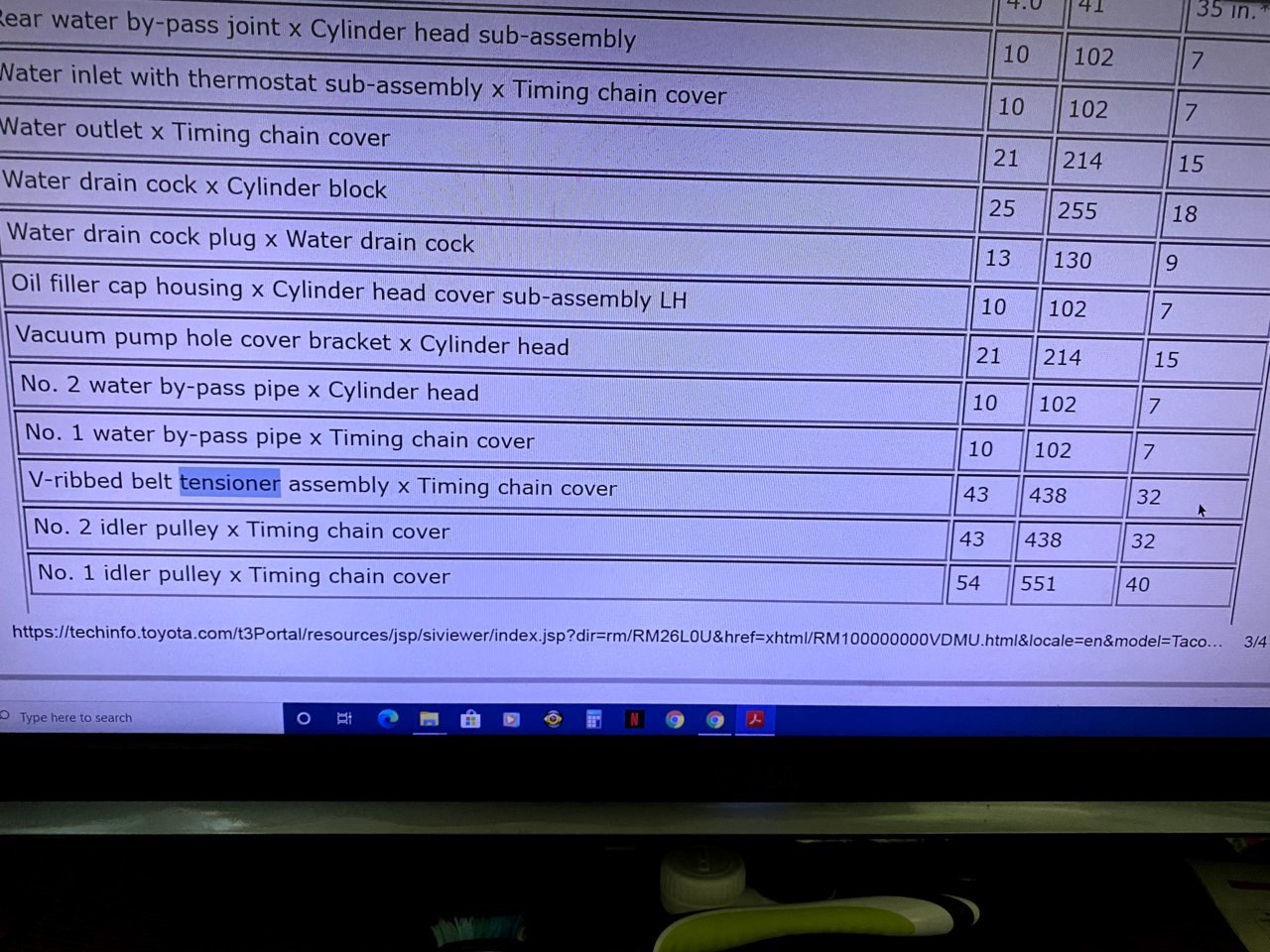

    Torque specs and Belt diagram
    IMG_6545.jpg IMG_6547.jpg

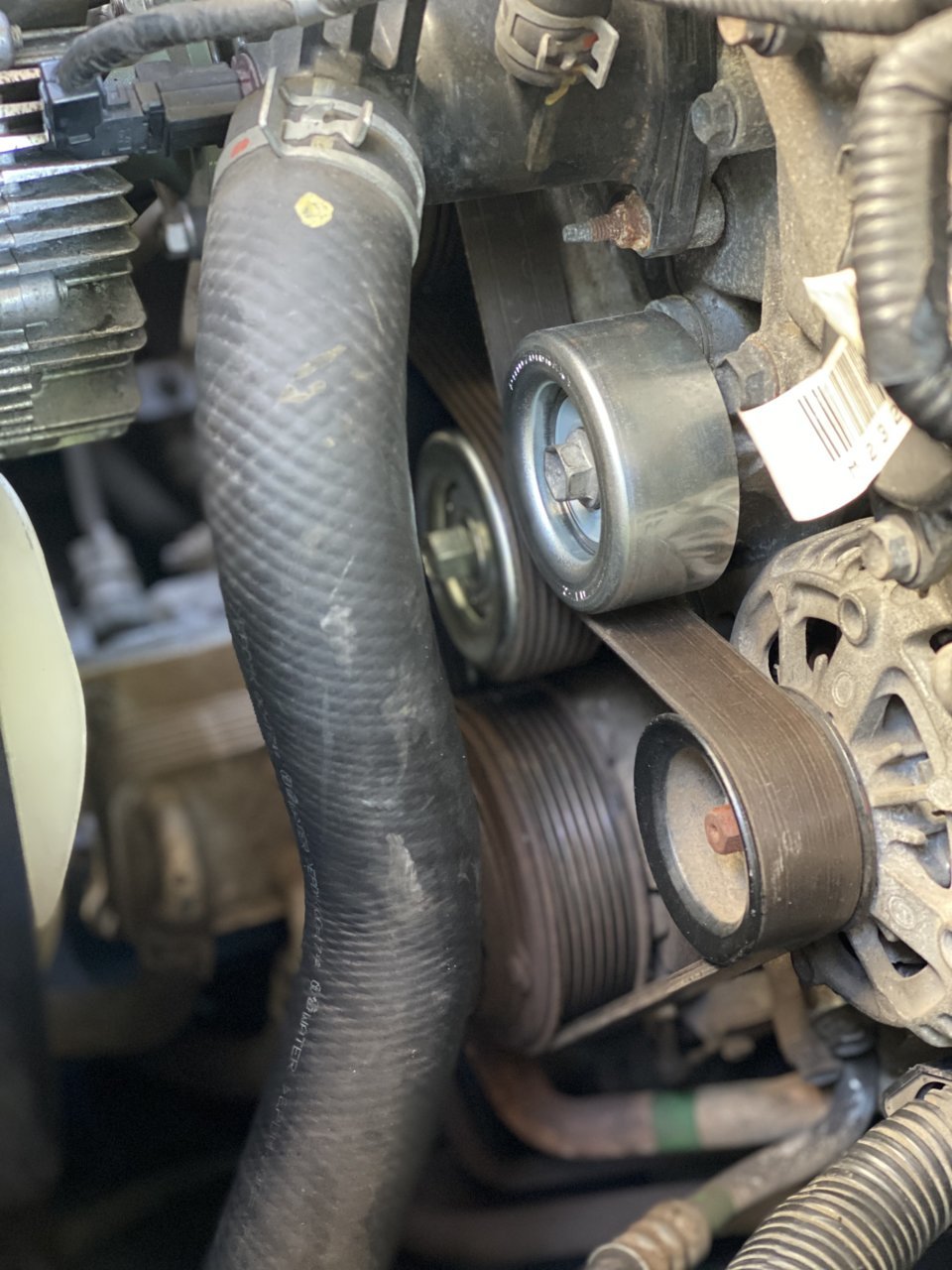

    Here is the final product. I also replaced the upper pulley as it had a lot of play in it and the bearing was noisy.

    Any suggestions and/or tips and tricks, please share on here.
