Ben's FX-R Retrofit-

Discussion in 'Lighting' started by BenJammn5, Oct 10, 2011.

  1. Oct 16, 2011 at 9:59 PM
    #21
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Bob, I will totally help you as I completely know how tedious this art project is! Stay tuned on this thread and you'll be able to watch the process. Half the battle is already in your hands as you're familiar with the wiring, how to remove the lights, etc. All you're going to do is cut and aim which is probably the hardest part.

  2. Oct 17, 2011 at 7:02 PM
    #22
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,363
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    that sucks on the bulb, assuming that they are shipping you a new one. My order shipped today on the latest group buy......I am going to be baking my stock oems later this week and get to painting etc...

  3. Mar 6, 2012 at 10:10 PM
    #23
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

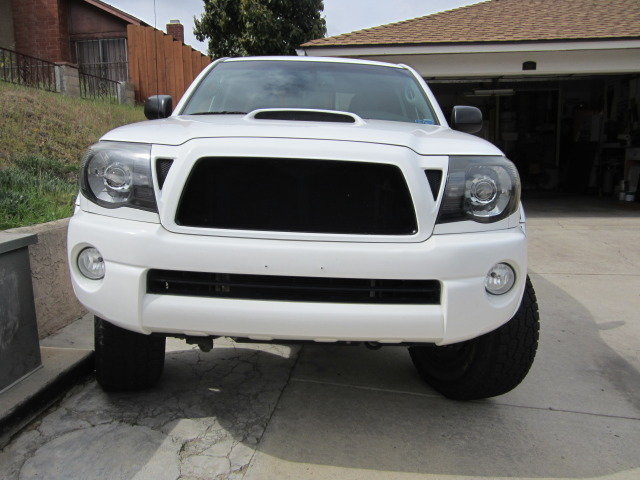

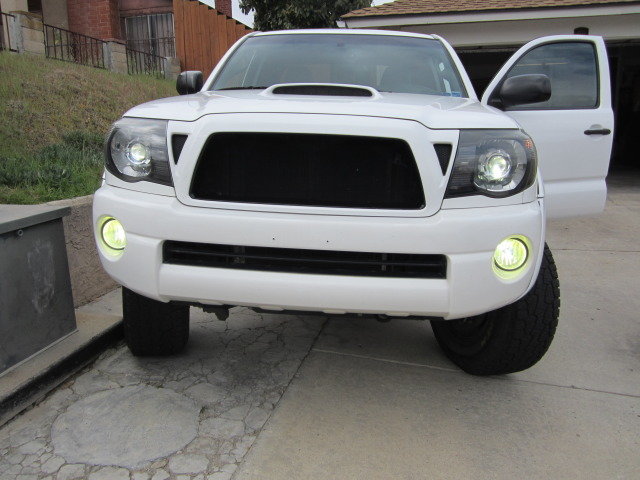

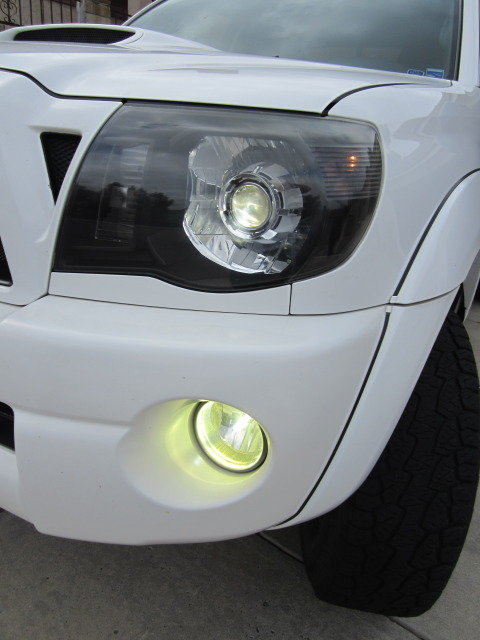

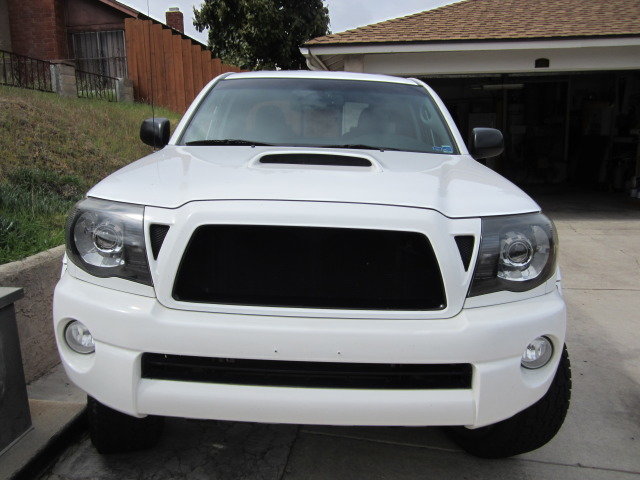

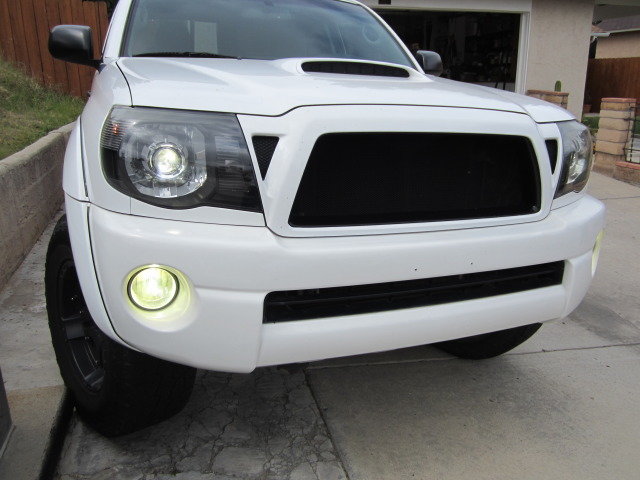

    Thought I'd update this dead thread lol

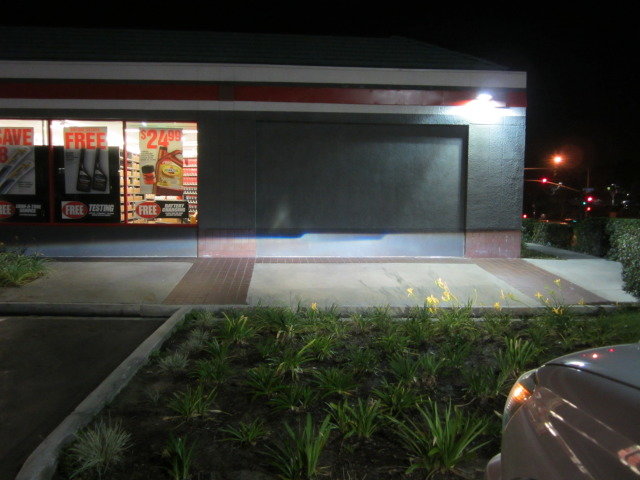

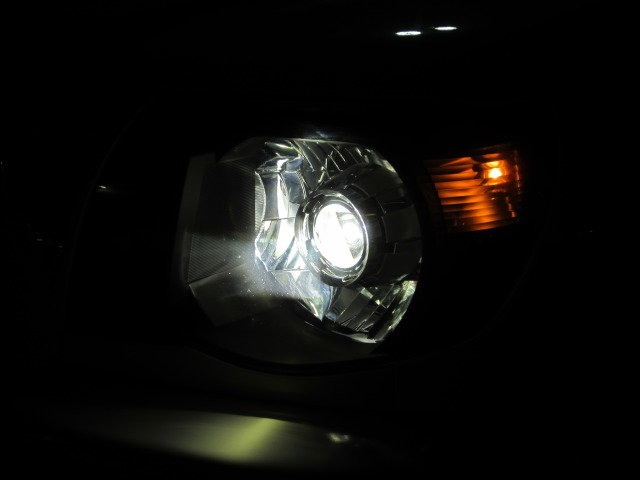

    Well, I finished it. But... theres always a 'but', the left projector is throwing a hotspot and I don't know why. Emailed TRS just waiting for response.

  4. Mar 6, 2012 at 10:28 PM
    #24
    Nightstr

    Nightstr Well-Known Member

    Joined:
    Dec 24, 2009
    Member:
    #28125
    Messages:
    5,158
    Gender:
    Male
    First Name:
    Felipe
    Sacramento CA
    Vehicle:
    05 prerunner sr5
    BLHM BLWM 3" TOUGH COUNTRY LIFT TRD SEAT COVERS THULE RACK M/T KM2 265/65/16
    It could be the lense. I have a bad hot spot but it's because my lense was defective. I haven't had a chance to get back to Andrew(TRS) but I hope TI have it fixed soon.

  5. Mar 6, 2012 at 10:38 PM
    #25
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    bitch isn't it? Never thought it could be the lense. The entire ordeal has been sort of a mess, I bought ebay lights, and ended up using my smoked 09 lenses w/ the black ebay bezel which sort of defeated the whole purpose. I had leaking issues w/ the ebay lights and decided to screw them and stick w/ the toyota part.

  6. Mar 7, 2012 at 6:12 AM
    #26
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro

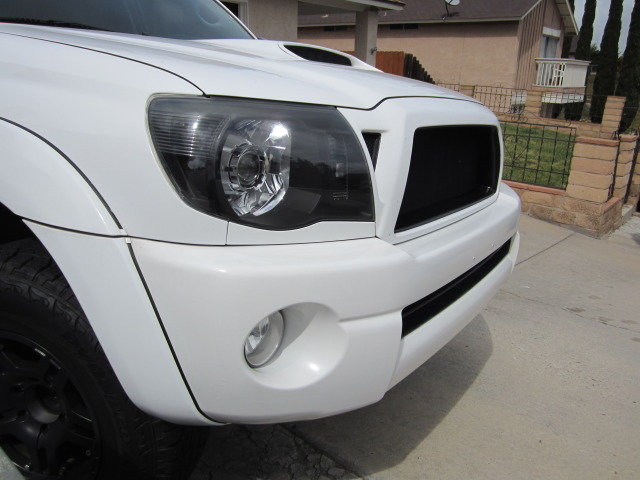

    Looks sick Ben, your passenger side rotation looks a little off but nice work getting them done!

  7. Mar 7, 2012 at 6:09 PM
    #27
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Thanks friend. You are probably right that it's a hair length off, but it's pretty much spot on. I've adjusted the lights since that pic... just don't have updated ones. You know, it's probably my lens throwing that hotspot. My plug-n-play philips bulb burned inside the housing and smoked them from within, that could be a possible reason. The other is that one of my D2S bulbs were bad and burned inside the projector (I have great luck with lights). At this point I'm just like, 'screw it.' On the road you don't really notice the hotspot unless you pull up against a wall, otherwise it's fine.

  8. Mar 8, 2012 at 8:12 AM
    #28
    95SLE

    95SLE Getting Ready for Summer

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,667
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Did your shrouds fit flosh to the reflector bowl?

    Do the 4 screw tabs of the projector touch the reflector bowl?

  9. Mar 8, 2012 at 8:26 AM
    #29
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    They do not sit completely flush. To notice you'd have to stick your face right up to the light though...

  10. Mar 8, 2012 at 8:59 AM
    #30
    95SLE

    95SLE Getting Ready for Summer

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,667
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Thats what I thought. I need to go and get some 1 in ss bolts. The 2 in bolts are a little long on one side.

    So far so good for me. I just need to take my time. I went with a 2 3/4 in hole saw to make the initial hole in the reflector. Seems to be working alright.

    I have a feeling that the final adjustment will be a PITA.

  11. Mar 8, 2012 at 10:00 AM
    #31
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Not sure what you made the hole in the reflector bowl with, but you can cut your 2 3/4 bolts with a dremel and cut off wheel. In fact, you'll need to cut them all the way down anyway so you can fully adjust the light with the stock adjustment tabs.

    The hole for the projector doesn't need to be exact, in fact it doesn't matter all that much. It's how you adjust the projector with the screws that matters more.

    Yes, take your time no rush here. To aim them go against a wall at night and adjust the screws and move the projector around. The projector should be aimed slightly downward. When you get to a desired position cold tack weld the projector with KB kwik weld. Only need a few dabs on the back. This is a tricky part as it's hard to reach behind the light to glue it. Let it dry and then remove the light. I used the lines in the reflector bowl to make sure it was horizontally straight. Eye ball that part... I need to show more pictures of my cut off, only thing is you'll see more of my annoying hotspot :( I think it's the lens.. need to change that out.

  12. May 22, 2012 at 2:53 PM
    #32
    TacoDaddy

    TacoDaddy Just call me Daddy

    Joined:
    Dec 10, 2011
    Member:
    #68519
    Messages:
    488
    Gender:
    Male
    First Name:
    Brian
    Costa Mesa, CA
    Vehicle:
    '11 Sport
    what did you use to cut the hole that big? I've been trying to use my dremel and its a huge pain in the ass!!!

  13. May 22, 2012 at 3:45 PM
    #33
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Just used the dremel.. cut with the drill bit not the cut off wheel.

  14. May 23, 2012 at 6:38 AM
    #34
    95SLE

    95SLE Getting Ready for Summer

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,667
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.

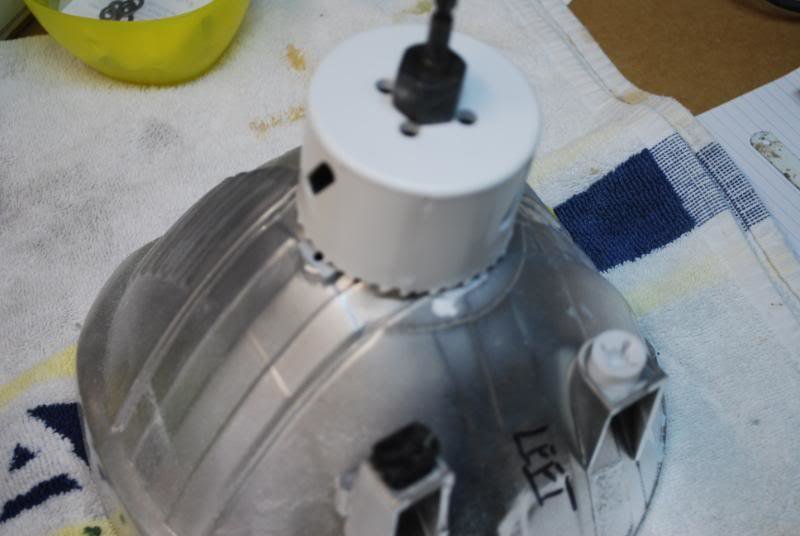

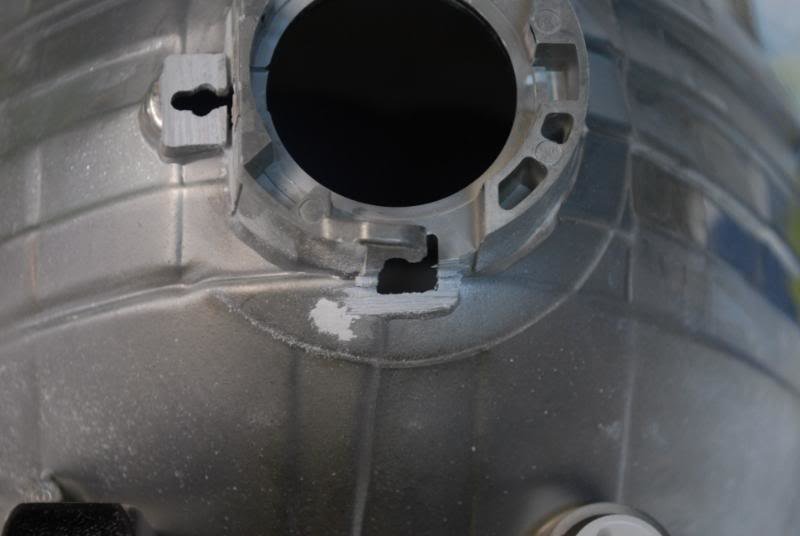

    I used a Milwaukee 2 3/4 in metal hole saw. I think a 3" hole saw will put the HID lamp and connector too close to the battery. Just take it easy and use very light pressure when drilling the hole. I did take off the two extrusion on the reflector prior to drilling the hole.

    [​IMG]


    [​IMG]

  15. Jun 27, 2013 at 8:55 PM
    #35
    Taco89

    Taco89 Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12462
    Messages:
    397
    Gender:
    Male
    First Name:
    Nik
    Charlotte, NC
    Vehicle:
    2013 4x4 Super White DBL Cab TRD Sport
    Is it required to drill 4 holes and screw the projector into the bowl??

  16. Jun 27, 2013 at 9:08 PM
    #36
    Taco89

    Taco89 Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12462
    Messages:
    397
    Gender:
    Male
    First Name:
    Nik
    Charlotte, NC
    Vehicle:
    2013 4x4 Super White DBL Cab TRD Sport
    Just answered my own question after looking at my projectors lol...what size screws do y'all recommend?

  17. Aug 13, 2013 at 12:51 PM
    #37
    fenderpicks

    fenderpicks Well-Known Member

    Joined:
    Jul 10, 2013
    Member:
    #108031
    Messages:
    773
    Gender:
    Male
    Hey Op I have some questions as I intend to do my own retrofit very soon

    For the FX R u have to mount it on the reflector bowl with 4 long screws with a washer and nut to hold it in place and jb weld it

    And for the aiming adjustment it is all made by moving the projector and adjusting the tightness of the 4 screws. (In other words, the factory bolt adjustment is useless after retrofitting?)

    Also while ur doing the aiming, the lights will be on the car and u have to adjust the projector and screws to the desire height then jb weld it to make it unmovable?
