Best Method to Tap into Reverse? (LED Backup Lights)

Discussion in 'Lighting' started by BeaconHillT4R, Aug 20, 2020.

  1. Aug 20, 2020 at 10:00 AM
    #1
    BeaconHillT4R

    BeaconHillT4R [OP] Well-Known Member

    Joined:
    Jan 29, 2016
    Member:
    #176502
    Messages:
    63
    Gender:
    Male
    I have a pair of Rigid SRQ Pro I want to use in conjunction with my taillight reverse lights. I don't need a separate switch for the Rigids just want them to light up when I go into reverse. What is the best and safest method to do so? I read that simply tapping into the factory reverse harness does it? Solder or use a tap?

    Here is the SRQ model I have:

    https://www.summitracing.com/parts/rgd-905513

    Light Style:Flood
    Bulb Type:LED
    Lens Color:Clear
    Bulb Color:White
    Shape:Rectangular
    Watts:31.0 watts
    Length (in):5.000 in.
    Height (in):2.000 in.
    Housing Color:Black
    Housing Material:Aluminum
    Volts:9-36 V
    Amp Draw at 12V DC:2.21 amps
    Number of LEDs:4
    Lumens:3,168
    Beam Distance:73.20 m

    Thanks!

  2. Aug 23, 2020 at 5:20 AM
    #2
    NukedTaco

    NukedTaco Well-Known Member

    Joined:
    Jan 17, 2018
    Member:
    #241559
    Messages:
    947
    Gender:
    Male
    First Name:
    Wyatt
    Saratoga Springs, NY
    I used THIS harness and just cut the plug off and wired it to my reverse light

  3. Aug 23, 2020 at 6:08 AM
    #3
    Interbeing

    Interbeing A Canadian living in Texas

    Joined:
    Apr 11, 2020
    Member:
    #324417
    Messages:
    1,297
    Gender:
    Male
    Austin, TX
    Vehicle:
    2020 Tacoma TRD Off-Road 4x4 DCSB AT
    TRD Pro suspension with Headstrong 3 Leaf AAL, DV8 OR front slimline bumper & Engine Skid Plate, RCI OR high clearance bumper, CaliRaised Trail Edition Sliders, Spidertrax 1.25" Wheel Spacers, 265/75 16 GY Duratracs, wrapped the OEM wheels, OR Roof Rack, Extang Exceed Hard top Tri fold tonneau.
    I did the same, but mainly because the plug position was just a bit too far away for the old harness to reach when I replaced my OEM bumper. Rather than rewire, I used the Curtis harness to extend the loom and as a bonus, had a tap line for the backup lights.

  4. Aug 24, 2020 at 6:32 PM
    #4
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,878
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Pop the taillight off, extend the wires of your new lights over up into the tail light cavity, and splice into the positive and negative wires of the reverse bulb.

    then swap your halogen reverse bulbs for LED. Those plus the aftermarket lights won’t get near the fused rating of the reverse lighting circuit

    BeaconHillT4R [OP] likes this.
  5. Aug 24, 2020 at 7:49 PM
    #5
    Interbeing

    Interbeing A Canadian living in Texas

    Joined:
    Apr 11, 2020
    Member:
    #324417
    Messages:
    1,297
    Gender:
    Male
    Austin, TX
    Vehicle:
    2020 Tacoma TRD Off-Road 4x4 DCSB AT
    TRD Pro suspension with Headstrong 3 Leaf AAL, DV8 OR front slimline bumper & Engine Skid Plate, RCI OR high clearance bumper, CaliRaised Trail Edition Sliders, Spidertrax 1.25" Wheel Spacers, 265/75 16 GY Duratracs, wrapped the OEM wheels, OR Roof Rack, Extang Exceed Hard top Tri fold tonneau.
    I don't believe that's true, the Backup Light circuit on a 3rd Gen Tacoma is fused for 5 amps. Each one of his Rigid BU Lights draws 2.21amps (x2 =4.42 amps). The stock BU lights probably draw less than 1 amp, however, it would be a very close tolerance. If he wants to avoid running a line back up to the front of the truck for power, it would be better to install a relay to the BU light circuit, and then tap into the towing tail light or towing brake controller circuits for power, which both are 30 amp. The other alternative is to tap straight into the towing harness backup light lead without a relay. Both should also use a 5 amp inline fuse to protect from a short. I used the second method, shrink wrapped the connections and placed them in a loom for additional protection. It works well, and avoids overloading the backup light circuit.

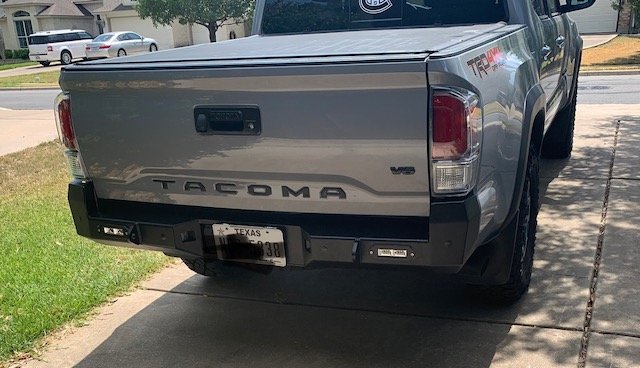

    BTW, I purchased a pair of similar BU lights from Amazon that flush mounted in my bumper and work really well, and under $35.

    Flush Mount LED Pods, AAIWA 40W 2PCS Off Road Backup LED Light Bar Driving Lights Fog Lamp for Jeep Bumper ATV UTV SUV Truck Boat
    by Aaiwa USA
    Learn more: https://www.amazon.com/dp/B07J4Y6JWW/ref=cm_sw_em_r_mt_dp_SOhrFbZGNGVYG


    hwntaco20 likes this.
  6. Aug 25, 2020 at 4:00 AM
    #6
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,878
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    It’s fused for 15A big dog

  7. Aug 25, 2020 at 5:43 AM
    #7
    Interbeing

    Interbeing A Canadian living in Texas

    Joined:
    Apr 11, 2020
    Member:
    #324417
    Messages:
    1,297
    Gender:
    Male
    Austin, TX
    Vehicle:
    2020 Tacoma TRD Off-Road 4x4 DCSB AT
    TRD Pro suspension with Headstrong 3 Leaf AAL, DV8 OR front slimline bumper & Engine Skid Plate, RCI OR high clearance bumper, CaliRaised Trail Edition Sliders, Spidertrax 1.25" Wheel Spacers, 265/75 16 GY Duratracs, wrapped the OEM wheels, OR Roof Rack, Extang Exceed Hard top Tri fold tonneau.

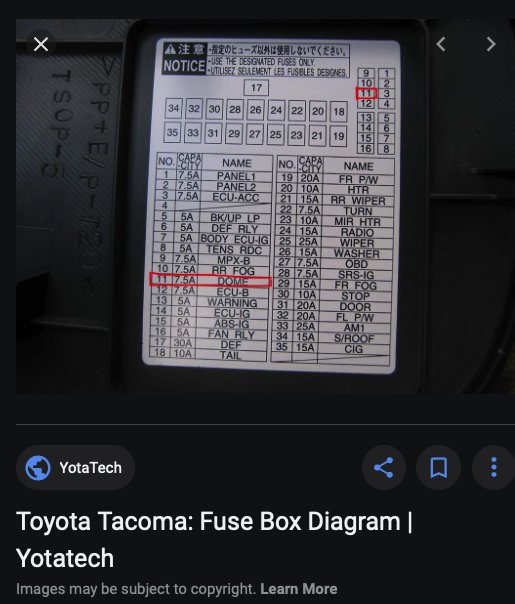

    I went out and checked on my truck, I stand corrected, never trust Google, lol!

    Screen Shot 2020-08-25 at 7.35.06 AM.jpg

  8. Aug 25, 2020 at 2:54 PM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,456
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

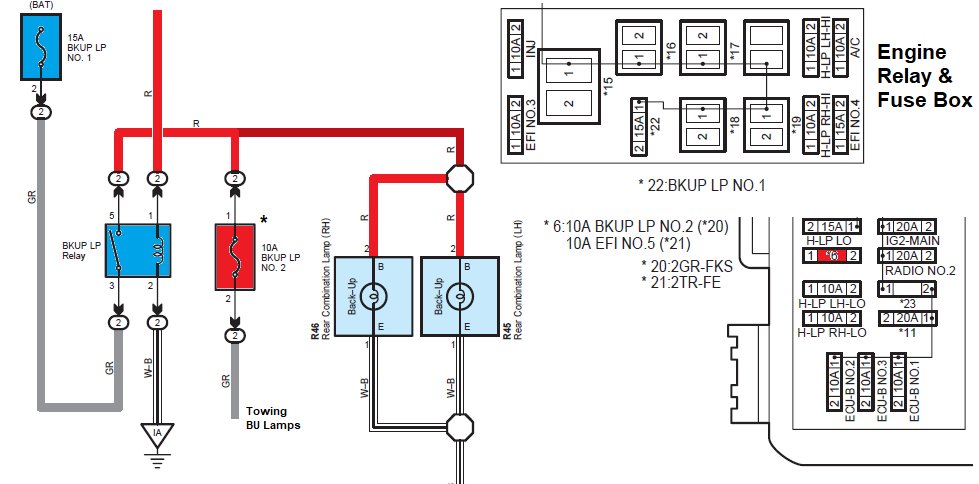

    15A split to vehicle (5A) and Tow (10A)

  9. Aug 26, 2020 at 2:35 PM
    #9
    BeaconHillT4R

    BeaconHillT4R [OP] Well-Known Member

    Joined:
    Jan 29, 2016
    Member:
    #176502
    Messages:
    63
    Gender:
    Male
    Thanks for the info, guys. I ended using a 40amp relay with a fuse to the battery and tapped into the reverse tail light hot wire to trigger the lights only when I shift to reverse.

    Interbeing likes this.
  10. Aug 26, 2020 at 2:50 PM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,456
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

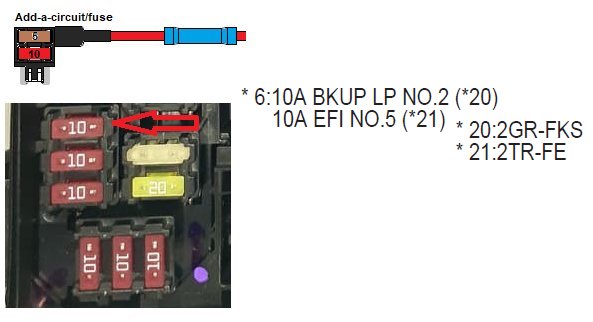

    Simpler & cheaper...

    Last edited: Aug 26, 2020
