Best spots to soundproof on 2nd gen doublecab

Discussion in '2nd Gen. Tacomas (2005-2015)' started by BaconPower, Oct 21, 2016.

  1. Oct 21, 2016 at 2:00 PM
    #1
    BaconPower

    BaconPower [OP] Well-Known Member

    Joined:
    Oct 22, 2013
    Member:
    #115051
    Messages:
    225
    Gender:
    Male
    Portland, OR, USA
    Vehicle:
    2013 Double Cab 4x4 TRD Offroad
    Recently got ahold of some sound dampening adhesive mats, a few square feet, not much.
    In a double-cab, in which areas would soundproofing have the greatest impact?

  2. Oct 21, 2016 at 2:03 PM
    #2
    Capt. Obvious

    Capt. Obvious Fearless Keyboard Warrior

    Joined:
    Aug 4, 2014
    Member:
    #135396
    Messages:
    1,610
    Gender:
    Male
    First Name:
    Darrick
    Seattle
    Vehicle:
    '12 DCLB TRD
    6" body lift, LEDs errwhere, Jesus mural on the hood
    Adhesive mats as in something along the lines of Dynamat? If you only have a few square feet, your best bet would probably be to put it on the doors to help give them that nice solid sound when you close them, and to help a bit with speaker sound. My understanding is the best place to sound proof is on the back "wall" of the truck behind the seats, but you want mass loaded vinyl (MLV) for that type of sound deadening.

    THROTTLE231 likes this.
  3. Oct 21, 2016 at 2:23 PM
    #3
    BaconPower

    BaconPower [OP] Well-Known Member

    Joined:
    Oct 22, 2013
    Member:
    #115051
    Messages:
    225
    Gender:
    Male
    Portland, OR, USA
    Vehicle:
    2013 Double Cab 4x4 TRD Offroad
    Yes, Dynamat knockoff. Thanks, I'll stick them in the back.

  4. Oct 21, 2016 at 6:56 PM
    #4
    RobD

    RobD Well-Known Member

    Joined:
    Jul 29, 2013
    Member:
    #109307
    Messages:
    216
    Gender:
    Male
    First Name:
    Rob
    Calgary
    Vehicle:
    2013 Spruce Mica Tacoma Double Cab TRD
    Dynamat and the like do not actually deaden sound, per se. They damp panel resonances. Around 25% panel coverage will be adequate. The guys that do two layers of that stuff are wasting money and adding unnecessary weight. Like Capt. Obvious said, you want mass loaded vinyl, usually around 1/8" vinyl backing with a 1/4" closed cell foam. Works way better than foil backed elastomeric material.

  5. Oct 28, 2016 at 11:45 AM
    #5
    FRSpilot

    FRSpilot Well-Known Member

    Joined:
    Sep 20, 2015
    Member:
    #164752
    Messages:
    103
    Gender:
    Male
    First Name:
    Dave
    Wyoming mostly
    Vehicle:
    2007 Speedway Blue Double Cab TRD Off-Road
    Time to make my build page!
    I'm doing my roof this week with Dynamat and Dynaliner. Before, it sounded like I was in a tent made of beer cans when I through the car wash. The roof is the last large area I have yet to work on. The back wall and doors have dynamat. The doors have two layers of dynamat, I know some believe this to be overkill, but two layers gave them a real nice solid sound when closing. Plus, the place that put my components in did the door work. The floor has Dynamat and Dynaliner.

    While doing the roof I have been doing some Google-fu to see what others have done. If I have this correct, Dynamat dampens panel vibration, thus you only really need 25% coverage. Dynaliner is a closed cell rubber which has good thermal insulational properties, and it "deadens" higher frequency sound.

    How much coverage do you need with Dynaliner? I'm rethinking my application of Dynaliner to the floor, with the thought that I should of put a MVL product on the floor. I guess I could just put Dynapad on the floor (on top of the Dynaliner) and then put sticky Dynaliner to the rear wall?

  6. Oct 28, 2016 at 2:12 PM
    #6
    Capt. Obvious

    Capt. Obvious Fearless Keyboard Warrior

    Joined:
    Aug 4, 2014
    Member:
    #135396
    Messages:
    1,610
    Gender:
    Male
    First Name:
    Darrick
    Seattle
    Vehicle:
    '12 DCLB TRD
    6" body lift, LEDs errwhere, Jesus mural on the hood
    You want as close to 100% coverage as possible with the MLV. The really hardcore guys will tape seams and everything, because technically, anywhere there is a gap there is a place for noise to get by. For the average schmuck just wanting to quiet the cab down a bit, I would shoot for more or less covering the whole area with it, but "close enough" is good enough.

  7. Oct 28, 2016 at 2:19 PM
    #7
    iitywygms

    iitywygms Well-Known Member

    Joined:
    Feb 28, 2013
    Member:
    #98715
    Messages:
    324
    Gender:
    Male
    Norcal
    Vehicle:
    4x4
    Like dis. :D

    FRSpilot and Old_Skool like this.
  8. Oct 28, 2016 at 4:32 PM
    #8
    Old_Skool

    Old_Skool Well-Known Member

    Joined:
    Jun 5, 2015
    Member:
    #156783
    Messages:
    103
    Gender:
    Male
    First Name:
    Rich
    Maine
    Vehicle:
    2017 Subaru WRX, Crystal Black Silica
    iitywygms and FRSpilot like this.
  9. Oct 28, 2016 at 6:25 PM
    #9
    FRSpilot

    FRSpilot Well-Known Member

    Joined:
    Sep 20, 2015
    Member:
    #164752
    Messages:
    103
    Gender:
    Male
    First Name:
    Dave
    Wyoming mostly
    Vehicle:
    2007 Speedway Blue Double Cab TRD Off-Road
    Time to make my build page!
    Nice work, and thank you for sharing. I will be finishing the roof accordingly! I think I will also put Dynapad on the floor.

    From the drivers seat, sensitive seat of the pants measurement for sure, it sounds like the pillars are a source of noise. I was thinking about running some 3M NVH in there. Does anyone have experience with this stuff? I guess I could also use the acoustic insulation that Old_Skool mentioned.

    http://3mcollision.com/products/sound-deadening/nvh-damping-material-04274.html

    ---- After reading some reviews of the 3M Acoustic Insulation, it sounds like this stuff is the best. The problem, where to find it? Any advice on that Old_Skool?

    Last edited: Oct 28, 2016
  10. Oct 29, 2016 at 7:23 PM
    #10
    Old_Skool

    Old_Skool Well-Known Member

    Joined:
    Jun 5, 2015
    Member:
    #156783
    Messages:
    103
    Gender:
    Male
    First Name:
    Rich
    Maine
    Vehicle:
    2017 Subaru WRX, Crystal Black Silica

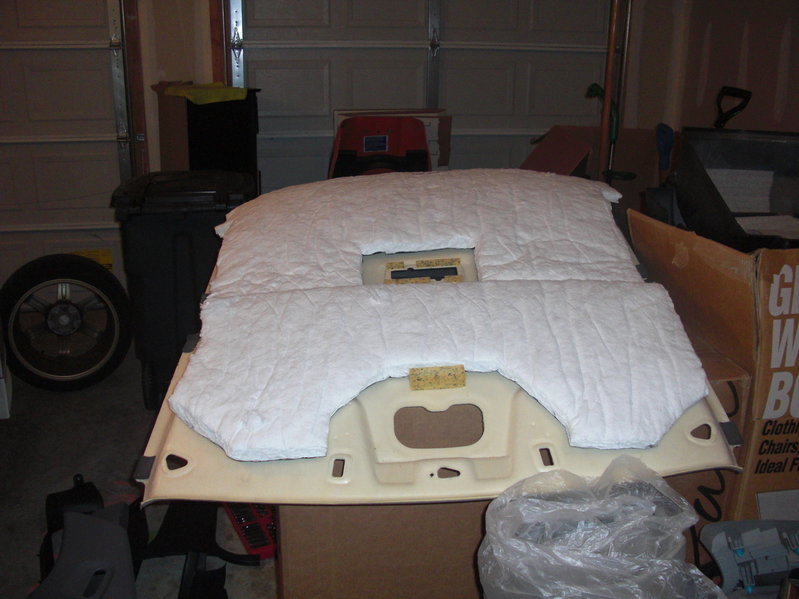

    This is the amount I bought. This seller is legit and it's ships quick from Beijing. It's the real deal :)

    www.ebay.com/itm/3M-Thinsulate-Acoustic-Insulation-TC3303-24-sq-ft-/281901346706?hash=item41a2a12f92:g:1V4AAOSwNSxVbbv5&vxp=mtr

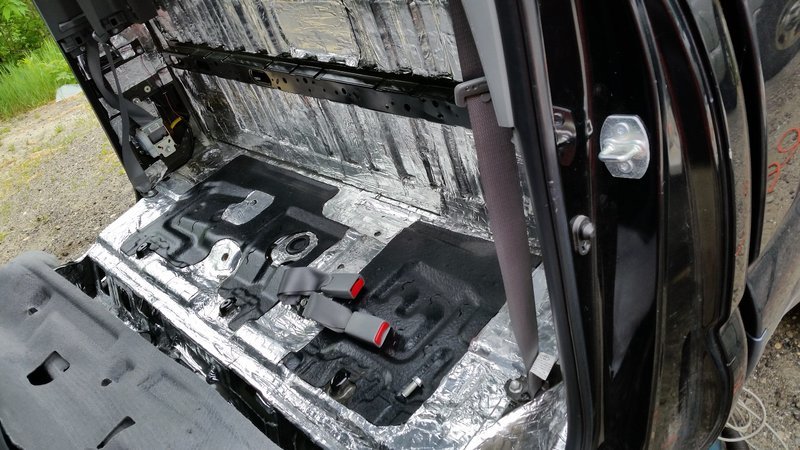

    I also stuffed the cavities of the B and C pillars with what I had left over.

  11. Oct 30, 2016 at 10:28 AM
    #11
    81Taco

    81Taco Well-Known Member

    Joined:
    May 9, 2016
    Member:
    #186522
    Messages:
    394
    Bend Overegon
    Vehicle:
    2015 DCSB, SC
    I lined my doors, and rear wall. i can't tell a difference.

  12. Nov 2, 2016 at 10:21 AM
    #12
    FRSpilot

    FRSpilot Well-Known Member

    Joined:
    Sep 20, 2015
    Member:
    #164752
    Messages:
    103
    Gender:
    Male
    First Name:
    Dave
    Wyoming mostly
    Vehicle:
    2007 Speedway Blue Double Cab TRD Off-Road
    Time to make my build page!
  13. Nov 6, 2016 at 7:03 AM
    #13
    venerismark

    venerismark Member

    Joined:
    Jan 4, 2015
    Member:
    #145595
    Messages:
    14
    Gender:
    Male
  14. Nov 6, 2016 at 8:35 AM
    #14
    Old_Skool

    Old_Skool Well-Known Member

    Joined:
    Jun 5, 2015
    Member:
    #156783
    Messages:
    103
    Gender:
    Male
    First Name:
    Rich
    Maine
    Vehicle:
    2017 Subaru WRX, Crystal Black Silica
    That link is a click-bait nightmare. Maybe you could post a different one?

  15. Nov 6, 2016 at 8:38 AM
    #15
    Shwaa

    Shwaa Well-Known Member

    Joined:
    Jan 7, 2014
    Member:
    #120129
    Messages:
    2,927
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    '13 DC Prerunner TRD Off-Road
    Do you guys do this to basically lessen the road noise from coming in or is it more to amplify the sounds inside(music) to make it sound better? Or both?

  16. Nov 7, 2016 at 6:06 PM
    #16
    Old_Skool

    Old_Skool Well-Known Member

    Joined:
    Jun 5, 2015
    Member:
    #156783
    Messages:
    103
    Gender:
    Male
    First Name:
    Rich
    Maine
    Vehicle:
    2017 Subaru WRX, Crystal Black Silica
    Both, really..... having a luxury car quiet truck is really nice. Not having every panel vibrating and buzzing like a hooptie when playing music is really nice ;)

    12TRDTacoma likes this.
  17. Nov 8, 2016 at 10:08 PM
    #17
    FRSpilot

    FRSpilot Well-Known Member

    Joined:
    Sep 20, 2015
    Member:
    #164752
    Messages:
    103
    Gender:
    Male
    First Name:
    Dave
    Wyoming mostly
    Vehicle:
    2007 Speedway Blue Double Cab TRD Off-Road
    Time to make my build page!

    Like a hooptie... Good quote.

    Sorry about the link. I run a Mac with Ghostery. I go most places without trouble. I put it in my media and it should be visible now.
