Best way to measure lift height

Discussion in 'Suspension' started by Tacoluver, Nov 4, 2009.

  1. Nov 4, 2009 at 2:37 PM
    #1
    Tacoluver

    Tacoluver [OP] Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20595
    Messages:
    180
    Gender:
    Male
    Norcal
    Vehicle:
    TRD Off Road shortbed
    Volant cold air intake, RevTek 3" Lift, Snug Top Toneau cover, Kenwood Navi, Jamoshi grill
    What is the best way to measure lift height on our trucks? At which points do you measure?

  2. Nov 4, 2009 at 2:48 PM
    #2
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,562
    Gender:
    Male
    First Name:
    Rotorhead
    Around
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    From the center of the hub to the bottom of the fender for suspension lift.

    From the ground to the bottom of the fender for tire and suspension total lift.

    From the ground to same point the lowest object object for over all ground clearance.

    Making sure you use the same spots for before and after measurements gives yo the best info.

    BizzyB726 and Parma like this.
  3. Nov 4, 2009 at 3:16 PM
    #3
    Tacoluver

    Tacoluver [OP] Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20595
    Messages:
    180
    Gender:
    Male
    Norcal
    Vehicle:
    TRD Off Road shortbed
    Volant cold air intake, RevTek 3" Lift, Snug Top Toneau cover, Kenwood Navi, Jamoshi grill
    Got it thanks! I got 24" from hub to fender. Should've measured before doing the lift. Do you happen to know what the specs are on stock suspension w/ stock wheels?

  4. Nov 4, 2009 at 3:26 PM
    #4
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,562
    Gender:
    Male
    First Name:
    Rotorhead
    Around
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Was it 24 inches on all four tires??

  5. Nov 4, 2009 at 4:00 PM
    #5
    Tacoluver

    Tacoluver [OP] Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20595
    Messages:
    180
    Gender:
    Male
    Norcal
    Vehicle:
    TRD Off Road shortbed
    Volant cold air intake, RevTek 3" Lift, Snug Top Toneau cover, Kenwood Navi, Jamoshi grill
    I only measured the drivers side. Tomorrow I'm swapping out my RevTek spacer lift for Bilies and OME's.

  6. Nov 4, 2009 at 4:01 PM
    #6
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,562
    Gender:
    Male
    First Name:
    Rotorhead
    Around
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    ::nods:: I got about 19-20 inches in front and about 22 in the rear pre lift...

  7. Oct 8, 2020 at 11:21 PM
    #7
    Cutnweld

    Cutnweld Member

    Joined:
    Sep 15, 2020
    Member:
    #340882
    Messages:
    13
    This is a bad way to measure. Your bodywork (fender) can be off by as much as 1”.
    Best bet is your axle, where the spring mounts, to the bottom of the frame.

  8. Oct 8, 2020 at 11:29 PM
    #8
    su.b.rat

    su.b.rat Well-Known Member

    Joined:
    Jul 30, 2016
    Member:
    #193316
    Messages:
    9,657
    Eric at Archive Garage always recommends measuring like this for the rear, so consider this your starting point:

    taking a measurement to get your actual ride height, measure from the top of the axle tube up to the bottom of frame rails, stock is 8.25"​

    Cutnweld likes this.
  9. Nov 11, 2021 at 3:06 PM
    #9
    OffroadToy

    OffroadToy This ain't Dodge City, and you ain't Bill Hickok

    Joined:
    Sep 12, 2009
    Member:
    #22680
    Messages:
    5,754
    Gender:
    Male
    Vehicle:
    2007 Offroad
    Icon Stage 8, ECGS Bushing, Piaa Lights, Weathertech Mats, Westin light bar, OEM bed mat, AVS visors, rear differential breather extension, oil filter drain hose, a/c drain hose extension & reroute, front windows tint, Cat Security, tailgate clamp mod, XPEL headlight/fog light protectors, OEM block heater, BFG 265/75R/16 a/t k/o's, cabin air rodent protection screen, RCBS illuminated 4X4 switch mod, spare tire lowering mod, Timbren offroad bump stops, Crown braided/extended brake lines, Wet Okole seat covers, step nerf bars.

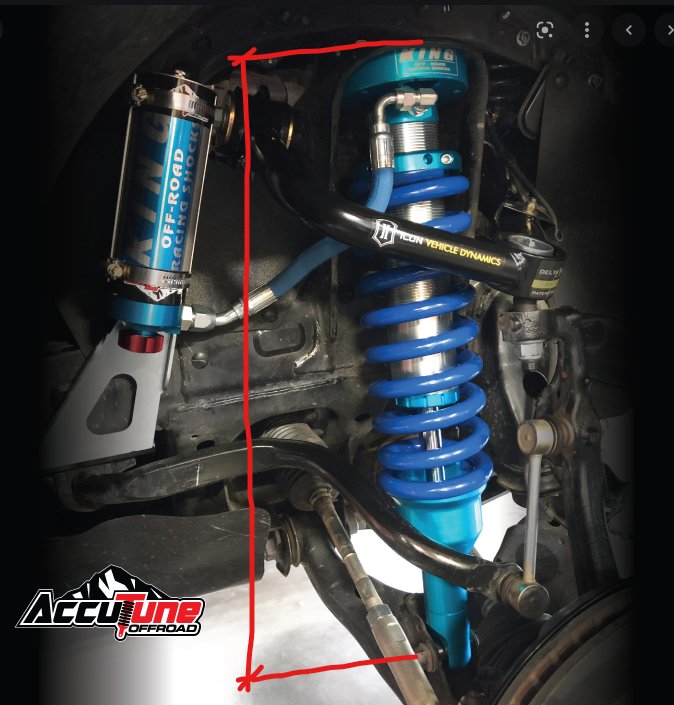

  10. Nov 11, 2021 at 3:11 PM
    #10
    mtip

    mtip Go Outside & Play!!!

    Joined:
    Aug 22, 2017
    Member:
    #227695
    Messages:
    2,272
    Gender:
    Male
    First Name:
    Mike
    South Louisiana
    Vehicle:
    18 TRD Sport 6MT 00 Tundra 5MT
    So, that's a body lift?

    OffroadToy likes this.
  11. Nov 11, 2021 at 3:40 PM
    #11
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    10,590
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    All the things!
    Not sure if that tire will rub... but I probably will...

    :spy::jerkoff:

  12. Nov 11, 2021 at 3:43 PM
    #12
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    10,590
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    All the things!
    I prefer the method of measuring from the shock's top hat to the lower bolt. This measurement would be consistent time and time again.


  13. Nov 12, 2021 at 10:35 AM
    #13
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    1,434
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    This is helpful for comparing one setup to another for yourself but it doesn't actually give you the amount of lift relative to what people talk about 99% of the time. 1" of lift at the coilover is roughly 2" of actual lift if measuring the hub center vs body. Same way that a 1" spacer will give you 2" of lift.

  14. Nov 12, 2021 at 10:36 AM
    #14
    essjay

    essjay Part-Time Lurker

    Joined:
    Nov 29, 2018
    Member:
    #274276
    Messages:
    1,109
    Gender:
    Male
    First Name:
    Chris
    Walnut Creek, CA
    Vehicle:
    2011 Tacoma SR5 (V6/AC/4WD)
    With a tape measure.

    otis24 and fatfurious2 like this.
  15. Nov 12, 2021 at 10:39 AM
    #15
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    10,590
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    All the things!
    That's 100% of my point. If you're measuring lift at all, it's typically to compare one set up to another. Beyond that, just use your eyes and determine what "lift" looks good. The only way my measurement wouldn't be an accurate comparison between trucks, is if one of the trucks is LT, or running a DB.

  16. Nov 12, 2021 at 10:44 AM
    #16
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    1,434
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    It's just completely useless for most people when they're looking online at pics and buying products - 100% of which will reference "lift" as based on hub center vs body. Once you're concerned with only your truck, tweaking your setup, sure use that method. But if you want to compare to anyone and everyone else then you'll want to stick with the actual lift amount rather than the change in coilover length. I personally don't have any trouble measuring hub to fender, sure, there's a little variation from person to person, but it's pretty minor. And that 1" difference someone else mentioned is phooey. The only time one person's fender is gonna be 1" different from someone elses s if it's an aftermarket flare or the flares were cut.

    Thatbassguy and wi_taco like this.
  17. Nov 12, 2021 at 11:03 AM
    #17
    a2lowvw

    a2lowvw Well-Known Member

    Joined:
    Jan 12, 2021
    Member:
    #352533
    Messages:
    1,292
    Gender:
    Male
    First Name:
    Justin
    Bothell, Wa
    Vehicle:
    2019 Supertarded DCSB
    I've seen people measure hub to center and get measurements that were 1/2 inch off because their eyecrometer wasn't calibrated and couldn't pick out the center of the hub.

    wi_taco, gudujarlson and Bertw192 like this.
  18. Nov 12, 2021 at 12:32 PM
    #18
    gudujarlson

    gudujarlson Well-Known Member

    Joined:
    Jul 2, 2019
    Member:
    #298083
    Messages:
    3,288
    Gender:
    Male
    Minnesota
    Vehicle:
    2020 TRD Off-Road DCSB 6MT
    Kings, Dakars, SPCs, 33's, Mobtown Sliders, TRD Skid
    I’ve been off 1/2” when measuring in low light.

  19. Nov 12, 2021 at 3:28 PM
    #19
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    1,434
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    Yup, it's definitely not an exact science. Personally, I find it's easiest to first measure your ground to hub center and record that measurement. Then, take all your other measurements from ground to fender and subtract the ground to hub measurement. Takes a little variance out of the measurements and means you can measure and remeasure faster.
    (Note that, depending on your tires and tire pressures you may have different ground to hub measurements front and rear.)

    wi_taco and Island Cruiser like this.
  20. Nov 16, 2021 at 10:12 AM
    #20
    OffroadToy

    OffroadToy This ain't Dodge City, and you ain't Bill Hickok

    Joined:
    Sep 12, 2009
    Member:
    #22680
    Messages:
    5,754
    Gender:
    Male
    Vehicle:
    2007 Offroad
    Icon Stage 8, ECGS Bushing, Piaa Lights, Weathertech Mats, Westin light bar, OEM bed mat, AVS visors, rear differential breather extension, oil filter drain hose, a/c drain hose extension & reroute, front windows tint, Cat Security, tailgate clamp mod, XPEL headlight/fog light protectors, OEM block heater, BFG 265/75R/16 a/t k/o's, cabin air rodent protection screen, RCBS illuminated 4X4 switch mod, spare tire lowering mod, Timbren offroad bump stops, Crown braided/extended brake lines, Wet Okole seat covers, step nerf bars.
    I thought i had a 6" lift until i figured out the measuring tape i used came out of my tackle box. :facepalm:
