Bilstein 5100 adjustment

Discussion in 'Suspension' started by hillbillynwv, Feb 5, 2009.

  1. Feb 5, 2009 at 10:32 AM
    #1
    hillbillynwv

    hillbillynwv [OP] Well-Known Member

    Joined:
    Jun 25, 2008
    Member:
    #7555
    Messages:
    1,067
    Gender:
    Male
    Fairmont, WV
    Vehicle:
    08 Tacoma 4x4 TRD V6 SR5
    Rear Leaf Spring TSB, Front Bilstein 5100's set to 1.75, Goodyear Wrangler DuraTrac 265/75/R16 tires, Black WeatherTech Floor Liners, aFe Pro Dry S air filter, lighted 4x4 switch......
    I called my local dealership today and they are ordering what I need for the leaf spring TSB and I will have it done sometime next week after the parts come in. After the TSB is completed, I want to replace the stock front Bilsteins with the 5100's to level out my truck. Should I wait a certain amount of time for my truck to settle from the TSB before I put these new shocks on? I'm worried that I will put the shocks on too soon, the truck will settle, and the truck would then be raked the wrong way. What is the best way to determine the correct setting?

  2. Feb 5, 2009 at 10:34 AM
    #2
    deadbolt

    deadbolt do w3rk!

    Joined:
    Mar 14, 2008
    Member:
    #5289
    Messages:
    3,005
    Gender:
    Male
    Socal
    Vehicle:
    08 Dbl Cab 6spd 4x4 TRD Off Road
    Black Headlights, HIDs, Tinted Fogs, Powdercoated Black Wheels, 5100s @ 2.5", Diff drop, AFE Exhaust, AFE Stage 2 Intake, Black Emblems/Grille, LED Tail lights, 265/75/16s Good Year Duratracs
    Ive heard that 1.75 setting is leveled with the tsb. But you should install it before the TSB because they align your truck after the install for free..

  3. Feb 5, 2009 at 10:40 AM
    #3
    06Bluez

    06Bluez Well-Known Member

    Joined:
    Jun 12, 2008
    Member:
    #7281
    Messages:
    956
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    06 4x4
    Icon Coil-overs, TC UCA, with Bilstein 5150 and Icon 3 leaf pack. 17" Moto Metal 951 4.5" Backspacing wrapped in 285/70/17 BFG AT's. Demello front bumper and Avid offroad sliders.
    Indeed. And they will try to tell you that the alignment is not free. I had to bust out the TSB list and show that a alignment is included free.

  4. Feb 5, 2009 at 10:40 AM
    #4
    M2M

    M2M Well-Known Member

    Joined:
    Feb 12, 2008
    Member:
    #4720
    Messages:
    180
    Gender:
    Male
    Vehicle:
    bilstiens, sport 08 w/o scoop, debadged
    [​IMG]
    [​IMG]
    [​IMG]

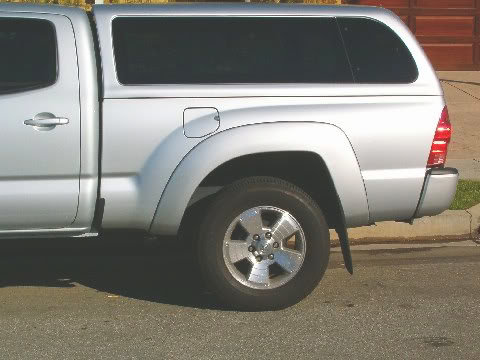

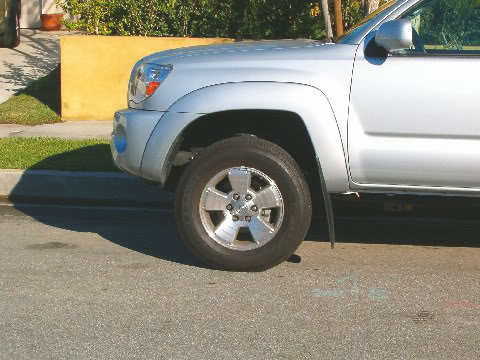

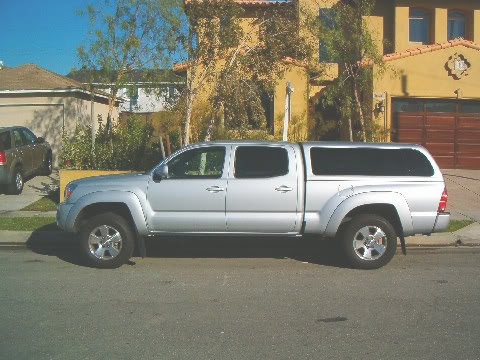

    here you go - set to 1.75 + TSB

  5. Feb 5, 2009 at 10:41 AM
    #5
    deadbolt

    deadbolt do w3rk!

    Joined:
    Mar 14, 2008
    Member:
    #5289
    Messages:
    3,005
    Gender:
    Male
    Socal
    Vehicle:
    08 Dbl Cab 6spd 4x4 TRD Off Road
    Black Headlights, HIDs, Tinted Fogs, Powdercoated Black Wheels, 5100s @ 2.5", Diff drop, AFE Exhaust, AFE Stage 2 Intake, Black Emblems/Grille, LED Tail lights, 265/75/16s Good Year Duratracs
    i personally will probably go 2.5 though. is their any ride difference between 2.5 and 1.75?

  6. Feb 5, 2009 at 10:44 AM
    #6
    MyToyTaco

    MyToyTaco ╒╪╕

    Joined:
    Sep 23, 2008
    Member:
    #9417
    Messages:
    4,323
    Gender:
    Male
    First Name:
    Nick
    Port Hueneme
    Vehicle:
    08 Taco
    2.5 will be a stiffer ride

  7. Feb 5, 2009 at 10:41 PM
    #7
    Downsouth Motorsports

    Downsouth Motorsports Downsouth Motorsport Vendor

    Joined:
    Nov 28, 2008
    Member:
    #11116
    Messages:
    1,979
    Gender:
    Male
    Mission Valley, San Diego
    Front King 2.5, Coilovers, Camburg UCA, Rear King 2.0 Shocks, Lots of Tinted Windows, Cherry Third Owner
    If you install the front struts at the 2.5" height a 1.5" rear lift levels out the truck in most cases. I had the TSB done on my truck and noticed the new springs gave me about 2" of lift as compared to my old springs. However my old springs were basically flat and had no arch at all!

  8. Feb 6, 2009 at 8:36 AM
    #8
    squad314

    squad314 Thinks he's Steve McQueen

    Joined:
    Dec 1, 2007
    Member:
    #3665
    Messages:
    2,572
    Gender:
    Male
    First Name:
    Marc
    Into the mystic....(foggy Saint John, NB)
    Vehicle:
    TRD Sport+Leather 4x4
    Front 5100's @2.5", Rear 5125's with AAL. Light Racing UCA's, Factory hood deflector, Sirius Sportster 5, TRD air filter, Weathertech's f&r, "Hello Kitty" steering wheel cover.
    Downsouth Motorsports">
    Spoke with Sonny yesterday and just wanted to make sure I understood correctly....My '07 TRD Sport has a stock 4-leaf pack (Canadian truck,no TSB required).If I installed the front Billy 5100's set at 2.5",plus a set of AAL's in the rear,the truck would sit just slightly higher in the back?......What would the total lift of the truck be considered?

    Thanks.

  9. Feb 7, 2009 at 1:13 AM
    #9
    m_yota

    m_yota Well-Known Member

    Joined:
    Nov 26, 2008
    Member:
    #11050
    Messages:
    283
    Gender:
    Male
    Paradise
    Vehicle:
    08 4x4 dbl cab
    K&N airfilter, HID conversion for headlights/fogs. Wet Okole Seat covers, Kove Aphex processor Kenwood comp 6.5" and 6.5"coaxial 5100 billy shocks 2.5", 1.5" fabtech AAL,Epicenter and MTX Sub, debadged, tinted, kenwood dnx812, black mesh grill, led ext/int.
    I just need to know the torque spec for the front shock bolt and the three bolts before I tackle this project today.:confused:

  10. Feb 7, 2009 at 4:35 PM
    #10
    PaulVthe3

    PaulVthe3 Well-Known Member

    Joined:
    Nov 28, 2008
    Member:
    #11097
    Messages:
    137
    Gender:
    Male
    Thats the same set up Im getting for my 09 4x4! im also installing the diff drop as well. Its still on its way! I cant wait! Im just wondering if Im gonna have any rear driveline vibration? Im only going with 1-1.5" AAl so I dont see a problem. What do you guys think?

  11. Feb 7, 2009 at 11:03 PM
    #11
    m_yota

    m_yota Well-Known Member

    Joined:
    Nov 26, 2008
    Member:
    #11050
    Messages:
    283
    Gender:
    Male
    Paradise
    Vehicle:
    08 4x4 dbl cab
    K&N airfilter, HID conversion for headlights/fogs. Wet Okole Seat covers, Kove Aphex processor Kenwood comp 6.5" and 6.5"coaxial 5100 billy shocks 2.5", 1.5" fabtech AAL,Epicenter and MTX Sub, debadged, tinted, kenwood dnx812, black mesh grill, led ext/int.
    Just did my billy shocks and AAL today. Settings were @ 2.5", let me tell you I really like this setup. Rides great, I don't know what kind of stiffness you guyz are experiencing bu this is awesome.

    Let me tell you about the install. I started with the rear 1.5" AAL and shocks, driver side was a little tricky with the all the brake lines. As for the pass. it was plain and simple. Now the fronts were adjusted to 2.5" with stock springs. I purchased a portable coil spring compressor. however the damn tool was a little too bulky. So I went down to my good friend (a mechanic) changed them for $25. Good deal. Installing them was a bitch, the bottom shock wouldn't go in to its place. So we removed the castle nut from the UCA and finness it in. I started this project by my self until my brother came over to help. What a relief!! With all that said and done, I really love this setup. LEVELED!!! Now my HID's will have new meaning of bright lights in your face. HAHA. I'll try to post some pic.

  12. Feb 7, 2009 at 11:06 PM
    #12
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Thor

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,151
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Sounds good looking foward to some pics.

  13. Feb 7, 2009 at 11:08 PM
    #13
    deadbolt

    deadbolt do w3rk!

    Joined:
    Mar 14, 2008
    Member:
    #5289
    Messages:
    3,005
    Gender:
    Male
    Socal
    Vehicle:
    08 Dbl Cab 6spd 4x4 TRD Off Road
    Black Headlights, HIDs, Tinted Fogs, Powdercoated Black Wheels, 5100s @ 2.5", Diff drop, AFE Exhaust, AFE Stage 2 Intake, Black Emblems/Grille, LED Tail lights, 265/75/16s Good Year Duratracs
    nice. come install mine :D

  14. Feb 7, 2009 at 11:18 PM
    #14
    m_yota

    m_yota Well-Known Member

    Joined:
    Nov 26, 2008
    Member:
    #11050
    Messages:
    283
    Gender:
    Male
    Paradise
    Vehicle:
    08 4x4 dbl cab
    K&N airfilter, HID conversion for headlights/fogs. Wet Okole Seat covers, Kove Aphex processor Kenwood comp 6.5" and 6.5"coaxial 5100 billy shocks 2.5", 1.5" fabtech AAL,Epicenter and MTX Sub, debadged, tinted, kenwood dnx812, black mesh grill, led ext/int.
    sorry man I don't do side jobs. If you got some tools and buy me a roundtrip ticket from Hawaii, then maybe. I'll sleep on it. Nah let me know if you need some help though.

  15. Feb 7, 2009 at 11:28 PM
    #15
    deadbolt

    deadbolt do w3rk!

    Joined:
    Mar 14, 2008
    Member:
    #5289
    Messages:
    3,005
    Gender:
    Male
    Socal
    Vehicle:
    08 Dbl Cab 6spd 4x4 TRD Off Road
    Black Headlights, HIDs, Tinted Fogs, Powdercoated Black Wheels, 5100s @ 2.5", Diff drop, AFE Exhaust, AFE Stage 2 Intake, Black Emblems/Grille, LED Tail lights, 265/75/16s Good Year Duratracs
    hahah. i want to install it myself, i just dont think i have all the proper tools.

  16. Feb 8, 2009 at 6:38 AM
    #16
    PaulVthe3

    PaulVthe3 Well-Known Member

    Joined:
    Nov 28, 2008
    Member:
    #11097
    Messages:
    137
    Gender:
    Male
    So how does it ride? Any driveline vibes? Did you get the diff drop? Let see some pics!

  17. Feb 19, 2009 at 6:35 AM
    #17
    Y0TA

    Y0TA TW Addict

    Joined:
    Jan 31, 2009
    Member:
    #13145
    Messages:
    613
    Gender:
    Male
    First Name:
    Zac
    Missoula
    Vehicle:
    05 BLK TRD Sport 4X4
    15% tint, debadged, painted black interior, 50s Flowmasters, K&N, Tailgait theft mod, Leer Topper, Sirius Sat Radio, BHLM, 4300k HIDs, DTRL mod, Metra Ipod adapter, Hella 500 behind black billet grille, OME 885s w/ AAL, Light Racing UCAs, Weathertech liners, Konig countersteers w/285s M/Ts, Scangauge II, 886 bulbs, Aux. reverse lights, Custom Bumper with Westin 8500 winch, Marathon camo seat covers

    yea whats up. No pics? I also want to know vibes or no?

  18. Feb 19, 2009 at 1:12 PM
    #18
    cbcs1987

    cbcs1987 Redneck from the hills

    Joined:
    Apr 1, 2008
    Member:
    #5670
    Messages:
    1,339
    Gender:
    Male
    First Name:
    Cody
    East Tennessee
    Vehicle:
    2007 Tacoma 4wd access cab
    6" Fabtech coilover lift. 35/12.50/17 Mickey Thompson MTZ, 17x9 ProComp 1089 wheels painted black, UWS black lowprofile toolbox, husky liners, tacoma bed mat, bed lights, Premier stereo, Cobra 19 cb, firestik 3' antenna.
    Where can I get a copy of this list? My dealership does whatever they can to cut corners.
