Bilstein 5100's.... Want to go 1-2" higher... HELP!

Discussion in 'Suspension' started by jeremy25056, Aug 22, 2011.

  1. Aug 22, 2011 at 10:25 PM
    #1
    jeremy25056

    jeremy25056 [OP] Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54317
    Messages:
    266
    Gender:
    Male
    Los Angeles
    Vehicle:
    11 TRD OFF-RD AccessCab 6Spd

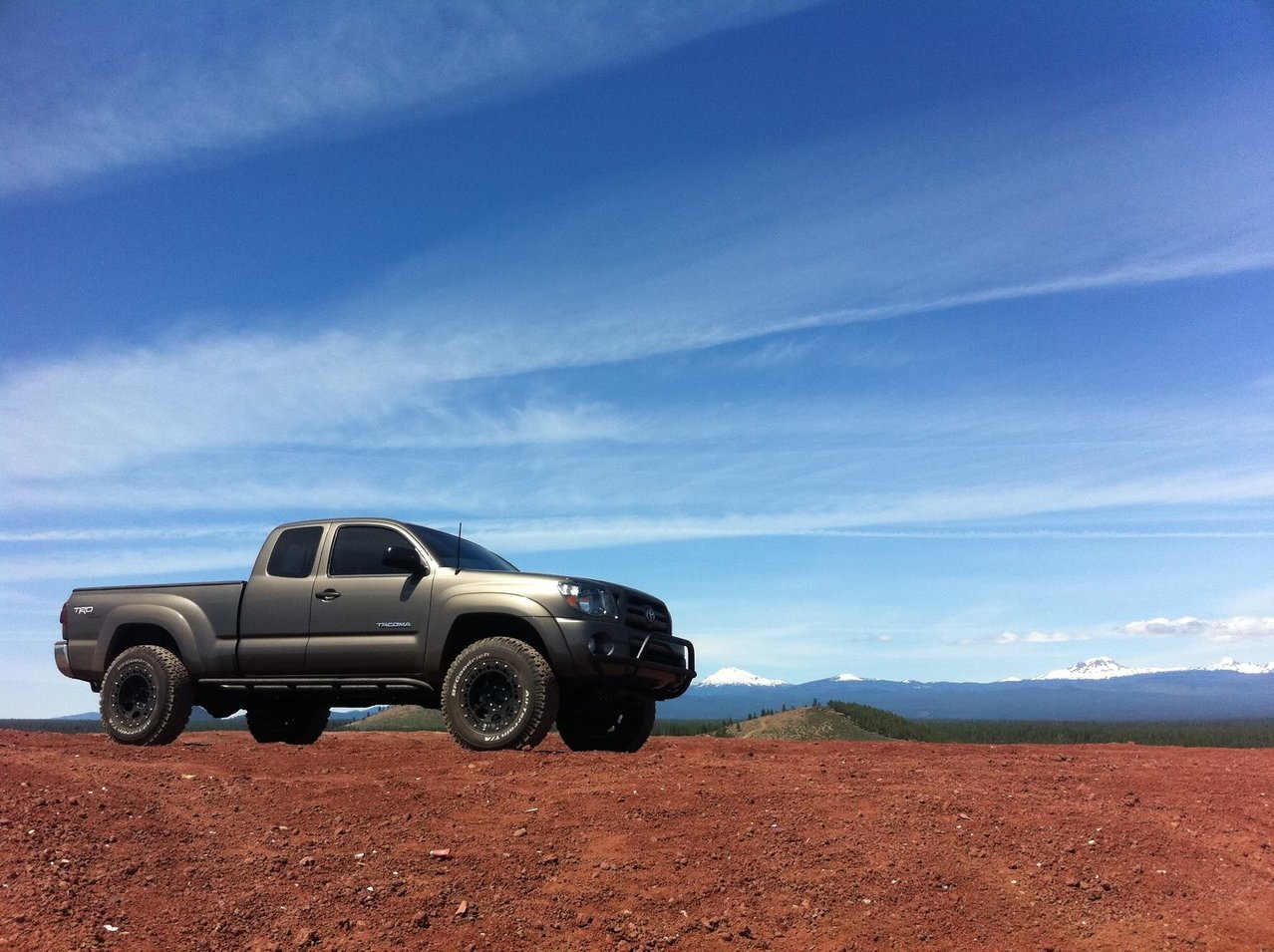

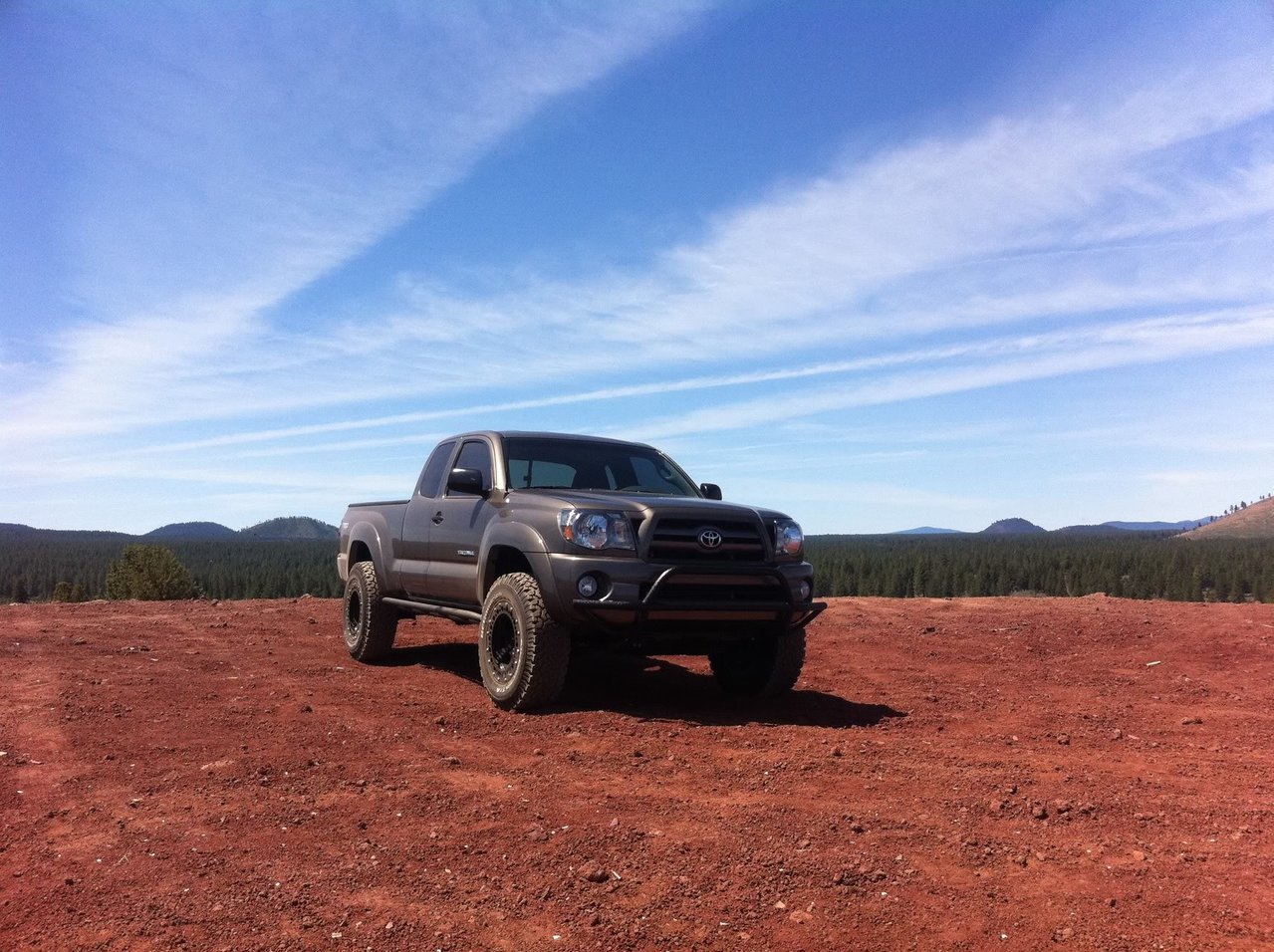

    Title says it all, I have 5100 bilstein's set at top hight. How do i got about lifting another inch or two. What complications will i run into? will it be as easy as adding a spacer on top of the strut? or body lift?

    Thanks for all your help.

    Jeremy

    [​IMG]

    [​IMG]

  2. Aug 22, 2011 at 10:32 PM
    #2
    Zac808

    Zac808 Custom User Title

    Joined:
    Aug 31, 2009
    Member:
    #22040
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Zac
    Viva Las Vegas
    Vehicle:
    08 TRD DC SB 4x4
    In my sig
    So ur sitting at 2.5. U could add a .25 spacer to each side. Anything else over that is not recommended.

  3. Aug 22, 2011 at 10:40 PM
    #3
    jeremy25056

    jeremy25056 [OP] Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54317
    Messages:
    266
    Gender:
    Male
    Los Angeles
    Vehicle:
    11 TRD OFF-RD AccessCab 6Spd
    Gotcha, not recommended meaning...??

  4. Aug 22, 2011 at 10:41 PM
    #4
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,845
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    Its not recommended if you want to keep your truck running in good working condition

  5. Aug 22, 2011 at 10:42 PM
    #5
    yotamikez

    yotamikez Street glide or die

    Joined:
    Nov 27, 2010
    Member:
    #46777
    Messages:
    3,596
    Gender:
    Male
    First Name:
    Mike
    Valrico
    Vehicle:
    04 civic & 08 Street glide
    Are you 2wd or 4wd?

  6. Aug 22, 2011 at 10:43 PM
    #6
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,814
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    Anything higher than 3" puts too much stress on your CV boots and stock UCA's...Overall not a good idea.

    To go higher than 3" you need to start looking at dropped bracket lifts.

  7. Aug 22, 2011 at 10:45 PM
    #7
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,942
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    If you are 2wd you can go spindles

    if 4wd , you can go about 3 1/4" max or go to a drop bracket lift to go higher

  8. Aug 22, 2011 at 10:46 PM
    #8
    yotamikez

    yotamikez Street glide or die

    Joined:
    Nov 27, 2010
    Member:
    #46777
    Messages:
    3,596
    Gender:
    Male
    First Name:
    Mike
    Valrico
    Vehicle:
    04 civic & 08 Street glide
    This is what I was getting at :D tanks OZ

  9. Aug 22, 2011 at 10:49 PM
    #9
    jeremy25056

    jeremy25056 [OP] Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54317
    Messages:
    266
    Gender:
    Male
    Los Angeles
    Vehicle:
    11 TRD OFF-RD AccessCab 6Spd
    I am 4x4. Drop brackets.... Im sorry for being a newb... anyone have a link to some reading up i can do on it?

    Say i just do the spacers, will i have to worry about the lift/alignment?

    Jeremy

  10. Aug 22, 2011 at 10:52 PM
    #10
    yotamikez

    yotamikez Street glide or die

    Joined:
    Nov 27, 2010
    Member:
    #46777
    Messages:
    3,596
    Gender:
    Male
    First Name:
    Mike
    Valrico
    Vehicle:
    04 civic & 08 Street glide
  11. Aug 22, 2011 at 10:52 PM
    #11
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,942
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You don't wanna stack lifts

  12. Aug 22, 2011 at 10:56 PM
    #12
    jeremy25056

    jeremy25056 [OP] Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54317
    Messages:
    266
    Gender:
    Male
    Los Angeles
    Vehicle:
    11 TRD OFF-RD AccessCab 6Spd
    I didn't mean lift, i meant just spacing the wheels/tire out.

  13. Aug 22, 2011 at 10:56 PM
    #13
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,814
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    I'm not a DB lift expert. look up pro-comp and fabtec 6" lifts. I think rough country makes a 4" too.

    With the spacers, on top of the 2.5, you'll probably have alignment issues, on top of stressed CV boots.

    EDIT: didnt see you reply to oz about the spacers.

  14. Aug 22, 2011 at 10:57 PM
    #14
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,942
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Oh , sorry

    Yes you can add wheel spacers , you shouldn't need to re-align it for that .

  15. Aug 22, 2011 at 11:07 PM
    #15
    jeremy25056

    jeremy25056 [OP] Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54317
    Messages:
    266
    Gender:
    Male
    Los Angeles
    Vehicle:
    11 TRD OFF-RD AccessCab 6Spd
    Thank you for the input.


    Well i guess i will start there and see how it is. Any recommendations for spacers?

    J

  16. Aug 22, 2011 at 11:10 PM
    #16
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,942
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  17. Aug 22, 2011 at 11:12 PM
    #17
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,814
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    Spidertrax spacers are good
