Blacking Out Headlights, How to

Discussion in 'Lighting' started by spencer_hong, Jul 31, 2007.

  1. Jul 31, 2007 at 9:23 PM
    #1
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    Blacked out my headlights yesterday.. one of the sweetest mods on my truck.

    I have an 07 Black Double Cab Pre-Runner

    You'll need some tools and materials for this.
    Phillips screwdriver
    Flat-head screwdriver
    Socket wrench
    Baking oven
    Black Krylon spray paint
    600 grit sand paper
    Rubbing Alcohol
    Electric Tape

    I am not responsible for anything you do to your truck! Although this is fairly simple, there are some things that could go wrong and if you don't think you can do this, dont try!

    1. Removing grille and side parts under headlights.
    First you'll need to get under the hood, undo all the pinch screws and philips screws to take the grille off. Then undo all the screws and one bolt for the headlights. Two of the screws are right on top of the headlight, while one is on the inner-bottom of the headlight. All these screws are grey. The last bolt is a pain in the ass, you'll have to go under the front bumper, and its way up on the outside part of the headlight. You won't be able to see it, but you can see a part of the grey headlight holding onto a bar. If you stick your hand up you'll feel two bolts, the highest one up is the one you'll need to undo. Get your socket wrench and take that sucker off. PS when you put your headlights back in you won't need to put this bolt back in.

    Make sure you unplug all the lights connecting to the headlight. The running lights twist and pull, headlight socket disconnects just by pulling, and the blinker socket pushes in and disconnects.

    Pull the headlights out.

    2. Baking the headlights.

    Make sure you take off all the little plastic and rubber pieces on the back of the headlights along with three small hex screws and take out the main headlight. Pre-heat your oven to 200 degrees F. I know the oven part sounds sketchy, but as long as you do everything right it'll work out perfectly. Stick the headlights in one at a time for 8 minutes. When you pull them out let them cool for a very short time then start pulling the lens away from the plastic backing. The sticky stuff between the plastic and lens is really strong, and trust me it might get frustrating (it definitely did for me) but remember, take your time. A flat-head might be useful he to help pry the two apart.

    3. Once you get the lens away from the plastic.

    Once you pry it open, you'll have to unscrew two hex screws attached the plastic chrome frame. Detach the frame, and pop out the two light panels. This chrome frame is what you will be painting.

    4. Prep and paint.

    To prep the frame, use the sand paper and get off as much of the chrome as you can. Then clean it using rubbing alcohol. Lay out the frame on newspaper or something, and get the spray paint. I suggest doing 3 or 4 light to medium coats and letting it dry 5 or 10 minutes in between each coat. After this you can pop back in the light panels, and screw the frame back into the lens.

    5. Putting the headlight back together.

    Put the lens w/ the frame back into the plastic holding of the headlight. Stick it back in the over (preheated at 200 degrees F) for about 5 minutes. When you take it out, immediately push it back together and get the silcone to stick as much as possible. The headlight should have a sturdy hold and not seem like its going to fall apart. It should be completely glued back togther. I reccomend using electrical tape to seal all around the lens, just so no moisture gets in (i had this issue). Put the headlight and grille back in, and enjoy!

  2. Jul 31, 2007 at 9:24 PM
    #2
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    I'll put pictures up if anyone comes on this forum and asks.

  3. Aug 1, 2007 at 6:54 AM
    #3
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2003 4Runner SE 4WD
    Hey, tcBob, can we make this a sticky?

    Great article spencer_hong. I would love to see some pics on this one. :D

  4. Aug 1, 2007 at 7:45 AM
    #4
    nd

    nd Radical Town. It's a hell of a place!

    Joined:
    Mar 12, 2007
    Member:
    #1047
    Messages:
    12,738
    Gender:
    Male
    First Name:
    Nate
    Greenville, SC
    Vehicle:
    07 TRD Off-Road 4x4 debadged
    De badged, 5100's, Black Toyota Baja wheels
    I think this is the same mod that i have seen on this site before, but someof the procedures sound a little different, i'd like to see the finished product if you dont mind. Great post though, very detailed. Welcome to TW!

  5. Aug 1, 2007 at 1:38 PM
    #5
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    I don't have my digital camera with me right now, but I'll get pictures up by tonight if I can.

  6. Aug 2, 2007 at 11:26 AM
    #6
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD

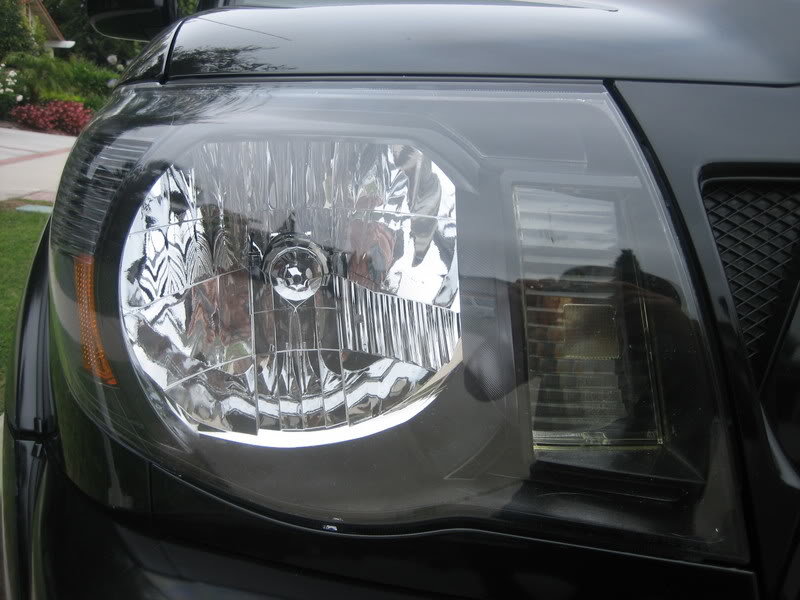

    Alright guys, heres some pictures of the finished headlights.
    [​IMG]
    [​IMG]

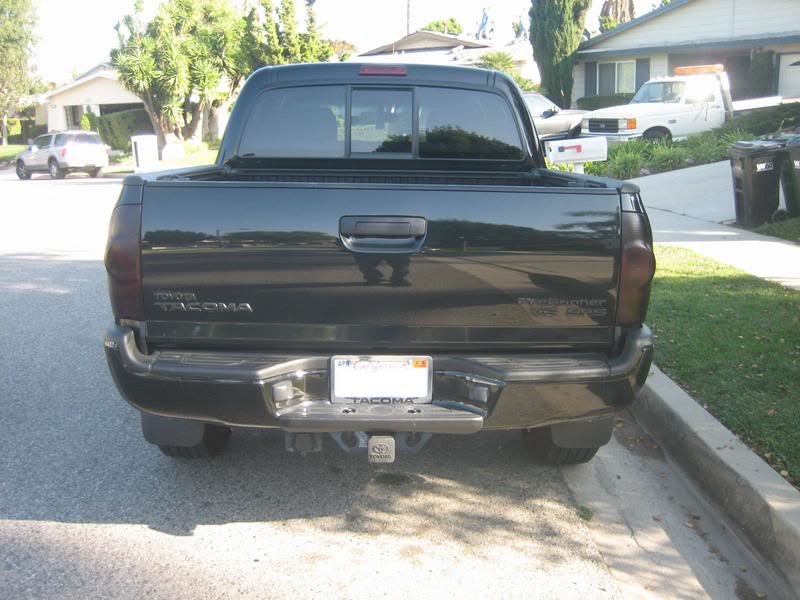

    UPDATE PIC 1/25/08 of black emblems and blacked out tail lights
    [​IMG]

  7. Aug 2, 2007 at 12:29 PM
    #7
    nd

    nd Radical Town. It's a hell of a place!

    Joined:
    Mar 12, 2007
    Member:
    #1047
    Messages:
    12,738
    Gender:
    Male
    First Name:
    Nate
    Greenville, SC
    Vehicle:
    07 TRD Off-Road 4x4 debadged
    De badged, 5100's, Black Toyota Baja wheels
    the lights look good, i'd love to do it i just dont trust myself enough. What chrome are you painting black? thats the only part i'm really unclear on.

    BTW, i have seriouslly considered blacking out all my chrome emblems but i wasn't sure how it would look. but i really like the way it looks on yours. how did you get the emblems off (specifically the one inthe grill)? and what kind of paint did you use?

  8. Aug 2, 2007 at 12:38 PM
    #8
    Burns

    Burns Well-Known Member

    Joined:
    Jun 19, 2007
    Member:
    #1871
    Messages:
    3,663
    Gender:
    Male
    NJ
    Vehicle:
    Truck is Sold
    Headlights look good man, I am way to lazy to do mine. :D

  9. Aug 2, 2007 at 3:10 PM
    #9
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    ndcouch.. when you do the headlights, just follow the instructions i posted, honestly its pretty simple. the only pain is when you have to pry the headlights apart. when you get the headlight open its very clear what you're painting. there is the lens to the headlight, the plastic backing, and then the frame or housing of the lights.. all it is, is sort of chrome painting plastic. thats all your painting.

    as far as the emblems go, theres alot of stuff about using a blow dryer to heat the silicone and then using dental floss or fishing line. i tried fishing line and it wasnt strong enough (my tacoma is only about 3 months old so the silicone is probably still strong). first heat it with the blow dryer, then i used one of those flat metal bladed tools that you use for painting.. to sort of slice behind the emblems.

    TIP: BEFORE YOU TAKE OFF THE EMBLEMS, PUT A STRAIGHT PIECE OF TAPE ON TOP AND BELOW OF WHERE THE EMBLEMS ARE PLACED SO YOU DONT LOOSE YOUR PLACE. THIS IS IMPORTANT

    its a fast process once you get them off, just make sure you peel off the remaining silicone.

    sand down the emblems with 600 grit sand paper, clean them with some rubbing alcohol, and spray about 3 or 4 light coats with KRYLON GLOSS BLACK paint. make sure you give them about an hour or so to dry after the last coat, i moved too fast and chipped a small piece of paint off from two of the emblems.

    use EPOXY GENERAL USE silicone adhesive to put them back on. clean the area on the truck with alcohol, and apply the epoxy to both the emblem and truck. hold it on for a few minutes so it stays in place, then get the blow dryer and heat it while holding it down for some more time. once you get those emblems on with the epoxy, they arent coming off.

    as for the grille emblem, just simply pop your hood, and remove the two phillip screws and two pinch screws that keep your grill on. its really simple. take it off and the emblem pops right off from the back

    if you have any more questions feel free to ask.. ive been getting into the black lately with my emblems and headlights, and i ordered some tint film to smoke out my tail lights, i havent got them yet but i'll be sure to post some picutres when im done with them

    spencer

  10. Aug 2, 2007 at 6:51 PM
    #10
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,009
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    that front pic looks just like my truck, except i removed the amber reflector...but the black and the black T emblem look exactly the same

  11. Aug 2, 2007 at 8:42 PM
    #11
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Thor

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,151
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Very nice truck thats exactly what i want to do dont like chrome emblems is that a different grill i notice its all black and the bumper also did you mod that?

  12. Aug 3, 2007 at 8:23 AM
    #12
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,009
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    socal: the trd sports come w/ color matched grille and bumpers. all thats been painted is the inside T emblem

  13. Aug 3, 2007 at 12:26 PM
    #13
    nd

    nd Radical Town. It's a hell of a place!

    Joined:
    Mar 12, 2007
    Member:
    #1047
    Messages:
    12,738
    Gender:
    Male
    First Name:
    Nate
    Greenville, SC
    Vehicle:
    07 TRD Off-Road 4x4 debadged
    De badged, 5100's, Black Toyota Baja wheels
    Spencer, thanks alot for the tips. I appreciate the time you took to write that up. I definately want to do something with all my emblems, i'm just not sure what color yet. black, red, or gunmetal..... i'll probably never decide

  14. Aug 3, 2007 at 12:41 PM
    #14
    brant_trd

    brant_trd Well-Known Member

    Joined:
    Apr 30, 2007
    Member:
    #1464
    Messages:
    62
    Gender:
    Male
    Jasper, Indiana
    Vehicle:
    05 TRD Tacoma
    Black Headlight Mod, Nightshaded Taillights, Grillcraft Speed Grille, Revtec 3 inch leveling lift kit, 2-tone Coverking seatcovers, TRD intake and exhaust, back cats removed, secondary air filter removed, custom TRD stripes down the sides of tacoma, debadged, and H.I.D. 10,000 degrees headlights and foglights
    Hey guys a shortcut on taking your emblems off is just use dental floss, but get the good stuff otherwise if you get the cheap stuff like me it will keep breaking on you. I learned this technique from a professional and it sure does save you time. Then you don't have to worry about breaking the emblem or chipping your paint.:D

    Spencer, your truck looks almost as hot as mine, lol. I highly recommend you to spray tinting your tail lights. Its extremely easy and cheap that looks awesome.
    I think that would look damn good on your black Tacoma, it looks pretty good on my silver Tacoma. If you want any more info on the spray tint, just give me a message and I'll hook you up! Its at modernperformance.com.:cool:

  15. Aug 3, 2007 at 1:41 PM
    #15
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    hey thanks alot man, i actually just ordered some niteshades spray last night haha. i asked jhodge about it and was chatting with him last night, he actually told me you had the same tail light tint so i went and checked your pictures out. your truck is pretty sweet, im hoping the niteshades comes in before tuesday, im leavin for hawaii

  16. Aug 3, 2007 at 3:01 PM
    #16
    sandie

    sandie Well-Known Member

    Joined:
    Mar 8, 2007
    Member:
    #1021
    Messages:
    159
    long beach, ca
    Vehicle:
    06 x-runner baby!
    oooooo i need to do this!!!! that looks awesome!


    btw, someone needs to post a how-to on tinting tail lights ;) ;) ;)

  17. Aug 3, 2007 at 8:23 PM
    #17
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    just buy niteshades spray tint, take out your tail light by the two simple bolts, and spray them lol

  18. Aug 4, 2007 at 1:52 PM
    #18
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,009
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    thats pretty much it. all i did when i did mine was wipe them down w/ soma alcohol pads and let them dry before i tinted them. the tails cme out nice, but my 3rd brake light needs to be redone b/c it started cracking.

  19. Aug 16, 2007 at 2:11 AM
    #19
    Soul

    Soul Well-Known Member

    Joined:
    Aug 14, 2007
    Member:
    #2428
    Messages:
    143
    Gender:
    Male
    Vehicle:
    07 PreRunner SR5 Black
    4. Prep and paint.

    To prep the frame, use the sand paper and get off as much of the chrome as you can. Then clean it using rubbing alcohol. Lay out the frame on newspaper or something, and get the spray paint. I suggest doing 3 or 4 light to medium coats and letting it dry 5 or 10 minutes in between each coat. After this you can pop back in the light panels, and screw the frame back into the lens.

    Can someone explain this part for me? I'm COMPLETELY lost.

    Sand paper what kind? Can you link to a product on amazon that i can get? Are we trying to use it to rub the chrome off or coat it?
    Is the paint spray enough for 2 lights in 1 bottle :]?

  20. Aug 16, 2007 at 6:12 PM
    #20
    spencer_hong

    spencer_hong [OP] Well-Known Member

    Joined:
    Jul 30, 2007
    Member:
    #2251
    Messages:
    161
    Gender:
    Male
    Palos Verdes, SoCal
    Vehicle:
    BlackedOut 07 DC
    K&N Air Charger CAI 63 Series, Flowmaster Delta 50 Series Muffler, Helo Maxx6 Black Wheels 17'', Blacked out headlights, blacked out tail lights, interior neon,, Luminics H4 Pure Blue headlight bulbs, Luminics H10 Pure Blue Fog Light bulbs, 10% tint all around, blacked out emblems, Pioneer In-Dash DVD
    Soul,

    When you dis assemble the headlight, there will be the chrome housing. This is what your sanding. You won't be able to get all the chrome off, but just do your best and sand away. Just go to your local Kragen's or autoparts store, and buy 600 grit sand paper. A few sheets is more than enough, the sanding down isnt too important. And yeah, one bottle of spray paint will last both headlight housings. I used one bottle to do my headlights, and then my emblems.
