BLACKnBLUE's Rear Bumper Build

Discussion in '2nd Gen. Builds (2005-2015)' started by BLACKnBLUE, Apr 9, 2011.

  1. Apr 18, 2011 at 3:34 PM
    #21
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    That makes two of us!

  2. Apr 18, 2011 at 3:51 PM
    #22
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    In my last posting, I kind of jumped the gun, so-to-speak, by showing you the completed license plate cut-out. However, that was the best picture I had to show the bottom piece that we attached.

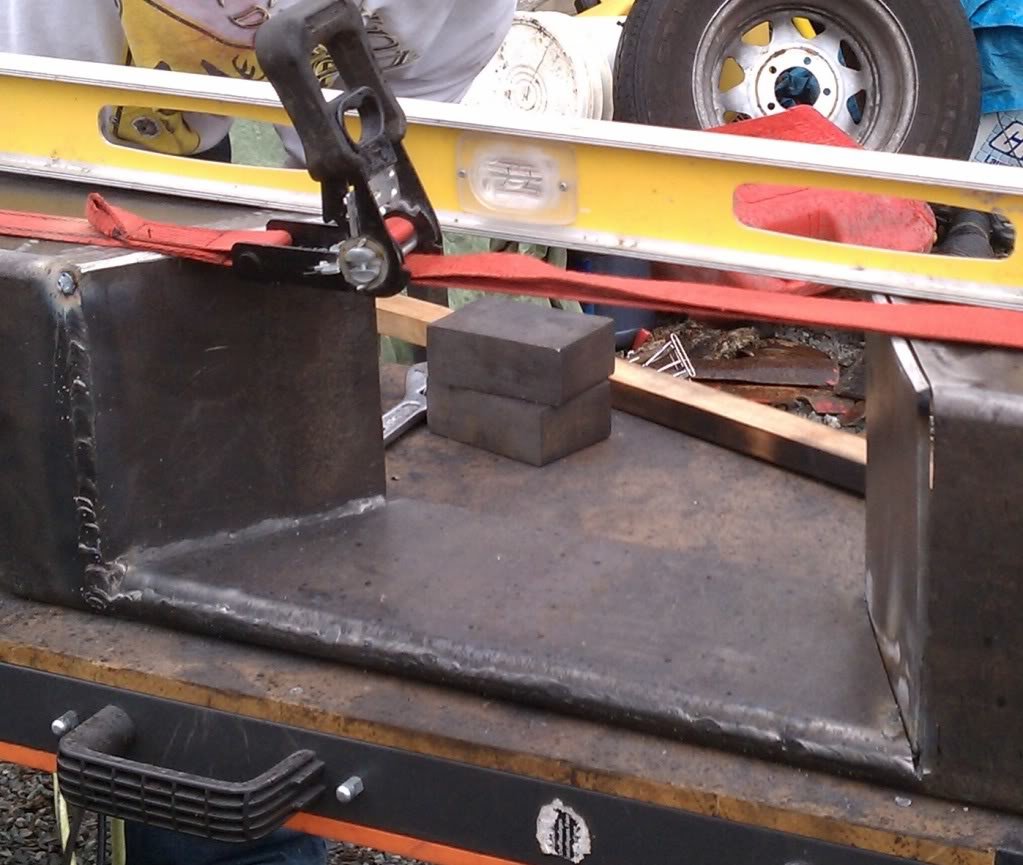

    Here, we're creating the side pieces, which angle or taper in towards where the license plate will be attached.

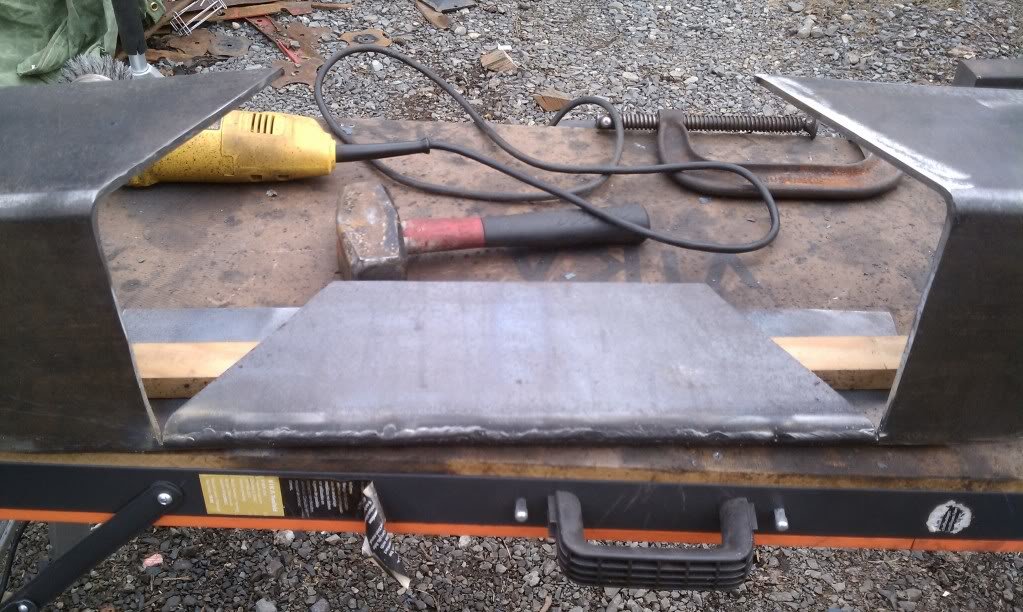

    ^Here, the bumper is ready for those angle pieces...

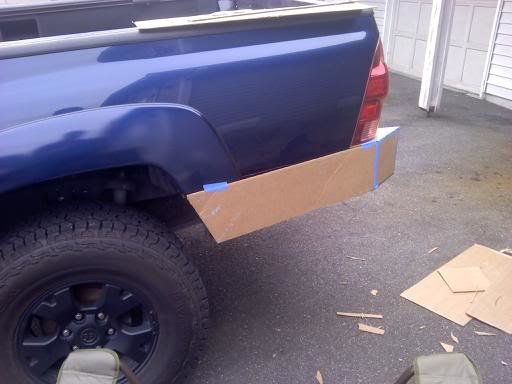

    ^Cutting one of the angle pieces to its approximate size...

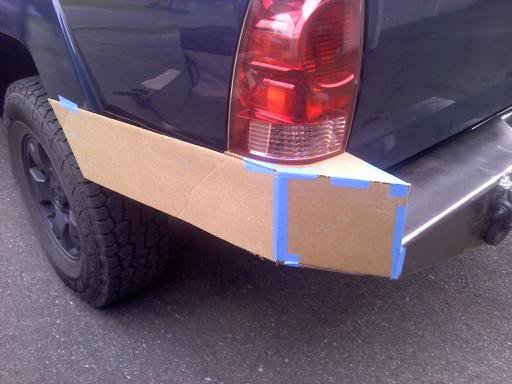

    ^Coming along...

    Unfortunately, our hands became preoccupied, and we didn't get any good pictures between this stage and the next picture, below...

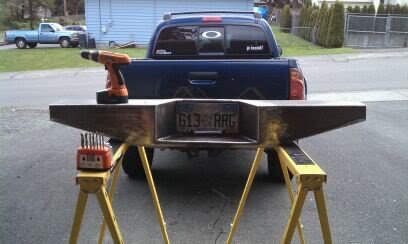

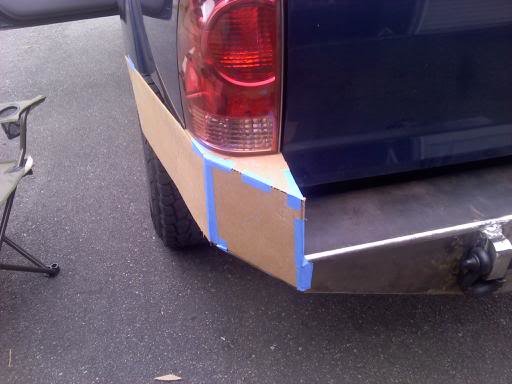

    ^This picture, while showing the angle pieces attached and in place, also shows some of the lengths we had to go to, to get the bumper, in alignment. Unfortunately, this wasn't quite enough....

    "TA-DAAAA!"

  3. Apr 18, 2011 at 4:08 PM
    #23
    08FireRescueTaco

    08FireRescueTaco 08Blue_Beast

    Joined:
    Sep 26, 2010
    Member:
    #43876
    Messages:
    442
    Gender:
    Male
    First Name:
    Hunter
    Roanoke
    Vehicle:
    08 Tacoma Manual 6spd
    2008 off road 6spd manual Procomp stg 1 6in lift Allpro hd expo leaf pack 16in fuel boost wheels 315/75r16 motto trail grapples Flomaster duel 40s exhaust Doug Thorley LTH Volant CAI Relentlessfab front bumper Fox 2.0 coilovers Prinsu designs roof rack Sport hood Urd short shifter Nfab side steps Bushwacker flares
    It kinda looks like a heavy duty 1st gen bumper. I like it!

  4. Apr 18, 2011 at 4:17 PM
    #24
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,582
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    That bumper looks sick! Will it work with the hitch? and have you figured out how to mount it yet? Really awesome idea. :thumbsup:

  5. Apr 18, 2011 at 4:28 PM
    #25
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    "Will it work with the hitch?" Yes. We've specifically built it to accommodate the hitch. Essentially, it will sit just like the stock bumper does in relation to the hitch. If anything, we may need to make a couple slots or notches in the backside of the bumper to have it sit as snug as possible.

    "...have you figured out how to mount it yet?" More or less. We are going to use the stock mounts (two via the hitch and two via the stock mounting brackets which slide into the bumper. We haven't gotten to making the mounts yet. The two via the hitch will require drilling two holes through the license plate recess area, just as the stock bumper does. 'Should' be pretty straight forward, but I've said that before and been dead wrong.

    Great questions, keep 'em comin'! :D

  6. Apr 18, 2011 at 4:28 PM
    #26
    GatorComa

    GatorComa Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54426
    Messages:
    1,867
    Gender:
    Male
    First Name:
    Robby
    St. Augustine, FL
    Vehicle:
    2011 TRD OR 4x4
    sub'd. cant wait to see it mounted!

  7. Apr 18, 2011 at 4:30 PM
    #27
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,745
    Gender:
    Male
    First Name:
    Sean
    San Diego
    Vehicle:
    15 Taco
    LT, Glass, CBI Front bumper, NWTI Rear bumper, 35s
    are you going to cut the bed sides or make the bumper wrap around to protect them? Because right now it looks like the side are ver vulnerable.

  8. Apr 18, 2011 at 4:35 PM
    #28
    Nightstr

    Nightstr Well-Known Member

    Joined:
    Dec 24, 2009
    Member:
    #28125
    Messages:
    5,373
    Gender:
    Male
    First Name:
    Felipe
    Sacramento CA
    Vehicle:
    05 prerunner sr5
    BLHM BLWM 3" TOUGH COUNTRY LIFT TRD SEAT COVERS THULE RACK M/T KM2 265/65/16
  9. Apr 18, 2011 at 6:55 PM
    #29
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    If you're talking about the rear quarter-panels, yes. The plan is to cut them up, basically even with the bottom of the tail-lights.

    This is what it will (hopefully) look like in the end (sorry, this is the best I could do with Paint...).

  10. Apr 18, 2011 at 6:59 PM
    #30
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,745
    Gender:
    Male
    First Name:
    Sean
    San Diego
    Vehicle:
    15 Taco
    LT, Glass, CBI Front bumper, NWTI Rear bumper, 35s
    Ya, thats what i was talking about.

  11. May 10, 2011 at 4:21 PM
    #31
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Sorry it's been so long since I updated (it's school's fault!). I got together with my buddy last Saturday and did some simple stuff.

    First, we swung by our local 4WheelPart center (Lynnwood, Wa) for some D-Rings/Shackles. I picked up two shackles as well as two of those rubber things so they don't "clink" against the bumper when I'm rollin' down the road or trail. I took a sanding block to em and roughed em up pretty good. After cleaning them up, I sprayed on Rust-oleum's bedliner for a rough flat black look. Today, I took em to work, and using industrial grade epoxy, fitted the rubber fittings on. After 3 hours in the drying oven they were all cured up! They look pretty sweet. As soon as we get the mounts attached on the bumper... :D

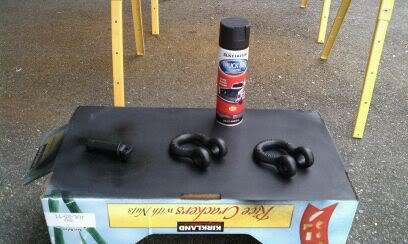

    Here's a picture of them drying, prior to attaching the rubber fittings. Sorry, I don't have a picture of the finished product yet.

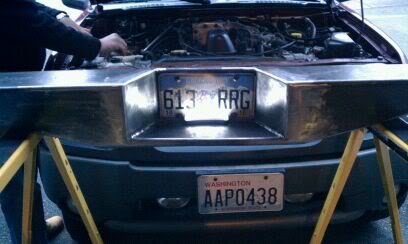

    Between applying coats of spray-on bedliner, my buddy and I worked on getting the license plate mounting holes drilled. The same holes will be used to mount the new license plate (12 LED) light that I purchased off ebay about a month ago.

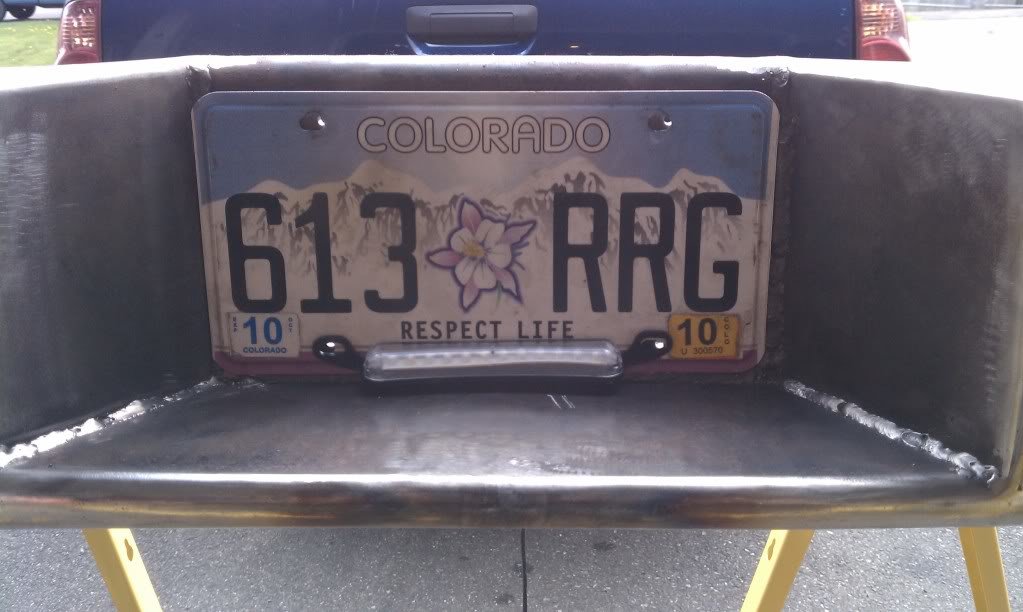

    I know it's a small picture, but if you look close at the bottom of the license plate you can see the light. (No, we're not from Colorado!)

    Here's a better picture (below)

    For some reason, this picture turned out huge... oh well.

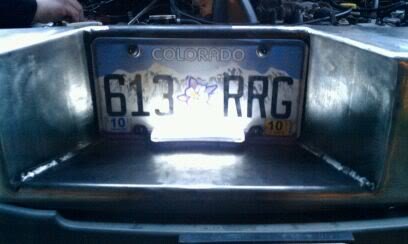

    And here's with the light all lit up! :D



    It's about the time I need to be swinging by Lowe's once a week to buy a can of the spray-on bedliner so that by the time we finish the bumper we will have enough to paint the whole thing!

    This site contains affiliate links for which the site may be compensated.
    #31
  12. Aug 7, 2011 at 7:32 PM
    #32
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Finally, if anyone is still sub'd to this thread, I have some new pictures for you guys!

    Since my last posting, a number of things have been accomplished.

    1. Mounts for the D-rings have been made and attached.
    2. Bolt-holes have been made for where the bumper will attach to the trailer-hitch brackets.
    3. All the remaining side pieces have been sorted out (used the cardboard to mock it up and finalize measurements).
    4. All but one side piece has been cut-out for where the bumper will wrap around to the wheel-wells.
    5. The quarter-panels have been cropped up to just under the rear tail-lights.

    Here are the pictures that I have for you!

    ^Notice the shackles? :cool:

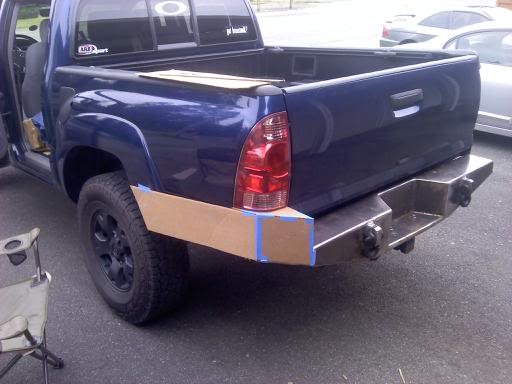

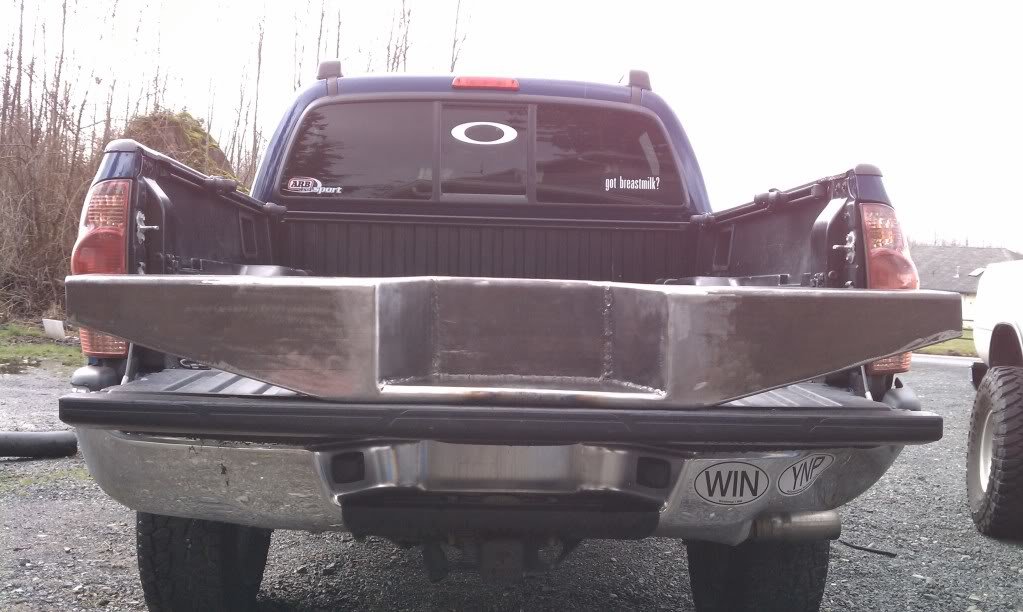

    ^Here, you can kind of make out that I still need to crop up the quarter panels slightly, but it's better to have not cut them enough than to have cut them too high up!:D
    ^Another perspective...
    ^Here, you can see one of the new mounts for the shackles!

    Hopefully we'll be getting a lot done in the next couples weeks. We plan on making some brackets to attach to the OEM mounts located near the rear corners of the rear frame, as well as making some supports near the rear wheel-wells.

    After we have everything finalized we'll be using a sand-blaster to clean the bumper all up and prep the surface to accept spray-on-bedliner.

  13. Aug 7, 2011 at 7:37 PM
    #33
    truckboattruck

    truckboattruck is one of the sharper tools in the shed

    Joined:
    Oct 23, 2010
    Member:
    #45123
    Messages:
    2,261
    Gender:
    Male
    First Name:
    evan
    MD
    Vehicle:
    silver sport
    99superjet 11ktm350
    you probably know this already, but just incase leave some space between the light and the bumper so they don't contact when you flex.

  14. Aug 7, 2011 at 7:45 PM
    #34
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Actually, that thought hadn't occurred to me! Thank you for mentioning that! I'll make sure to leave about 1/16" gap between the light and the bumper. Think that'll be enough?

  15. Aug 7, 2011 at 7:48 PM
    #35
    truckboattruck

    truckboattruck is one of the sharper tools in the shed

    Joined:
    Oct 23, 2010
    Member:
    #45123
    Messages:
    2,261
    Gender:
    Male
    First Name:
    evan
    MD
    Vehicle:
    silver sport
    99superjet 11ktm350
    it should be, you can look at the stock bumper spacing also.

  16. Aug 7, 2011 at 7:52 PM
    #36
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Okay, I'll have to take a look at that the next time I go out to my truck.

  17. Aug 7, 2011 at 8:00 PM
    #37
    HomerTaco

    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,874
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Impressive! +1:D

  18. Aug 10, 2011 at 7:25 PM
    #38
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ

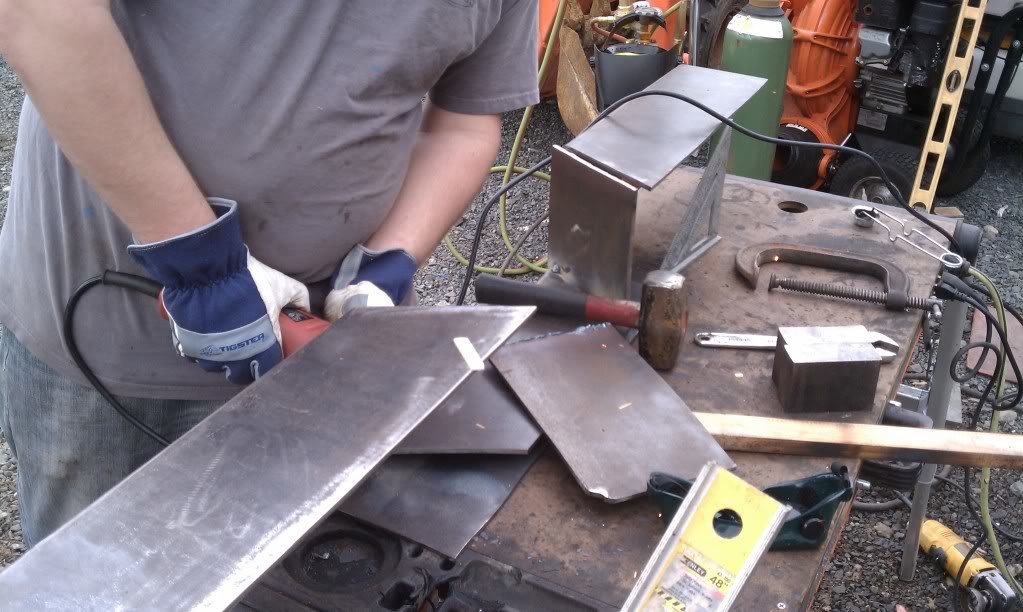

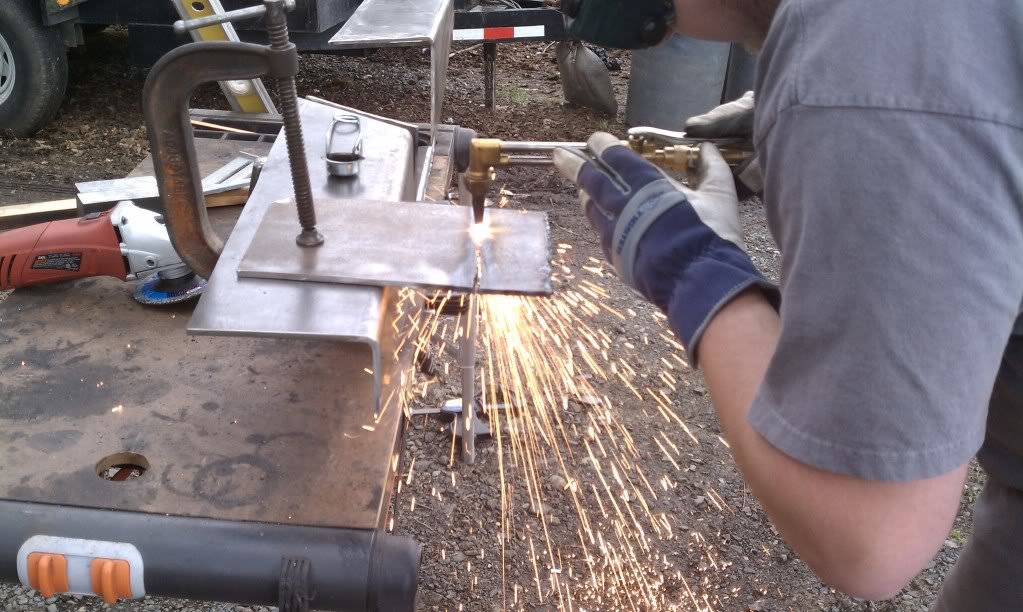

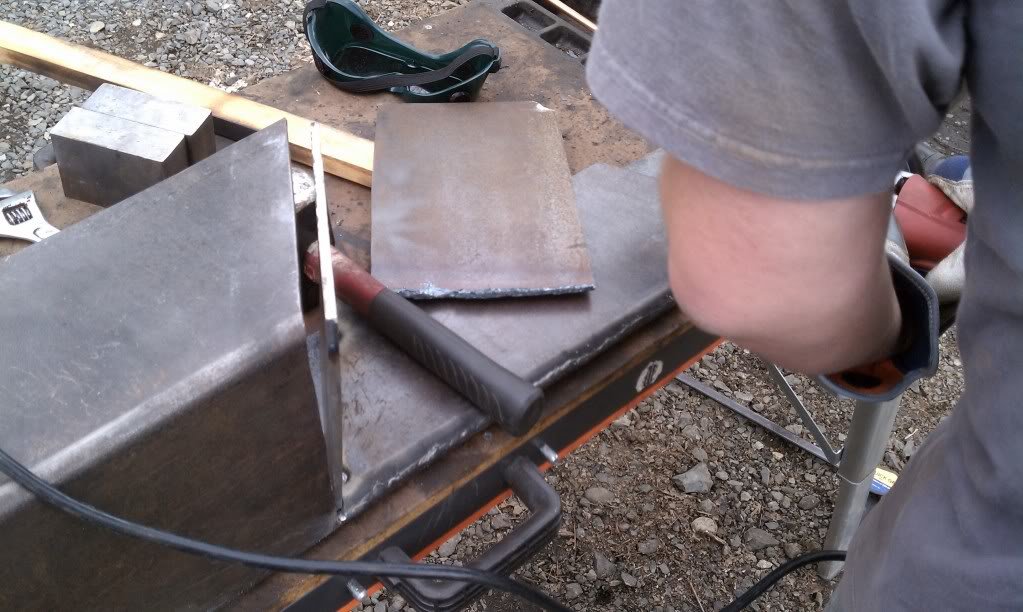

    Well my buddy and I got together on Monday to start piecing together the side pieces... when our grinder died. It was well used before our project and definitely got extensive use during our project. So that's stopped out progress this week.

    My buddy swung by Harbor Freight and picked up a cheap one, hopefully that will get us through the final stages of this bumper build.

    Please observe a moment of silence for our DeWalt grinder... JK

    I'm sure ready to get this bumper fabrication done, get it cleaned up, painted, and attached to my truck! Stupid school. Stupid work. Stupid family... wait. Probably shouldn't have said that last one... :D

  19. Aug 10, 2011 at 7:44 PM
    #39
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,582
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    looking real good!!

  20. Aug 21, 2011 at 11:09 AM
    #40
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Thank you! It's been a lot of hard work but it's been a fun process!


Products Discussed in
