Body Armor Hiline Series Bumper

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Zgriff, Aug 22, 2019.

  1. Mar 31, 2022 at 3:56 PM
    #461
    orangeracer

    orangeracer Well-Known Member

    Joined:
    Jun 18, 2016
    Member:
    #189889
    Messages:
    645
    Gender:
    Male
    Vehicle:
    18' DCSB TRD OR 4x4 w/6spd MT
    Which would you guys recommend is easiest install/least amount of modding needed, C4 or BAMF?

  2. Mar 31, 2022 at 4:55 PM
    #462
    willtill

    willtill Well-Known Member

    Joined:
    Nov 18, 2007
    Member:
    #3502
    Messages:
    760
    Gender:
    Male
    Maryland
    Vehicle:
    2018 Cement Off Road V6 Access cab
    I liked the C4 reinforcement bracket and it would of been my first choice. However I would have not been able to replace the three frame horn bolts on each side, and get to them like I was able to with the BAMF reinforcement bracket. So I chose the BAMF over the C4.

    The OEM frame horn bolts do not have enough thread to get a good bite on the lock nuts when you are installing the Hiline bumper mounting plate. So you have to extend those bolts by drilling them out, and installing longer bolts in their place. See my referenced post upthread here to what I did regarding that.

    Whatever you decide upon, it is absolutely necessary to use frame horn reinforcement brackets if you plan to do any real winching with the Hiline bumper. If you don't, you will screw up your frame horns with a heavy pull.

    Last edited: Mar 31, 2022
  3. Mar 31, 2022 at 5:41 PM
    #463
    Tacoma091919

    Tacoma091919 Well-Known Member

    Joined:
    Sep 21, 2019
    Member:
    #305895
    Messages:
    1,052
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    2019 OR DCLB
    I read a lot of your posts before buying and installing mine. However on my 19 I think I have about 1/2” of bolt through each nut on mine. I wouldn’t see any reason for a change in that but mine seems plenty stout for recovering the truck. It might be sketchy using it for a 12k pull or something but I didn’t feel it needed reinforcement. Then again I haven’t got a chance to winch with it yet, so hope it doesn’t just tear off of there when I get to test it out.

  4. Mar 31, 2022 at 6:58 PM
    #464
    orangeracer

    orangeracer Well-Known Member

    Joined:
    Jun 18, 2016
    Member:
    #189889
    Messages:
    645
    Gender:
    Male
    Vehicle:
    18' DCSB TRD OR 4x4 w/6spd MT
    When I had mine installed; the off-road shop told me they drilled an extra support hole and added a bolt to help strengthen it, however they didn’t provide me with any other details; it’s a huge shop that does tons of off-road builds so I’d hope they knew what they were talking about, cause I don’t :confused: I’m not familiar with the install but is anyone aware of an extra part of the bumper that allows extra hole/bolt to be added?

    Also, you think Body Amor didn’t account for hard pulls when designing? In all my off-road trips, especially the dunes, this is probably the most common bumper I’ve seen on Tacoma’s, and they have been getting yanked out with both winches and kinetic tow ropes left and right and I have yet to hear of an issue or see something happen in person. Im all for extra strength though, so if it is an issue that does come up and I’m not aware of it, I’d love to add one of the two options to my Tacoma.

  5. Apr 1, 2022 at 3:04 PM
    #465
    ReturnOfTaco

    ReturnOfTaco Well-Known Member

    Joined:
    Jan 11, 2020
    Member:
    #315807
    Messages:
    222
    Gender:
    Male
    Virginia
    Vehicle:
    2018 MGM DC TRD OR MT6 Stubby Bed
    Yakima HD Overhaul 68” LED interior swap Clazzio covers KDMax Pro
    Harbor freight has got Apex 12k synth, at 30$ off comin up. Spring “Black Friday” sale starting Monday. (Thats just weird to say, or type, or read) but yeah its out there!

  6. May 30, 2022 at 6:17 AM
    #466
    DosTacosPorvor

    DosTacosPorvor Well-Known Member

    Joined:
    Feb 1, 2021
    Member:
    #354703
    Messages:
    126
    Gender:
    Male
    First Name:
    Brad
    Midwest
    Vehicle:
    19’ TRD Sport Dbl Cab M/T
    5100’s w/AAL, Dobinson's 314 coils. 285/70-17 BFG KO2's, 17X8 Pro-Comp 89's 0 offset, BA Highline Front Bumper, K&N FIPK CAI. N-Fab Podium steps, Gatorz Low Profile Hard tri fold Bed Cover.
    Finished my in under 3 hrs. Easy install no issues.


    orangeracer, svermilyea and LoMa like this.
  7. Jun 25, 2022 at 6:45 AM
    #467
    MR.WaynesWorld

    MR.WaynesWorld Well-Known Member

    Joined:
    Aug 28, 2021
    Member:
    #375493
    Messages:
    449
    Gender:
    Male
    First Name:
    Wayne
    North East Pa
    Vehicle:
    2021 Black Tacoma Limited
    **** 2021 Mods **** Sokietech No Drill Hood Struts (Replaced) Color Matched Mirror Caps Color Match Door Handles SUPAREE LED Side Mirror Turn Signal Lights AVS Dark Smoked Hood Bugflector (Removed) Meso Black Interior Door Handles AVS Window Vents AUTOGINE Super Bright 6000K White LED Vanity Mirror Lights 3D Rear Tacoma Letters Matte Black OEM Blacked Out Emblems OEM Black Trim around Fog Lights Full BedRug AMP Research Bed Extender LoMax Tonneau Cover (Replaced) RBP 77-Spike Wheels 18X9 (Replaced) Nitto Terra Grappler G2 tires 285/60 (Replaced) Blacked out Toyota emblem on steering wheel Night Shade Front Grill (Replaced) Dark Tint Front TSS Emblem (Replaced MBRP Dual Exhaust KTJO Door Pod lighting Window Tint, 5% in the back 30% up front MESO Chrome Delete center console MESO Chrome Delete Vent Rings **** 2022 Mods **** Cali Raised Steel Front Skid Plate (Replaced) Ice Blue Map and Dome LED bulbs Rek-Gen XL Mud Flaps - Black on Black All interior trim painted Matte Black with Flat Clear Coat Aqua Blue Foot Lights - Front and Rear MESO Switch Panel Custom Layout MESO 3 Switch Overhead console panel MESO Chrome Delete Climate Control Rings UpTop Bravo Roof Rack Extreme LED 38 inch LED Light Bar in Roof Rack Diode Dynamics LED Strip Grill Lights Meso Ultimate Tail Lights (Replaced) Rock Lights - 8 Cyclone V2's (Replaced) UpTop Roof Rack Grab Handles UpTop Scene Pods with Baja Design Rock Lights Diode Dynamics Elite Series Fog Lights CaliRaised Stealth Bumper 30 inch Infinite Offroad LED Light Bar X2 Zeak 10,000 Winch KTJO Driver's Side Grab Handle LambTek Winch Switch Boomers "faux" TRD Pro Shift Knob Tacoma Lifestyle Smoke Third Brake Light Blacked out Instrument Panel Lens Diff Drop Dobinson's Suspension, Front Coil Overs, UCA's, Rear Shocks and Leaf Packs DB Customz Grill, Color Match with RGBW LED Letter Lighting **** 2023 Mods **** PowerTrays Tray with Busemann Fuse Relay Pioneer DMH-WC6600NEX Maestro RR2 SiriusXM SXV300 Tuner BoxWare Anti Glare HU Screen Protector Varity of cables and adapters Focal ACX 690 Front Speakers (Replaced) Focal ACX 165 Rear Speakers (Replaced) Diode Dynamics Stage Series Rock Lights - 3 in each wheel well Diode Dynamics Flush Mount Brackets Revolver X4s Tonneau Cover UpTop Roof Rack Grab Handles V2 Raceline Compass 17X9 wheels Toyo Tires Open Country A/T III 275/70R17 Tacoma Beast Infinity Tail Lights Taco Clout Wide Angle Convex Mirrors - Heated + Turn Signals + BSM KTJO Powered Folding Mirrors **** 2024 Mods **** Lighting Trendz Glow LED lights in Grill Lettering Cali Raised Cat Shields The Sub Box Shop Sub Amp box Rockford Fosgate 10 inch 4 ohm Dual VC Sub Kicker 3.5 inch speakers in dash (Replaced) Auto Harness House harness adapters for speaker wires Alpine PXE-C80-88 8 Channel Amp. Polk Audio DB 6502 Front Doors Polk Audio DB 6502 Tweeters in Dash Polk Audio DB 652 Rear Doors Hidden LED's in Bed Charvonia Design Bed Rail Tie Down Anchors Charvonia Design Bed Tie Down Anchors Charvonia Design Bed Floor Tie Down Anchors Charvonia Design Billet Battery Tie Down Redline Hood Struts TRD Pro Hood KITT Scanner LED in Hood Scoop Cali Raised Aluminum Skid Plate
    What Light Bar did you install with the bumper?

  8. Jun 25, 2022 at 7:07 AM
    #468
    DosTacosPorvor

    DosTacosPorvor Well-Known Member

    Joined:
    Feb 1, 2021
    Member:
    #354703
    Messages:
    126
    Gender:
    Male
    First Name:
    Brad
    Midwest
    Vehicle:
    19’ TRD Sport Dbl Cab M/T
    5100’s w/AAL, Dobinson's 314 coils. 285/70-17 BFG KO2's, 17X8 Pro-Comp 89's 0 offset, BA Highline Front Bumper, K&N FIPK CAI. N-Fab Podium steps, Gatorz Low Profile Hard tri fold Bed Cover.
    I used the auxbeam 22”. Combo Flood,beam. Pretty dang bright!

  9. Jun 27, 2022 at 12:40 PM
    #469
    MR.WaynesWorld

    MR.WaynesWorld Well-Known Member

    Joined:
    Aug 28, 2021
    Member:
    #375493
    Messages:
    449
    Gender:
    Male
    First Name:
    Wayne
    North East Pa
    Vehicle:
    2021 Black Tacoma Limited
    **** 2021 Mods **** Sokietech No Drill Hood Struts (Replaced) Color Matched Mirror Caps Color Match Door Handles SUPAREE LED Side Mirror Turn Signal Lights AVS Dark Smoked Hood Bugflector (Removed) Meso Black Interior Door Handles AVS Window Vents AUTOGINE Super Bright 6000K White LED Vanity Mirror Lights 3D Rear Tacoma Letters Matte Black OEM Blacked Out Emblems OEM Black Trim around Fog Lights Full BedRug AMP Research Bed Extender LoMax Tonneau Cover (Replaced) RBP 77-Spike Wheels 18X9 (Replaced) Nitto Terra Grappler G2 tires 285/60 (Replaced) Blacked out Toyota emblem on steering wheel Night Shade Front Grill (Replaced) Dark Tint Front TSS Emblem (Replaced MBRP Dual Exhaust KTJO Door Pod lighting Window Tint, 5% in the back 30% up front MESO Chrome Delete center console MESO Chrome Delete Vent Rings **** 2022 Mods **** Cali Raised Steel Front Skid Plate (Replaced) Ice Blue Map and Dome LED bulbs Rek-Gen XL Mud Flaps - Black on Black All interior trim painted Matte Black with Flat Clear Coat Aqua Blue Foot Lights - Front and Rear MESO Switch Panel Custom Layout MESO 3 Switch Overhead console panel MESO Chrome Delete Climate Control Rings UpTop Bravo Roof Rack Extreme LED 38 inch LED Light Bar in Roof Rack Diode Dynamics LED Strip Grill Lights Meso Ultimate Tail Lights (Replaced) Rock Lights - 8 Cyclone V2's (Replaced) UpTop Roof Rack Grab Handles UpTop Scene Pods with Baja Design Rock Lights Diode Dynamics Elite Series Fog Lights CaliRaised Stealth Bumper 30 inch Infinite Offroad LED Light Bar X2 Zeak 10,000 Winch KTJO Driver's Side Grab Handle LambTek Winch Switch Boomers "faux" TRD Pro Shift Knob Tacoma Lifestyle Smoke Third Brake Light Blacked out Instrument Panel Lens Diff Drop Dobinson's Suspension, Front Coil Overs, UCA's, Rear Shocks and Leaf Packs DB Customz Grill, Color Match with RGBW LED Letter Lighting **** 2023 Mods **** PowerTrays Tray with Busemann Fuse Relay Pioneer DMH-WC6600NEX Maestro RR2 SiriusXM SXV300 Tuner BoxWare Anti Glare HU Screen Protector Varity of cables and adapters Focal ACX 690 Front Speakers (Replaced) Focal ACX 165 Rear Speakers (Replaced) Diode Dynamics Stage Series Rock Lights - 3 in each wheel well Diode Dynamics Flush Mount Brackets Revolver X4s Tonneau Cover UpTop Roof Rack Grab Handles V2 Raceline Compass 17X9 wheels Toyo Tires Open Country A/T III 275/70R17 Tacoma Beast Infinity Tail Lights Taco Clout Wide Angle Convex Mirrors - Heated + Turn Signals + BSM KTJO Powered Folding Mirrors **** 2024 Mods **** Lighting Trendz Glow LED lights in Grill Lettering Cali Raised Cat Shields The Sub Box Shop Sub Amp box Rockford Fosgate 10 inch 4 ohm Dual VC Sub Kicker 3.5 inch speakers in dash (Replaced) Auto Harness House harness adapters for speaker wires Alpine PXE-C80-88 8 Channel Amp. Polk Audio DB 6502 Front Doors Polk Audio DB 6502 Tweeters in Dash Polk Audio DB 652 Rear Doors Hidden LED's in Bed Charvonia Design Bed Rail Tie Down Anchors Charvonia Design Bed Tie Down Anchors Charvonia Design Bed Floor Tie Down Anchors Charvonia Design Billet Battery Tie Down Redline Hood Struts TRD Pro Hood KITT Scanner LED in Hood Scoop Cali Raised Aluminum Skid Plate
    Wonder if any vendor will have a July 4th sale on these bumpers?

  10. Jul 7, 2022 at 11:24 AM
    #470
    El_Taco_Man

    El_Taco_Man Well-Known Member

    Joined:
    May 12, 2022
    Member:
    #397056
    Messages:
    61
    Gender:
    Male
    First Name:
    Ivan
    Nor Cal
    Vehicle:
    2022 Tacoma TRD Off-Road
    UpTop Overland Bed Rack and roof rack.

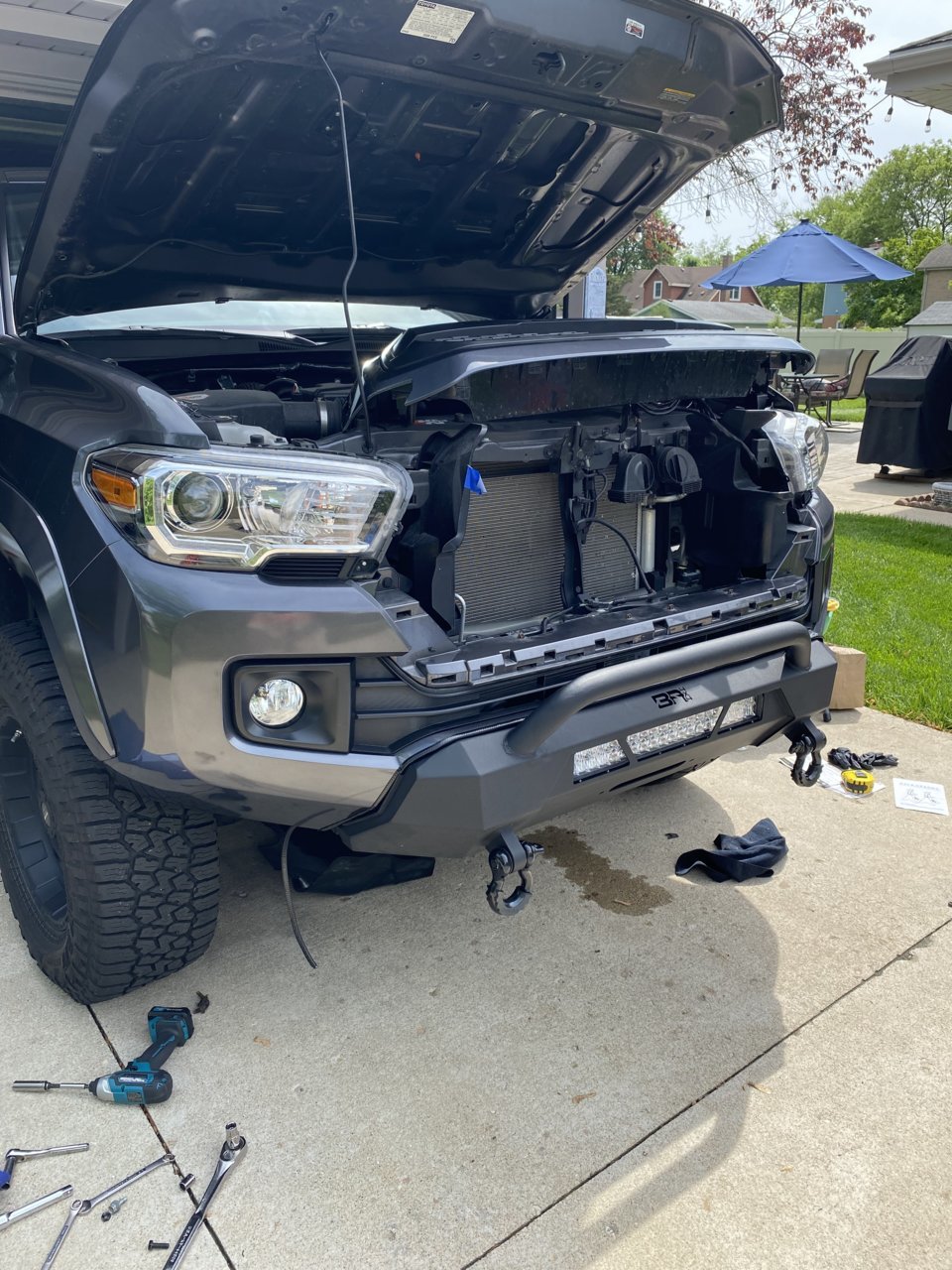

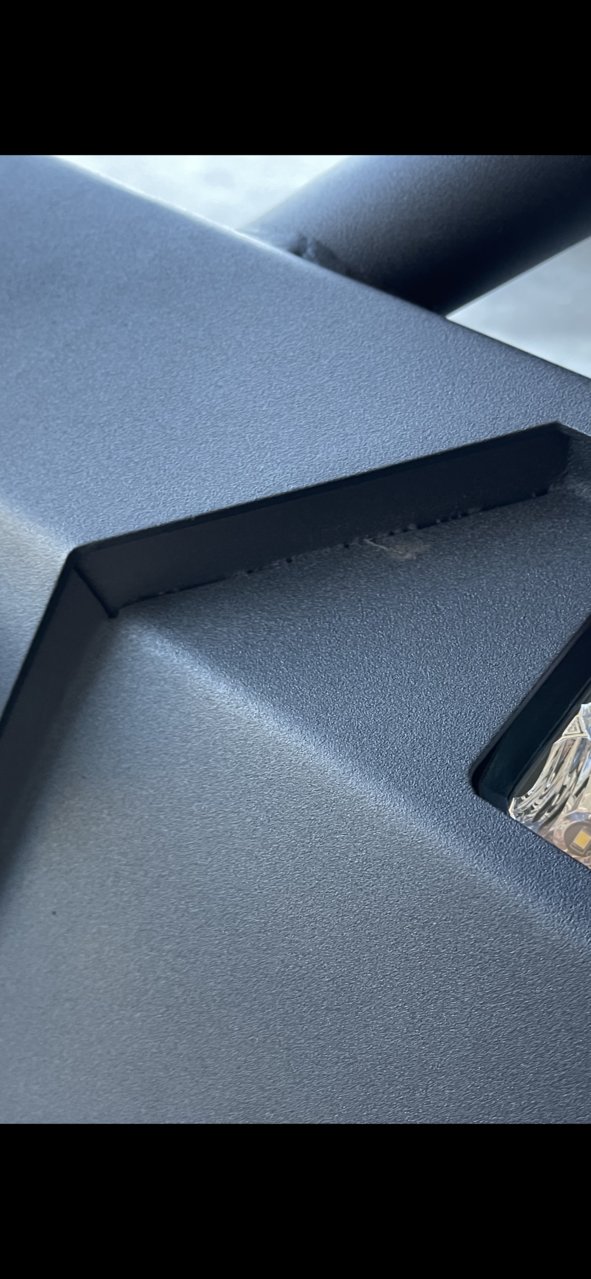

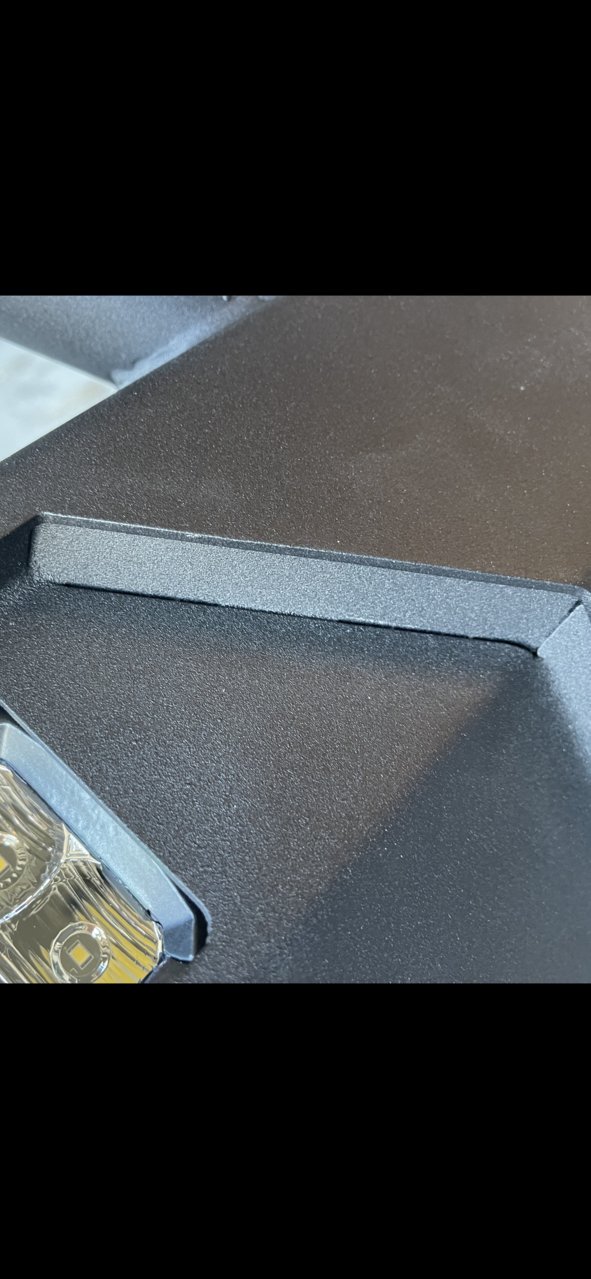

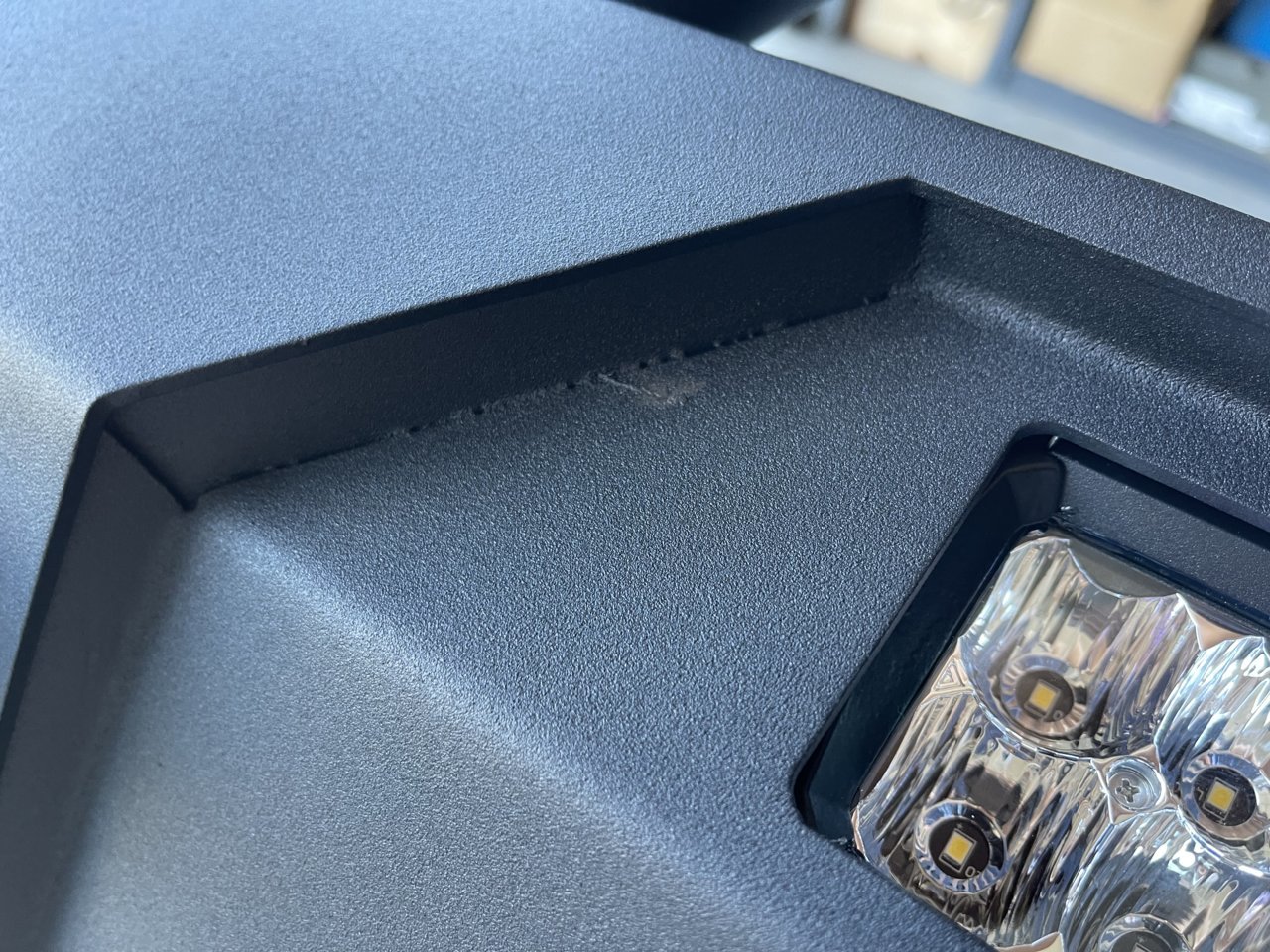

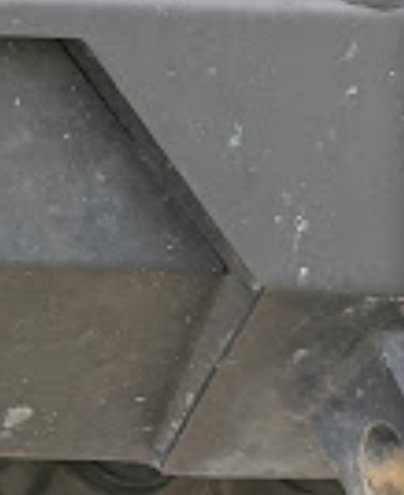

    I was in the process of installing when I noticed some fairly significant gaps in some welds does anyone have pictures of this exact area for comparison.
    EB0CCBAC-6D6C-4D37-A2D8-59328704830D.jpg 77D3FD55-93D6-43B0-9B8B-2C429FE5C4B4.jpg

    Last edited: Jul 7, 2022
  11. Jul 19, 2022 at 6:24 AM
    #471
    stressler

    stressler Well-Known Member

    Joined:
    Jul 17, 2019
    Member:
    #299541
    Messages:
    118
    Gender:
    Male
    First Name:
    Scott
    Orlando
    Vehicle:
    19 TRD -OR

  12. Jul 19, 2022 at 7:35 AM
    #472
    DosTacosPorvor

    DosTacosPorvor Well-Known Member

    Joined:
    Feb 1, 2021
    Member:
    #354703
    Messages:
    126
    Gender:
    Male
    First Name:
    Brad
    Midwest
    Vehicle:
    19’ TRD Sport Dbl Cab M/T
    5100’s w/AAL, Dobinson's 314 coils. 285/70-17 BFG KO2's, 17X8 Pro-Comp 89's 0 offset, BA Highline Front Bumper, K&N FIPK CAI. N-Fab Podium steps, Gatorz Low Profile Hard tri fold Bed Cover.
    You’re good. Mine is the same! And Bonjour from France!

  13. Jul 22, 2022 at 7:48 AM
    #473
    stressler

    stressler Well-Known Member

    Joined:
    Jul 17, 2019
    Member:
    #299541
    Messages:
    118
    Gender:
    Male
    First Name:
    Scott
    Orlando
    Vehicle:
    19 TRD -OR

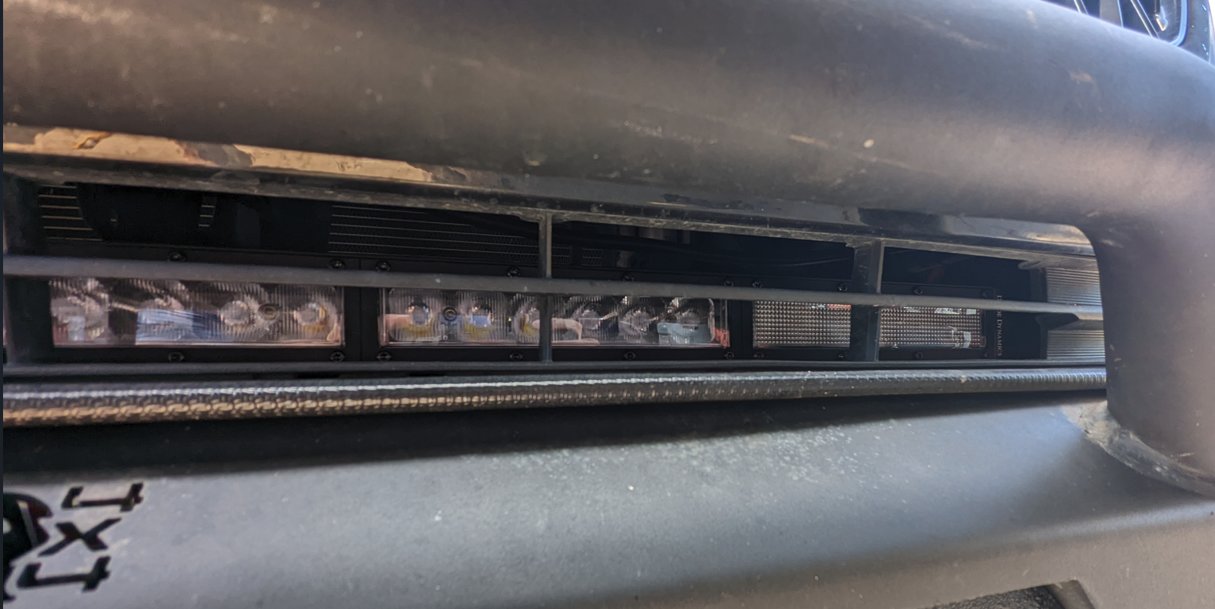

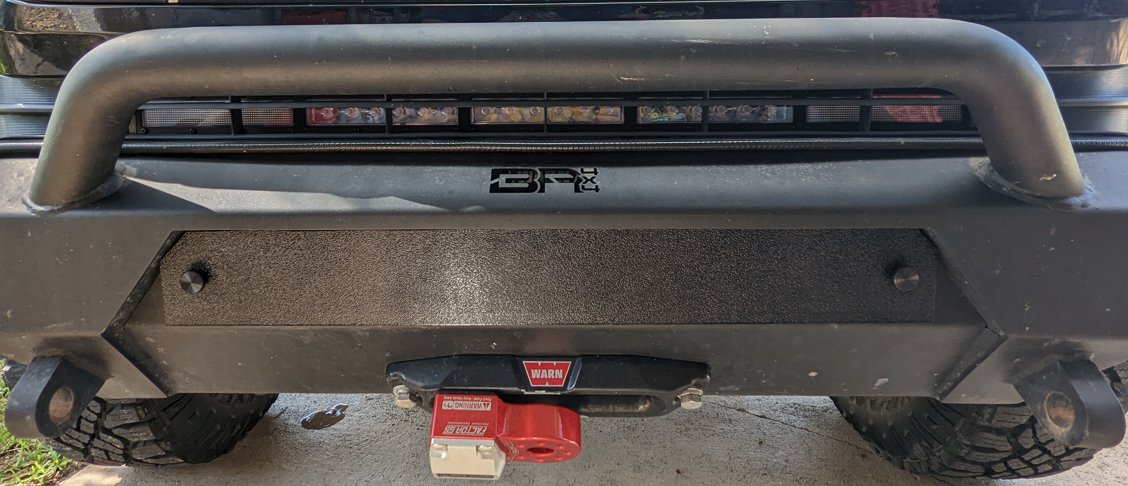

    Before I put this bumper on with a warn evo 10k winch, I was running a caliraised hidden light bar. The winch control box was too high and would not allow me to keep the light bar, so I bought a cheapo 22 in light bar to put in the bumper. I was never happy with the output.
    During the Diode dynamics 4th sale I picked up some new light bars to replace all my cheap ones. I completely forgot about the top bar on the bumper, until I went out to test fit.
    To my surprise the the light bar fits perfectly on the brackets and clears the top of the winch.
    The top bar on the bumper seems to impact the light output less than the grill itself. I have the combo, so the wide pattern is a little behind the legs of the bar but the output does not seem to be impacted very much.
    The output of this over the cheap 22 inch light bar and the cali double row is amazing. Still need to get the angle dialed in a little but am very happy with the set up so far.
    I did not like the opening on the bumper where the lightbar goes so I did a quick ghetto fab of some textured abs plastic, popped in a couple of 1/4 20 rivnuts and mounted the plate using some thumb screws. I will redo the cover plate at some point but am pleased with it thus far.


    Last edited: Jul 22, 2022
    JFanaselle likes this.
  14. Sep 11, 2022 at 4:57 PM
    #474
    hwntaco20

    hwntaco20 Well-Known Member

    Joined:
    Jul 18, 2020
    Member:
    #334868
    Messages:
    637
    Gender:
    Male
    Vehicle:
    2020 Tacoma TRD Offroad 2wd
    looks good, how is it holding up, it's got good and bad reviews from what I read.

  15. Sep 14, 2022 at 8:09 AM
    #475
    stressler

    stressler Well-Known Member

    Joined:
    Jul 17, 2019
    Member:
    #299541
    Messages:
    118
    Gender:
    Male
    First Name:
    Scott
    Orlando
    Vehicle:
    19 TRD -OR
    The bumper is ok, it is holding up well for what it cost. There is some fading/discoloring on the powder coat seems to be the only issue, but it doesn't bother me that much. The bumper has been on the truck since 4-20-20.
    I will end up replacing it at some point in the next few years with a different style bumper.

    hwntaco20[QUOTED] likes this.
  16. Nov 14, 2022 at 5:52 AM
    #476
    ArielDaniel

    ArielDaniel Member

    Joined:
    Oct 3, 2022
    Member:
    #407219
    Messages:
    7
    Gender:
    Male
    First Name:
    Joe
    Installed my bumper yesterday came out great, bracket to relocate power steering cooling unit was missing but made it work. but the question is the metal piece on the side should that be inside the bumper or outside of the bumper? it is angled like OEM bumper I wasn't sure about this. OP installation was outside but google picture was not shown?


  17. Nov 25, 2022 at 11:32 AM
    #477
    CalvaryBlueTRDSportA.C.

    CalvaryBlueTRDSportA.C. Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334986
    Messages:
    55
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    '19 Cavalry Blue 6spd TRD Sport Access Cab
    Eibach suspension, nitto ridge grapplers (factory size with 1" spacers), Ripp coils, k&n blackhawk intake, magnaflow exhaust, magnuson sc, j&l catch can, optima yellow battery. ARB onboard twin woth tank ordered. ECGS front and rear with 5.29 and arb lockers coming next.
    I just bought this bumper myself. Looks great, excited to put it on once I've got my lighting and winch figured out. FIRST thing I noticed unpackaging the bumper though, was that it is definitely NOT 3/16" thick AS ADVERTISED on BodyArmors website. 3/32" is what it measures in reality.

    Certainly not the end of the world, but certainly makes me question what I paid for. Did I get 3/32 and pay for 3/16? Either way that is a blatant error on their part. I have reached out to get to the bottom of the discrepancy.

    Not like we are talking .375" to .37" .. it is HALF of what is stated.

    Anybody else notice this on theirs? Or even care?

    BODYARMOR certainly doesn't. They have lied two times further about it. Waiting on a phone call now.

    Last edited: Nov 28, 2022
  18. Dec 6, 2022 at 9:22 PM
    #478
    KevKev_22

    KevKev_22 Well-Known Member

    Joined:
    Oct 9, 2022
    Member:
    #407674
    Messages:
    104
    Gender:
    Male
    Vehicle:
    2021 Tacoma TRD Sport
    Sorry if this is a dumb question but what did everyone do for the light control? Is it a switch that gets installed inside? I assume it’s on its own switch/control?

  19. Dec 7, 2022 at 3:51 AM
    #479
    Mikro

    Mikro Well-Known Member

    Joined:
    Oct 11, 2019
    Member:
    #307708
    Messages:
    170
    Gender:
    Male
    Vehicle:
    2020 MGM TRD Pro

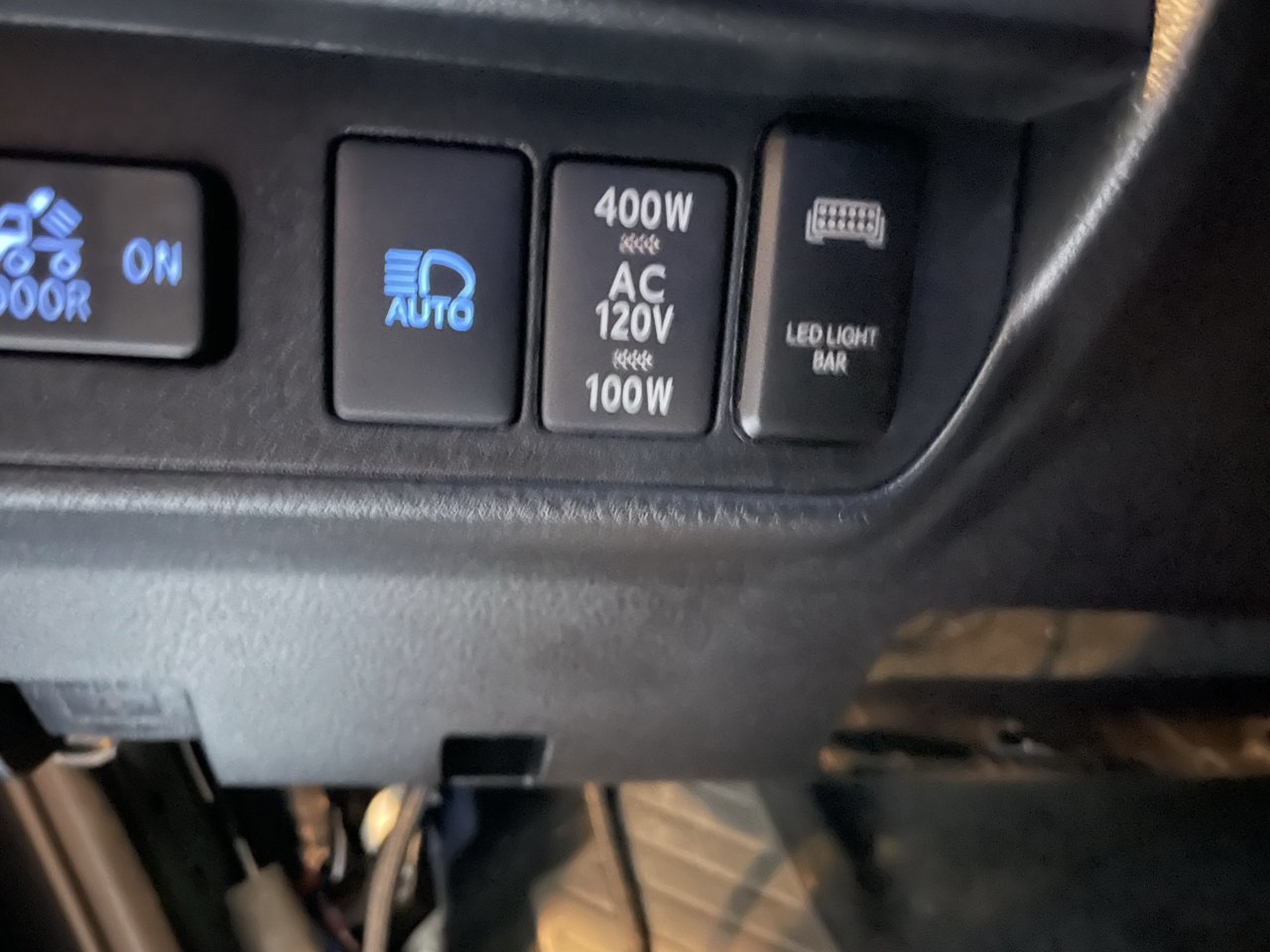

    I purchased a switch that went into one of the panel blanks. I forget where I got it from.


    KevKev_22[QUOTED] likes this.
  20. Dec 7, 2022 at 9:27 AM
    #480
    CalvaryBlueTRDSportA.C.

    CalvaryBlueTRDSportA.C. Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334986
    Messages:
    55
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    '19 Cavalry Blue 6spd TRD Sport Access Cab
    Eibach suspension, nitto ridge grapplers (factory size with 1" spacers), Ripp coils, k&n blackhawk intake, magnaflow exhaust, magnuson sc, j&l catch can, optima yellow battery. ARB onboard twin woth tank ordered. ECGS front and rear with 5.29 and arb lockers coming next.

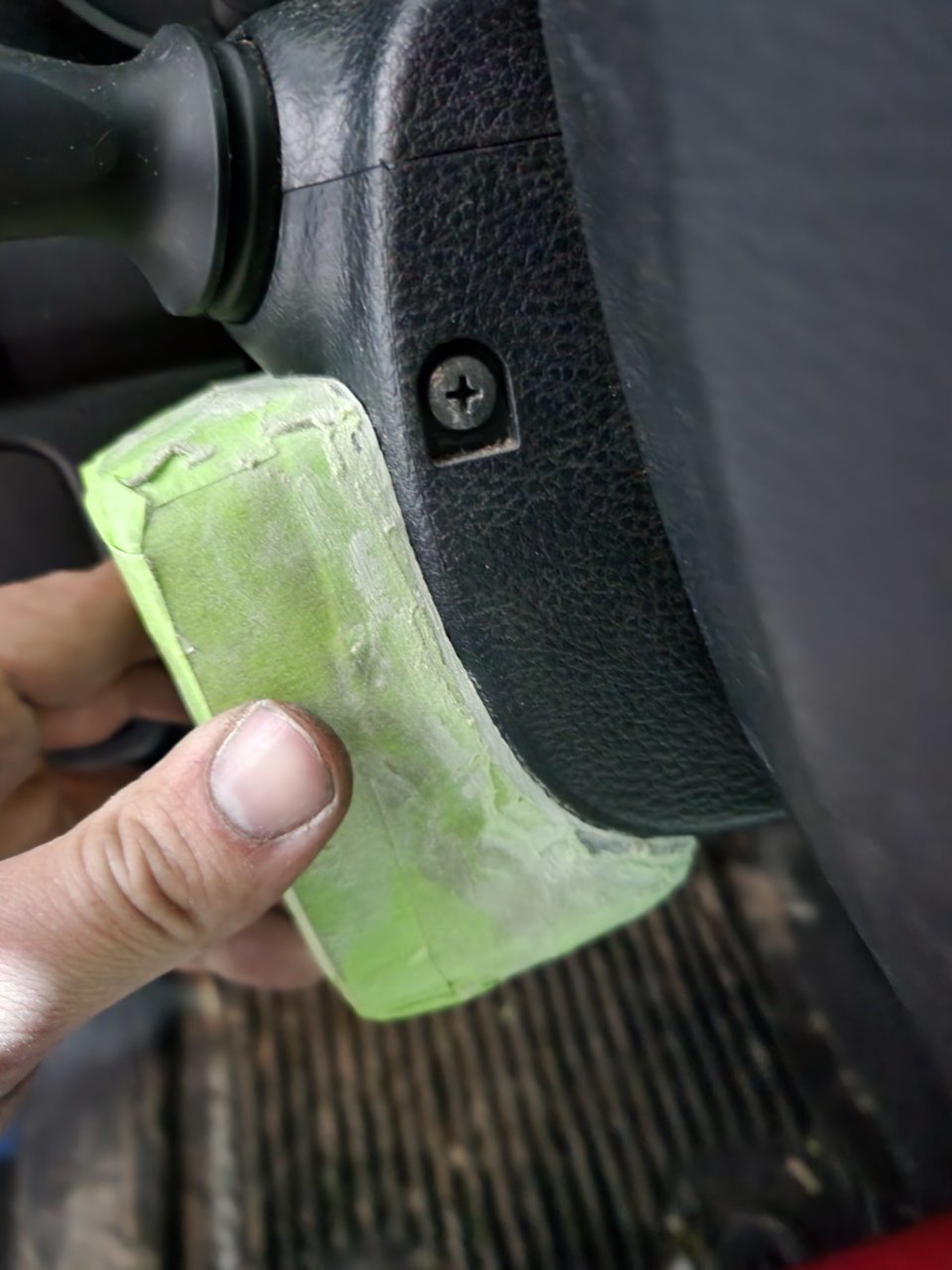

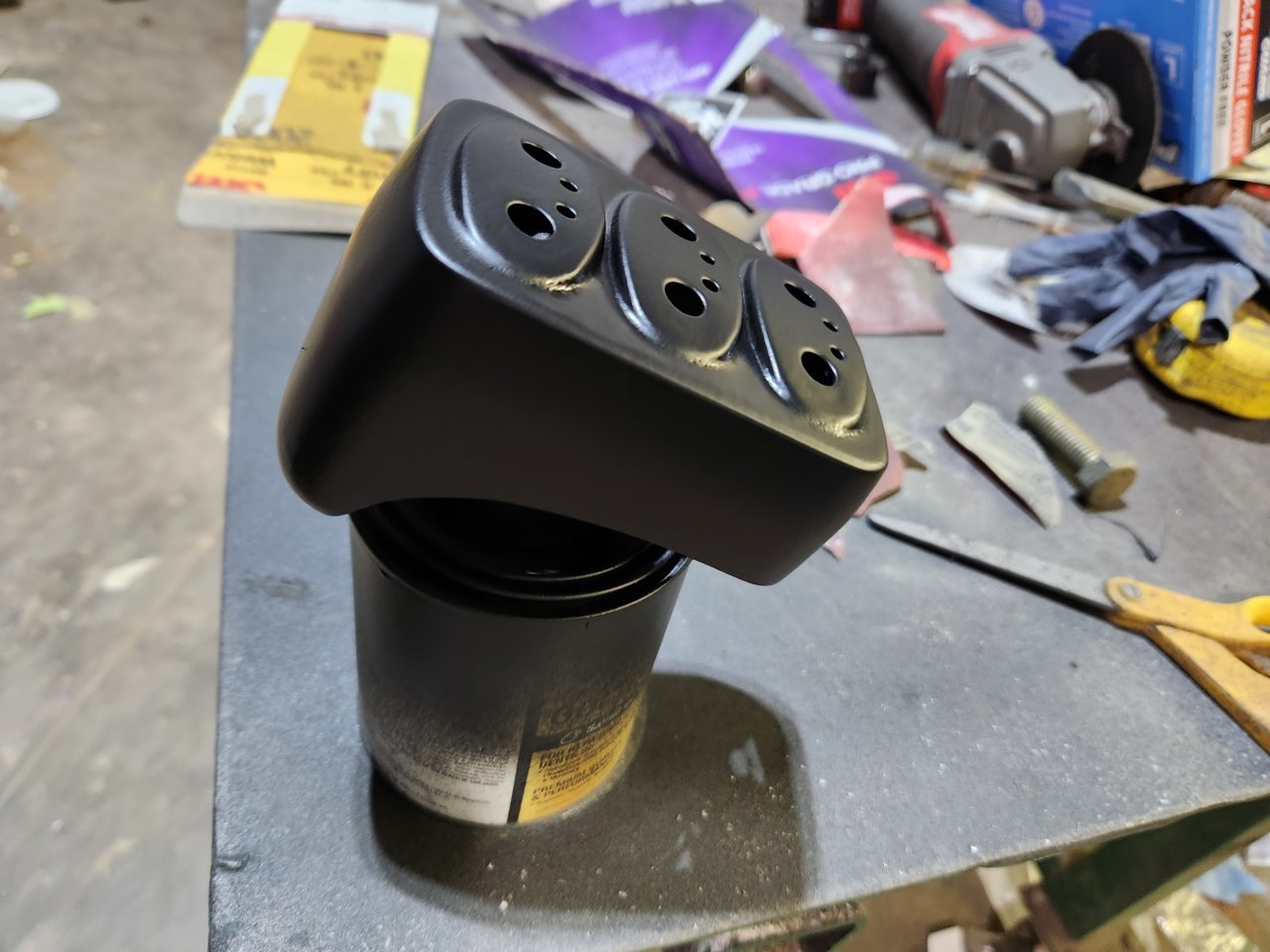

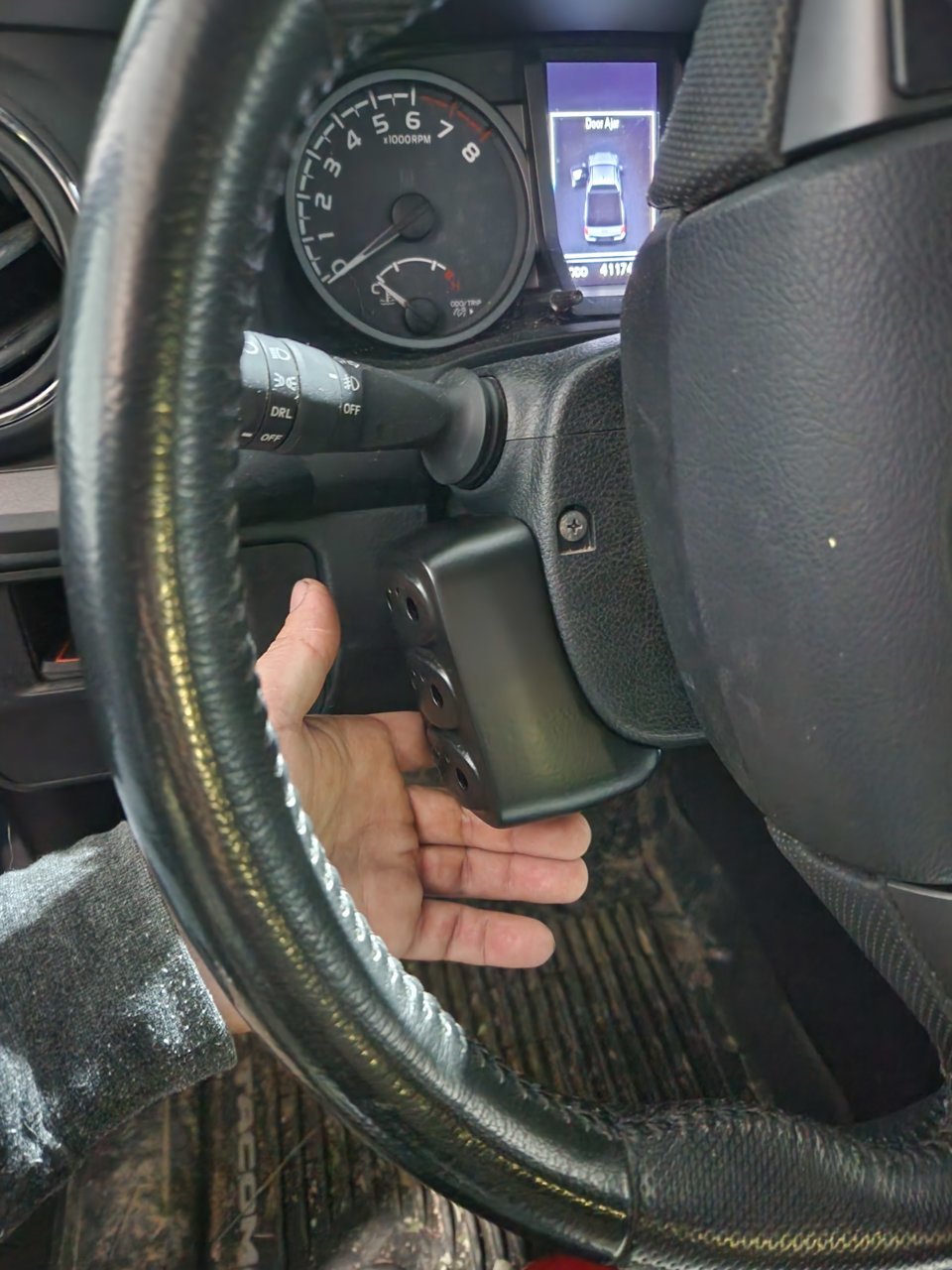

    Probably not the option you're looking for, but this was my solution for lighting with proprietary switches.

    I dismantled the proprietary housings and incorporated them into a custom glass housing to mount at my steering column with dbl sided tape. Wires feed under the column through the adjustment lever. Permanent looking install but no damage to factory parts.
