Bolt size for pre-threaded under-hood fender mount points?

Discussion in '3rd Gen. Tacomas (2016+)' started by vtstouff, Apr 26, 2017.

  1. Apr 26, 2017 at 8:54 AM
    #1
    vtstouff

    vtstouff [OP] Member

    Joined:
    Apr 22, 2017
    Member:
    #216992
    Messages:
    9
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 Silver DCSB TRD OR
    RCI Alum Skid, BFG KO2, ARB OBA
    I'd like to install an OBA (CKMA12) under the hood on the passenger side close to the firewall. In my 3rd gen TRD OF (DCSB), I don't have any components there but I have two threaded holes in the fender side and 3 threaded holds below (straight down).

    I have searched this forum for different build threads or install threads the might list the size of the bolts used to mount things into these points (maybe I suck at the TW search). I know there is a bracket I can buy that fits this area (single or twin compressor), but at $125, I'd prefer to see what I can fashion myself.

    Several threads mention putting a rubber gasket or rubber feet between the compressor and the mount (which sounds like a good idea) and others mention fashioning their mount out of polycarbonate from Lowe's/Home Depot, but I didn't see anything about the hardware used to mount these home-grown brackets.

    Thoughts? I'm heading out Sunday on a trip and I'll have the compressor tomorrow so I'd like to try and squeeze in the install on Friday/Saturday if I can figure this out fairly easily.

  2. Apr 26, 2017 at 9:16 AM
    #2
    Nail

    Nail Well-Known Member

    Joined:
    Jan 4, 2017
    Member:
    #206597
    Messages:
    255
    Gender:
    Male
    NH
    Vehicle:
    2017 OR
    I know the two threaded bolt holes on the drivers side over the wheel well (right behind the battery ground) are M8-1.25 x 30. If those look close to the holes you are talking about then I bet they are the same size.

    Joe23 likes this.
  3. Apr 26, 2017 at 9:22 AM
    #3
    vtstouff

    vtstouff [OP] Member

    Joined:
    Apr 22, 2017
    Member:
    #216992
    Messages:
    9
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 Silver DCSB TRD OR
    RCI Alum Skid, BFG KO2, ARB OBA
    Exactly! Thanks!

  4. Apr 26, 2017 at 9:24 AM
    #4
    vtstouff

    vtstouff [OP] Member

    Joined:
    Apr 22, 2017
    Member:
    #216992
    Messages:
    9
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 Silver DCSB TRD OR
    RCI Alum Skid, BFG KO2, ARB OBA
    Sorry I didn't have pics to make it more clear but I'm traveling. I'll add pics when I get home in case others have a similar question.

  5. Apr 26, 2017 at 10:20 AM
    #5
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    They are not the same as the driver side. I believe they were M6 when i checked.

  6. Apr 26, 2017 at 10:45 AM
    #6
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet

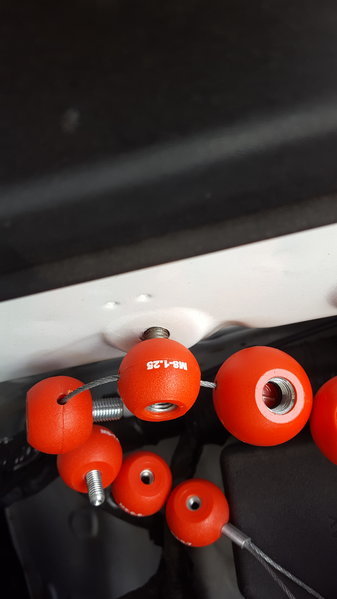

    Confirmed.

    M8 x 1.25 on driver side.

    M6 x 1.0 on passenger
    20170426_104007.jpg 20170426_104140.jpg

    Last edited: Apr 26, 2017
    ajmogen, Nail and tomwil like this.
  7. Apr 26, 2017 at 10:46 AM
    #7
    tomwil

    tomwil Well-Known Member

    Joined:
    May 15, 2014
    Member:
    #129887
    Messages:
    7,698
    Gender:
    Male
    East Coast USA
    Vehicle:
    2014 Reg Cab 4x4

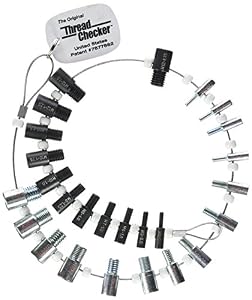

    Those things have helped me out numerous times.

    [​IMG]

    Simpleton likes this.
  8. Apr 26, 2017 at 11:12 AM
    #8
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    Saves you from a real headache almost every time.

    tomwil likes this.
  9. Apr 26, 2017 at 10:29 PM
    #9
    vtstouff

    vtstouff [OP] Member

    Joined:
    Apr 22, 2017
    Member:
    #216992
    Messages:
    9
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 Silver DCSB TRD OR
    RCI Alum Skid, BFG KO2, ARB OBA
    Yes, I tried the M8 on the passenger side when I got home and it didn't fit so I grabbed an old M6 x 1.0 to try and that 1.0 seemed incorrect. But it could have been paint or something in there. I definitely wasn't trying to force it since I didn't have that handy ring of thread sizes. Thanks to you all!

  10. Apr 27, 2017 at 9:31 AM
    #10
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    When I put the M8 on the driver side for a fuse panel one was fighting me too, it was just paint. Either clean it out with a tap if you have one or just run the bolt through slowly to do the dirty work.

  11. Apr 27, 2017 at 9:34 AM
    #11
    vtstouff

    vtstouff [OP] Member

    Joined:
    Apr 22, 2017
    Member:
    #216992
    Messages:
    9
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 Silver DCSB TRD OR
    RCI Alum Skid, BFG KO2, ARB OBA
    Purchased. Very handy.

    tomwil and Simpleton like this.
  12. Apr 27, 2017 at 6:39 PM
    #12
    LS14ME2

    LS14ME2 Kind of a big deal

    Joined:
    Jan 30, 2017
    Member:
    #209132
    Messages:
    387
    Gender:
    Male
    In hiding, CA
    Vehicle:
    2017 SSM Sport DCSB 4x4
    Center console divider thingy, rubber bed mat and side steps for the wife.
    Curious, what are those holes on each side for?

  13. Apr 27, 2017 at 6:56 PM
    #13
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    Fuse Block and on board air :thumbsup:

  14. Apr 27, 2017 at 6:57 PM
    #14
    LS14ME2

    LS14ME2 Kind of a big deal

    Joined:
    Jan 30, 2017
    Member:
    #209132
    Messages:
    387
    Gender:
    Male
    In hiding, CA
    Vehicle:
    2017 SSM Sport DCSB 4x4
    Center console divider thingy, rubber bed mat and side steps for the wife.
    Thanks, for what model or application?

  15. Apr 27, 2017 at 7:21 PM
    #15
    vtstouff

    vtstouff [OP] Member

    Joined:
    Apr 22, 2017
    Member:
    #216992
    Messages:
    9
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2017 Silver DCSB TRD OR
    RCI Alum Skid, BFG KO2, ARB OBA
    Funny, after spending time looking in there today, I couldn't help wonder the same thing. On the passenger side down below those fender mount points, I have 3 threaded M8 bolts pointing up, two on the high side by the air filter mounts and another set an inch or so lower about 6 inches closer to the passenger firewall. A local fabricator is making me a mount for the CKMA12 on those 3 posts instead for a more sturdy position (but its lower in the engine compartment... potential hot air being drawn into the compressor air intake).

    I was wondering to myself what else would go there in another trim package that isn't in the TRD Off Road. A friend has a 2016 Limited so I was going to look in there next chance I get.

  16. Nov 11, 2017 at 5:51 PM
    #16
    88tacos

    88tacos Member

    Joined:
    Dec 29, 2016
    Member:
    #206003
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2008 red dbl cab trd sport
    Is it the same for 2nd gen?

  17. Nov 11, 2017 at 6:35 PM
    #17
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    I believe so, not much as changed in the little details between generations.

    88tacos likes this.
