    Quick Links: 1st gen Tacoma Radiator size. Distance between tanks? Carpet removal Confirm part number for Washer Fluid Reservoir Cant fix P0171 (System Too Lean Bank 1), I got data freeze Looking for tire recommendations Snorkel For 1st Gen Tacoma

Bolt Size to Use with Puller, to Remove Crankshaft Timing Sprocket on 3.4L V6 5VZ-FE?

Discussion in '1st Gen. Tacomas (1995-2004)' started by mltitlntd, Feb 1, 2017.

Page 1 of 2
  1. Feb 1, 2017 at 2:51 PM
    #1
    mltitlntd

    #1
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None
    Not the harmonic balancer/pulley, but the timing sprocket on the crank

    [​IMG]

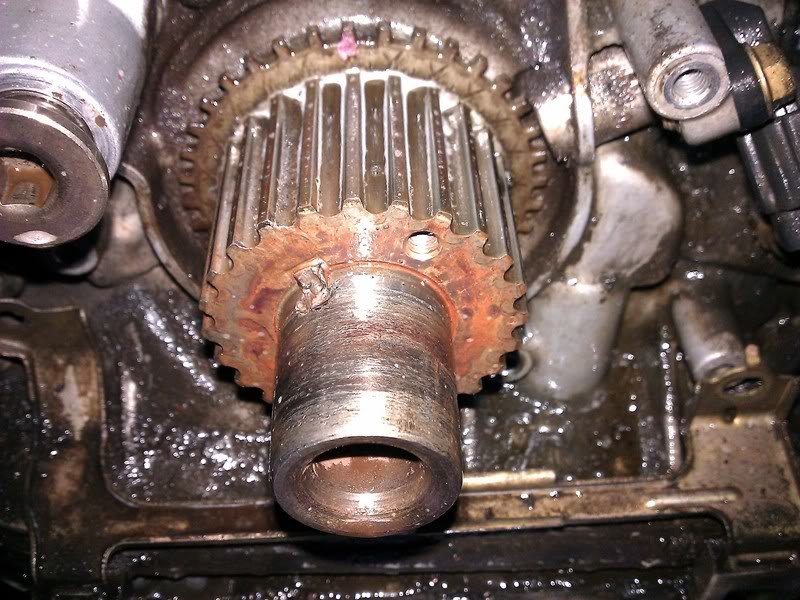

    See the threaded hole in the pic below? There's two of em. They're smaller than the ones on the Harmonic Balancer


    That's not mine, BTW. I broke mine, but still need to get it off.

    Thanks for any information!

    mltitlntd, Feb 1, 2017
    #1
  2. Feb 1, 2017 at 3:53 PM
    #2
    Wyoming09

    #2
    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    14,277
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    There either M8x1.25 or M10x1.25

    If I had the engine apart I could tell

    Wyoming09, Feb 1, 2017
    #2
  3. Feb 1, 2017 at 4:03 PM
    #3
    Dirty Pool

    #3
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,306
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Dirty Pool, Feb 1, 2017
    #3
    Key-Rei and cruiserguy like this.
  4. Feb 1, 2017 at 4:12 PM
    #4
    mltitlntd

    #4
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None
    mltitlntd, Feb 1, 2017
    #4
  5. Feb 1, 2017 at 5:09 PM
    #5
    Dirty Pool

    #5
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,306
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Dirty Pool, Feb 1, 2017
    #5
  6. Feb 1, 2017 at 5:24 PM
    #6
    cruiserguy

    #6
    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,000
    Gender:
    Male
    First Name:
    Elijah
    SEKS
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    cruiserguy, Feb 1, 2017
    #6
    Key-Rei likes this.
  7. Feb 1, 2017 at 5:38 PM
    #7
    Dirty Pool

    #7
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,306
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    One observes/remembers selectively plus I participated in that thread and my crank pulley holding tool came with the bolts for the timing gear. Don't ask me my land line phone number or my anniversary.

    Dirty Pool, Feb 1, 2017
    #7
    Key-Rei, SR-71A and burntkat like this.
  8. Feb 1, 2017 at 5:46 PM
    #8
    cruiserguy

    #8
    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,000
    Gender:
    Male
    First Name:
    Elijah
    SEKS
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Lolol, my mind works very similarly.

    cruiserguy, Feb 1, 2017
    #8
  9. Feb 1, 2017 at 6:33 PM
    #9
    mltitlntd

    #9
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None

    I second that emotion, Cruiser! I searched for quite a while today and came up with a number of relevant threads, but none that mentioned the bolt size. Wish I'd have found that, before breaking off a chunk of the gear flange, with the teeth that the CPS senses. Glad to have that info now though. Thanks D.P.

    The damned thing is STILL on there, soaking in PBB. I even tried heating with a propane torch and prying from behind, which is when I finally broke it. The stealer's gonna get about $75 from me tomorrow, and the government will get another $7 or so...

    I have a steering wheel puller, like the one pictured in the referenced thread, but maybe I should borrow a puller from a parts store? I don't guess they would have the correct-sized bolts??

    All of this trouble is because of this

    https://www.tacomaworld.com/threads...6-engine-came-on-fast-opinions-please.471995/

    I'm wondering if the leaking oil has baked onto the crank, gluing the sprocket on. Hoping like H-E double-hockey sticks it the seal and not the oil pump leaking. I have a 4WD and DO NOT want to drop the oil pan!

    mltitlntd, Feb 1, 2017
    #9
    cruiserguy[QUOTED] likes this.
  10. Feb 1, 2017 at 6:44 PM
    #10
    mltitlntd

    #10
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None
    Ahh... I just realized you guys have been there all along :)

    mltitlntd, Feb 1, 2017
    #10
    cruiserguy likes this.
  11. Feb 1, 2017 at 6:47 PM
    #11
    cruiserguy

    #11
    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,000
    Gender:
    Male
    First Name:
    Elijah
    SEKS
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Sorry man, that wasn't a dig at you. More of a little bit of a joke with Dirty.
    I can tell you've done your homework, brother. And I, for one, appreciate the detail you put into your posts. Makes it much easier on trying to help, instead of asking the standard 20 questions at the beginning of most problem threads. I wish I could be of help for you. And the reason I 'like' tons of dirty's posts is that it makes it much easier to find them later, to use as troubleshooting guides. The majority of his posts have a grip of info in them. So if I liked a post of his above that could've been taken the wrong way, it prolly had some good info.
    And if I wrote all this and you had never taken it the wrong way anyways...... Well.... Damn.

    cruiserguy, Feb 1, 2017
    #11
  12. Feb 1, 2017 at 6:52 PM
    #12
    mltitlntd

    #12
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None
    Not at all, Wyoming. I don't even know what you're talking about, other than that Dirty Pool seems to have a ton of useful knowledge.

    Seriously, if you did or said something I may oughta have been offended by, I missed it. I appreciate help, wherever I can get it. I should probably spend more time on here, so I can share a bit of the knowledge I've gained, working on this puppy.

    mltitlntd, Feb 1, 2017
    #12
    cruiserguy likes this.
  13. Feb 1, 2017 at 9:16 PM
    #13
    DrZ

    #13
    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,459
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    I hope you can get it off with the puller. It's lucky these gears have the holes to use a puller with.

    If it didn't have the holes I was going to say you need at least a 2 foot pry bar to get the leverage to pry it off, and you need to get the pry bar down far enough to contact the crankshaft. What size/type of tool were you using to try to pry it when it broke?

    DrZ, Feb 1, 2017
    #13
  14. Feb 2, 2017 at 1:14 AM
    #14
    Wyoming09

    #14
    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    14,277
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Wow I just can`t believe they are only M6x1.0 .

    All I can hope is the threads go through the gear.

    Use the longest bolts that don`t bottom out

    I just cringe putting enough pressure to break that loose on those M6 bolts

    Best of luck

    Wyoming09, Feb 2, 2017
    #14
  15. Feb 2, 2017 at 5:02 AM
    #15
    DrZ

    #15
    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,459
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    Why not have the bolts bottom out? Seems you'd want them threaded as far as possible so the threads don't strip. Pulling evenly with the puller should do the trick.

    I'm curious why the seal is leaking so bad once the gear is removed. Is the seal damaged or maybe a scratch on the crankshaft damaging the seal?

    DrZ, Feb 2, 2017
    #15
  16. Feb 2, 2017 at 6:30 AM
    #16
    mltitlntd

    #16
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None

    mltitlntd, Feb 2, 2017
    #16
  17. Feb 2, 2017 at 6:34 AM
    #17
    mltitlntd

    #17
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None

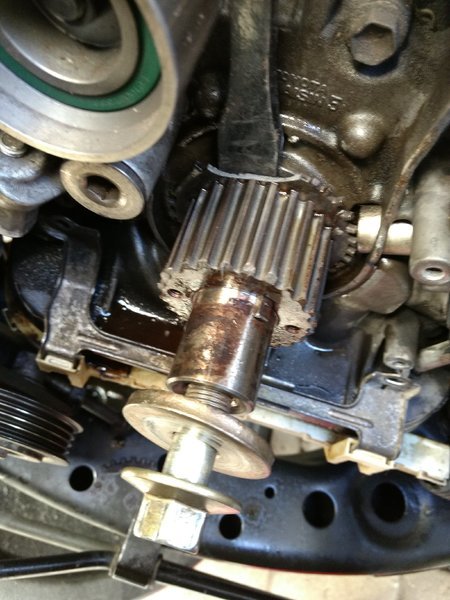

    It's a pry bar. Decent size. Not sure it went all the way to the crank before it broke, but goes there now! In addition to TRYING not to break the sprocket, I had to keep in mind I was praying against the aluminum oil pump body.

    By the way, I see I responded to Wyoming earlier, when I should have addressed my comment to cruiser

    mltitlntd, Feb 2, 2017
    #17
  18. Feb 2, 2017 at 6:38 AM
    #18
    mltitlntd

    #18
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None
    The threaded holes are only a tad over 1/4" deep, so yeah, not much of a purchase on this stuck sprocket.

    I'm not sure it's the seal leaking, but hoping it's the seal, as opposed to the oil pump o-ring, or gasket or whatever. I hope to be able to tell, when and IF I get the gear off.

    mltitlntd, Feb 2, 2017
    #18
  19. Feb 2, 2017 at 10:01 AM
    #19
    mltitlntd

    #19
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None

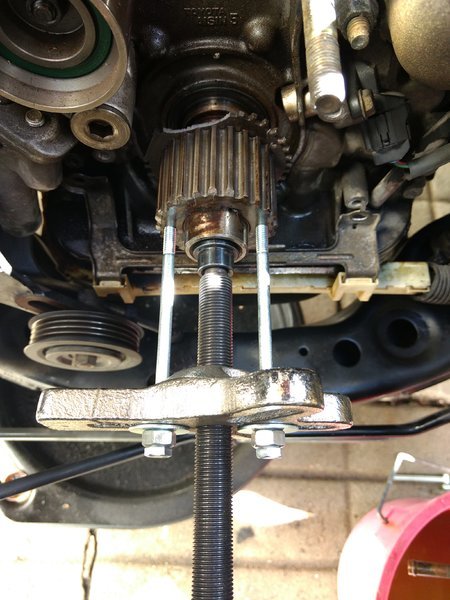

    OK, I got it off, but it kicked and screamed all of the way.

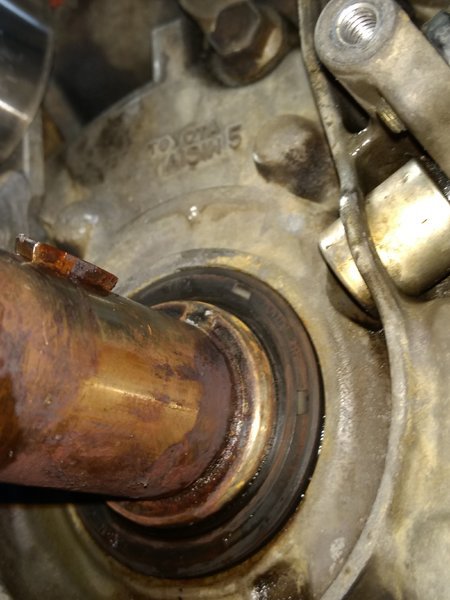

    I cleaned up the crank with steel wool and sandpaper. It looks like its the main seal. Either I didn't seat the it properly before, or it worked it's away out on the bottom.

    Assuming I have no major issues swapping the seal, do you recommend using anitseize or something on the sprocket and harmonic balancer? I'll clean up the inside of the HB as well.

    mltitlntd, Feb 2, 2017
    #19
  20. Feb 2, 2017 at 10:05 AM
    #20
    mltitlntd

    #20
    mltitlntd [OP] Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25960
    Messages:
    79
    Gender:
    Male
    First Name:
    Steven
    New Orleans, La
    Vehicle:
    99 Tacoma 3.4 V6 4WD SR5
    None
    Meant to post this in the last reply


    I can confirm M6 x 1.0 is the bolt size for the threaded holes in the crankshaft timing pulley / gear / sprocket.

    mltitlntd, Feb 2, 2017
    #20
    1997tacomav6 and cruiserguy like this.
