Boltrippers 2020 TRD Off-Road Tacoma Build

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Boltripper, Apr 1, 2020.

  1. Apr 2, 2020 at 10:00 AM
    #21
    Not_Sure

    Not_Sure Well-Known Member

    Joined:
    Mar 9, 2019
    Member:
    #285950
    Messages:
    382
    Gender:
    Male
    First Name:
    J
    NC
    Vehicle:
    2019 Model 7545 in Silver Sky
    Bike rack
    Gas mileage is terrible in a Cruiser. :)

    stronghammer[QUOTED] likes this.
  2. Apr 2, 2020 at 10:47 AM
    #22
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...
    yes - Even with the 4.7 L V8 conversion I was only averaging 13-15.. She was a loaded beast

  3. Apr 2, 2020 at 11:24 AM
    #23
    Atl-atl

    Atl-atl Well-Known Member

    Joined:
    Aug 14, 2018
    Member:
    #262798
    Messages:
    2,941
    Gender:
    Male
    First Name:
    Mike
    Phoenix+Flagstaff
    Vehicle:
    2024 Ram Power Wagon
    Fox, Thuren, 40s, other stuff
    You'll find that parts availability is roughly the same for a 3rd gen. You want a front bumper? Oh that'll be 14 weeks. You want a camper? That'll be 12+ months.

    :D

    Boltripper[OP] likes this.
  4. Apr 2, 2020 at 11:29 AM
    #24
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...
    I hear ya.... But at least some day :)

  5. Apr 2, 2020 at 11:42 AM
    #25
    sogafarm

    sogafarm Well-Known Member

    Joined:
    Feb 18, 2015
    Member:
    #148983
    Messages:
    397
    Gender:
    Male
    GA
    Vehicle:
    2012 tacoma reg cab spruce mica
    31" Falkon wild peak AT's, fat bobs lift, mud accents
    Welcome to TW from another Mud guy. You'll be back.......just wait. Good choice on the AC. Everyone should have both a tacoma and a cruiser in a perfect world.

    Boltripper[OP] likes this.
  6. Apr 2, 2020 at 12:16 PM
    #26
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

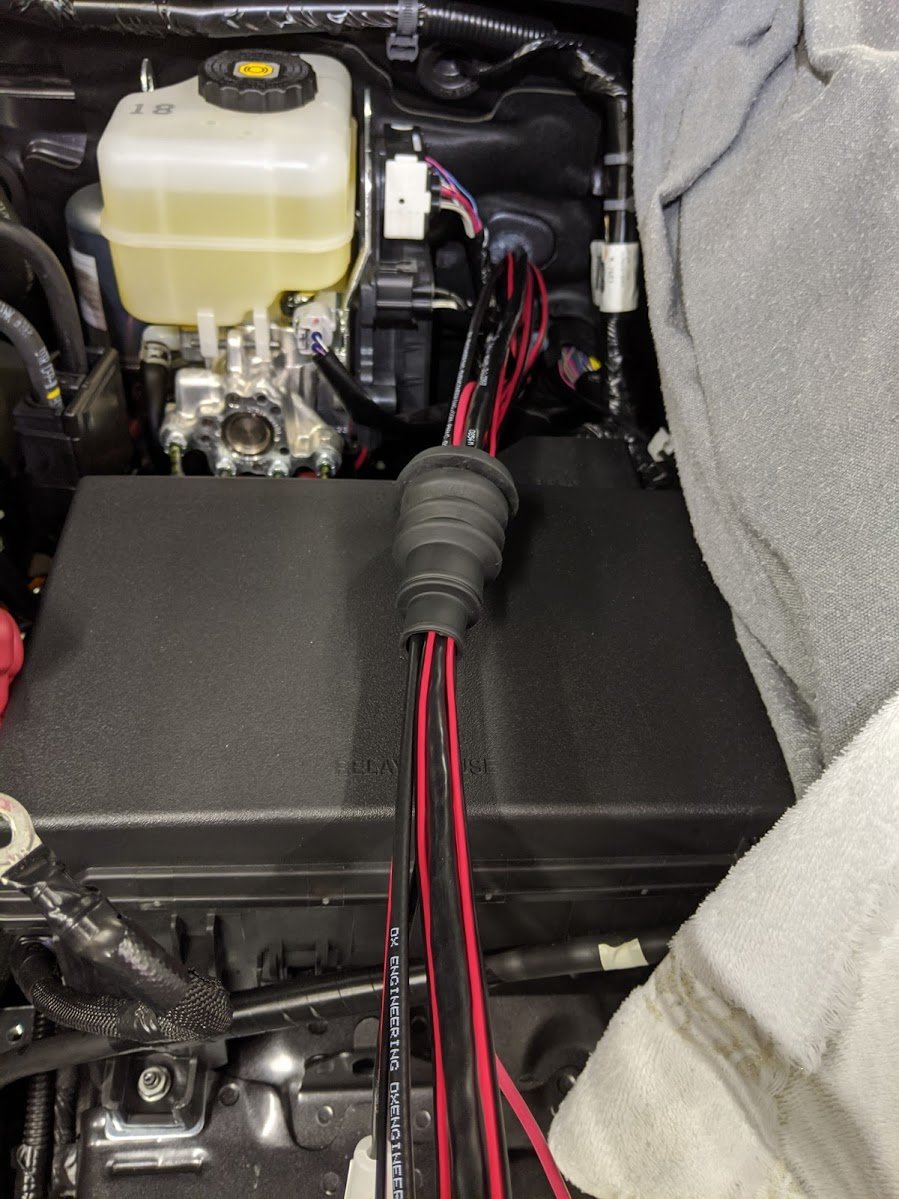

    Ended up with a large group of wires for all my planned mods, but found a good place on the firewall and used a proper boot.

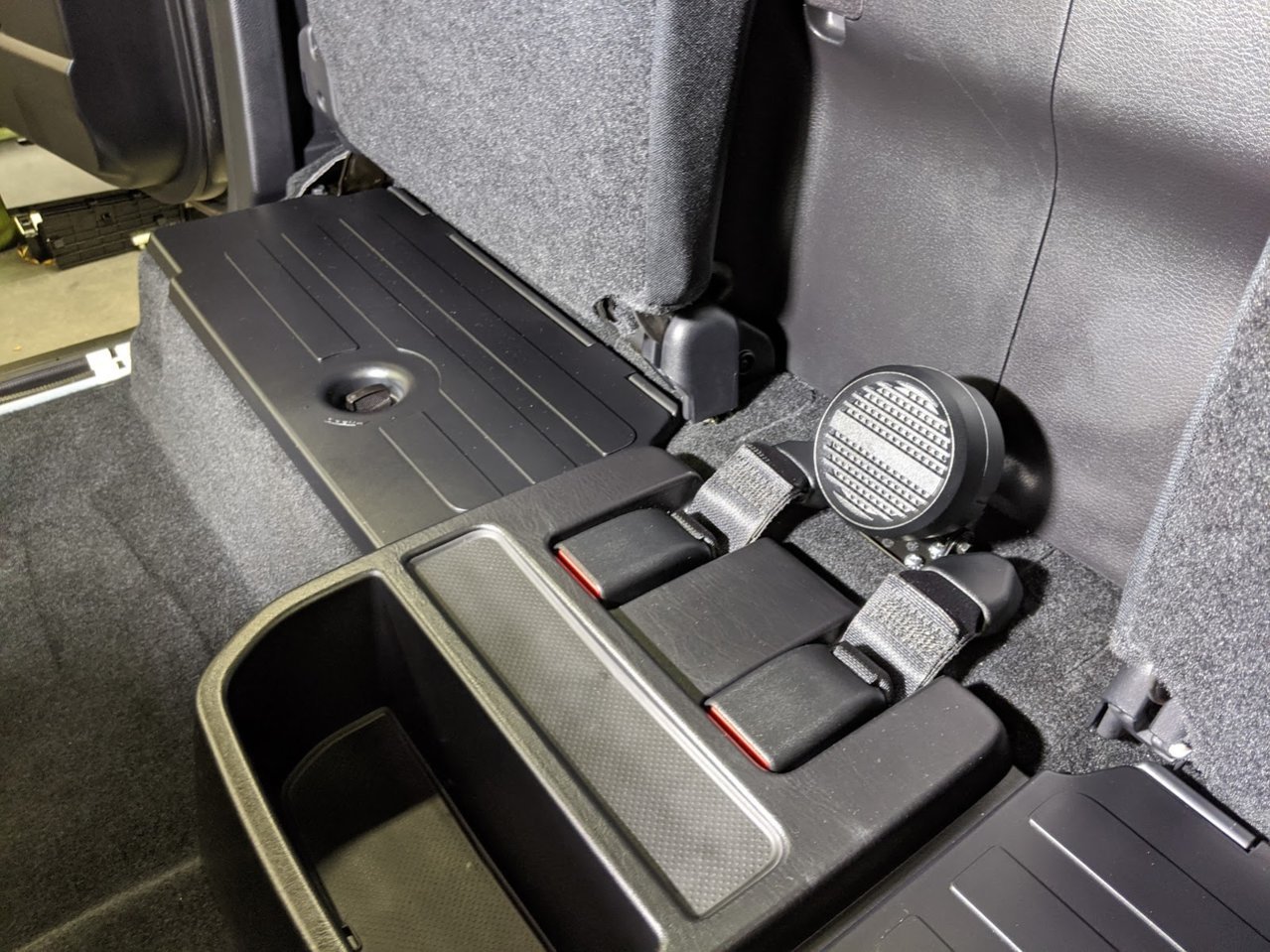

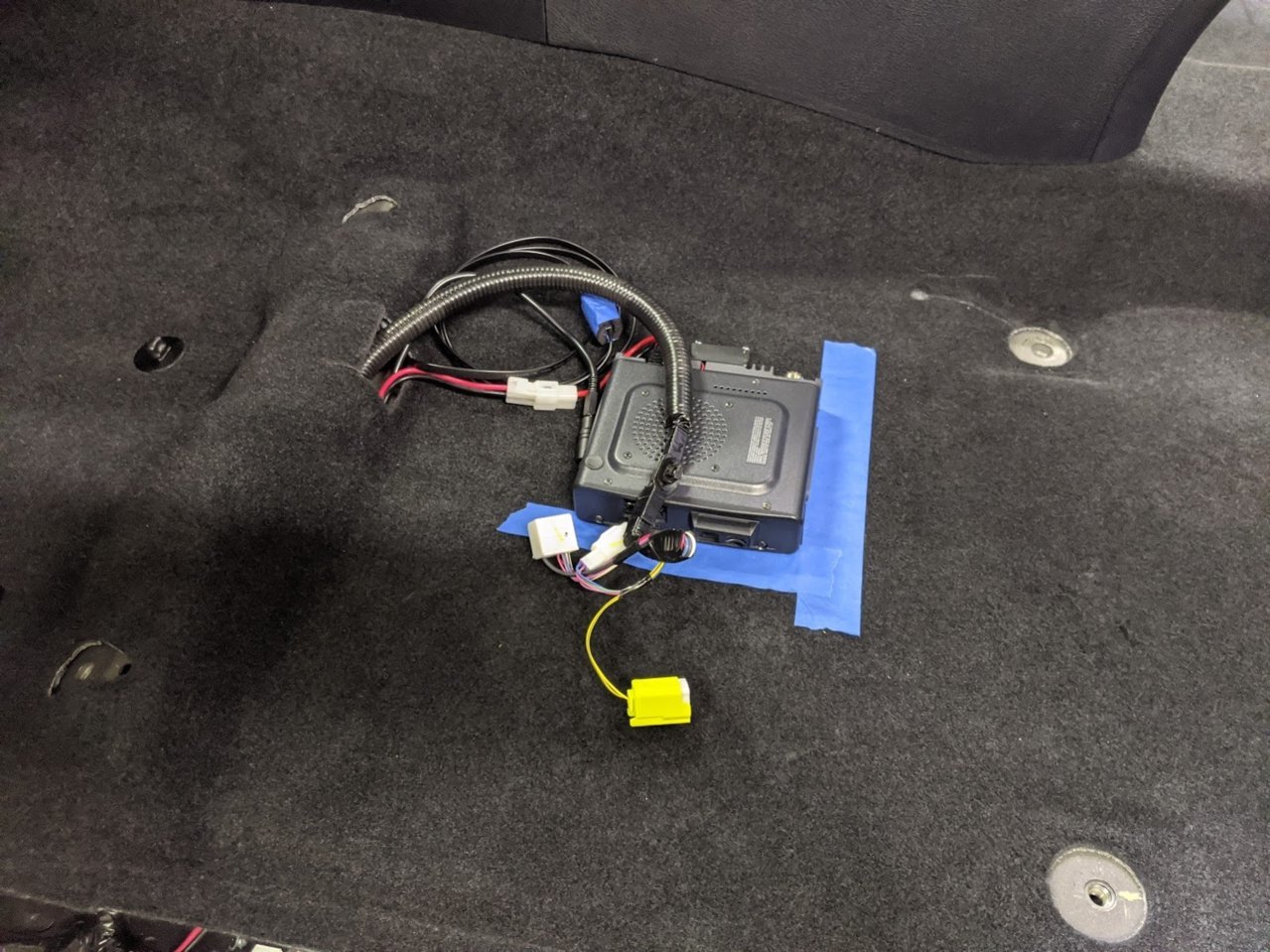

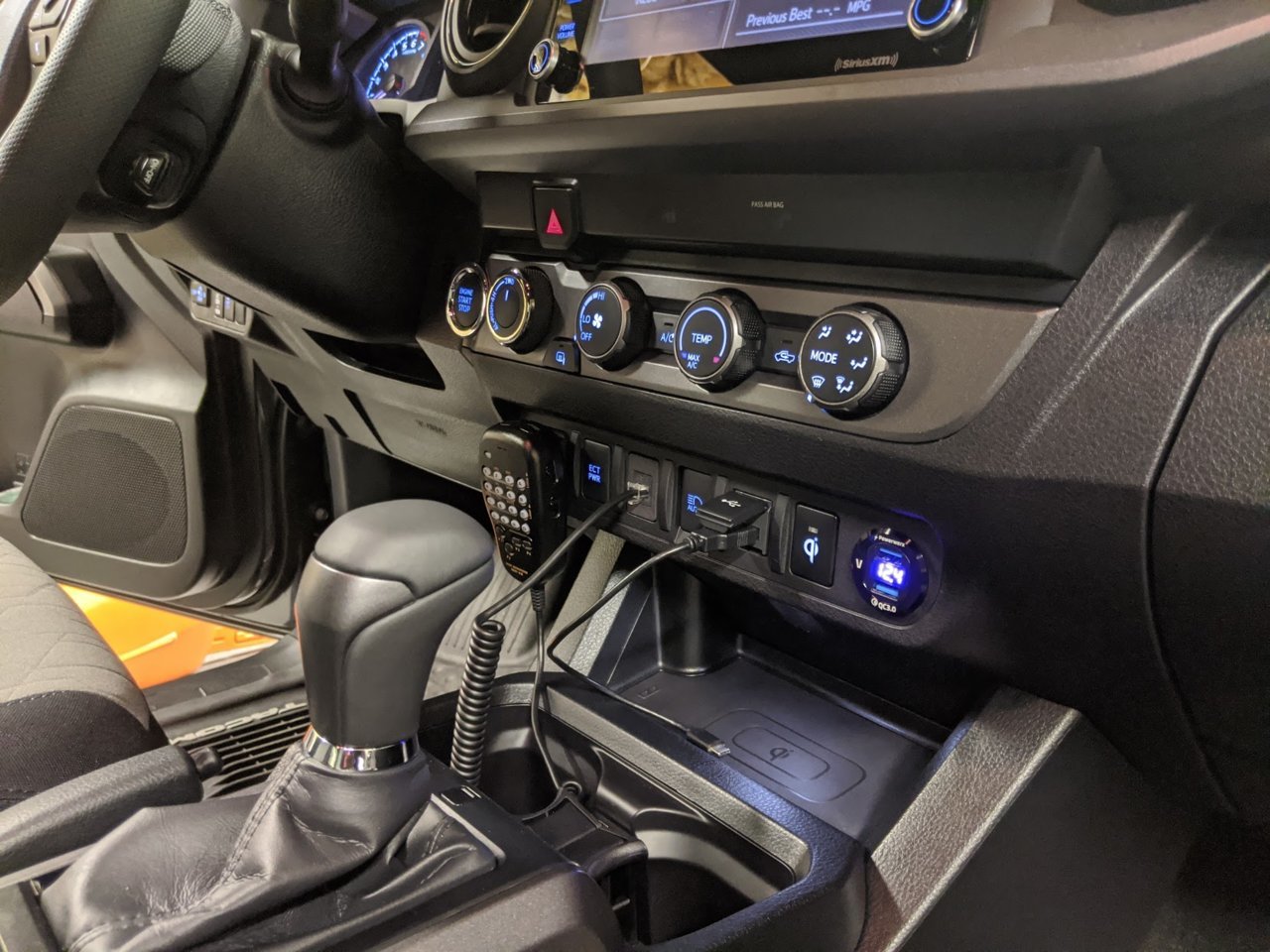

    Yaesu FTM-400 located under the driver's seat and the head unit will be on the 3TPAM



    Yaesu External located between the jump seats




    Final Result with the FTM-400 head unit and remote mic..


    Last edited: Apr 2, 2020
    El Latigo, Sleipnir and sogafarm like this.
  7. Apr 2, 2020 at 1:05 PM
    #27
    bhayes423

    bhayes423 Well-Known Member

    Joined:
    Oct 16, 2019
    Member:
    #308149
    Messages:
    211
    Knoxville, TN
    Man that 80 was a damn good looking rig. Can't wait to see how this Tacoma builds out!

    sogafarm and Boltripper[OP] like this.
  8. Apr 2, 2020 at 1:10 PM
    #28
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...
    Appreciate that.... Looking forward to this build as well.

    Best,

    J

    bhayes423[QUOTED] likes this.
  9. Apr 2, 2020 at 1:16 PM
    #29
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,342
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Dreamville shirt is :thumbsup:

    Nice looking 80 Series and congrats on the new Taco :bananadance:

  10. Apr 2, 2020 at 1:19 PM
    #30
    jschwerdtfeger

    jschwerdtfeger Well-Known Member

    Joined:
    Apr 23, 2014
    Member:
    #128305
    Messages:
    257
    Gender:
    Male
    First Name:
    Jeff
    Santa Cruz, CA
    Vehicle:
    2020 Tacoma DLCB TRD Off Road
    Fox 2.5/2.0, Deaver Expo Stage I
    Sub'd, Looks great! What sliders did you end up going with?

  11. Apr 2, 2020 at 1:36 PM
    #31
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

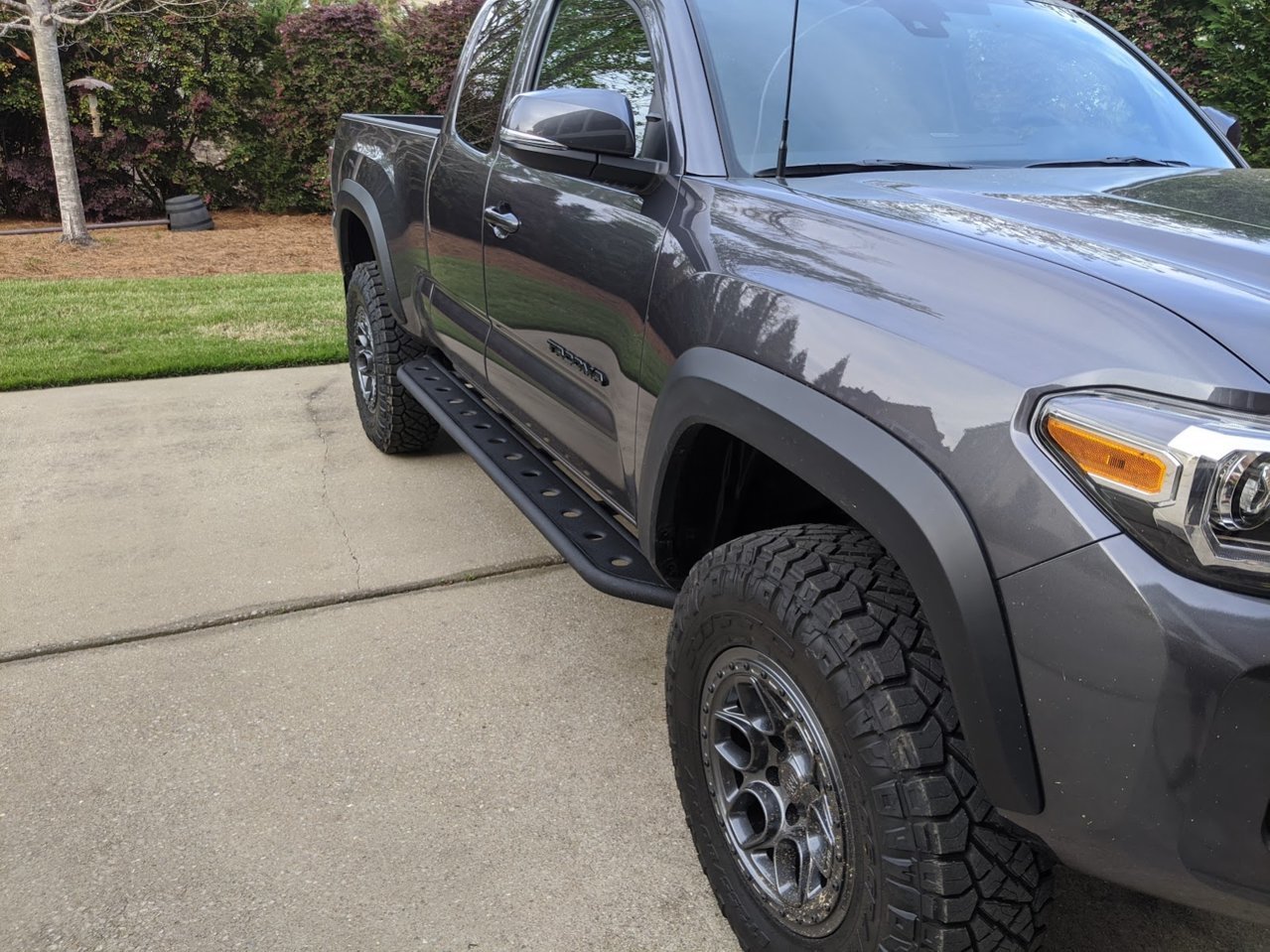

    Sliders are Budbuilt 0* step sliders


  12. Apr 3, 2020 at 7:33 AM
    #32
    sogafarm

    sogafarm Well-Known Member

    Joined:
    Feb 18, 2015
    Member:
    #148983
    Messages:
    397
    Gender:
    Male
    GA
    Vehicle:
    2012 tacoma reg cab spruce mica
    31" Falkon wild peak AT's, fat bobs lift, mud accents
    Just started reading through your mud build thread, 81,000 miles when bought from Georgia, WOW! Funny thing, I bought my 80 from a guy in Birmingham and drove it back to Georgia. I didnt have the same experience, A/C quit on a 98 degree day driving it back to GA. Looking forward to your tacoma build if it's as good as your 80. You do great work! Real clean.

    Boltripper[OP] likes this.
  13. Apr 3, 2020 at 7:40 AM
    #33
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...
    Thats funny - Sorry it was not as pleasant an experience as mine.. Appreciate the comments and hope to do great work on the Tacoma as well.

    Be safe.

    John~

    sogafarm[QUOTED] likes this.
  14. Apr 3, 2020 at 7:50 AM
    #34
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

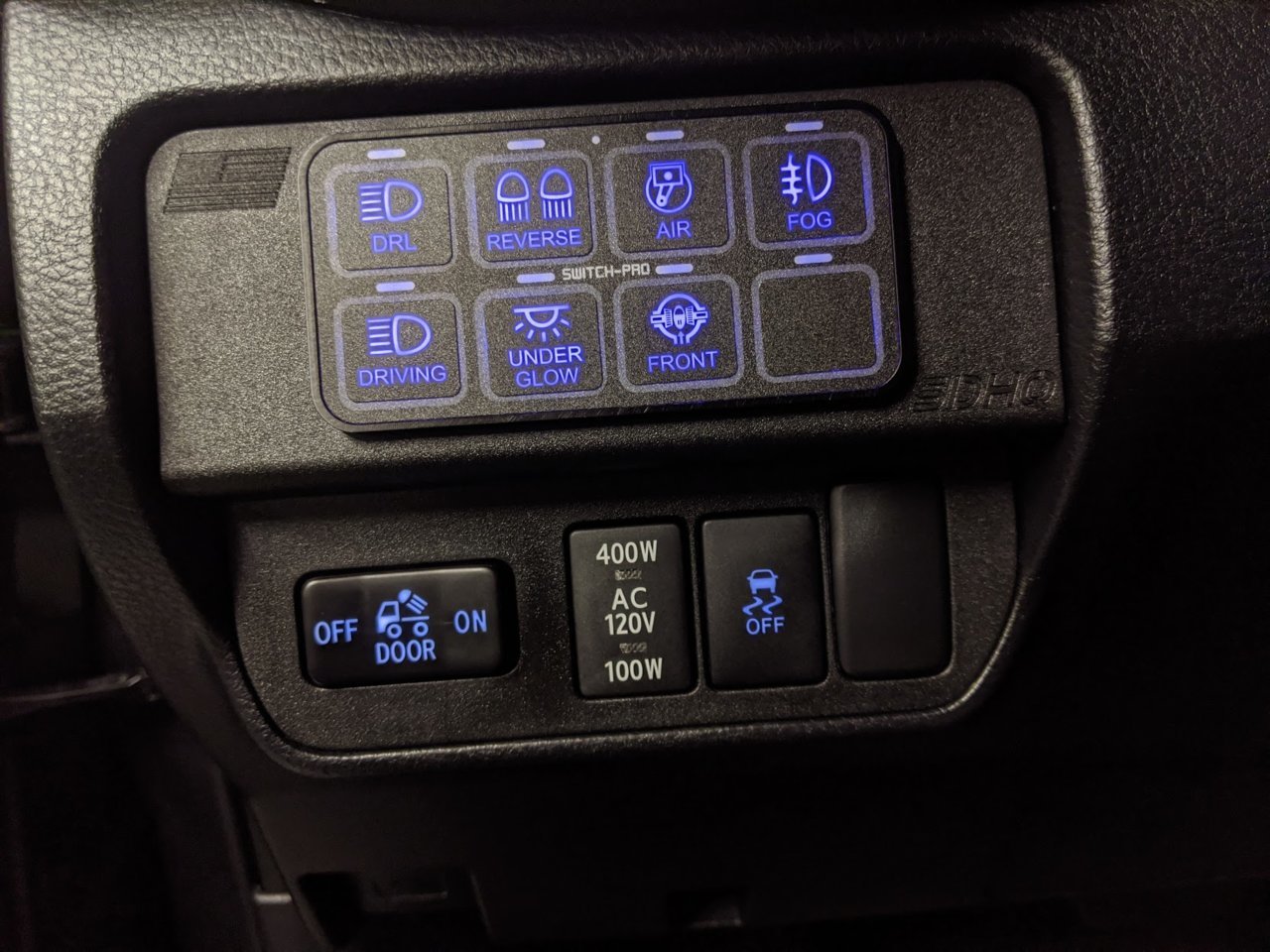

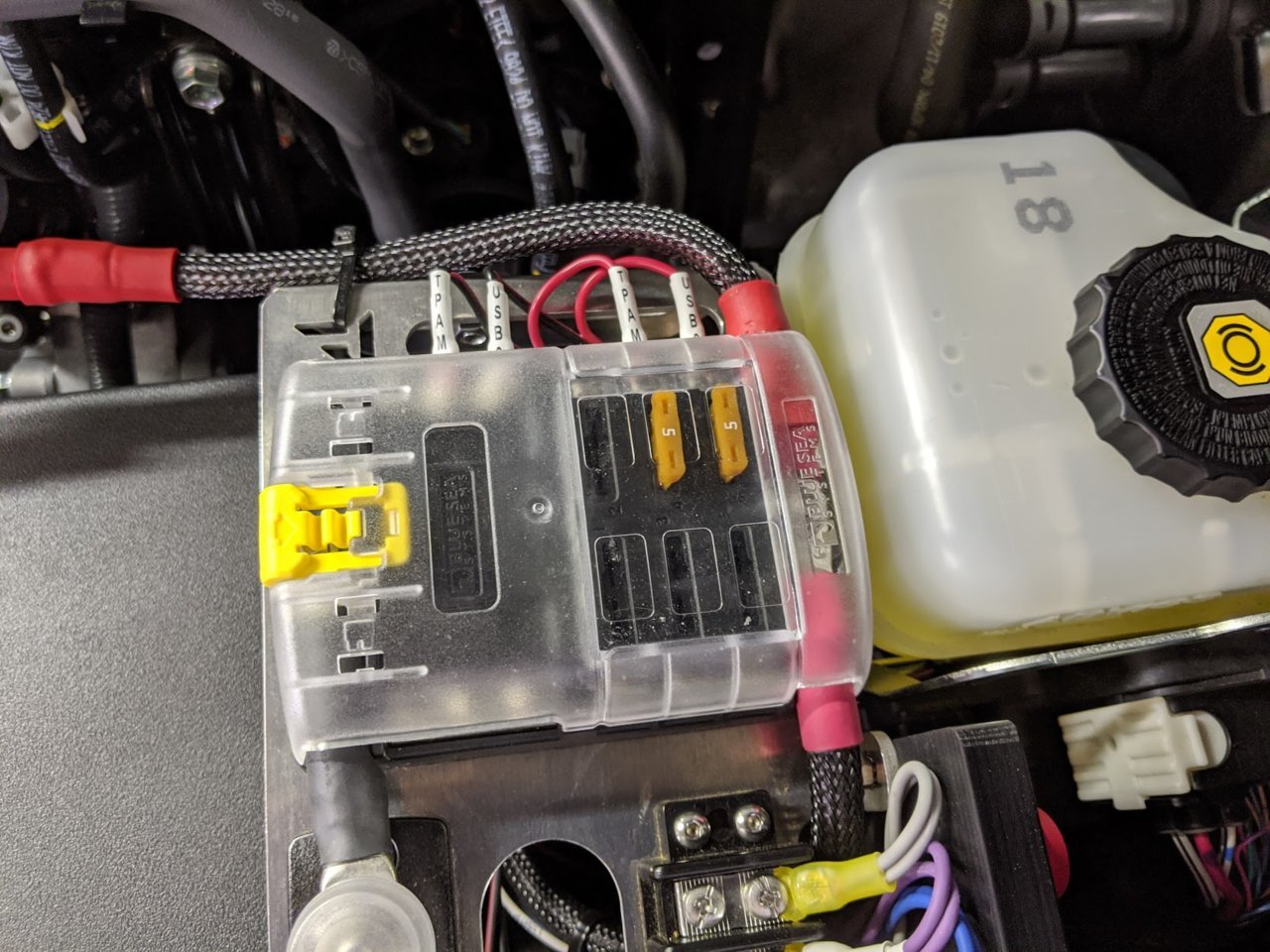

    So I wanted the 3TPAM to be hot always so I wired it to a Blue Sea distribution block. This way I can charge my devices overnight or when the truck is off.

    I also wanted to utilize the 12V plug at the end of the switch row to swap in a Powerwerx QC3.0 USB and 12V meter to keep track of the charge status. I also ran this to the Blue Sea Block for power all the time.

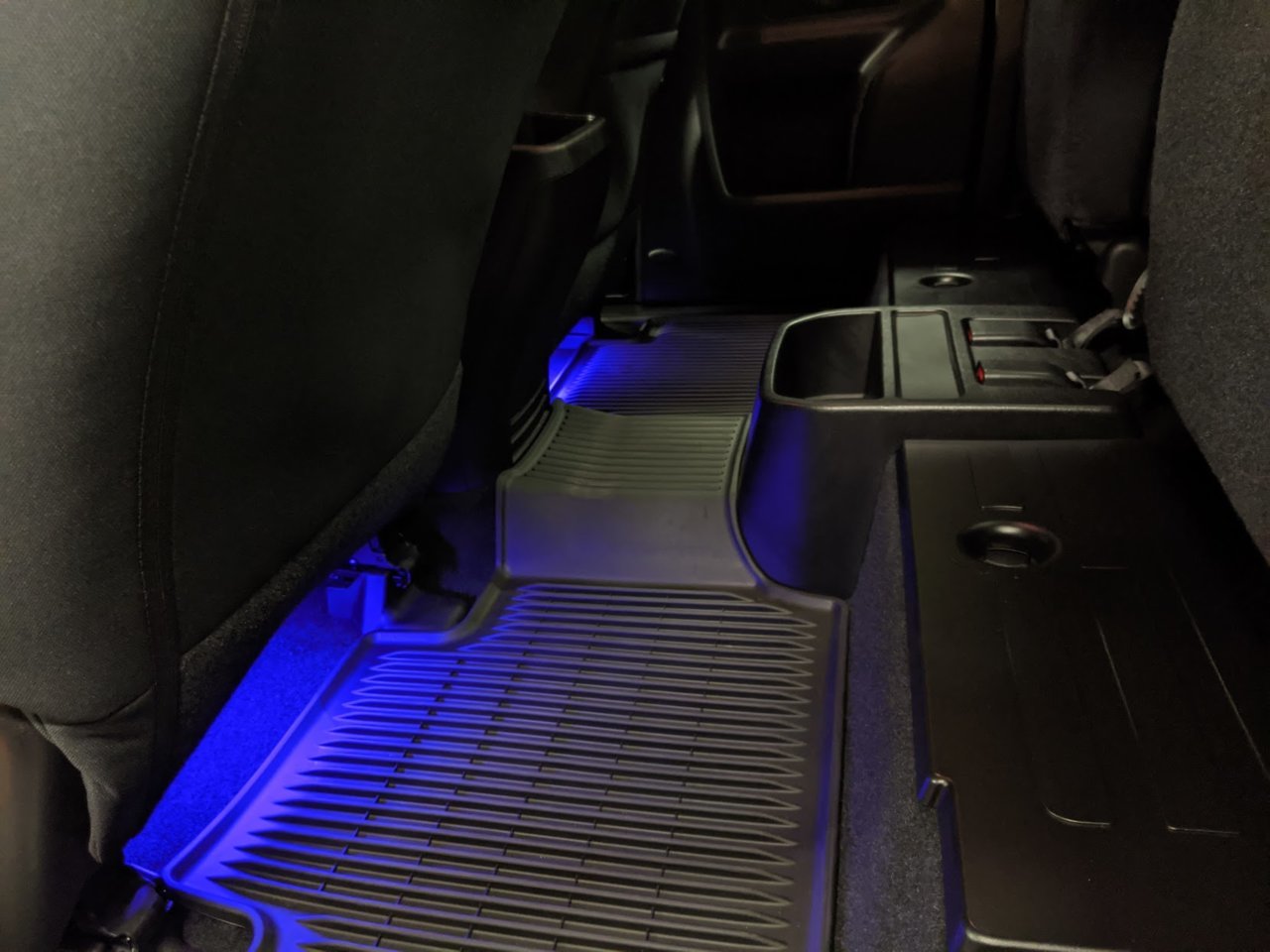

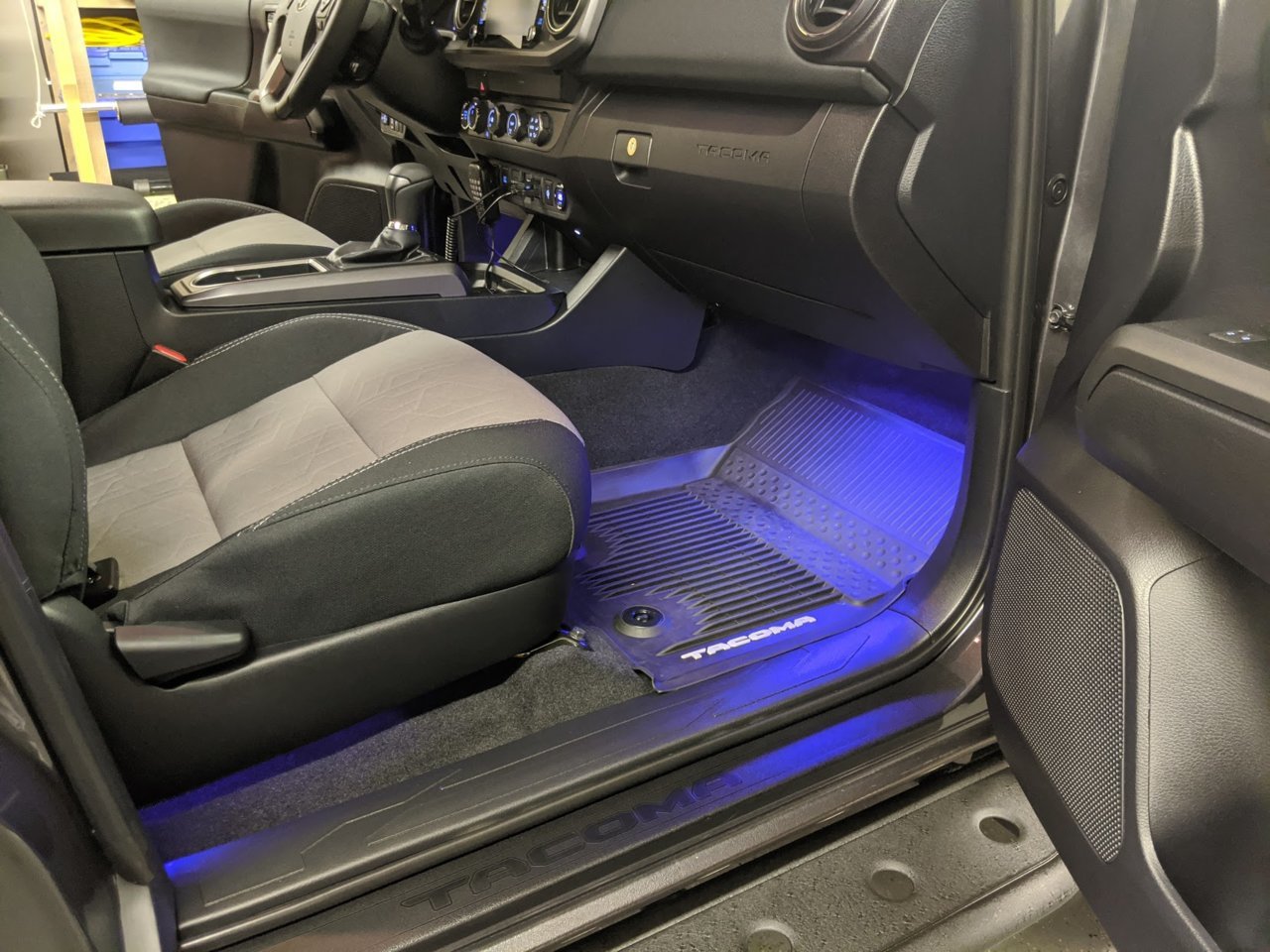

    In the 80 Series I went with red underdash lighting, but went blue with the Tacoma to match the rest of the interior lighting. Using the Switch-Pro 9100 allows me to control the brightness. It's just enough to light up the floor area and I can also set it to be constant hot so I can use it at night without having to start the truck.

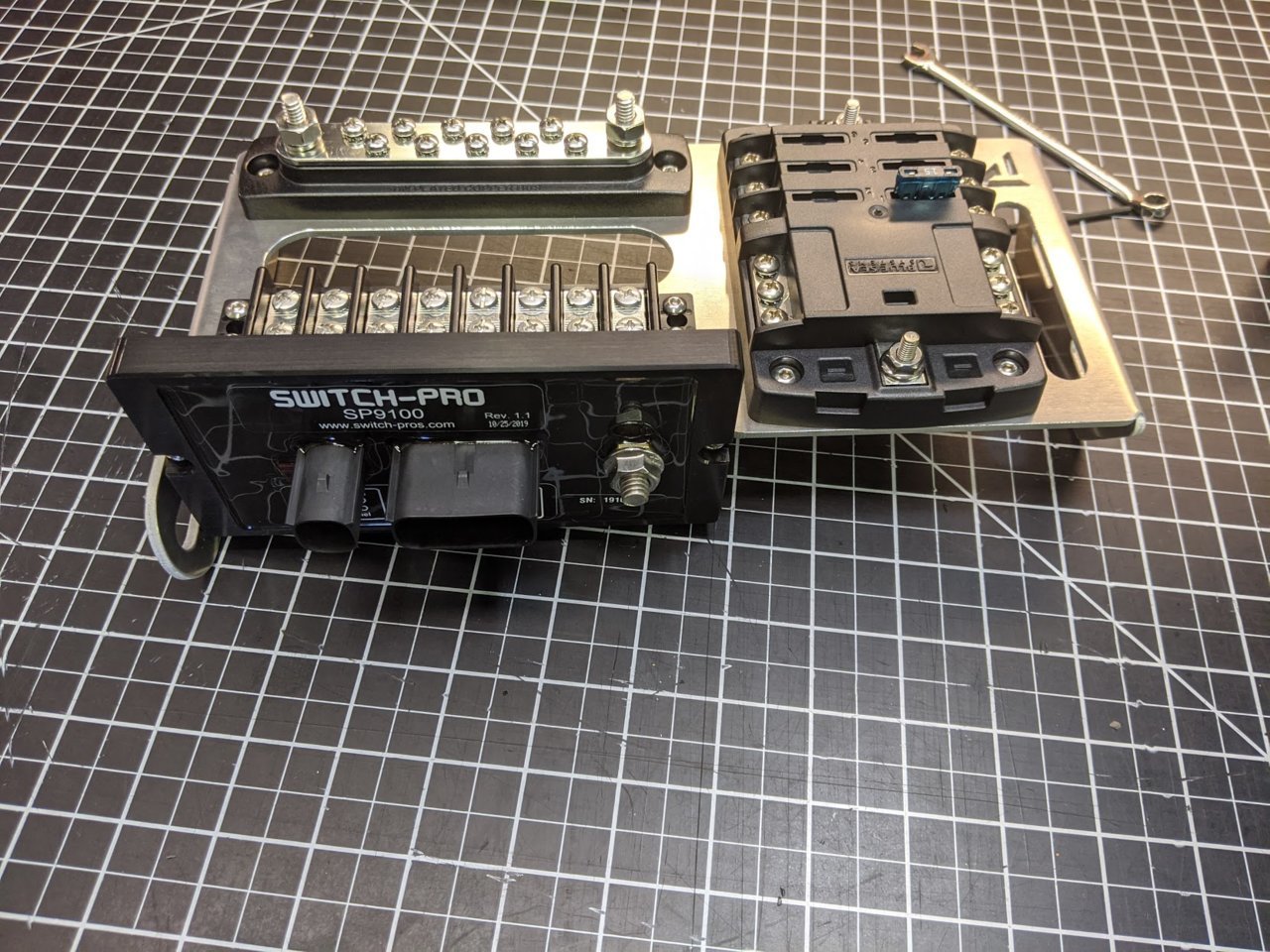

    I utilized an SDHQ SP-9100 plate and just had to relocate my auto high beam button from this location to the center switch blanks.






    Cheers,

    John~

  15. Apr 6, 2020 at 8:36 AM
    #35
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...
  16. Apr 7, 2020 at 8:32 AM
    #36
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

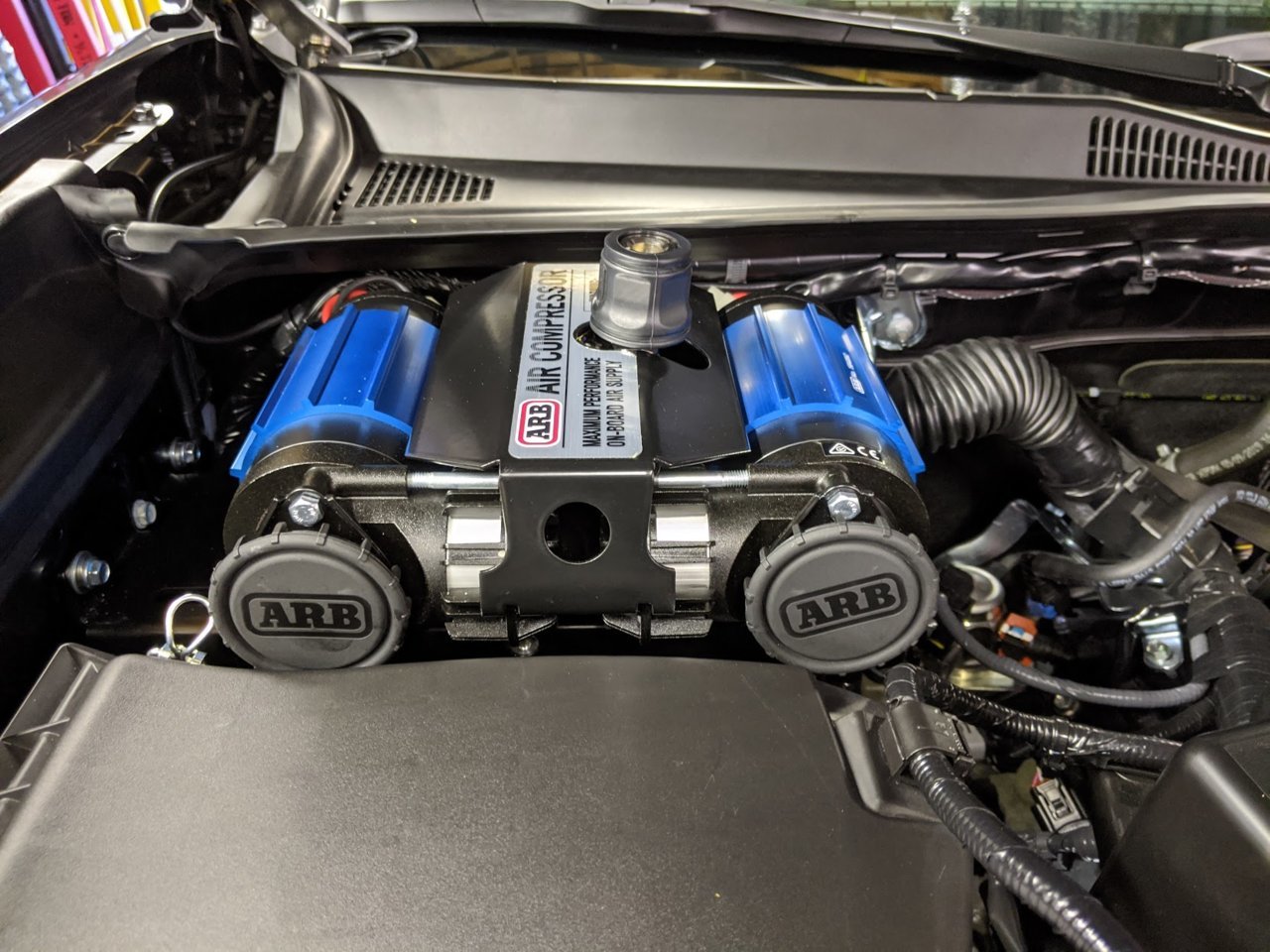

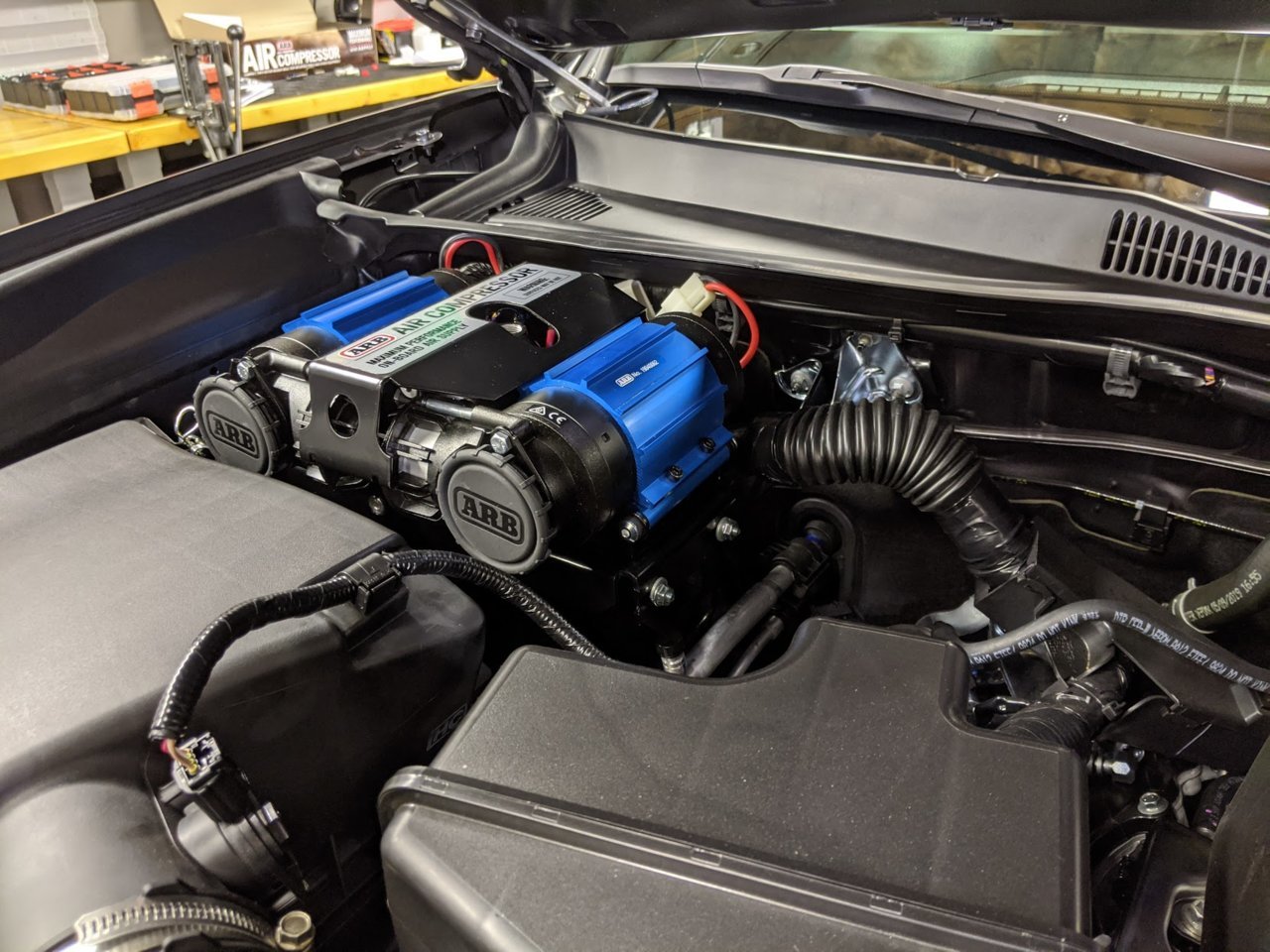

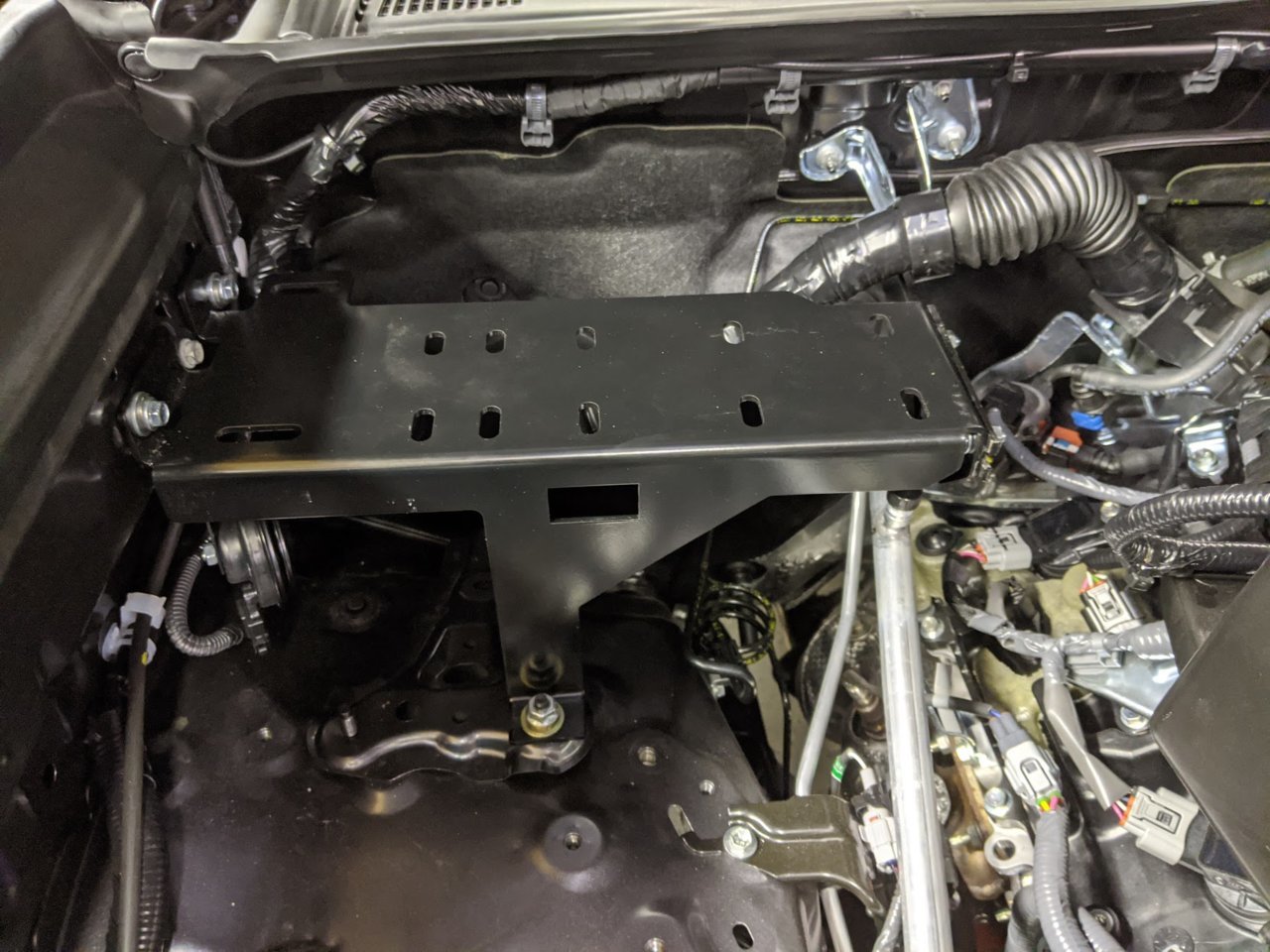

    So the last of the under bonnet mods was the addition of the ARB twin compressor. This is wired direct to the battery and the control is done with the Switch Pro's SP-9100

    The twin mount is from Slee Offroad with some modifications by me. I did not need the air locker manifold and was lucky enough that the hood closed with the air coupler attached directly to the twin compressor.


    Slee Mount with my modifications




    Test fitting the ARB




    Final Mount with direct mount air coupler

    You can also just see the Victory 4x4 Antenna Mount on the hood hinge for my 2m / 70cm Radio System

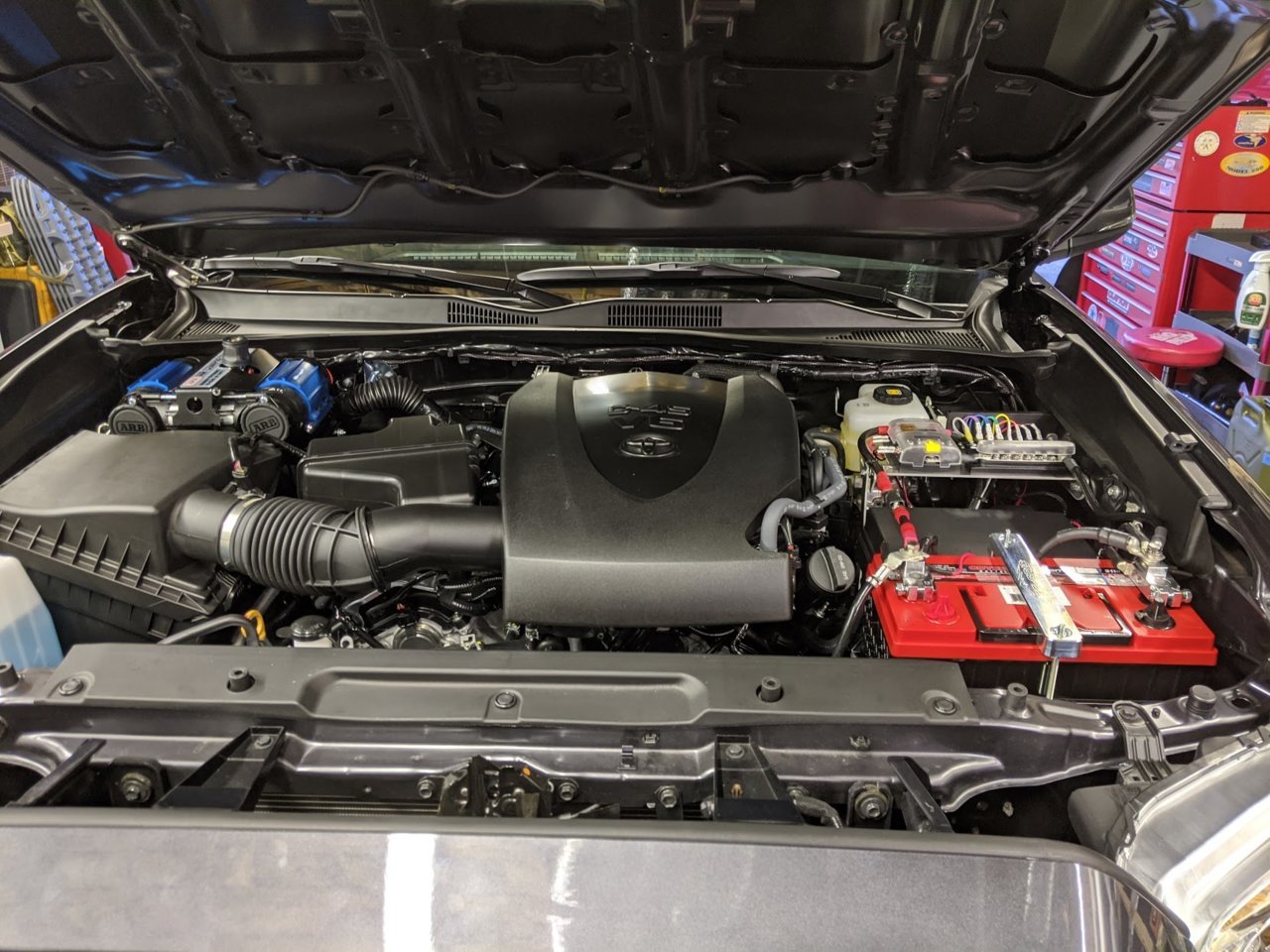

    Underhood with ARB, Group 31, Power Tray with SP-9011 and Blue Sea Distribution Block



    Cheers,

    John

    texbaz, Fargo Taco and bhayes423 like this.
  17. Apr 8, 2020 at 6:56 AM
    #37
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

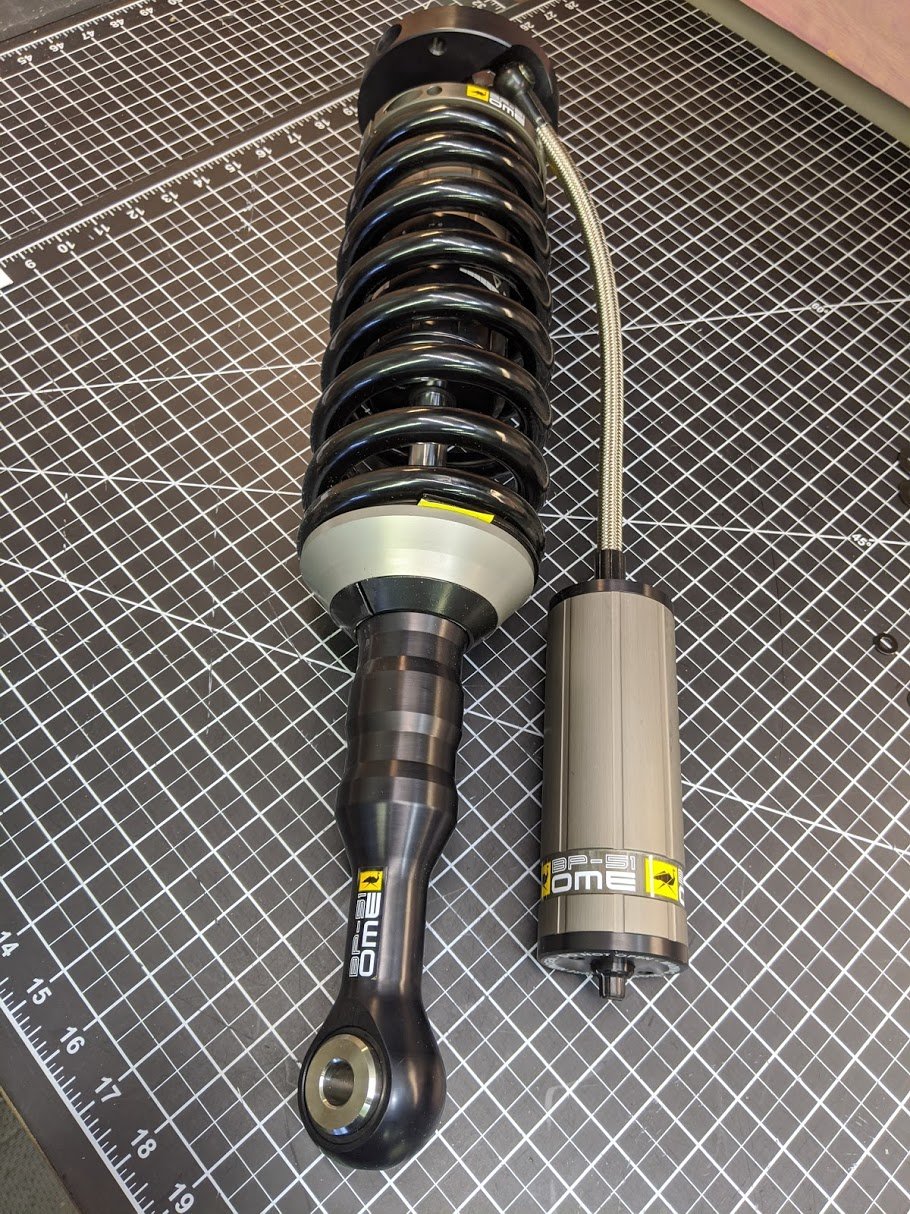

    So attention was now turned to the suspension upgrades to balance the weight of the Khaya Camper when installed and also provide a nice streatable ride for daily driving.

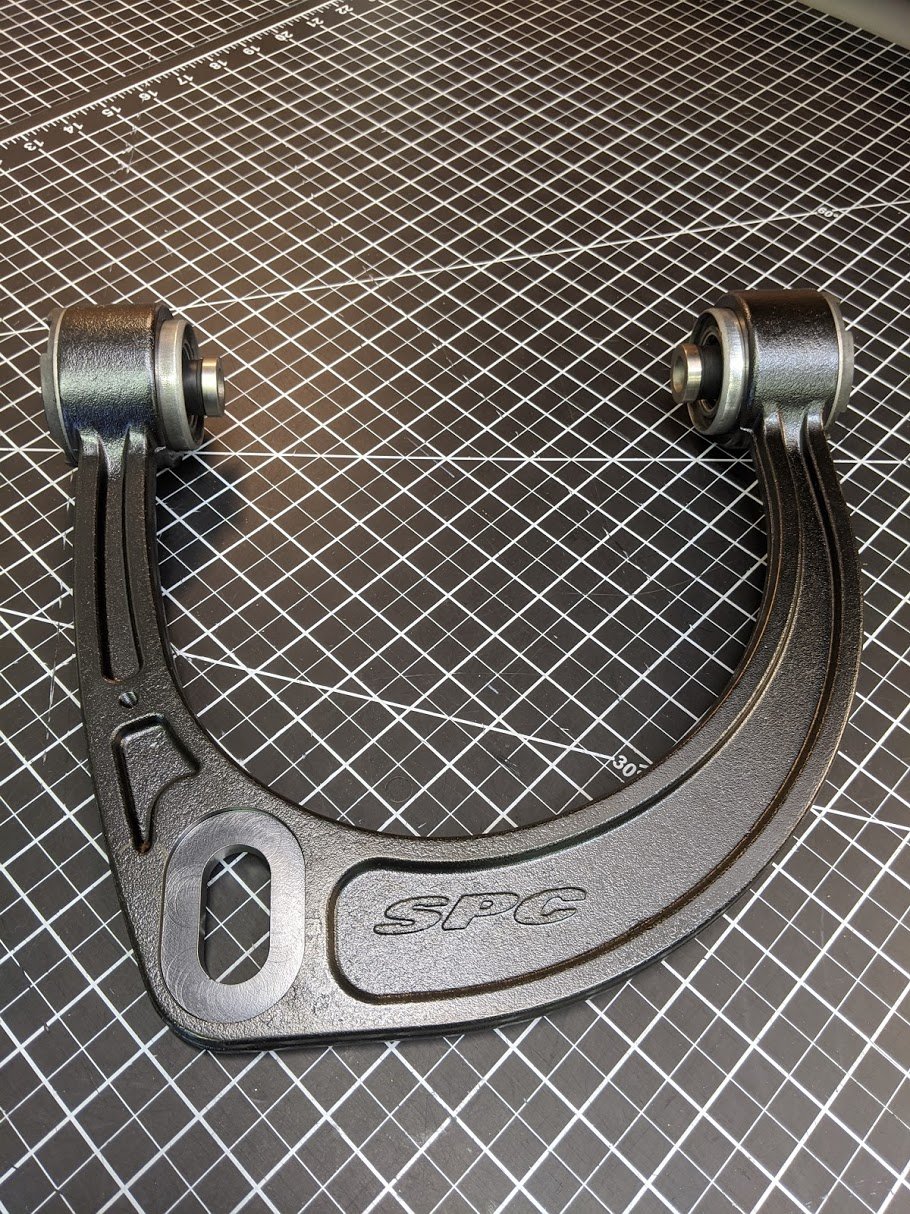

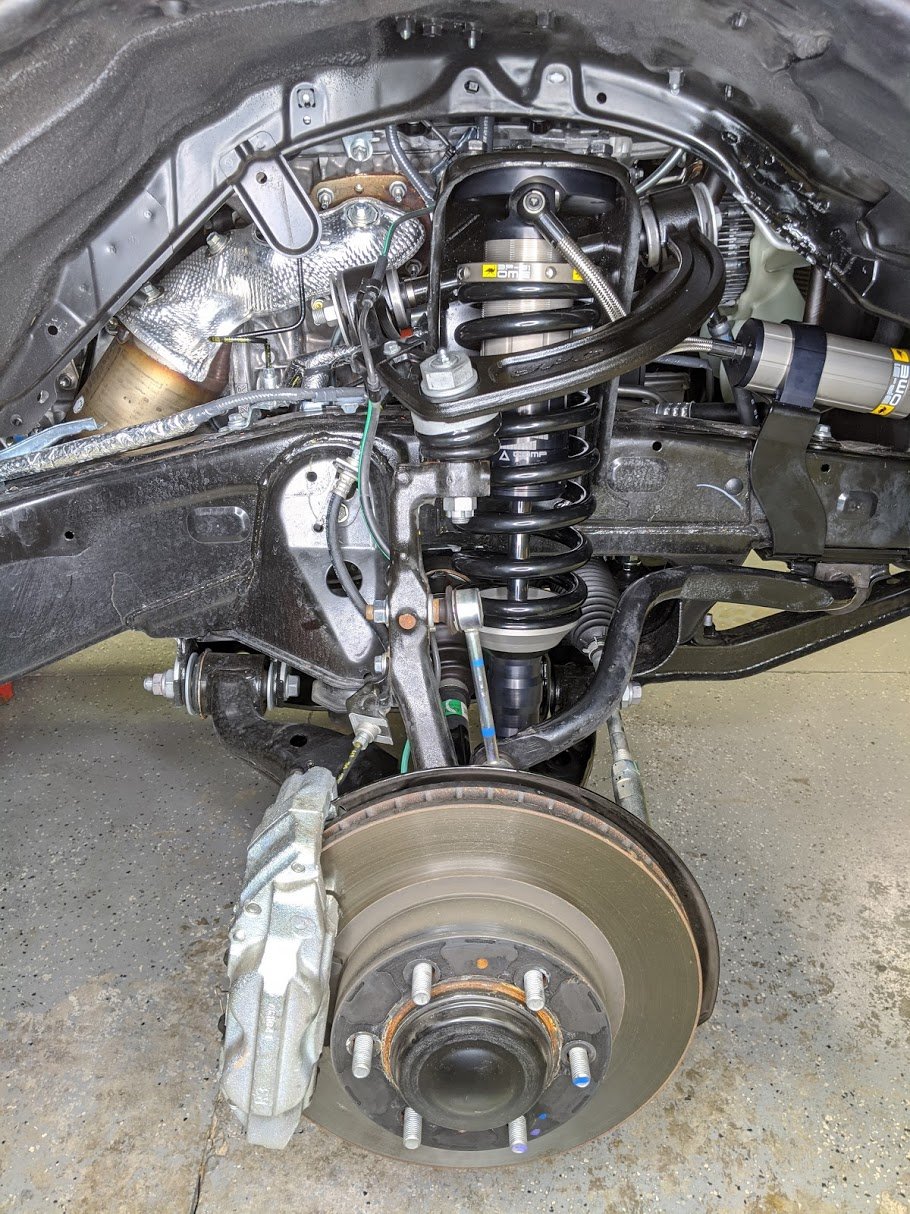

    I went with the OME BP-51 Suspension, this was set up with SPC adjustable upper control arms. I was one of the first to put the BP-51 on the 80 Series and it fit my needs perfectly, so it was a natural transition to the Tacoma. I had Rin @rino at OK4WD set this up for a front bumper and winch so about 20mm of Preload.

    Working with Rin and the great folks at OK4WD was just a perfect experience. I've done some major work on Jeeps and Land Cruiser 80,100 and 200 Series, but the Tacoma was a new platform for me and their help and guidance was invaluable during my build.






    Cheers,

    John~

    Fargo Taco and gasgasman like this.
  18. Apr 8, 2020 at 7:09 AM
    #38
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

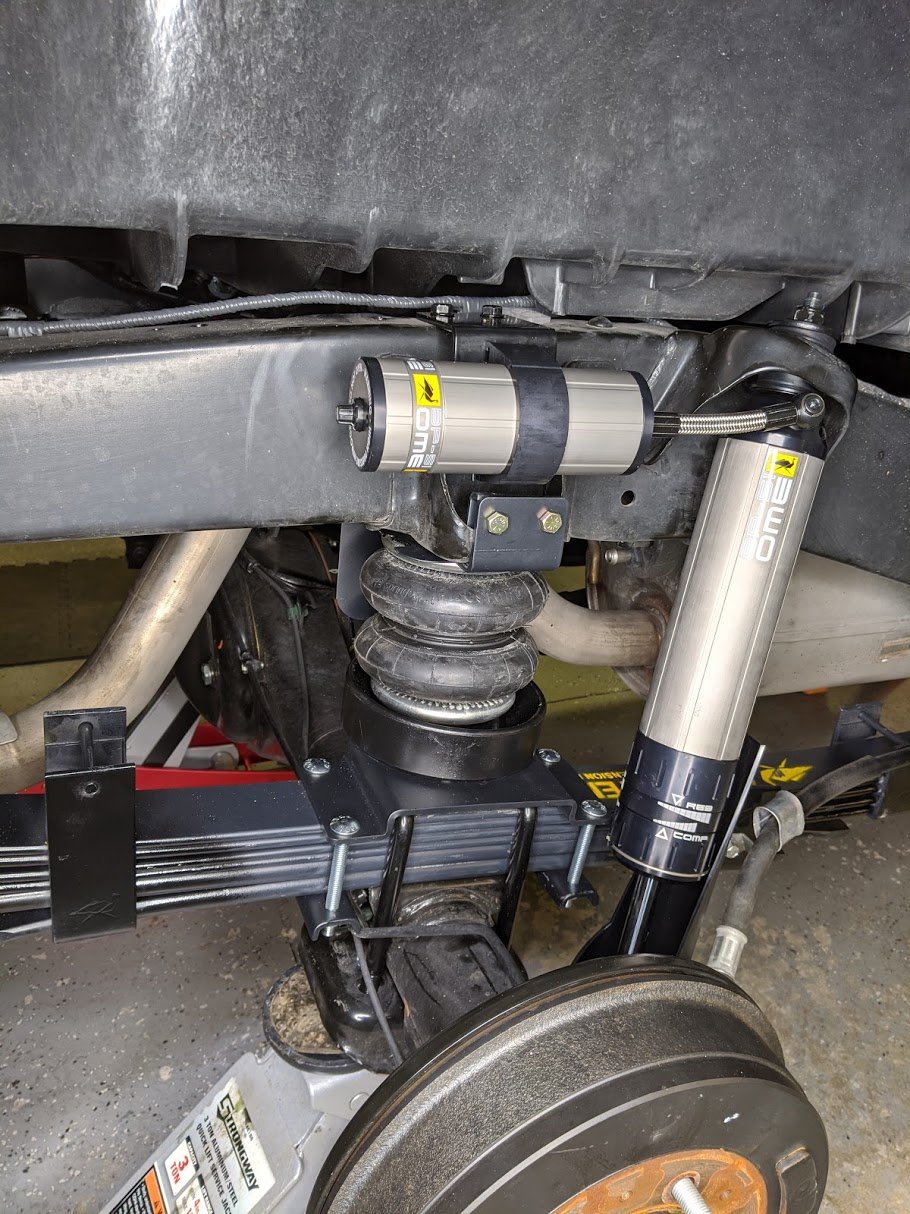

    The rear was next and I went with a set of OME Dakar Medium Rear Leaf Packs (ARBEL095R) along with a set of Firestone Airbags. This would provide for a comfortable ride unloaded and then allow me to take the extra weight of the camper with the airbags.

    The airbags were set with a pair of Daystar cradles and extra support was provided with OK4WD's Extension Plates.

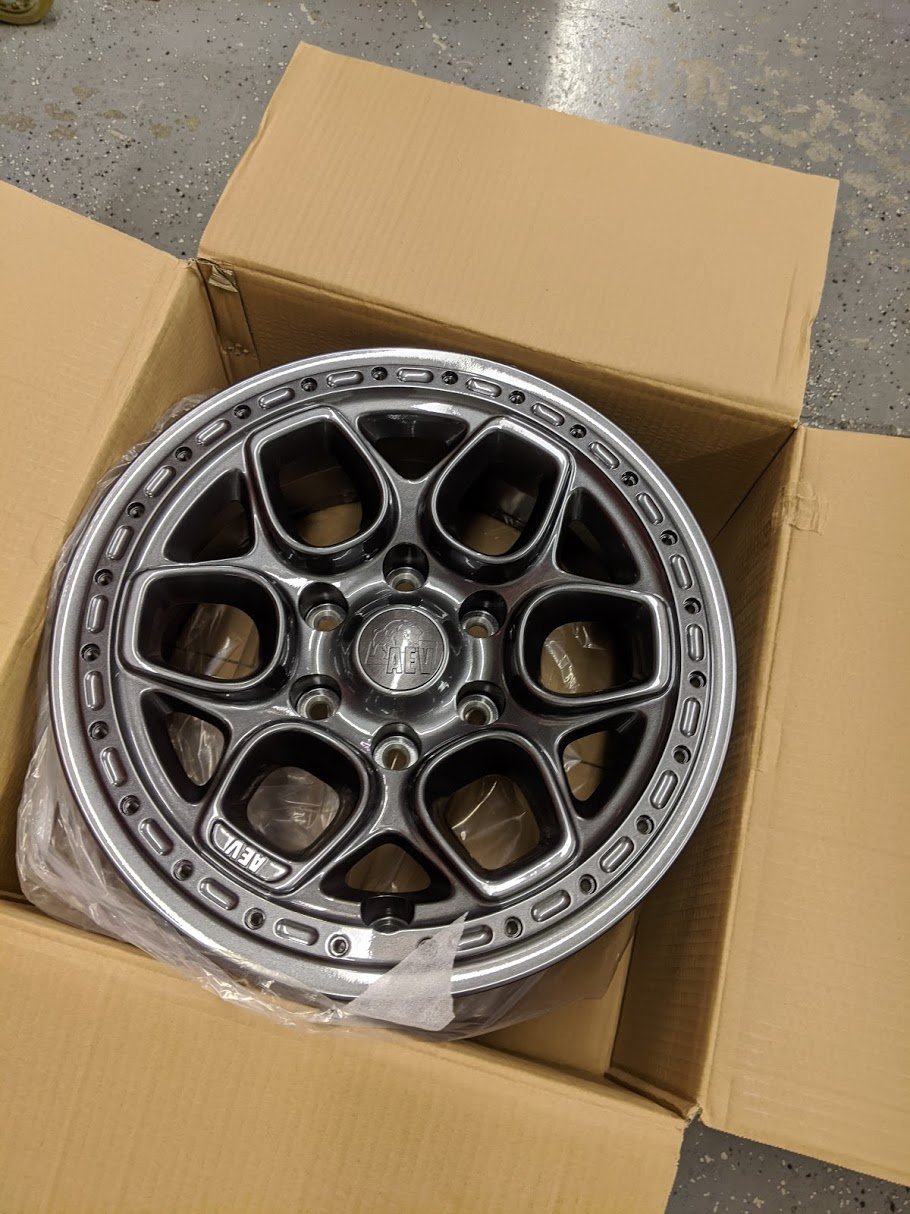

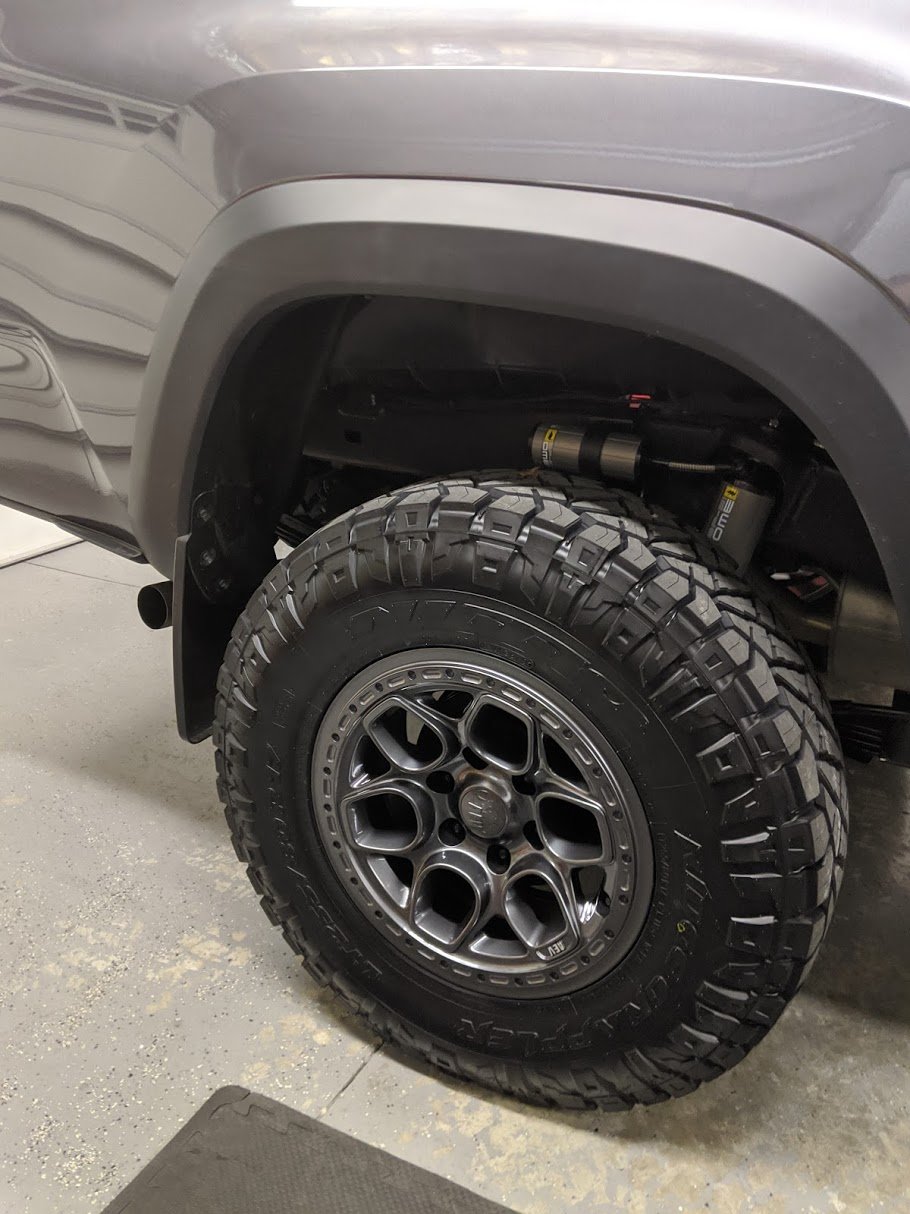

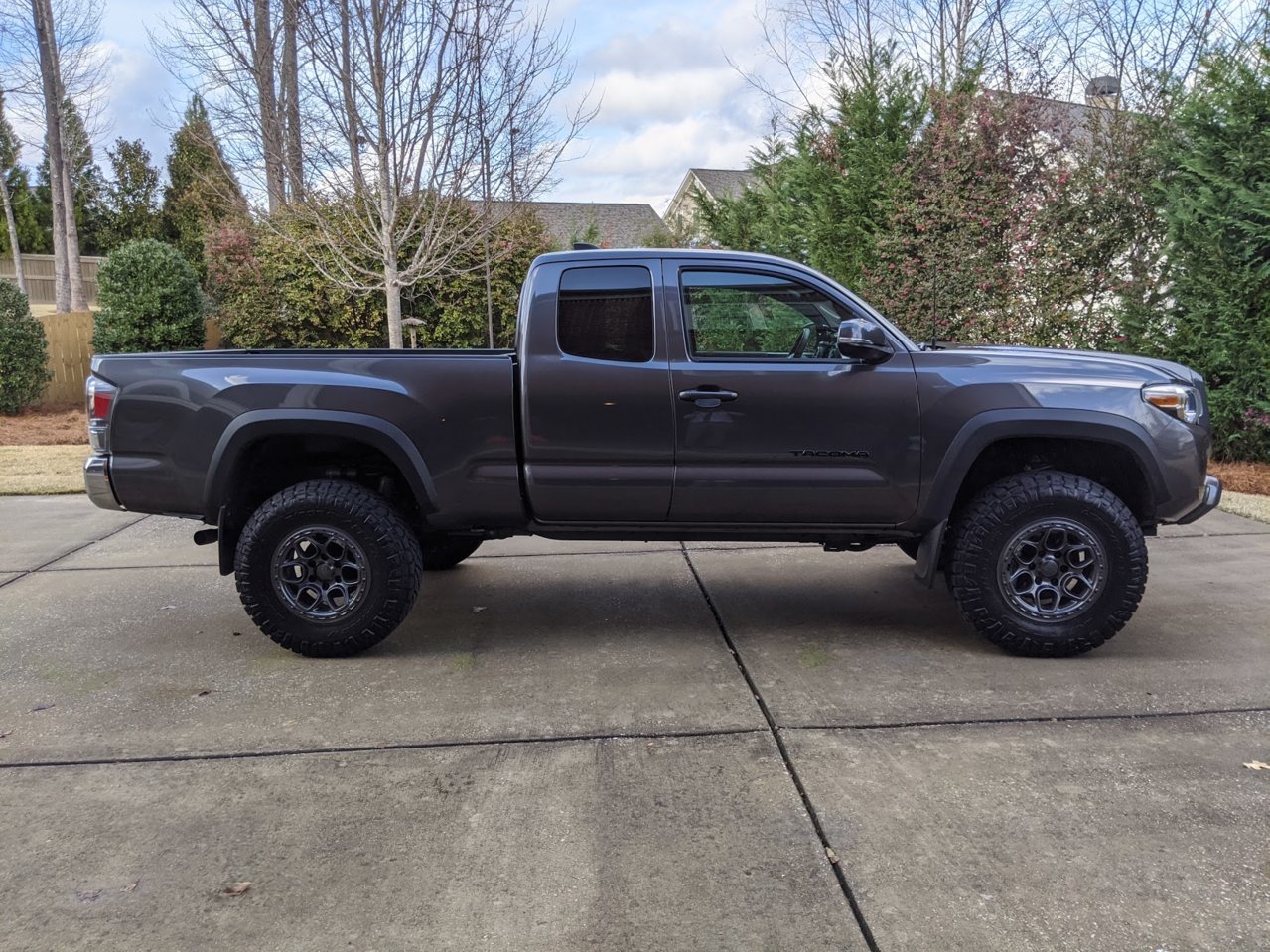

    Wheels and Tires followed with a full set of AEV Crestline Tacoma Wheels in 17x 8

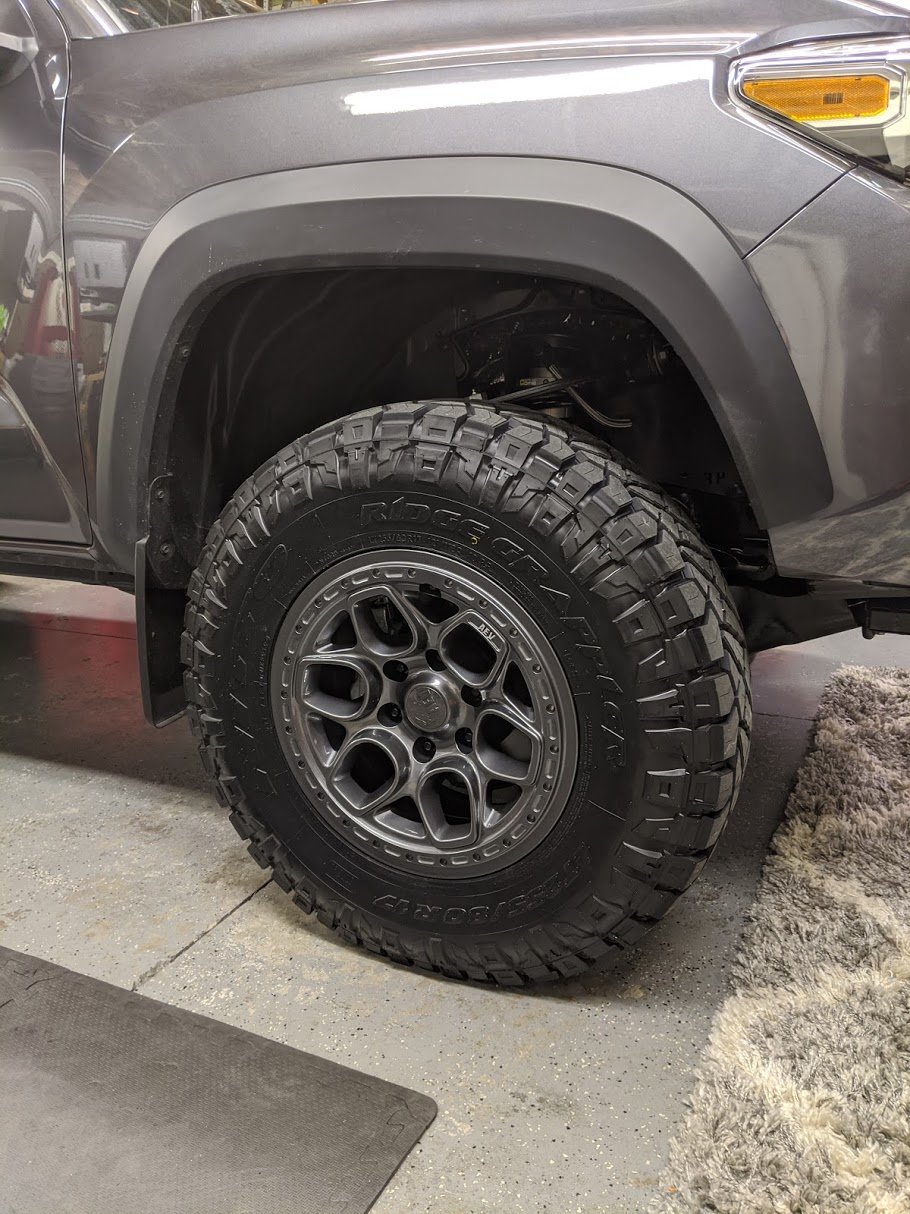

    Tires were Nitto Ridge Grappler in 255/80/17 - Personal Preference, but I wanted a slim profile and as little tire induced power loss as possible with the build.







    After Lift, Tires and 10PSI in the bags I ended up with a ground to fender height of 38.5" on the Front and 40.5" on the rear....



  19. Apr 8, 2020 at 7:22 AM
    #39
    Not_Sure

    Not_Sure Well-Known Member

    Joined:
    Mar 9, 2019
    Member:
    #285950
    Messages:
    382
    Gender:
    Male
    First Name:
    J
    NC
    Vehicle:
    2019 Model 7545 in Silver Sky
    Bike rack
    Awesome work! Quite impressive and extremely clean!

    Boltripper[OP] likes this.
  20. Apr 8, 2020 at 7:25 AM
    #40
    Boltripper

    Boltripper [OP] Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311136
    Messages:
    468
    Gender:
    Male
    First Name:
    John
    Hoover, Alabama
    Vehicle:
    2020 TRD Off Road Access Cab A/T in MGM
    Khaya Camper with Custom Mods - BP-51's, 4.88's, 33's', Dissent Offroad Front and Rear with Bud Built on the sides...

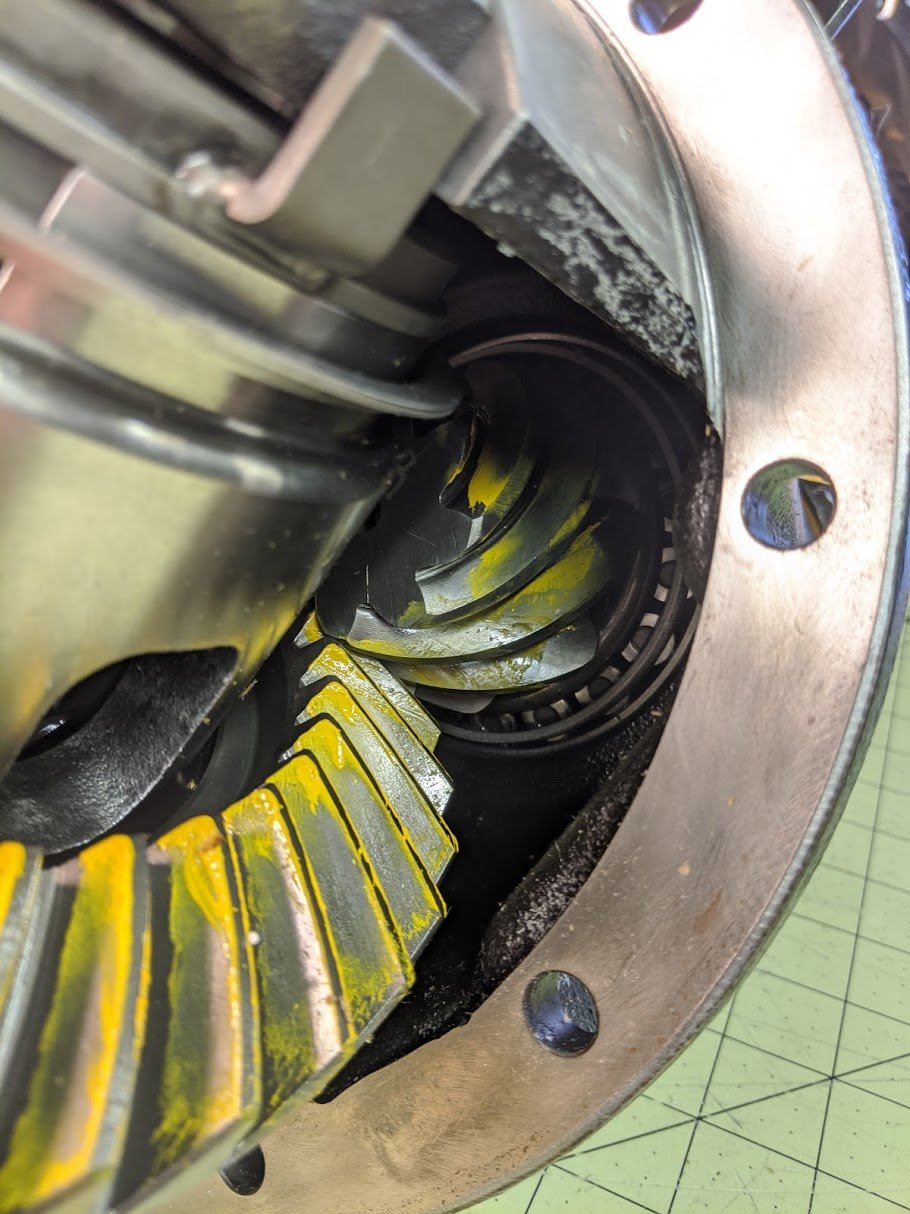

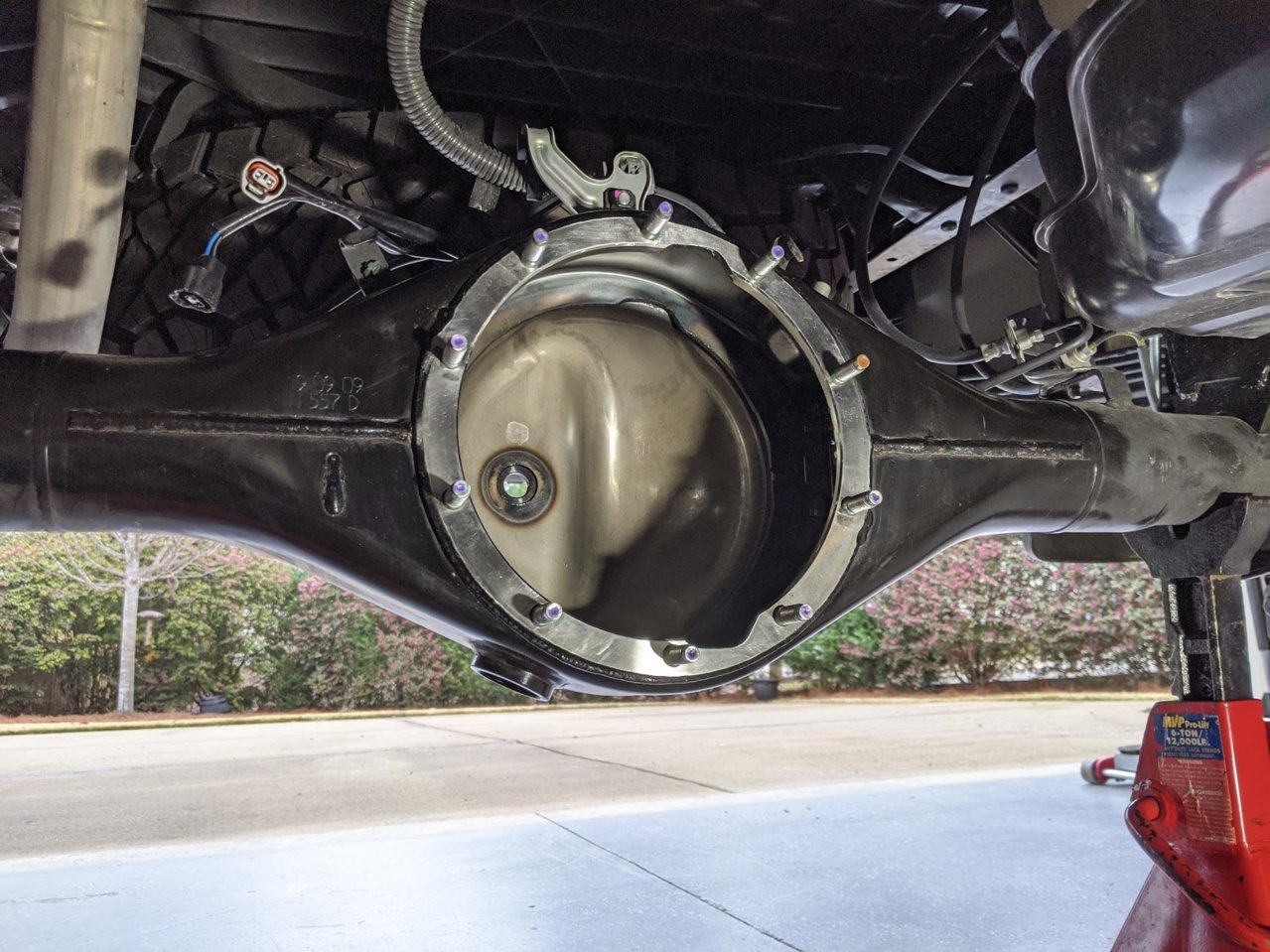

    Next was 4.88 gears and I went with a set from East Coast Gear..... Again another personal choice, but I won't be going taller than 33" tires and 98% of my daily commute is 75+ mph highway.

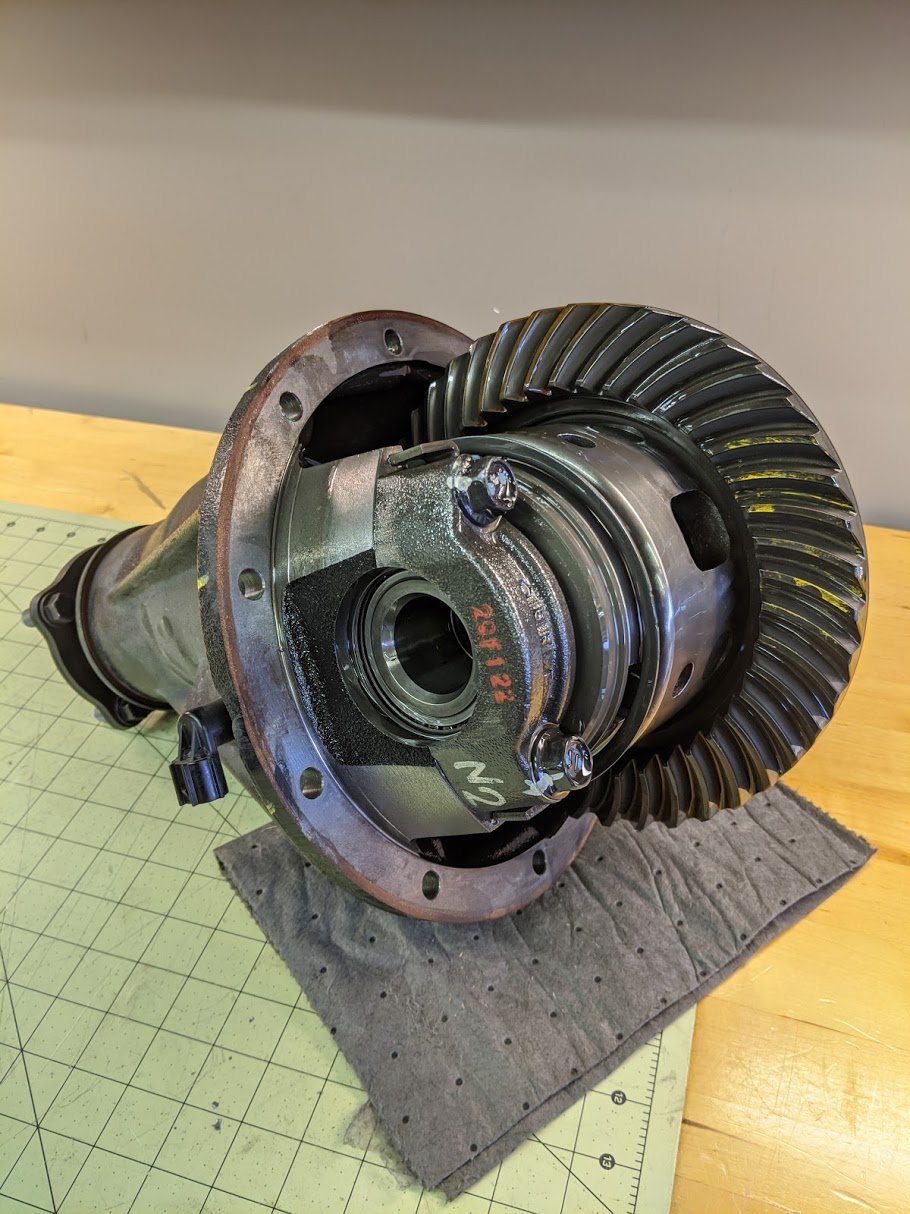

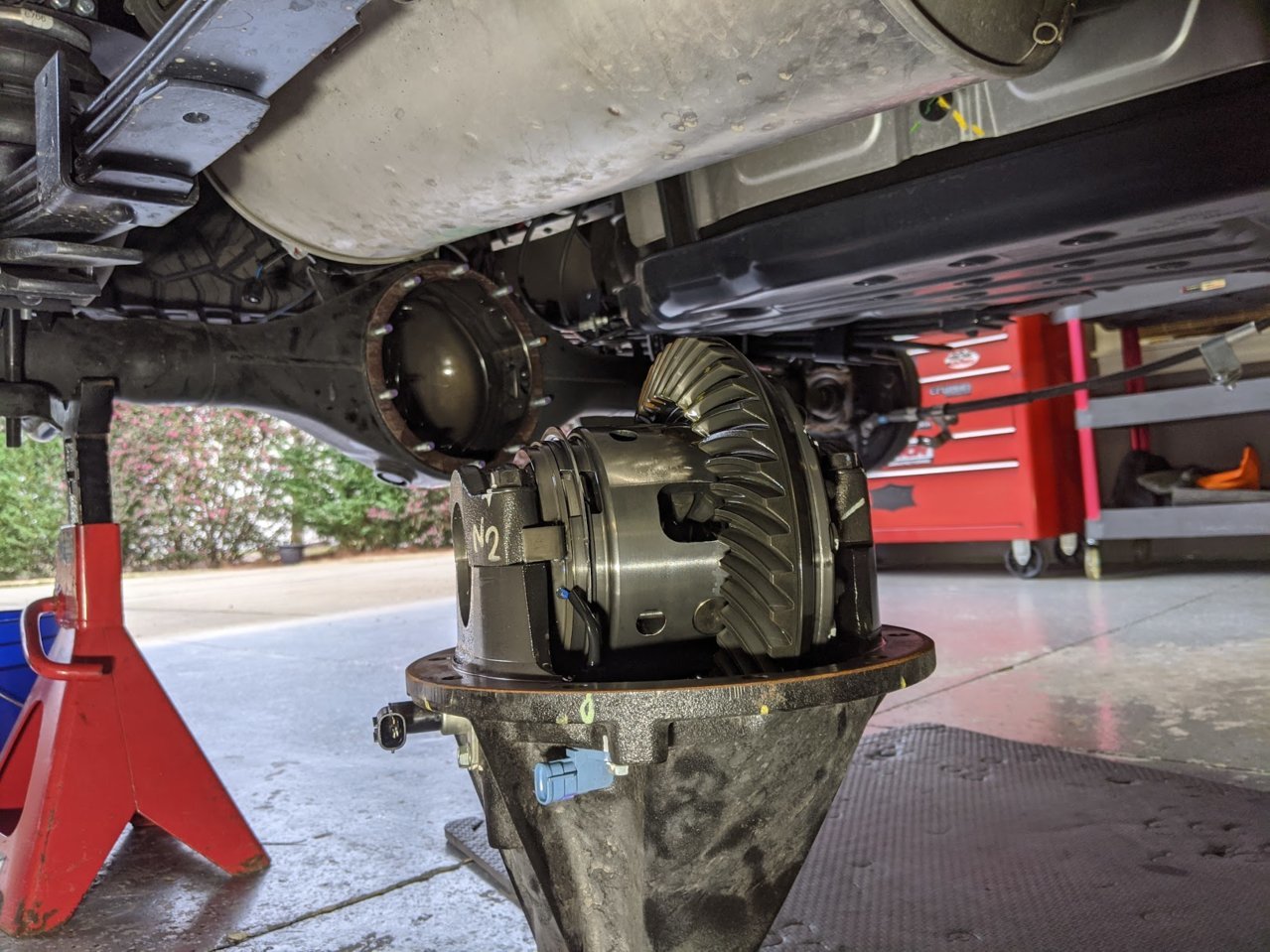

    Pulled the rear and it was funny still seeing gear marking paint on the stock gears... Granted they had less than 3000 miles on them.





    Got everything cleaned up and ready for the East Coast 4.88's





    Can't say enough about East Coast.. Great Setup and Customer Service...


    4x4spiegel, Sna and Dirk Diggler like this.
