Brake control install write up.

Discussion in '3rd Gen. Tacomas (2016+)' started by RedBeard1, Apr 25, 2016.

  1. Apr 25, 2016 at 11:29 AM
    #1
    RedBeard1

    RedBeard1 [OP] Welder with a wheeling habit!

    Joined:
    Nov 9, 2015
    Member:
    #169163
    Messages:
    1,453
    Gender:
    Male
    First Name:
    Red
    The Republic of Texas
    Vehicle:
    1985 Hilux Crawler(Pete), 2016 Quicksand TRD OR 6MT (Wombat), 2016 TRD Pro T4R
    Mostly stuff I built.
    Decided to go a head and hard mount my brake control today. Figured I do a write up on it for you guys and gals.

    Used a Reese Pilot controller because I liked the single hole mounting and I have had good luck with this model in the past.image.jpg

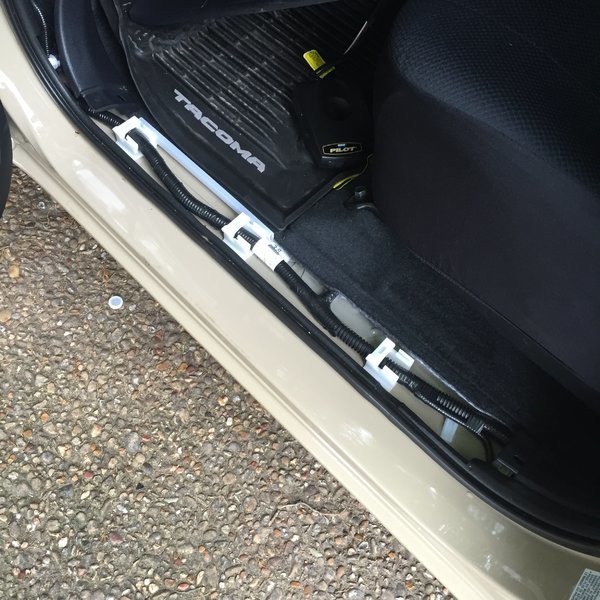

    First things first you need to remove the door threshold trim. Pretty straight forward just gently pull up on it and it comes right off.image.jpg

    Now remove the drivers kick panel by removing the push nut above the foot rest and then pop the two clips on the side closest to the door. These can be tricky to line back up on reassembly so pay close attention to how they come out.image.jpg

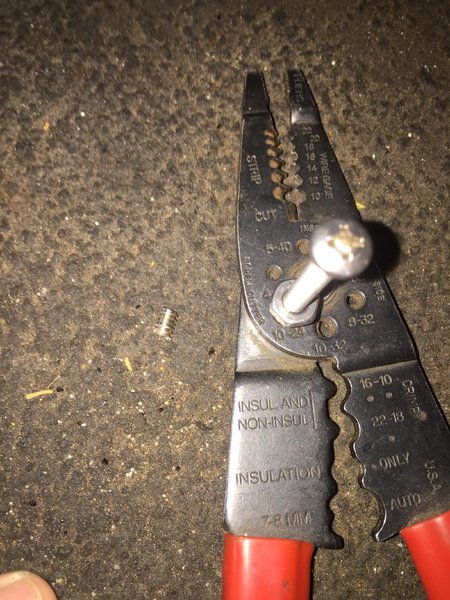

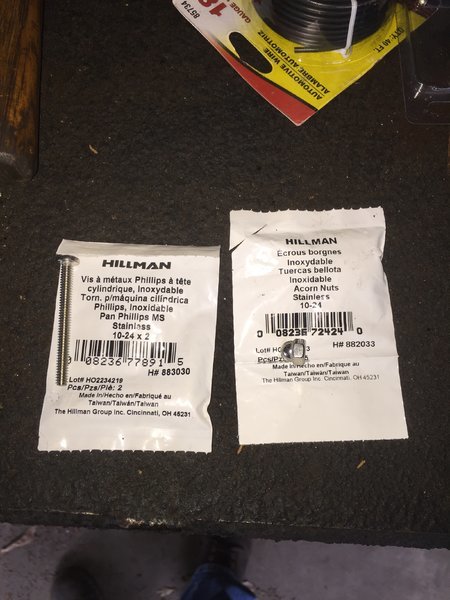

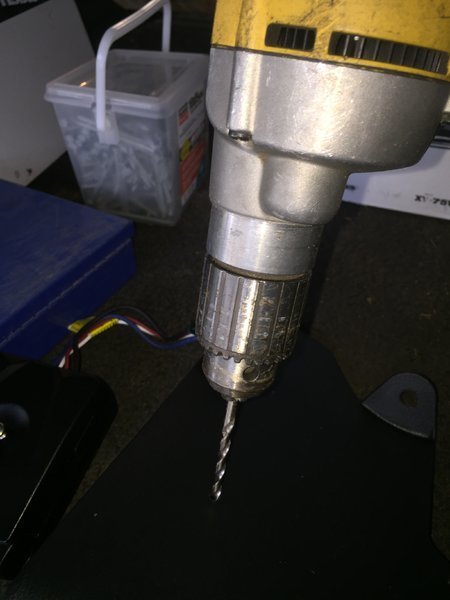

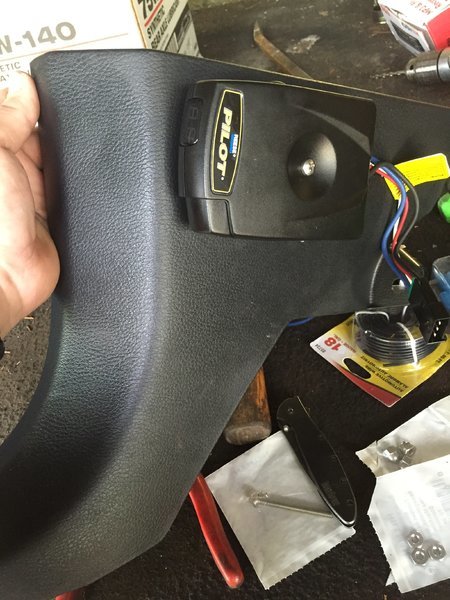

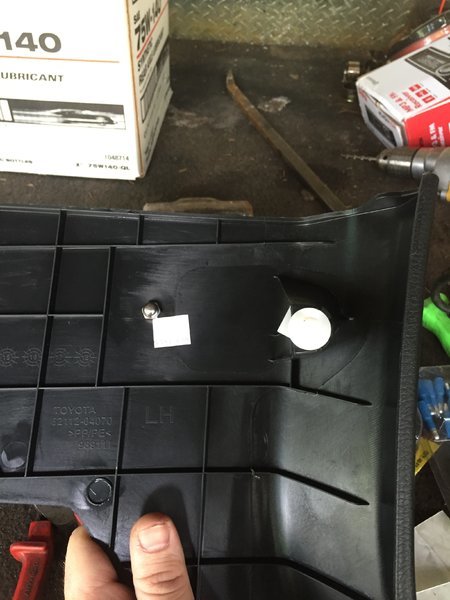

    Now it is time to mount the controller to the kick panel. The Pilot has a single hole in the center for mounting that is 3/16" dia. I found where I wanted it and drilled my hole. The fastener I used is a stainless 10-24 machine screw with an acorn nut. I purchased a 2" long screw and trimmed it to the exact length with my crimpers.image.jpgimage.jpg image.jpgimage.jpg image.jpg

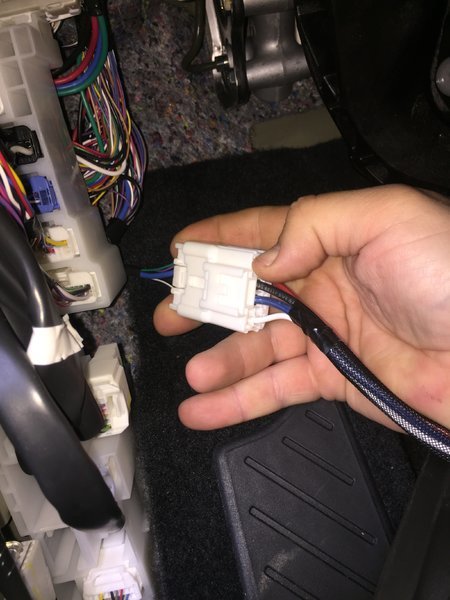

    Wiring time! I had ordered the plug and play harness for this truck so it was easy just located the factory plug behind the kick panel and plugged it in to the truck and then into the Pilot controller. Zip tied the excess length up and re installed the kick panel and threshold molding.

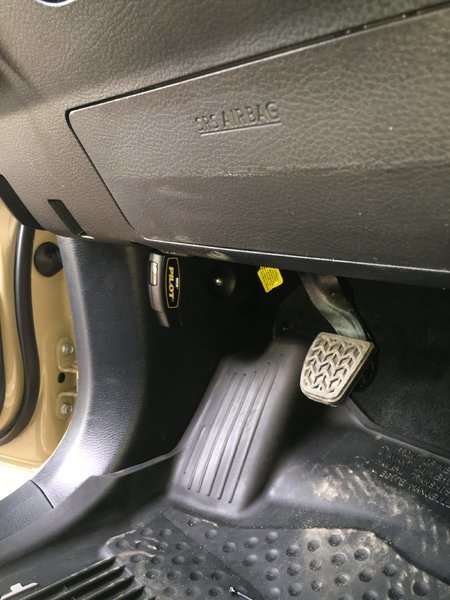

    image.jpg image.jpg image.jpg

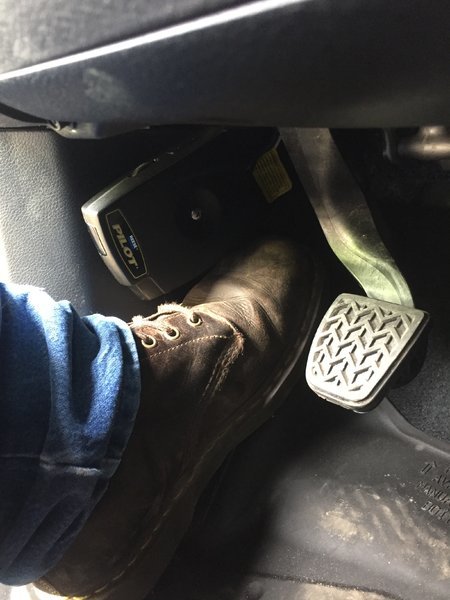

    Took the truck for a drive and had some interference with my foot while using the foot rest. With the single bolt install this was an easy fix. I just adjusted the angle and I was in business.image.jpg

    This install is on a TRD OR with 6speed manual and factory towing package other models ma vary on installation process. image.jpg


    Attached Files:

  2. Apr 25, 2016 at 2:49 PM
    #2
    arkywally

    arkywally Well-Known Member

    Joined:
    Nov 20, 2015
    Member:
    #170244
    Messages:
    659
    First Name:
    David
    Vehicle:
    2016 DCSB TRDOR
    ICON Stage4 285/70/17 Cooper STT Pro Method NV
    Not bad at all is it? Nice when the everything is pre-wired.

  3. Apr 25, 2016 at 2:59 PM
    #3
    RedBeard1

    RedBeard1 [OP] Welder with a wheeling habit!

    Joined:
    Nov 9, 2015
    Member:
    #169163
    Messages:
    1,453
    Gender:
    Male
    First Name:
    Red
    The Republic of Texas
    Vehicle:
    1985 Hilux Crawler(Pete), 2016 Quicksand TRD OR 6MT (Wombat), 2016 TRD Pro T4R
    Mostly stuff I built.
    It literally took longer to take all the pictures than to do the instal. If you have any mechanical ability at all you should be able to handle this project. Having been a mechanic for 25 years my self I found the factory pig tail a nice addition.

    Cplluke likes this.
  4. May 2, 2016 at 1:39 PM
    #4
    pokey1416

    pokey1416 New Member

    Joined:
    Apr 19, 2016
    Member:
    #184724
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2016 Inferno Tacoma TRD Off Road
    Tool Box

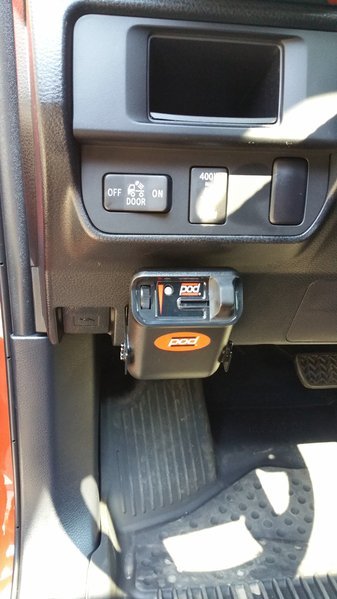

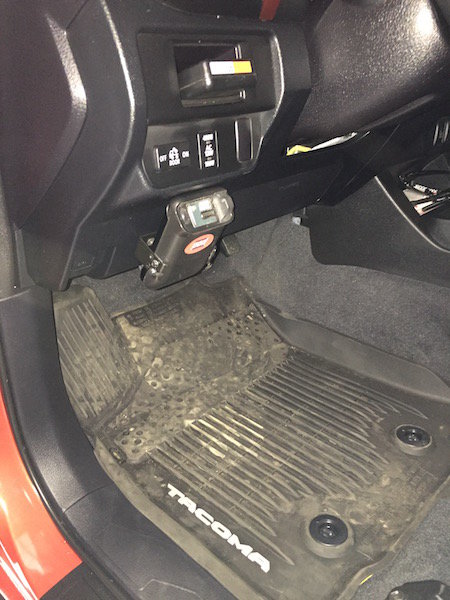

    I installed my Tekonsha POD brake controller over the weekend, after moving it from my 2013 DCLB Sport to my new 2016 DCSB OR. The pigtail is for a Tundra and the install went real well. You can still reach the tire reset button under the controller, and it doesn't interfere with my legs or getting in or out. Been real happy with the POD, I think Reese makes identical one by a different name.


  5. May 10, 2016 at 9:34 PM
    #5
    Z50king

    Z50king DCLBOR4X4FTW

    Joined:
    Jun 9, 2015
    Member:
    #157056
    Messages:
    8,472
    Gender:
    Male
    First Name:
    Eric
    Southern California
    Vehicle:
    2016 DCLB Off Road 4x4 Super White
    Stock and loving it
    Will any of these in the change holder?

  6. May 11, 2016 at 3:55 AM
    #6
    catfish37

    catfish37 Well-Known Member

    Joined:
    May 6, 2015
    Member:
    #154663
    Messages:
    97
    Gender:
    Male
    Vehicle:
    16' dcsb trd or 4x4
    Thanks for doing the write up. I am suppose to pick up my pig tail from dealer this week. I will be doing my controller this weekend.

    RedBeard1 [OP] likes this.
  7. May 16, 2016 at 7:01 PM
    #7
    Diego1931

    Diego1931 Well-Known Member

    Joined:
    May 6, 2016
    Member:
    #186238
    Messages:
    281
    Gender:
    Male
    First Name:
    Ryan
    Northern Ontario
    Vehicle:
    2016 Tacoma TRD Sport Inferno
    Truxedo Tonneau Cover Lund 5" Nerf Bars Shear Comfort Neoprene Rear Seat Covers Wilson Cell Booster Custom Aux Fuse Panel Interior LED Upgrade Tailgate Pop'n'Lock Console Divider Goodyear Wrangler Duratrax 245/75/17 Dewalt Tool Box POD Brake Controller Frame Rust A/C Mod Husky Weatherbeater Floor Mats In Progress: Tool mount brackets in bed D-Ring Bed Mod Under Hood Lighting System Inverter Cab Install
    Alright I seriously feel special. I cannot find my plug in for a brake controller under the kick panel. Anyone have some specific instructions? I'm sure I have the tow package. Truck came with transmission cooler, class iv hitch, and 7 pin connector. It's a 2016 trd sport with upgrade package. Please help lol.

  8. May 17, 2016 at 7:37 AM
    #8
    glider_guider

    glider_guider Well-Known Member

    Joined:
    Apr 19, 2016
    Member:
    #184722
    Messages:
    137
    Gender:
    Male
    Vehicle:
    2016 Red Tacoma TRD OR 4x4
    Mine was tucked in behind a big bundle of wires. I missed it the first time I looked, but I finally found it by running my hand down the bundle of wires that comes from the firewall. I'll try to snap a pic for you this evening if you need it.

  9. May 18, 2016 at 8:46 PM
    #9
    Diego1931

    Diego1931 Well-Known Member

    Joined:
    May 6, 2016
    Member:
    #186238
    Messages:
    281
    Gender:
    Male
    First Name:
    Ryan
    Northern Ontario
    Vehicle:
    2016 Tacoma TRD Sport Inferno
    Truxedo Tonneau Cover Lund 5" Nerf Bars Shear Comfort Neoprene Rear Seat Covers Wilson Cell Booster Custom Aux Fuse Panel Interior LED Upgrade Tailgate Pop'n'Lock Console Divider Goodyear Wrangler Duratrax 245/75/17 Dewalt Tool Box POD Brake Controller Frame Rust A/C Mod Husky Weatherbeater Floor Mats In Progress: Tool mount brackets in bed D-Ring Bed Mod Under Hood Lighting System Inverter Cab Install
    You nailed it. Found it. Brake control installed and looks great. Thanks!

    glider_guider likes this.
  10. May 18, 2016 at 9:36 PM
    #10
    Tduvall

    Tduvall New Member

    Joined:
    May 18, 2016
    Member:
    #187343
    Messages:
    2
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    2016 trd sport Tacoma
    Hi im having trouble finding my plug can someone post a pic. Mine is a 16 trd sport with 7 way in the bumper

  11. May 18, 2016 at 9:41 PM
    #11
    Diego1931

    Diego1931 Well-Known Member

    Joined:
    May 6, 2016
    Member:
    #186238
    Messages:
    281
    Gender:
    Male
    First Name:
    Ryan
    Northern Ontario
    Vehicle:
    2016 Tacoma TRD Sport Inferno
    Truxedo Tonneau Cover Lund 5" Nerf Bars Shear Comfort Neoprene Rear Seat Covers Wilson Cell Booster Custom Aux Fuse Panel Interior LED Upgrade Tailgate Pop'n'Lock Console Divider Goodyear Wrangler Duratrax 245/75/17 Dewalt Tool Box POD Brake Controller Frame Rust A/C Mod Husky Weatherbeater Floor Mats In Progress: Tool mount brackets in bed D-Ring Bed Mod Under Hood Lighting System Inverter Cab Install
    Just like glider says. Take off your kick panel and look for the bunch of wires coming through the fire wall. Once you have the bundle check behind it and the plug is there. I had trouble with it too. But it is there. There is only enough slack on the wires to get it out from behind the bundle, but there is enough for your wiring harness to the controller to plug in. Good luck!

  12. May 19, 2016 at 8:10 AM
    #12
    glider_guider

    glider_guider Well-Known Member

    Joined:
    Apr 19, 2016
    Member:
    #184722
    Messages:
    137
    Gender:
    Male
    Vehicle:
    2016 Red Tacoma TRD OR 4x4
    Awesome! Glad I could help.

    They hid it pretty good on mine. Like Diego says, it is pretty short ... just enough to pull it out and plug your pigtail in. But, as long as you have the tow package it should be there. I'll try to snap a pic this evening if the nasty weather lets up.

  13. May 19, 2016 at 1:12 PM
    #13
    Hankstone

    Hankstone Well-Known Member

    Joined:
    Feb 9, 2016
    Member:
    #177604
    Messages:
    246
    Gender:
    Male
    Vehicle:
    2016 Tacoma Sport DCLB
    Tekonsha will fit in the cubby just right. I got the P3

  14. Jun 1, 2016 at 10:10 PM
    #14
    iyapysnf

    iyapysnf Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188312
    Messages:
    275
    Gender:
    Male
    Vehicle:
    2016 DC OR M/T
    Where did you get this controller and harness? I have looked on the Reese site but nothing comes up when I select a 2016 Tacoma

  15. Jun 1, 2016 at 10:24 PM
    #15
    Diego1931

    Diego1931 Well-Known Member

    Joined:
    May 6, 2016
    Member:
    #186238
    Messages:
    281
    Gender:
    Male
    First Name:
    Ryan
    Northern Ontario
    Vehicle:
    2016 Tacoma TRD Sport Inferno
    Truxedo Tonneau Cover Lund 5" Nerf Bars Shear Comfort Neoprene Rear Seat Covers Wilson Cell Booster Custom Aux Fuse Panel Interior LED Upgrade Tailgate Pop'n'Lock Console Divider Goodyear Wrangler Duratrax 245/75/17 Dewalt Tool Box POD Brake Controller Frame Rust A/C Mod Husky Weatherbeater Floor Mats In Progress: Tool mount brackets in bed D-Ring Bed Mod Under Hood Lighting System Inverter Cab Install
    I got my controller from a trailer place in town, a Tekonsha pod. The harness I bought from toyota. Had a Tekonsha hook up on it so that was easy. Plug and play. All the other controllers I looked at were different style plus so they would have had to been spliced to the harness

    iyapysnf likes this.
  16. Jun 5, 2016 at 6:49 PM
    #16
    Tduvall

    Tduvall New Member

    Joined:
    May 18, 2016
    Member:
    #187343
    Messages:
    2
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    2016 trd sport Tacoma
    I recived my controler and pigtail i was installing it today but seen my black and blue wires position are reversed on the harness from my 2016 sport and new pig tail for the 2016 tundr .is this a manufacturer mistake or do i go ahead and plug it ln?

  17. Jun 5, 2016 at 8:19 PM
    #17
    Hankstone

    Hankstone Well-Known Member

    Joined:
    Feb 9, 2016
    Member:
    #177604
    Messages:
    246
    Gender:
    Male
    Vehicle:
    2016 Tacoma Sport DCLB
    The Tundra harness is the same

  18. Jun 14, 2016 at 8:37 AM
    #18
    damnfingers

    damnfingers Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54324
    Messages:
    598
    Gender:
    Male
    First Name:
    Gene
    Mississippi
    Vehicle:
    2016 Limited 2x4 DCSB
    I would really appreciate a photo...I've searched and searched and can't find it...2016 Limited.

    NEVER MIND!!!

    Went back out the fourth time and found it! The trick was looking behind the bundle of wires coming from the firewall...and you're correct...very hard to pull it out far enough to hook the wire from the controller to.

    Thanks a lot for your write-up! Invaluable for me!

    Last edited: Jun 14, 2016
  19. Jun 14, 2016 at 11:55 AM
    #19
    Diego1931

    Diego1931 Well-Known Member

    Joined:
    May 6, 2016
    Member:
    #186238
    Messages:
    281
    Gender:
    Male
    First Name:
    Ryan
    Northern Ontario
    Vehicle:
    2016 Tacoma TRD Sport Inferno
    Truxedo Tonneau Cover Lund 5" Nerf Bars Shear Comfort Neoprene Rear Seat Covers Wilson Cell Booster Custom Aux Fuse Panel Interior LED Upgrade Tailgate Pop'n'Lock Console Divider Goodyear Wrangler Duratrax 245/75/17 Dewalt Tool Box POD Brake Controller Frame Rust A/C Mod Husky Weatherbeater Floor Mats In Progress: Tool mount brackets in bed D-Ring Bed Mod Under Hood Lighting System Inverter Cab Install
    Glad you found it! Took me two tries to find it too. You don't need it to come far out. Your harness to the brake controller will more than reach. Where you mounting the controller? I put mine right under the switches for the bed. Wish it would have fit in the change tray though.

  20. Jun 14, 2016 at 12:32 PM
    #20
    damnfingers

    damnfingers Well-Known Member

    Joined:
    Apr 4, 2011
    Member:
    #54324
    Messages:
    598
    Gender:
    Male
    First Name:
    Gene
    Mississippi
    Vehicle:
    2016 Limited 2x4 DCSB
    Mine is a VERY tight fit in that little change tray so I popped it out, cut a hole in the back of it to feed the cable thru and stuck it in there.

    Hankstone likes this.
