Brake controller help

Discussion in '3rd Gen. Tacomas (2016+)' started by newdles, Aug 23, 2019.

  1. Aug 23, 2019 at 11:31 AM
    #1
    newdles

    newdles [OP] Well-Known Member

    Joined:
    Aug 3, 2015
    Member:
    #160943
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2019 Tacoma TRD Off- road
    maybe I’m missing something but I need to hook up my brake controller and the wiring harness I have doesn’t fit the plugin I found on my 2019 trd off road. Not sure if I’m missing another needed adapter or the one I have is right and I’m just not finding the correct adapter to hook into.

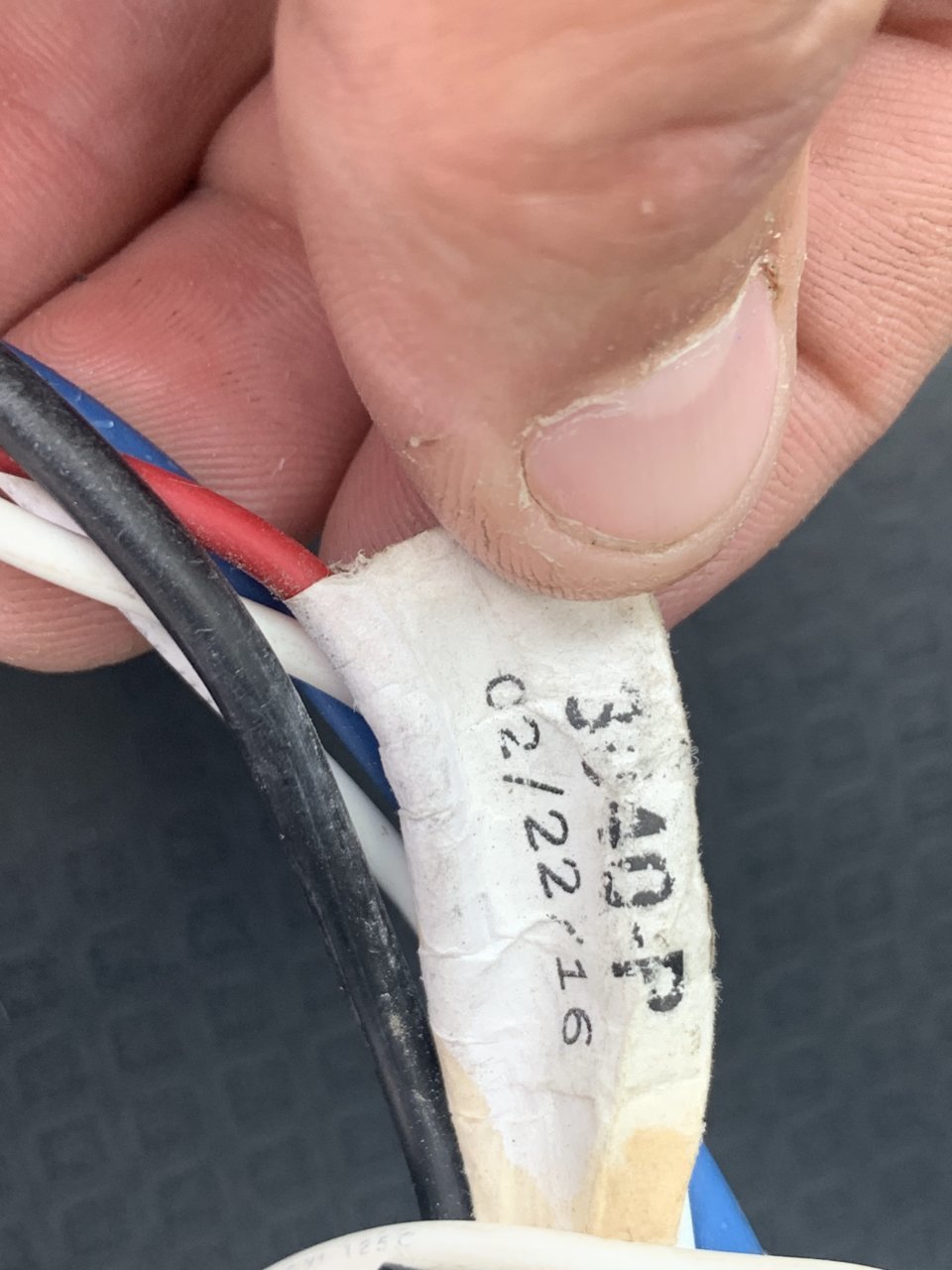

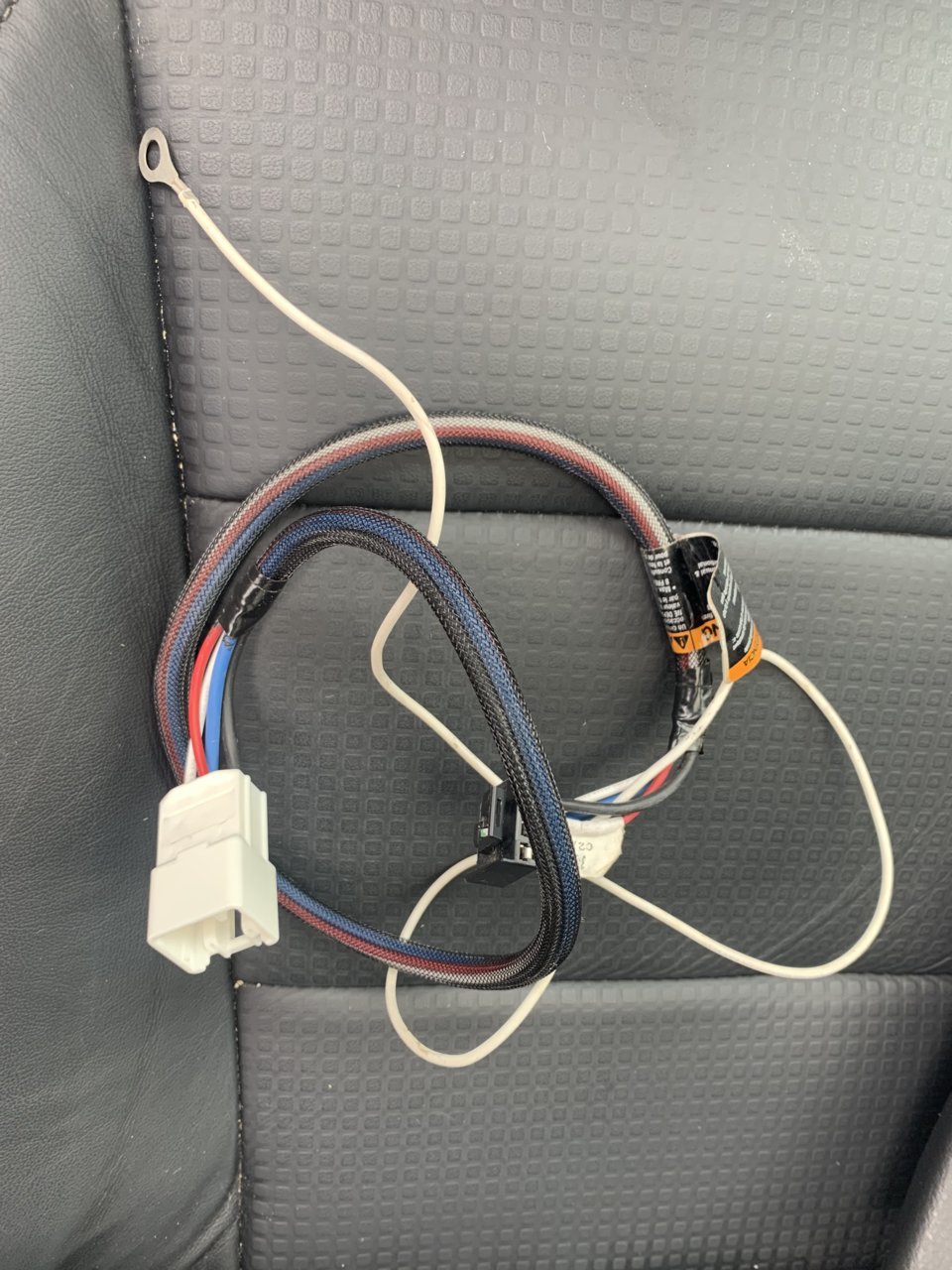

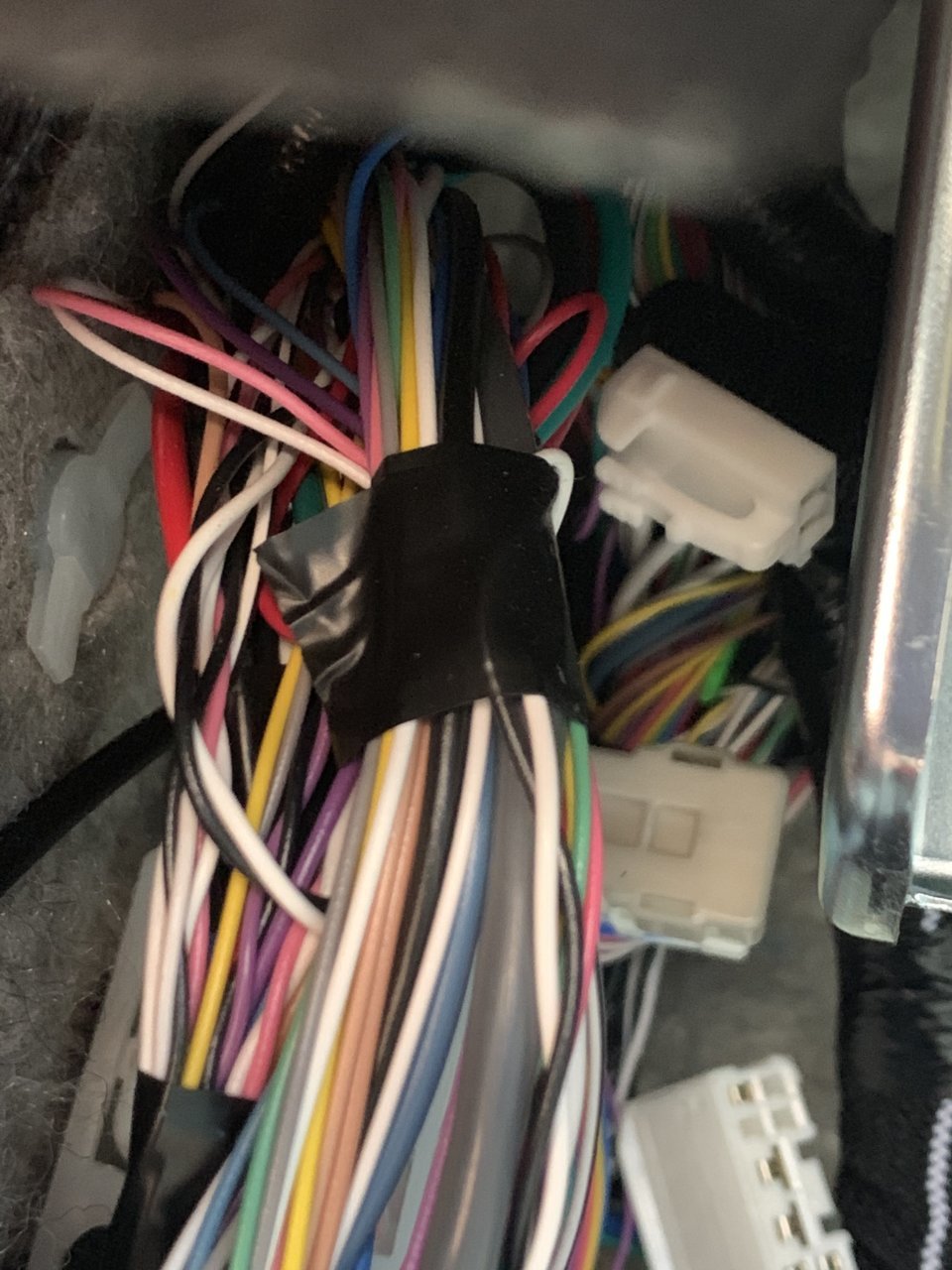

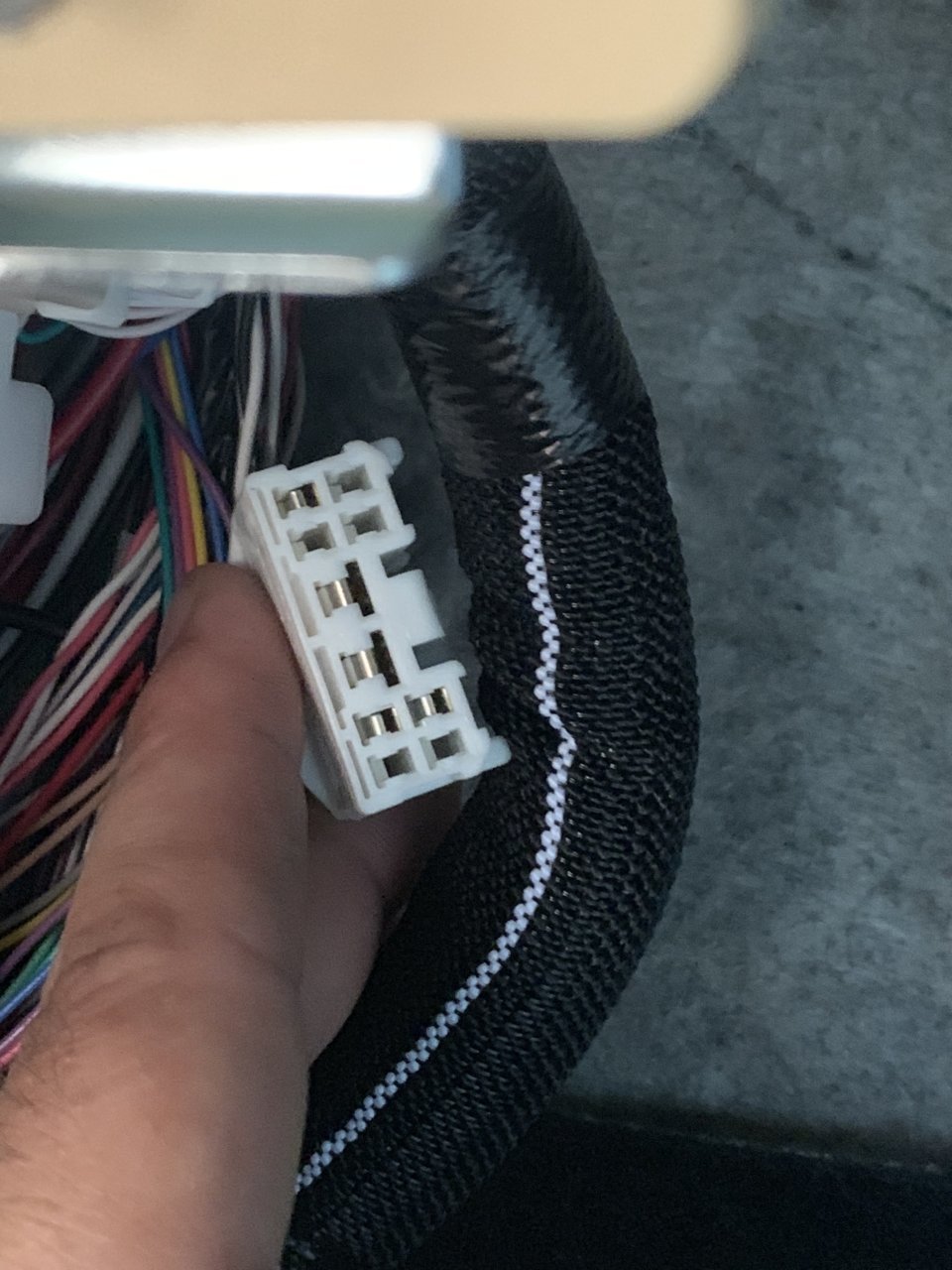

    Here are the pics I have. One of wiring harness I have and the other two are pics of the only two connectors I can find not already hooked to something inside the truck below dash by kick panel.


  2. Aug 23, 2019 at 11:34 AM
    #2
    Shellshock

    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    15,587
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    You don’t have the right harness. The plug you found in the truck is correct

  3. Aug 23, 2019 at 11:37 AM
    #3
    newdles

    newdles [OP] Well-Known Member

    Joined:
    Aug 3, 2015
    Member:
    #160943
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2019 Tacoma TRD Off- road
    Any clue which harness is needed? Thanks

  4. Aug 23, 2019 at 11:45 AM
    #4
    newdles

    newdles [OP] Well-Known Member

    Joined:
    Aug 3, 2015
    Member:
    #160943
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2019 Tacoma TRD Off- road
  5. Aug 23, 2019 at 11:46 AM
    #5
    Shellshock

    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    15,587
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    shakerhood likes this.
  6. Aug 23, 2019 at 11:49 AM
    #6
    newdles

    newdles [OP] Well-Known Member

    Joined:
    Aug 3, 2015
    Member:
    #160943
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2019 Tacoma TRD Off- road
    Thanks sir!

  7. Aug 23, 2019 at 11:50 AM
    #7
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,510
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    ^^^DONT USE THIS PART, it has been updated to the 3031-P that now includes a white ground cord^^^

    There have been cases of grounding failures in the controller and shorts damaging the harness in the truck:
    https://www.tacomaworld.com/threads/2018-wiring-harness-for-brake-controller.528103/#post-16980804

    Use the model like this one:Tekonsha 3031-P Brake Control Wiring Adapter-2-Plug, Toyota Tacoma 2015-2018 https://www.amazon.com/dp/B0781KTCPT/ref=cm_sw_r_cp_api_i_tydyDbRJV3MBG


    Edit: if you have the older part without the grounding wire, you can also add one yourself to the ground wire on the plug, too.

    Last edited: Aug 23, 2019
    Boghog1 likes this.
  8. Aug 23, 2019 at 11:52 AM
    #8
    Shellshock

    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    15,587
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    I’ve run it for 4 years without issue :notsure:

    shakerhood likes this.
  9. Aug 23, 2019 at 11:57 AM
    #9
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,510
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Me too, but the damage if the controller fails isn’t worth it. You can modify and protect yours better if you want by tapping in a ground wire to the plug.

  10. Aug 23, 2019 at 12:11 PM
    #10
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,510
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
  11. Aug 23, 2019 at 1:06 PM
    #11
    newdles

    newdles [OP] Well-Known Member

    Joined:
    Aug 3, 2015
    Member:
    #160943
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2019 Tacoma TRD Off- road
  12. Aug 23, 2019 at 2:47 PM
    #12
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,510
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Shellshock likes this.
  13. Aug 23, 2019 at 3:25 PM
    #13
    newdles

    newdles [OP] Well-Known Member

    Joined:
    Aug 3, 2015
    Member:
    #160943
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2019 Tacoma TRD Off- road
    Yeah coulda shoulda woulda on my part. I knew I had to have it and just kept putting it off. Saw in a post a while back about which one was required and just couldn’t find it again for some reason. Sadly I had to have it today so went to dealership and paid $38.?? Tax and all for it so I could drive a loaded trailer about 500 miles. Lessons learned all the time :) thanks for all the help again!

    OnHartung'sRoad likes this.
