Brake Controller Install Help Request

Discussion in 'Towing' started by JsAZ, May 9, 2009.

  1. JsAZ

    JsAZ [OP] Member

    Joined:
    Apr 20, 2009
    Member:
    #16205
    Messages:
    20
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    09 DC PreRunner TRD Sport
    I'm having trouble identifying the connector to plug my factory brake controller adapter into. I've removed the driver's side kick panel and searched for a connector with nothing attached and didn't find one. The towing bible write up had one close up picture of the connector but didn't give enough context for me to identify it.

    Could someone please help identify where the factory brake controller should be connected?

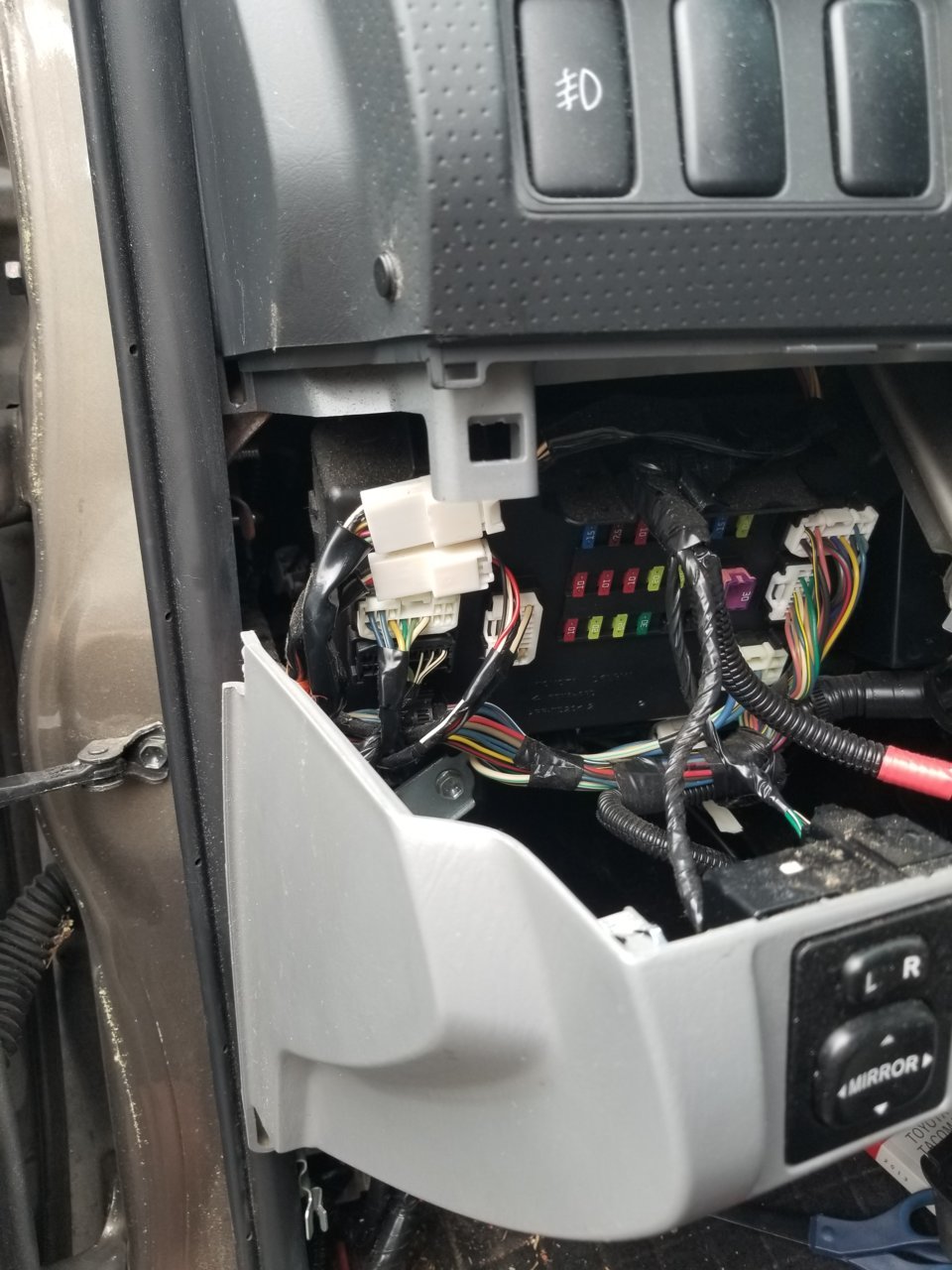

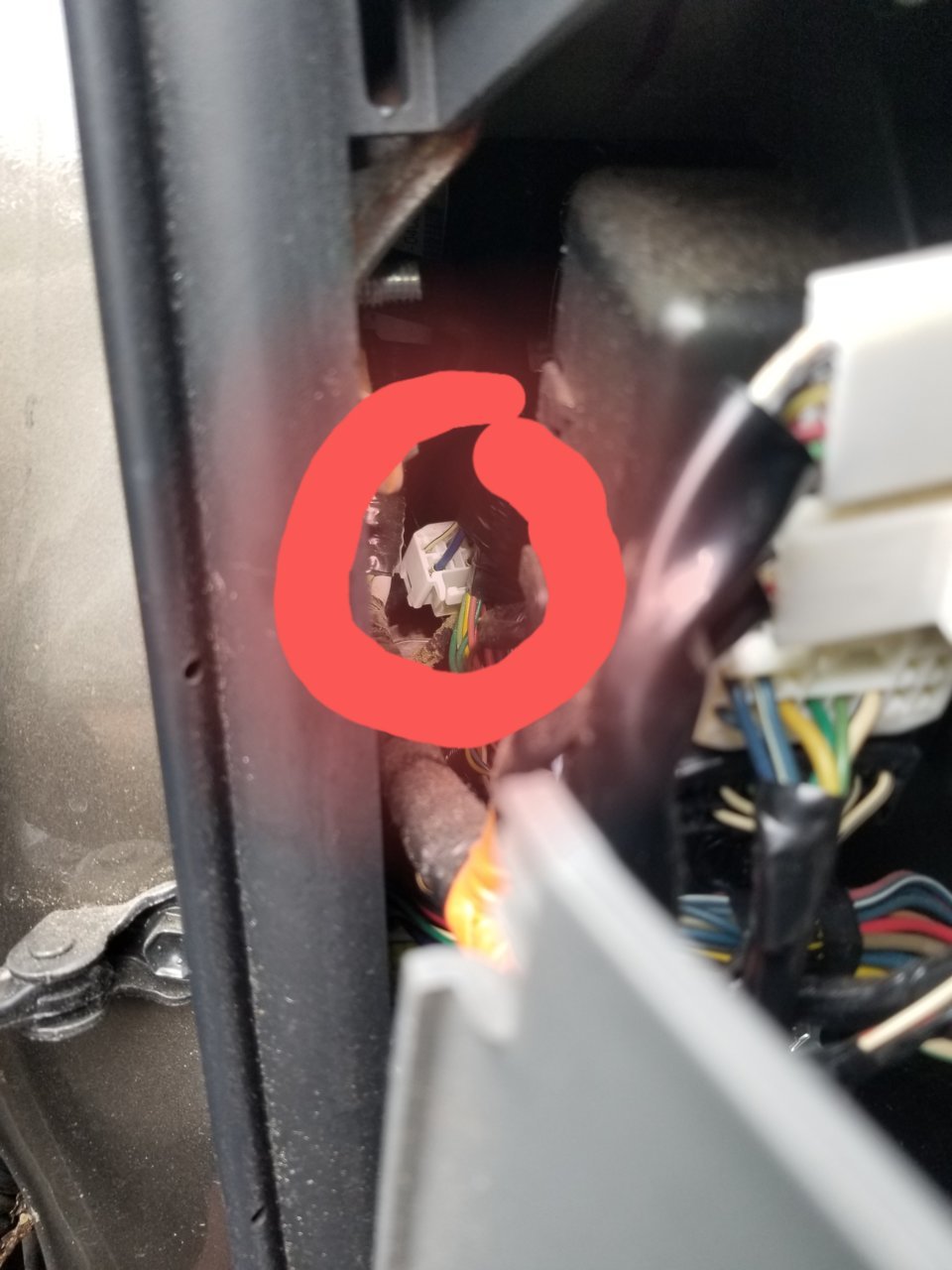

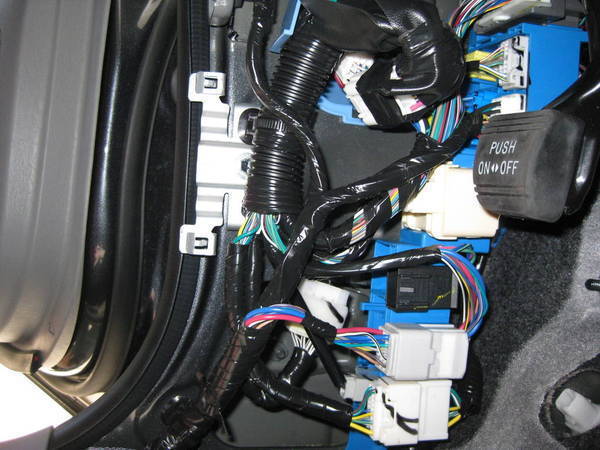

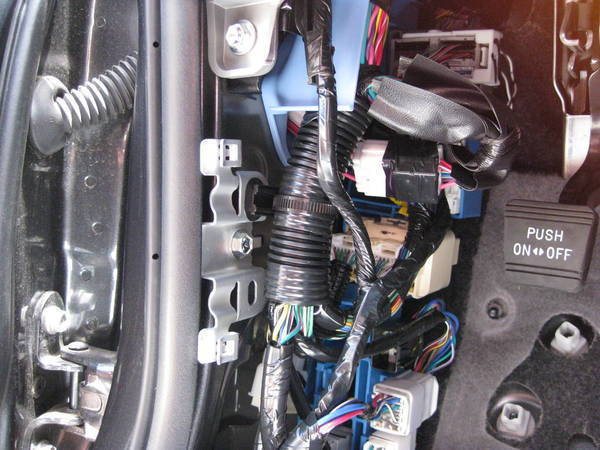

    Here's a couple of images with my kick panel removed:

    [​IMG]

    [​IMG]

    [​IMG]

    Thanks in advance!

  2. tbmevent01

    tbmevent01 Active Member

    Joined:
    Jan 4, 2009
    Member:
    #12227
    Messages:
    39
    Gender:
    Male
    First Name:
    Dean
    Fort Benning, Ga
    Vehicle:
    09 TRD Sport DC
    TRD filter,Banks monster exhaust,debadged,mag light mod,bed mat, rear Old Man EMU Nitrochargers,TSB springs,Toytec AAL, ICON C/O, Leer 100XQ,Yakima Mega Warrior,Wet Okole front and rear
    Hi, I just installed a prodigy brake controller in my 09 TRD. It was little difficult to find since mine was zip tied to another wire harness. But, it is tucked in there and it does have the white connector like the 1 in the towing bible pic. Just look carefully at all the harnesses for that open white connector. Also, camping world sells a plug and go adapter for our trucks. I didnt use the bare wire 1 that came with truck. Hope this helps.

  3. MJonAgs32

    MJonAgs32 asphinctersayswhat?

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    9,145
    Gender:
    Male
    First Name:
    MJ
    Union City, CA (SF Bay Area)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    check out my build
    this video is of the sequoia, but it should be similar to the taco

    link

  4. JsAZ

    JsAZ [OP] Member

    Joined:
    Apr 20, 2009
    Member:
    #16205
    Messages:
    20
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    09 DC PreRunner TRD Sport
    The video was somewhat helpful, but I still can't find the connector. I'm starting to wonder if I'm just not qualified for this. :(

    I cut the electrical tape around the bundle below just to make sure, but every connector in this bunch is already mated up. Right now I'm convinced that they just forgot to pull mine through to the kick panel, but I know that sounds dumb.

    I'm thinking I'll run down to the dealership and see if one of the service guys can make some sense of what I'm looking at.

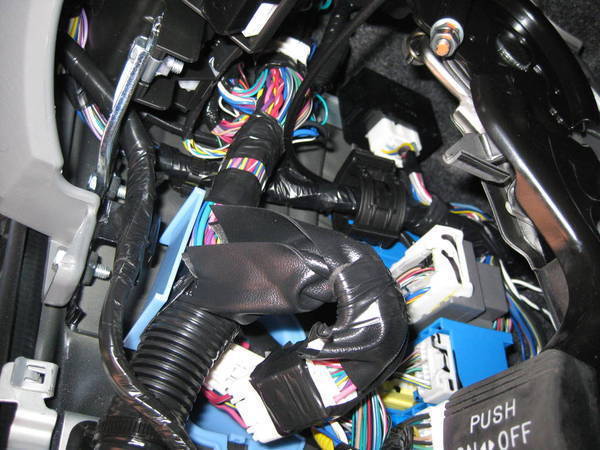

    [​IMG]

  5. tacojim

    tacojim Member

    Joined:
    May 7, 2009
    Member:
    #16931
    Messages:
    5
    Gender:
    Male
    aus tx
    Vehicle:
    09 dc sport
    do you know where it is yet. I am having the exact same problem

  6. tacojim

    tacojim Member

    Joined:
    May 7, 2009
    Member:
    #16931
    Messages:
    5
    Gender:
    Male
    aus tx
    Vehicle:
    09 dc sport

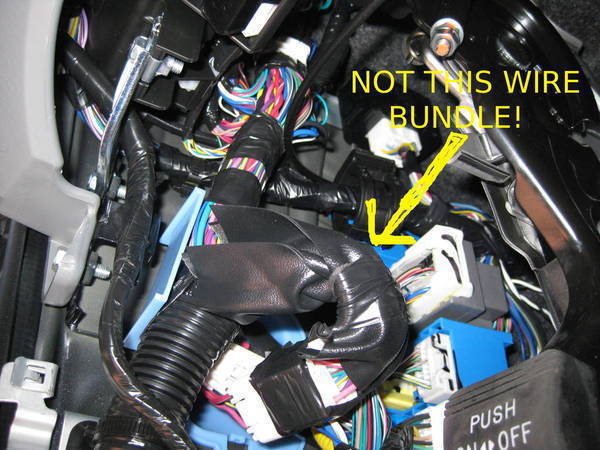

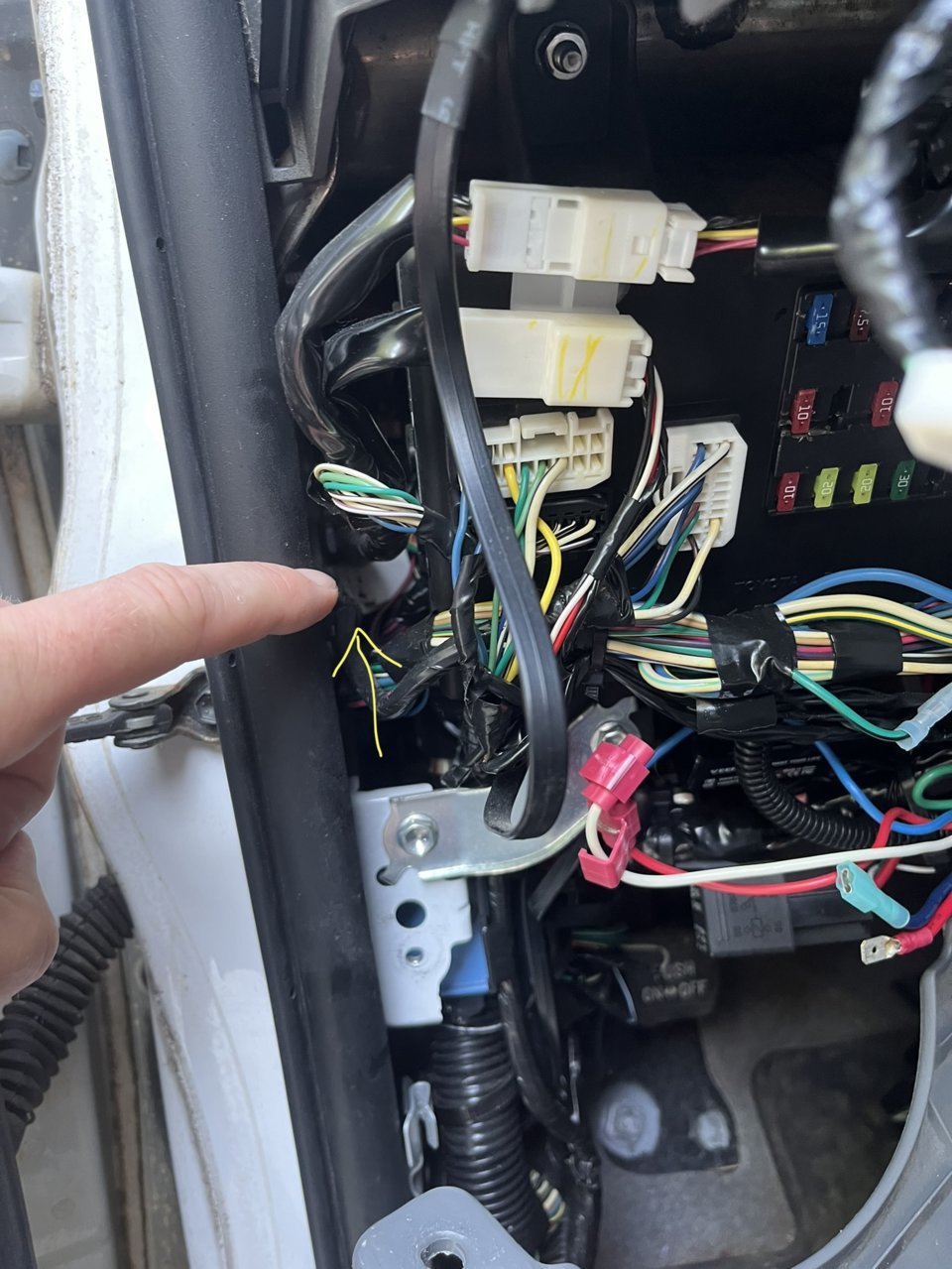

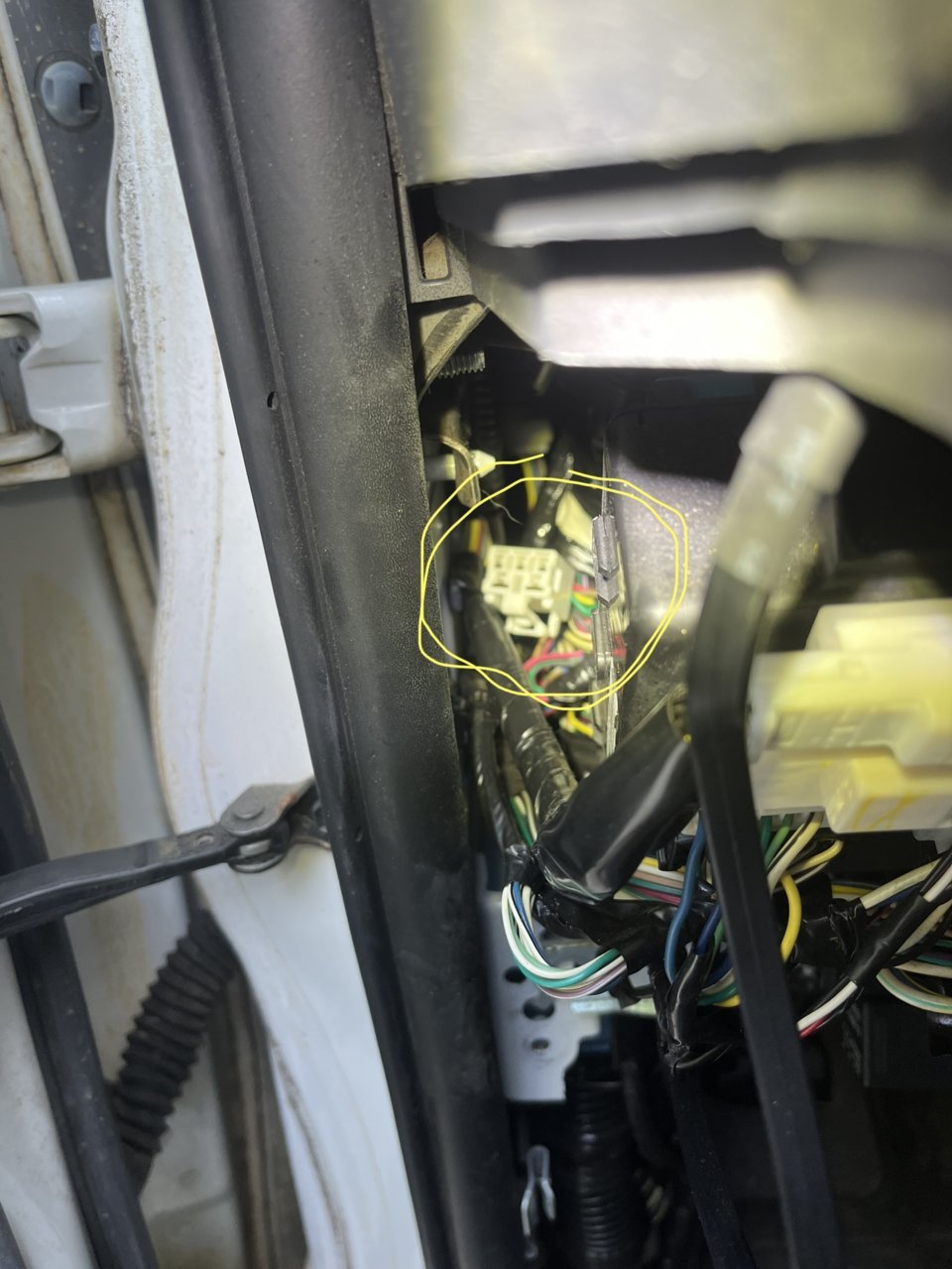

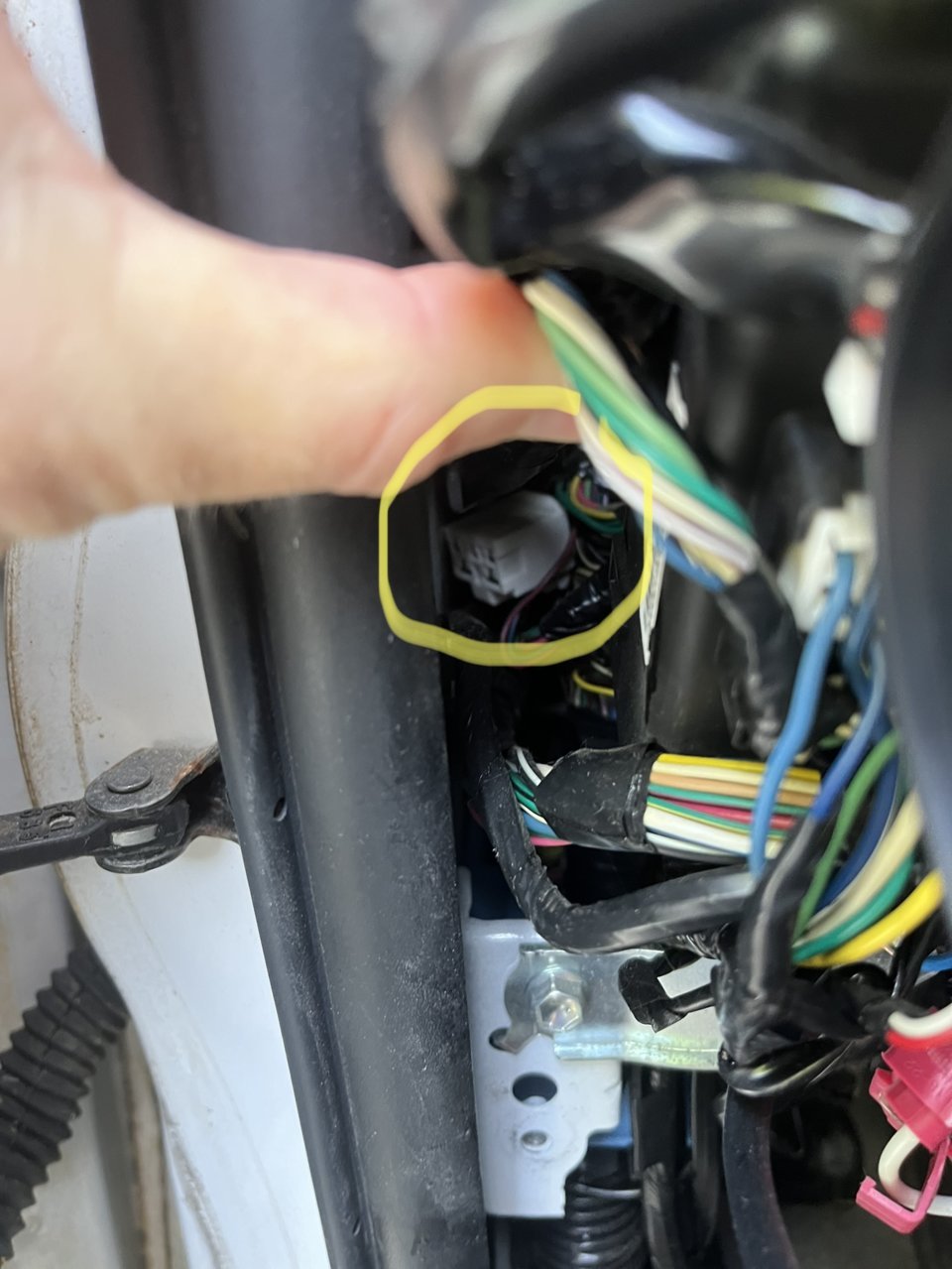

    the connection is to the left of the parking brake switch behind the largest bundle of wires.

    look behind the wires close to where the letter "n" in the word not is in the above photo

  7. JsAZ

    JsAZ [OP] Member

    Joined:
    Apr 20, 2009
    Member:
    #16205
    Messages:
    20
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    09 DC PreRunner TRD Sport
    Thanks for all the advice. I ended up going to the dealership and one of the service guys said that they always take the bottom half of the dash off to retrieve the connector. I bet you could probably find it without taking off the bottom dash, but you'd have to know where to look.

    Once I got the bottom part of the dash off, I could see it very clearly. I still had to retrieve it by reaching my hand up from underneath, but it was much easier.

  8. tacojim

    tacojim Member

    Joined:
    May 7, 2009
    Member:
    #16931
    Messages:
    5
    Gender:
    Male
    aus tx
    Vehicle:
    09 dc sport
    now that I know where it is, I could get to it without taking off the kick panel or the lower part of the dash..before my first post today I spent at least 30 minutes looking for it and could not find it.

  9. BBelwood

    BBelwood New Member

    Joined:
    Dec 26, 2012
    Member:
    #93793
    Messages:
    3
    Gender:
    Male
    I found mine it is tucked in the wad of wires. I extended mine and put a four wire male to female connector on it, I ran the wires to the empty pocket on the right side below the steering wheel. I just plug it in when I need it. Now if you intend to use the Manuel brake you may want to mount it.

  10. Thighmaster

    Thighmaster Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    Thanks so much for that! Without popping loose the left lower half of the dash would not have found it. Even then it was pretty covered up. Again - thank you.
