Brake Upgrade: StopTech Rotors + TRD Performance Pads

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Dec 12, 2017.

  1. Apr 4, 2019 at 3:30 PM
    #221
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,411
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    LOL. Brembo does make aluminum steel hybrid drums where the drum housing face is aluminum and the braking surface cast iron, similar concept to StopTechs Areo rotor for weight reduction. But they don’t make it for the Tacoma.

    Norton, Freeheelbillie and whatstcp like this.
  2. Apr 26, 2019 at 4:44 PM
    #222
    hx989

    hx989 Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    6,090
    Olympic Peninsula
    Are there any calipers that are better than stock and don’t require going to 17” wheels?

  3. Apr 26, 2019 at 4:50 PM
    #223
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,411
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Not that I am aware of. The usual caliper upgrades are either big brake kits or larger 4Runner calipers, both require 17” wheels.

    Norton likes this.
  4. Apr 26, 2019 at 4:52 PM
    #224
    hx989

    hx989 Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    6,090
    Olympic Peninsula
    Yeah same here that’s why I asked if anyone has info I don’t know about such as 6 piston or larger piston... not willing to get 17” wheels cuz IMHO they don’t look good unless you have at least 35s

  5. Apr 26, 2019 at 5:05 PM
    #225
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,411
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

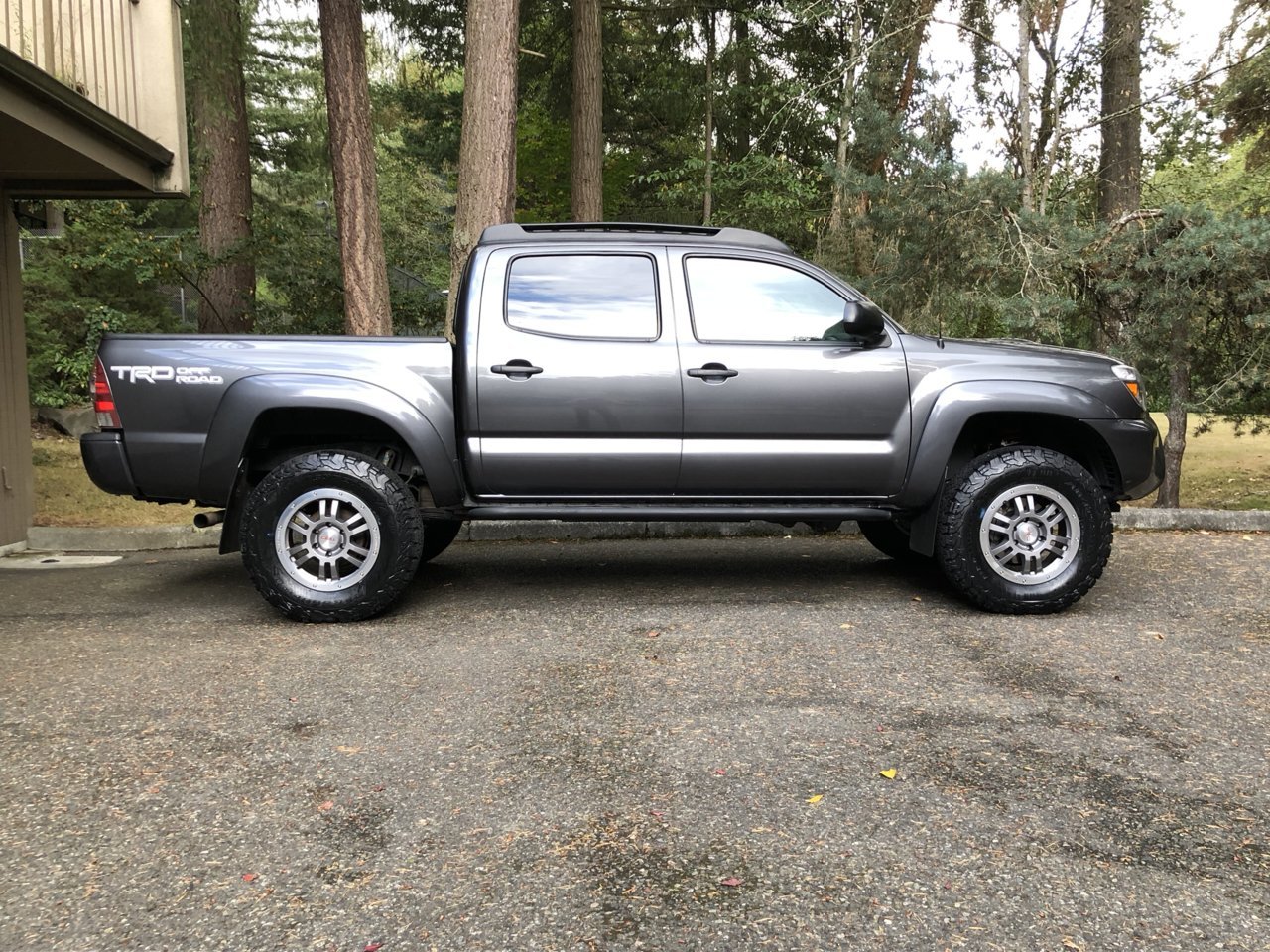

    I like my 17s. But to each their own, it’s 0.5” sidewall difference. 17s also allow for more lighter C-load tire options.


  6. Apr 26, 2019 at 5:08 PM
    #226
    hx989

    hx989 Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    6,090
    Olympic Peninsula
    That looks like 32” tires so there’s plenty c-load options in 265/75/16 anyway but yeah, to each their own

    crashnburn80 [OP] likes this.
  7. Apr 26, 2019 at 10:43 PM
    #227
    BenMara

    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    1,685
    Gender:
    Male
    First Name:
    Ben
    Duck's Ditch, SC
    Vehicle:
    2011 DCSB 4x4 SCed
    TRD Blower, Ham Radio, DBA T2 Rotors
    I have some FJ steel wheels, i should look into doing this.

    crashnburn80 [OP] likes this.
  8. Apr 27, 2019 at 5:31 AM
    #228
    Hyuga

    Hyuga Well-Known Member

    Joined:
    Apr 4, 2018
    Member:
    #249374
    Messages:
    76
    Gender:
    Male
    First Name:
    Alex
    Virginia Beach, Va
    Vehicle:
    2016 DCSB OR 4x4 MT
    l


    Excellent information. Thank you

  9. Apr 29, 2019 at 9:59 AM
    #229
    Sergio W

    Sergio W Well-Known Member

    Joined:
    Jul 28, 2014
    Member:
    #134919
    Messages:
    242
    Gender:
    Male
    First Name:
    Sergio
    Lafayette CO
    Vehicle:
    2015 TRD PRO
  10. May 2, 2019 at 11:41 PM
    #230
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    1,776
    Gender:
    Male
    First Name:
    Nate
    Birdsview Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer
  11. May 2, 2019 at 11:49 PM
    #231
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,411
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Norton likes this.
  12. May 3, 2019 at 12:01 AM
    #232
    TRDKAZI

    TRDKAZI Well-Known Member

    Joined:
    Nov 20, 2013
    Member:
    #116984
    Messages:
    312
    Gender:
    Male
    Earth

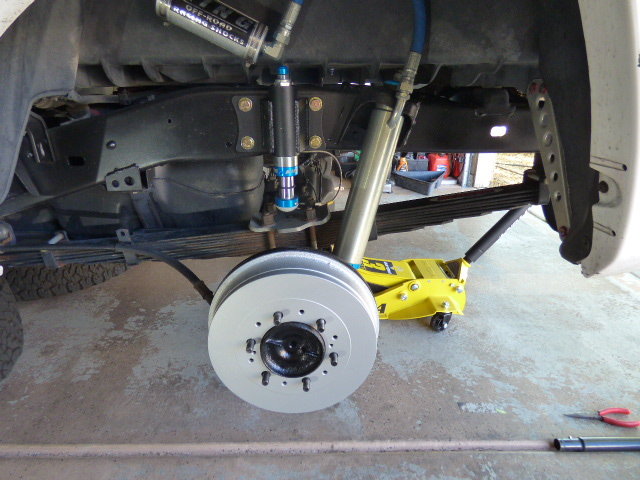

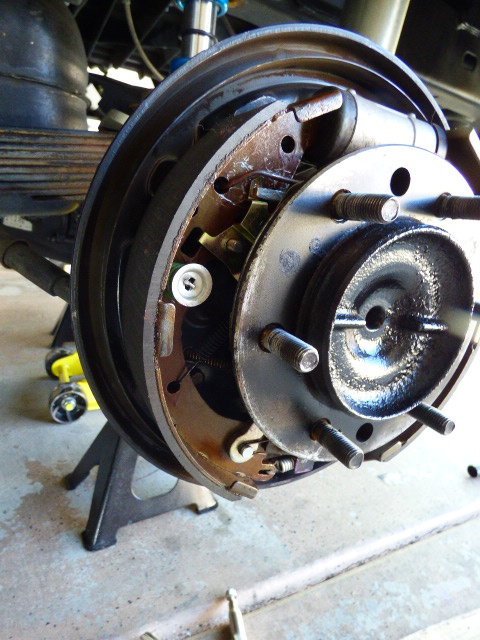

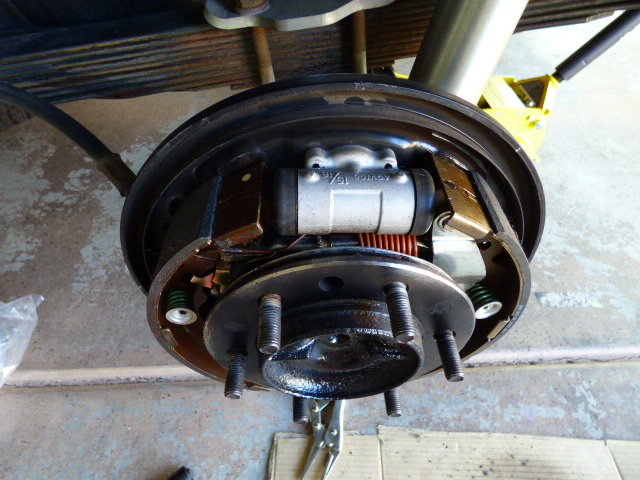

    Brembo makes rear shoes, I have them on the rear of my Tacoma with PowerStop drums

  13. May 3, 2019 at 1:19 AM
    #233
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    4,212
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    How hard is the install of rear brake shoes?

  14. May 3, 2019 at 2:24 AM
    #234
    Freeheelbillie

    Freeheelbillie Well-Known Member

    Joined:
    Mar 18, 2018
    Member:
    #247669
    Messages:
    1,111
    Gender:
    Male
    First Name:
    Billie
    Saint Clair, MI
    Vehicle:
    2019 Tacoma SR, DCSB
    FRONT END King Stage 3 3” RR Coil Overs SPC UCA’s REAR END King Stage 3 BAMF Shock Relocation Rear AAL Heavy ARB Universal Diff Breather Kit TIRES & RIMS 16” Method Bronze BFG K02 (315/75/R16) ARMOR Demello Off Road Baja Hoop Front Bumper Main Line Overland Rock Sliders w/ Top Plate ¼” Aluminum RCI Fuel Tank Skid RCI Fuel Tank Straps RCI Rear Diff Skid RCI A-Arm Skids RCI – Front, Transmission, and rear Transfer Case Skid DRIVE LINE Re Geared w/ Nitro 4.56 Package Front ARB Air Locker Rear ARB Air Locker 8” Reverse Clamshell 3.73 & Down Carrier RECOVERY ComeUp Seal Gen2 9.5RS Winch, Synthetic Line ComeUp Seal Hawse Fairlead ARB On Board Twin Air Compressor LIGHTING Squadron-R Pro Amber Fogs (Wide Cornering) Baja Designs Rock Lights Squadron Sport Fogs (qty 4) Baja Designs Bed Light Kit SPODS, HD 8 Circuit Switch Panel
    Sweeeeeet!
    Part numbers?
    Where did you source your spring kit?

    Last edited: May 3, 2019
    Norton likes this.
  15. May 3, 2019 at 2:41 AM
    #235
    muddog321

    muddog321 Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    573
    Gender:
    Male
    FL
    Vehicle:
    09 tacoma doublecab 4wd trd w/e locker Pyrite mica color
    TW 1-piece driveshaft All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 2" stock springs Falken Wildpeak A/T3W 265/70R16 Powerstop rotors and z36 pads Rebuilt rear and all wheel bearings front /rear Denso 130A rebuilt alternator New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Rhino front guard ARE shell
    Depends on how many miles on shoes as before 100k doubt the shoes are very worn as they don't do a lot except as the parking brake - I use them a lot on the boat ramp (note adjust cable is under the center console). You may need to back off adjuster to get the drums off (big hammer/mini sledge handy) and rusted on studs. Buy brake spring tools 1 for round retainer clips and 1 for springs on/off posts (this 1 is must have to save fingers and cursing). Do one side at a time so you have a reference. Need a can of brake cleaner and the dust is a mess so do outside or cardboard under work area.
    Powerstop also has a shoe set I used. Note that stock drums have balance weights tack welded on which may fall off from rust so look at them - turn drums or buy new and I turned then bought new after a weight dropped off later and way out of balance. I painted the drums with several coats of black Rustoleum as they rust fast if not coated by manufacturer.
    Finally if the rubber lines are all cracked you can change to stainless braided which I did but beware a pain in the butt as the retainer ends on the rear axle did not match the lines so they had to be filed out to allow the retainer clip to seat.
    Finally age dependent I flushed the lines adding new brake fluid and do NOT turn the key on until fully done or you may trip the ABS module. Just a dirty job but with the spring tools and spray no problem.

    hotboatrod and Norton like this.
  16. May 3, 2019 at 6:28 AM
    #236
    TRDKAZI

    TRDKAZI Well-Known Member

    Joined:
    Nov 20, 2013
    Member:
    #116984
    Messages:
    312
    Gender:
    Male
    Earth
    pretty easy, make sure you get the shoe spring retainer tool for install, when your take off the rear drums use the bolt through the drum to rear axle hub method to remove the drum, a lil penetrating oil doesn't hurt between axle hub and center of drum if rusty. take a pic for reference.

  17. May 3, 2019 at 6:36 AM
    #237
    TRDKAZI

    TRDKAZI Well-Known Member

    Joined:
    Nov 20, 2013
    Member:
    #116984
    Messages:
    312
    Gender:
    Male
    Earth

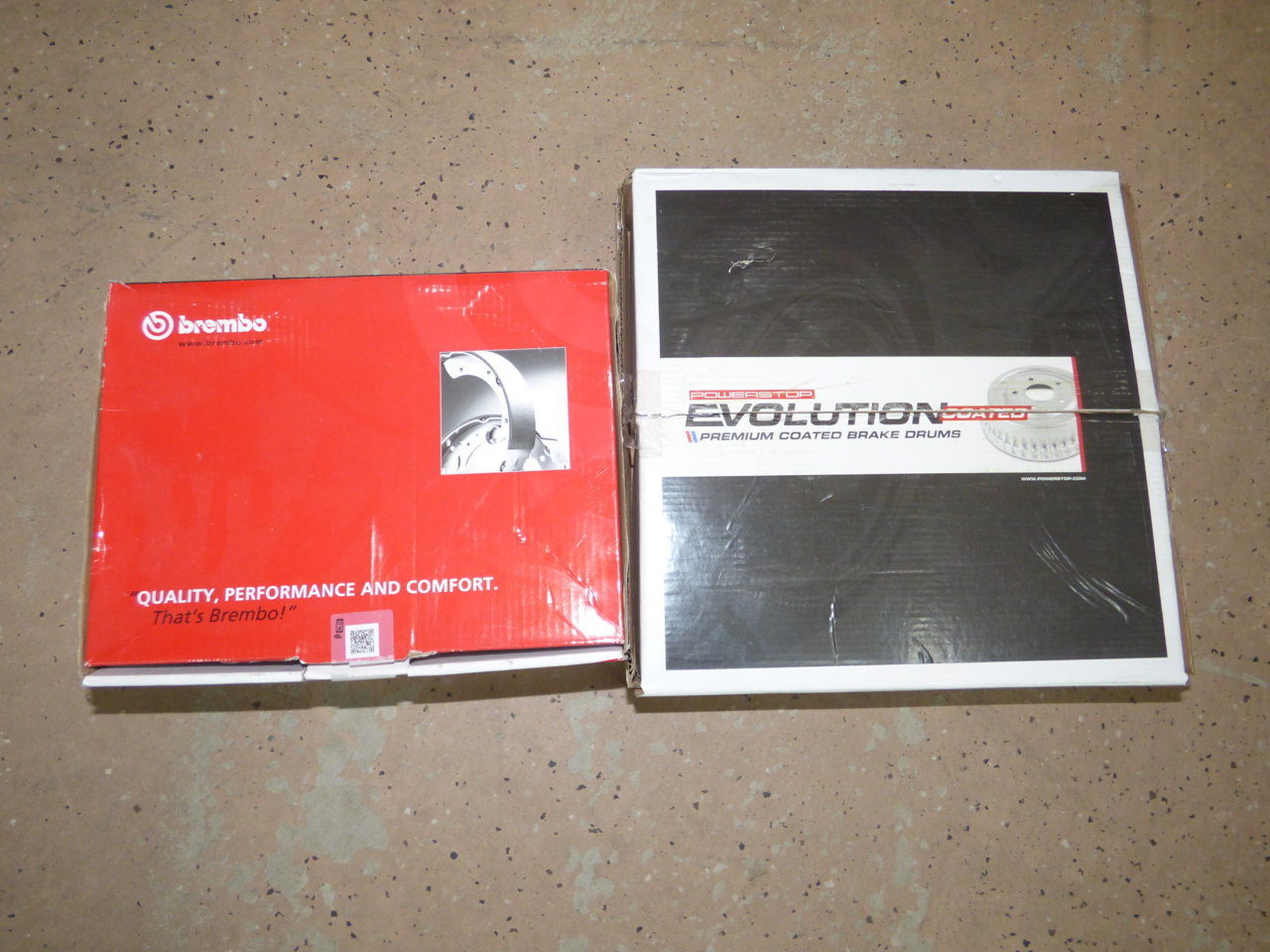

    The spring kit came with the PowerStop rear brake kit. I actually have a kit for sale in the buy/sell section. It has shoes/spring kit/drums If you just want the spring kit search for the Beck/Arnley
    https://www.ebay.com/itm/Beck-Arnley-084-1373-Brake-Hardware-Kit-Direct-Fit/121956372726?fits=Make%3AToyota%7CModel%3ATacoma

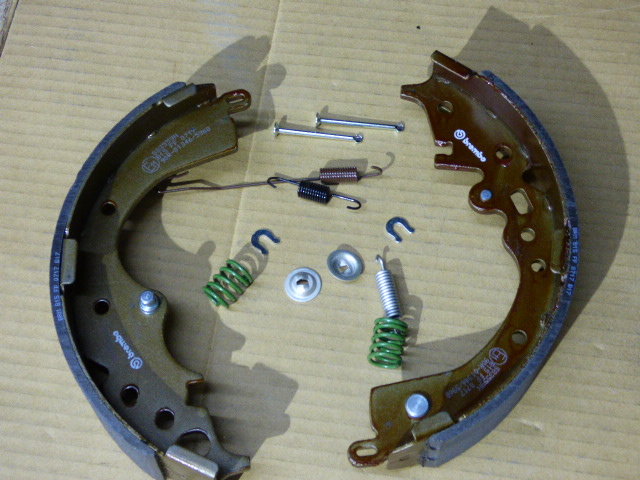

    These are the shoes, It took me about 6 months to get these due to out of stock issues, I'd grab 'em while available. I bought the full PowerStop kit and then used the Brembo shoes.
    https://www.ebay.com/itm/Rear-Disc-Brake-Shoes-Set-Brembo-S83559N-for-Toyota-Sienna-Tacoma-2003-2014/113028341995?fits=Model%3ATacoma%7CMake%3AToyota&epid=140100801

    Freeheelbillie likes this.
  18. May 3, 2019 at 7:04 AM
    #238
    PB FAB

    PB FAB Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215942
    Messages:
    801
    Gender:
    Male
    Vehicle:
    2017 SR DCSB 4x4 v6
    I don’t know if I missed it, but what’s your review of the shoes? Do they grab better? Shorter stopping distance?

  19. May 4, 2019 at 11:52 AM
    #239
    TRDKAZI

    TRDKAZI Well-Known Member

    Joined:
    Nov 20, 2013
    Member:
    #116984
    Messages:
    312
    Gender:
    Male
    Earth
    Seems like they are pretty good, (I have to readjust) my rears we're shot so anything would've been better, but I did notice that the manufacturing is top notch. I just redid the fronts recently which was the 3rd time I R&R'd them to 1 for the rear, I get the best results from the black hawk pads and EBC rotors for the front, Ive used ebc, powerstop and blackhawk.

  20. May 7, 2019 at 8:35 AM
    #240
    Taconator_

    Taconator_ IG: ohv_tacotruck

    Joined:
    Jun 16, 2017
    Member:
    #221655
    Messages:
    1,820
    Gender:
    Male
    First Name:
    Eric
    SoCal
    Vehicle:
    18' DCSB TRD OR 4x4
    any advice for 3rd gen folk? I tried searching the StopTech rotors but it doesn't seem like they make them for 3rd gen tacos.
