Broken Wiper Motor Arm - Fix With Pics

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tsilliker, Dec 5, 2010.

  1. Dec 5, 2010 at 9:01 PM
    #1
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.
    This morning my right hand side wiper arm quit working in a snow storm. A pivot inside the wiper mechanism from the motor separated the arm from the lever. Here is what I did to fix it.

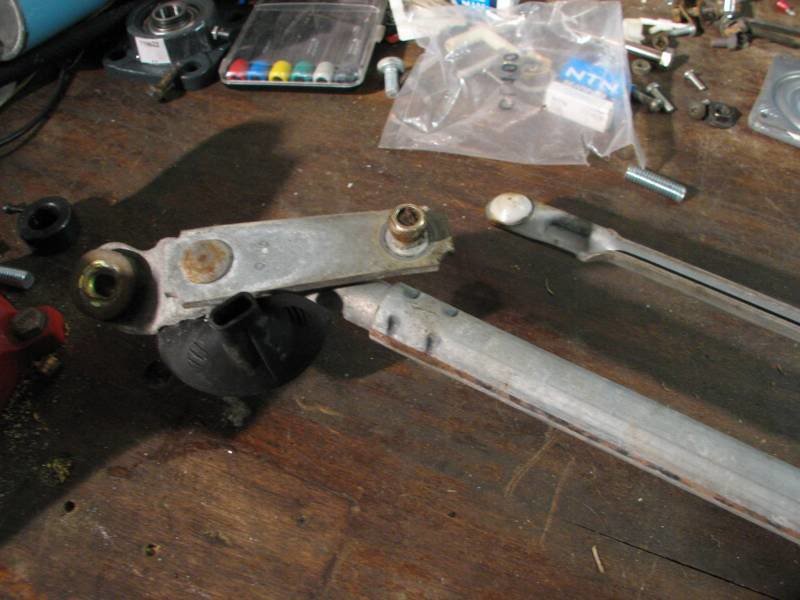

    Here is the motor assembly on my bench.
    [​IMG]


    Close up of the pivot that separated. It is pressed in.
    [​IMG]


    I drilled it out in preparation for the fix
    [​IMG]

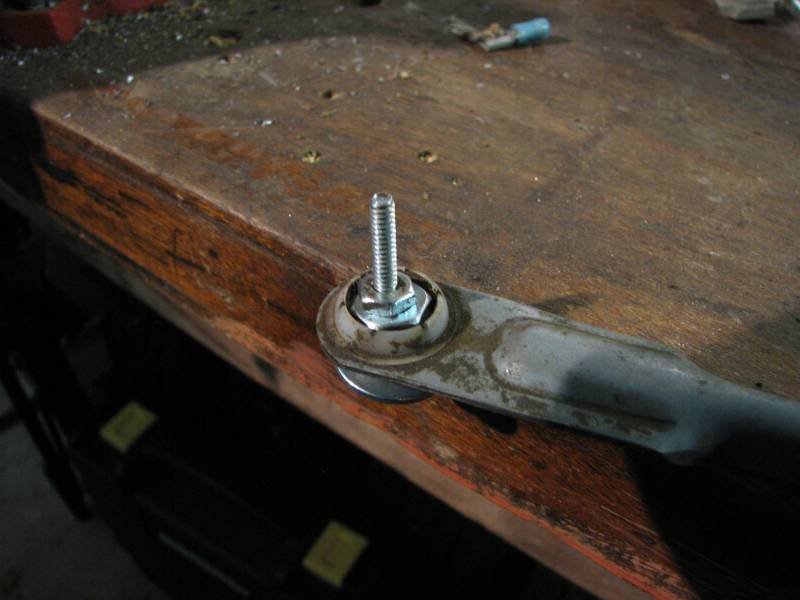

    I put a nut inside the plastic piece to take up the room of the former round pivot. The new bolt moves around inside this. It is a #6-32 1 1/4 inch length.
    [​IMG]

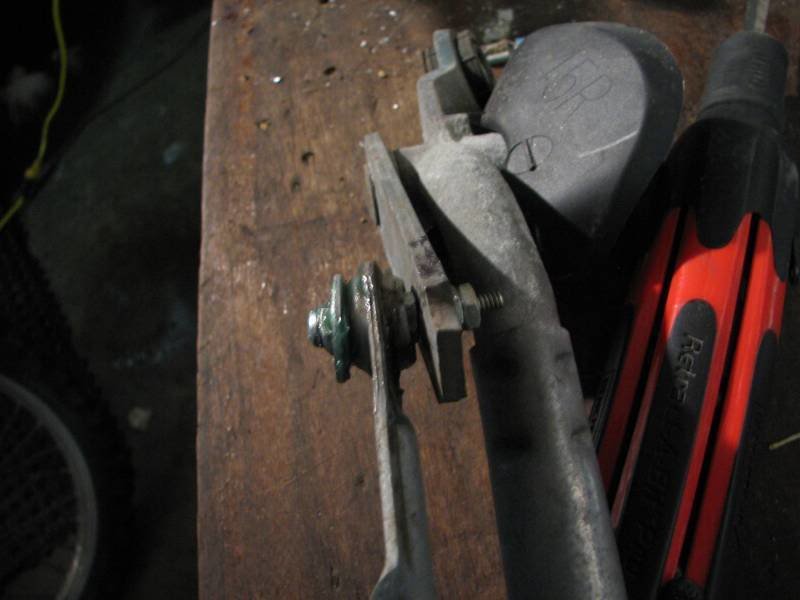

    Here is a close up of the lever and arm put back together. I greased it up well.
    [​IMG]

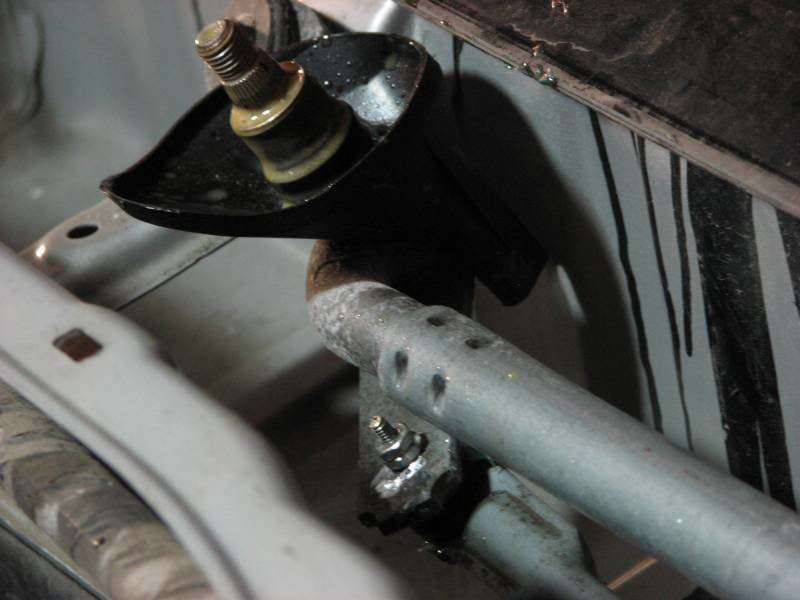

    Here it is put back in the truck.
    [​IMG]



    Here is the finished wiper in action:
    http://www.youtube.com/watch?v=Vru19zr3g_o

  2. Dec 5, 2010 at 9:57 PM
    #2
    boonduff

    boonduff Proud American

    Joined:
    Nov 10, 2010
    Member:
    #46008
    Messages:
    14
    Gender:
    Male
    First Name:
    Gordie
    Chandler, AZ
    Vehicle:
    2011 DC TRD OFFROAD
    Bone stock brand new
    Good cheap fix. The same thing happened to my wifes Cavalier. I went to the dealer and found that you can't buy new clips you have to buy the whole wiper transmission assembly for $120. I said bullshit, and did the same fix you did. The clips on the Cavalier look to be the same used on the Tacoma. I guess made by the same supplier.

  3. Dec 5, 2010 at 10:46 PM
    #3
    Tckwarrior

    Tckwarrior Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42015
    Messages:
    78
    Gender:
    Male
    First Name:
    Aaron
    Damascus OR
    Vehicle:
    08 RegCab Superwhite
    3 inch revtek lift,American Eagle 197 Black Wheels 17x9 Boltpattern 6x5.5 , 285/70/17's with BFG km2s U-haul class 3 tow hitch, Better built toolbox. Trail-gear 58 inch Rock-sliders
    Decent, I can't imagine what the stealership wants for a replacement. I'll make sure to do this if mine ever breaks.

  4. Dec 5, 2010 at 11:11 PM
    #4
    Taco11

    Taco11 Well-Known Member

    Joined:
    Sep 11, 2010
    Member:
    #43080
    Messages:
    175
    Gender:
    Male
    First Name:
    Chris
    Seattle WA
  5. Dec 6, 2010 at 5:20 AM
    #5
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.
  6. Dec 8, 2010 at 6:11 AM
    #6
    MYSUV

    MYSUV Member

    Joined:
    Nov 21, 2009
    Member:
    #26320
    Messages:
    18
    Gender:
    Male
    VT
    Vehicle:
    05 Bone Stock
    Any chance you can give me an idea of how to remove the trim covering the wiper motor and linkage? I suspect I have this same problem right now. I have no garage to work in, and it's snowing and cold as heck right now. With the snow packed in and around it's hard to see what's holding that trim in place. Thanks!

  7. Dec 8, 2010 at 7:50 AM
    #7
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.
    It is fairly straightforward to remove the black trim. There are two clips, one on each end. These are removed using a philips screwdriver. Along the leading edge all along its length are clips that need to be pried up to release them.

    The ends of the black trim are clipped onto the large cowl trim and one may become separated from the cowl trim when pulling the whole works free. It can be re-attached when putting the cowl trim back on. Be sure to have a look at how the ends of the trim fit with the corner of the windshield before removing the whole thing so that you can put it back in the same way.

    Once the motor and linkage is out, then it is possible to bring it inside to work on. Good luck, be sure to post again with any questions and results.

  8. Dec 11, 2010 at 6:03 AM
    #8
    MYSUV

    MYSUV Member

    Joined:
    Nov 21, 2009
    Member:
    #26320
    Messages:
    18
    Gender:
    Male
    VT
    Vehicle:
    05 Bone Stock
    It was the same problem you described here. Thanks for making it an easy fix.

  9. Dec 12, 2010 at 9:50 AM
    #9
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.
    Glad it helped!

  10. Jan 9, 2012 at 8:53 AM
    #10
    buck

    buck TheEh-Team.ca

    Joined:
    Jun 10, 2009
    Member:
    #18291
    Messages:
    296
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    05 Access-cab V6 4x4 SR5 Speedway Blue
    High-flow coconut smiley-face air freshener.
    reviving the old:

    I can't pull the wiper arms off of the pivots. I need to do this to remove the plastic trim cowl. I have a wiper arm puller, but I can't fit the tool under the arm.

    Any tips on removing the arm? Tried prying with a screwdriver as well but no luck.

  11. Jan 9, 2012 at 6:30 PM
    #11
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.
    Once the nut is removed, it should slide up and off the shaft. Give it a tug as you move it a bit side to side.

    As an aside to this repair, the bolt recently broke after operating for a year. Not impressive. for lack of any better solution at the moment, I just threw another bolt in there. Took about 30 minutes of my time.

  12. Jan 10, 2012 at 5:18 AM
    #12
    buck

    buck TheEh-Team.ca

    Joined:
    Jun 10, 2009
    Member:
    #18291
    Messages:
    296
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    05 Access-cab V6 4x4 SR5 Speedway Blue
    High-flow coconut smiley-face air freshener.
    Good to know. Maybe I'll look at trying a larger bolt.

  13. Jan 10, 2012 at 6:34 AM
    #13
    CtTaco

    CtTaco Well-Known Member

    Joined:
    May 4, 2008
    Member:
    #6392
    Messages:
    629
    Gender:
    Male
    First Name:
    Eric
    Connecticut
    Vehicle:
    2010 4x4 Doublecab Sport Longbed Supercharged
    3" lift, Tundra wheels with BFG ATKO's, Viper Remote starter TRD Supercharger
    Awesome writeup!! Id say if youre back in there againyou might try useing a grade 8 bolt from the hardware store ( they are usuall gold in color and typically have an 8 stamped on the head) much stonger than average bolts and will far outlast them

  14. Jan 28, 2012 at 12:02 PM
    #14
    buck

    buck TheEh-Team.ca

    Joined:
    Jun 10, 2009
    Member:
    #18291
    Messages:
    296
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    05 Access-cab V6 4x4 SR5 Speedway Blue
    High-flow coconut smiley-face air freshener.
    I had to make a wiper arm puller to get the arms off. They were on there good.

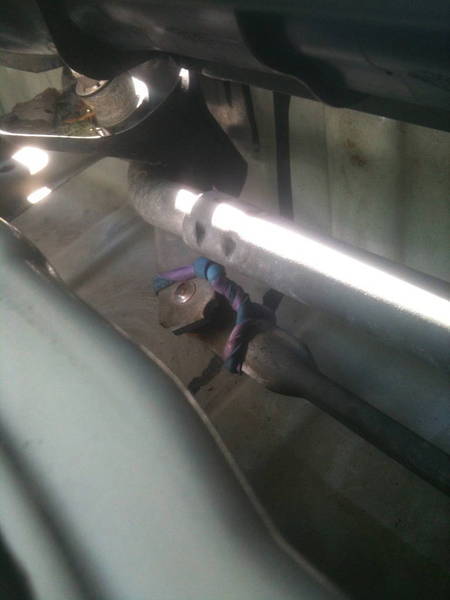

    I ended up retaining the original ball & socket. I drilled a hole right through the ball & socket, just big enough for a #8 bolt to fit through. Decided to keep it to take the lateral/shear load, leaving the #8 bolt to just hold the arm from falling off. Packed grease in the ball/socket. The bolt isn't squishing the assembly, just holding it lightly.

    Hope it holds up. $242 for a wiper transmission from the dealer. :eek:

    [​IMG]

  15. Dec 4, 2012 at 9:36 AM
    #15
    gdctaco

    gdctaco Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13991
    Messages:
    121
    Gender:
    Male
    georgetown, ont
    Vehicle:
    06 access cab 4x4 O/R
    rr diff mod in-cab 110
    Same thing just happened, thanks for all the info in this thread. Fixed her up in no time. :D:D:D

  16. Dec 5, 2012 at 9:19 AM
    #16
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.
    My idea of using a #6 bolt is obviously not adequate. It just broke again in less than a year. This time I used #8 hardware, which has a larger diameter. Hopefully this will last a little longer.

  17. Mar 3, 2013 at 11:27 AM
    #17
    sierra015

    sierra015 Member

    Joined:
    Mar 2, 2013
    Member:
    #98784
    Messages:
    9
    Gender:
    Male
    First Name:
    Filip
    Toronto
    TRD SPORT
    perfect solution! did it in less then 1hr
    thanx

  18. Mar 3, 2013 at 11:39 AM
    #18
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    21,172
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, CBI Sliders, Icon ET Coilovers, aFe Intake, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, All-Pro UCAs, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    Maybe a shoulder bolt, so the arm doesn't grind on the threaded portion of the bolt? Fastenal sells these in M4 size. You can probably find them at McMaster as well.

    [​IMG]

  19. Jun 6, 2014 at 7:01 AM
    #19
    jbars

    jbars New Member

    Joined:
    May 29, 2014
    Member:
    #130858
    Messages:
    3
    Gender:
    Male
    First Name:
    Barzzy
    Whiterock BC
    Vehicle:
    06 Tacoma
    leveling kit
    Gent's
    Can I ask what length of shoulder bolt #6 you used on this wiper tranie fix. I want to do mine this weekend.
    Thanx for your time.

  20. Nov 8, 2014 at 8:22 PM
    #20
    Ryan07

    Ryan07 Well-Known Member

    Joined:
    Jul 12, 2010
    Member:
    #40109
    Messages:
    352
    Gender:
    Male
    First Name:
    Ryan
    New Brunswick
    Vehicle:
    07 TRD DC,LB Sport 4x4
    Icon Ext. Coilovers, LR UCA's, Icon AAL, Nitro 9000 Shocks, 7"Kragen HID's/Billet Grille, Extang Solid Fold Tonneau Cover, Bed Lights, Diff Breather Mod, D-Rings Mod, LED Interior Lighting/Plate Lights, LED 4X4 Switch, Viper Starter, AVH-P4200DVD, PAC Interface, OEM Backup Camera/Pop&lock, Wet Okole Seat Covers, Weathertech Mats, Husky Mud Flaps, 8000lbs Champion Winch/Winch Cradle and Quick Connect Kit, 4,500lbs Champion Winch/Front Hidden Winch Mount, OEM Painted Rims, Spidertrax 1.25, 265/70R17 BFG KO's
