Broken wire on door lock actuator connector

Discussion in '1st Gen. Tacomas (1995-2004)' started by shankyjones, Oct 1, 2024.

  1. Oct 1, 2024 at 3:09 PM
    #1
    shankyjones

    shankyjones [OP] Well-Known Member

    Joined:
    Dec 28, 2020
    Member:
    #350956
    Messages:
    449
    Gender:
    Male
    First Name:
    Richard
    Marina CA
    Vehicle:
    2003 Brown Tacoma Prerunner V6 3.4L TRD
    Has anyone depinned any wires on the female connector? I need to do a repair and don't know what type of connectors and crimpers to use. I believe they are JST judging from my research.

    TYIA

  2. Oct 2, 2024 at 6:51 PM
    #2
    Toyota Dude

    Toyota Dude Well-Known Member

    Joined:
    Nov 11, 2019
    Member:
    #310447
    Messages:
    96
    Vehicle:
    2004 Tacoma 4WD 6-CYL DC
    Got a pic?

    Here's a video - 1 of many - showing how to re-use pinned wiring by removing the pins and reinstalling in the new connector.

    https://m.youtube.com/watch?v=W9IvtPmw62Q

    Might find the new connector here:

    https://www.corsa-technic.com/category.php?category_id=157

  3. Oct 2, 2024 at 7:08 PM
    #3
    shankyjones

    shankyjones [OP] Well-Known Member

    Joined:
    Dec 28, 2020
    Member:
    #350956
    Messages:
    449
    Gender:
    Male
    First Name:
    Richard
    Marina CA
    Vehicle:
    2003 Brown Tacoma Prerunner V6 3.4L TRD
    Hey Yota Dude

    Unfortunately I don't have a pic. I put everything back together again the other day. All I know is that it is a female connector with 8pins. I have looked at many videos on how to de-pin all types of connectors. None seem to be similar as mine. I don't see any release points in mine.

    When I have a chance I will take it back out of my truck and post a picture. I am not even sure that if I repair the wire with a new connecting pin that it will fix my issue which is the power lock button doesn't work. I may still have a dead motor in the door lock actuator.

    Toyota Dude likes this.
  4. Oct 2, 2024 at 7:38 PM
    #4
    jpg366

    jpg366 Well-Known Member

    Joined:
    May 10, 2009
    Member:
    #17064
    Messages:
    93
    Gender:
    Male
    TX
    Vehicle:
    09 Prerunner SR5
    Would it make sense to force some power to the lock motor before attacking connectors? Or at least compare continuity and resistance readings to the one on the other side?

    Clearwater Bill and Toyota Dude like this.
  5. Oct 2, 2024 at 8:02 PM
    #5
    shankyjones

    shankyjones [OP] Well-Known Member

    Joined:
    Dec 28, 2020
    Member:
    #350956
    Messages:
    449
    Gender:
    Male
    First Name:
    Richard
    Marina CA
    Vehicle:
    2003 Brown Tacoma Prerunner V6 3.4L TRD
    Jpg

    I believe my blue wire is the culprit which feeds power to the motor. Once I make the repair I can test the motor however that won't prove it is strong enough to turn the gears.

  6. Oct 3, 2024 at 7:49 AM
    #6
    shankyjones

    shankyjones [OP] Well-Known Member

    Joined:
    Dec 28, 2020
    Member:
    #350956
    Messages:
    449
    Gender:
    Male
    First Name:
    Richard
    Marina CA
    Vehicle:
    2003 Brown Tacoma Prerunner V6 3.4L TRD
    Yota Dude

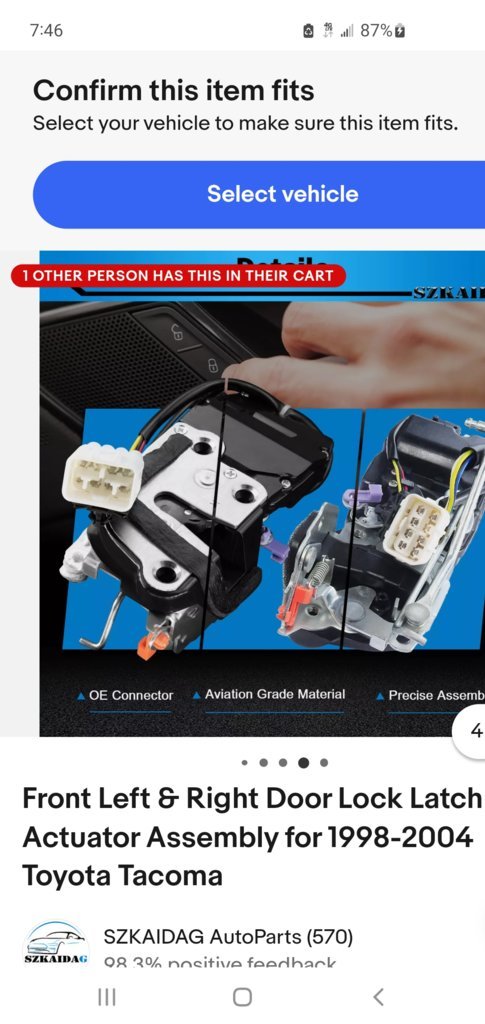

    Here is a picture of the connector. Not mine but an example off of Ebay

    Screenshot_20241003-074658_Samsung Internet.jpg

    This site contains affiliate links for which the site may be compensated.
    #6
  7. Oct 5, 2024 at 11:11 AM
    #7
    Toyota Dude

    Toyota Dude Well-Known Member

    Joined:
    Nov 11, 2019
    Member:
    #310447
    Messages:
    96
    Vehicle:
    2004 Tacoma 4WD 6-CYL DC
    Have removed pins from old connectors and installed in new ones using the techniques in the video. Have also spliced in new connectors by soldering the individual wires and heat shrinking. There may be the correct connector available at the web site noted. Toyota also sells connectors. Have also decrimped and recrimped/soldered a connector on the end of a single wire that became damaged (separated) at the connector by trimming the wire insulation back slightly and reattaching because there was enough length in the wiring harness to do so.

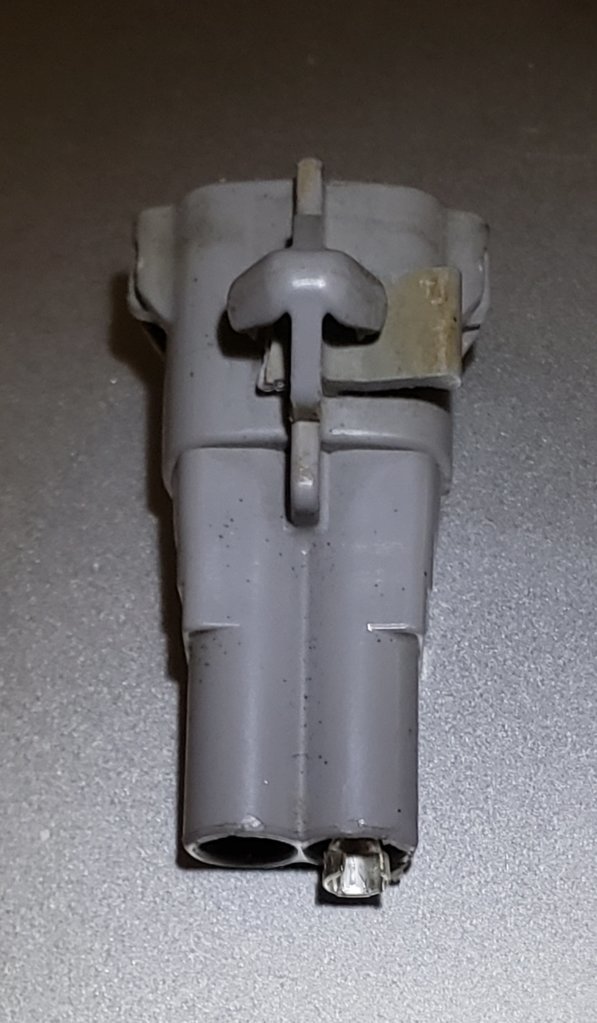

    Connector wiring repair.jpgWiring plug water tight grommets.jpg

    shankyjones[OP] likes this.
  8. Oct 5, 2024 at 10:04 PM
    #8
    shankyjones

    shankyjones [OP] Well-Known Member

    Joined:
    Dec 28, 2020
    Member:
    #350956
    Messages:
    449
    Gender:
    Male
    First Name:
    Richard
    Marina CA
    Vehicle:
    2003 Brown Tacoma Prerunner V6 3.4L TRD
    PpToyota Dude

    I found this video that shows a connector very similar to mine. I'll have to remove everything AGAIN and see if I can get the wire repaired. I need to buy the wire stripper tool, the barrel crimper and a set of barrel connecting pins prior to

    https://youtu.be/y_Ib1d18Eno?si=kNGSj4qN3RjKit2U

  9. Oct 6, 2024 at 2:12 PM
    #9
    Toyota Dude

    Toyota Dude Well-Known Member

    Joined:
    Nov 11, 2019
    Member:
    #310447
    Messages:
    96
    Vehicle:
    2004 Tacoma 4WD 6-CYL DC
    Yes this is an opportunity to add some tools to your chest that you might use again later. I have found they're great to have in a pinch when need to fix something overnight and don't have time to reorder something and wait a week.

    Also I tend to also solder instead of just crimp especially when adding things like but splice connectors for trailer harness etc.

    But have you traced that your blue wire ia broken or maybe there is another cause?

  10. Oct 6, 2024 at 2:28 PM
    #10
    shankyjones

    shankyjones [OP] Well-Known Member

    Joined:
    Dec 28, 2020
    Member:
    #350956
    Messages:
    449
    Gender:
    Male
    First Name:
    Richard
    Marina CA
    Vehicle:
    2003 Brown Tacoma Prerunner V6 3.4L TRD
    T-dude

    The blue wire is completely disconnected from the connector. I haven't been able to find a wiring diagram to confirm if it is the exact wire or one of two which locks/unlocks the doors. My guess is that it is because everything else works.

    Last edited: Oct 6, 2024
  11. Oct 7, 2024 at 1:45 AM
    #11
    Toyota Dude

    Toyota Dude Well-Known Member

    Joined:
    Nov 11, 2019
    Member:
    #310447
    Messages:
    96
    Vehicle:
    2004 Tacoma 4WD 6-CYL DC
    Ah. Just like the repair pictured! Sounds like that's the cause. IIRC used various dental picks had collected over time but there are pin keys sold on the rain forest store and elsewhere.
