Building a console vault

Discussion in '2nd Gen. Builds' started by cvillechopper, Jan 2, 2009.

  1. Jan 2, 2009 at 7:43 PM
    #1
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    So I've started to build my own console lock box with a goal of keeping it under $100. So far I've got about $50 of materials into it and should be able to finish up for under $80. Here's the basic steps and the few pics I've taken so far.

    Materials:
    24x24 16ga steel sheet
    1/8" steel (I used left over pieces but an 8x10 piece would work
    1/16" x 1/4" steel
    Cutting wheels
    Heavy door hinge
    Lock
    Primer
    Liner paint
    Felt
    M6x1.5 bolts (2)

    Tools:
    Angle Grinder
    Welder
    Level
    10mm socket and ratchet
    cross-point screwdriver
    Scissors
    Sharpie
    Coors Light

    1. Remove center console from truck
    2. Disassemble underside of console lid
    3. Separate lid from hinge
    4. Remove hinge covers (from underneath)
    5. Remove hinge

    Now the fun starts.

    6. Using cardboard, cut out templates for the pieces you need
    7. Start with the back-most piece in the recess and work toward the driver side piece. You only need to create templates for the sides.
    8. Tape all pieces together and make sure you can install and remove assembled template
    9. Use templates to trace pieces onto 16 ga steel plate
    10. Cut out pieces.
    11. Begin fitting pieces from the same starting point.
    12. Using duct tape, fit 2 pieces together, then tack weld them together
    13. Test fit and adjust as necessary.
    14. Repeat with rest of pieces. I found that I needed to trim, grind, etc quite a bit and still didn't get it perfect but good enough for me right now.
    15. After sides are assembled and you can install and remove them, set assembly onto remaining 16 ga steel sheet and trace.
    16. Cut bottom piece out and weld into place
    17. Cut and weld 1/16 steel around top edge using a level to keep it even

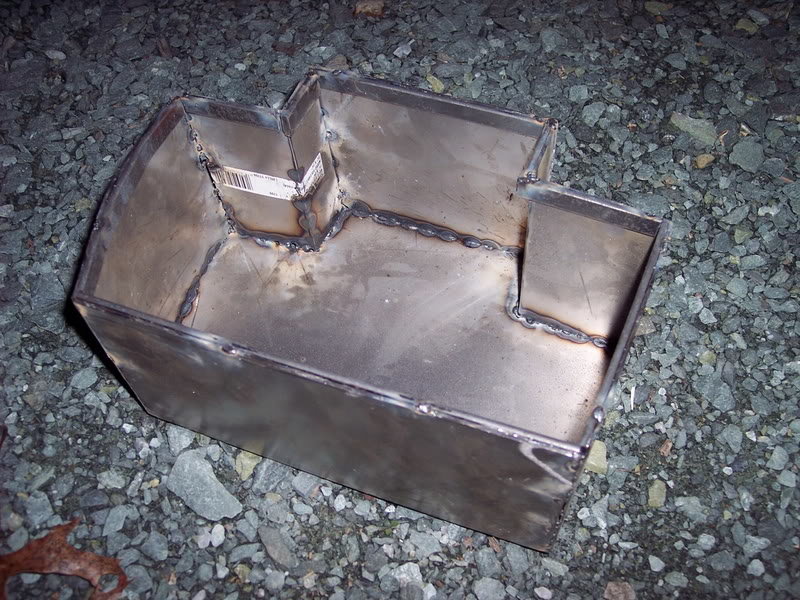

    You should have something that looks about like this:
    [​IMG]

    [​IMG]

    I know it's ugly but I'm not done yet.

    18. Cut top out of 1/8" steel
    19. Draw straight line across top about 1/2 toward the front of the recess
    20. Use grinder to create slight low spot across the line the width of the hinge
    21. Weld hinge (assembled) sides to plate with center aligned with the line you drew

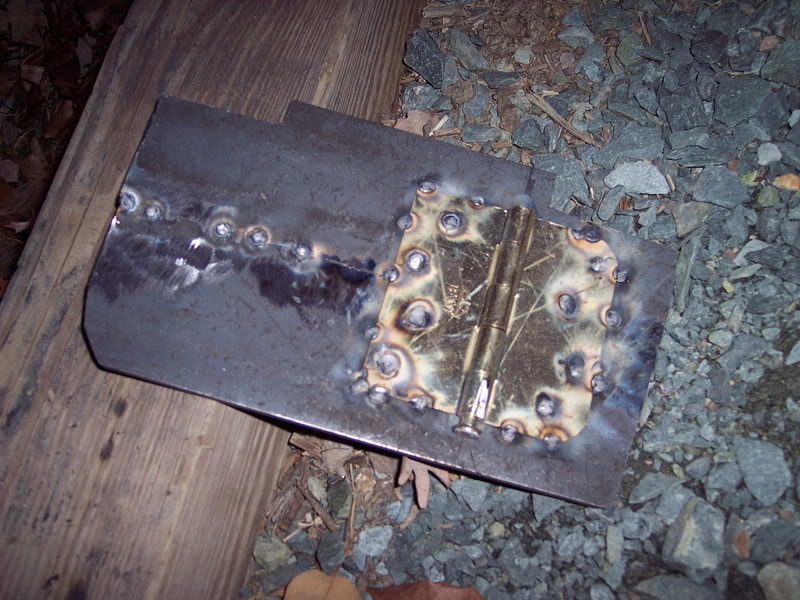

    Should look about like this:

    [​IMG]

    It's uglier than the box but that will all have to fixed later.

    Plan going forward is:

    Finish cleaning up my welds on the box and grind them smooth
    Weld latch for lock to inside-front of box
    Drill hole for lock into lid
    Cut the top from the bottom along the line (taking care not to cut the hinge) then weld the back piece to the box
    Spray with primer.
    Paint with liner paint.
    I'll use speaker carpet to cover the inside and out.
    Install lock and I should be good.

    I still haven't figured out how to make it look cleaner out the outer edges since there are some places where the design means leaving space between the box and the side.

    I had to stop since I tripped the breaker and the wife needed help taking decorations down but I'll post more as I get it done if others are interested.

  2. Jan 2, 2009 at 7:53 PM
    #2
    Cobra69

    Cobra69 Well-Known Member

    Joined:
    Nov 8, 2008
    Member:
    #10578
    Messages:
    322
    Gender:
    Male
    Taxachusetts (Massachusetts)
    Vehicle:
    02 Tocoma TRD Expedition Setup
    2002 Tacoma TRD Access Cab, Deckplate Mod.,Grey wire Mod.,Cobra CB,Ext. Diff. Breather,E-locker rear only for now,CBI Custom Winch bumper, SAW 2.0, All Pro 5" leaf packs+Bilstiens 5150-10" shocks,Cooper STT 285x75x16 on Wheelers Type B 16x8 rims, Budbuilt front+Mid skid plates, Custom transfer crossmember+skidplate,Trail-Gear sliders,custom roof-rack,Ultimate-air CO2 tank,4-Hella 500 H.I.D. Lights,Atlas 10,000 lbs winch. Custom Half-doors for the summer.
    Nice write up so far. I'll be following to see the finished product.

  3. Jan 2, 2009 at 7:56 PM
    #3
    wildjerseyfirefighter

    wildjerseyfirefighter I sell fishing and fishing accessories

    Joined:
    Dec 17, 2008
    Member:
    #11677
    Messages:
    7,975
    Gender:
    Male
    First Name:
    Joe
    NJ
    Vehicle:
    05 Tacoma TRD Sport
    stock, for now
    not bad at all. Ever think of keeping it simple, and line it with say..herculiner, and then cover it with cloth to match the interior? Or just cover it over twice, then you wont see the welds.

  4. Jan 2, 2009 at 8:01 PM
    #4
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,132
    Gender:
    Male
    Interstate underpass
    Vehicle:
    05 Indigo 4wd Longbed
    Not as many as the 98..
    Cover with felt, and paint it with fiberglass resin. When it cures after enough coats, sand it down, bondo, metalglaze and then primer/paint. You'll have a kickass console then.

  5. Jan 2, 2009 at 8:05 PM
    #5
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    That's a great idea. I forgot to put in the "paint with POR-15 frame paint" step but liner paint would probably work better. Still want cloth to protect the inside of the console as well as anything I put in there.

  6. Jan 2, 2009 at 8:15 PM
    #6
    wildjerseyfirefighter

    wildjerseyfirefighter I sell fishing and fishing accessories

    Joined:
    Dec 17, 2008
    Member:
    #11677
    Messages:
    7,975
    Gender:
    Male
    First Name:
    Joe
    NJ
    Vehicle:
    05 Tacoma TRD Sport
    stock, for now
    the only problem with that, is quarts of that stuff is expensive. I think one is like 20-30 bux

  7. Jan 2, 2009 at 8:28 PM
    #7
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    No Joke! I've got most of a quart in the basement fridge(they say it keeps better that way) left over from a bike restore I've been working on for about 10 months. I'm thinking that the under $100 goal wouldn't include that. It would have to be "what ever you have lying around".

  8. Jan 2, 2009 at 8:31 PM
    #8
    wildjerseyfirefighter

    wildjerseyfirefighter I sell fishing and fishing accessories

    Joined:
    Dec 17, 2008
    Member:
    #11677
    Messages:
    7,975
    Gender:
    Male
    First Name:
    Joe
    NJ
    Vehicle:
    05 Tacoma TRD Sport
    stock, for now
    well you said you should be comming in around $80, right? Then if you can get it for say $20 on sale, you SHOULD be under $100

  9. Jan 3, 2009 at 6:35 PM
    #9
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    OK. I made a bit of progress today. It's fully assembled and the welds have been strengthened enough for this task. It's still not pretty but after the coat of primer it does look much more like it should. I picked up some felt tonight and am waiting for the box and paint to warm up (were in the garage all day) so I can put the black paint on.

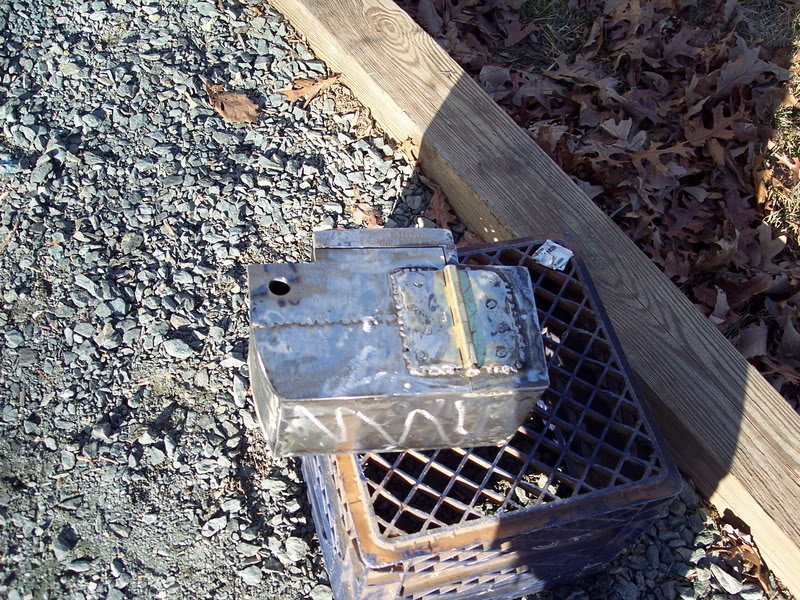

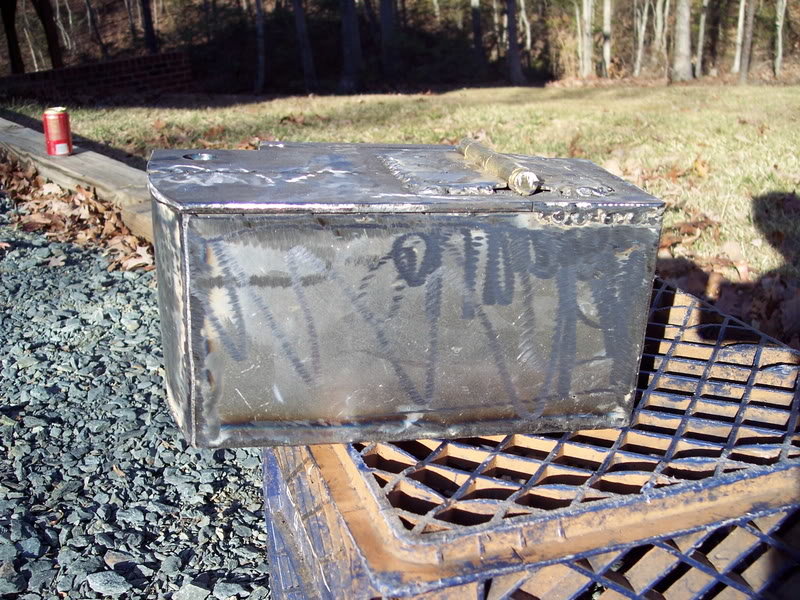

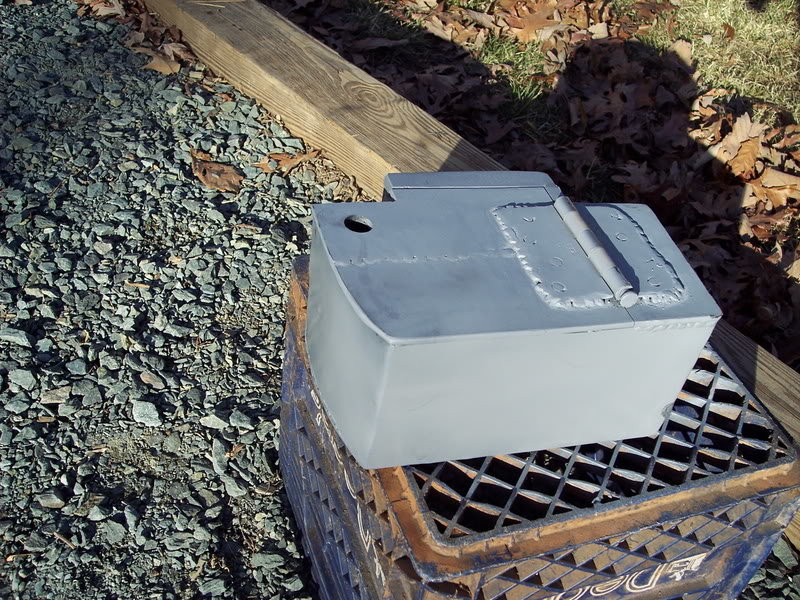

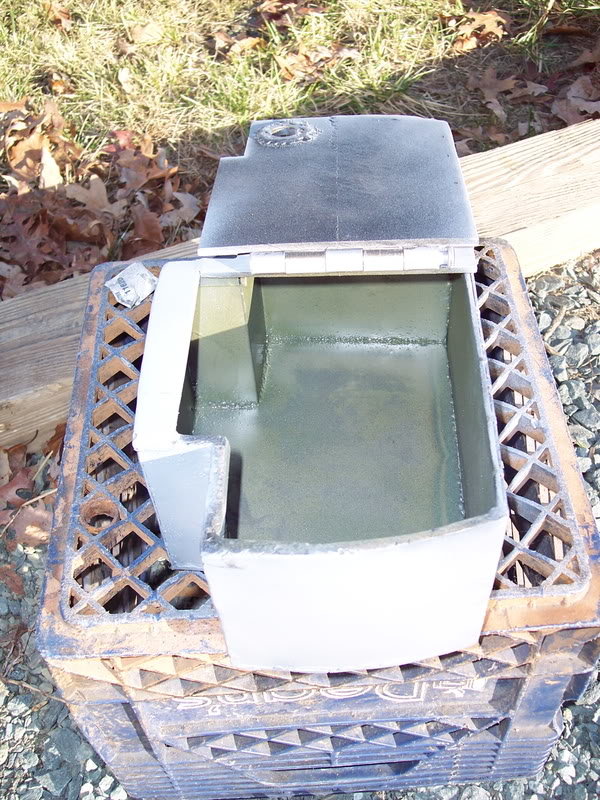

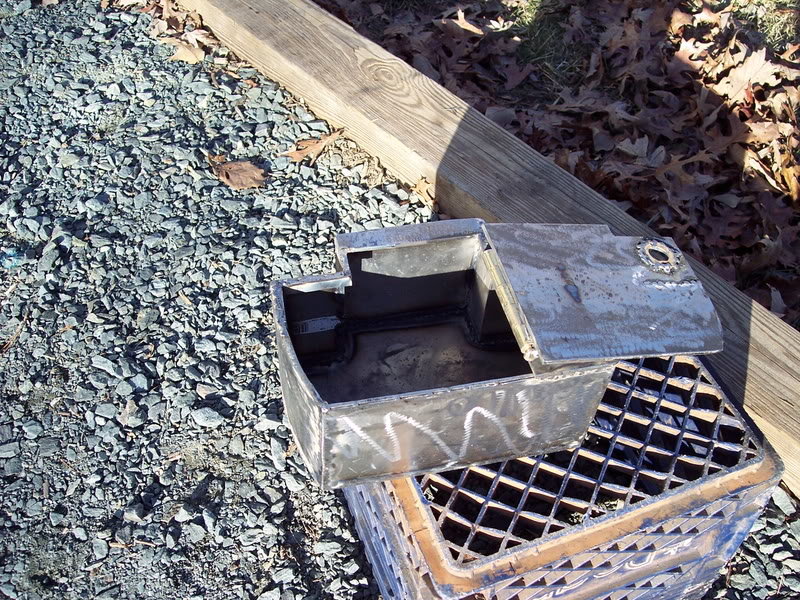

    Here's what she looks like with out and then with the primer.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  10. Jan 3, 2009 at 6:42 PM
    #10
    longbow

    longbow I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    That is a pretty slick mod/project, and a great write up.
    If I could do the welding I would give it a shot.

  11. Jan 3, 2009 at 8:16 PM
    #11
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,132
    Gender:
    Male
    Interstate underpass
    Vehicle:
    05 Indigo 4wd Longbed
    Not as many as the 98..
    Does it rattle? Maybe have a little rubber between the box and lid?

  12. Jan 3, 2009 at 8:44 PM
    #12
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    It doesn't rattle as is but I'm planning on having felt on the resting edges and bottom of the lid just in case.

  13. Jan 3, 2009 at 9:00 PM
    #13
    lsocoee

    lsocoee My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    that is really nice. I wish I had those skills.

    While you're at it. I saw someone make a locking box that fits just behind one of the back seats. You should go for one of them too.

  14. Jan 4, 2009 at 6:51 AM
    #14
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    Yeh. I thought about that for about 2 seconds before my self preservation skills kicked in. The main reason we went with the DC was so friends and future kids can sit in the back comfortably. If I built something that took that away I might be sleeping in the truck for a while...

  15. Jan 4, 2009 at 7:28 AM
    #15
    Drew793

    Drew793 Well-Known Member

    Joined:
    Mar 8, 2008
    Member:
    #5145
    Messages:
    190
    Gender:
    Male
    New Jersey
    Vehicle:
    08 TRD Off-Road V6 Auto
    Weather Tech window shades, Roll-N-Lock cover with cargo manager, Led interior bed lights, EZ down tailgate strut, SpiderTrax1.25" wheel spacers, tinted windows, second filter removed, Grillcraft Mesh upper and lower grill, Castrol Syntec.
    Nice project. Once it's bolted down it's a great place to keep stuff safe in your truck.

  16. Jan 4, 2009 at 9:38 AM
    #16
    lsocoee

    lsocoee My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    it didn't take away from the back seat. It was in place of the storage cubby behind the rear seat.

  17. Jan 4, 2009 at 1:05 PM
    #17
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    I got her installed and found one thing in my design that I didn't get quite right. The top is a little wide so I should have made it straight instead of making part of the recess open. Once I got the inside of the lid on I couldn't open the box so I trimmed the inside of the lid and she works perfectly.

    I couldn't find the speaker carpet I thought I would use so I found think felt at Micheal's. The self stick stuff is easier to work with and I used some of that for the inside where it's harder to use spray adhesive. You can see from the first pic of the box in the truck that there was a little extra space around the sides of the box. I used cardboard to build the space up so the top cover doesn't have space for stuff to fall down the edges. I also added an extra tab of felt to open the top. I didn't want to use anything that could be used to really stress the lock. As it is, I don't think the average smash-and-grab thief has a chance in hell of getting into this box.

    It's definitely not perfect but certainly worth the ~$80 in materials and the fun of the challenge.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  18. Jan 4, 2009 at 1:10 PM
    #18
    cvillechopper

    cvillechopper [OP] Jackass to the masses

    Joined:
    Nov 6, 2007
    Member:
    #3378
    Messages:
    538
    Gender:
    Male
    Charlottesville, VA
    Vehicle:
    12 DCSB TRD Off-Rd 4x4, Roof Rack, Tube Steps
    K&N drop-in air-filter, extra D-rings, Custom Console lock-box, Leather heated seats, Studly Driver
    Ahh.... That's a cool idea.

  19. Jan 4, 2009 at 1:41 PM
    #19
    tacomaniacmatt

    tacomaniacmatt Well-Known Member

    Joined:
    Sep 19, 2008
    Member:
    #9344
    Messages:
    134
    Gender:
    Male
    NorCal/Ostate
    Vehicle:
    06 TRD offroad, 11 FJC
    kinda getting out of hand...
    That is a very slick idea. I might just try that someday pretty soon...I wouldnt mind a safe place in my truck for stuff. Rep for you!

  20. Jan 4, 2009 at 2:11 PM
    #20
    blake1012

    blake1012 Go Braves!

    Joined:
    Jul 19, 2008
    Member:
    #8023
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Chazz Michael Michaels
    Duluth, GA
    Vehicle:
    2003 ext cab. tacoma.
    8000k HID's, Weathertech Digital Fit floor liners, Rhino Lined bed, 16x8 TRD Ivan Stewart wheels, bull bar, step rails, Redline Tuning hood struts, low profile tool box
    nice work!
