Building the "BEAST"

Discussion in '2nd Gen. Builds (2005-2015)' started by awsumdc, Jan 7, 2009.

  1. Jan 7, 2009 at 9:08 PM
    #1
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,606
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff
    The First '05 + Tacoma SAS
    Setting the bar high right from the start!

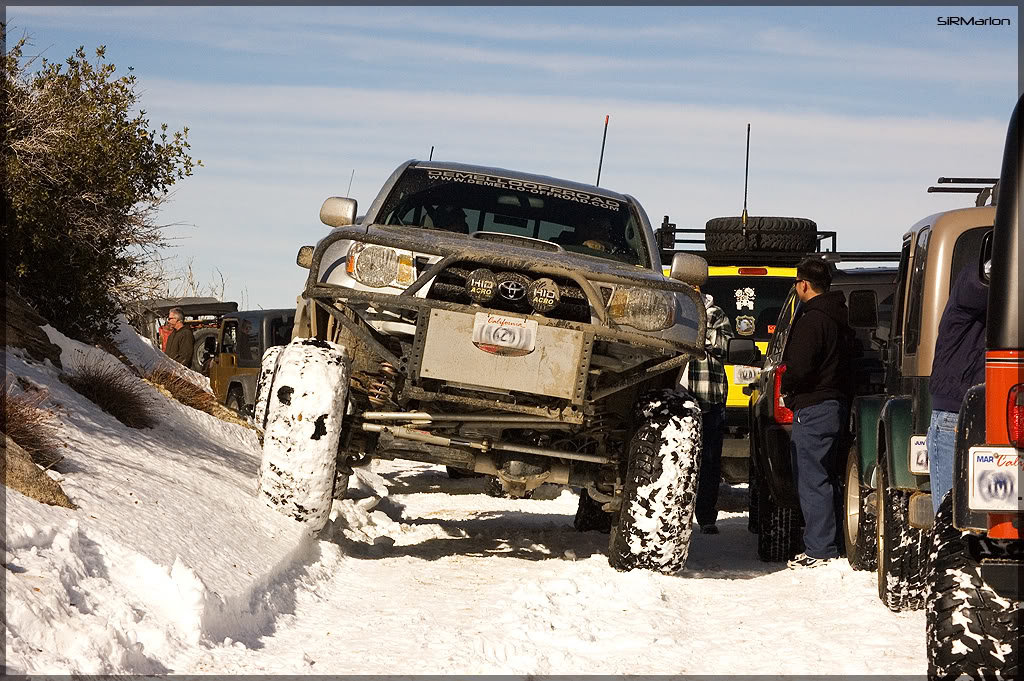

    [​IMG]

    OK. some people wanted me to start a build thread on my truck so I said I would. Please be patient with me on this one as I have to go through thousands of pictures and try to remember what we did. I will also scan some of the Magazines it has been in here and there.

    So here we go.

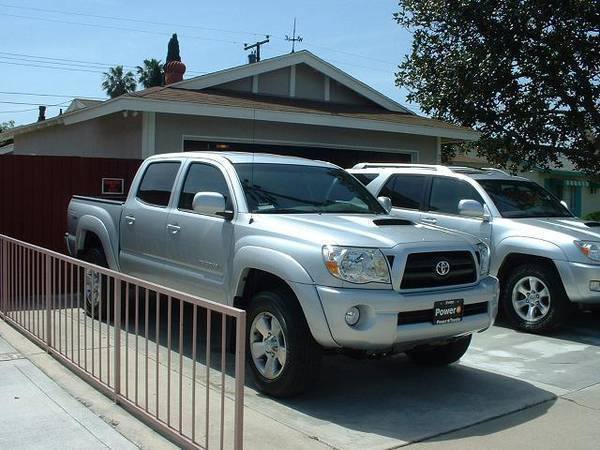

    This was the morning after I brought the truck home from Power Toyota in Irvine. It's an '05 Tacoma 4x4 sport double cab TRD edition. Thats my wifes '04 4Runner I bought for her brithday just 6 months prior. It's the sport model also with the 4.7 V8.

    [​IMG]

    I then put 3,000 miles on it to get the first oil change out of the way and we then brought it into the shop. This is the picture that was on the front cover of the premire issue of 4wd toyota owner magazine.
    For those of you that don't know him, thats my buisness partener, Jason DeMello. He sure did look happy holding that torch:(
    [​IMG]

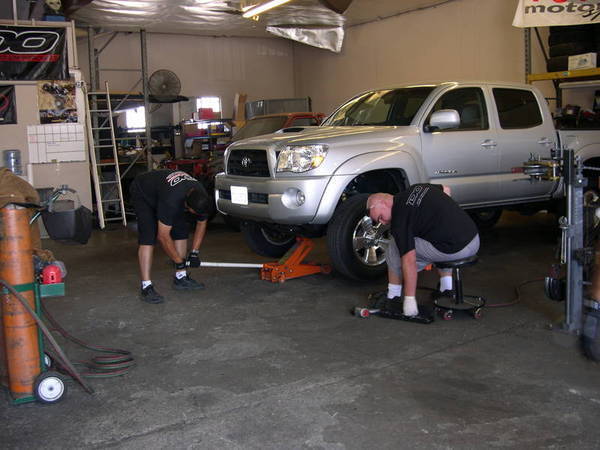

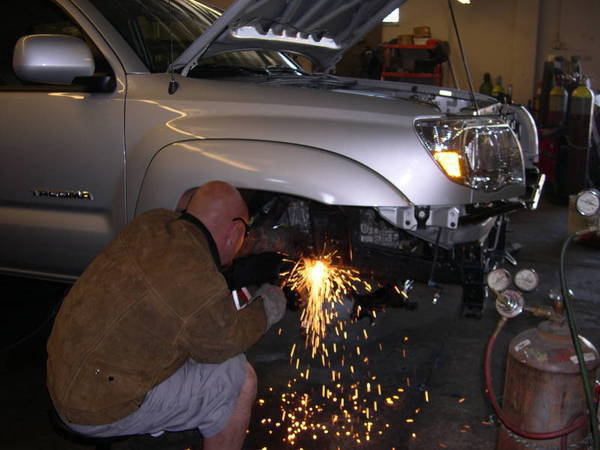

    But first we had to take a bunch of stuff off before the torch could be used.

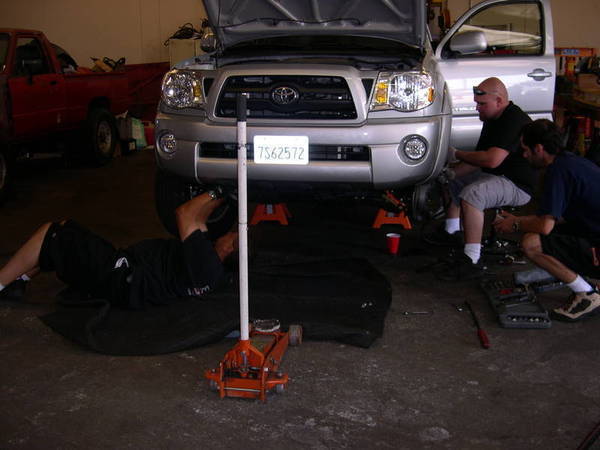

    Thats me on the jack and Jason on the seat.
    [​IMG]

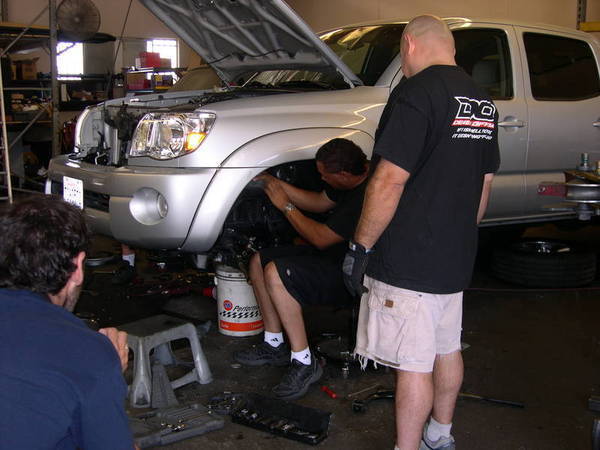

    The guy kneeling by Jason is the editor and owner of 4wd toyota owner magazine, David Zartman.
    [​IMG]

    I know this is just a couple of teaser shots, I'll have more up tomorrow night.:p

  2. Jan 8, 2009 at 6:17 AM
    #2
    Roland

    Roland My other ride has sails

    Joined:
    Jan 8, 2008
    Member:
    #4149
    Messages:
    2,406
    Gender:
    Male
    Rhode Island
    Vehicle:
    06 Impulse Red I4 2WD Access Cab
    UnderCover Tonneau, Bed mat, Bug Deflector, aFe Pro Dry S, Secondary Air Filter removed, Synthetic 5W-30 oil, Scanguage II with blendmount, WeatherTech floorliners, Toyota seat covers, Installed OEM intermittent wipers, TacomaWorld sticker, Defrost without AC mod, Hidden Hitch
    Can't wait! :D

  3. Jan 8, 2009 at 6:19 AM
    #3
    Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,535
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    :popcorn:oh hell yea!

  4. Jan 8, 2009 at 6:20 AM
    #4
    Delmarva

    Delmarva Mayor of TW

    Joined:
    Oct 22, 2008
    Member:
    #10148
    Messages:
    35,578
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    09 TRD OR S/C 4x4
    TRD S/C, Full OME Suspension, LR UCAs, Relentless Front Bumper, Derpwerx Fab HC Rear Bumper, 285/75/16 Revos, XD Hoss Wheels, Safari Snorkel, Infiniti FX-R HID Retrofit, Airbags in rear, Optima Yellow top, Besttop, All-Pro Skid, All-Pro HD Sliders
  5. Jan 8, 2009 at 7:46 AM
    #5
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,606
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

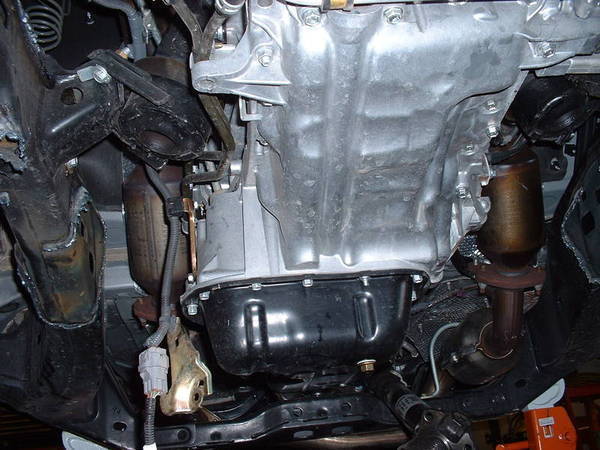

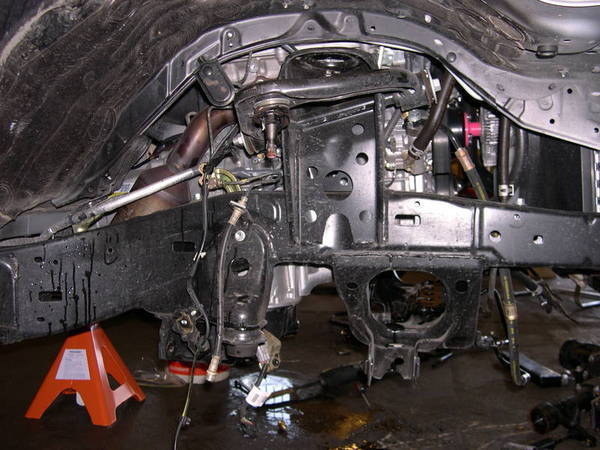

    Got alot of the front suspension of now and pulling the front diff and stuff out.
    [​IMG]

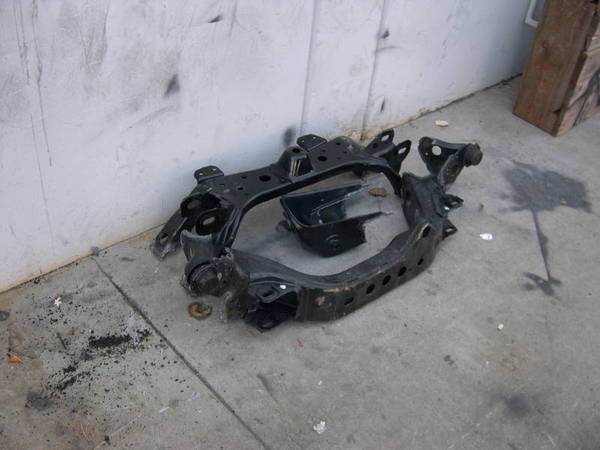

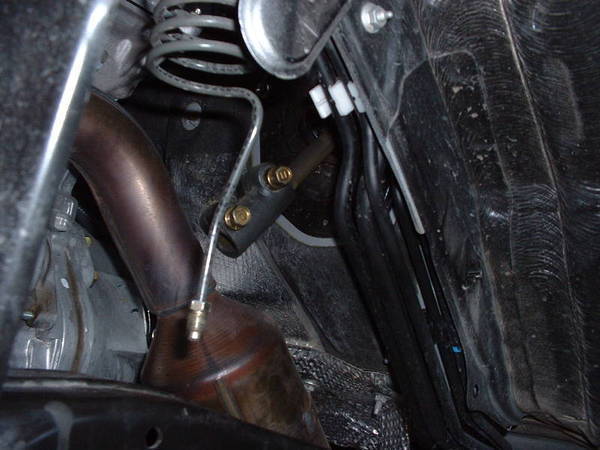

    Here are some expensive, barely used parts just waiting for a new home. Sorry folks, they are all sold now.
    [​IMG]
    [​IMG]
    [​IMG]

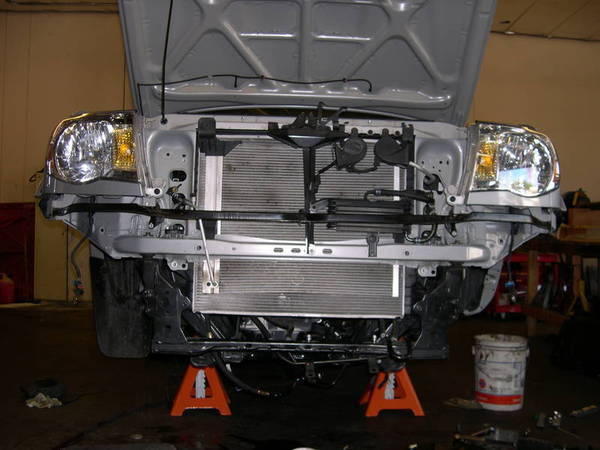

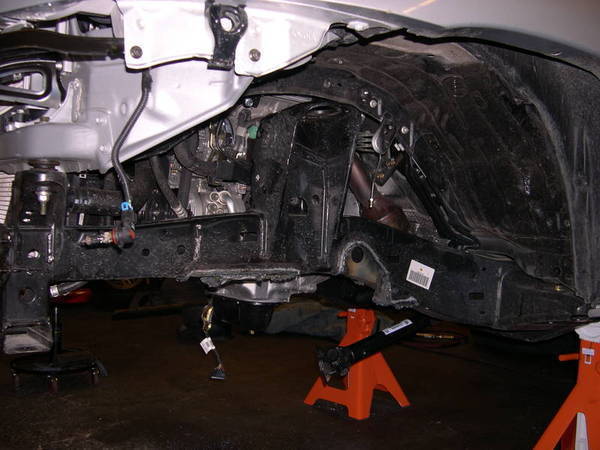

    A brand new truck ready for the torch. It was nice to work on a clean truck though.
    [​IMG]
    [​IMG]

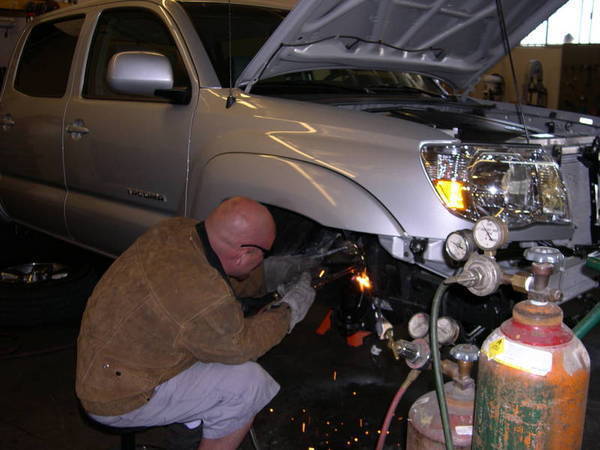

    And the cutting begins. There was no turning back now:eek:
    [​IMG]
    [​IMG]
    [​IMG]
    Getting close to grinder time. I hated that part:mad:
    [​IMG]

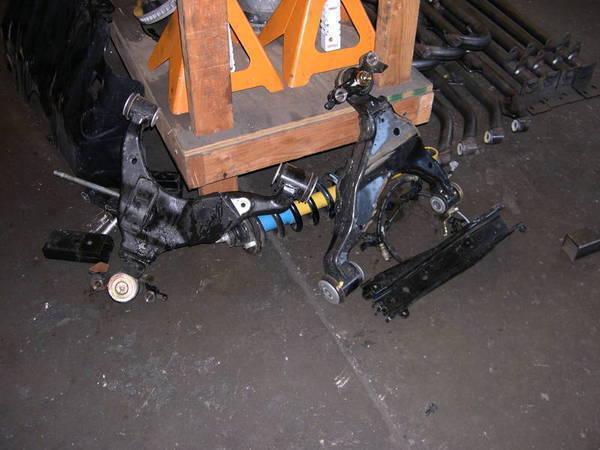

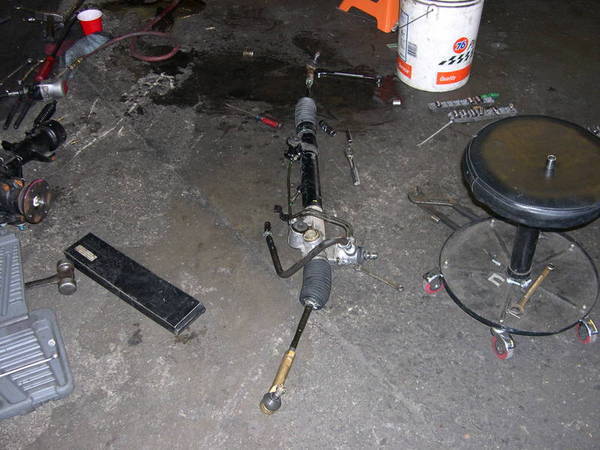

    Disgarded parts that are only good for srap now.
    [​IMG]

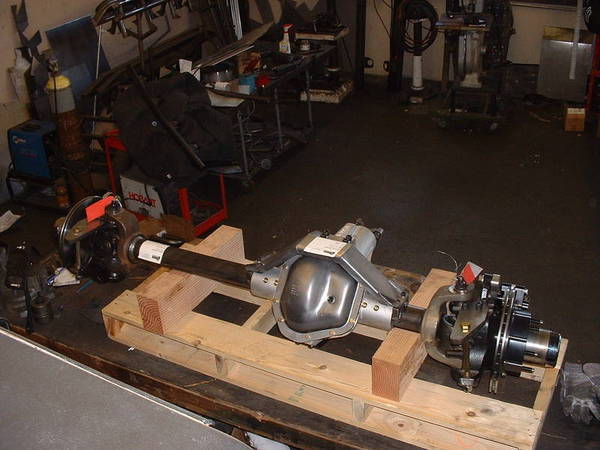

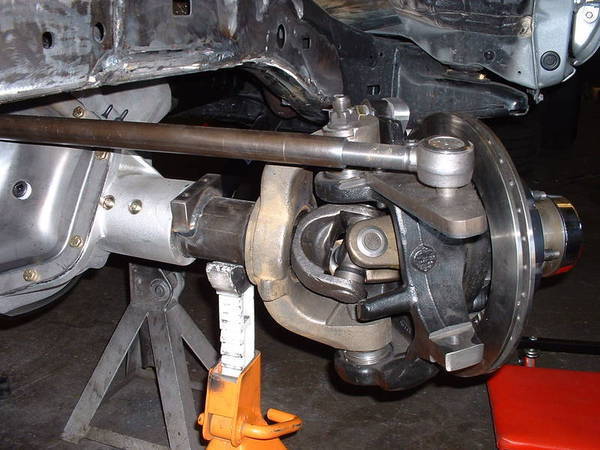

    And here is the jewel that will relace all that IFS stuff. It's a Currie rock jock 60 that is high pinion with reverse cut 5.38 gears, an ARB locker, 35 spline axle's Ford F-450 knuckles, Wilwood 4 piston disc brakes, and Warn premium hubs.
