BUYER BEWARE: 2nd & 3rd Gen Tacoma In-Cab 120vAC 400W Anytime Power Outlet

I'm guessing that usb outlet takes a 12v supply? Where do you plan on tapping? New circuit or same as the other usb's in the middle console?



Do you think that oem bezel will work on the back of the center council? With the slight curve.

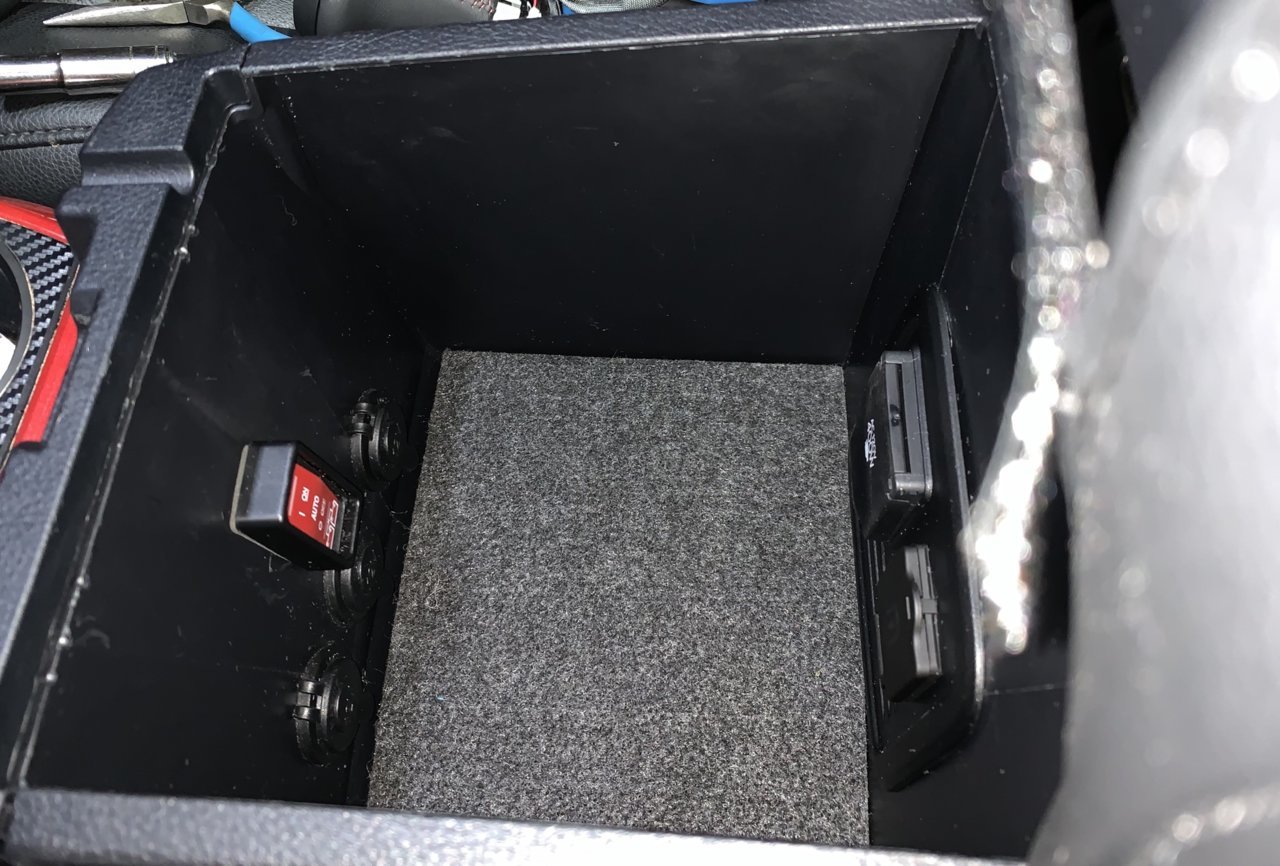

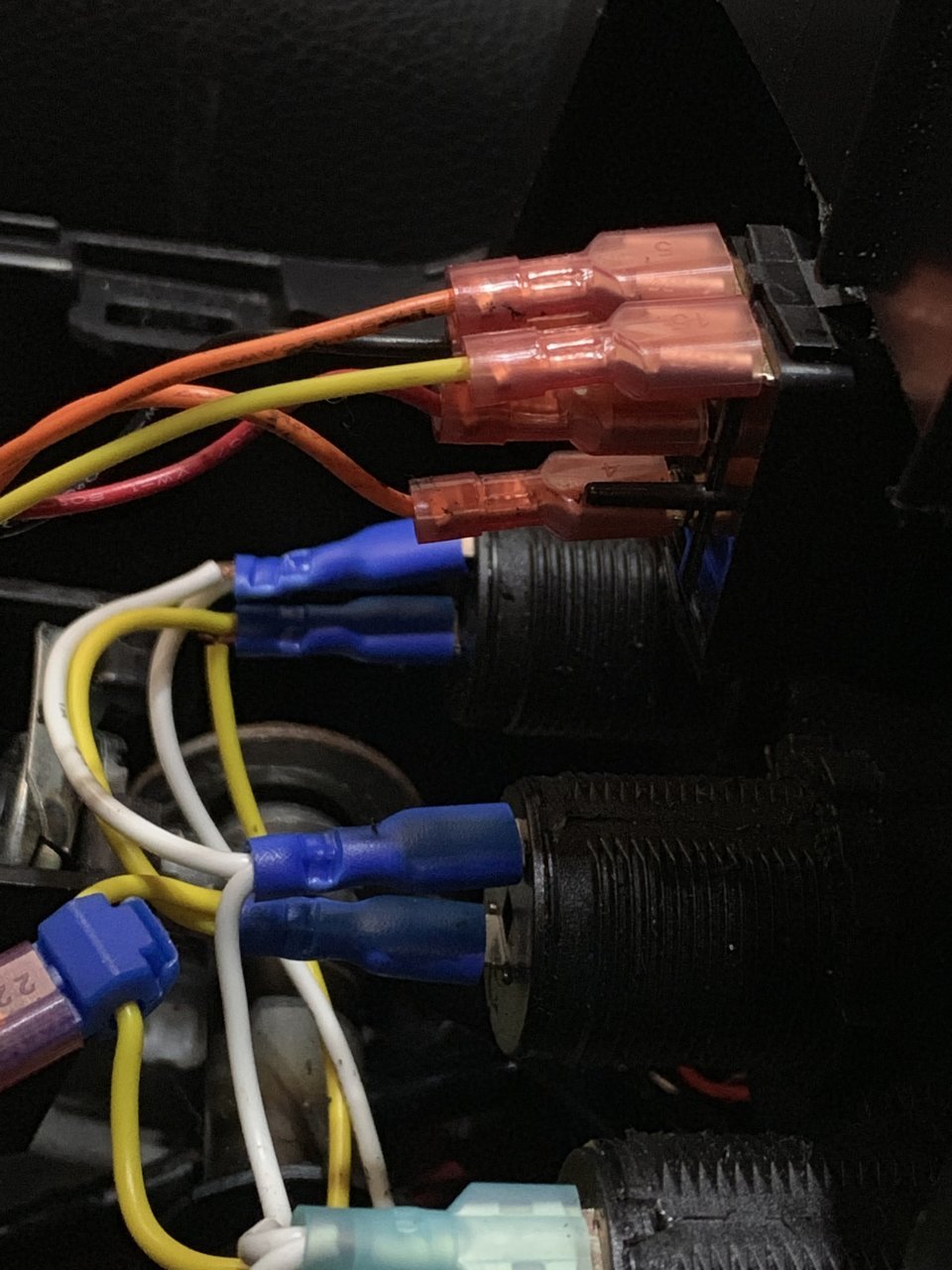

Same as the other USBs in the middle Console. I’m about to make a post with my build and there will be some pics that show my middle console and it has my first mod that I did with my three USBs. Maybe I will also link it to my build page where I have the write up there too.



Yes!



Here are a couple links to give you some ideas from my personal mod back in October of 2017:

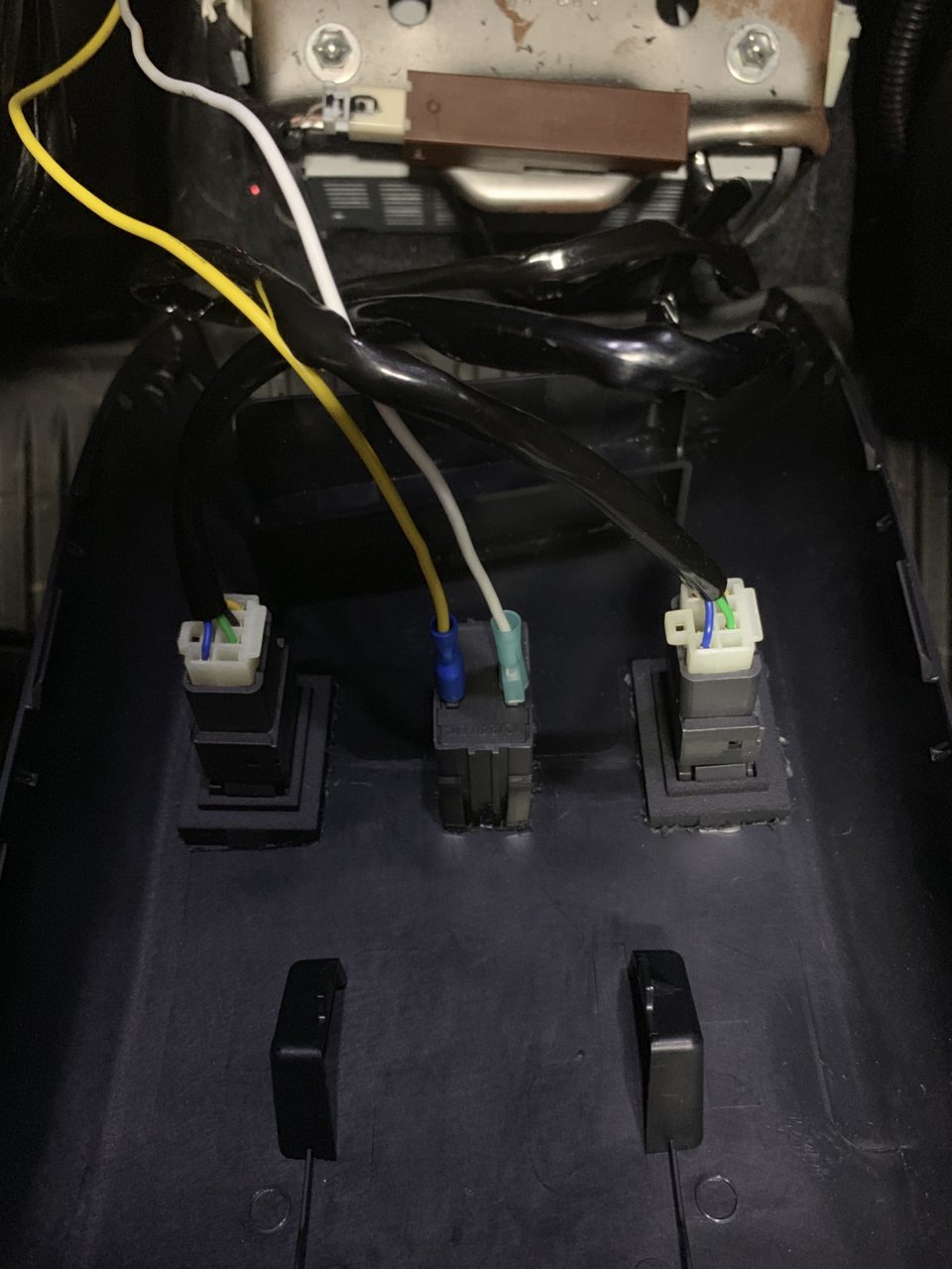

KTJO 4x4 400Watt Inverter Anytime Mod, Extended AC Outlet in Cab Mod, Extended DC Socket in Cab Mod, & Extended Dual USB Charger 12V DC Socket in Cab Mod

KTJO 4x4 Back of Center Console

Now for today’s Mod...2019!

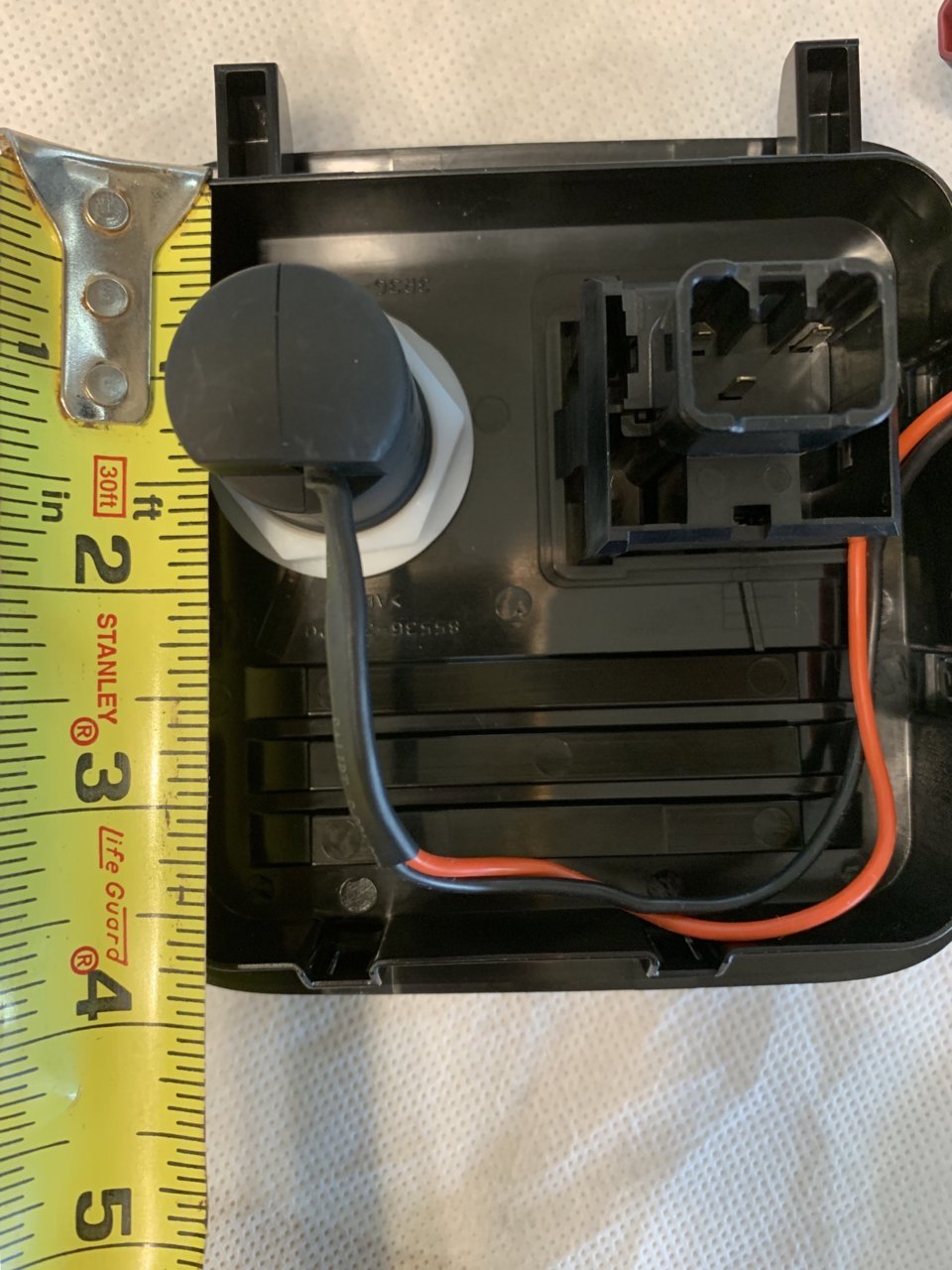

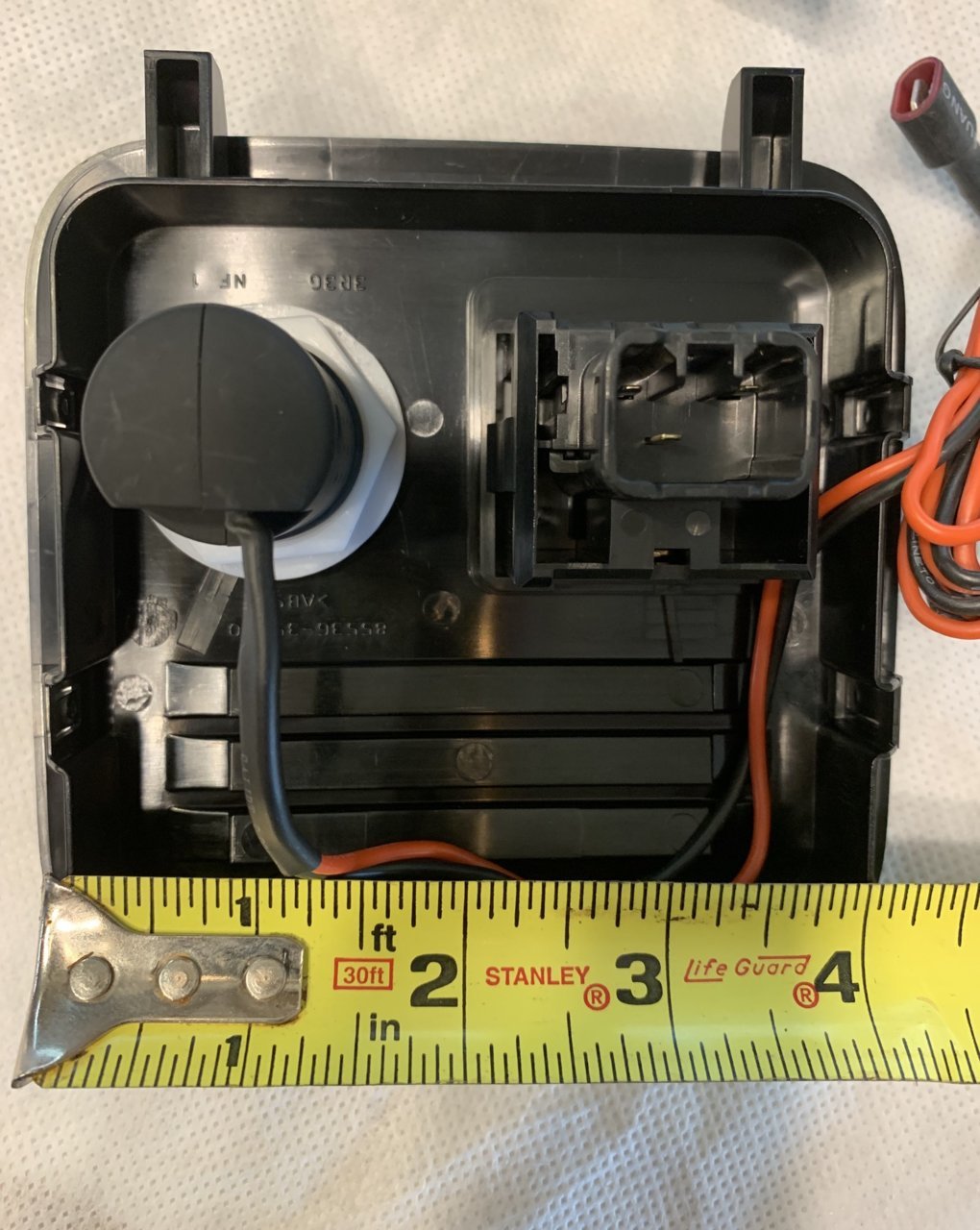

Bezel Power Outlet (Part No 85536-35020), AC 120V 400W Power Outlet (Part No 85530-35050-C0), & USB Power Port (Part No 00016-00225)

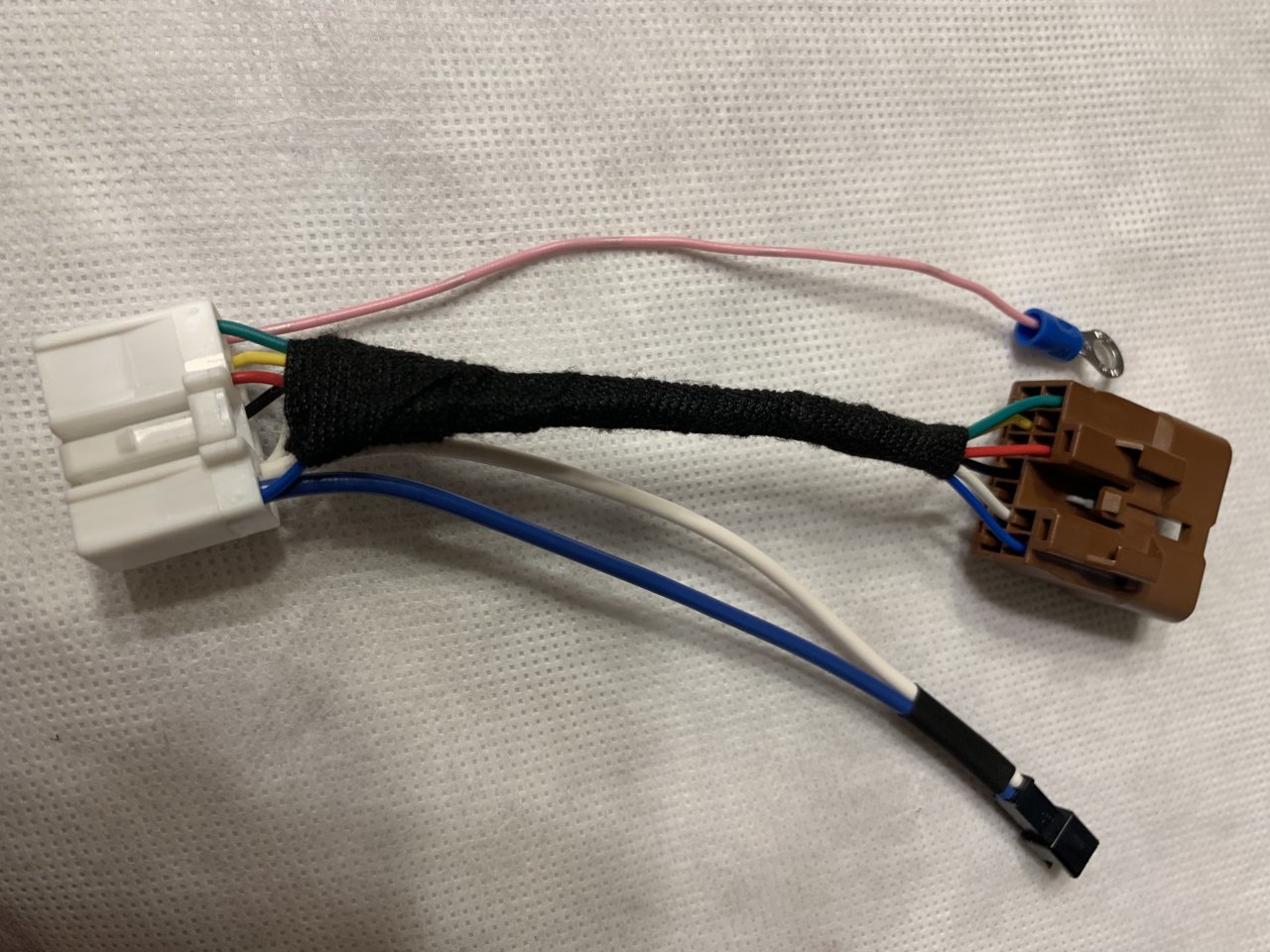

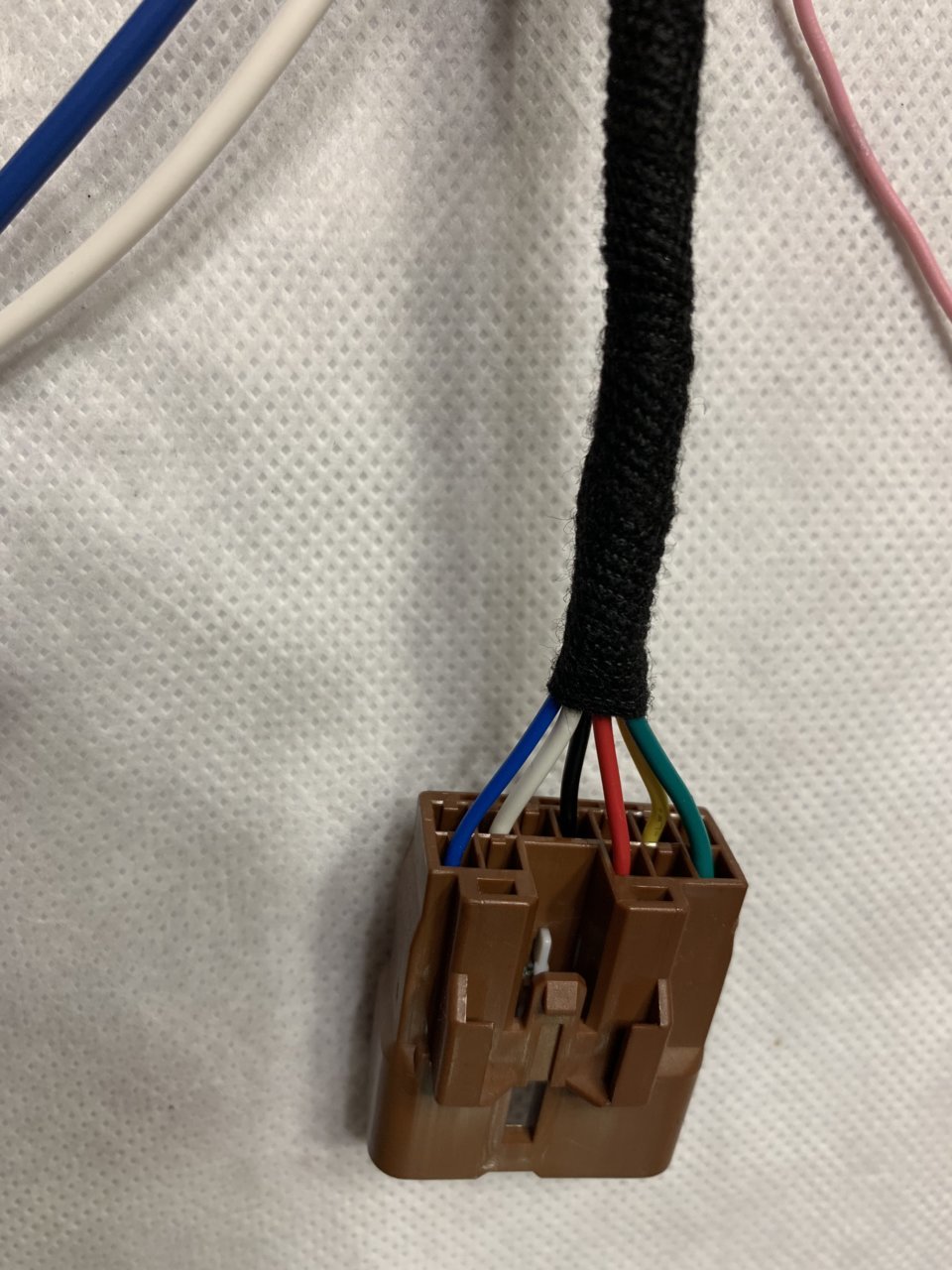

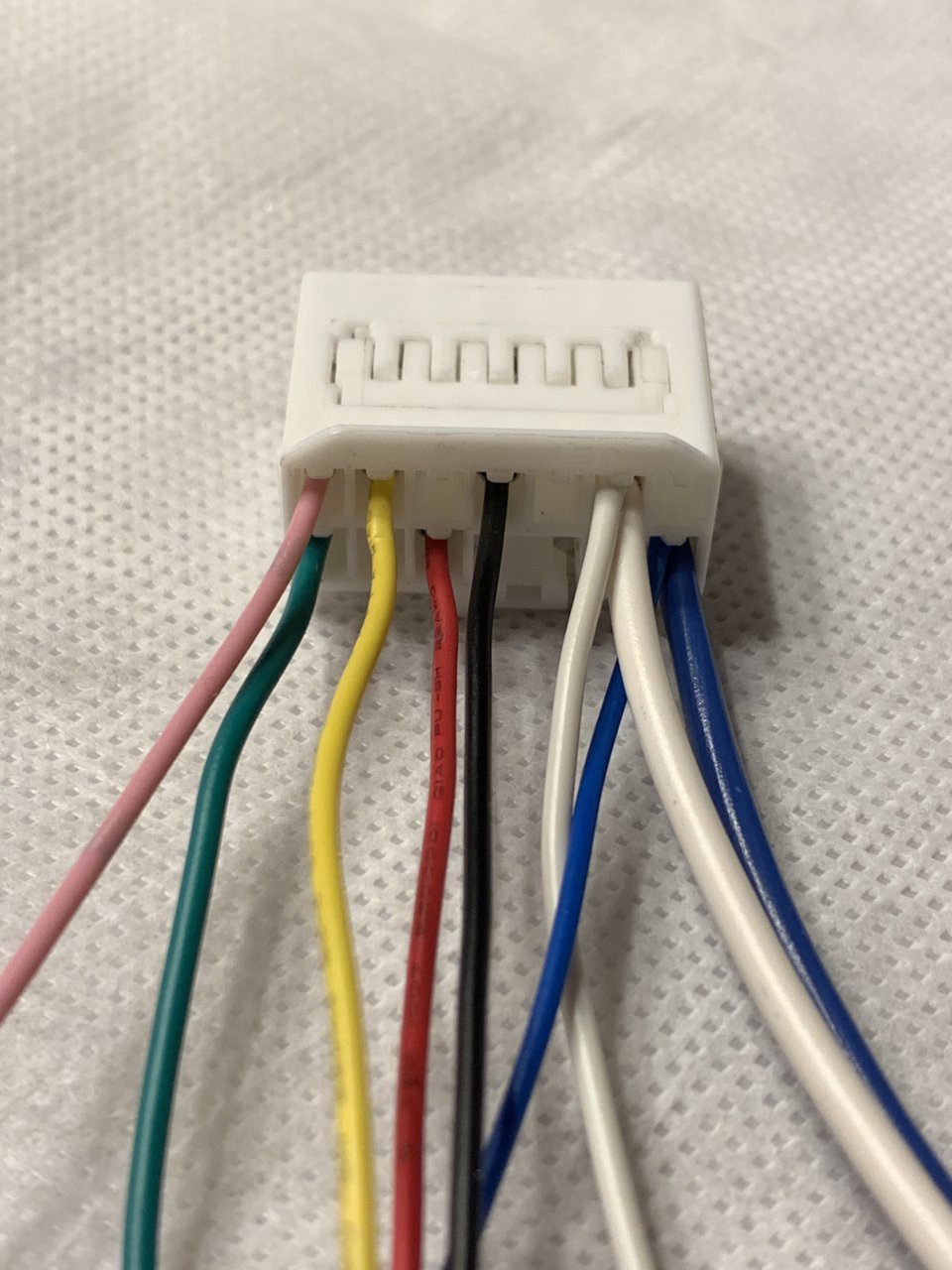

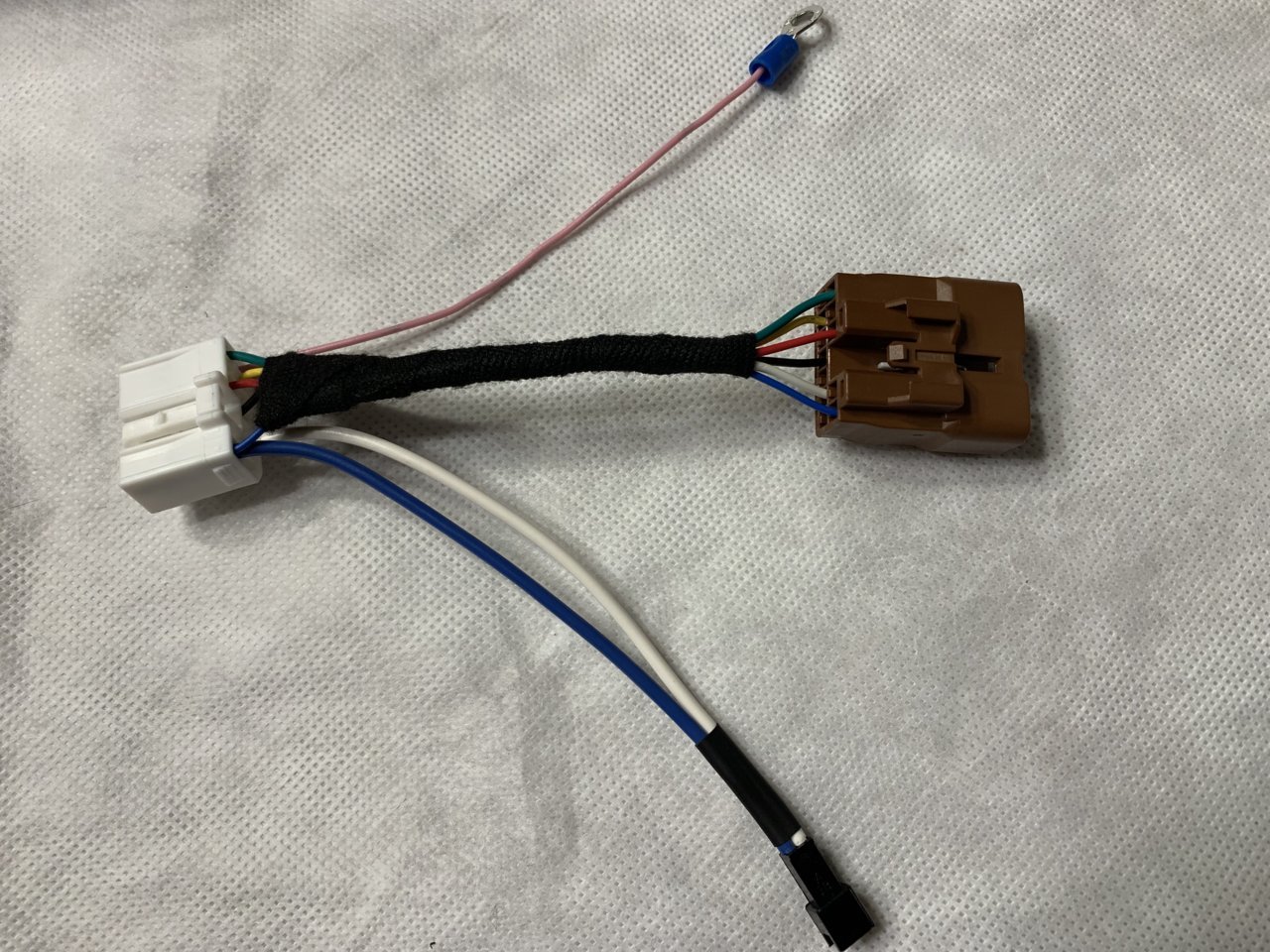

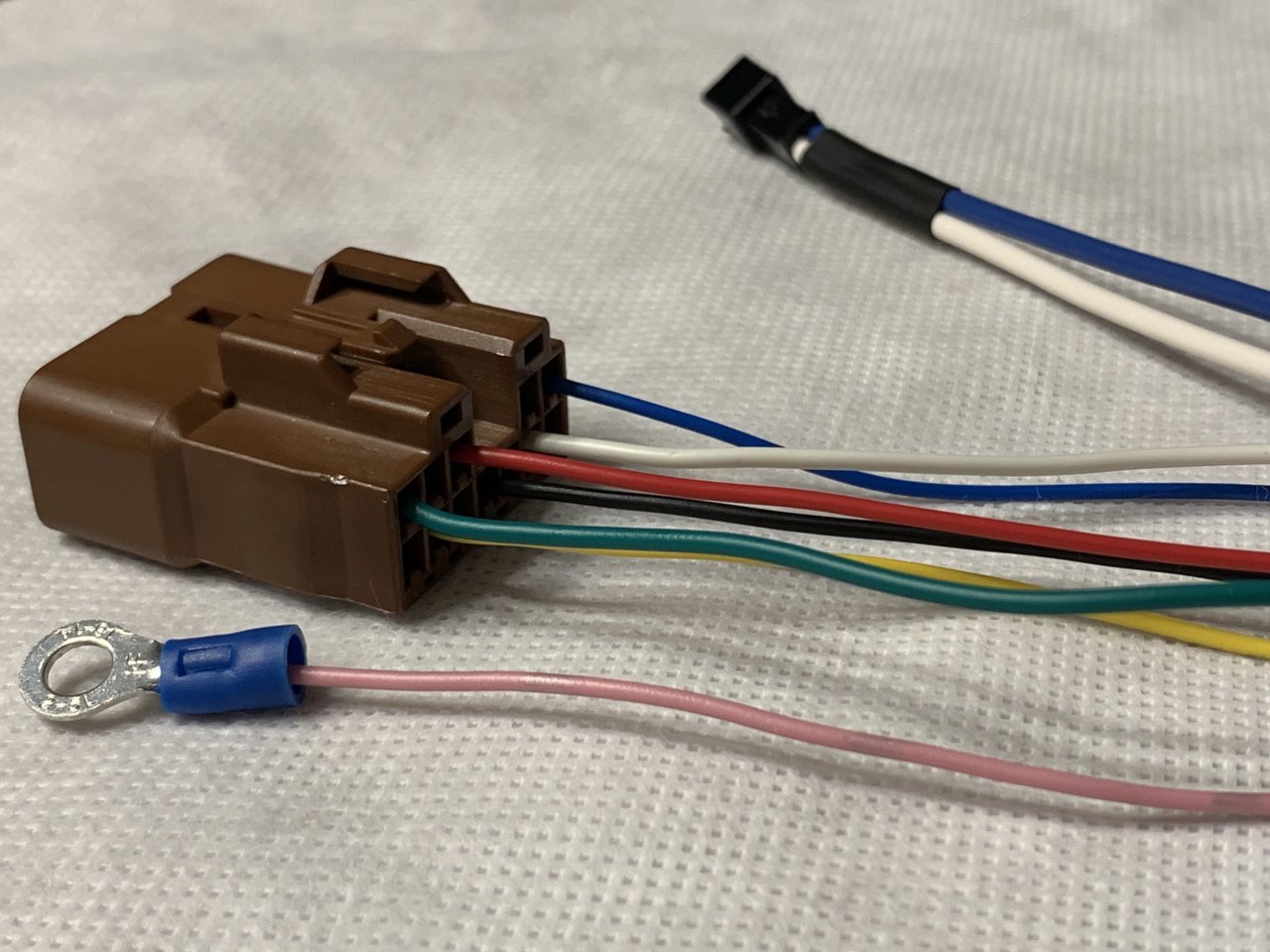

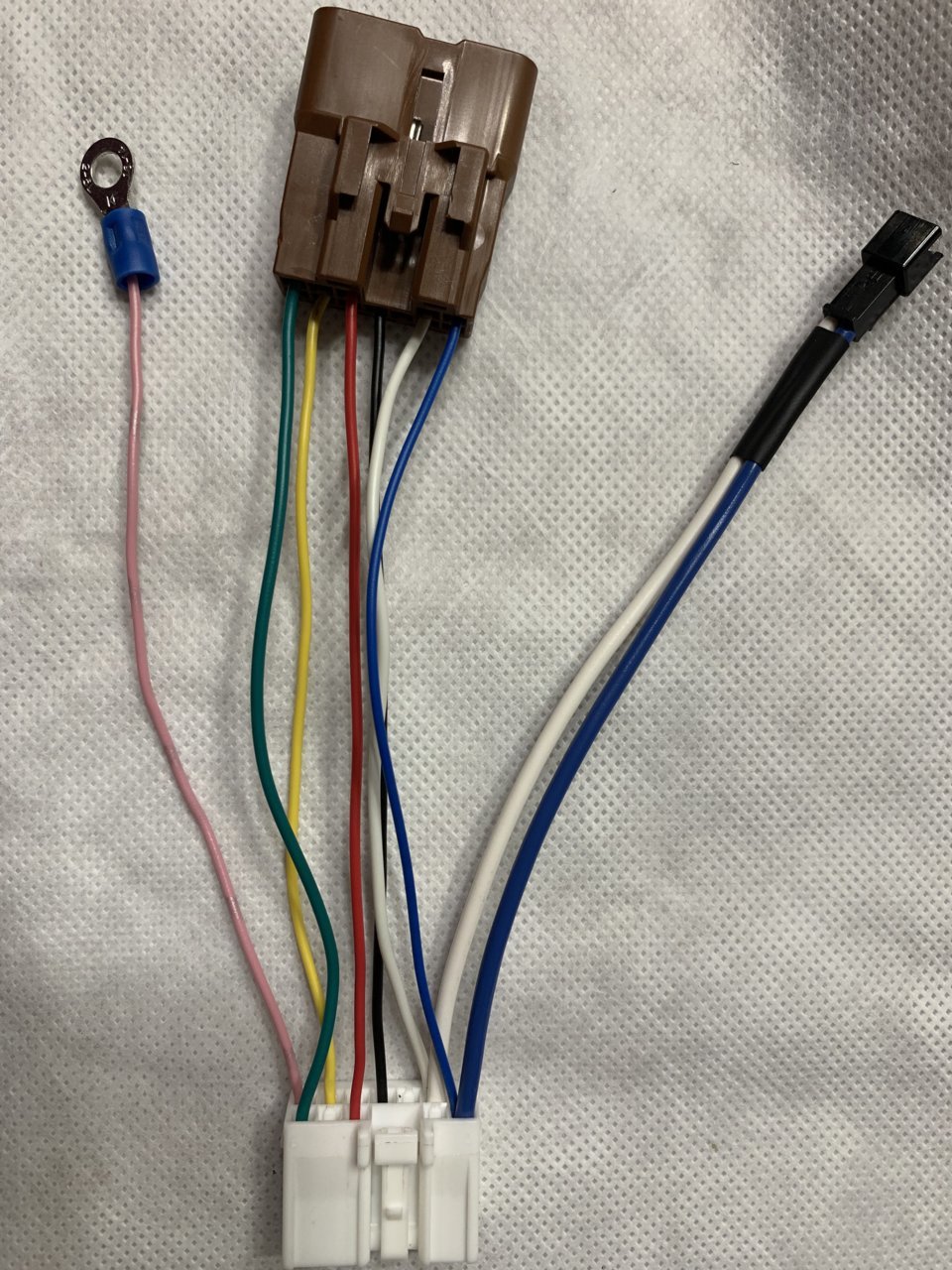

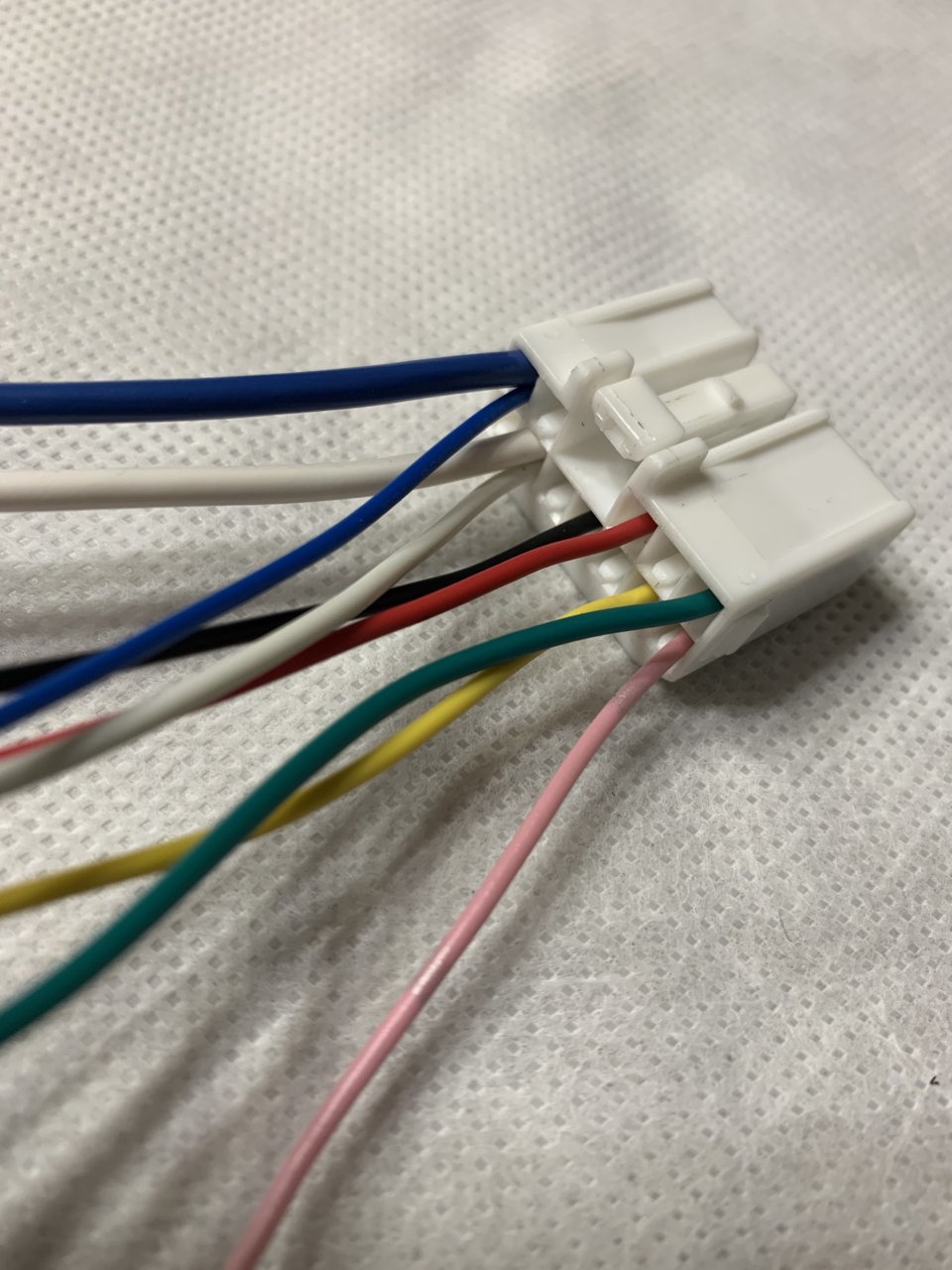

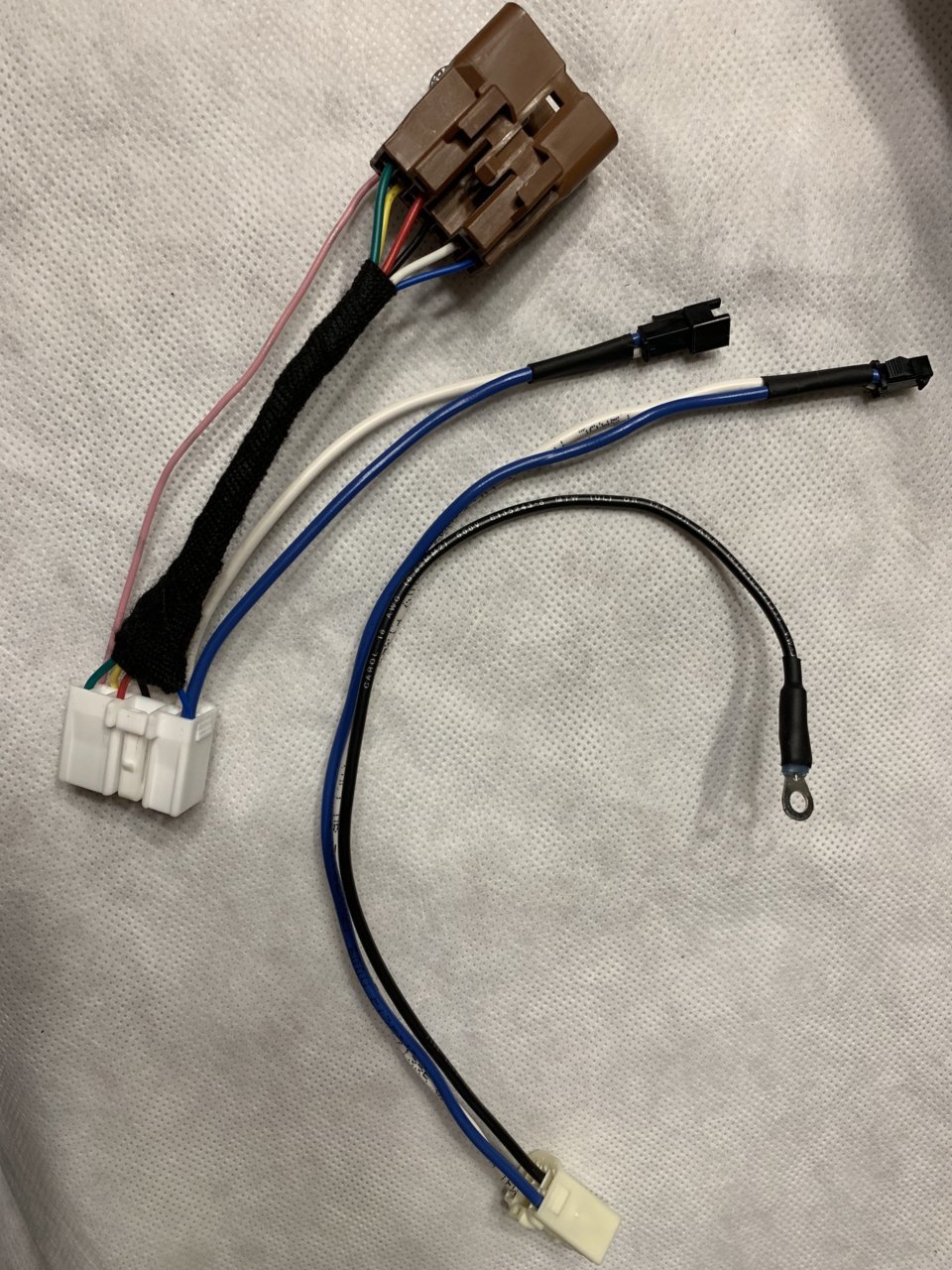

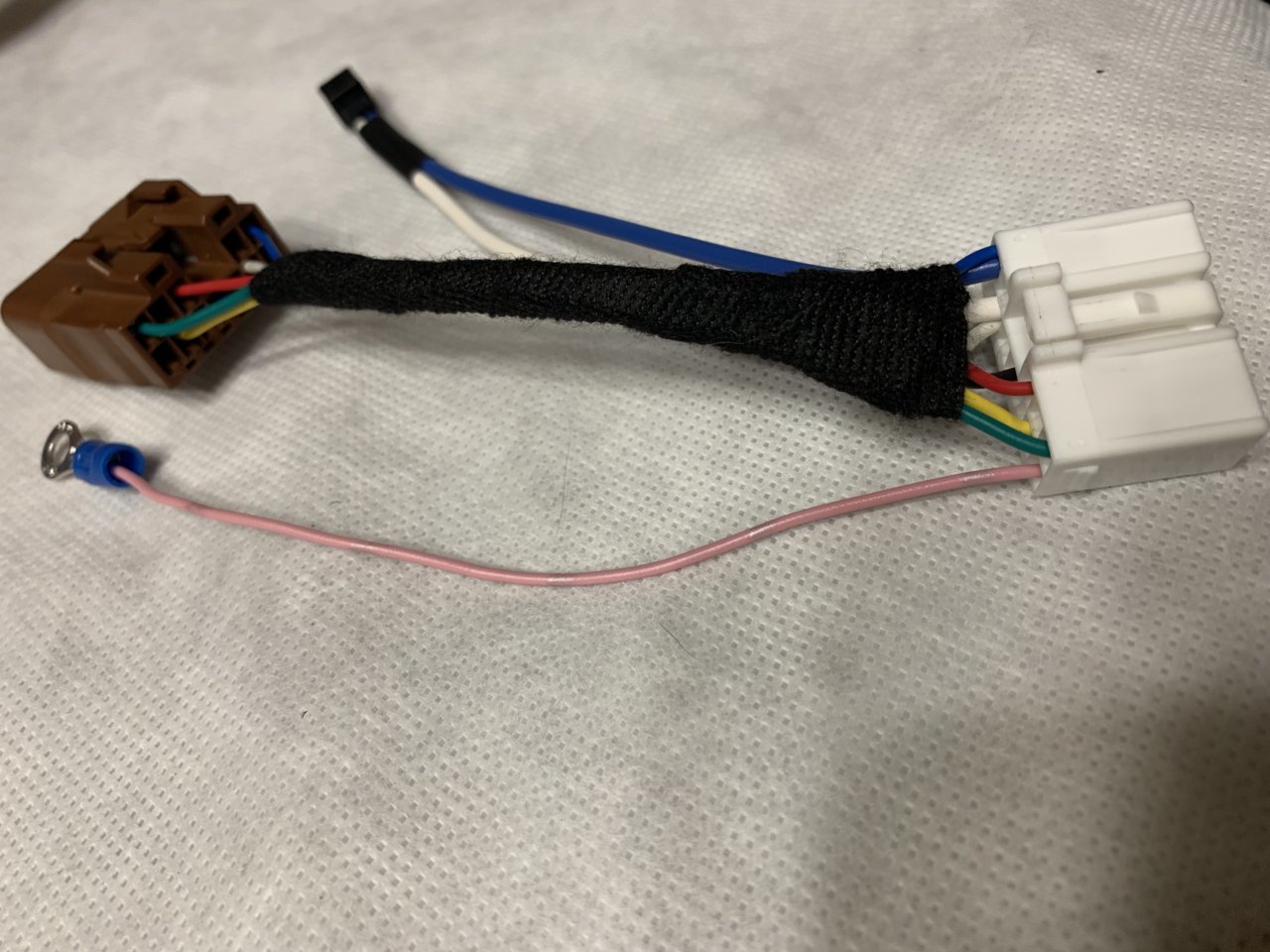

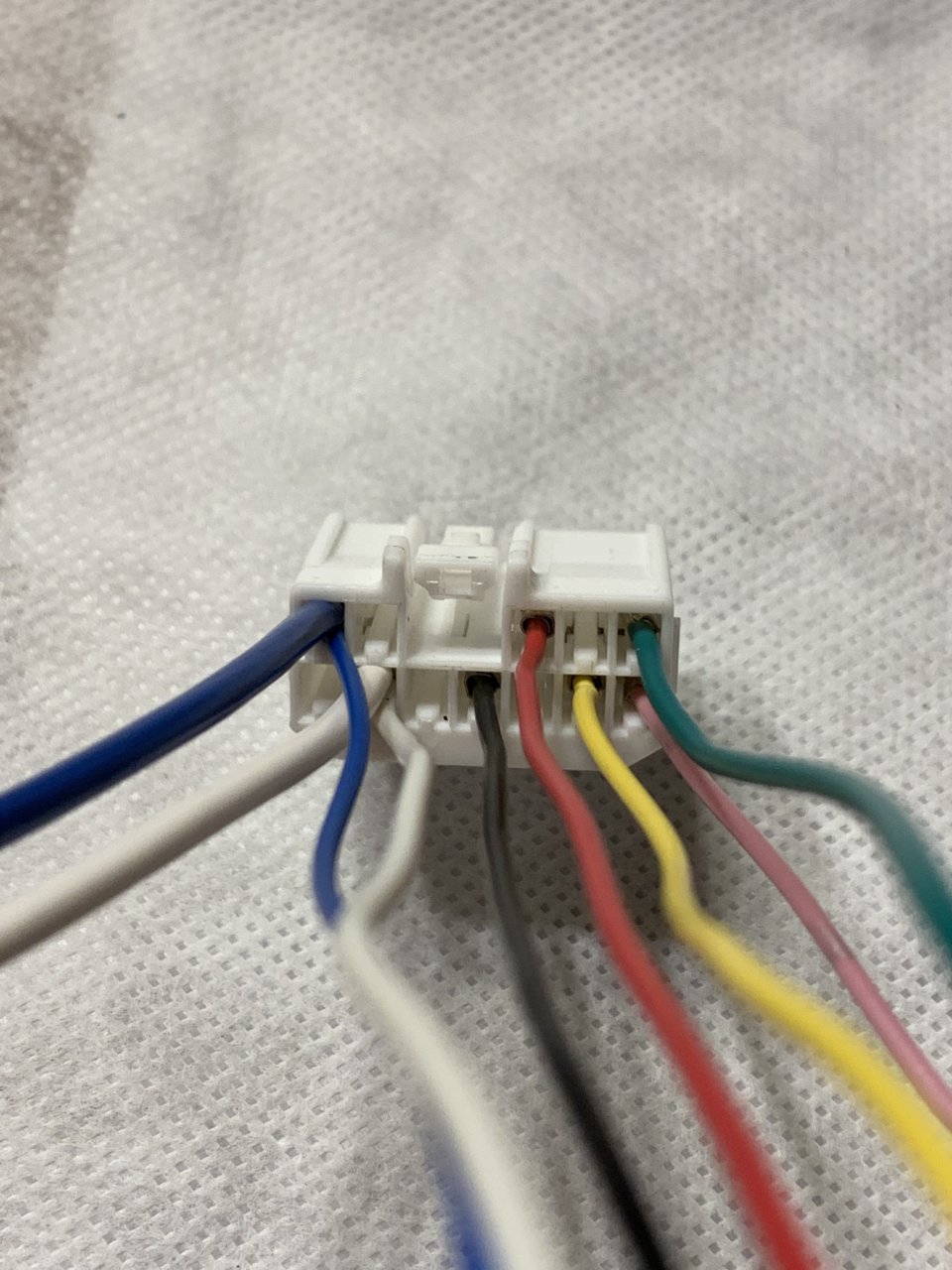

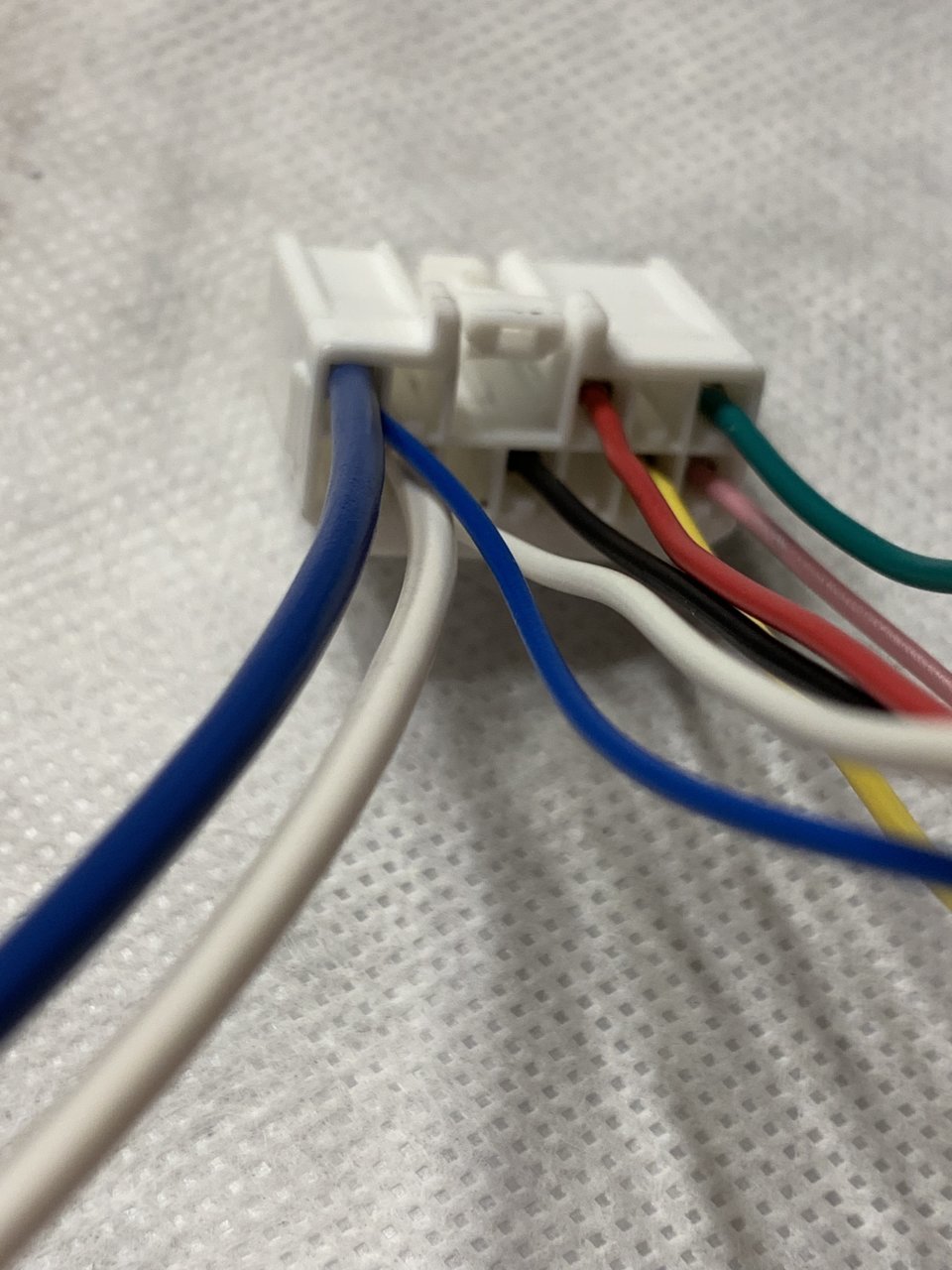

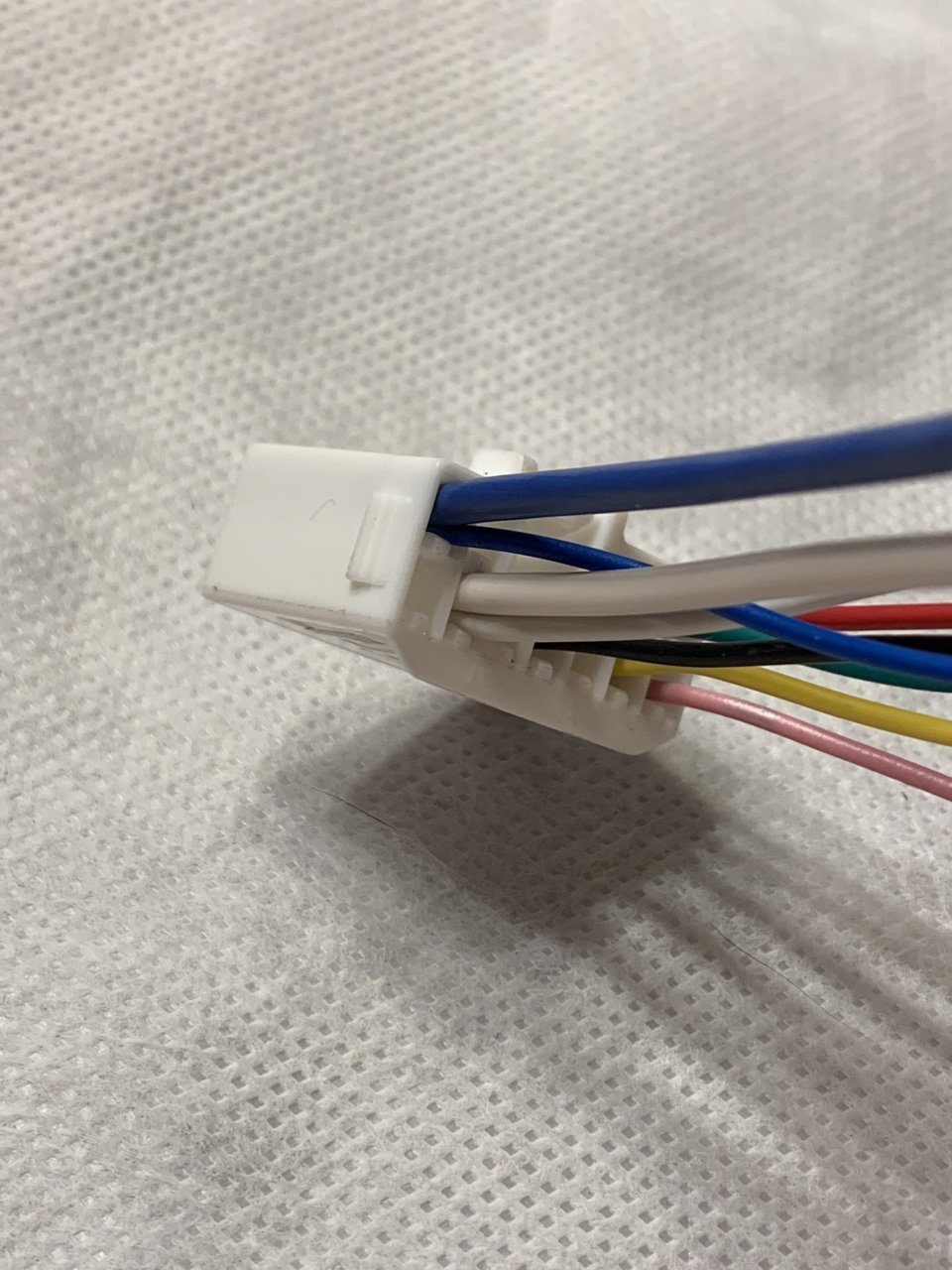

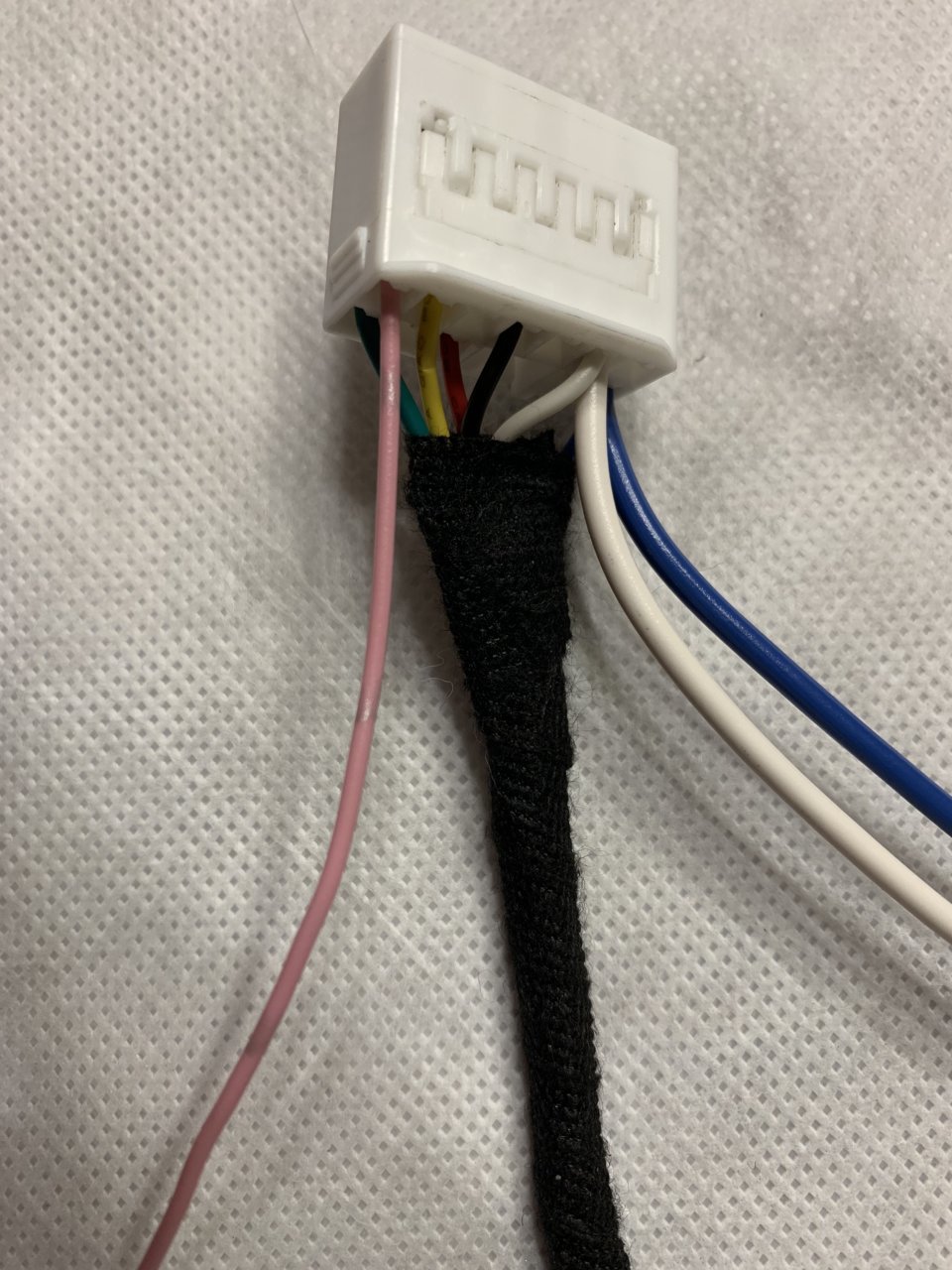

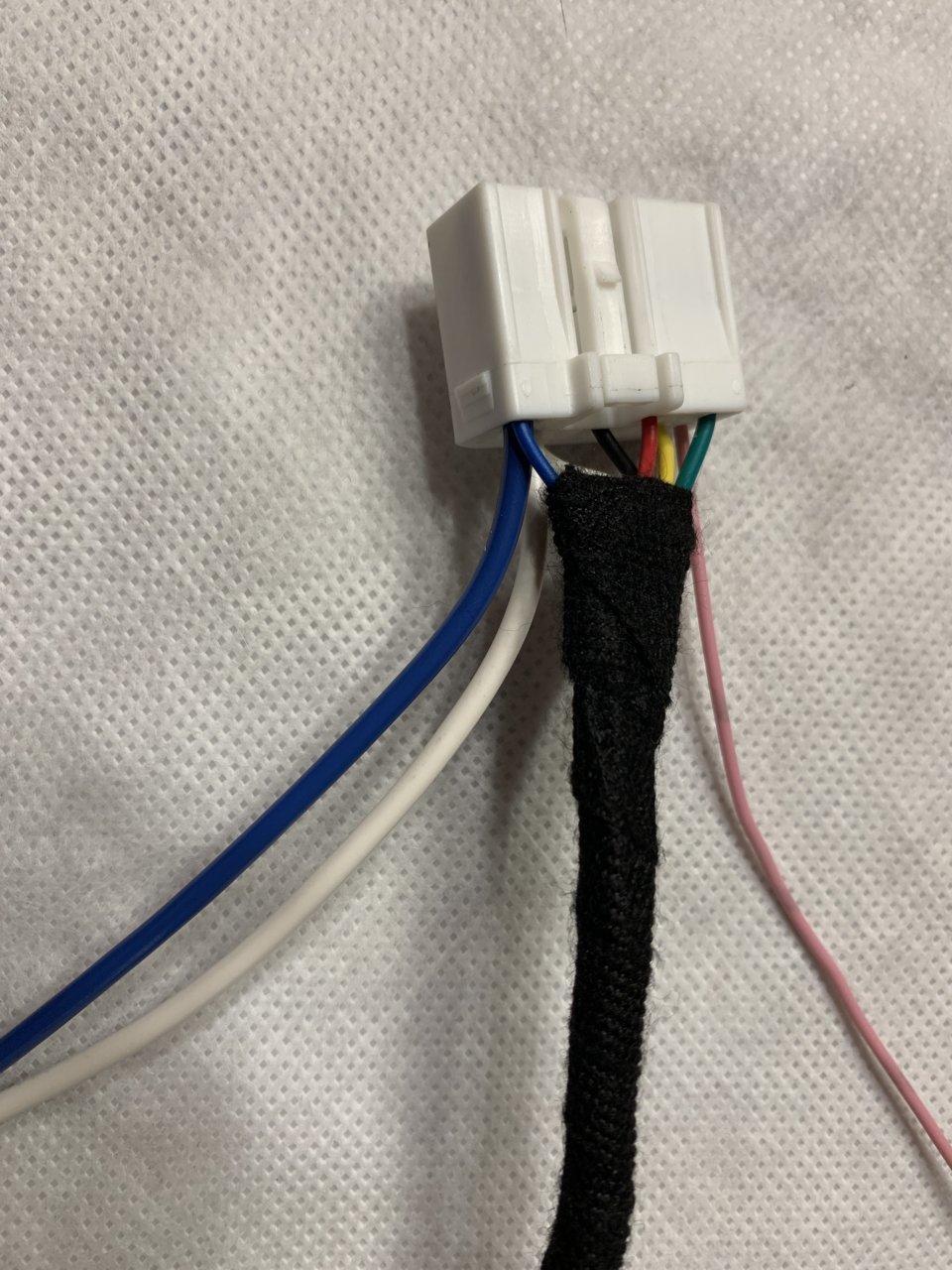

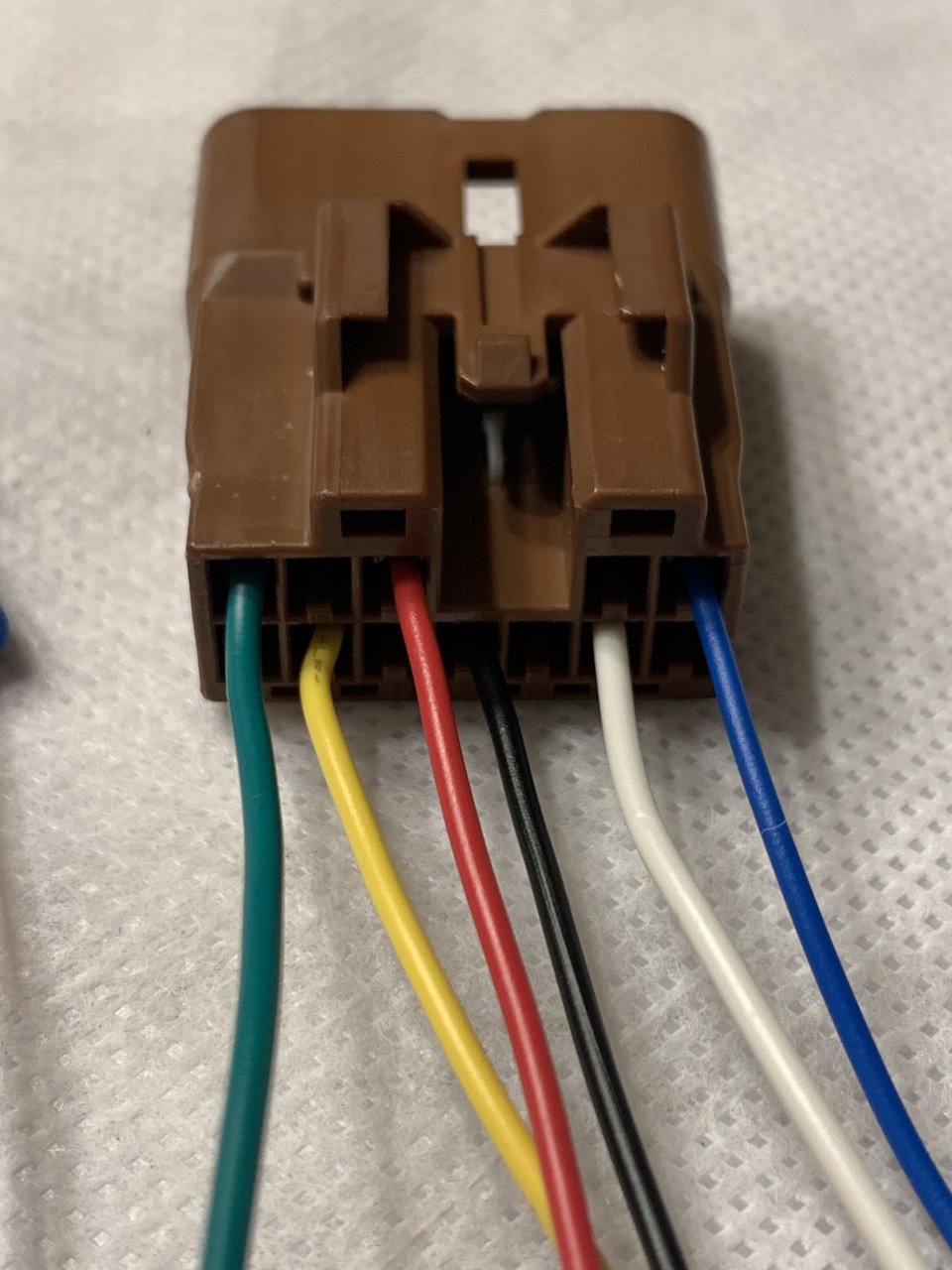

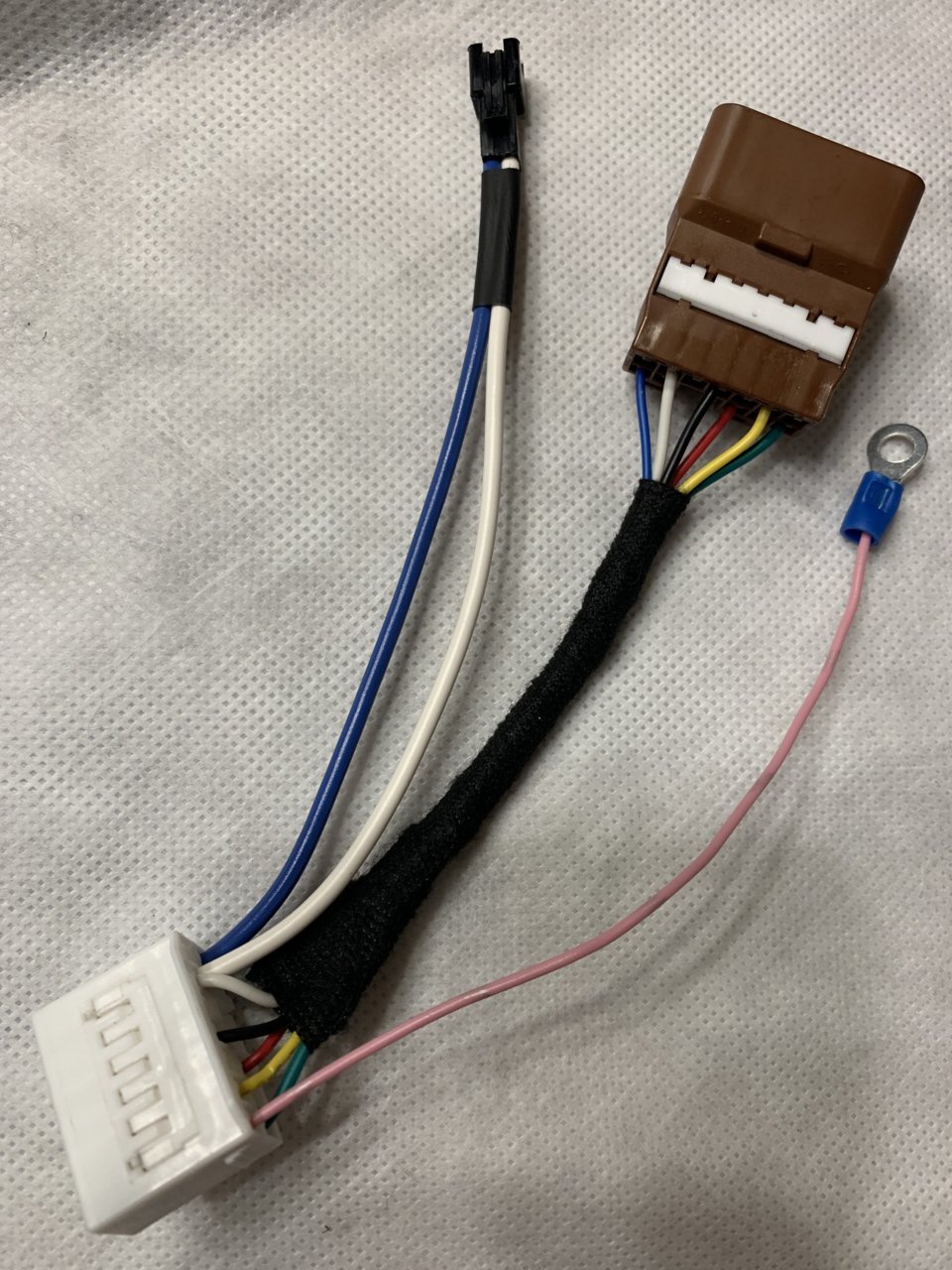

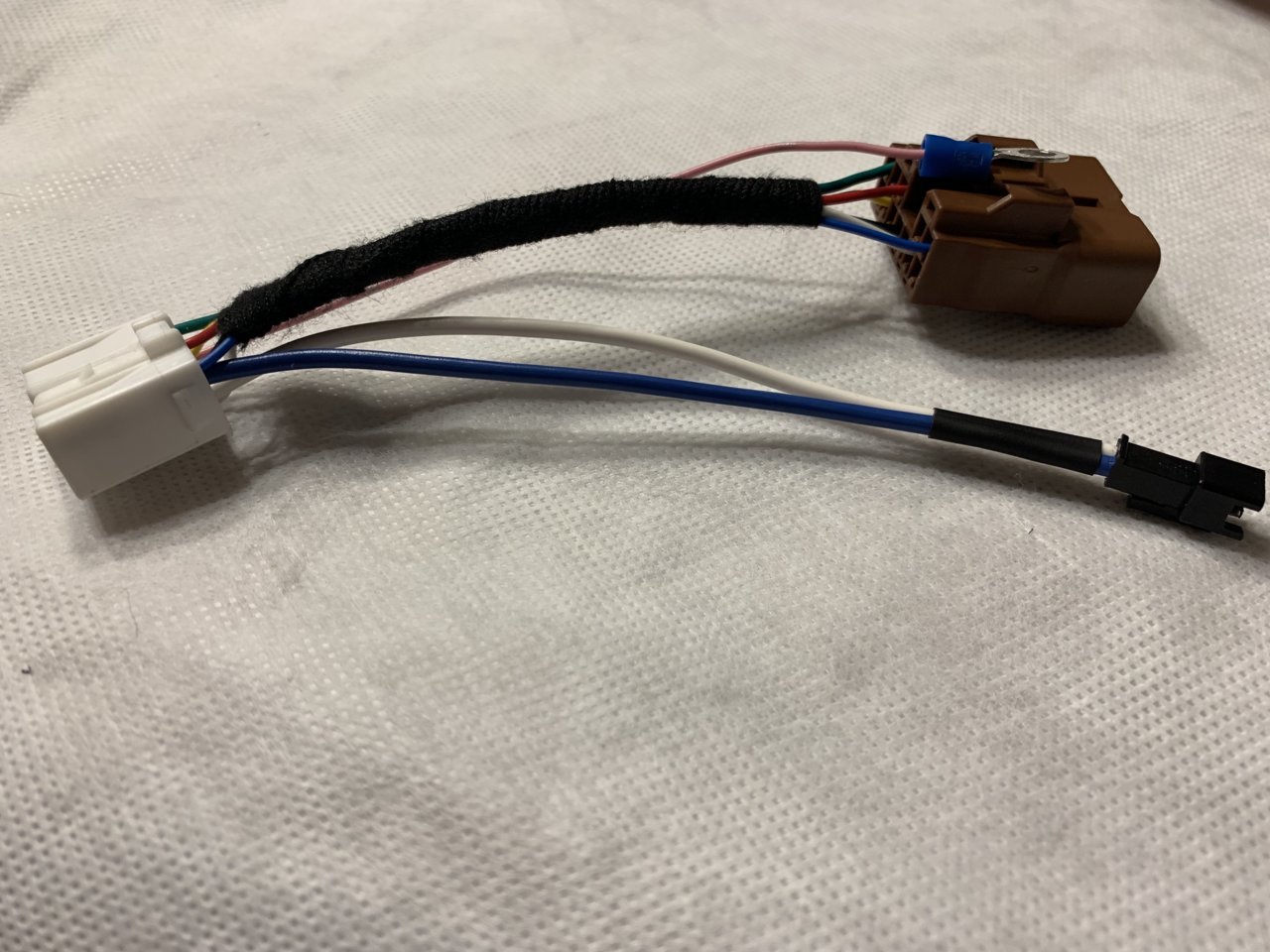

Plug-N-Play Inverter In-Cab AC 120V 400W Power Outlet Harness

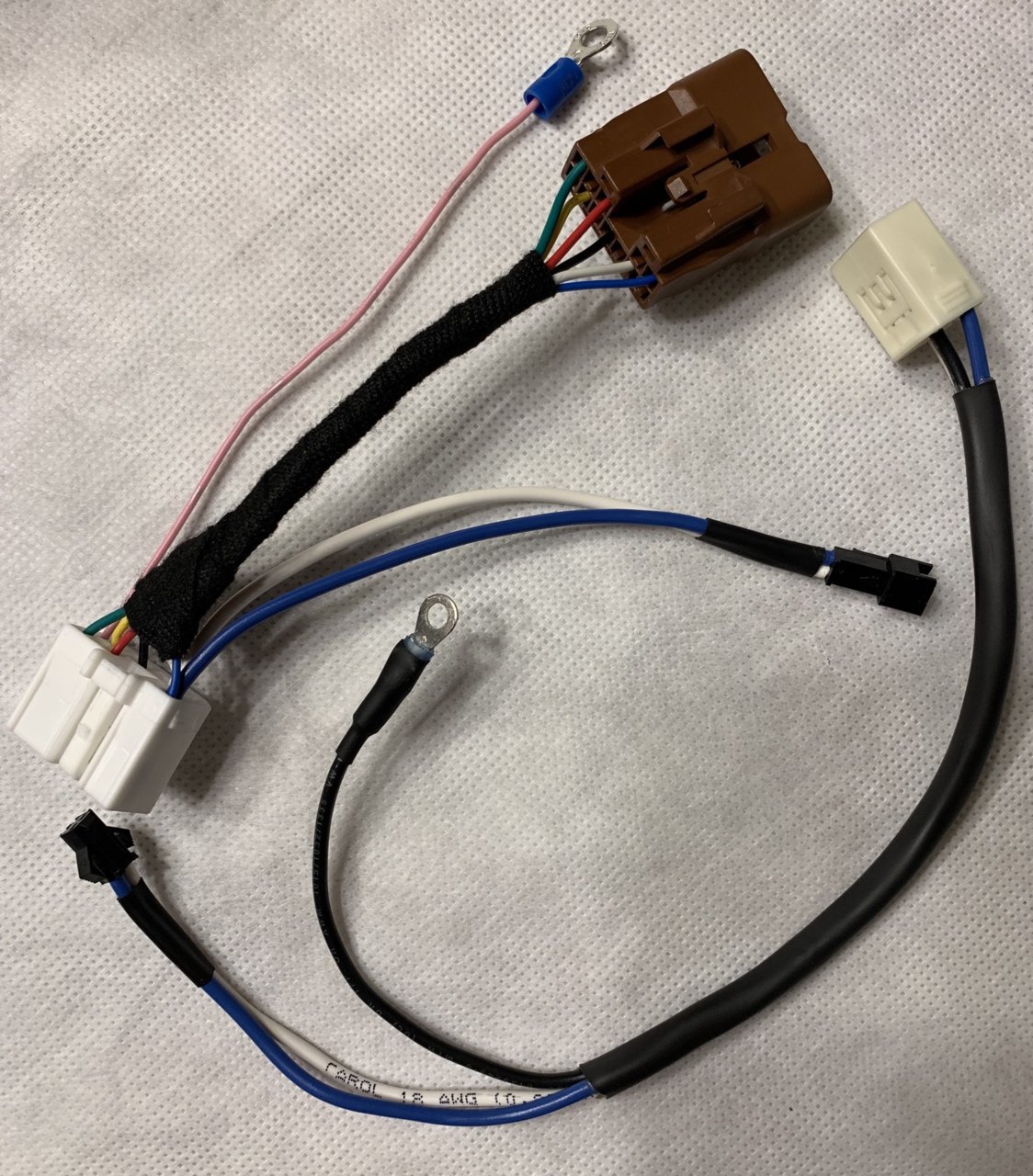

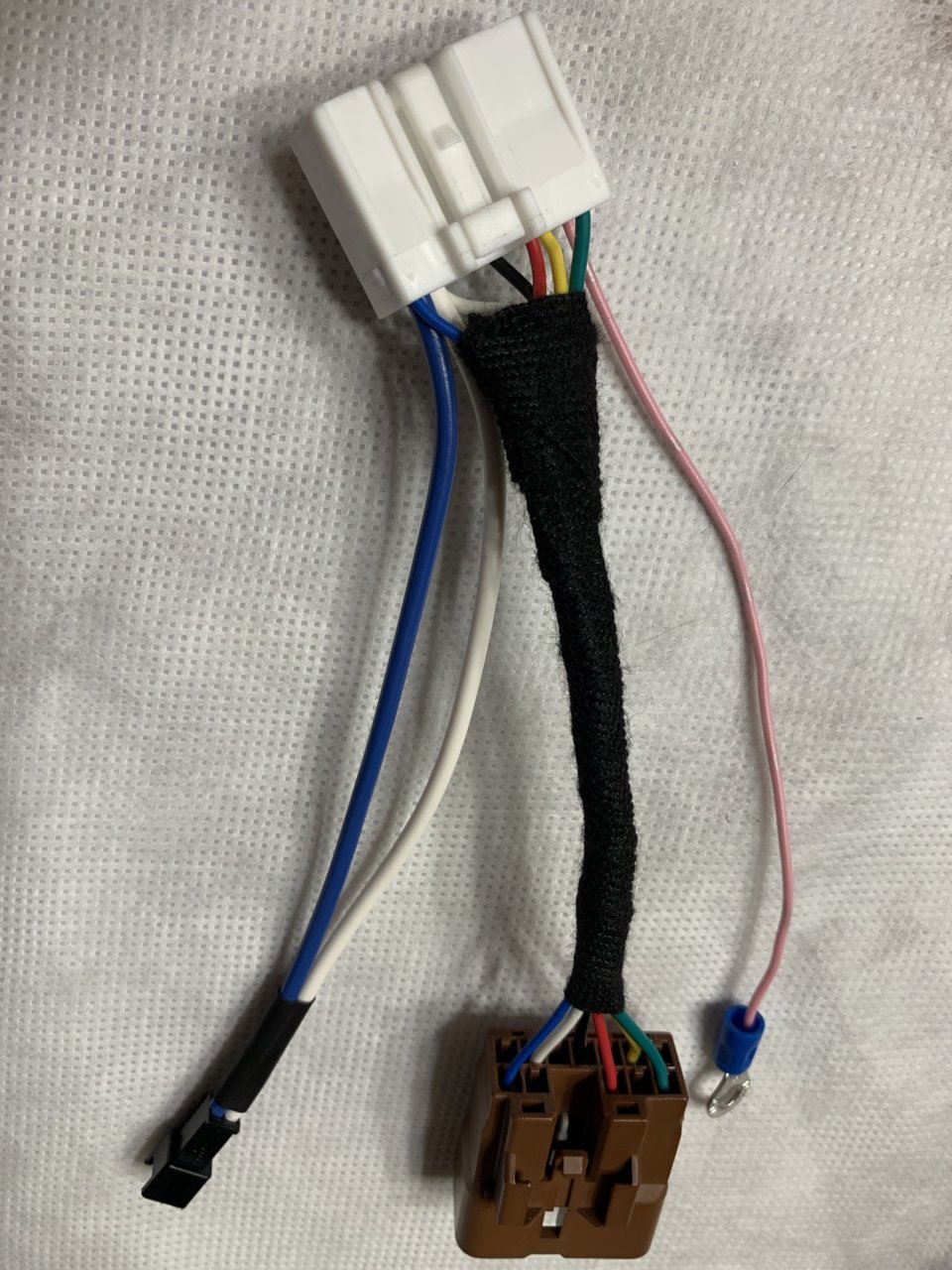

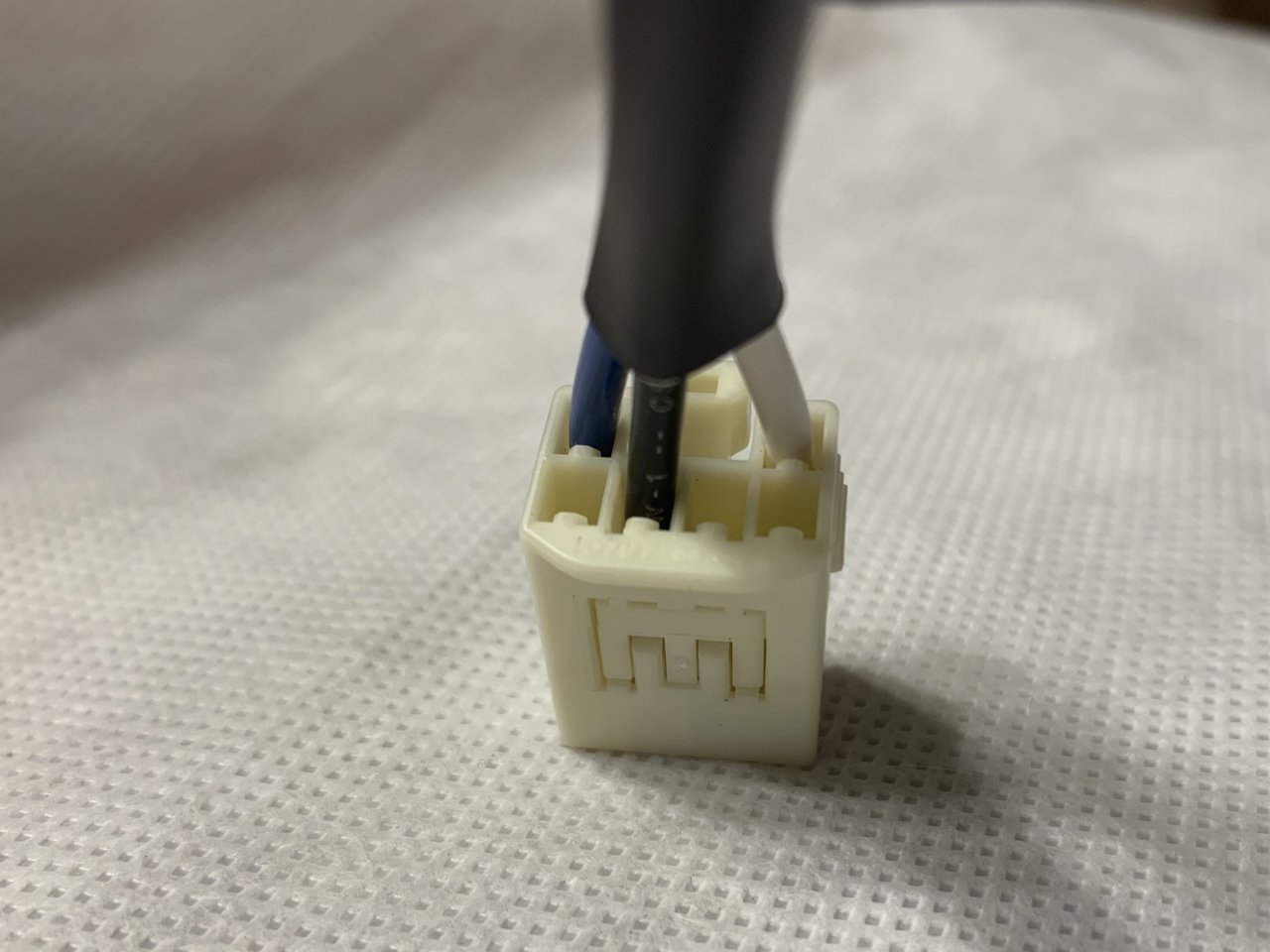

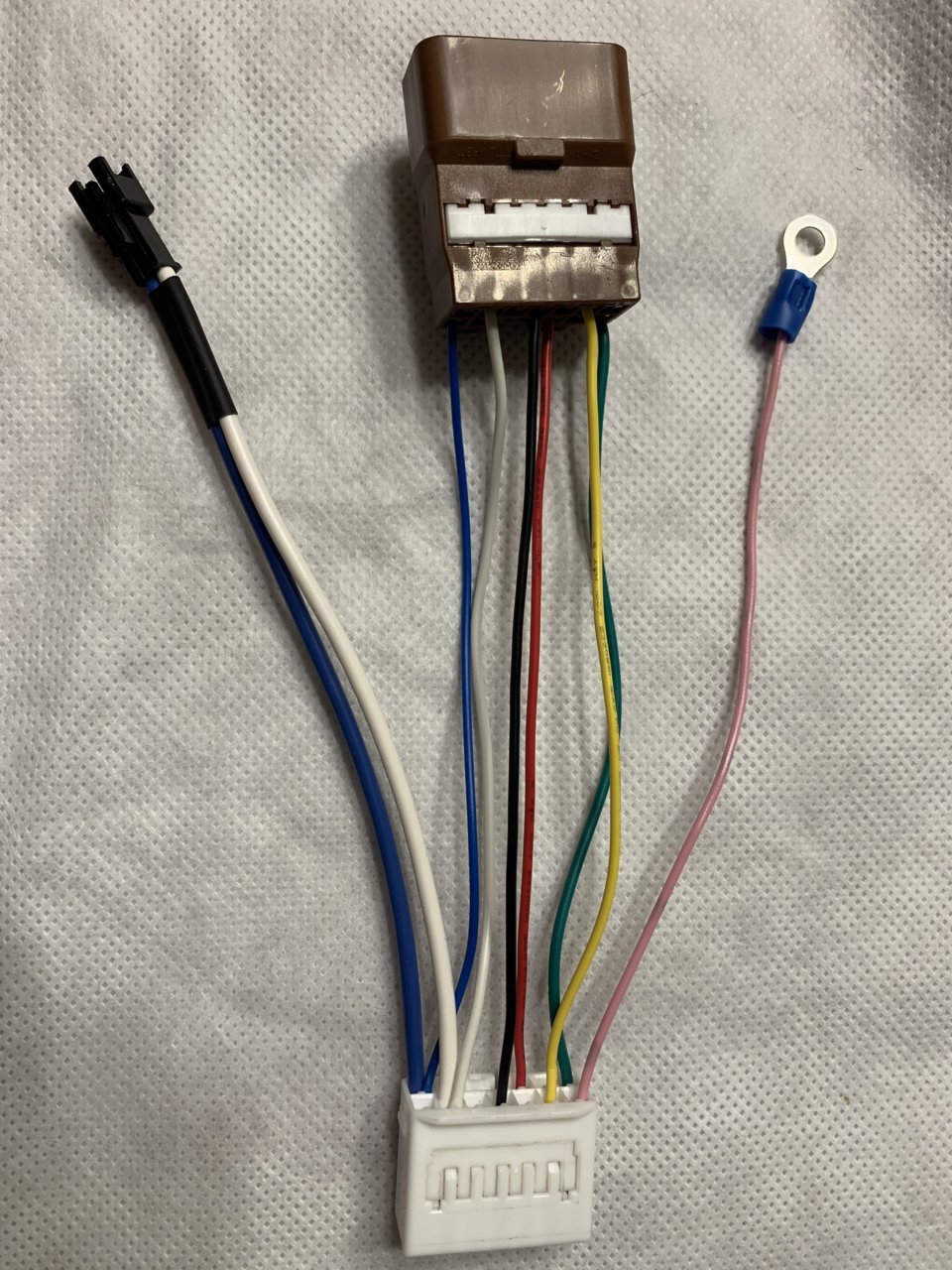

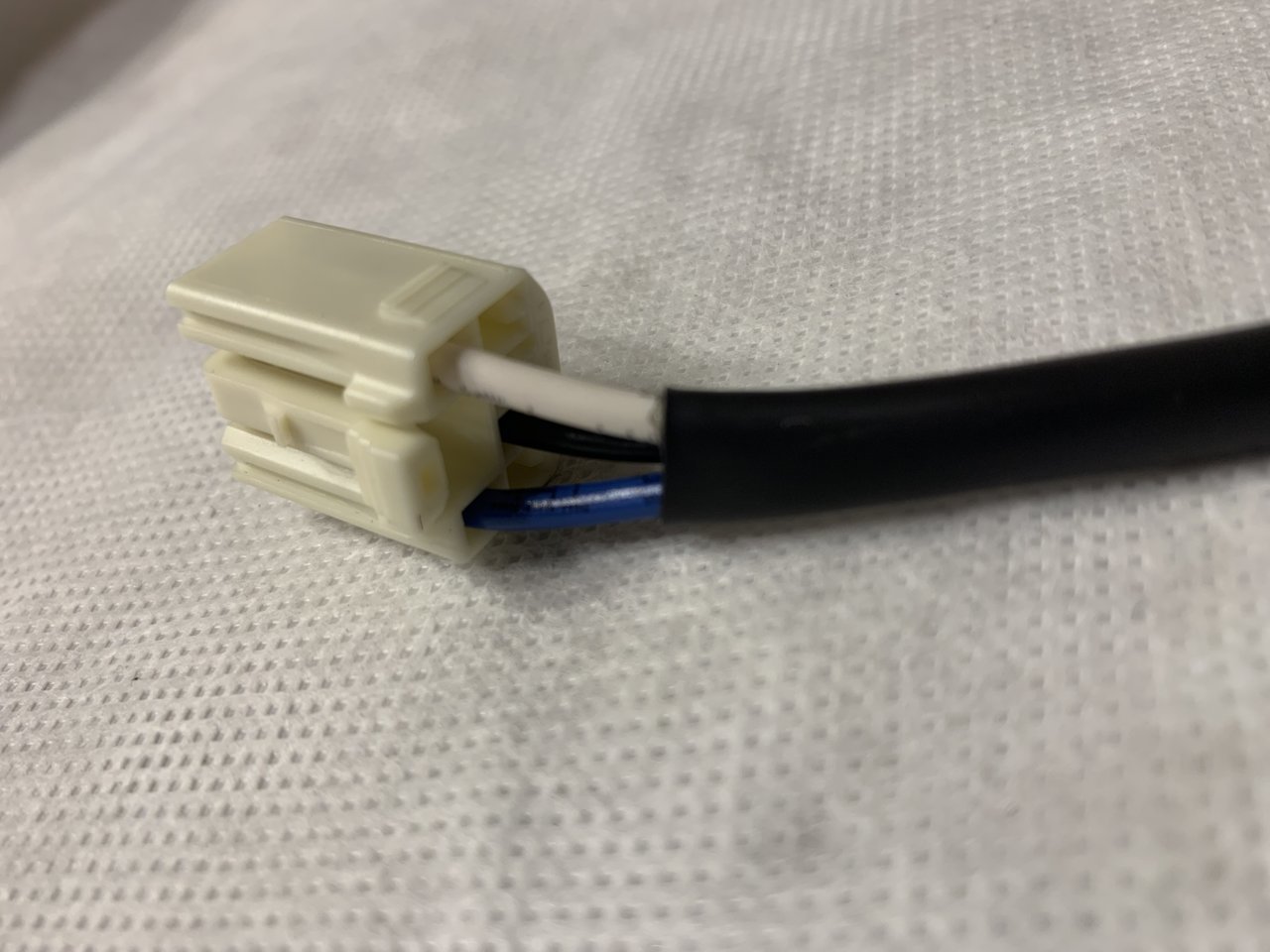

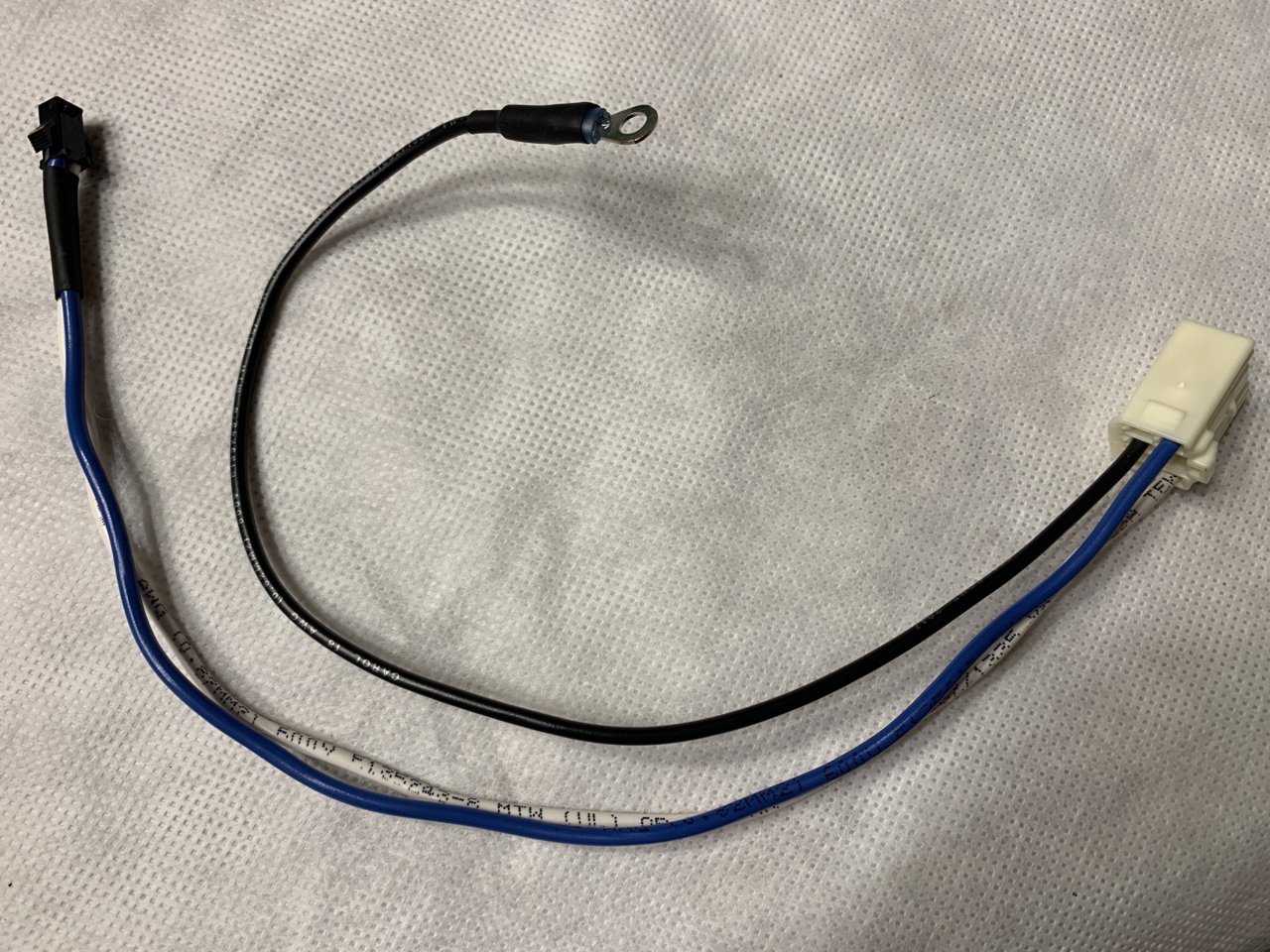

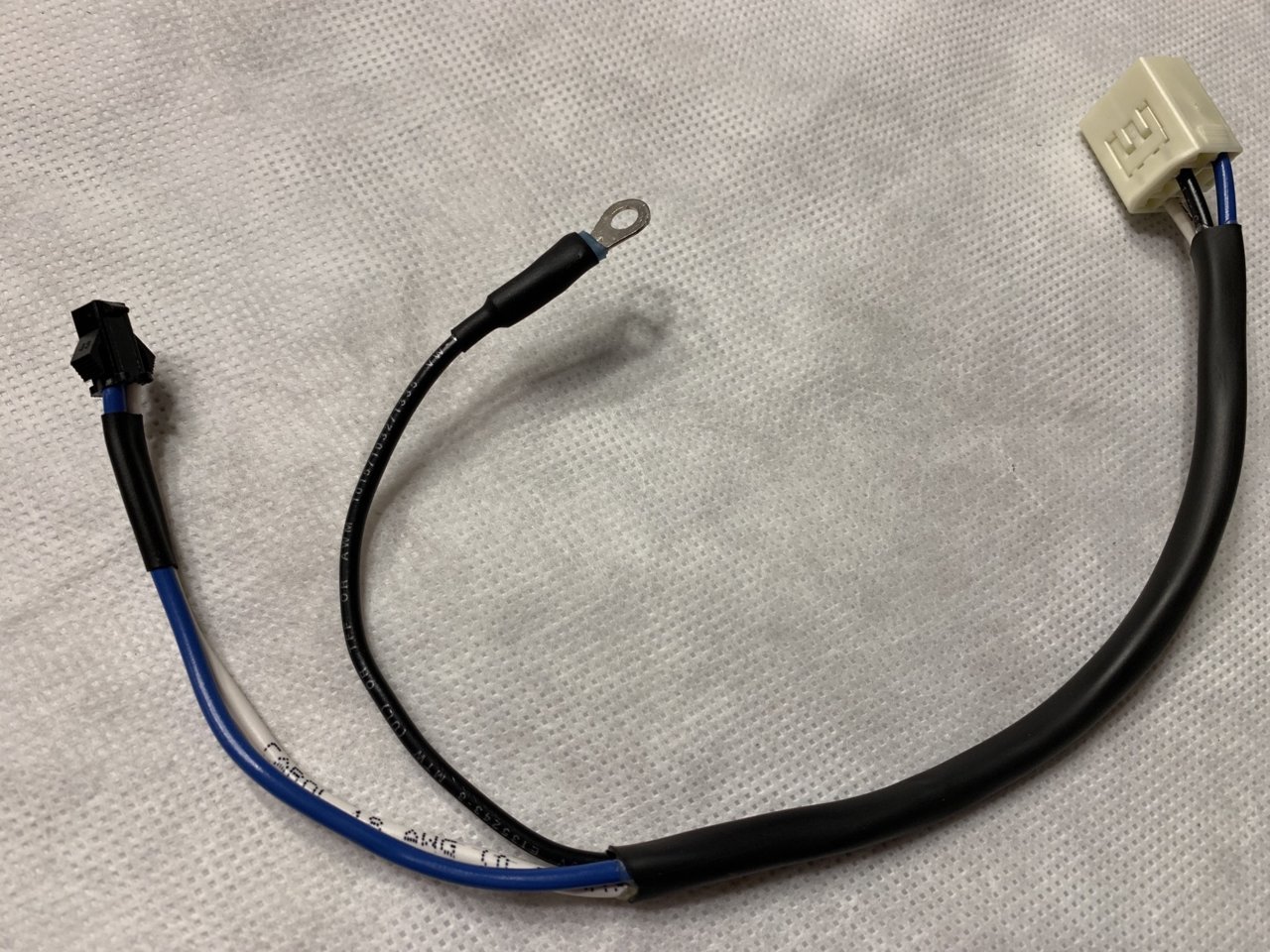

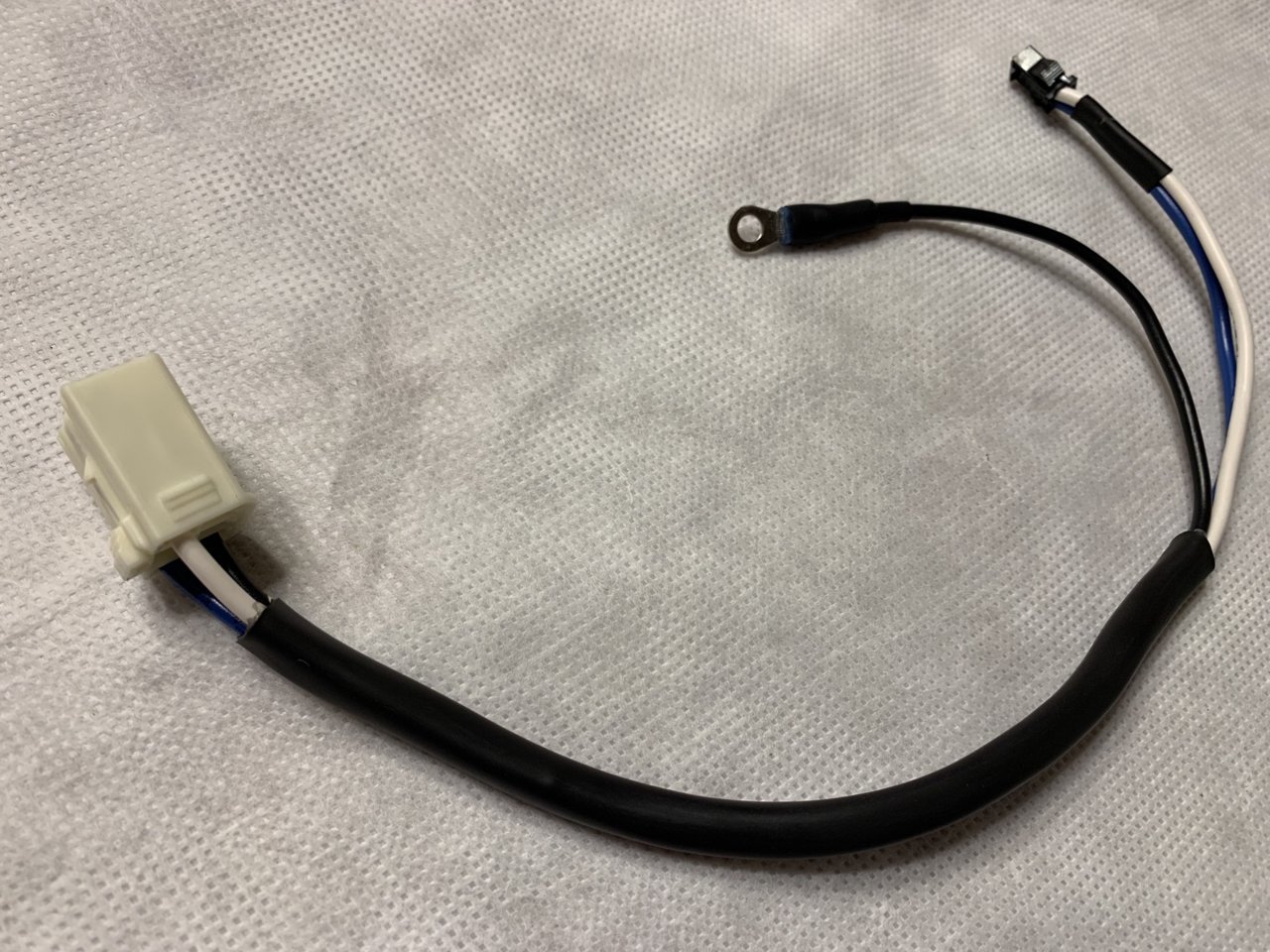

Plug-N-Play In-Cab AC 120V 400W Power Outlet Harness: JST 2P (12ft) w/ Black (12ft) Wire Grounding Terminal

















PACKAGE 1 & ITEMS RECOMMENDED

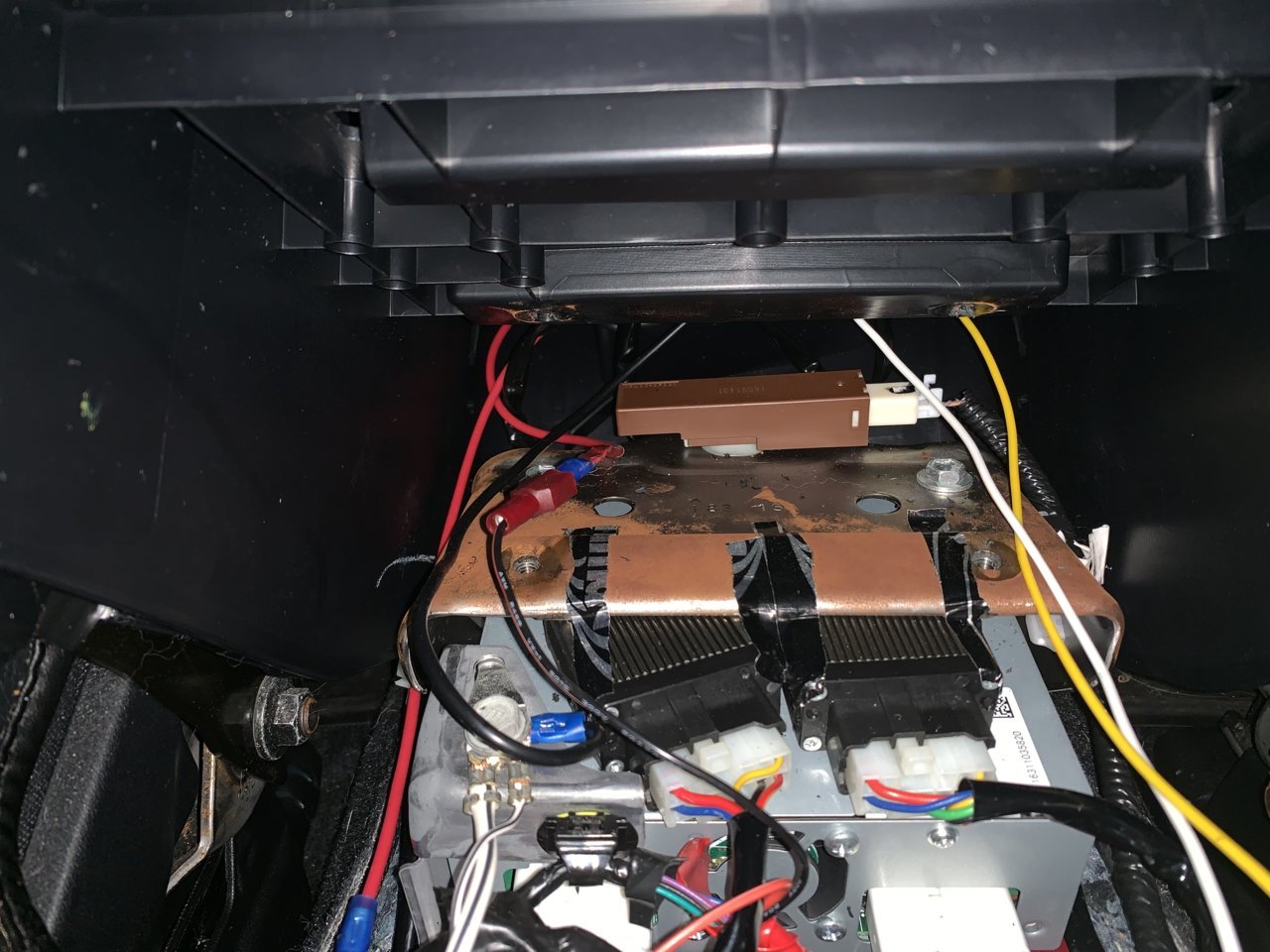

PACKAGE 1 - “2nd & 3rd GenIN-CAB AC 120V 400W POWER OUTLET Kit” for those members that are not wanting to take the time to mod their own Wiring Harnesses and would rather purchase them ready to install. To qualify for this option you need to be able have the ability to remove your Center Console, as well as, a couple other parts such as the shift knob to have access to your OEM Inverter that is located directly underneath. This is where you will connect the PNP Harnesses. This is a true “Plug-N-Play” Package that will directly connect to One Brand New Toyota OEM In-Cab AC 120V 400W Power Outlet.

This Package includes:

1. Plug-N-Play Inverter In-Cab AC 120V 400W Power Outlet Harness
2. Plug-N-Play In-Cab AC 120V 400W Power Outlet Harness: JST 2P (12ft) w/ Pink (12ft) Wire Grounding Terminal

Items Recommended to go with this Package:

1. AC 120V 400W Power Outlet (Part No 85530-35050-C0)
2. Bezel Power Outlet (Part No 85536-35020)
3. USB Power Port (Part No 00016-00225)

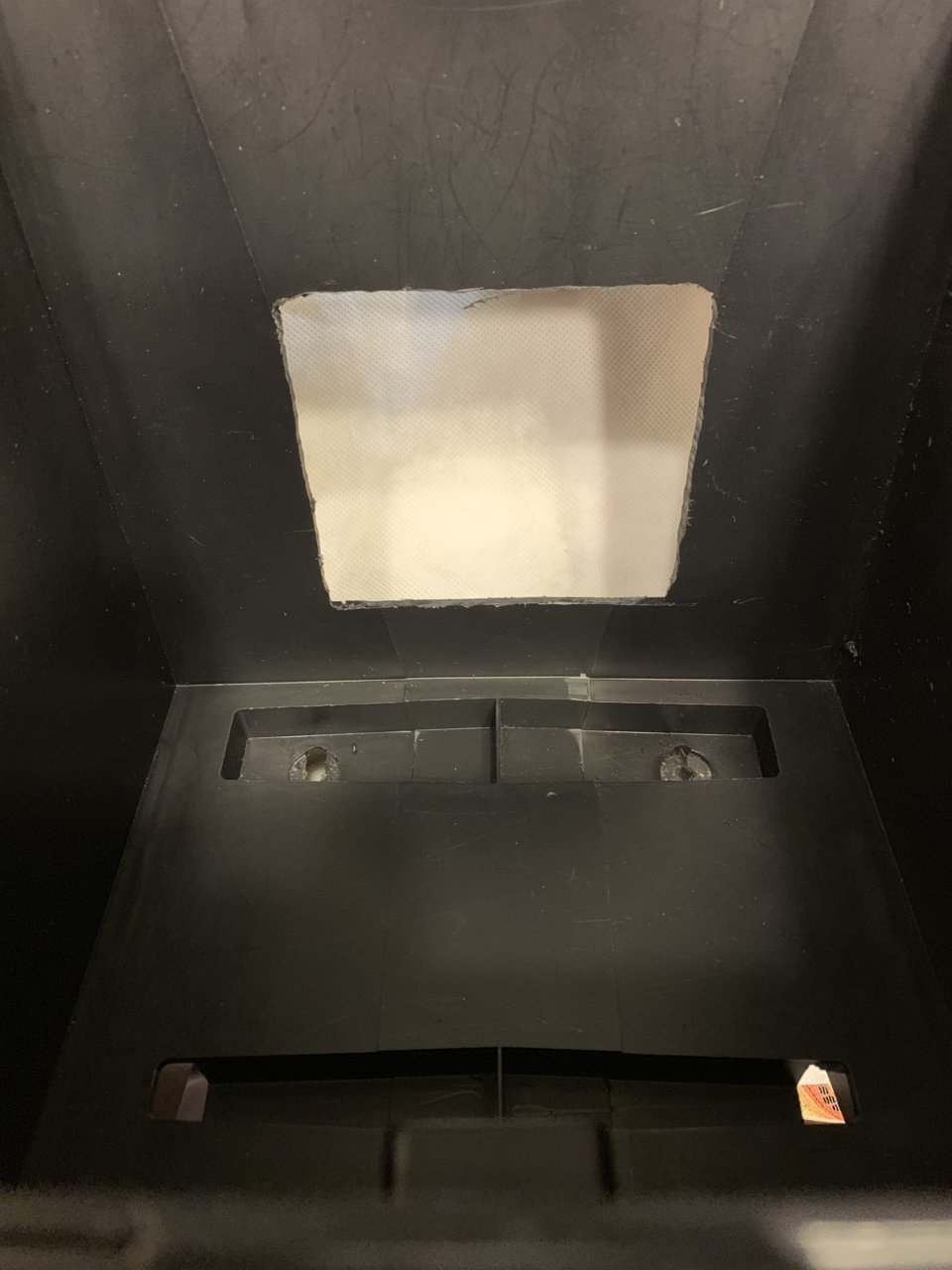

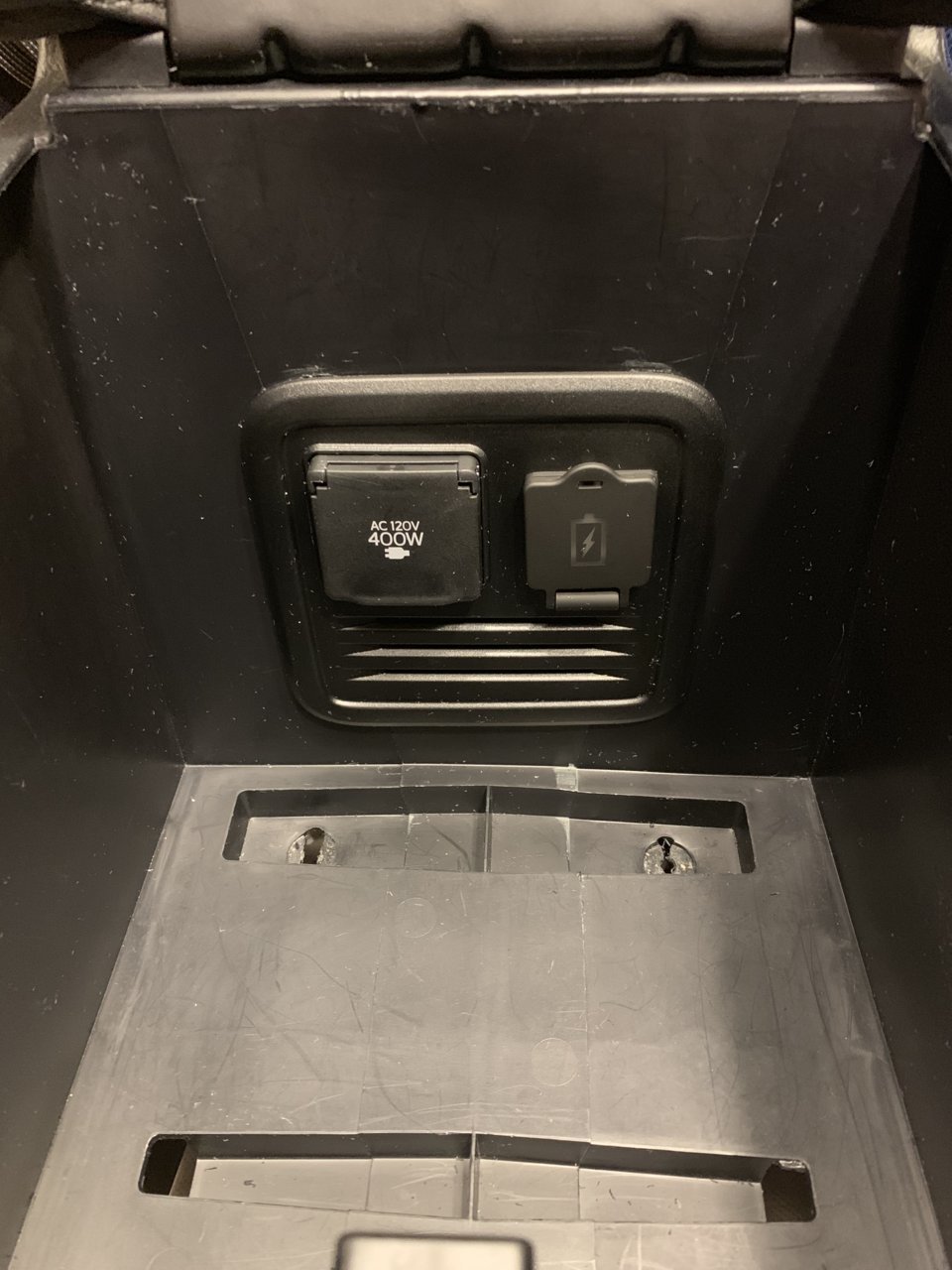

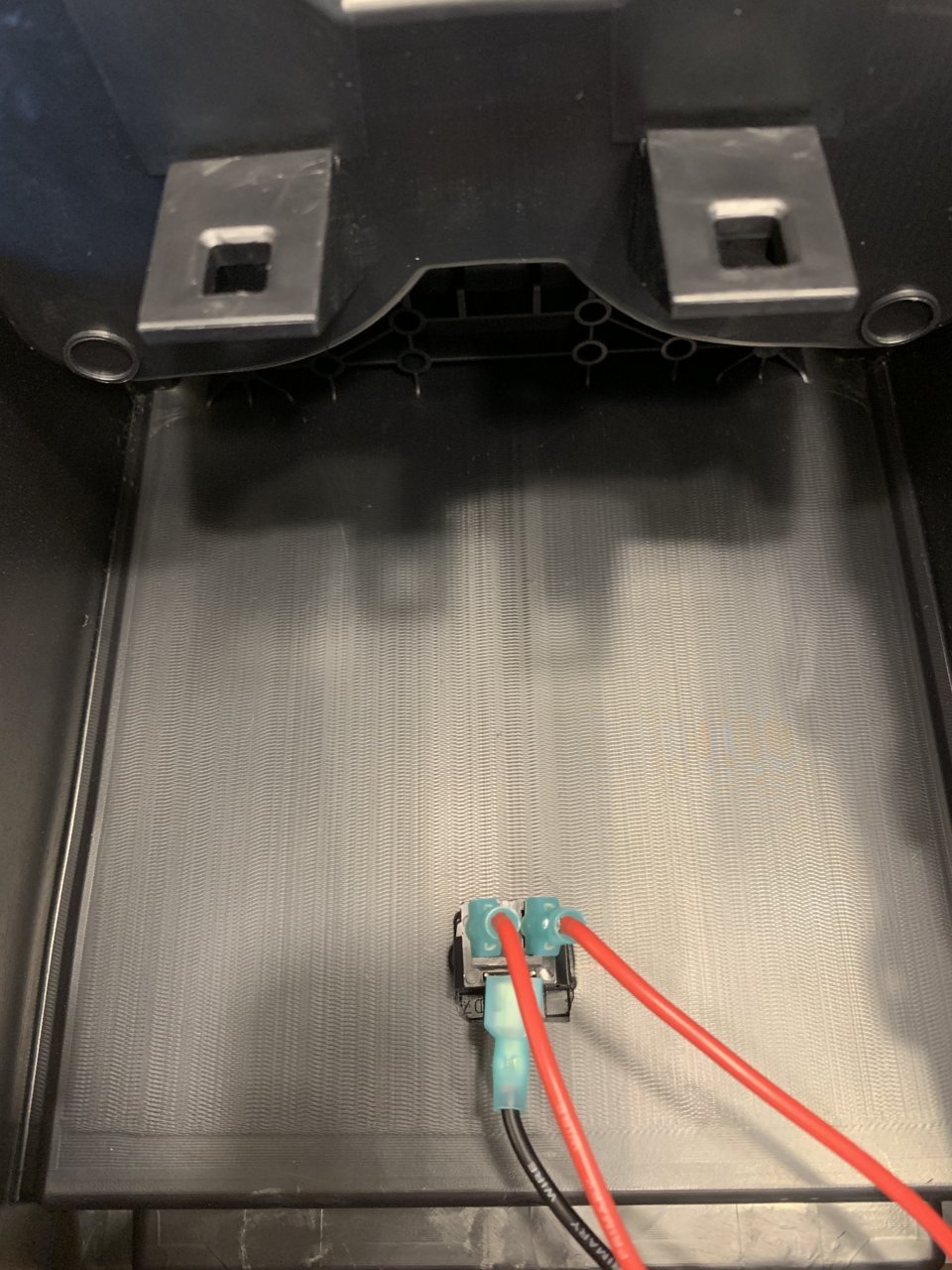

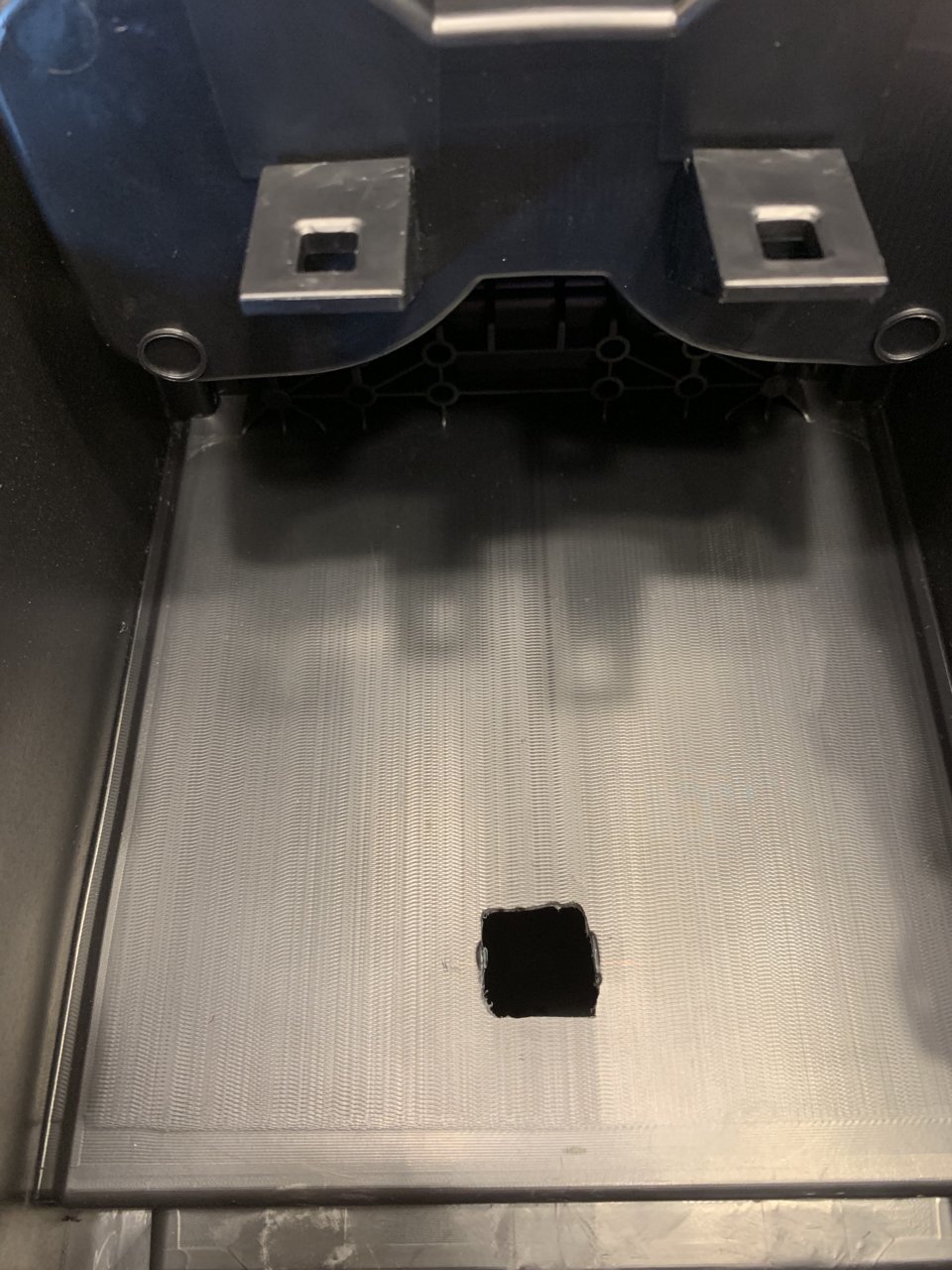

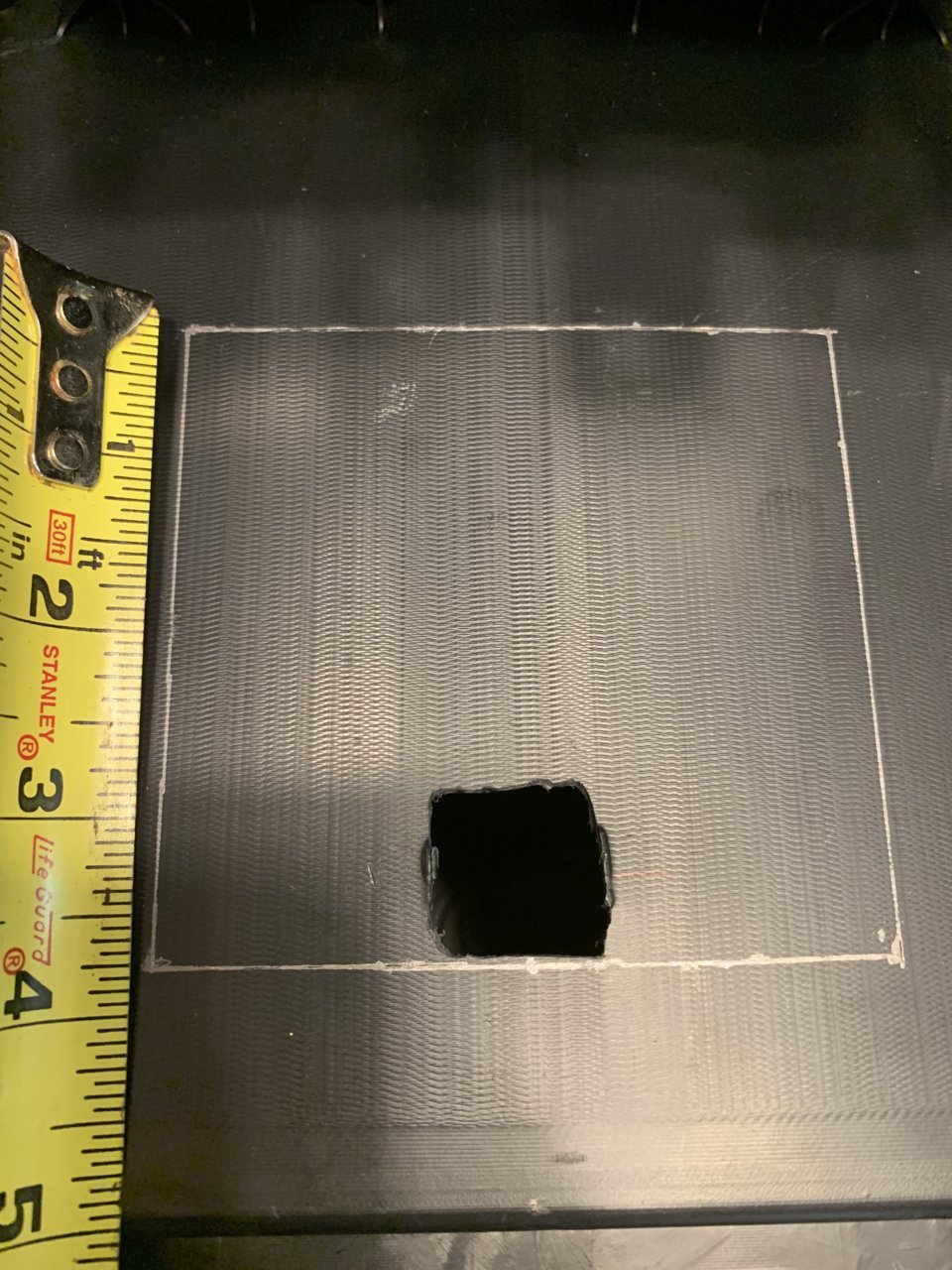

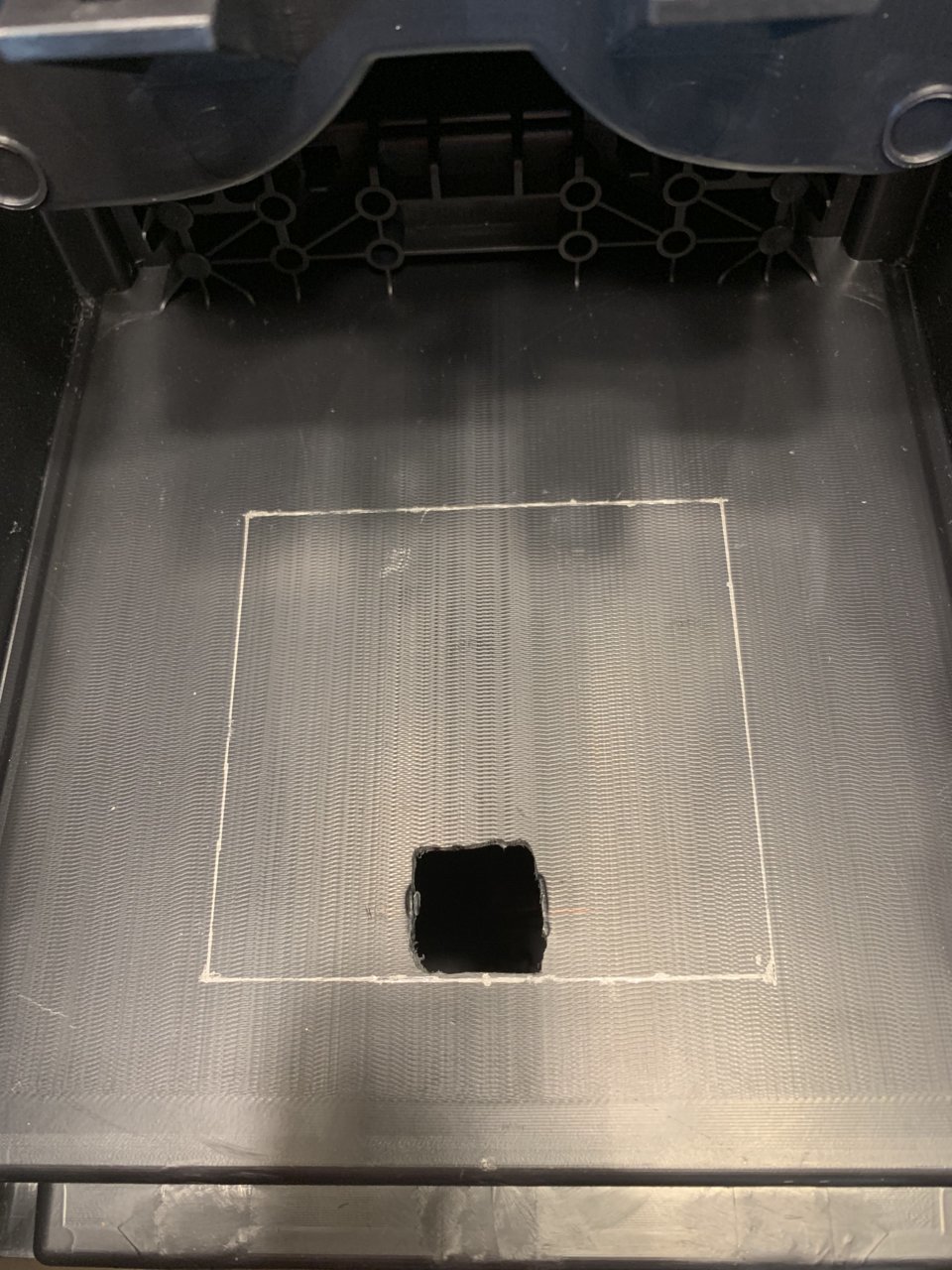

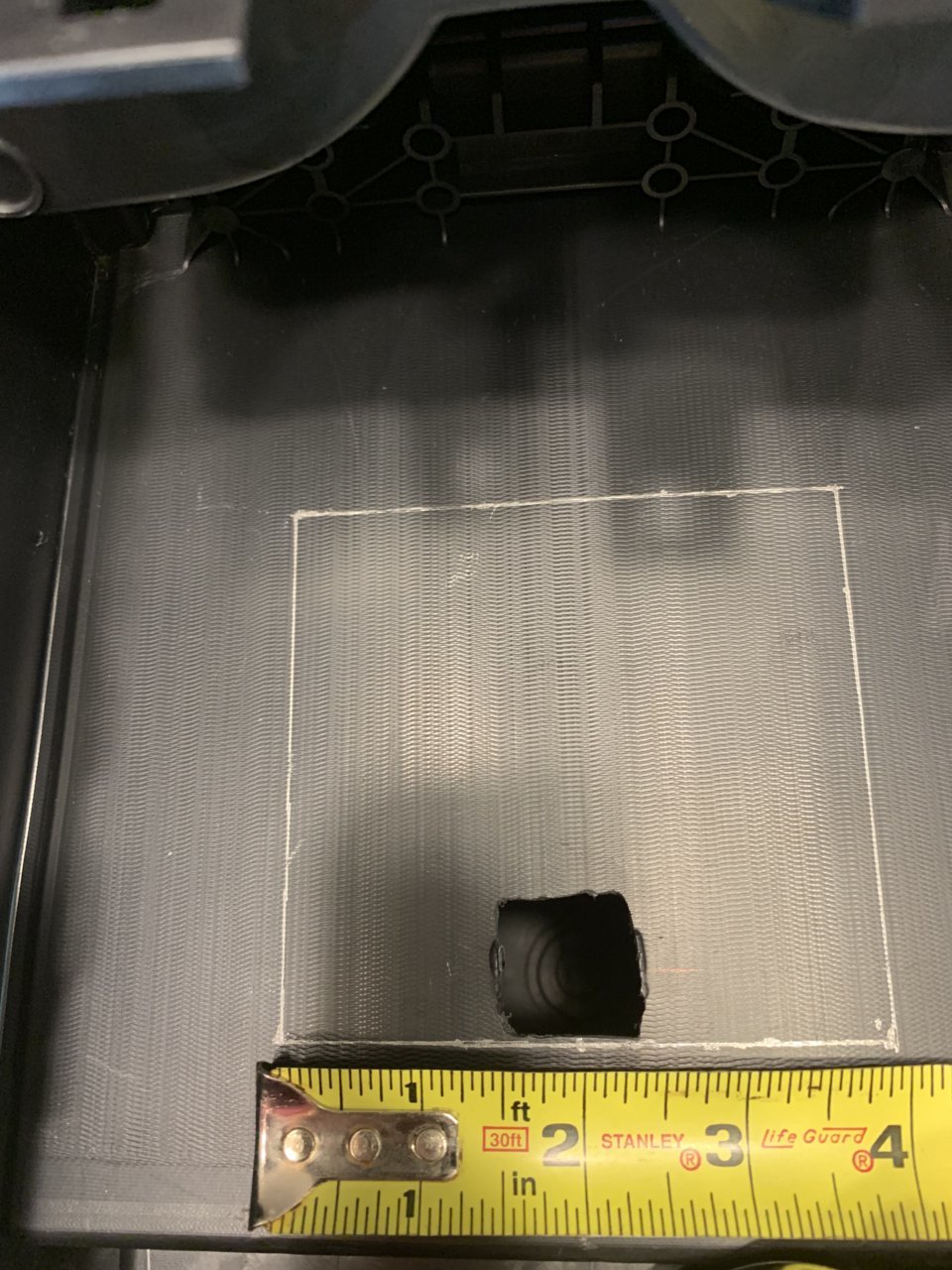

So you have the bezel mounted inside the console?
I was thinking about mounting mine on the outside facing the rear passengers. Other than the Class A show surface being in jeopardy, do you think there would be much more involved to install it that way?



I think you will be fine. Take a look at my other two links I posted within that post. I have other things that I have installed on the back side of my Console so I am not able to install this there. I do, however, have other ideas of installing two more of these in two other door panels really soon once I receive them that I will be doing a write up on as well that I think people are going to want to match too.



Where did you get the USB Power Port(00016-00225) from @KTJO 4x4 ? I tried searching for the part from mcgeorgetoyota.com but it didn't pull up. Could you please point me in the right direction?



It is linked at the bottom of this where the products are listed for this thread



I clicked on the link but it just take me to Tacoma World with an error on it. I tried on my phone and on my laptop. It won't pull up.



No worries. I Google it and found it.



@KTJO 4x4 , please remove me from the purchase list. Too many irons in the fire all the sudden. Thanks



I’ll take a look and get it fixed

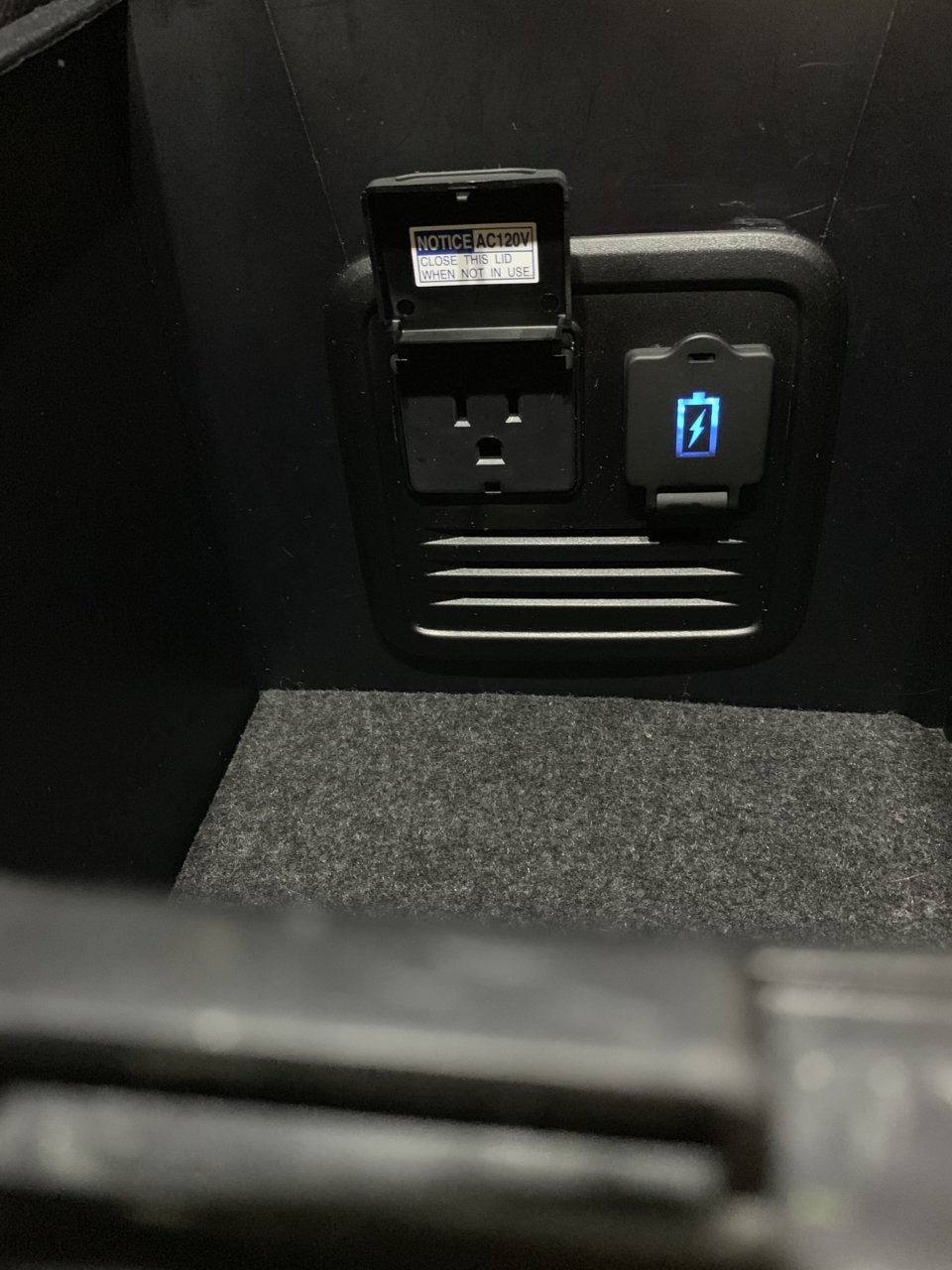

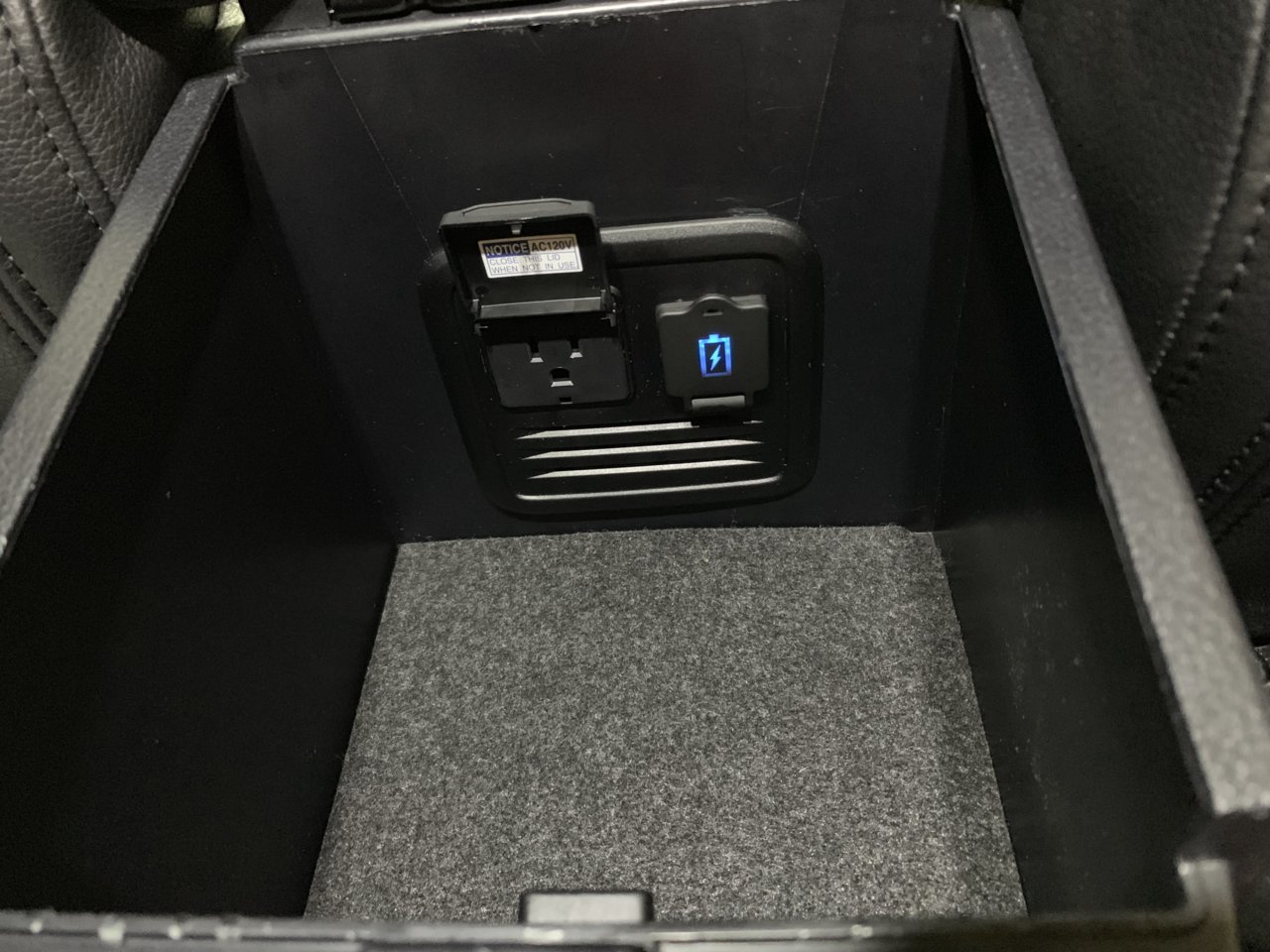

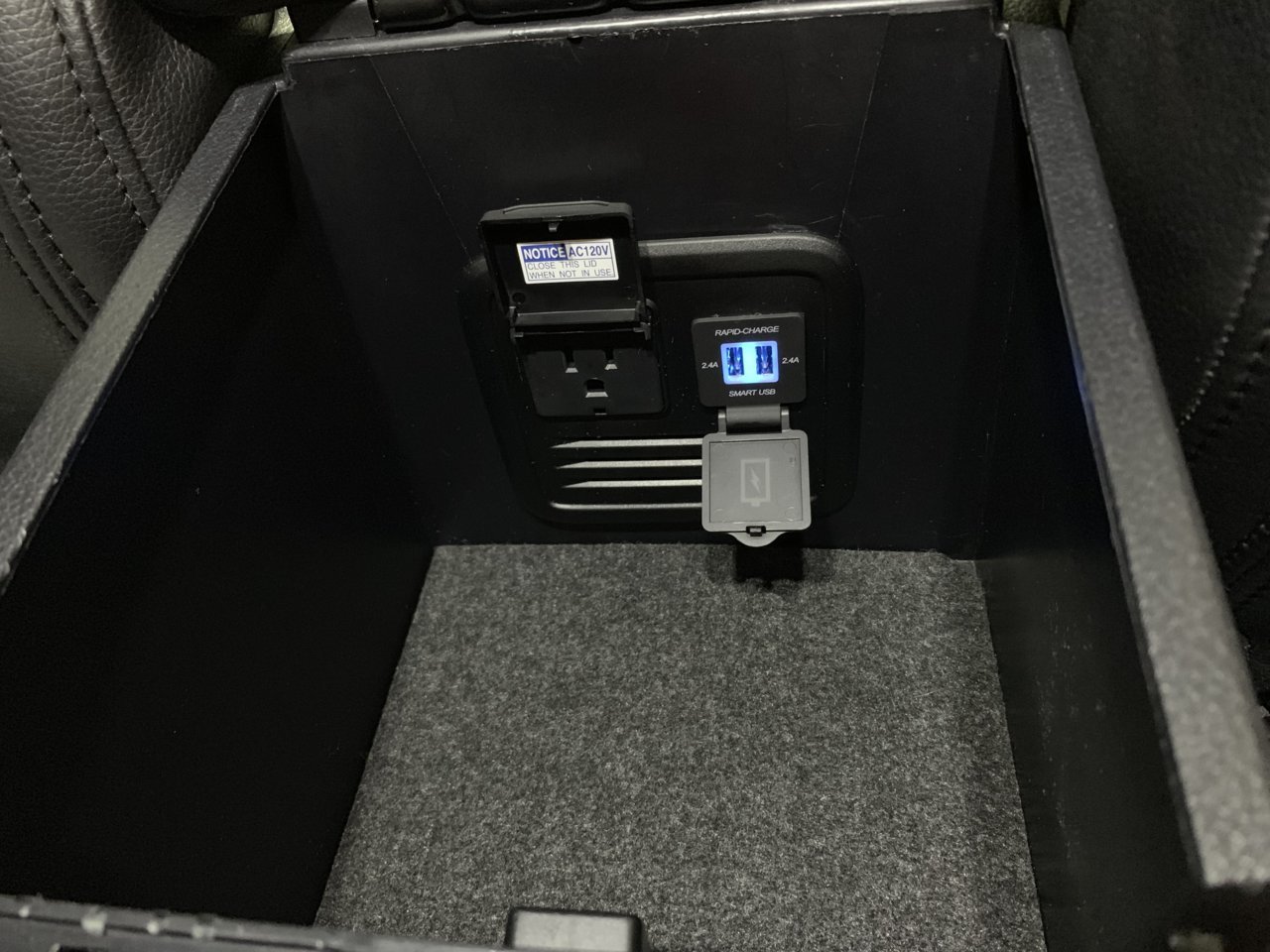

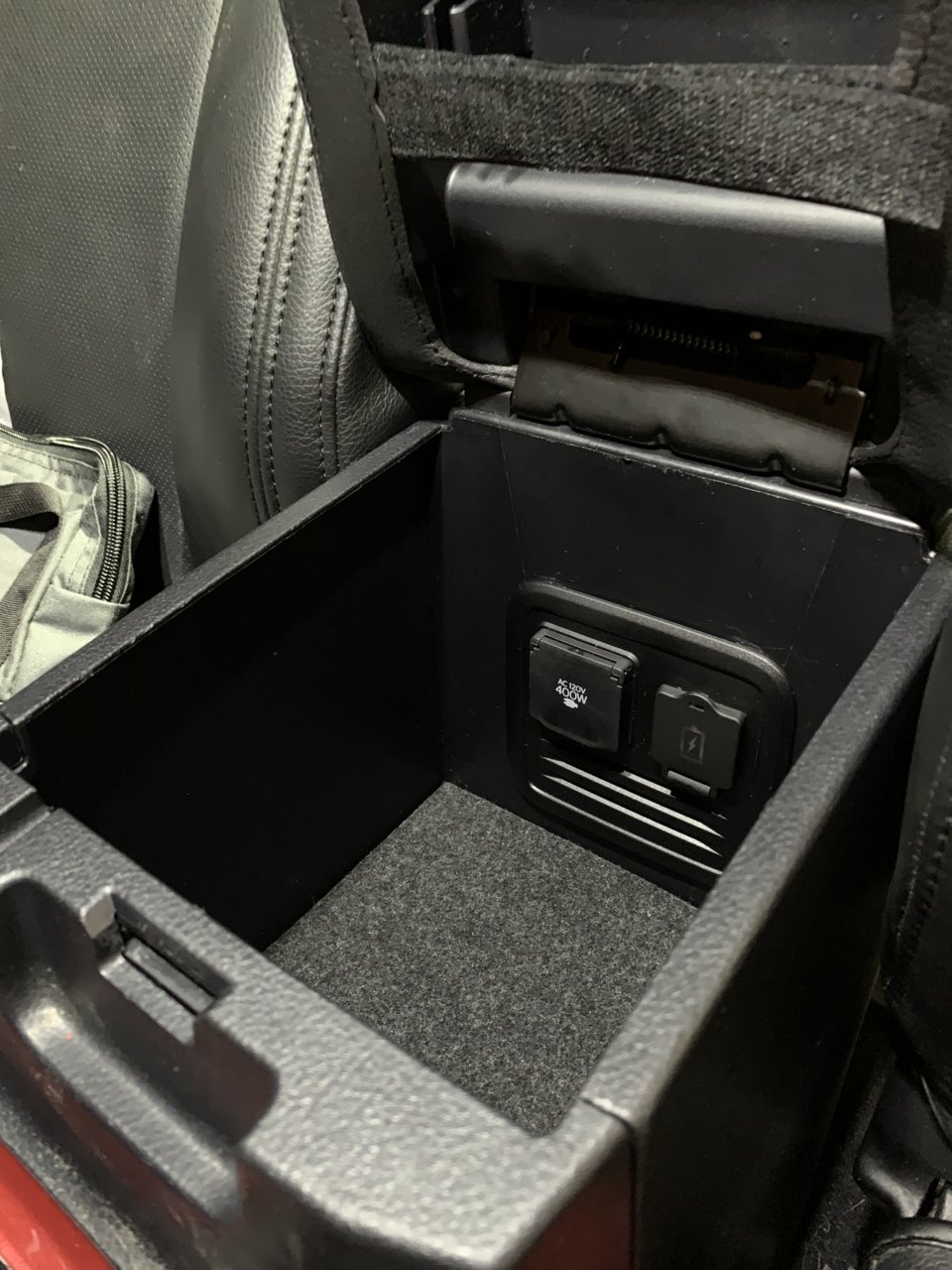

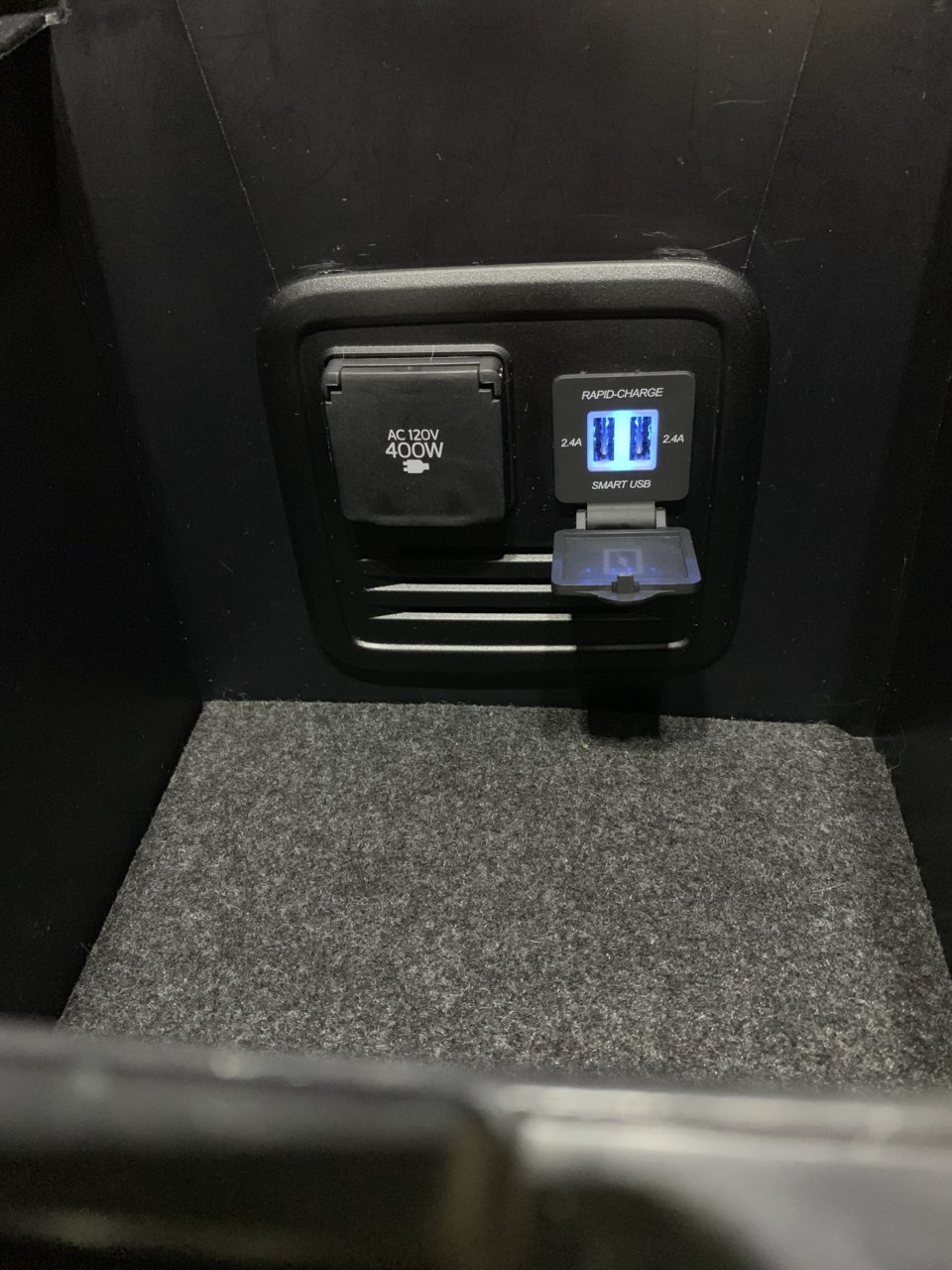

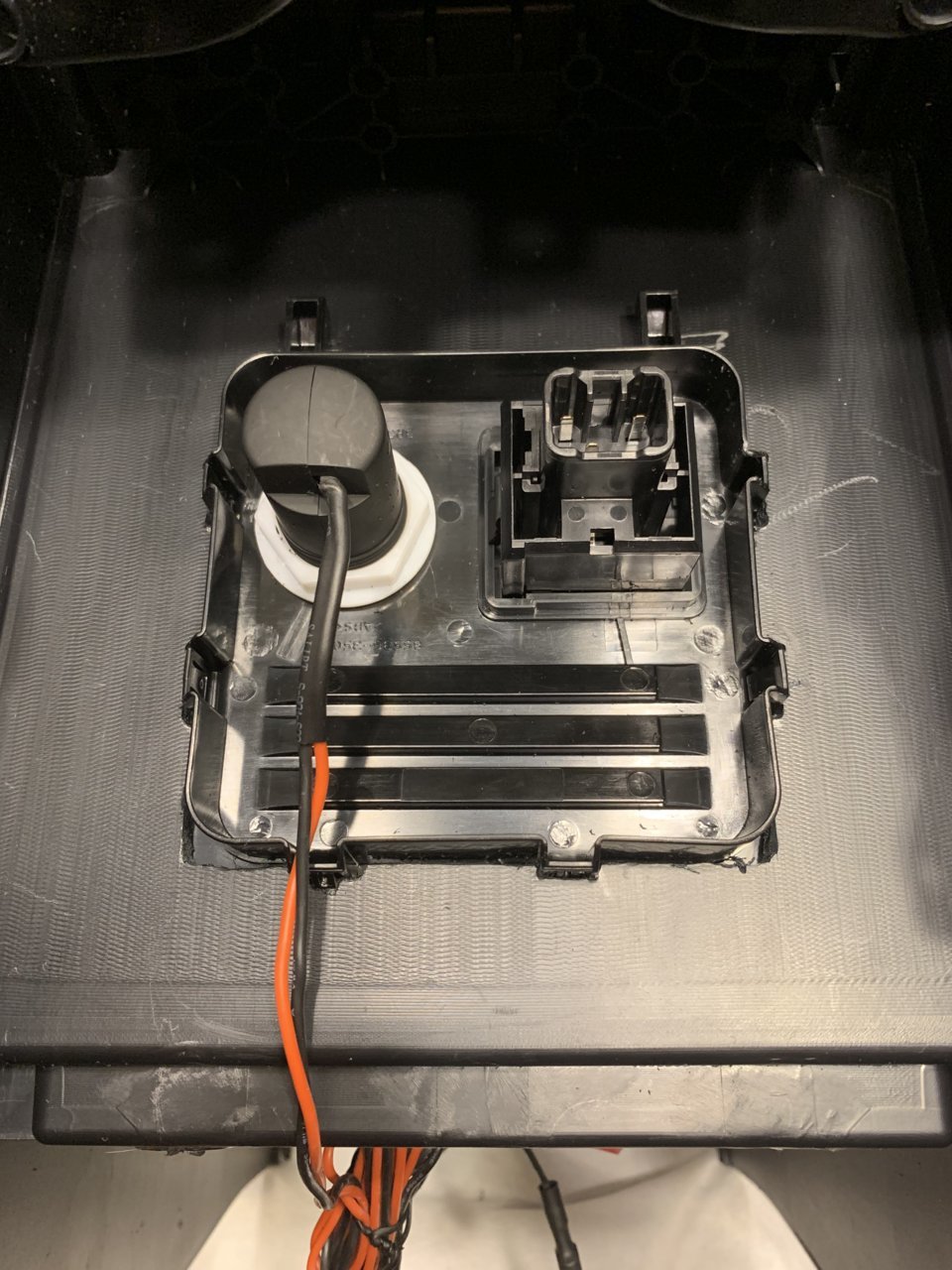

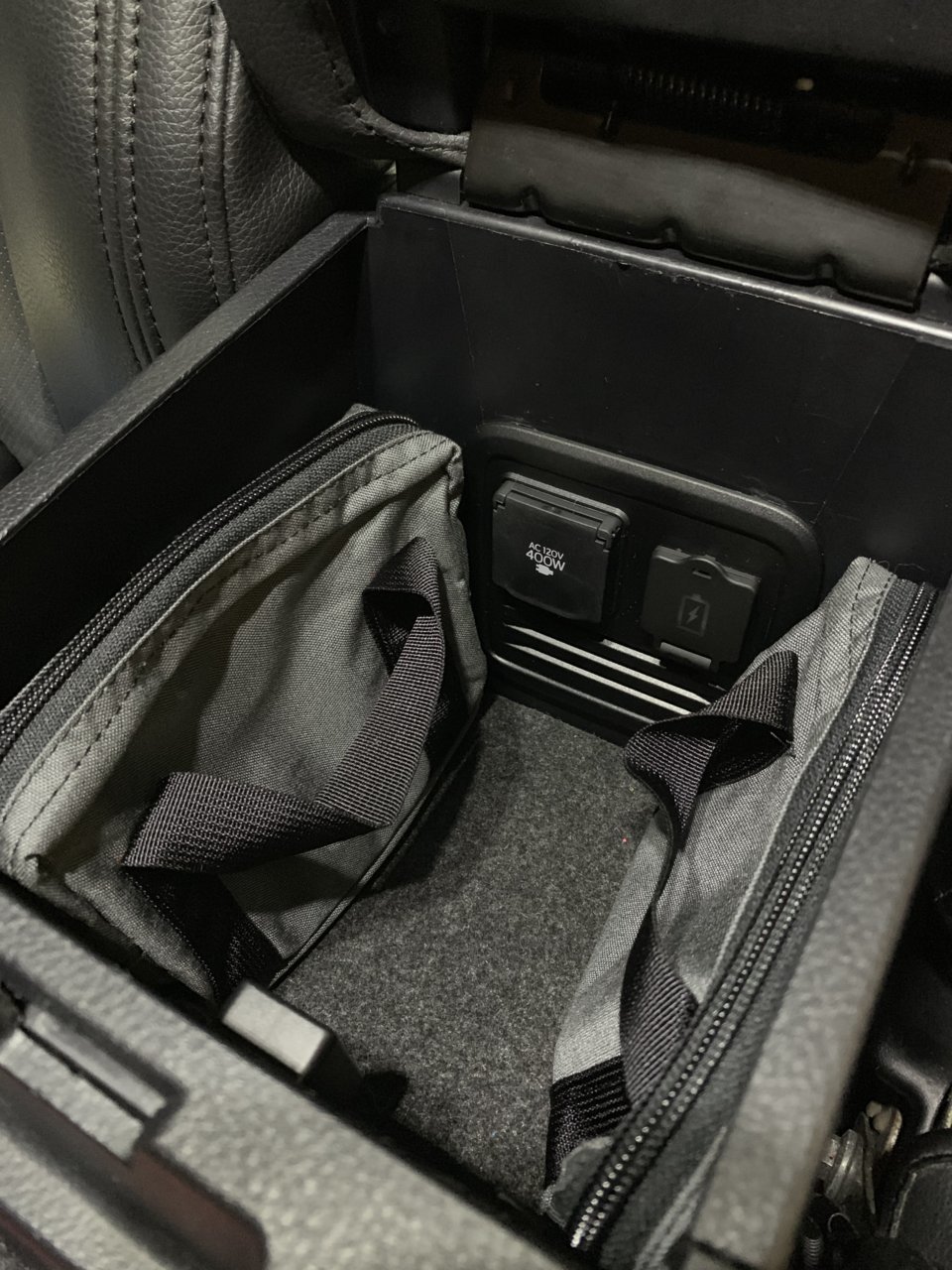

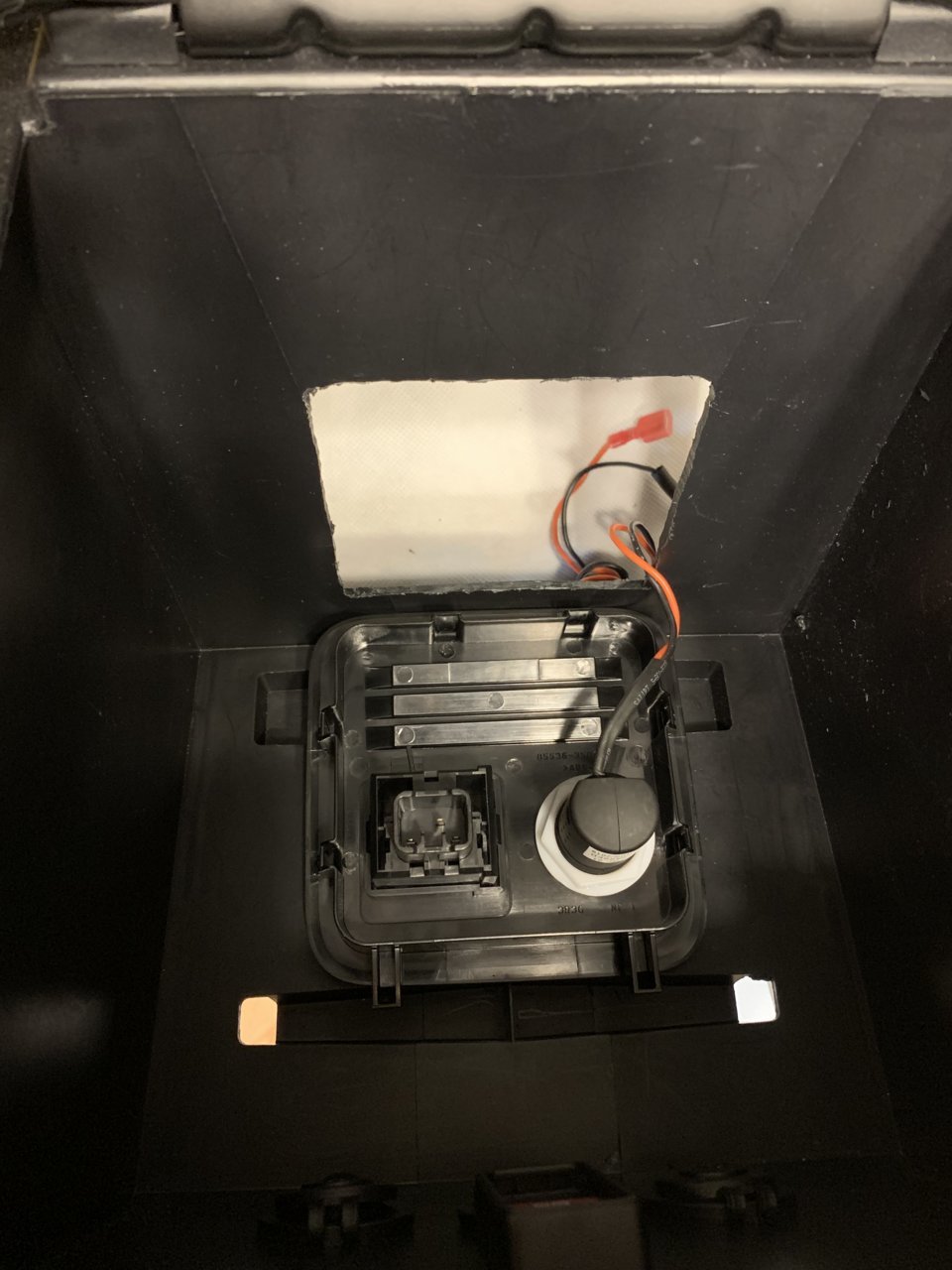

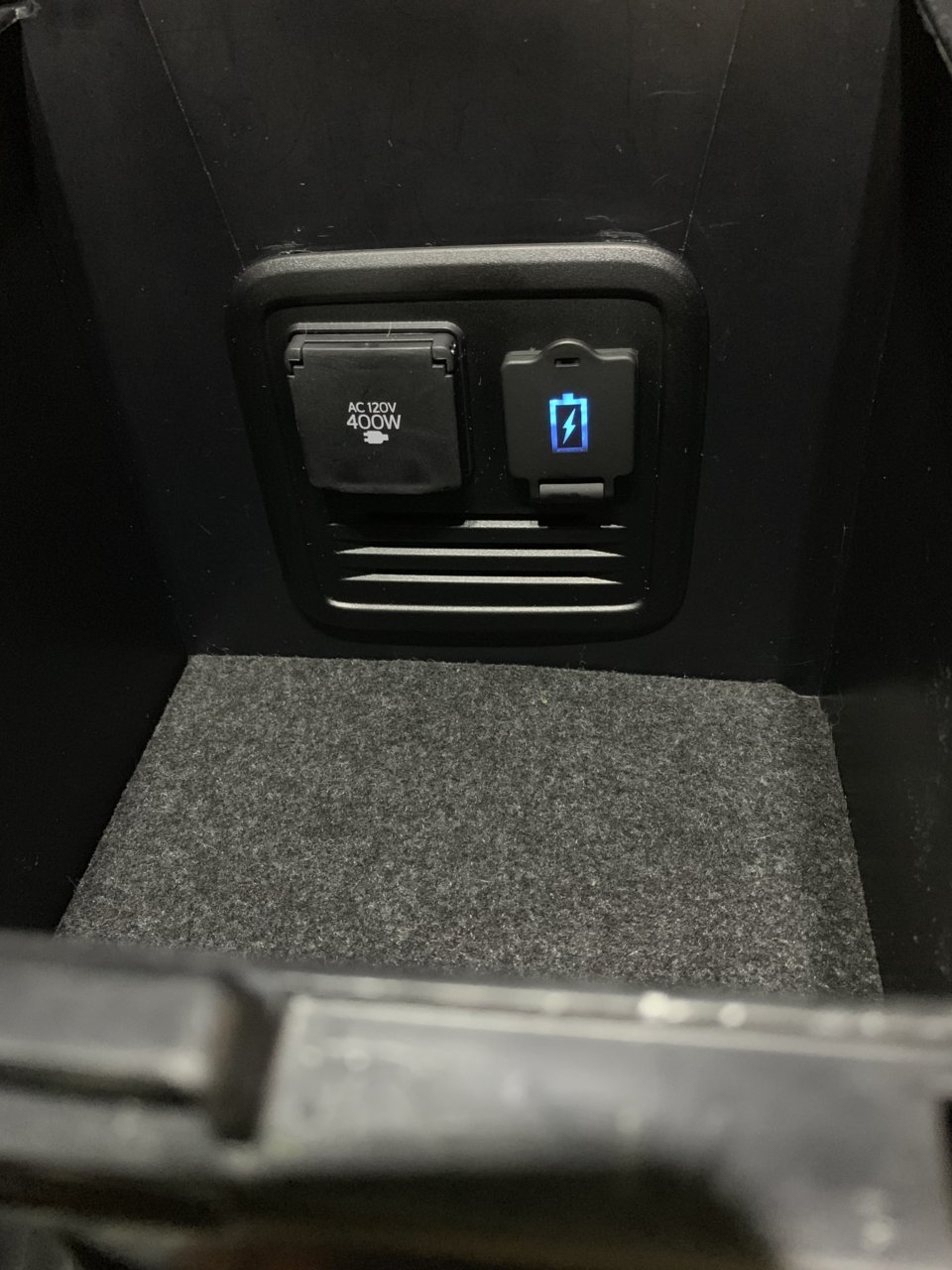

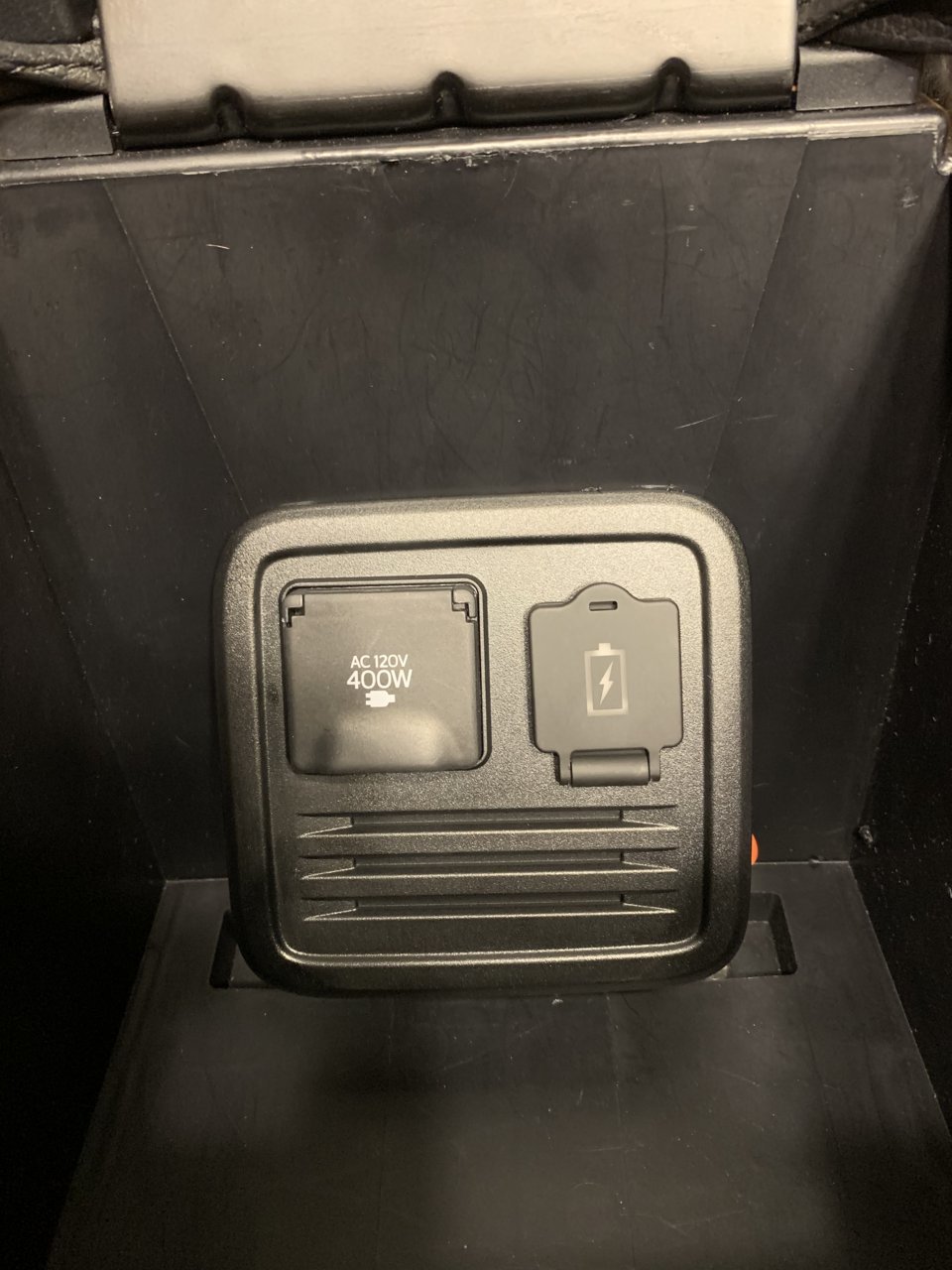

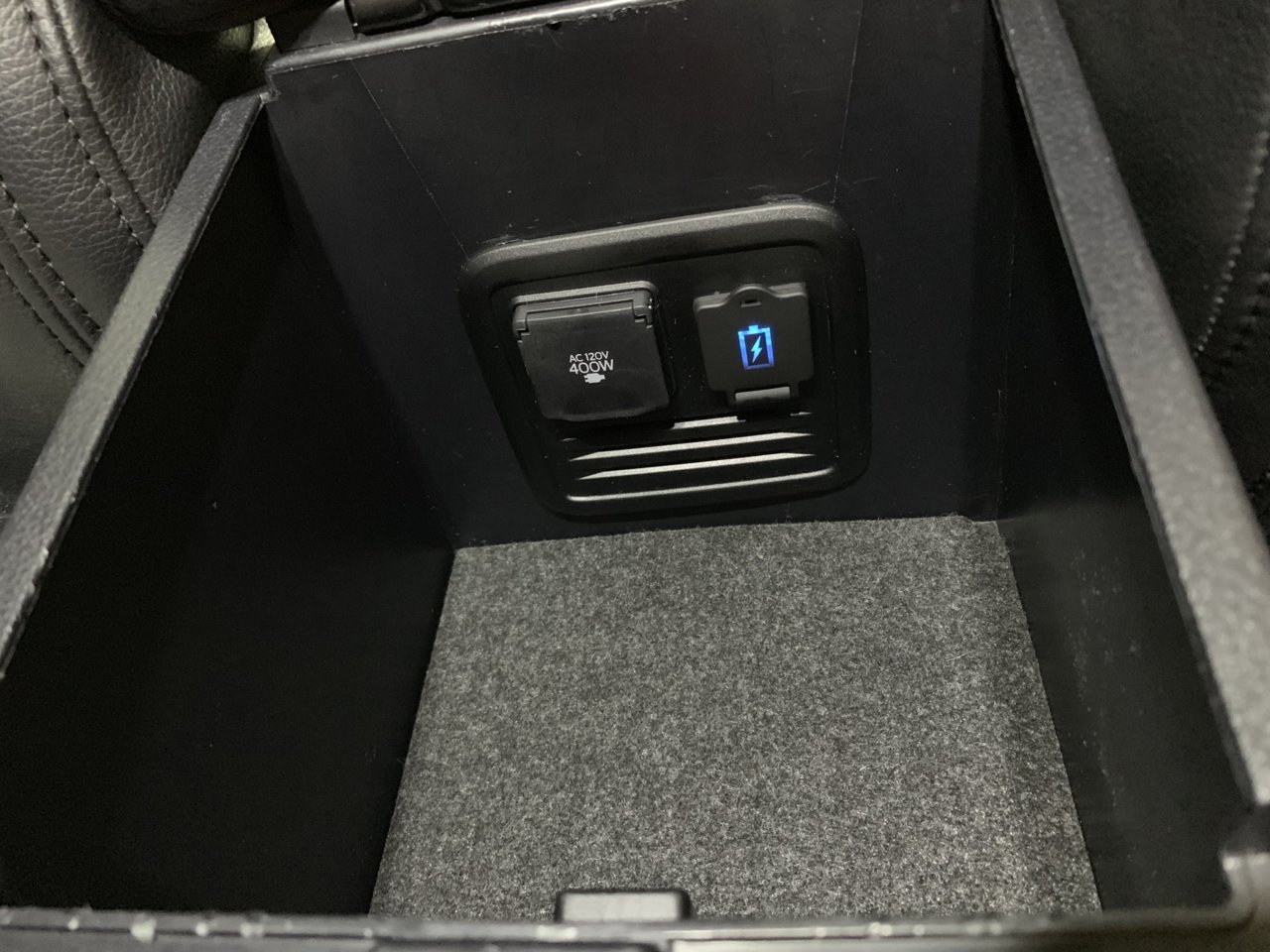

FINAL INSTALL PICTURES:



Holy moly!!! I think you could power Las Vegas with all that power.



That looks sweet though. I was just shopping around to see the best price of the extra stuff I need like that.



Can’t say I don’t gave what I need now!!!



Is the USB plug illuminated via the dash light circuit or constant on with power?



Super clean install!

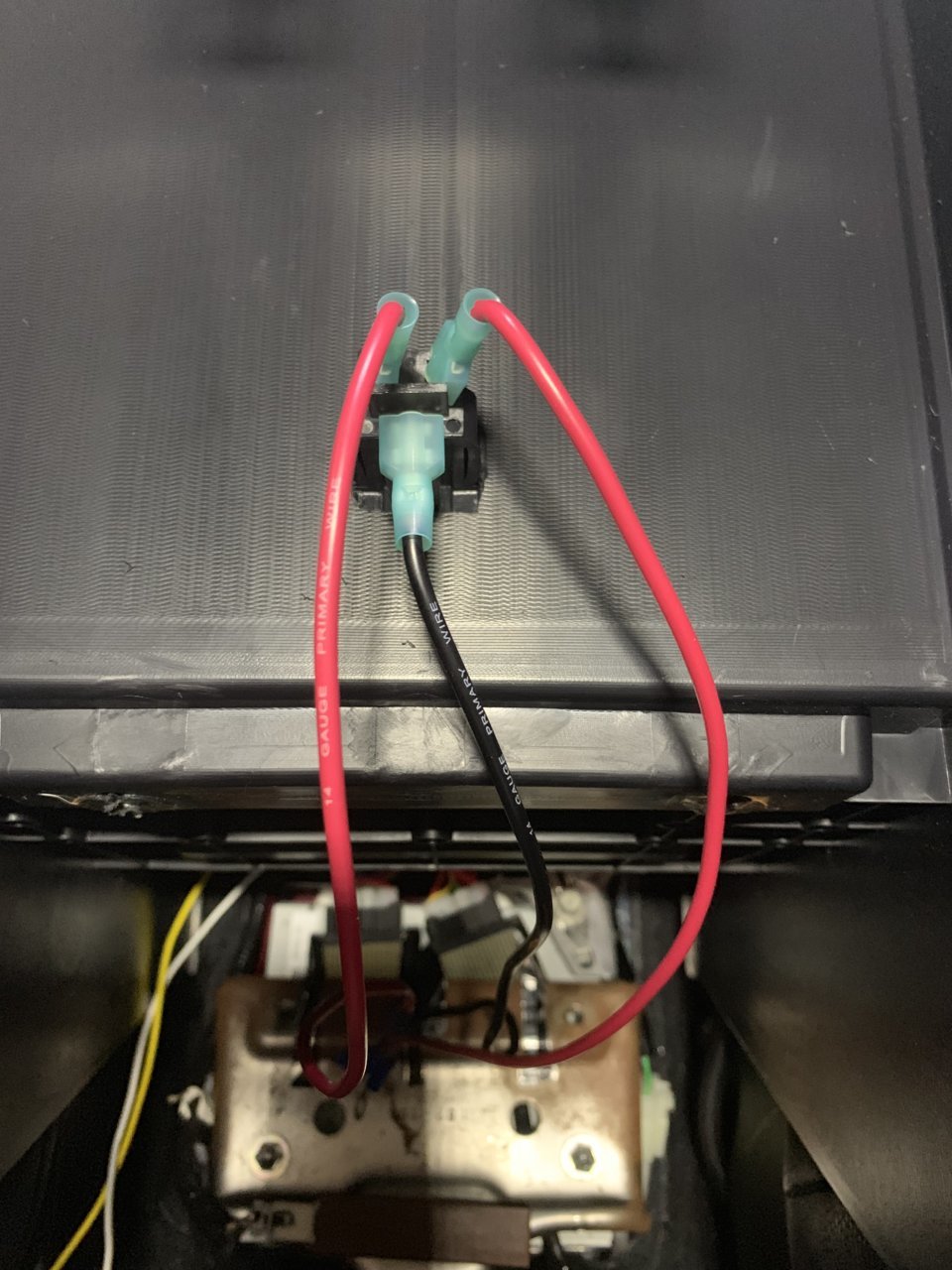

But what's that switch for?



It's an ML-ACR switch for controlling a dual battery setup, methinks.
