C4 FAB '05+ Tacoma Excursion Bedrack install instructions

Discussion in 'C4 Fabrication' started by C4 Fabrication, Sep 23, 2016.

  1. Sep 23, 2016 at 9:51 AM
    #1
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,244
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.

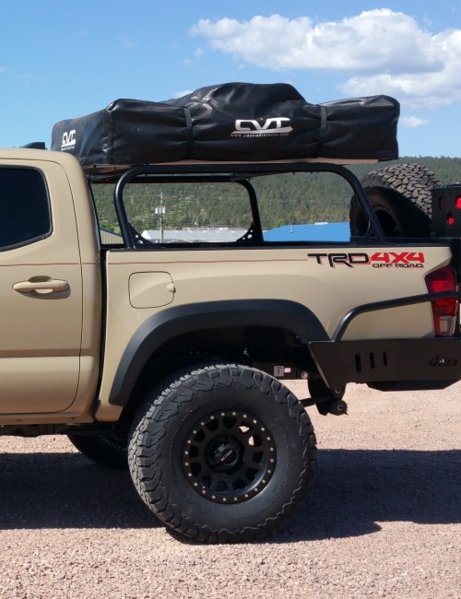

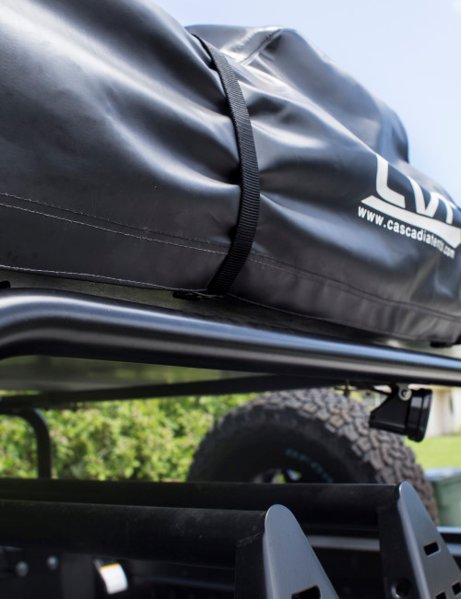

    Hey everyone, here are the install instructions for our Excursion Bedrack system. Installation is pretty straight forward, direct bolt on, no drilling required.

    Tools Required:
    9/16" wrench
    9/16" Socket and Ratchet

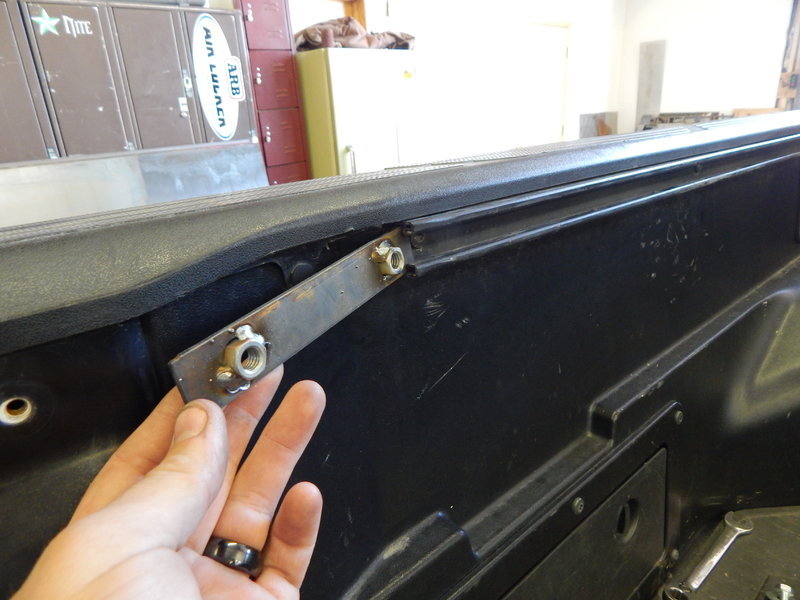

    1) Install the nut plates into the bed rail track system.

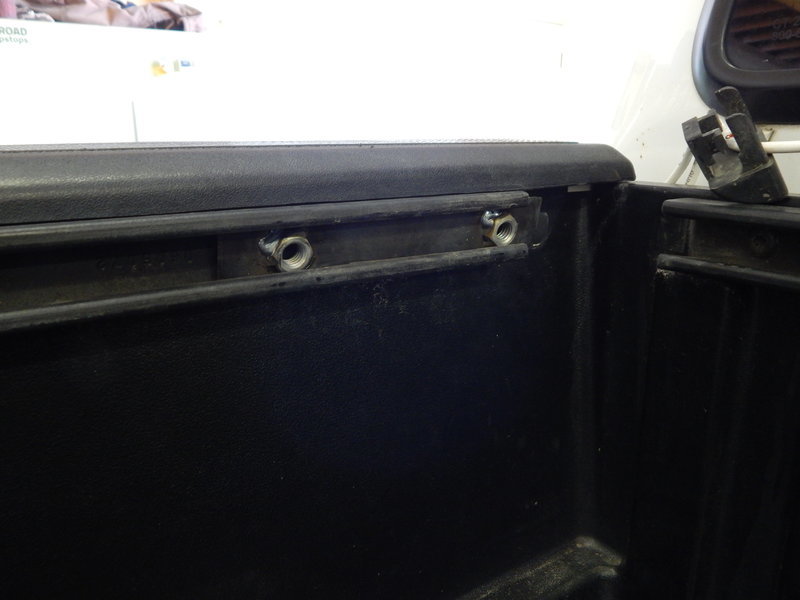

    Slide one nut plate all the way to the front of the track on each side of the bed.

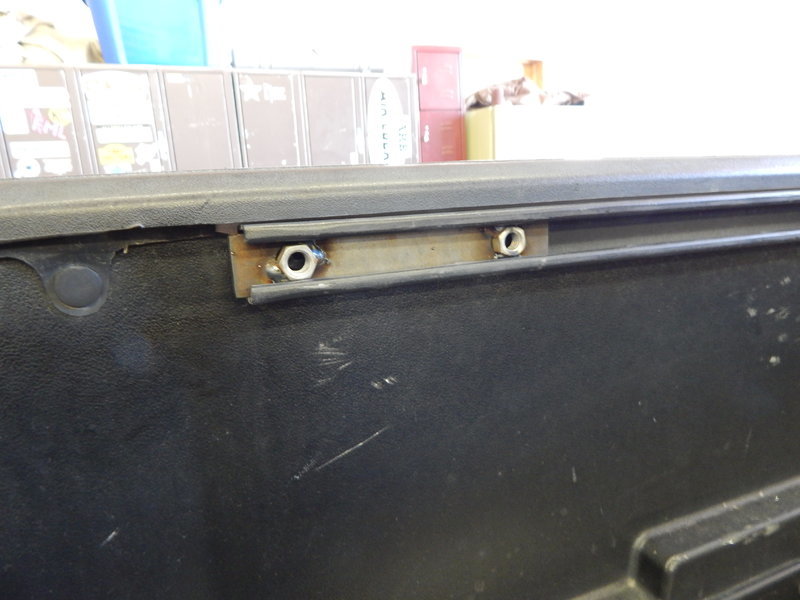

    Leave the other two towards the back of the track

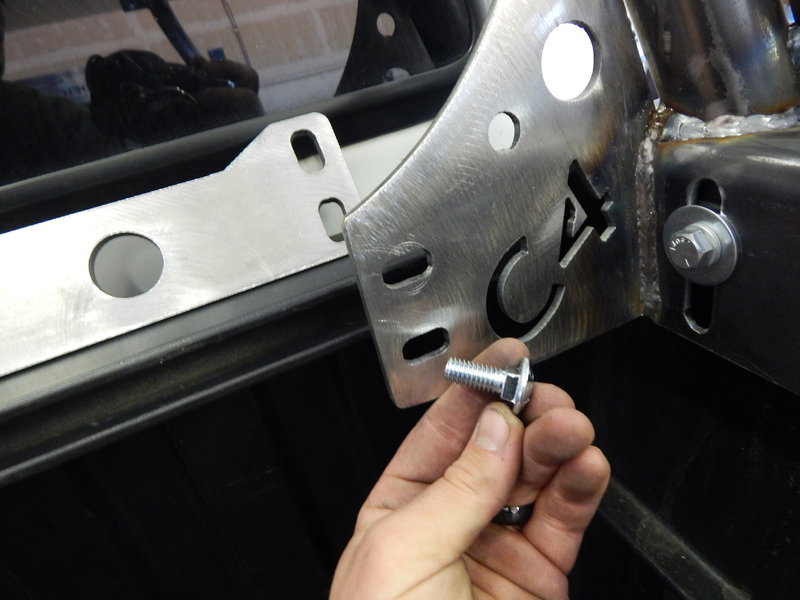

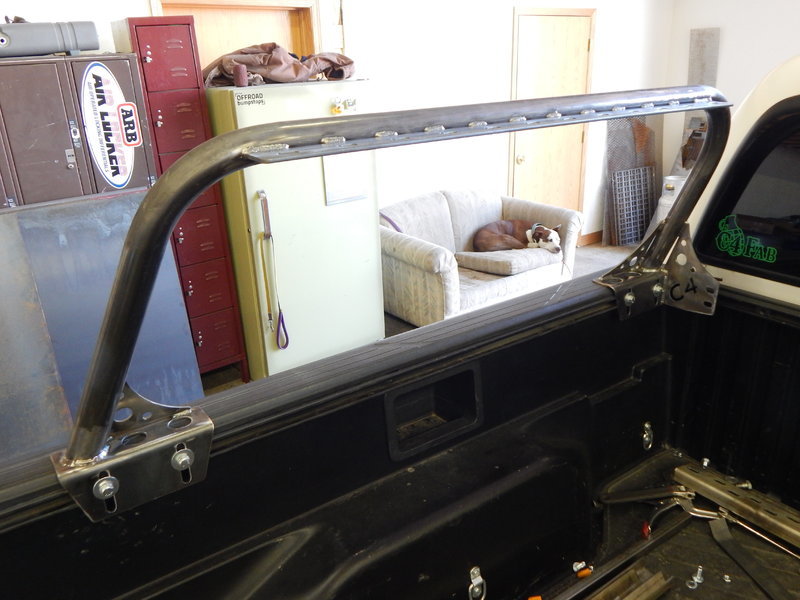

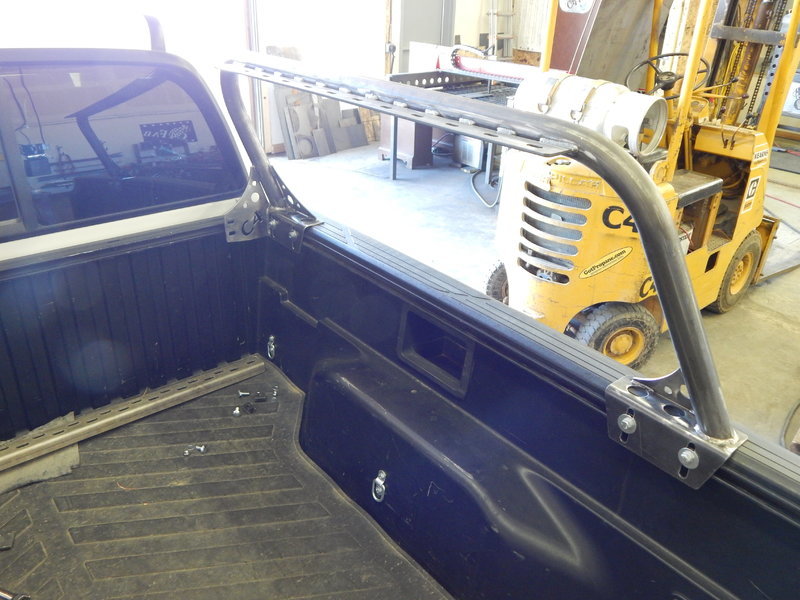

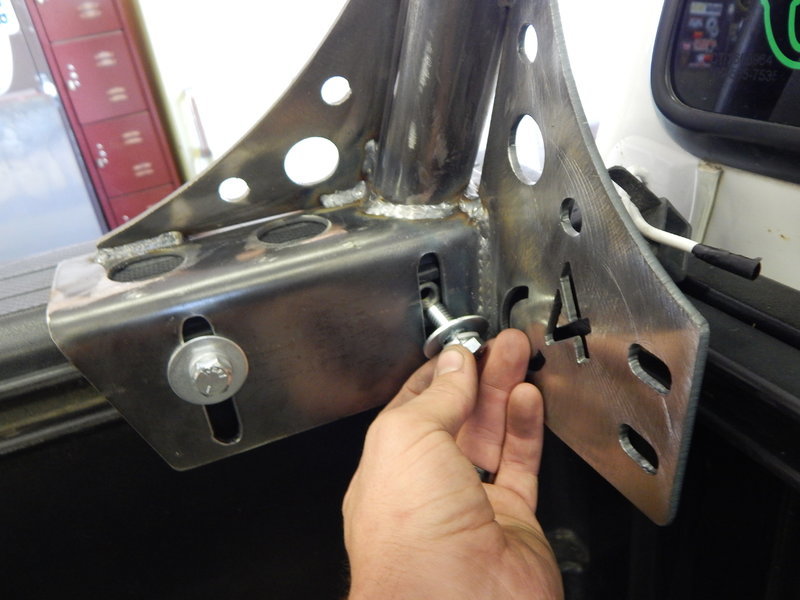

    2) Set the driver side of the rack onto the top of the bed cap and loosely install the 3/8"x1" bolts with large flat washers and split lock washers into the nut plates.

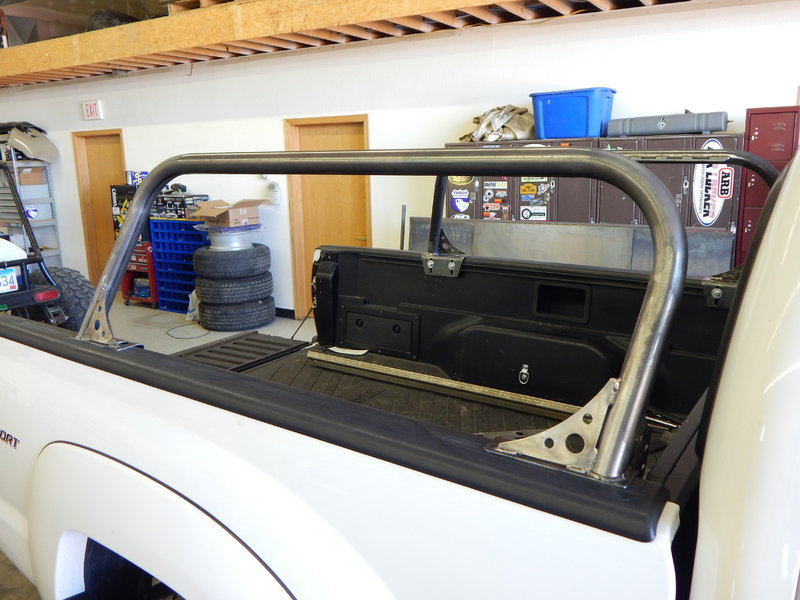

    3) Set the passenger side in place using the same procedure.

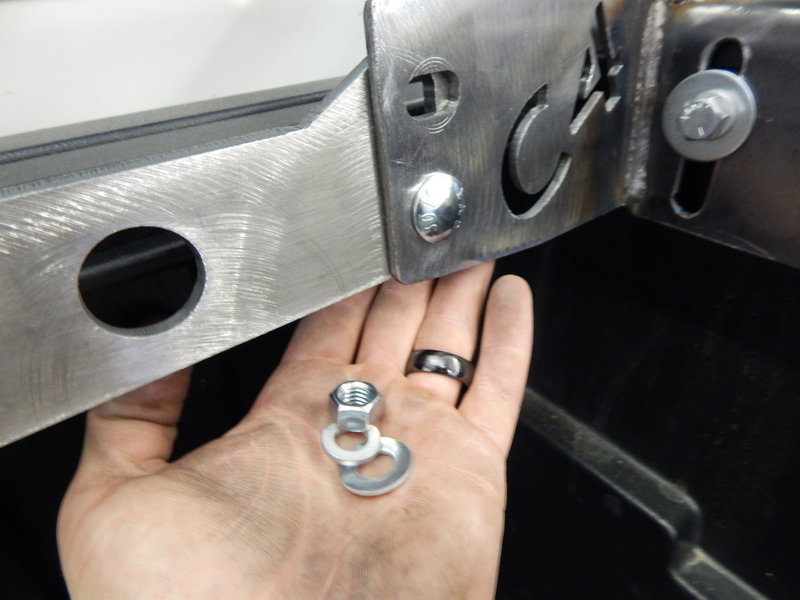

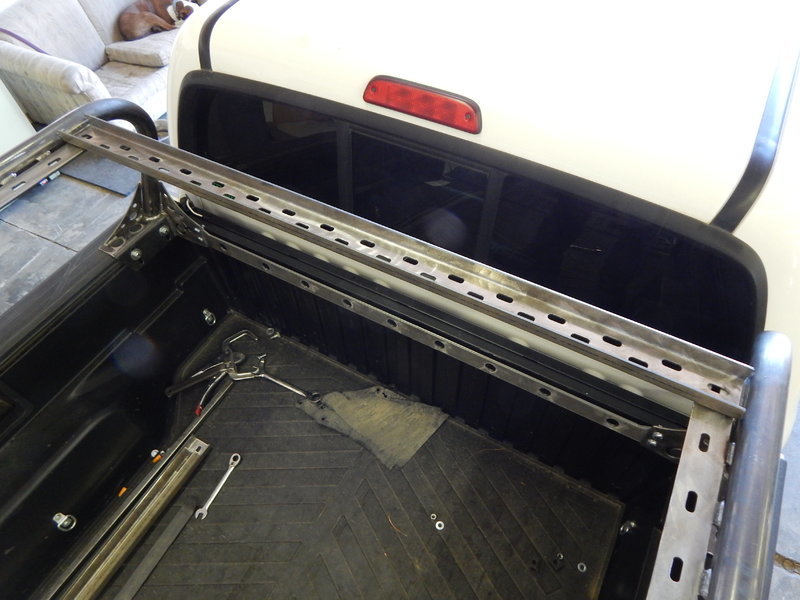

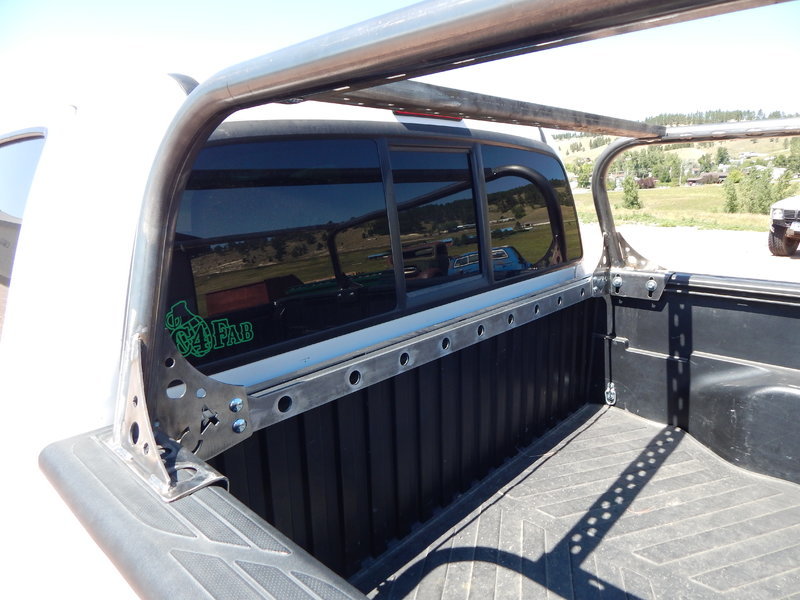

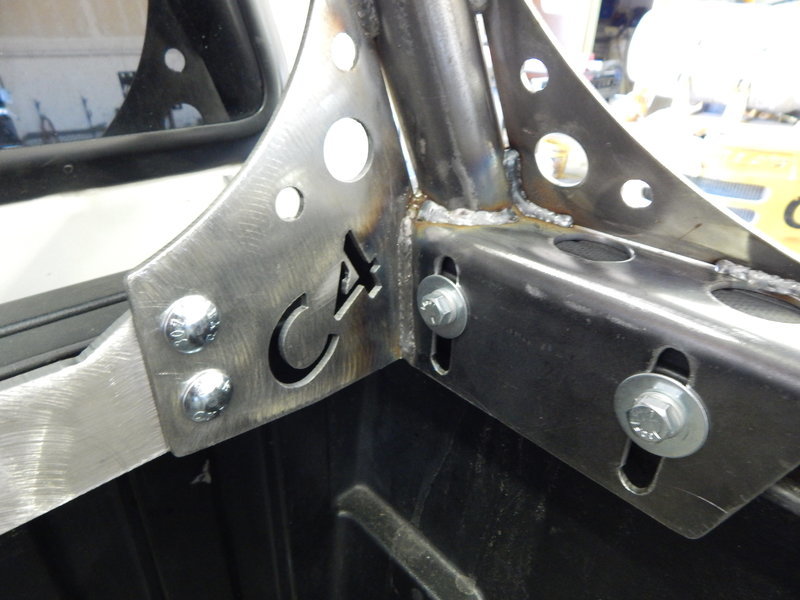

    4) Install the front cross brace using the 3/8" carriage head bolts with flat washer, split washer and nut on the back side. Install the cross brace so that the long side with the bend is facing down.

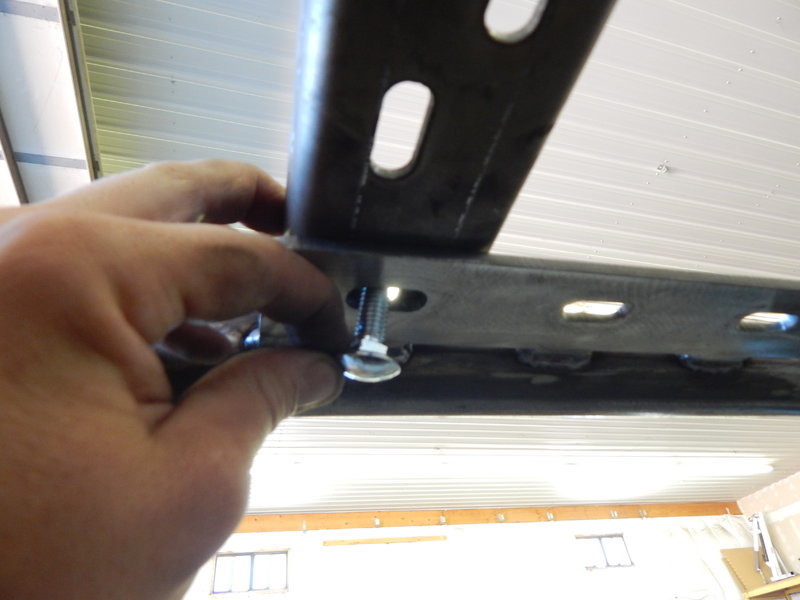

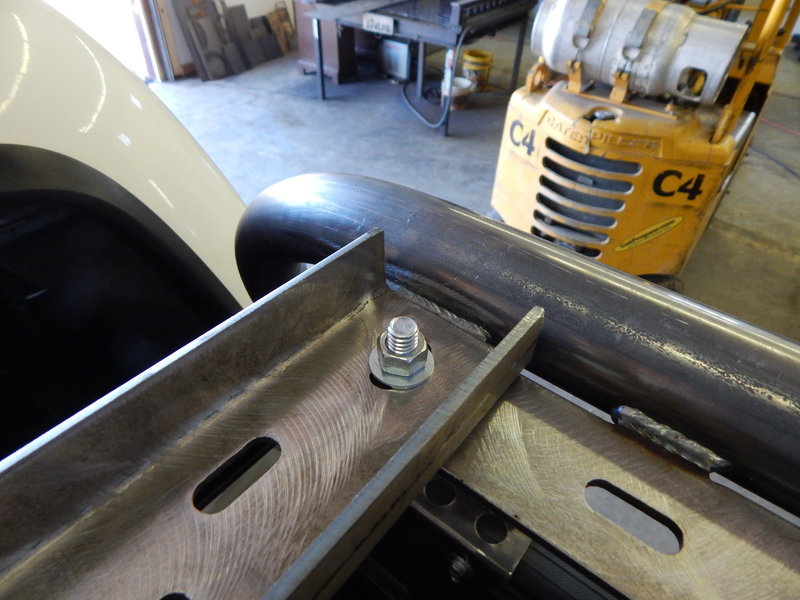

    5) Now install the top cross bars. The cross bars can now be installed flipped over from what these photos show. This provides a flat surface on the top of the cross bars instead of the edges on top. Use the 3/8" x 2" carriage head bolts with flat washer, split lock washer and nut to hold the cross bars in place.

    6) Adjust the rack sides so that it is sloped in at the same angle on each side and not leaning to one side or the other.

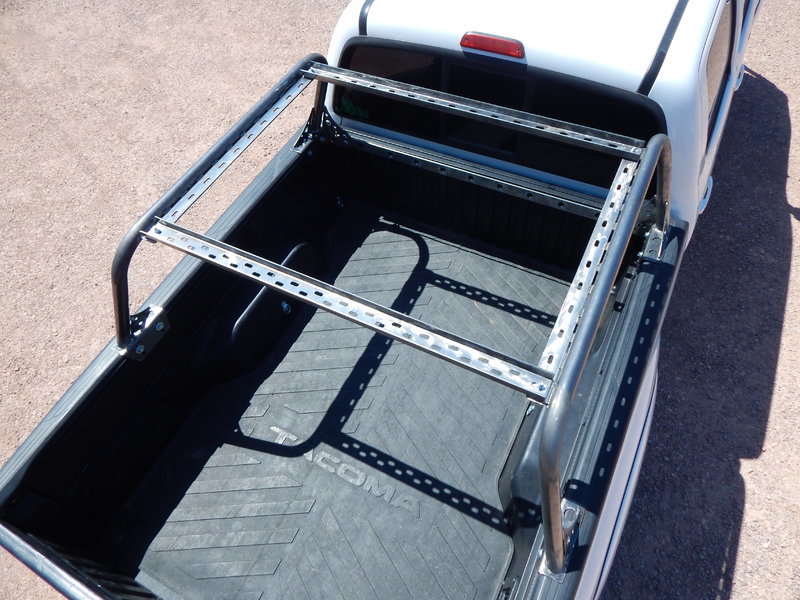

    7) Fully tighten all of the hardware. Your rack is ready to use!




    Last edited: Oct 12, 2017
    YDCtaco likes this.
  2. Sep 1, 2017 at 6:07 PM
    #2
    YDCtaco

    YDCtaco Go Deacs!

    Joined:
    Dec 24, 2015
    Member:
    #173013
    Messages:
    953
    Gender:
    Male
    First Name:
    Scott
    Charlotte/Winston-Salem
    Vehicle:
    2016 DCSB TRD OR 4x4-Auto
    "It has Crawl Control and Bilstein Shocks!"- Salesman
    Is it possible to have those top cross bars be flipped so that there is a flat surface on top?

  3. Sep 21, 2017 at 6:35 AM
    #3
    YDCtaco

    YDCtaco Go Deacs!

    Joined:
    Dec 24, 2015
    Member:
    #173013
    Messages:
    953
    Gender:
    Male
    First Name:
    Scott
    Charlotte/Winston-Salem
    Vehicle:
    2016 DCSB TRD OR 4x4-Auto
    "It has Crawl Control and Bilstein Shocks!"- Salesman
    anyone customer pictures/reviews?

  4. Oct 12, 2017 at 1:56 PM
    #4
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,244
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    We did actually redesign the cross bars so that they can be flipped and mounted the other way to provide a flat surface on top.
