C4 FAB front bumper mount/frame support bracket install guide.

Discussion in 'C4 Fabrication' started by C4 Fabrication, Jan 1, 2017.

  1. Jan 1, 2017 at 10:25 AM
    #1
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,367
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Here are the install instructions for our new front bumper frame support brackets. These brackets are compatible with C4 FAB front bumpers for the 3rd gen Tacoma. They are not guaranteed to work with any other manufacturers bumpers.

    Tools needed:
    -14mm wrench/socket
    -3/4" wrench/socket
    -Flat blade screwdriver

    These brackets install after your aftermarket bumper has already been set in place on the vehicle.

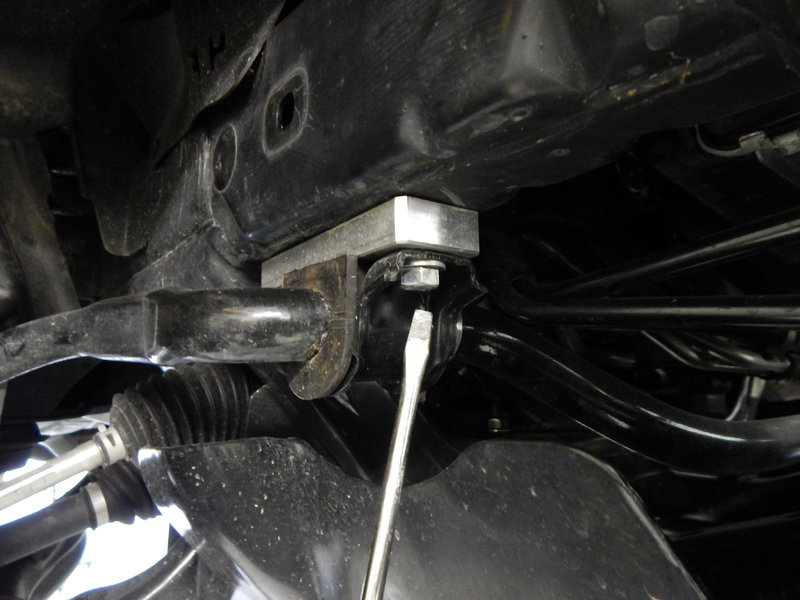

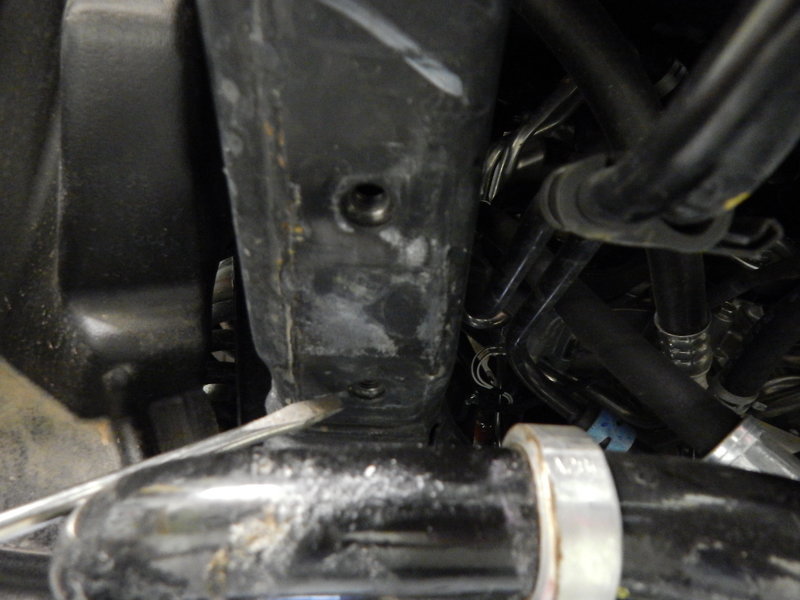

    First you will need to remove the metal U-shaped straps that hold the sway bar in position on the bottom of the front frame rail.
    Use the 14mm socket to take the bolts out, let the sway bar hang down from the frame.
    DSCN3875.jpg DSCN3877.jpg

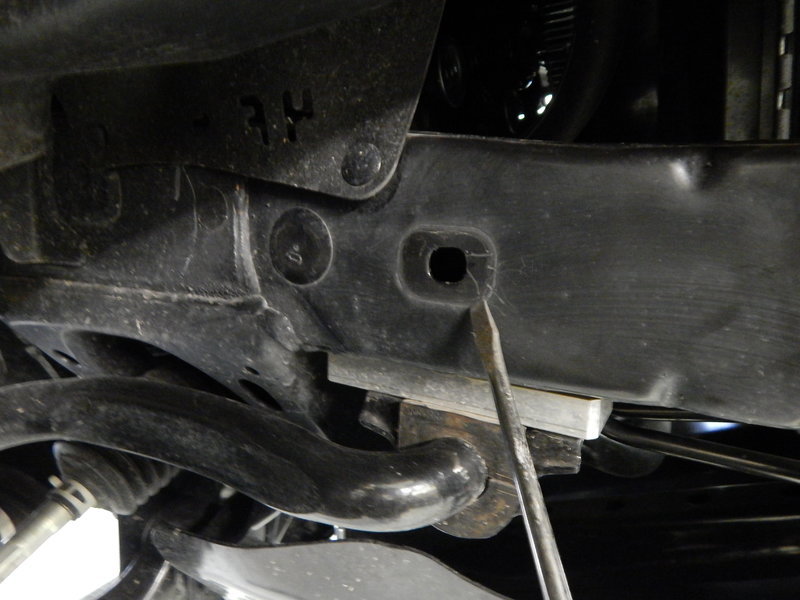

    Next you will need to remove the plastic plugs that cover the holes in the sides of the frame rail just above the area where the sway bar was disconnected. Use a flat blade screw driver to pop them out. There is one on the outside and inside of each frame rail.

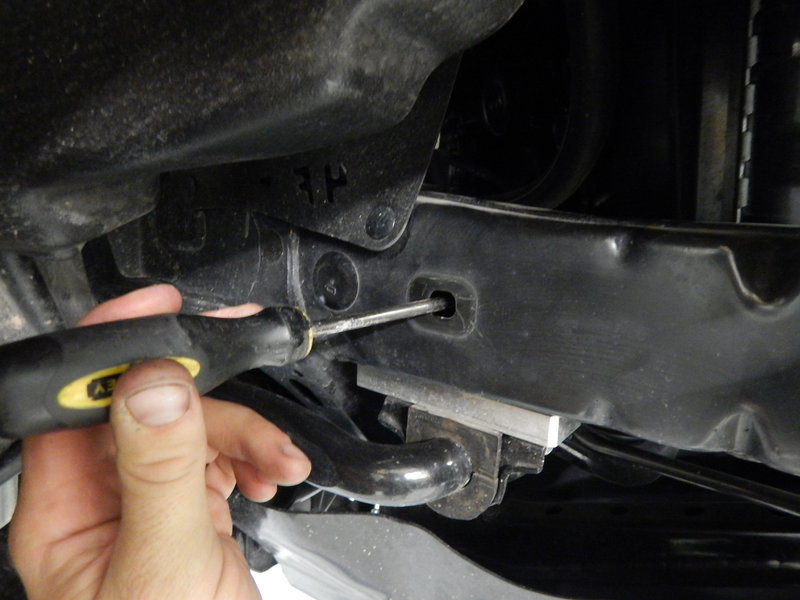

    Once the outside plug is removed, you can put the screw driver through the hole until it hits the inside of the other plastic cap on the other side of the frame rail. Give the end of the screw driver a solid tap and the inner plug will come out.
    DSCN3872.jpg DSCN3873.jpg DSCN3874.jpg

  2. Jan 1, 2017 at 10:45 AM
    #2
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,367
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Now you will need to remove the two nuts from the front outside of the frame rail that hold the bumper in place. As long as you DO NOT loosen the 3rd nut on each side that is on the inside of the bumper where it mounts to the frame, then the bumper will not move from where it has been installed.

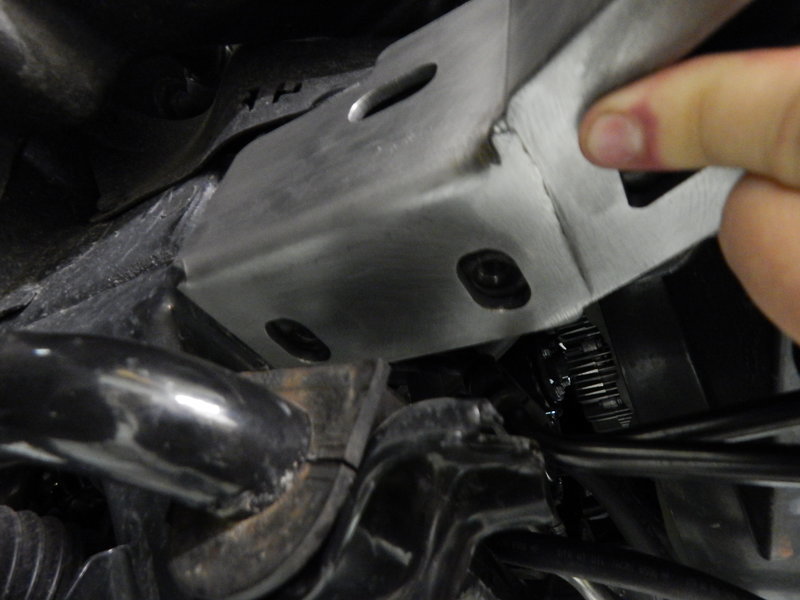

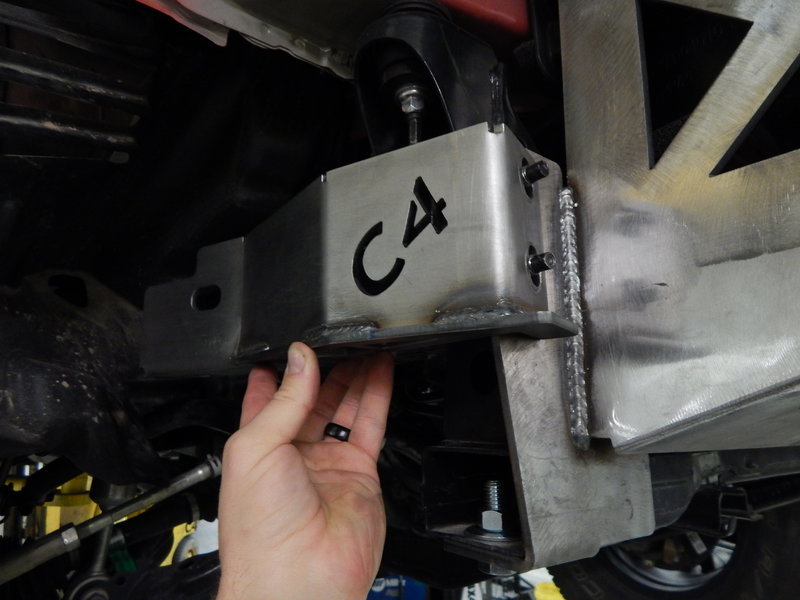

    Hold the bracket up to the frame, fit the front of the bracket over the bumper mounting studs first, then pivot the bracket over towards the side of the frame rail to line it up with the sway bar mounting holes and the large hole where the plastic plugs were removed.
    DSCN3895.jpg DSCN3896.jpg DSCN3897.jpg

    Once the bracket is lined up with the holes, loosely install the 14mm nuts at the front of the frame to hold the bracket in place.
    Repeat this process on the other side so that both brackets are loosely installed in their place.

    Now that BOTH brackets have been set into place, lift the sway bar up into position and loosely re-install the original bolts.

    Then put the provided 1/2" x 3 1/2" bolt through the large hole in the side and install the nut, washer and lock washer on the inside of the frame rail.

    Now that all of the hardware has been loosely installed in position, you can go ahead and tighten down all of the nuts and bolts. Do not over tighten the 1/2" bolt as it will begin to crush the frame rail.

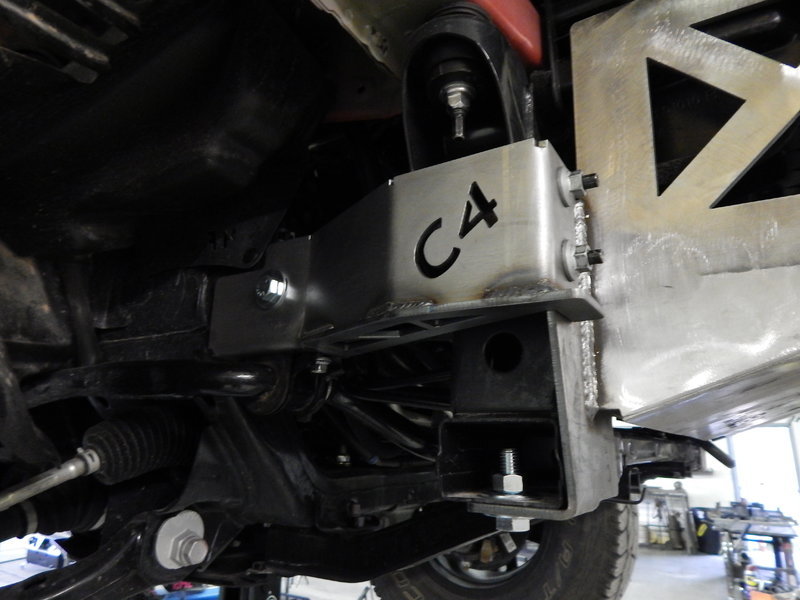

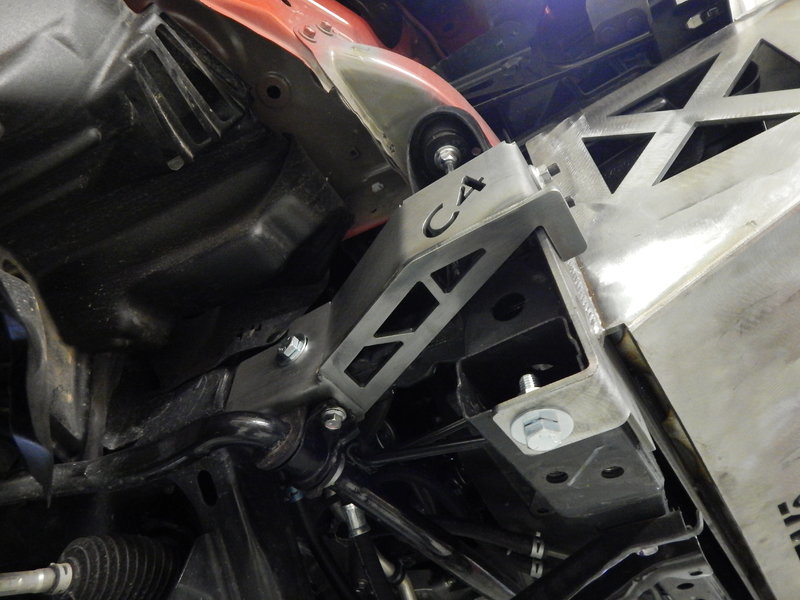

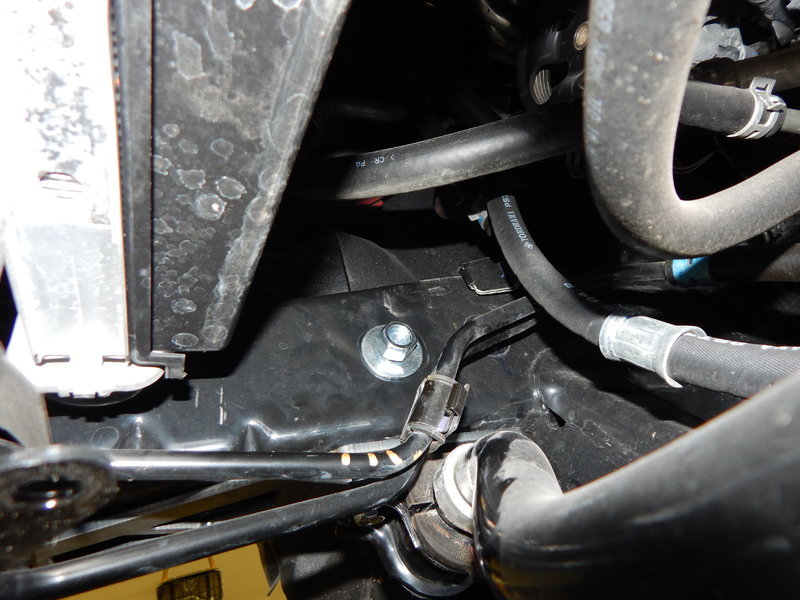

    The brackets should look like this when finished:
    DSCN3878.jpg DSCN3879.jpg

    Your install is now complete.

    Enjoy the added security of a reinforced mounting system next time you are on the trail using your winch!

  3. Jan 1, 2017 at 10:59 AM
    #3
    basically_stock_

    basically_stock_ 3rd Shift Lurker

    Joined:
    Jan 9, 2016
    Member:
    #174488
    Messages:
    252
    Gender:
    Male
    First Name:
    Eric
    Iowa
    Vehicle:
    2009 TRD Sport, Free & Clear
    2" lift, SCS Ray 10, Falken Wildpeak's
    Is there a link to purchase?

  4. Jan 1, 2017 at 11:01 AM
    #4
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,367
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
  5. Jun 26, 2018 at 1:06 AM
    #5
    Leo yang

    Leo yang New Member

    Joined:
    Jun 26, 2018
    Member:
    #257525
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2017 White TRD PRO
    King 2.5 front adj ARB OME leaf spring C4 lo-po bumper RCI trans+transfor skid plate CBI rock slider prinsudesigns roof rack Spod odyssey battery Baja design S8 Caliraised bed stiffener+ Led bar
    This brackets does not work with any remote reservoir mount.

  6. Sep 27, 2018 at 6:32 PM
    #6
    sdogga

    sdogga Member

    Joined:
    Jan 26, 2016
    Member:
    #176174
    Messages:
    13
    Gender:
    Male
    First Name:
    Sean
    Central Massachusetts
    Vehicle:
    2014 Silver Tacoma TRD Double Cab
    Access Literider Tanneau cover and Relentless Fabrication Tailgate cover
    Last edited: Oct 1, 2018
  7. Oct 8, 2018 at 10:44 AM
    #7
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,367
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    The front bumper frame support brackets that we currently have are for 2016 and up Tacomas.

    sdogga[QUOTED] likes this.
  8. Oct 15, 2018 at 6:54 PM
    #8
    sdogga

    sdogga Member

    Joined:
    Jan 26, 2016
    Member:
    #176174
    Messages:
    13
    Gender:
    Male
    First Name:
    Sean
    Central Massachusetts
    Vehicle:
    2014 Silver Tacoma TRD Double Cab
    Access Literider Tanneau cover and Relentless Fabrication Tailgate cover
    @C4 Fabrication looks like you got it all sorted out for the second generation as well. I just saw on your website and on Instagram that you got the brackets to work.

    Definitely a nice feature with the Lo- Pro bumper.

  9. May 11, 2019 at 6:45 AM
    #9
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,211
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    I just installed a set of these on my 2015 with a *********** bumper - they fit great!

  10. May 17, 2019 at 8:59 AM
    #10
    seadog99

    seadog99 Well-Known Member

    Joined:
    Aug 22, 2017
    Member:
    #227676
    Messages:
    64
    I currently have a set of these that I powder coated and were ready to go when I mounted up my C4 bumper...until I realized that I cant run them with my reservoir mounts for my Fox suspension that are already in that location. Any chance C4 offers them with a spot to mount shock reservoirs?

  11. Oct 24, 2019 at 6:04 PM
    #11
    YSL

    YSL Well-Known Member

    Joined:
    May 28, 2019
    Member:
    #294580
    Messages:
    189
    Gender:
    Male
    Socal
    Vehicle:
    MB 2019 TRD Pro
    I'm in the same situation as you are; was told that with some drilling I would be able to put the reservoir mounts for my kings on, but it doesn't look that way. Anyone have any instructions/pictures on how we can get this done?

    seadog99[QUOTED] likes this.
  12. Nov 4, 2019 at 10:56 PM
    #12
    aleja_333

    aleja_333 Well-Known Member

    Joined:
    Apr 4, 2019
    Member:
    #289121
    Messages:
    687
    Gender:
    Male
    Colorado
    Vehicle:
    19’ Pro AT, 5.29's, Fox 2.5 RR, Alcan, PowerBrake
    Magnuson, Stryker tune, C4, Archive Garage HH, Alucab CC
    I just received the brackets today and while looking at the instructions, I'm in the same boat as many others here, it doesn't seem like these will work with my Fox remote reservoir mounts, or Kings for that matter.
    @C4 Fabrication, any feedback on this?

    seadog99 likes this.
  13. Jan 3, 2020 at 1:31 PM
    #13
    TacoLoco17

    TacoLoco17 Well-Known Member

    Joined:
    Mar 3, 2019
    Member:
    #285166
    Messages:
    232
    Gender:
    Male
    First Name:
    Craig
    Conshy, PA
    Vehicle:
    17 TRD OR DCSB Super White
    TRD Sport Hood swap TRD Exhaust TRD Intake TRD Skid plate TRD Pro Faux grille w/ Raptor lights MORIMOTO XB LED Headlights Rigid D series Fog lights Rigid E series 20” lightbar Spot/Flood MESO Ultimate Turn signal MESO Stage 1 Tailights 3x Remote Start Hypertech In-line Speedo Calibrator OV Tune Bilstien 6112/5160 Set at 5/6 OME Dakar Medium Leaf Pack Pioneer Avic 8400 NEX Headunit Infinity Reference 6x9s Front 6.5"rear Kicker Subaru Tweeters JL Audio Stealthbox w/ JL Audio RD500/1 amp ARE CX series cap Toyota OEM Trifold Hard Tonneau Body Armor HiLine Front Bumper Smittybilt X20 Gen 2 10K Winch SCS Ray 10 17x8.5 Gunmetal Rims 275/70 Falken Wildpeak AT3W tires
    what bumper do you have? curious if these support brackets work with anything other then c4 bumpers

  14. Jan 3, 2020 at 7:06 PM
    #14
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,211
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Pelfreybilt.

    They fit just fine.

  15. Feb 6, 2020 at 6:56 PM
    #15
    PrestigeAerials

    PrestigeAerials Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279874
    Messages:
    63
    Gender:
    Male
    Has anyone been able to mount their remote reservoirs with these?

  16. Feb 24, 2020 at 12:53 PM
    #16
    crashdb

    crashdb I break chainsaws

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    9,314
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2008 Toyota Matrix
    Rollin' hydrocarbons!
    Hoping someone can help. I'm interested in these brackets, but want to know what size the hole in the front of the bracket is. This would be the hole where the OEM studs go through and the 14mm flange bolt thread onto. I emailed C4 and the person who replied must have misunderstood my question. Thanks!

  17. Mar 1, 2020 at 3:14 PM
    #17
    PrestigeAerials

    PrestigeAerials Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279874
    Messages:
    63
    Gender:
    Male
    Fox brackets fit will try installed last week you’ll need to cut a small a little off the front of the bracket, I installed over the bolt so they flare out and clear the reservoir. Will post a pic soon

  18. Mar 31, 2020 at 12:40 PM
    #18
    jcmotr

    jcmotr Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #239018
    Messages:
    118
    Does anyone have pictures of this with King reservoir mounts? I've seen a couple posts saying it needs to be slightly modified, but no pictures.

  19. May 13, 2020 at 5:34 PM
    #19
    SummitBound

    SummitBound Well-Known Member

    Joined:
    Nov 10, 2017
    Member:
    #235633
    Messages:
    1,409
    Gender:
    Male
    Greenville, SC
    Vehicle:
    2019 T4R OR
    FYI, just installed these on my SOS Streamline bumper. They fit perfectly and work great!

    My advice is to tighten the front bolts first as it will pull the rest in line. Hadn't seen this DIY before and tightened the sway bar bolts first. Led to my brackets being too far forward and had a gap between them and the bumper.

  20. Aug 5, 2020 at 4:16 AM
    #20
    TRDtacomamr2

    TRDtacomamr2 Well-Known Member

    Joined:
    Dec 1, 2016
    Member:
    #203813
    Messages:
    259
    Gender:
    Male
    First Name:
    JOSH
    Vermont
    Vehicle:
    2016 trd tacoma sport 6 SPEED
    Did you ever gets pics of the fox res mounted with this bumper reinforcement? Pics or what did you do.
