CaliRaised light bar with CH4x4 switch

Discussion in '3rd Gen. Tacomas (2016+)' started by keoniboy70, Oct 6, 2017.

  1. Oct 6, 2017 at 5:42 PM
    #1
    keoniboy70

    keoniboy70 [OP] Well-Known Member

    Joined:
    Sep 20, 2017
    Member:
    #230516
    Messages:
    117
    Gender:
    Male
    Cypress, TX
    Vehicle:
    2017 Tacoma TRD OffRoad 4x4 DCSB
    17x9 FUEL Nitro 6 wheels with G2 285/70 R17 tires Dobinson struts and coils with Deaver AAL JBA UCAs Warn Semi-Hidden winch mount Smittybilt XRC9.5 RockyHill sliders SprintBooster Pace Edwards Tonneau With Yakima bars and bike carriers TRD Pro grill UpTOP Bravo rack SP-9100 Meso mirror lights and interior mods
    hey guys I recently installed the CaliRaised light bar and I’m having some issues with the wiring for the CH4x4 switch. I connected the included harness from the light bar to the CH4x4 switch as follows:
    Black to black
    White to green/yellow
    Blue to red/yellow (closest to green/yellow)
    Last red/yellow from CH4x4 switch to add a line connector which I connected to the 5amp fuse for the dash lights.

    My problem is the truck icon light never turns off. The switch works properly in that it turns the light bar on and off but no matter what the icon indicator never turns off. The text below the icon seems to work properly. When I turn the truck lights on it comes on. When I turn the truck lights off the text turns off. The truck is completely off but the truck icon light is still on. Did I wire it incorrectly? Is it a bad switch? Any help or explanation would be greatly appreciated.

    TIA

    Mike_Lowrey562 likes this.
  2. Oct 6, 2017 at 5:43 PM
    #2
    9TRDTCO

    9TRDTCO Well-Known Member

    Joined:
    Aug 20, 2016
    Member:
    #195094
    Messages:
    1,759
  3. Oct 6, 2017 at 6:57 PM
    #3
    Mike_Lowrey562

    Mike_Lowrey562 Well-Known Member

    Joined:
    Oct 26, 2015
    Member:
    #167704
    Messages:
    182
    Gender:
    Male
    Long Beach, CA
    Vehicle:
    2016 TRD OR MGM
  4. Oct 6, 2017 at 7:31 PM
    #4
    keoniboy70

    keoniboy70 [OP] Well-Known Member

    Joined:
    Sep 20, 2017
    Member:
    #230516
    Messages:
    117
    Gender:
    Male
    Cypress, TX
    Vehicle:
    2017 Tacoma TRD OffRoad 4x4 DCSB
    17x9 FUEL Nitro 6 wheels with G2 285/70 R17 tires Dobinson struts and coils with Deaver AAL JBA UCAs Warn Semi-Hidden winch mount Smittybilt XRC9.5 RockyHill sliders SprintBooster Pace Edwards Tonneau With Yakima bars and bike carriers TRD Pro grill UpTOP Bravo rack SP-9100 Meso mirror lights and interior mods

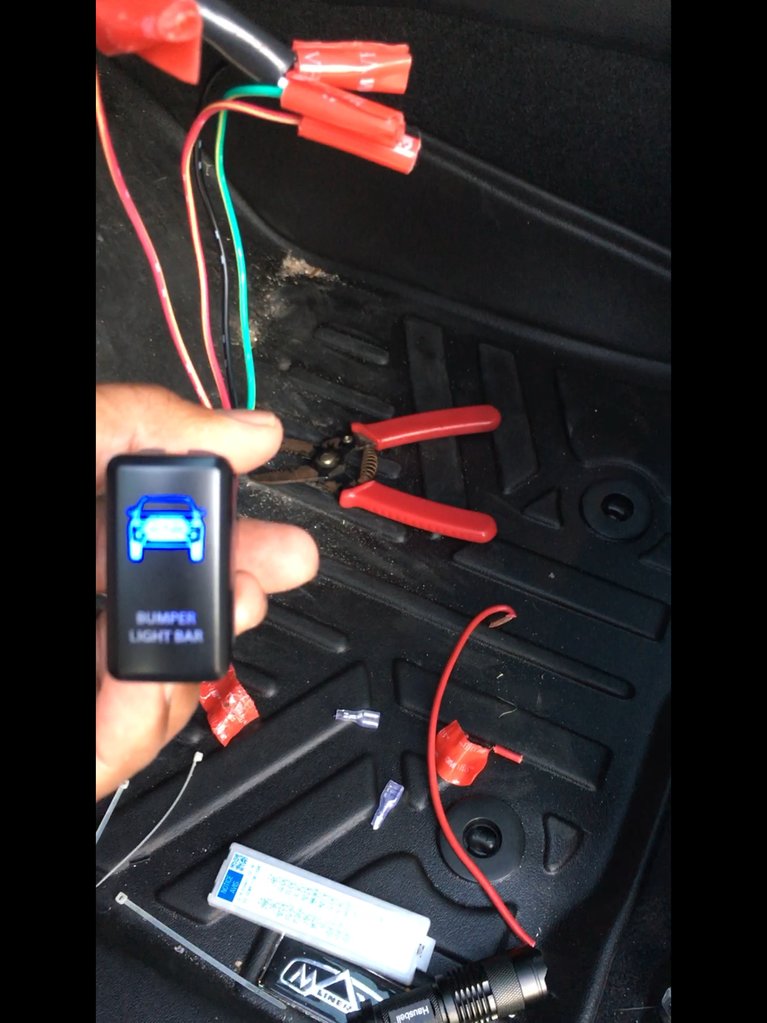

    This is with the car on and the switch on.

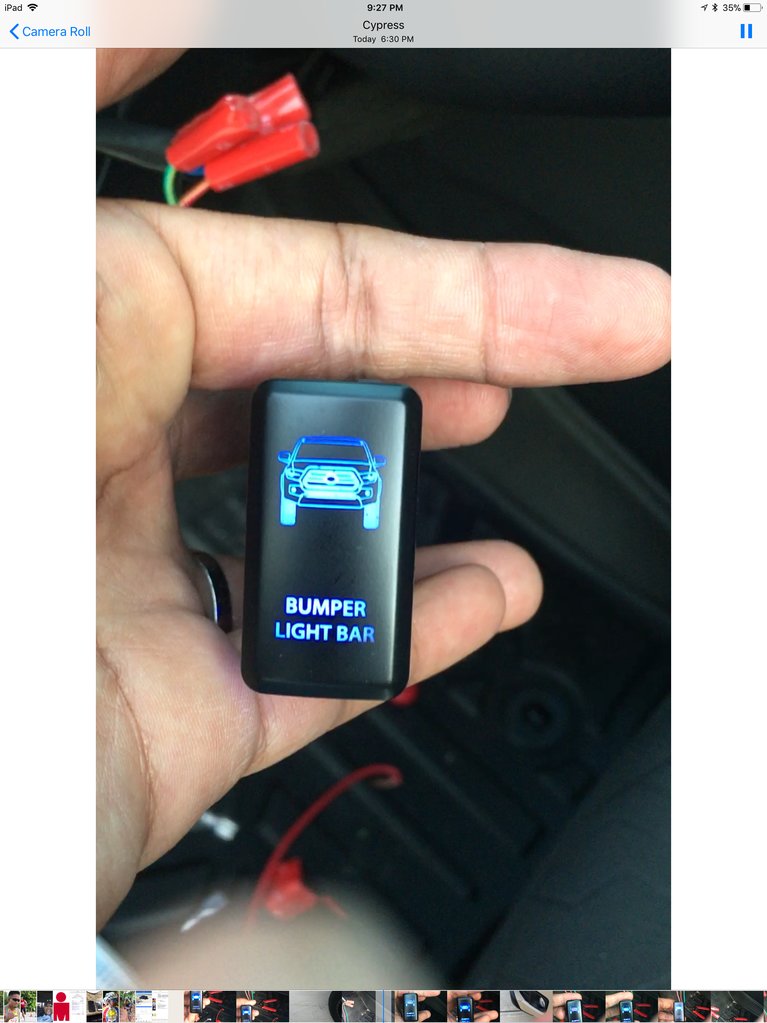

    And this with the car off and the switch off.

  5. Oct 6, 2017 at 7:59 PM
    #5
    AKLA98

    AKLA98 Well-Known Member

    Joined:
    Sep 6, 2015
    Member:
    #163571
    Messages:
    217
    Gender:
    Male
    First Name:
    Liam
    Boulder, Colorado
    Vehicle:
    2016 Tacoma TRD OR DCSB MGM
    Bilstein 6112/5160 with Dakar Heavy Leafs, Snugtop Rebel (Windoors, Lighted), Prinsu TopRac, CVT Mt. Bachelor, Falken AT3W, Wheelers Super Bumps, Clazzio Covers, Hardwired Escort Radar, Husky Mats, Morimoto HID's, Baja Designs Yellow Fogs, Caliraised Bumper LED Bar, Interior LED's, Second Skin Deadening, Focal Speakers, PRO Grille, and much more...
    I have the same problem, installed mine two weeks ago. Truck hasn't ran out of battery yet.

  6. Oct 6, 2017 at 8:37 PM
    #6
    keoniboy70

    keoniboy70 [OP] Well-Known Member

    Joined:
    Sep 20, 2017
    Member:
    #230516
    Messages:
    117
    Gender:
    Male
    Cypress, TX
    Vehicle:
    2017 Tacoma TRD OffRoad 4x4 DCSB
    17x9 FUEL Nitro 6 wheels with G2 285/70 R17 tires Dobinson struts and coils with Deaver AAL JBA UCAs Warn Semi-Hidden winch mount Smittybilt XRC9.5 RockyHill sliders SprintBooster Pace Edwards Tonneau With Yakima bars and bike carriers TRD Pro grill UpTOP Bravo rack SP-9100 Meso mirror lights and interior mods
    Is it supposed to stay on? I thought it turned off if the truck was off?

  7. Oct 6, 2017 at 8:41 PM
    #7
    AKLA98

    AKLA98 Well-Known Member

    Joined:
    Sep 6, 2015
    Member:
    #163571
    Messages:
    217
    Gender:
    Male
    First Name:
    Liam
    Boulder, Colorado
    Vehicle:
    2016 Tacoma TRD OR DCSB MGM
    Bilstein 6112/5160 with Dakar Heavy Leafs, Snugtop Rebel (Windoors, Lighted), Prinsu TopRac, CVT Mt. Bachelor, Falken AT3W, Wheelers Super Bumps, Clazzio Covers, Hardwired Escort Radar, Husky Mats, Morimoto HID's, Baja Designs Yellow Fogs, Caliraised Bumper LED Bar, Interior LED's, Second Skin Deadening, Focal Speakers, PRO Grille, and much more...
    Definitely not supposed to be this way. I am going to look into mine tomorrow, would imagine the problem lies on the switch side.

  8. Oct 6, 2017 at 8:47 PM
    #8
    keoniboy70

    keoniboy70 [OP] Well-Known Member

    Joined:
    Sep 20, 2017
    Member:
    #230516
    Messages:
    117
    Gender:
    Male
    Cypress, TX
    Vehicle:
    2017 Tacoma TRD OffRoad 4x4 DCSB
    17x9 FUEL Nitro 6 wheels with G2 285/70 R17 tires Dobinson struts and coils with Deaver AAL JBA UCAs Warn Semi-Hidden winch mount Smittybilt XRC9.5 RockyHill sliders SprintBooster Pace Edwards Tonneau With Yakima bars and bike carriers TRD Pro grill UpTOP Bravo rack SP-9100 Meso mirror lights and interior mods
    Thanks for looking into it.

  9. Oct 6, 2017 at 8:50 PM
    #9
    uhplifted

    uhplifted The Hopfather

    Joined:
    Jun 21, 2016
    Member:
    #190174
    Messages:
    25,203
    Gender:
    Male
    First Name:
    Brian
    Huntington Beach, CA
    Vehicle:
    16 DCLB OR
    You're hard wiring it straight to the battery. Obviously it's going to stay on. There's nothing wrong with the switch.

    Rudyp.27 likes this.
  10. Oct 6, 2017 at 9:01 PM
    #10
    keoniboy70

    keoniboy70 [OP] Well-Known Member

    Joined:
    Sep 20, 2017
    Member:
    #230516
    Messages:
    117
    Gender:
    Male
    Cypress, TX
    Vehicle:
    2017 Tacoma TRD OffRoad 4x4 DCSB
    17x9 FUEL Nitro 6 wheels with G2 285/70 R17 tires Dobinson struts and coils with Deaver AAL JBA UCAs Warn Semi-Hidden winch mount Smittybilt XRC9.5 RockyHill sliders SprintBooster Pace Edwards Tonneau With Yakima bars and bike carriers TRD Pro grill UpTOP Bravo rack SP-9100 Meso mirror lights and interior mods
  11. Oct 6, 2017 at 9:59 PM
    #11
    SolarController

    SolarController Solar Control Window Tinting

    Joined:
    Oct 31, 2016
    Member:
    #201145
    Messages:
    33
    Gender:
    Male
    First Name:
    ATV
    Vehicle:
    2016 Tacoma Limited
    -A.R.E. Z Series cap with power unlock, sliding and folding front window, -Custom wired cap LEDs from Recon with liftgate switch to trigger when door is open (switched with OEM cargo switch and bypass option for the liftgate switch) -LED Interior Dome Lights -Phillips LED Extreme Reverse Light -PIAA LED 6000k Headlights -PIAA LED 3000k Foglights -Cali Raised 31 in. LED Light Bar w CH4x4 push switch -Tint measures 5% in rear, 10% front doors, 5% top and bottom strips on windshield, under 5% on the cap glass. (Undone)-DRL mod to delete dimming when Headlights on -Debadged (Limited badge blacked out and moved onto the cap) -Piano Black Tacoma inserts on tailgate -Chrome delete on mirrors, grill surround trim, and fog light bezel with Avery Black Brushed Metal Vinyl Wrap. -Black vinyl delete from door pillars -Color Matched rain guards (out channel AVS) bug guard, and engine cover -ABS Thermoformed front Toyota and side Limited emblem. -HS MegaBlast Air Horn Kit. -K&N Drop-in filter -Pop and Lock power tailgate -Ceramic Coating Silver Package -Circuit breaker and fuse panel for electrical accessory protection -OEM TRD skid plate install -ARB OBA Single compressor installed onto the D/S deck rail (no tank needed) -CaliRaised Molle Panel, Full P/S Suspension: -OME HD Dakars -OME 888s -Bilstein 5100s all around, bottom setting -SPC UCAs
    If you turn the headlights completely off then it should turn off. I spliced my wire to the "illuminate" cargo switch right next to it. Also you should have the relay powered with the parking lights so the bar will turn off automatically if you accidentally leave it on.

    bertle likes this.
  12. Oct 7, 2017 at 1:21 AM
    #12
    cosmic_3000

    cosmic_3000 Active Member

    Joined:
    Aug 13, 2017
    Member:
    #226699
    Messages:
    35
    Alaska
    Vehicle:
    '17 OR DCLB w/ JBL
    The Caliraised wiring harness connects directly to the battery, so basically it is always hot. Does your light bar turn on with the truck turned off when you flip the switch?

  13. Oct 7, 2017 at 1:53 AM
    #13
    TAF_Taco

    TAF_Taco Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232160
    Messages:
    179
    Gender:
    Male
    First Name:
    Patrick
    Lacey, Wa.
    Vehicle:
    17 TRD Sport Access Cab
    17" Method NV w/BFG KO2 CVT Rainier RCI bed rack Empyre Off Road grille Cali Raised bumper light bar/fogs
    Switch what the white and blue wires are connected to and see if that works. I had the same issue last week and that fixed it.

    keoniboy70 [OP] likes this.
  14. Oct 7, 2017 at 7:56 AM
    #14
    Deacon Blues

    Deacon Blues Well-Known Member

    Joined:
    Sep 7, 2017
    Member:
    #229363
    Messages:
    958
    Gender:
    Male
    Vehicle:
    2017 SR5

    It should always be hot, but it shouldn't always be lit.

    It should still only light up when pushed in.

    I REALLY wish someone would make a simple single LED, three wire switch that was OEM styled.

    All these ditch light and bar harnesses are completely random colors it seems and it's a major PITA.

  15. Oct 7, 2017 at 9:14 PM
    #15
    keoniboy70

    keoniboy70 [OP] Well-Known Member

    Joined:
    Sep 20, 2017
    Member:
    #230516
    Messages:
    117
    Gender:
    Male
    Cypress, TX
    Vehicle:
    2017 Tacoma TRD OffRoad 4x4 DCSB
    17x9 FUEL Nitro 6 wheels with G2 285/70 R17 tires Dobinson struts and coils with Deaver AAL JBA UCAs Warn Semi-Hidden winch mount Smittybilt XRC9.5 RockyHill sliders SprintBooster Pace Edwards Tonneau With Yakima bars and bike carriers TRD Pro grill UpTOP Bravo rack SP-9100 Meso mirror lights and interior mods
    I did this and the world is right again! Thanks again!

    TAF_Taco likes this.
  16. Oct 9, 2017 at 12:06 AM
    #16
    TAF_Taco

    TAF_Taco Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232160
    Messages:
    179
    Gender:
    Male
    First Name:
    Patrick
    Lacey, Wa.
    Vehicle:
    17 TRD Sport Access Cab
    17" Method NV w/BFG KO2 CVT Rainier RCI bed rack Empyre Off Road grille Cali Raised bumper light bar/fogs
    Glad to hear.

  17. Oct 9, 2017 at 3:16 AM
    #17
    stump jumper

    stump jumper Well-Known Member

    Joined:
    Aug 23, 2010
    Member:
    #42106
    Messages:
    2,477
    Gender:
    Male
    First Name:
    Bill
    Texas
    Vehicle:
    2017 Tundra 4x4 CM TSS
    Sounds like your wire harness is like mine. White is power to switch and blue is trigger to relay. On this harness cut the white and hook the switch side to an ignition on fuse in box using an add-a-tap. The way these harness are wired they get power to switch off the relay.

    keoniboy70 [OP] likes this.
  18. Mar 14, 2018 at 9:50 AM
    #18
    bangers

    bangers Active Member

    Joined:
    Mar 13, 2018
    Member:
    #247191
    Messages:
    30
    Gender:
    Male
    Vehicle:
    2006 Tacoma

    I just posted a related question. I looks like in your video you may have both your light bar and ditch lights hooked into the same add a fuse. Is that the case? Would you consider adding a third to the same add a fuse. Any risk?

  19. Aug 22, 2020 at 9:33 AM
    #19
    Canadianguy91

    Canadianguy91 Well-Known Member

    Joined:
    Mar 18, 2017
    Member:
    #213622
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Sean
    Halton Hills, Ontario, Canada
    Vehicle:
    2016 Limited
    Krown undercoating, Protect a plate, blindspot mirrors, Reese stainless steel towing ball, Bakflip MX4 tonneau cover, Tufskinz tailgate letter inserts, Console organiser, Tinted windows, LED interiors, Bed lights, Hood lights, Black Canadian flag decal (@bfeth), Oem bed mat, WeatherTech floor liners, Arctic Claw XSI tires, Recovery Shackle, Ultimate LED turn signals V3 @mesojdm, OEM TRD Off-Road tow hook, Bilstein 5100's with ARB's Old Man Emu 2887 coils, ICON progressive add a leaf, General Grabber ATX tires, Fuel ripper rims, Auxbeam F-16 H11 Led headlights, Borla S-type catback exhaust with black tip, custom powertray, vinyl badge inlays, (@rrentrop), Rear diff breather mod, Redarc trailer break controller https://m.youtube.com/watch?v=qqN7m1pc6AA
    which fuse under the dash is for the switch lights when you turn your headlights on?

  20. Sep 1, 2020 at 6:00 PM
    #20
    crunchytaco13

    crunchytaco13 Well-Known Member

    Joined:
    Jan 23, 2020
    Member:
    #317068
    Messages:
    262
    Gender:
    Male
    Vehicle:
    ‘17 PRO MT Cement
    TRD CAT
    In a similar situation here - I have two CH4x4 rocker switches installed for a dual function LED light bar, and everything about the switches functions properly except for the text not lighting up. Light within the switch for the logo turns on when activated, and lightbar activates just fine, but the text beneath the logo doesn’t ever turn on.

    Where can I tap into, or add a fuse for two rocker switches to have the text light up when the car is on? I also have an ARB rocker switch that functions perfectly all around. Can I tap into the wire that the ARB switch uses for constant power?
