Camburg UCA's Hitting Coils on Ext Travel Coilovers??

Discussion in 'Suspension' started by Sublime, Mar 9, 2012.

  1. Mar 9, 2012 at 2:16 PM
    #21
    Sublime

    Sublime [OP] Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25918
    Messages:
    3,453
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    08 TRD 4x4
    Icon/All Pro.....chopped for 35's
    ^^ Ya, you're right man! I know once those are on I'll be "drooping" them frequently and shits going to break.....thanks!

  2. Mar 9, 2012 at 3:13 PM
    #22
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    23,396
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Bumper, CBI Sliders, Icon Coilovers, BudBuilt Skids, aFe Intake, Icon VS Rear Shocks, Timbren Bumpstops, All-Pro UCAs, JDM Steering Wheel, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps
    If the shock is strong enough to take the weight of the truck in jounce, it can definitely take the full weight of the wheel and tire in droop.

    Limit strap is necessary only when the shock is longer than what the rest of the suspension can accommodate. With an aftermarket UCA, the Icon coilover will be the droop limiter, so strap is not needed.

  3. Mar 9, 2012 at 3:24 PM
    #23
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,597
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan©
    Tacoma with some stuff melted to it
    The thread is about the uniball hitting the shock coil. Therefore the shock is not the limiting factor. So once again it would do ZERO harm and a good idea to add limit straps if you plan on drooping it all the time

    As for "jouncing" you should have a bump stop, the weight of the truck should also not be on the shock unless it has internal bump stops

  4. Mar 9, 2012 at 3:29 PM
    #24
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    23,396
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Bumper, CBI Sliders, Icon Coilovers, BudBuilt Skids, aFe Intake, Icon VS Rear Shocks, Timbren Bumpstops, All-Pro UCAs, JDM Steering Wheel, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps
    The OP hasn't purchased shocks yet. If there's a great probability of the bearing cup hitting the coil, the solution isn't limit straps, it's to get shorter (i.e. non-extended travel) shocks. There's no point in getting an extended-travel shock, then restrict travel with a strap.

    Before the suspension reaches full jounce, the bumpstops aren't contacted, so all the transient loads are taken up by the shock. The standard spring rate on the Icons is 650 lb/in. So if the shock compresses two inches before the bumpstops are reached, the shock body sees 1300 lb. The 70-90 lb of weight from the wheel, tire and suspension simply isn't a concern.

  5. Mar 9, 2012 at 4:23 PM
    #25
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,837
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*

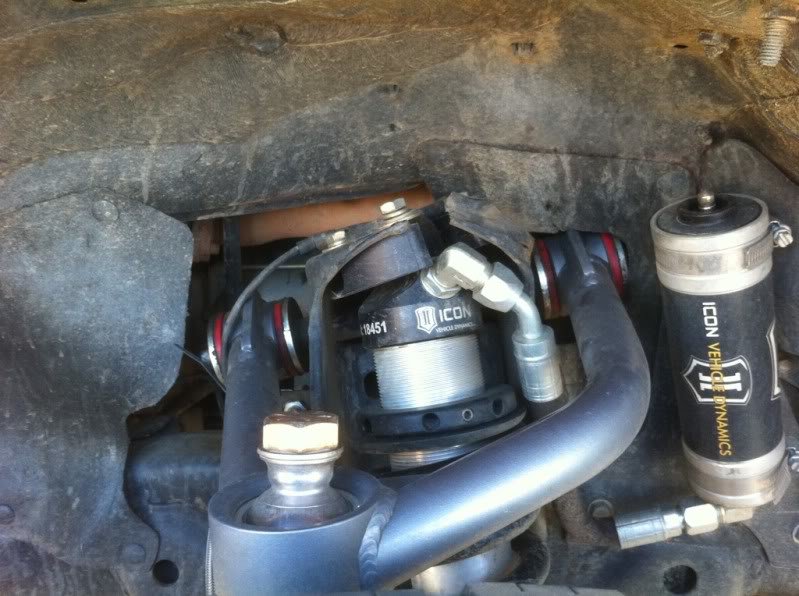

    yeah, you're right... limit straps are totally not needed. when the suspension is fully drooped out those 3 bolts in the coil bucket are totally strong enough to support and stop the suspension

    [​IMG]

  6. Mar 9, 2012 at 4:24 PM
    #26
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    105,181
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    That looks like a break from the shock being forced up too much.....

    Justinlhc and YotaDan like this.
  7. Mar 9, 2012 at 4:31 PM
    #27
    Sublime

    Sublime [OP] Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25918
    Messages:
    3,453
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    08 TRD 4x4
    Icon/All Pro.....chopped for 35's
    I thought icons had a bump zone on comp/ext to slow it down? Strapping it to where it wouldn't hit is an option but the ext travel only give 7/8" to be exact! Would that basically be taking that away?

  8. Mar 9, 2012 at 4:38 PM
    #28
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,837
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    he wasn't running a proper bump set up either... IIRC. happened a while ago

  9. Mar 9, 2012 at 4:39 PM
    #29
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,837
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    maybe, maybe not... you'd have to cycle the suspension to find out. either way, losing out on less than an inch of down travel is better than making contact on the coil... and you'll never notice a lose of less than an inch of travel anyways...

  10. Mar 9, 2012 at 9:37 PM
    #30
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    23,396
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Bumper, CBI Sliders, Icon Coilovers, BudBuilt Skids, aFe Intake, Icon VS Rear Shocks, Timbren Bumpstops, All-Pro UCAs, JDM Steering Wheel, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps
    Like Chris4x4 said, that's a failure in jounce. In droop, those 3 bolts are not even the weak point. The single bolt connecting the shock's spherical bearing to the top plate can support over 2000 lb.

  11. Mar 9, 2012 at 10:20 PM
    #31
    Sublime

    Sublime [OP] Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25918
    Messages:
    3,453
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    08 TRD 4x4
    Icon/All Pro.....chopped for 35's
    Not worried about the shocks really just the uca nicking the coil up! That and wonder how much stress the cv's will have if there's too much down travel!

  12. Jun 2, 2015 at 2:26 PM
    #32
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,247
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    I was concerned about this problem.

    But after installing the Camburg 1.25 uni-ball UCAs with my icon ex travel COs I was surprised to see that they did not hit the coils. Maybe I just got lucky and the coils were rotated to the perfect place on both sides.


  13. Oct 10, 2015 at 8:54 AM
    #33
    NumNutz

    NumNutz One of the original 7928

    Joined:
    Jul 14, 2008
    Member:
    #7928
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Nick
    Meridian, MS
    Vehicle:
    07 Tacoma 4x4 - Kings, TC, Dakars, broken stuff
    Lots.
    I'm running into this problem with TC UCAs and King Ext travel coil overs with 700# springs. Any ideas?

  14. Oct 10, 2015 at 9:31 PM
    #34
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    1,200
    First Name:
    Optional
    Vehicle:
    Brabus
    I has truck it has things and stuff derrrrrr
    Have you tried to rotate the spring?
