Camper shell build with pop-up sleeping platform

Discussion in '2nd Gen. Builds (2005-2015)' started by hbarraza1983, May 17, 2019.

  1. May 17, 2019 at 9:26 PM
    #1
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma
    So it started with the idea of wanting to build a teardrop trailer out of insulation foam board. lots of long nights staring at my computer I came upon a link of a camper shell build with a sleeping platform. Much like all the fancy builds like GFC, or Ali-cab. However this was done with a steel frame and plywood.

    With zero experience on welding, I was back at looking at building a teardrop. I even thought about trying out the foamie technics on the camper shell build with wood. That quickly ended with a quick experiment with the insulation board. Luckily I found a local guy here in Central Oregon that was selling an aluminum custom made rack. So decided to give him a call and asked him about getting a custom frame built. After meeting and talking about my idea, he was beyond excited as he has been wanting to build a camper.

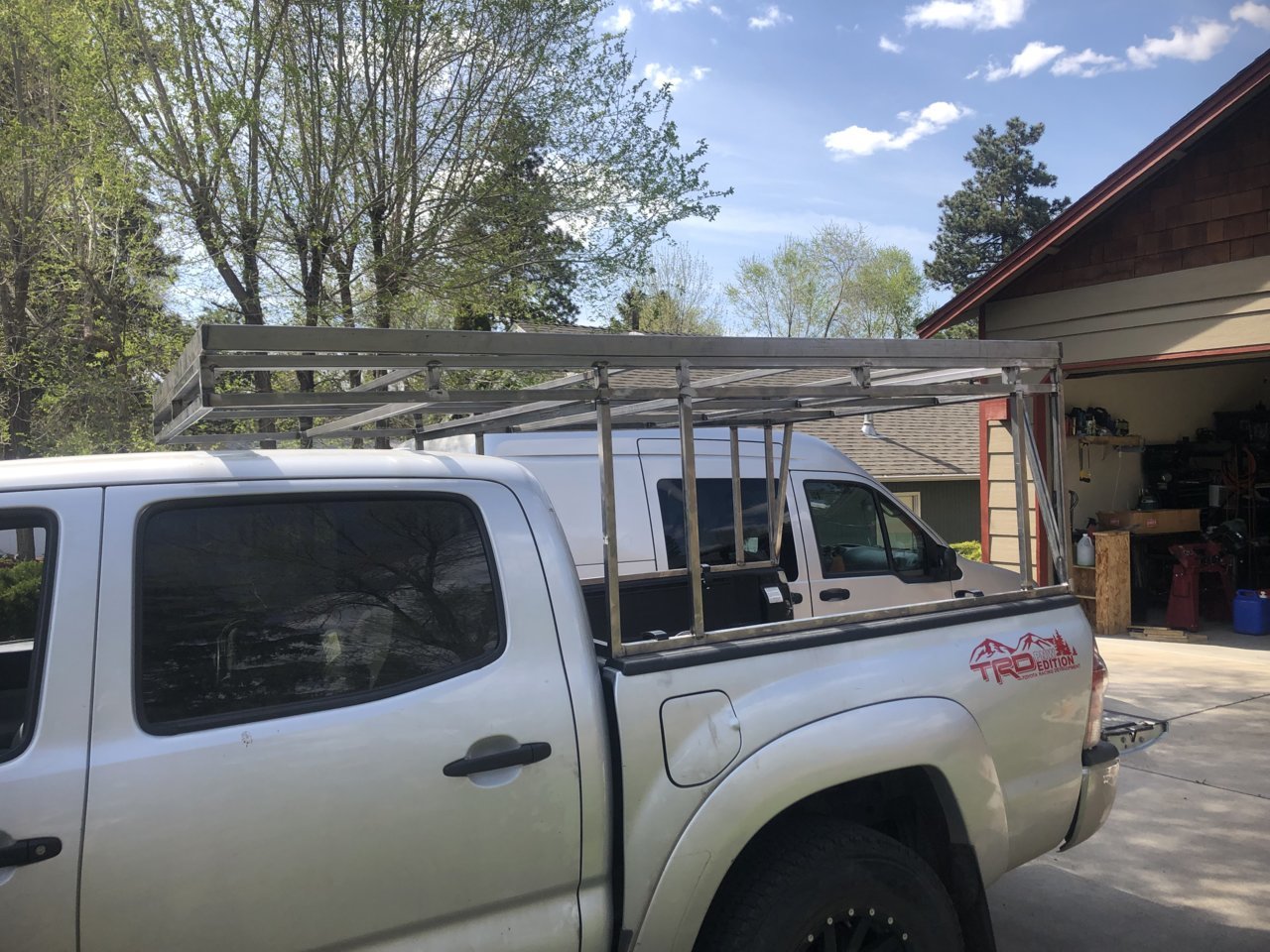

    The frame was pretty basic. A very boxy style frame made out of square tubing and adding rectangular tubing where needed. The walls I used OSB sheets. At first I was worried about water damage. That’s when lots of time on the computer I came across an old technique used by boat makes. They would clue on a canvas to the wood making it water resistant.

    The inspiration


    The frame fully done

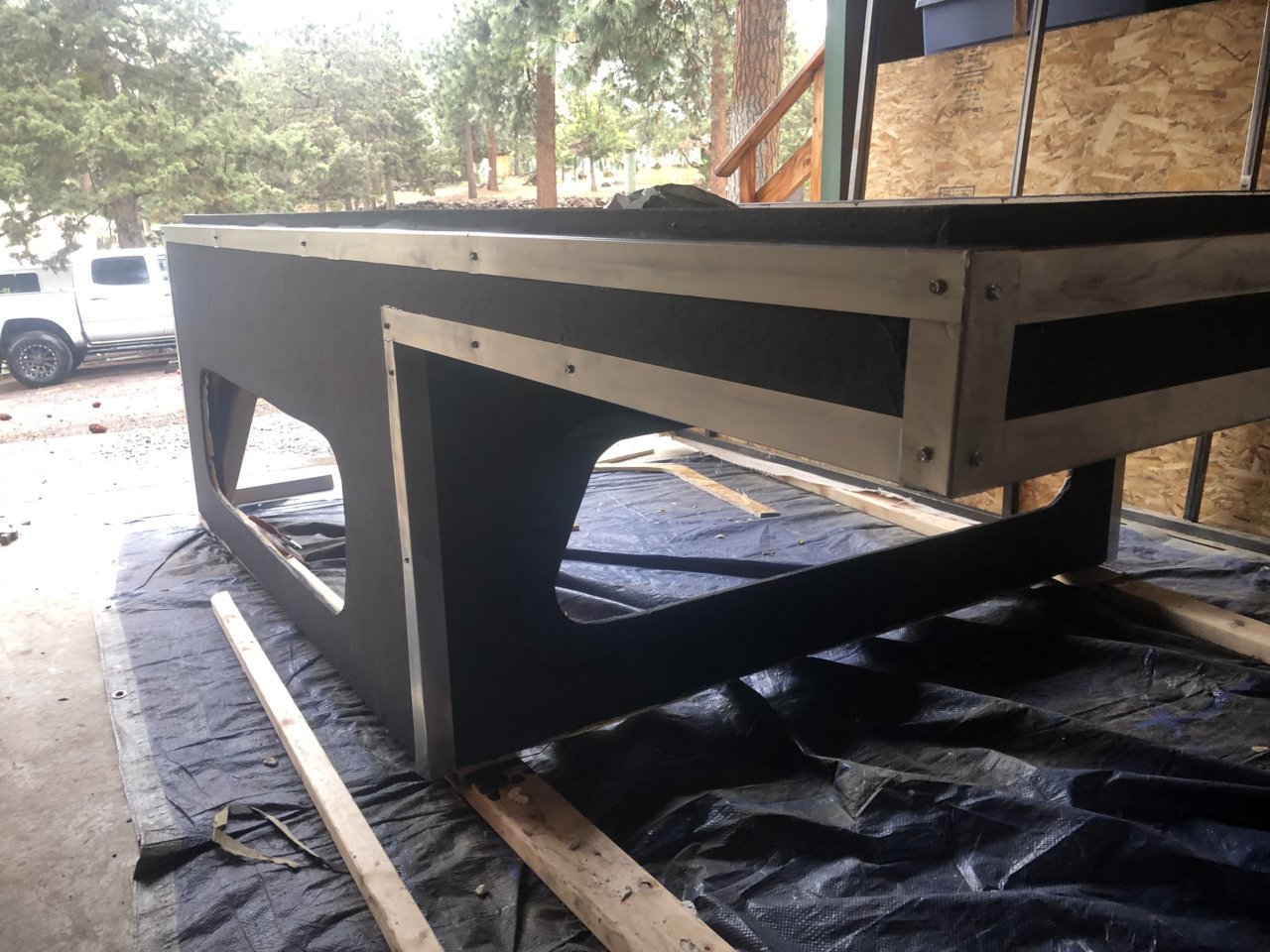

    Getting measurements and cutting out the walls

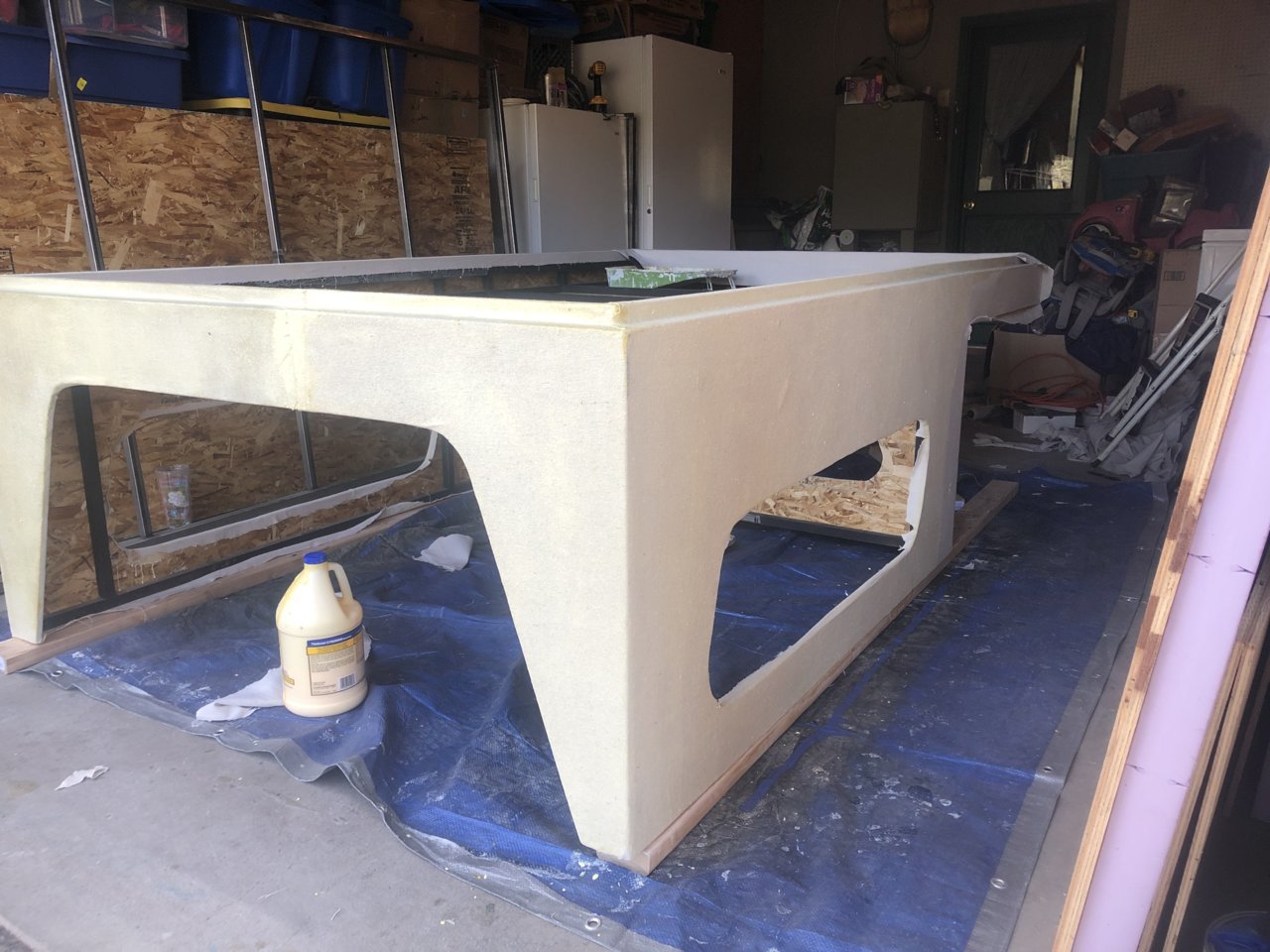

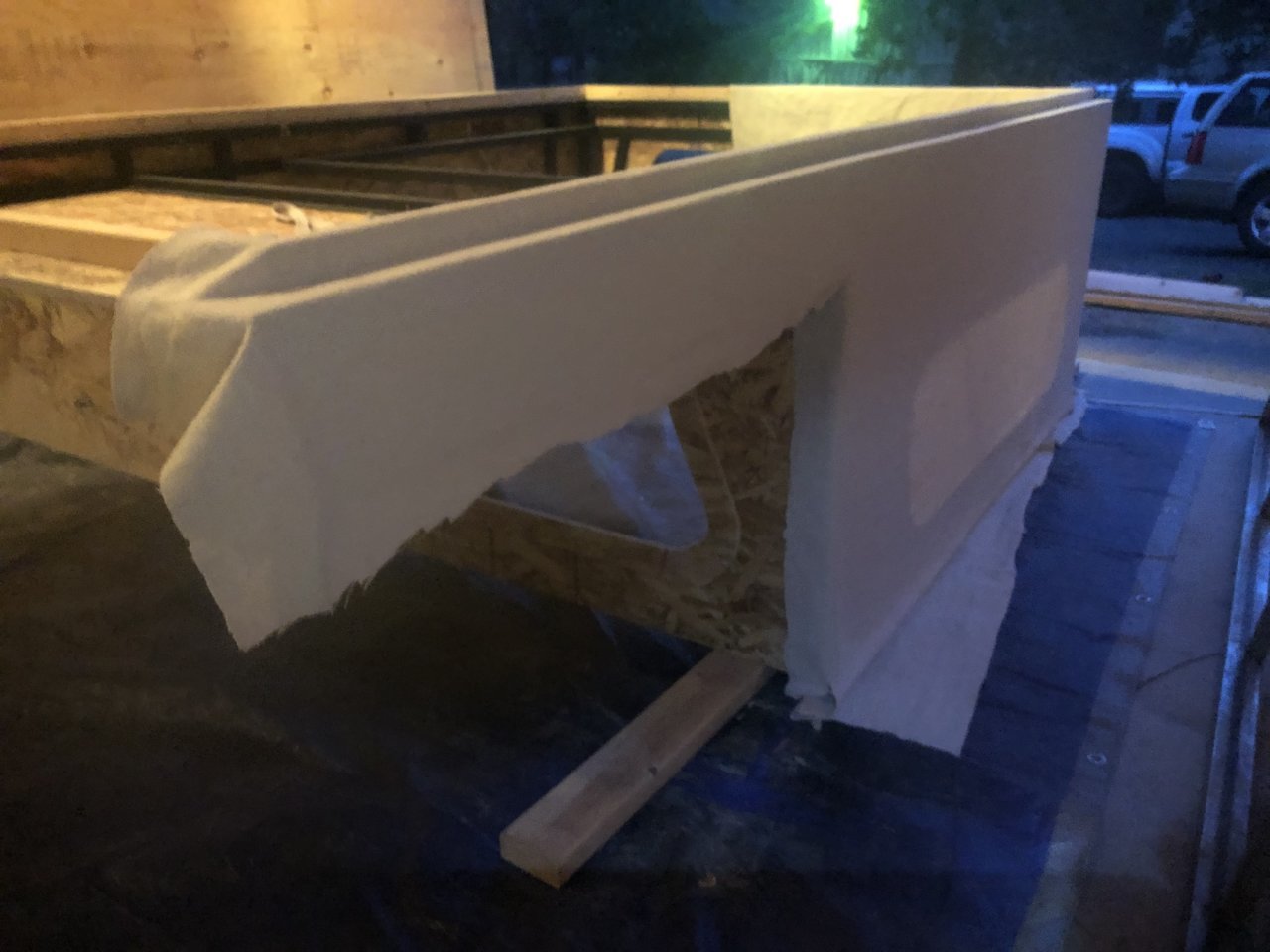

    Trying out the canvas technique


    Currently waiting on glue to dry before I sand and do my last layer of glue. Then will be ready to paint and add the top along with the gas struts and hinges.

    tacofish, MarX and Manfred like this.
  2. May 17, 2019 at 9:51 PM
    #2
    TRlPPlN

    TRlPPlN Pavement Cruiser

    Joined:
    Jan 14, 2009
    Member:
    #12595
    Messages:
    1,270
    Gender:
    Male
    Bay Area, CA South SF to be precise
    Vehicle:
    MGM DCSB 09 DC TRD Sport 4x4 - Family Hauler
    Subbed. I’m looking forward for progress and end result.

    hbarraza1983 [OP] likes this.
  3. May 18, 2019 at 5:07 AM
    #3
    MarX

    MarX FAT-lete in training

    Joined:
    Jun 14, 2013
    Member:
    #106295
    Messages:
    23,044
    Gender:
    Male
    First Name:
    Mark
    Funky town
    Vehicle:
    2013 DCLB Tacoma TRD sorta Sport 4X4
    RETRAX bed cover, Tailgate lock, TRD exhaust. 887's, LR UCA'S, Bilstein 5100's and Deavers AAL.
    Looking pretty good.

    hbarraza1983 [OP] likes this.
  4. May 19, 2019 at 6:17 PM
    #4
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma
    Got some progress today. Was able to finish last coat of paint and attach the L flashing.

    ruffridha9, TRlPPlN and MarX like this.
  5. Jun 4, 2019 at 9:31 PM
    #5
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma

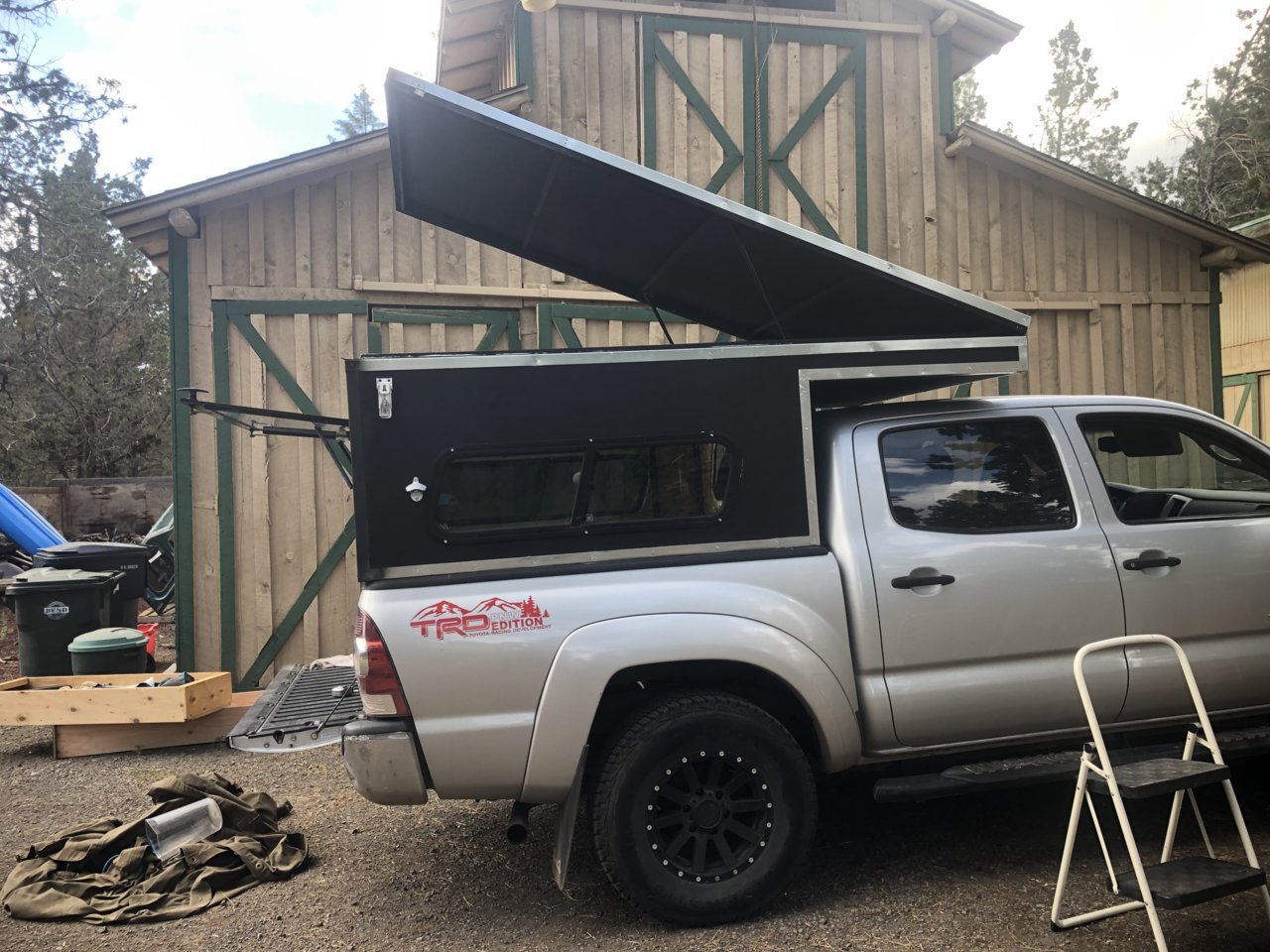

    Testing out the gas struts.

    Wanted to put them on the outside for simplicity. The wife convinced me to mount them on the inside. Due to the angle they were mounted the lid wouldn’t shut all the way. So ended snapping a mount. Waiting on a new set.

    MarX and TRlPPlN like this.
  6. Jun 4, 2019 at 9:43 PM
    #6
    ruffridha9

    ruffridha9 Well-Known Member

    Joined:
    Dec 3, 2015
    Member:
    #171361
    Messages:
    913
    Gender:
    Male
    First Name:
    Jesse
    West Coast
    Vehicle:
    2012 Tacoma base
    stock ish

    hbarraza1983 [OP] likes this.
  7. Jun 4, 2019 at 9:50 PM
    #7
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    10,719
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Subbbbed! Very cool

    hbarraza1983 [OP] likes this.
  8. Jun 11, 2019 at 9:36 PM
    #8
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma

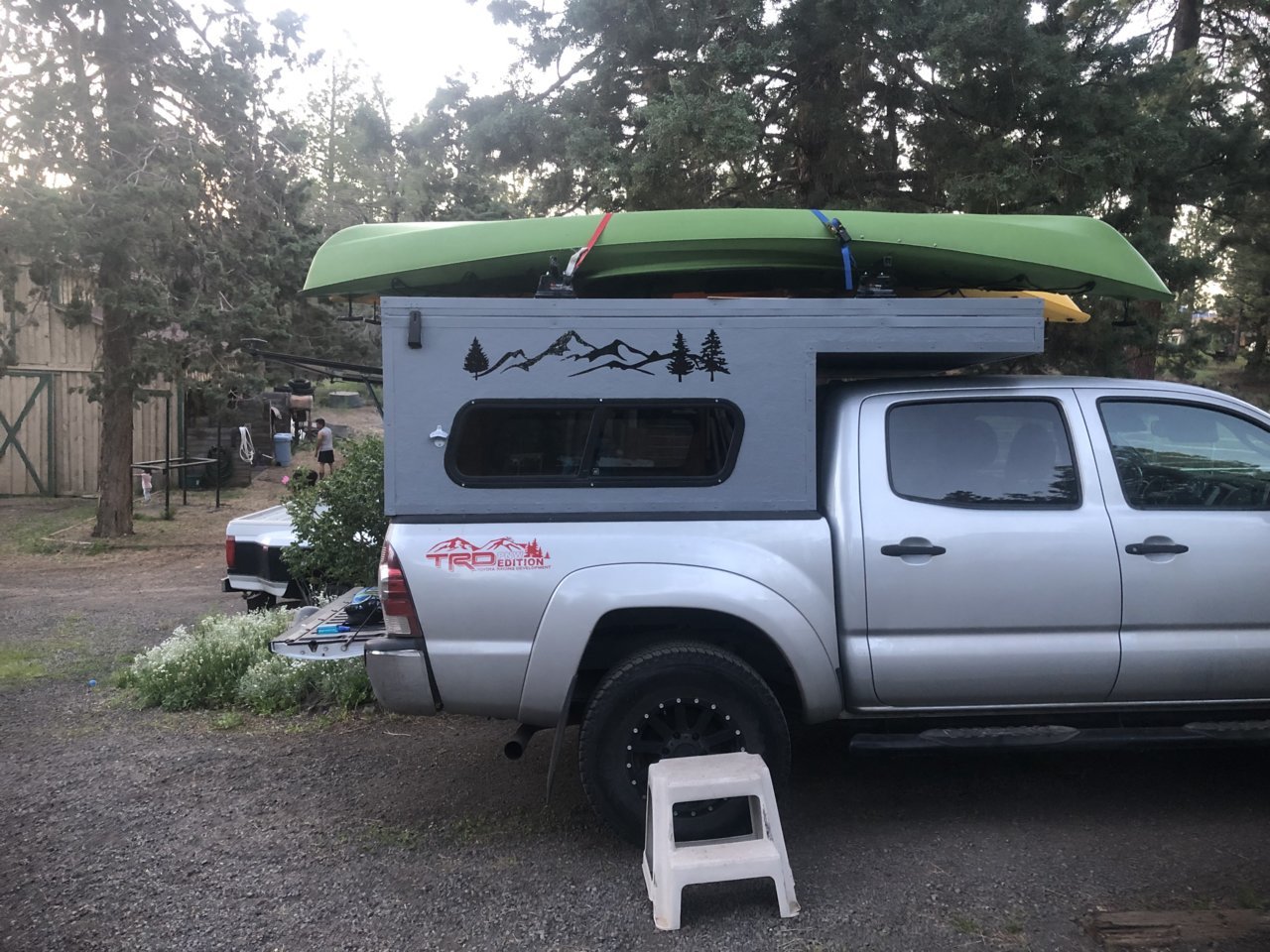

    Decided to repaint the camper. The flat black looked more like a chalkboard every time it got dirty or we touched it. So went with a grey. Also added the decal.


    MarX, ruffridha9 and Shmellmopwho like this.
  9. Jun 11, 2019 at 9:38 PM
    #9
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    10,719
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Did you use muslin as your canvas?

  10. Jun 11, 2019 at 9:50 PM
    #10
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma
    Shmellmopwho likes this.
  11. Jun 11, 2019 at 9:53 PM
    #11
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    10,719
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Gotcha. Looks kinda like muslin. I work in the movie industry and when we make ceiling pieces for sets we skin them with a fabric called muslin and paint them. When you set them in above the set you can’t tell that it’s fabric. Ends up looking exactly like painted drywall haha

    Love the camper man! Looks awesome!

    hbarraza1983 [OP] likes this.
  12. Jun 12, 2019 at 8:28 PM
    #12
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma
    MarX, TRlPPlN and Shmellmopwho like this.
  13. Jul 9, 2019 at 4:40 PM
    #13
    hbarraza1983

    hbarraza1983 [OP] Active Member

    Joined:
    May 26, 2017
    Member:
    #219986
    Messages:
    41
    Gender:
    Male
    First Name:
    Humberto
    Stuttgart, Germany
    Vehicle:
    2009 tacoma

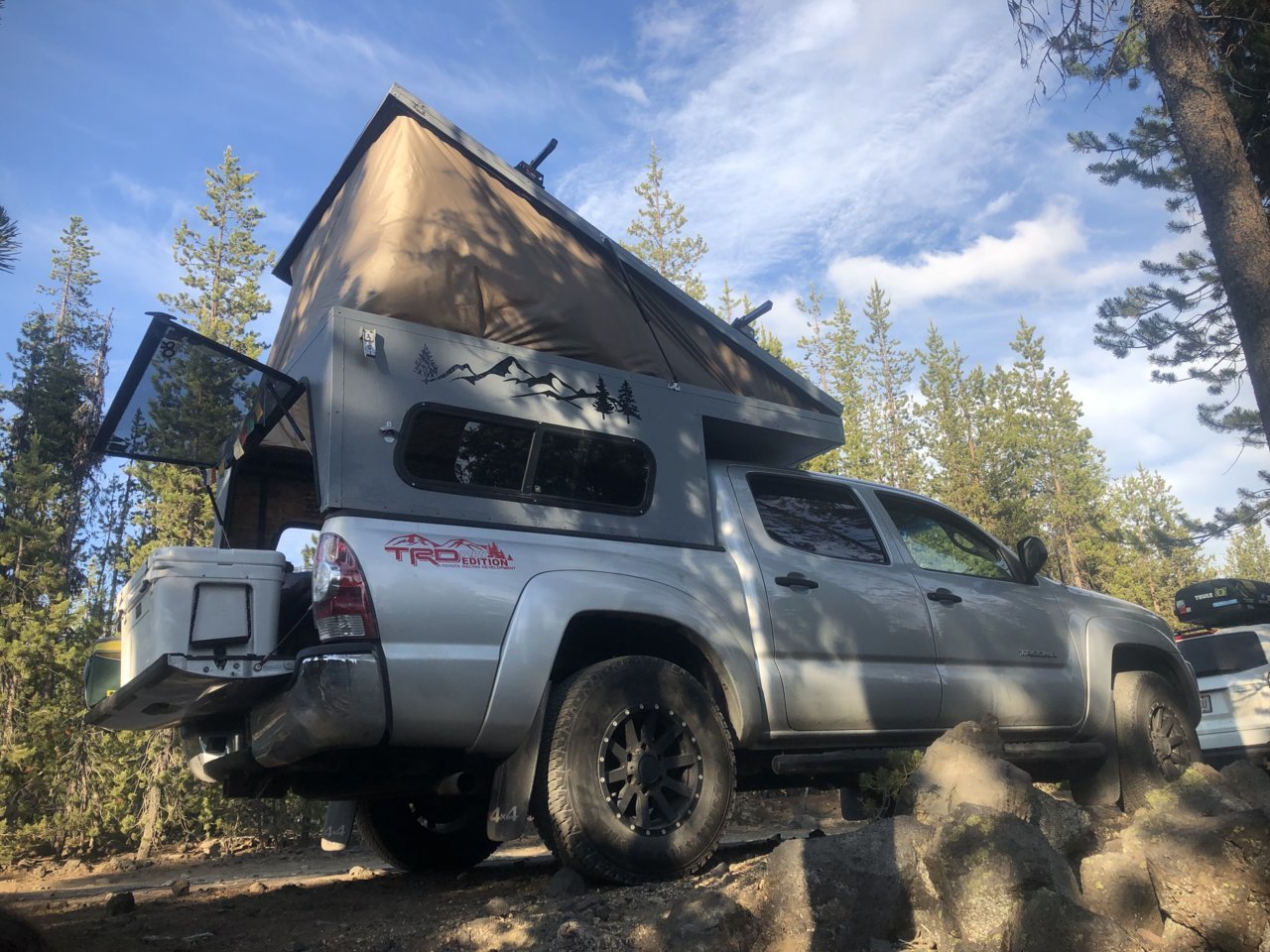

    Did a test run on the camper.
