Camper third brake light wiring by a noob.

Discussion in 'Lighting' started by ronman737, Oct 9, 2011.

  1. Oct 9, 2011 at 5:01 PM
    #1
    ronman737

    ronman737 [OP] Dangerous

    Joined:
    Jan 24, 2011
    Member:
    #49846
    Messages:
    1,262
    Gender:
    Male
    First Name:
    Ron
    Greenville, SC
    Bilstein HDs, K&N Drop in, fresh chassis, camper, 235/85s
    This is my first write up. This is also my first electrical endeavor. I looked on here forever to find what I needed but couldn't.

    If you buy a camper and the wiring for the third brake light was cut this is for you. This could also be for mounting any extra brake lighting.

    [​IMG]

    Starting point. The red wire is your power and the black is your ground.

    I pulled back my bedliner just a bit and found a hole up near where the tail light cluster fits in so I didnt need to drill at all.

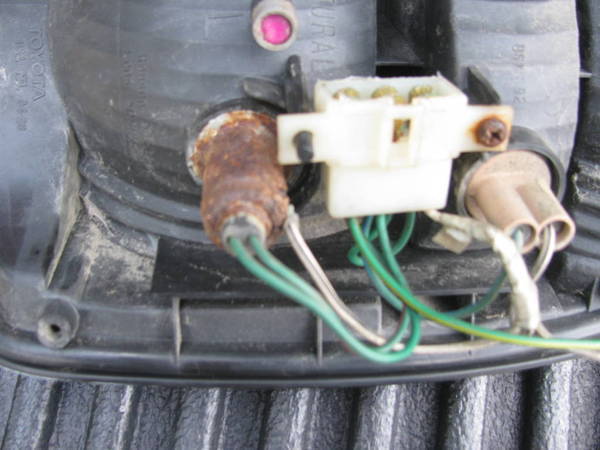

    There are 4 bolts that hold in your drivers side tail light. Unscrew those and this is what the back of your tail light looks like.

    [​IMG]

    The rusty bulb mount is the one we are focusing on. It has a solid green wire and a green with red striped wire coming out of the end. There is also a black and white ground wire that is stuck onto the mount. You can un plug your tail light to make working on it much easier. its also nice that you dont have to ruin your wiring harness if you make a mistake.

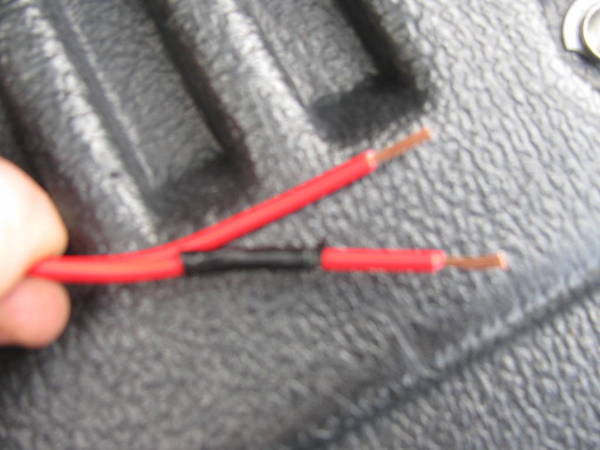

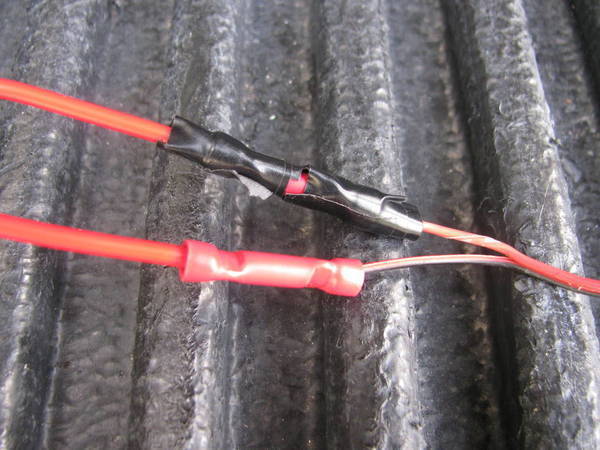

    Since my wires were cut, I had to make them longer. I took about 2 feet of red 18 guage wire cut it in half and put a little electrical tape on one end to indicate it was a ground. Here it is.[​IMG][​IMG]

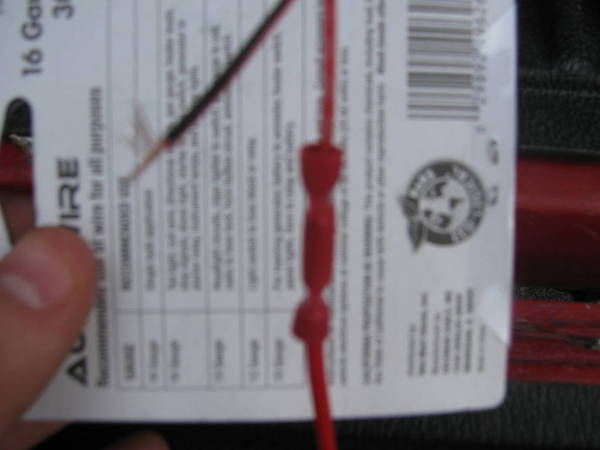

    I just used connectors and crimped the new wire to the old wire. I then put some electrical tape over the connectors[​IMG]

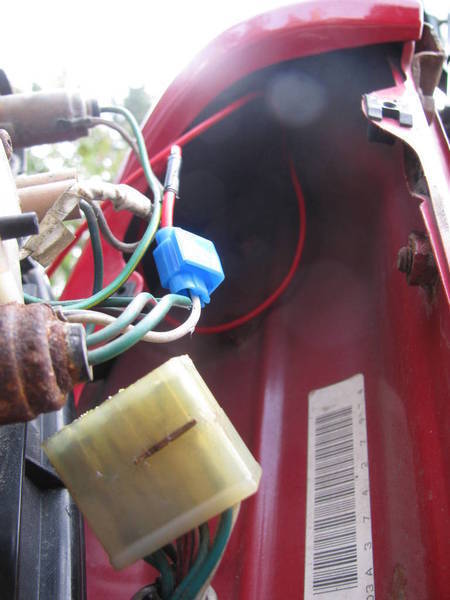

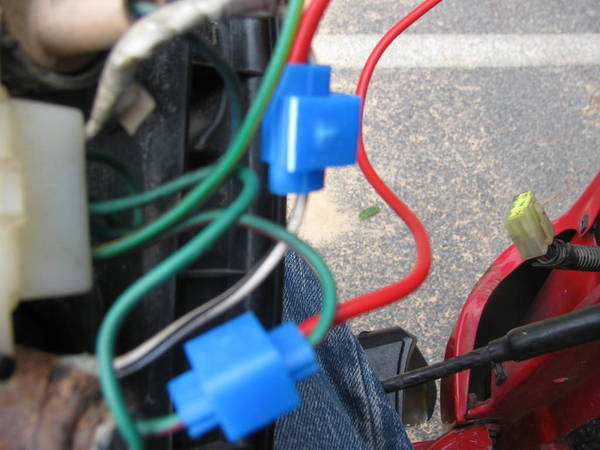

    When you use these quick splices you need (or atleast i think you do) to cut away a small area of wire covering to expose the wire your going to splice. In this picture the blue quick splice is secured over the ground with the ground wire from the camper in it also. You can see where i sent the wires through here. [​IMG]

    quick spliced with the ground and the power! Again this is all in the tail light unit its self. And again the RED AND GREEN is the brake wire. Cut a small area of wire cover away again to expose wire. Then lead your third brake light wire into the quick splice and fold it together. [​IMG]

    Now clip your tail light back into the wiring harness and screw the bezel back on.

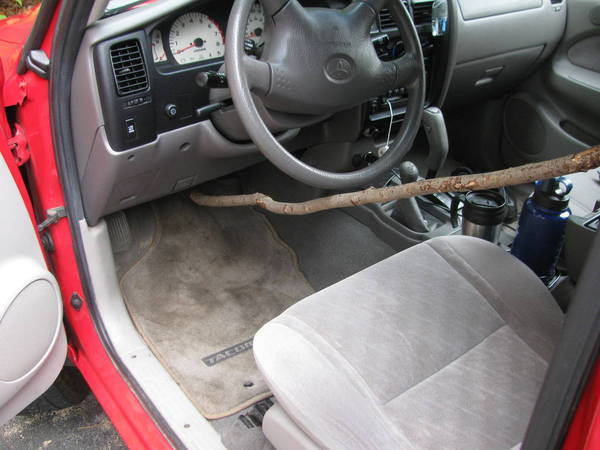

    Find a friend or a good stick and apply brake.
    [​IMG]

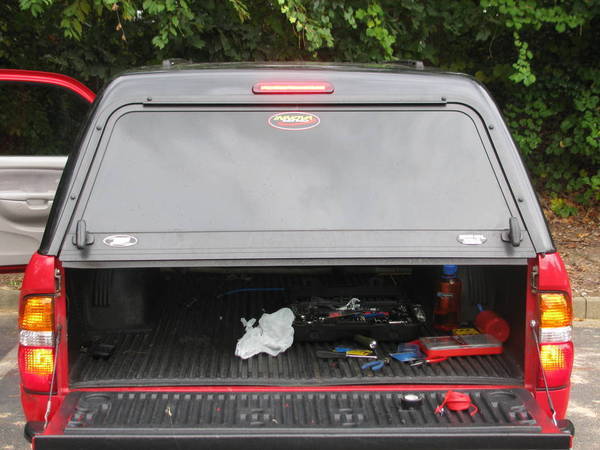

    PRESTO.[​IMG]

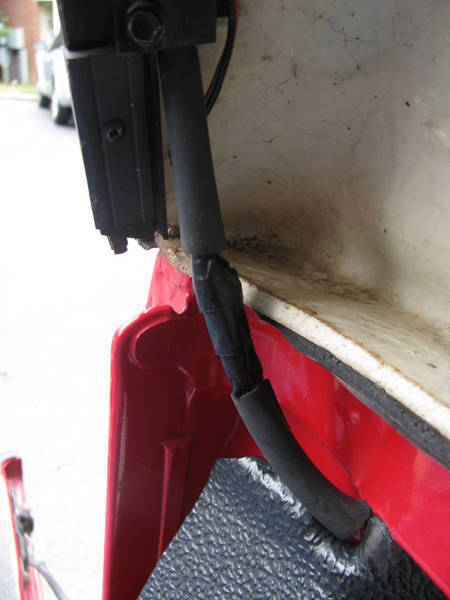

    As for the wires inside the camper, just put some old vaccum hose or something like it over them. [​IMG]

    I was suprised at how easy this was. I would like to clean up the visible area inside the camper a bit but im just happy my 3rd works. Like I said this was my first electrical endeavor and wont be my last. Now i have to find a way to get power to my camper dome.

  2. Oct 9, 2011 at 5:21 PM
    #2
    MapleMoose

    MapleMoose Drunk Canadian

    Joined:
    Feb 15, 2011
    Member:
    #51211
    Messages:
    8,609
    Gender:
    Male
    First Name:
    Ian
    West Kootenays
    Vehicle:
    1996 Tacoma SR5
    3" Eibach Coils, 3" AP Springs, AP 6" Shackles Toytec Diff drop, BAMF Sliders, Deck plate mod,Volt meter, Highbeam mod, PIAA fogs, 18" Magnaflow, LED dash swap, Color matched Satoshi Grille, Custom Rear Plate Bumper
    Nice work!

  3. Oct 9, 2011 at 5:22 PM
    #3
    ffirg

    ffirg Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57975
    Messages:
    4,361
    Gender:
    Male
    First Name:
    mike
    Anchorage, Alaska
    Vehicle:
    2002 Tacoma SR5 TRD 4X4
    Deckplate mod, grey wire mod, Moromoto Mini H1 projectors, 20'' Blitzpro LED bar, two 6'' Blitzpro LED bars, ultra gauge, rhino lined bed, LED dome light in camper shell, and more to come...
    Nice write up. When I bought my truck, the truck had a ball of wires hanging from that driver side rear corner. I'm assuming it was to the 3rd brake light, since its leads were also cut about 4 inches from the light itself. I tried the best I could to get it to work but I think the light is just bad. I hooked it up directly to a battery and it still wouldn't come on. Any idea on where to get a replacement brake light assembly for my shell? I can't seem to find one.

  4. Oct 9, 2011 at 5:26 PM
    #4
    ronman737

    ronman737 [OP] Dangerous

    Joined:
    Jan 24, 2011
    Member:
    #49846
    Messages:
    1,262
    Gender:
    Male
    First Name:
    Ron
    Greenville, SC
    Bilstein HDs, K&N Drop in, fresh chassis, camper, 235/85s
    Depends on what kind of shell it is. If its a leer look for a leer dealer. I dont really know I just got mine yesterday! I have heard though, that some of them come with a hookup for a trailer so maybe you need to get a connector for it.

  5. Oct 9, 2011 at 5:29 PM
    #5
    ffirg

    ffirg Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57975
    Messages:
    4,361
    Gender:
    Male
    First Name:
    mike
    Anchorage, Alaska
    Vehicle:
    2002 Tacoma SR5 TRD 4X4
    Deckplate mod, grey wire mod, Moromoto Mini H1 projectors, 20'' Blitzpro LED bar, two 6'' Blitzpro LED bars, ultra gauge, rhino lined bed, LED dome light in camper shell, and more to come...
    Oh, haha well congrats on the purchase. I thought I would be selling the shell once I bought the truck, but I love it so far. Not the best visibility in the dark, but oh well. It is a "CoverMaster" shell. There are no dealers I can find in the state of Alaska. :confused:

  6. Oct 9, 2011 at 5:32 PM
    #6
    ronman737

    ronman737 [OP] Dangerous

    Joined:
    Jan 24, 2011
    Member:
    #49846
    Messages:
    1,262
    Gender:
    Male
    First Name:
    Ron
    Greenville, SC
    Bilstein HDs, K&N Drop in, fresh chassis, camper, 235/85s
    Well dang. I would seriously look and see if that ball of wires looks like trailer wiring. because you may just need to plug it in somewhere. Like I said I have no idea.

  7. Nov 30, 2011 at 6:41 AM
    #7
    meatman

    meatman I deal with dead animals

    Joined:
    Mar 24, 2011
    Member:
    #53630
    Messages:
    2,666
    Gender:
    Male
    First Name:
    Greg
    Murphy N.C.
    Vehicle:
    01 Tacoma TRD SR5
    More than the wife knows!

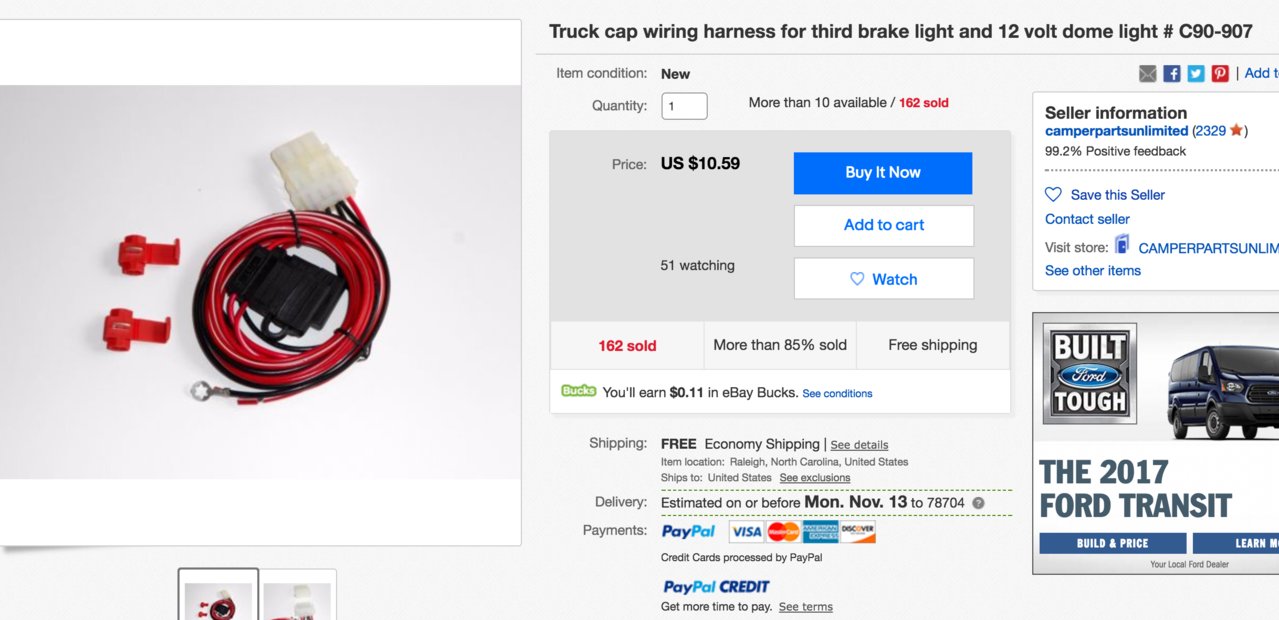

    thanks for the write up! it saved me having to pay to get it done. I bought a 4 wire harness from walfart and got them going. also if you tap into the solid green wire on the same bulb this will allow the dome light to work! I think it took me a total of 30 min. to do

  8. Nov 30, 2011 at 9:19 AM
    #8
    ronman737

    ronman737 [OP] Dangerous

    Joined:
    Jan 24, 2011
    Member:
    #49846
    Messages:
    1,262
    Gender:
    Male
    First Name:
    Ron
    Greenville, SC
    Bilstein HDs, K&N Drop in, fresh chassis, camper, 235/85s
    The solid green wire on the taillight housing?

  9. Nov 30, 2011 at 9:28 AM
    #9
    meatman

    meatman I deal with dead animals

    Joined:
    Mar 24, 2011
    Member:
    #53630
    Messages:
    2,666
    Gender:
    Male
    First Name:
    Greg
    Murphy N.C.
    Vehicle:
    01 Tacoma TRD SR5
    More than the wife knows!
    yes, the one comming off the same bulb that you taped into for the brakelight. The dome will only work when the lights are on but that would be the only time when you need it as it would be dark outside

  10. Nov 30, 2011 at 9:38 AM
    #10
    bamma

    bamma Well-Known Member

    Joined:
    Apr 14, 2008
    Member:
    #5974
    Messages:
    266
    Vehicle:
    07 silver acc cab trd OR 4x4
    Nice write-up. I used a computer fan male/female connecter to connect the truck wiring to the shell wiring. That way when I take the shell off I can just undo the plug. Leer wanted $30 for the taillight wiring kit. The computer connecter was a couple bucks at microcenter.

  11. Nov 30, 2011 at 9:41 AM
    #11
    scocar

    scocar Not one of the 10,000 Baja Edition Elite Guard

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    21,851
    Gender:
    Male
    First Name:
    Glitterdick
    In close proximity to an undisclosed location
    Vehicle:
    01 Xcab TRD 4x4 V6 Man. SR5
    OME 881s, Dakars, greasable shackles, Nitrocharger sports, extended exhaust hanger, BAMF BPV relocate, Wheeler's extended brake line, rear diff breather mod, swaybar removed, Pilot backup lights, Redline hood struts, 4Runner 5-stars, Hidden Hitch Class III, 7-pin marine-grade wiring
    That's a pretty cool stick. Just the right size. Where'd you get it?

  12. Nov 30, 2011 at 9:49 AM
    #12
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,804
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Nice write-up! There are a couple things I'd do a bit differently though. First would be to have a quick disconnect on the wires so you could remove the shell without undoing the wiring. Next, ditch the crimp connections for solder and heat shrink (or heat shrink over the crimp connection to keep water and dirt out, that electrical tape didn't look like it was sealed up real well). Last, a rubber grommet where the wires pass through the bed so they don't chaff. Also, you can get plastic wire loom at any auto parts store for those who don't have old vacuum hose lying around.

    Nice work! :thumbsup:

  13. Nov 30, 2011 at 11:20 AM
    #13
    ronman737

    ronman737 [OP] Dangerous

    Joined:
    Jan 24, 2011
    Member:
    #49846
    Messages:
    1,262
    Gender:
    Male
    First Name:
    Ron
    Greenville, SC
    Bilstein HDs, K&N Drop in, fresh chassis, camper, 235/85s
    The stick? I found it in the trees. Lol

  14. Nov 30, 2011 at 11:24 AM
    #14
    macgyver

    macgyver Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,607
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    This ^^^ I did all of the above.

    I also alternated the connectors so the polarity can't be reversed. Put the male connector on the truck side for one wire and the female connector on the truck side for the other wire.

  15. Nov 30, 2011 at 11:28 AM
    #15
    ronman737

    ronman737 [OP] Dangerous

    Joined:
    Jan 24, 2011
    Member:
    #49846
    Messages:
    1,262
    Gender:
    Male
    First Name:
    Ron
    Greenville, SC
    Bilstein HDs, K&N Drop in, fresh chassis, camper, 235/85s
    Thanks for the advice. I'll defiately look for a quick connect soon. I already had to take the top off once. As for solder and heat wrap that will come sometime soon. Like I said this was the first time I had done any electrical before. I knew there was room for improvement and I appreciate the suggestions.

  16. Apr 23, 2013 at 8:12 PM
    #16
    FramerKat

    FramerKat Well-Known Member

    Joined:
    Jun 4, 2012
    Member:
    #80089
    Messages:
    280
    Gender:
    Female
    First Name:
    kAt
    Fort Lauderdale, Florida
    Vehicle:
    2004 PreRunner TRD Limited DC
    Wheeler's five pack leaf springs, Bilstein 5100s (rear), front tint, windshield top tint, Century Camper Shell/Cap/Topper, Wade window visors, Wade bug shield, cassette adaptor (so I can play Slacker Radio via my phone!), Sunday Blues with Dar sticker, Wounded Warrior Project sticker, no NRA sticker 'cause I don't wanna advertise ;-)
    Great write up...will be using some of the pointers here to do my third brake light ;)

    And ffirg...I found this vendor that sells all different LED third brake lights for toppers: http://www.truckcappartsstore.com/c/4417374/1/3rd-brake-lights.html

  17. Apr 23, 2013 at 8:32 PM
    #17
    ffirg

    ffirg Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57975
    Messages:
    4,361
    Gender:
    Male
    First Name:
    mike
    Anchorage, Alaska
    Vehicle:
    2002 Tacoma SR5 TRD 4X4
    Deckplate mod, grey wire mod, Moromoto Mini H1 projectors, 20'' Blitzpro LED bar, two 6'' Blitzpro LED bars, ultra gauge, rhino lined bed, LED dome light in camper shell, and more to come...

    Nice! Looks like they list one for covermaster so I may be able to get a functioning light. I don't think it's required to have it working up here anyway, but I'd like it to work. I just hope the wiring is good. I'll have to see if there's any power to the wires, I can't remember if there is or not. Thanks!
