Can I use a larger oil filter?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by kent rogers, Mar 9, 2024.

  1. Mar 9, 2024 at 1:16 PM
    #1
    kent rogers

    kent rogers [OP] Member

    Joined:
    Mar 14, 2023
    Member:
    #420124
    Messages:
    12
    Gender:
    Male
    Vehicle:
    2009 tacoma
    The oil filter on my '09 Tacoma is one of the small (short) types. There looks like plenty of clearance to replace it with a longer filter. I was going to do this on the next oil change but I'm not sure how to determine which filter will thread on as it should. Anyone done this with success? thanks for any info/input.

  2. Mar 9, 2024 at 1:24 PM
    #2
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,017
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Yes you can install a larger filter, but you will need to adjust the oil fill to make up for the larger volume.

    This is what I would recommend: Toyota tall filter from the dealer is pn# 90915-YZZD3.

    Here is a good listing:

    https://www.tacomaworld.com/threads/oil-filter-oil-info-collected.9025/

    and here:

    https://www.tacomaworld.com/threads/oversized-oil-filter-suggestions-needed-for-4l.108826/

  3. Mar 9, 2024 at 1:24 PM
    #3
    SomeGuy_GRM

    SomeGuy_GRM Well-Known Member

    Joined:
    Nov 14, 2020
    Member:
    #346746
    Messages:
    376
    Gender:
    Male
    Vehicle:
    2009 Tacoma SR5 TRD Off Road
    You can, but unless you're frequently pushing your engine extra hard there's no reason to.

  4. Mar 9, 2024 at 2:24 PM
    #4
    Waasheem

    Waasheem The catholic radio bear

    Joined:
    Jun 26, 2019
    Member:
    #297494
    Messages:
    2,720
    Gender:
    Male
    First Name:
    Waasheem
    Vehicle:
    2007 xrunner
    Most run the Toyota d3 and are perfectly content. Some are so content they’ll close their minds to anything different suggested.

    Apparently, you and I have similar brains. I’ve tried a few different things, never tried a d3.

    Napa 1516, same as a wix 51516. It’s taller and larger in diameter. I’ve used it a few times, it didn’t leak, my engine didn’t blow up. 4.8” tall, 2.9” diameter.

    Baldwin B2, it’s way bigger and taller. It barely fits, so close that there’s not enough room to get your finger nail in between the bottom lip of the filter and inner edge of the filter mount. I bought 3, one was just barely bigger on that bottom lip & wouldn’t begin to screw on. Luckily I had another 1516 in my garage. Oh yeah, it didn’t leak, my engine didn’t blow up. 5.4” tall, 3.68 diameter.

    NAPA 1773, same as a Wix 51773. This is going in next. 6.9” tall, 3.66” diameter. I put it up to the b2 that didn’t fit. All these dimensions I provided are from Napa & Baldwin web sites, one of them isn’t right because the diameter difference is way more than 0.02”. It’ll be my first time using this filter so I can only hope it doesn’t leak and my engine doesn’t blow up.

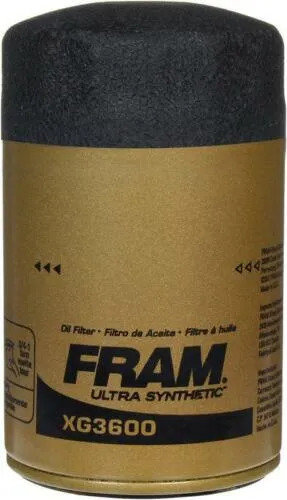

    The only filters I would avoid are anything that says fram on it and the stubby shorter filters. I have seen filters leak. At where I work, they bought a batch during supply chain Covid issues. They just said Korea and a part number, no other information, they all leaked.

    Toy_Runner likes this.
  5. Mar 9, 2024 at 2:45 PM
    #5
    kent rogers

    kent rogers [OP] Member

    Joined:
    Mar 14, 2023
    Member:
    #420124
    Messages:
    12
    Gender:
    Male
    Vehicle:
    2009 tacoma
    Thank you all. I did find the Toyota yzzd3. I'm going to try them.

    sbMT and Jimmyh like this.
  6. Mar 9, 2024 at 3:35 PM
    #6
    TacoTuesday1

    TacoTuesday1 Well-Known Member

    Joined:
    Jun 19, 2019
    Member:
    #296781
    Messages:
    7,292
    Gender:
    Male
    NC
    I use a YZZD3. Never found anything bigger that matches required specs. It may be possible but I don’t know if it’s needed given 5k OCI and capacity of 5.5qt.

    Not sure if there’s any bigger lower oil pans that offer more capacity.

    there at one point was such product but it was very expensive and I believe only fit xrunners and may have reduced ground clearance.

  7. Mar 9, 2024 at 7:37 PM
    #7
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,793
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    I don’t think you’d need a new oil pan to run a filter with an additional 1 cup of oil capacity bro

  8. Mar 9, 2024 at 7:57 PM
    #8
    Ceedub53

    Ceedub53 Active Member

    Joined:
    Apr 13, 2023
    Member:
    #422455
    Messages:
    43
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2006 Tacoma Prerunner Access Cab
    Last edited: Mar 9, 2024
  9. Mar 9, 2024 at 8:14 PM
    #9
    knayrb

    knayrb Well-Known Member

    Joined:
    Mar 3, 2010
    Member:
    #32473
    Messages:
    2,198
    Gender:
    Male
    First Name:
    Bryan
    Somewhere in the square states
    Vehicle:
    2010 Dbl-Cab Off-Road
    Pure stock
    I’ve used Mobile1 M1-209A on my 4.0L since the 2nd oil change and I’ve got 192K miles. I change it with Mobile1 5W-30 every 3000-5000 miles. I don’t notice filing with much more oil than the 5.5 quarts it says. Probably a half cup more oil than stock filter.

  10. Mar 10, 2024 at 12:16 PM
    #10
    sbMT

    sbMT Active Member

    Joined:
    Jan 19, 2015
    Member:
    #146740
    Messages:
    34
    Gender:
    Male
    Montana
    Vehicle:
    ‘09 Off-Road Access Cab
    I also use the YZZD3 from Toyota. They are inexpensive, high quality, and work great. Almost 260k miles on my 2009, no engine issues whatsoever using this filter and a 4500-5000 mile oil change interval for years.
