Can someone verify this assembly?

Discussion in 'Suspension' started by LonghornTaco, Oct 22, 2008.

  1. Oct 22, 2008 at 7:18 PM
    #1
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    I am about to compress my coils and mount the strut, but I have a couple of questions...

    1. Does this look right?

    Inner bushings
    [​IMG]

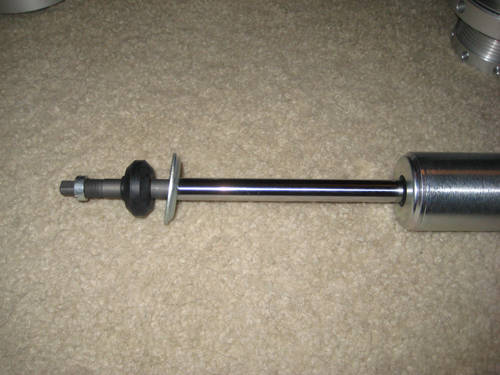

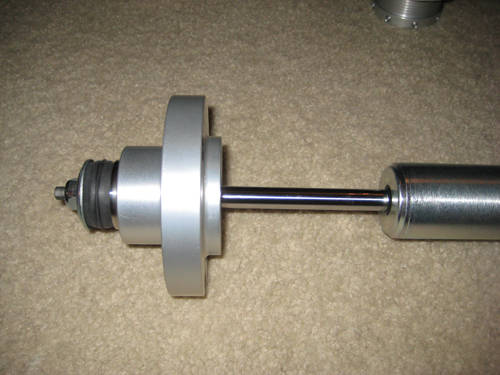

    Top plate with bushings
    [​IMG]

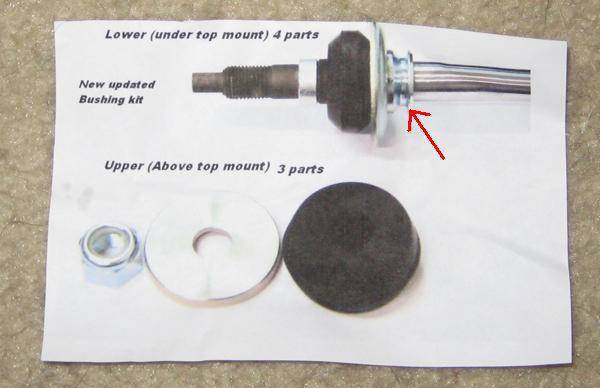

    Instructions
    [​IMG]

    If you notice in the instructions, there is another piece (indicated with the arrow) that I don't seem to have. I have two "kits", including the top plate and bushings for each side, and all of the nuts, bushings, etc... are in sealed bags. Neither kit had that piece. Also, that little silver sleeve (furthest to the left in the top picture) will probably fit, but it's gonna be tight and probably won't come off. That's why I wanted to verify this stuff before assembling the whole thing only to find it's wrong.

    2. Everyone here says that "stacking lifts" is bad. However, the instructions for the adjustable coilover state that I should set the 5100 to the .85" setting, unless I want less than 2" of lift, then set it to stock ride.

    Help! :eek:

  2. Oct 22, 2008 at 7:21 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Looks to be right. Your running a different top plate. As long as you have a bushing and backing plate under it, thats how it should be. :)

  3. Oct 22, 2008 at 7:24 PM
    #3
    Ridingontrd

    Ridingontrd Well-Known Member

    Joined:
    May 7, 2008
    Member:
    #6459
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Richard
    Laughlin,N.V
    Vehicle:
    trd sport 4x4 w/towpkg
    aFe prodry,Dynomax ultra flo ss,Scangauge2,Demello front bumper,BudBuilt skids,sliders(local)AllPro rear bumper,Wet O's cobalt blu,w/halfpiping,TRD logo in gold,R/L hood struts,5150's@10"aal 3 pack,T/C uca,Light racing c/o,1"diff.drop,de-badged,
    The red arrow part...look at your dust boot on the shock.:)

  4. Oct 22, 2008 at 7:24 PM
    #4
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Thanks Chris!

  5. Oct 22, 2008 at 7:26 PM
    #5
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    LOL, I thought he was talking about the bushing and the backing plate. :eek:

  6. Oct 22, 2008 at 7:27 PM
    #6
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    I thought about that and took a look, but when I put that dust boot on, there isn't enough room left on the shaft to start threading the top bolt...

  7. Oct 22, 2008 at 7:29 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    You'll be fine leaveing them off

  8. Oct 22, 2008 at 7:35 PM
    #8
    Ridingontrd

    Ridingontrd Well-Known Member

    Joined:
    May 7, 2008
    Member:
    #6459
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Richard
    Laughlin,N.V
    Vehicle:
    trd sport 4x4 w/towpkg
    aFe prodry,Dynomax ultra flo ss,Scangauge2,Demello front bumper,BudBuilt skids,sliders(local)AllPro rear bumper,Wet O's cobalt blu,w/halfpiping,TRD logo in gold,R/L hood struts,5150's@10"aal 3 pack,T/C uca,Light racing c/o,1"diff.drop,de-badged,
    I don't remember if that part is also on the front.I am sure it's on the rear shock.That piece is supposed to be half way in the boot.

  9. Oct 22, 2008 at 7:38 PM
    #9
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    My rears have it, But I dont think I have ever seen it on the front. Generally, the front shocks dont have a rubber boot, as it can flex into the spring. They usually use a plastic "Dust cover" to protect from debrise.

  10. Oct 22, 2008 at 7:39 PM
    #10
    Ridingontrd

    Ridingontrd Well-Known Member

    Joined:
    May 7, 2008
    Member:
    #6459
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Richard
    Laughlin,N.V
    Vehicle:
    trd sport 4x4 w/towpkg
    aFe prodry,Dynomax ultra flo ss,Scangauge2,Demello front bumper,BudBuilt skids,sliders(local)AllPro rear bumper,Wet O's cobalt blu,w/halfpiping,TRD logo in gold,R/L hood struts,5150's@10"aal 3 pack,T/C uca,Light racing c/o,1"diff.drop,de-badged,
    Correct, The front has a cap,dust cover.

  11. Oct 22, 2008 at 7:40 PM
    #11
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    what about the strut height setting?

  12. Oct 22, 2008 at 7:41 PM
    #12
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    How high are you looking to go?

  13. Oct 22, 2008 at 7:43 PM
    #13
    Ridingontrd

    Ridingontrd Well-Known Member

    Joined:
    May 7, 2008
    Member:
    #6459
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Richard
    Laughlin,N.V
    Vehicle:
    trd sport 4x4 w/towpkg
    aFe prodry,Dynomax ultra flo ss,Scangauge2,Demello front bumper,BudBuilt skids,sliders(local)AllPro rear bumper,Wet O's cobalt blu,w/halfpiping,TRD logo in gold,R/L hood struts,5150's@10"aal 3 pack,T/C uca,Light racing c/o,1"diff.drop,de-badged,
    Read #13.kit instal

  14. Oct 22, 2008 at 7:44 PM
    #14
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    The adjustable coilovers say they will adjust from 1.5" to 3.5". I wanted to go to the full 3.5". However, will setting this to .85 make me go to 4.35" or is the 3.5" supposed to be WITH the .85"?

  15. Oct 22, 2008 at 7:45 PM
    #15
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    If you go to 3.5" wave "Bye bye" to your CV's

  16. Oct 22, 2008 at 7:47 PM
    #16
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Really? Does it increase the angle too much or something?

  17. Oct 22, 2008 at 7:47 PM
    #17
    Ridingontrd

    Ridingontrd Well-Known Member

    Joined:
    May 7, 2008
    Member:
    #6459
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Richard
    Laughlin,N.V
    Vehicle:
    trd sport 4x4 w/towpkg
    aFe prodry,Dynomax ultra flo ss,Scangauge2,Demello front bumper,BudBuilt skids,sliders(local)AllPro rear bumper,Wet O's cobalt blu,w/halfpiping,TRD logo in gold,R/L hood struts,5150's@10"aal 3 pack,T/C uca,Light racing c/o,1"diff.drop,de-badged,
    You don't add in the .85. Ref the second line of the instal instruct.

  18. Oct 22, 2008 at 7:48 PM
    #18
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,813
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Yes. At 3" your pushing it. Above that, and carry extras

  19. Oct 22, 2008 at 7:48 PM
    #19
    Ridingontrd

    Ridingontrd Well-Known Member

    Joined:
    May 7, 2008
    Member:
    #6459
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Richard
    Laughlin,N.V
    Vehicle:
    trd sport 4x4 w/towpkg
    aFe prodry,Dynomax ultra flo ss,Scangauge2,Demello front bumper,BudBuilt skids,sliders(local)AllPro rear bumper,Wet O's cobalt blu,w/halfpiping,TRD logo in gold,R/L hood struts,5150's@10"aal 3 pack,T/C uca,Light racing c/o,1"diff.drop,de-badged,
    You have the diff drop right??

  20. Oct 22, 2008 at 7:49 PM
    #20
    LonghornTaco

    LonghornTaco [OP] Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    yep
