Can you Connect a BS ML-ACR to a Bus Bar? Wiring Layout Help Needed.

Discussion in 'Technical Chat' started by SportsmanJake, Jul 8, 2018.

  1. Jul 8, 2018 at 1:01 PM
    #1
    SportsmanJake

    SportsmanJake [OP] Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    391
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    Hi, I am wiring a dual battery into my engine bay. I could really use some advice.
    What is the best way to do this in order to reduce the amount of wiring that is needed?

    Objective:
    • I need to connect the 2 batteries together with the ML-ACR.
    • I also need to run a large power cable from the Aux Battery through the drivers side firewall. The wire going through firewall will connect to a fuse box in the cab and one in the bed.

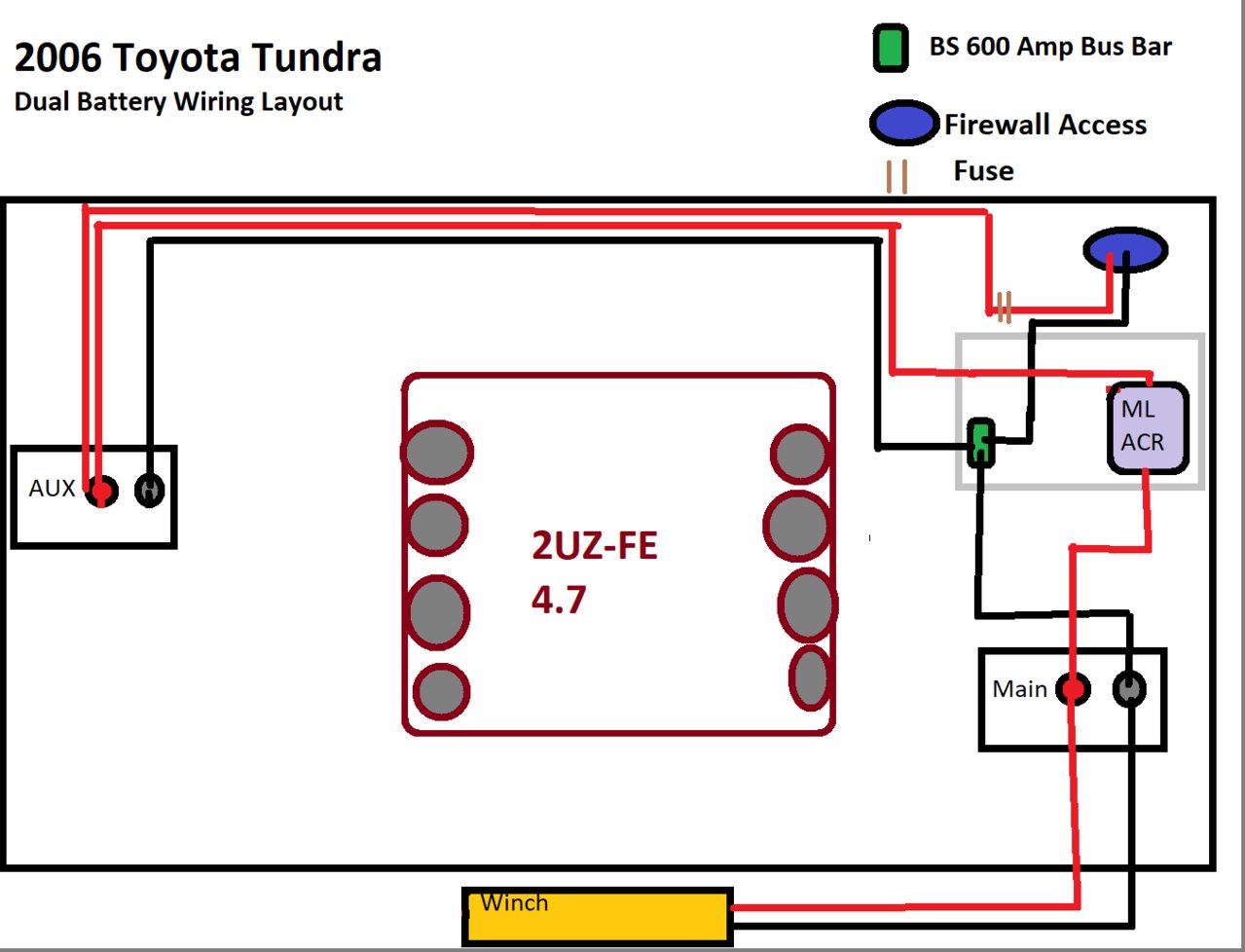

    Wiring Plan:


    Questions:
    Edit:
    250 amp bus bar would not be enough for the self jump start scenario.
    I am thinking this 600 amp bus bar would be though.

    https://smile.amazon.com/dp/B000XBB758/ref=twister_B01FA3NSG4?_encoding=UTF8&th=1

    And on the subject of the self jump:
    If I wire it like the diagram, am I putting my auxiliary fuse boxes at risk since they would be connected to the Bus Bar?

    Last edited: Jul 11, 2018
  2. Jul 11, 2018 at 9:55 PM
    #2
    tacozord

    tacozord Well-Known Member

    Joined:
    Jan 9, 2015
    Member:
    #145945
    Messages:
    792
    Gender:
    Male
    Vehicle:
    2015 DCLB 4wd SR5
    Icon suspension, ARB front bumper, Pelfreybilt rear bumper, Warn 9.5-XP winch, Demello Offroad sliders

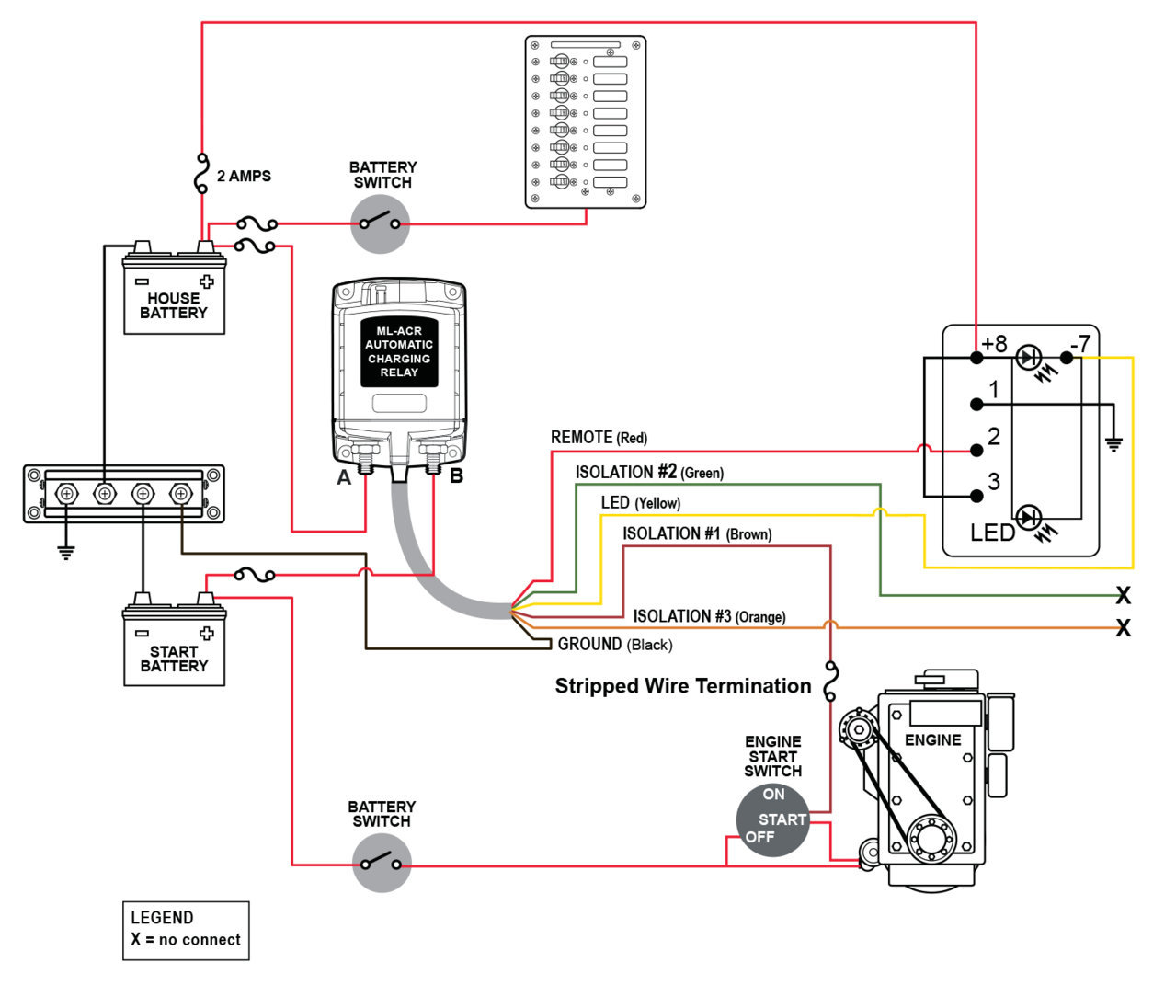

    Blue Sea offers the following wiring diagram that details how to connect the batteries to the ML-ACR and accessories. This is what I recommend.


    I would not use busbars between the batteries and the ACR. Instead, if you feel you need a busbar, then I would run a separate cable from the aux battery to the busbar and then branch out from there.

    Definitely connect your winch to your starter battery!

  3. Jul 12, 2018 at 6:25 AM
    #3
    SportsmanJake

    SportsmanJake [OP] Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    391
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    I appreciate your input. Essentially, I was just trying to figure out an alternative setup that would allow me to run less wire.
    I am know thinking any deviation from the normal setup is just asking for issues.

    edit:
    Actually, it looks like just one more large power wire.


    Last edited: Jul 12, 2018
  4. Jul 17, 2018 at 11:07 AM
    #4
    YamaDirtrider

    YamaDirtrider Custom armor @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    5,957
    Gender:
    Male
    First Name:
    Josh
    Parker Co
    Vehicle:
    06 DCLB sport prerunner
    What hasn't been modified?
    I think you wound be fine connecting them at a bus bar. I’d make sure that the wire to the ml-acr and the battery be touching, then bolted to the busbar. That way it’s most possible contact.
