Cargo Light Switch installation

Discussion in '3rd Gen. Tacomas (2016+)' started by JasonJason, Feb 8, 2021.

  1. Feb 8, 2021 at 5:45 PM
    #1
    JasonJason

    JasonJason [OP] New Member

    Joined:
    Feb 8, 2021
    Member:
    #355488
    Messages:
    3
    Hello,

    New to TacomaWorld, new to the Tacoma.

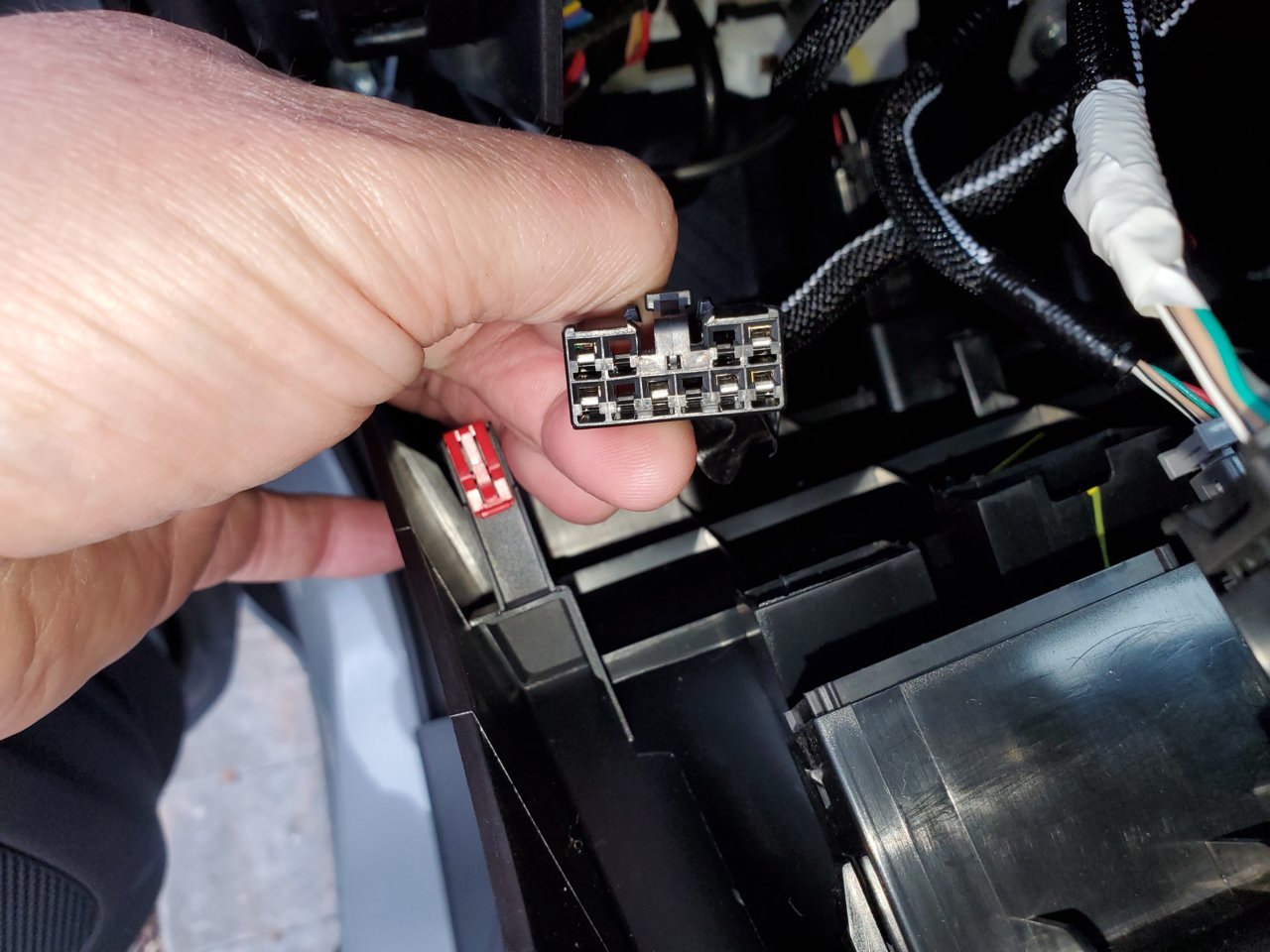

    I recently purchased a 2021 Tacoma SR5 Access Cab 4-cylinder. I wanted to install an OEM bed light kit. I can find all sorts of info on installing the actual lights, but my question is about installing an OEM cargo light switch and relay in the cab. Mine only has a blank in the dash where the cargo light switch is in other models. I only have the third brake light.

    The OEM bed lights description says if you don't have the switch you must install a switch and relay. I'm a fairly handy guy, but don't want to splice in to the electrical system on a brand new vehicle. Is the switch and relay just a plug in installation? It looks like there is an unused wiring harness behind the dash below the cargo light switch blank off. Is this for the cargo switch?



    Will I need another relay to plug in?


    Thanks for the help. Hoping my first foray into upgrading my Tacoma will make for an enjoyable hobby.

    bert-b likes this.
  2. Feb 8, 2021 at 5:51 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You have the relay already. Since the vehicle doesn't have or fit the Cargo Lamp you could get the mating connector to the cargo lamp switch connector. Unless you need to turn them on/off at other times. By getting the matching/mating connector you can have the Door feature function of the missing switch.

  3. Feb 8, 2021 at 5:55 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

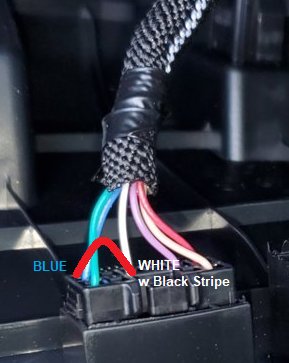

    P.S. do a test first. Place a jumper wire on the connector (wire side, not the switch side) on the blue wire #5 to white with black strip wire #7,

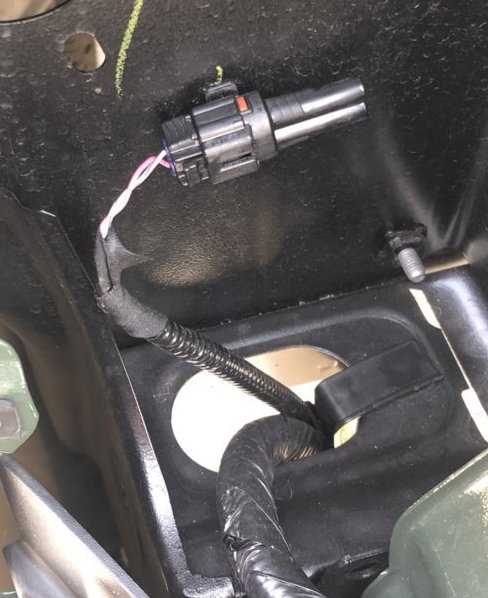

    check that you have power to the connector behind the rear lamps where the bed lamps connect to.
    This connector:
    Pink wire for (+).

    Last edited: Feb 8, 2021
    bert-b and Skydvrr like this.
  4. Feb 8, 2021 at 6:16 PM
    #4
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    Can one of you fine folk point me to a thread about Cargo light wiring/relay for a 2016 Access cab? I looked behind both tailamps, no relay present as I found in one post. Is the Mattgecko setup the best choice for my older truck? Thanks.

  5. Feb 8, 2021 at 6:20 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    2016 doesn't have the connectors to the bed lamps anywhere.
    The relay is in the cab.

    daveeasa and Skydvrr like this.
  6. Feb 8, 2021 at 6:52 PM
    #6
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    Thanks Caribe, jumpering the blue to white black did nothing, of course I have a third stop lamp, no cargo lamp. Is the wiring present at the the existing lamp , or skip using that light and run a lead from the relay to whatever lights I put in?

  7. Feb 8, 2021 at 6:54 PM
    #7
    JasonJason

    JasonJason [OP] New Member

    Joined:
    Feb 8, 2021
    Member:
    #355488
    Messages:
    3

    So just order part 90980-10800, snap it on to the wiring harness, and leave it all behind the dash? $7 connector sounds better than a $70 switch to start with.

  8. Feb 8, 2021 at 7:32 PM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

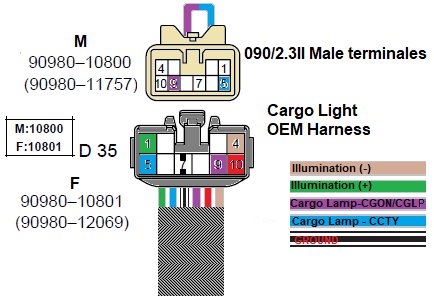

    Yes, but you'll also need 2 male terminals 090/2.3II at both ends to insert into the 90980-10800.
    https://www.corsa-technic.com/item.php?item_id=1064
    You could also add a DPDT switch non-Toyota type and duplicate the Cargo Switch entirely.

    Last edited: Feb 8, 2021
  9. Feb 8, 2021 at 7:33 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

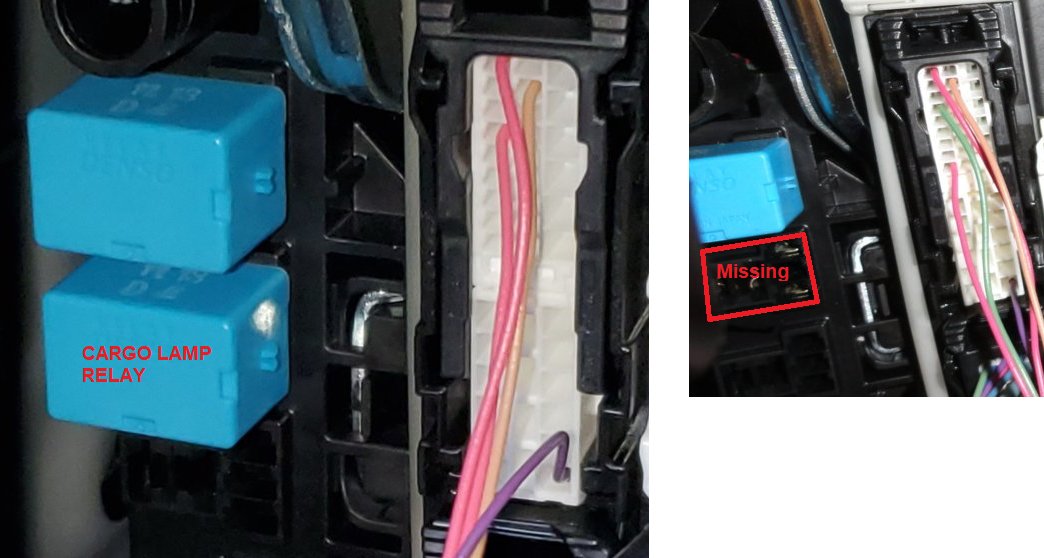

    Did you verify that you have the relay?
    In your year and version there is no connector to the rear lamps. You'll have to add the missing connectors and wires.

    Last edited: Feb 9, 2021
  10. Feb 9, 2021 at 5:50 PM
    #10
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    thanks Caribe, yes the relay is there. Does it also serve some other purpose? Odd that the truck would have the switch harness and relay and it goes too nothing. I hoped there was a taped back plug some where near the third brake lamp that would be an easy to tap source for the Mattgecko lights.

  11. Feb 9, 2021 at 6:02 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

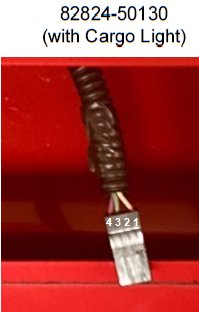

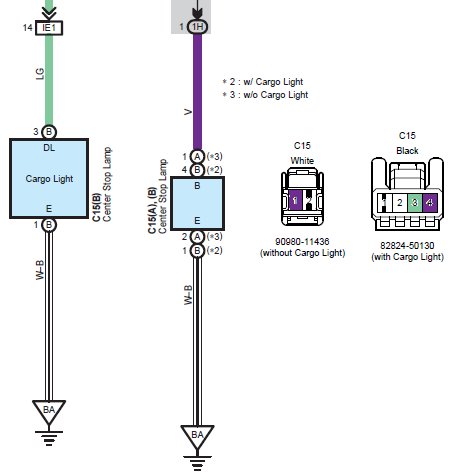

    You would have to take down the roof liner carefully, and inspect the harness going to the 3rd Stop Lamp. It's a tiny connector.

  12. Feb 10, 2021 at 3:49 PM
    #12
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    perfect, Caribe, thanks again. One last dead horse to hammer on, I guess the OEM lamp from a double cab wont fit the Access cab?

  13. Feb 10, 2021 at 3:52 PM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You could always get someone to 3D print or machine you an adaptor or a body guy to cut and shape to location...:D

  14. Feb 10, 2021 at 8:40 PM
    #14
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    i thnk i will use that lead to power the mattgecko light set then see if i need some flood lamps at top of bed.

  15. Feb 10, 2021 at 8:54 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,299
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Did you find the "extra" connector up there?

  16. Feb 15, 2021 at 9:51 AM
    #16
    JasonJason

    JasonJason [OP] New Member

    Joined:
    Feb 8, 2021
    Member:
    #355488
    Messages:
    3

    Thanks for the help. I ended up just buying the cargo switch. Plug and play with the cargo switch and cargo lights, no issues.

  17. Feb 15, 2021 at 8:14 PM
    #17
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    i had poke around while hiding dash cam rear view lead. Not found as yet. I will get my usb camera and have peek soon.

  18. Feb 16, 2021 at 6:00 AM
    #18
    Homiec

    Homiec Well-Known Member

    Joined:
    Dec 13, 2019
    Member:
    #313204
    Messages:
    214
    Vehicle:
    2020 TRD Sport Access Cab 4X4 MT
    Pre 2020, Tacos weren't prewired for bed lights. Install was a bit more involved. Instructions attached. There may be different part numbers depending on bed and cab because of wiring length so double check that. The high mount stop is different between ACS and DCs. A few dollars at Harbor Freight for stick on LED lights would be much easier if you have a bed cover/shell to keep them out of the elements.


    Attached Files:

    Rocket23 and daveeasa like this.
  19. Mar 27, 2021 at 5:00 PM
    #19
    somedudefromhouston

    somedudefromhouston Member

    Joined:
    Jan 24, 2021
    Member:
    #353822
    Messages:
    14
    Gender:
    Male
    First Name:
    mike
    Vehicle:
    2016TRD Sport A/C
    I have spent today on a mission to get the anzo lights I got from a member here working. Added the missing relay, used a switch from a salvage Tundra. Here is what I found on my 2016 access cab. There is no female connector at 14 in 1e1. The relay does power the male pin in the socket as required. Thus no green wire going to the stop lamp. So I will procure a terminal from the same Tundra that donated the switch and run the lights under the cab, through the rubber plug in floor pan under seat and into the sill plate harness space on left side.

  20. Jun 30, 2021 at 2:15 PM
    #20
    yorock1

    yorock1 New Member

    Joined:
    Jun 30, 2021
    Member:
    #370037
    Messages:
    3
    Gender:
    Male
    anyone know what the other relay to the right of the one jasonjason found is for?
