Cargo Light Switch installation

Discussion in '3rd Gen. Tacomas (2016+)' started by JasonJason, Feb 8, 2021.

  1. Jul 15, 2022 at 4:58 PM
    #41
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :hattip:
    Yes

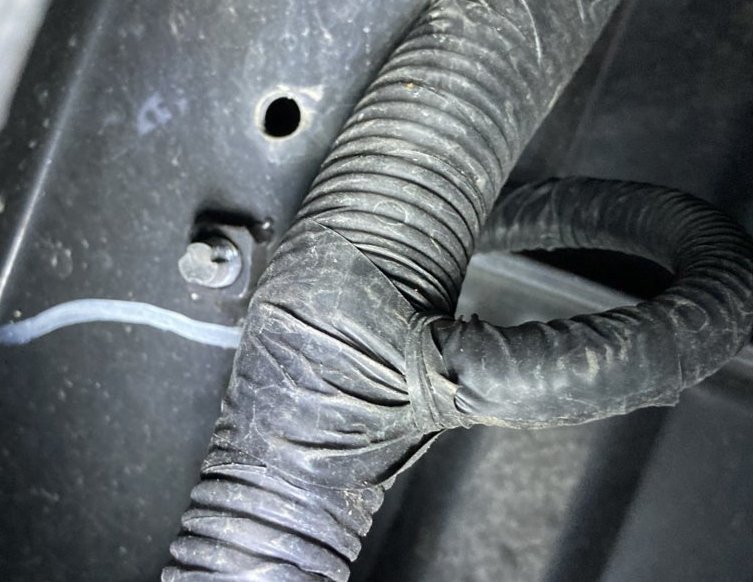

    For the added lights, chassis ground. There's a hole next to the factory ground (between rear light assembly area and rear tire-driver's side)
    :confused:

  2. Jul 29, 2022 at 4:52 PM
    #42
    bush rat

    bush rat Well-Known Member

    Joined:
    Apr 2, 2022
    Member:
    #394052
    Messages:
    161
    Gender:
    Male
    BC
    Vehicle:
    2022 6MT Access Cab
    thanks mr. caribe.
    just bought a canopy and was looking at brake light splice.
    thinking i will wire anytime 12v plug and canopy dome- bed light circuit somehow

  3. Jul 29, 2022 at 4:54 PM
    #43
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    PM @daveeasa, he has a solution so you don't go cutting anything.

  4. Jul 29, 2022 at 4:58 PM
    #44
    bush rat

    bush rat Well-Known Member

    Joined:
    Apr 2, 2022
    Member:
    #394052
    Messages:
    161
    Gender:
    Male
    BC
    Vehicle:
    2022 6MT Access Cab
    similar to the canopy manufacturer type harness that goes between the brake light bulb?

  5. Jul 29, 2022 at 5:07 PM
    #45
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    4,269
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner
    We are talking about this?

  6. Jul 29, 2022 at 6:49 PM
    #46
    bush rat

    bush rat Well-Known Member

    Joined:
    Apr 2, 2022
    Member:
    #394052
    Messages:
    161
    Gender:
    Male
    BC
    Vehicle:
    2022 6MT Access Cab
    thanks Dave.
    i may consider this option

  7. Aug 20, 2022 at 6:50 PM
    #47
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    Wishing my truck was one year younger at this point. So to be clear. I need to run a separate wire if I want cargo lamps w/ my 3 rd brake light. There is no preexisting wire harness from behind the dash near my left knee??
    2019?sr 5. V6.

  8. Aug 20, 2022 at 6:55 PM
    #48
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

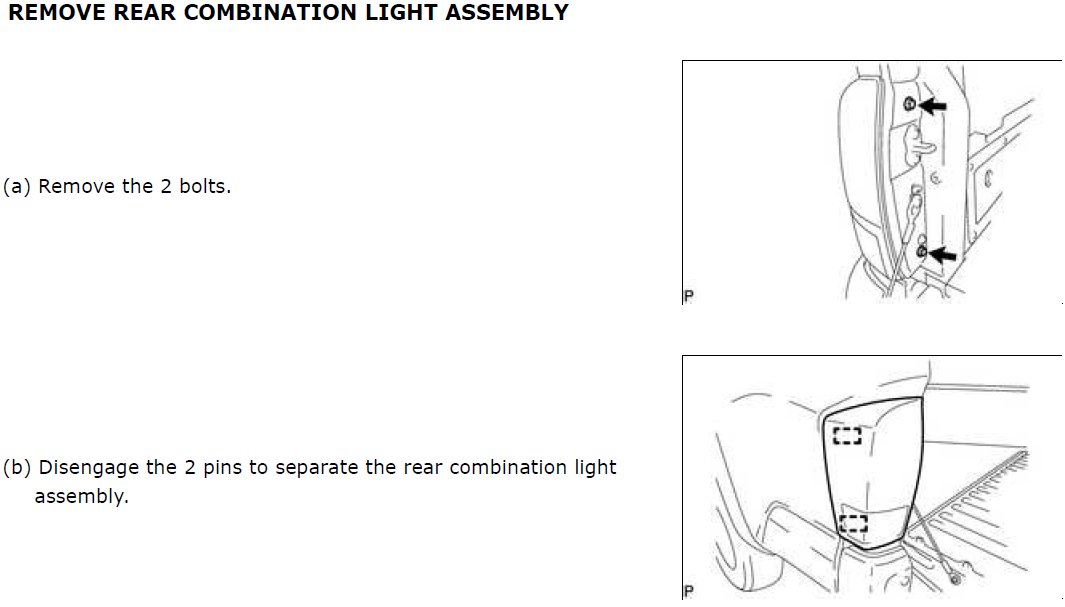

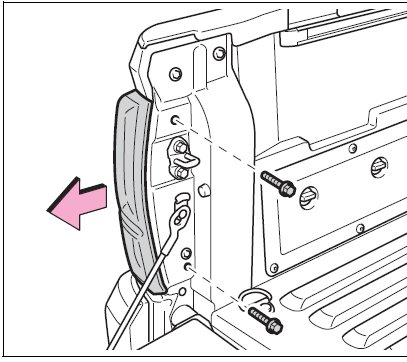

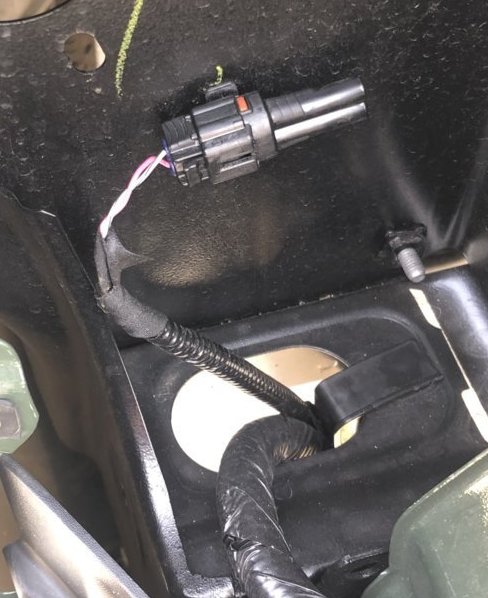

    Remove any of the rear lamp assemblies (x2 bolts and pull) and check for the plug...

    Rocket23 likes this.
  9. Aug 20, 2022 at 6:57 PM
    #49
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    What do you think my chances are lol

  10. Aug 20, 2022 at 6:59 PM
    #50
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    50:50:spending:

    Rocket23 likes this.
  11. Aug 20, 2022 at 7:02 PM
    #51
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    Yeah. I’m feeling that. Lol. :fingerscrossed: Thanks for the lightning quick reply! :thumbsup:

  12. Aug 20, 2022 at 7:03 PM
    #52
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Just 2 bolts and a tug (and illumination to view) 5min tops...

  13. Aug 20, 2022 at 7:05 PM
    #53
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    I’ll replace the 3rd brake light. Anyways and figure a wiring solution later if it isn’t there.

  14. Aug 20, 2022 at 7:10 PM
    #54
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    Thanks again. Tapping out. Been a long day.

  15. Aug 20, 2022 at 7:10 PM
    #55
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I'm referring to the rear light assemblies...

    Last edited: Aug 22, 2022
  16. Aug 20, 2022 at 7:11 PM
    #56
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup:

  17. Aug 24, 2022 at 3:55 AM
    #57
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    So that harness can be used for bed lighting?
    What about a wired harness not being used for my cargo light under the headliner??

  18. Sep 21, 2022 at 11:40 AM
    #58
    Slynky

    Slynky New Member

    Joined:
    Dec 12, 2020
    Member:
    #349451
    Messages:
    3
    Gender:
    Male
    First Name:
    Chuck
    I guess this is about all I can find on cargo light/switch install. The taillight portion looks easy enough but the dash part is a bit daunting for me--somewhat of a nerd. :confused: :notsure:

    So, I ordered and have both parts that I need, I think. The black rocker switch for the dash and the blue relay switch/plug thingy. I had hoped it would be as simple as getting into the dash area and connecting these components. Heck, I can't find any instructions on removing the small panel on the dash--the panel that also houses the "blank" for the cargo light switch. I have the install instructions from Toyota but they only show illustrations for the taillight portion of the process. Then they refer you to their repair manual for the switch install. I downloaded the manual and searched and found the cargo switch stuff--not much help at all.

    Is there a video or set of illustrations on how to remove that small panel on the lower left of the dash? :help:

  19. Sep 21, 2022 at 11:57 AM
    #59
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    4,269
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner
    Reach behind and push. MESO has an install video. I think he used a knife, but he has mad skills. I like the reach around maneuver.

  20. Sep 21, 2022 at 11:58 AM
    #60
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Using a dash removal tool (plastic spatula type) place to top edge of the cubby and pop open all corners.

    Slynky likes this.
