Cargo Light Switch installation

Discussion in '3rd Gen. Tacomas (2016+)' started by JasonJason, Feb 8, 2021.

  1. Sep 21, 2022 at 11:59 AM
    #61
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Picture of this harness...

  2. Sep 21, 2022 at 12:25 PM
    #62
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    I actually saw it. My truck is an sr5 I recently installed a switch to control my usb in the center consol. (I Can charge a phone with the truck off if needed). Anyways we powered the switch with an add a fuse and low an behold the harness with the third brake light / cargo lamp was there. All I need is a switch and another 3rd brake lights w/ cargo lamp. About 200 bills. The switch alone is 75$ !!

  3. Sep 21, 2022 at 12:30 PM
    #63
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    So headliner was wrong location then...

    Rocket23 likes this.
  4. Sep 21, 2022 at 12:36 PM
    #64
    Slynky

    Slynky New Member

    Joined:
    Dec 12, 2020
    Member:
    #349451
    Messages:
    3
    Gender:
    Male
    First Name:
    Chuck

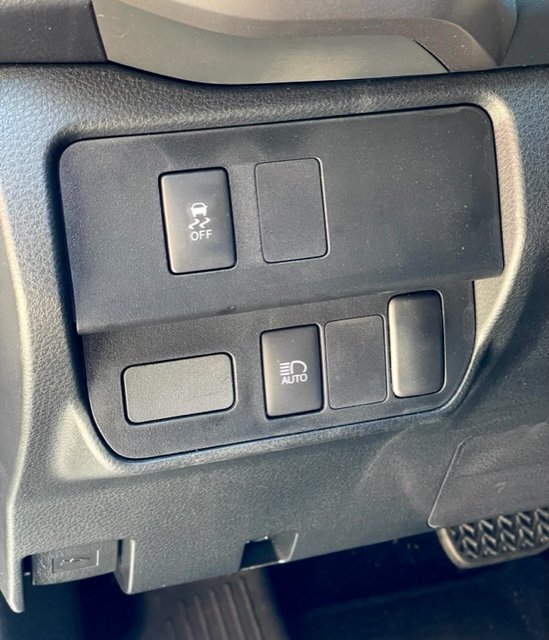

    Thanks for the reply. Then, top corners of this panel assembly of switches...

    Rocket23 likes this.
  5. Sep 21, 2022 at 12:42 PM
    #65
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    No it’s wired all right. We even tested the harness it’s all there and obviously wired to the opening under the headliner.

  6. Sep 21, 2022 at 1:55 PM
    #66
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yes or do the push from behind that Dave suggested.

    Rocket23 and Slynky like this.
  7. Sep 21, 2022 at 5:03 PM
    #67
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming

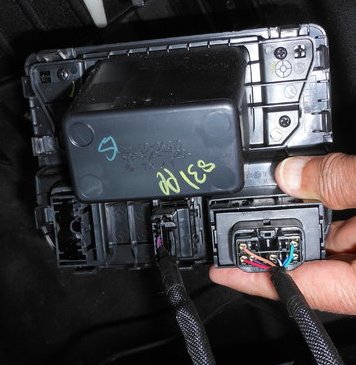

    The harness should black and plugged into the bottom of the dash in a dummy holder
    Underneath the panel that you remove. That’s where mine is.
    Ps. I need that panel too! Mine doesn’t have the rectangled opening :confused:

    Slynky likes this.
  8. Sep 21, 2022 at 5:16 PM
    #68
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  9. Sep 21, 2022 at 5:36 PM
    #69
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    4,269
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner
    I must admit the plastic holders for the connectors are pretty cool. Just noticed that the other day. I accidentally plugged my clutch start cancel into the dummy.

  10. Sep 21, 2022 at 9:40 PM
    #70
    Desert Dog

    Desert Dog Well-Known Member

    Joined:
    Dec 25, 2018
    Member:
    #276881
    Messages:
    468
    Gender:
    Male
    Los Gatos
    Vehicle:
    2007 DCSB
    Work in progress
    Picked up a new AC a month ago with “bed lights” added as a port option ($149). It has the two lights by tailgate but 3rd brake light does not light up when bed light come on.

    Is this normal or should brake light also come on? Funny thing is the switch is the standard switch with icon showing the 3rd brake light being illuminated.

  11. Sep 22, 2022 at 4:47 AM
    #71
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Normal not to have bed illumination on an access cab OEM 3rd Brake Light.
    Switch seems to be aftermarket.

    TRDSport10 likes this.
  12. Sep 22, 2022 at 5:30 AM
    #72
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    I need to hunt some pick an pulls......

  13. Sep 22, 2022 at 3:35 PM
    #73
    Slynky

    Slynky New Member

    Joined:
    Dec 12, 2020
    Member:
    #349451
    Messages:
    3
    Gender:
    Male
    First Name:
    Chuck
    Thanks to all who posted in this thread to help me. All done with no problems. A little tough getting the panel out but used pry tool and after removing the blanks in the lower right, pulled and pried at the same time and it was out. Plug for the switch was "Parked" in a "holder". Toyota said i needed a blue relay switch but apparently, one was already there... :thumbsup:

    The taillight portion was a breeze.

    Again, thanks for the assistance. :)

    caribe makaira and daveeasa like this.
  14. Sep 22, 2022 at 6:12 PM
    #74
    Rocket23

    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    394
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    The search continues for me :(

  15. Sep 22, 2022 at 6:21 PM
    #75
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    I’m going to be installing the bed lights on my 2020 SR, I bought a on/off bed light switch from CH4x4. According to the diagram of the OEM switch harness there are two cargo light wires, which is for the bed lights?
    I’m not concerned about them coming on when the door is opened, I just pretty much need to know which is the hot wire to the bed lights?
    And, thanks for providing parts #s for the terminals and housing

  16. Sep 22, 2022 at 6:26 PM
    #76
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

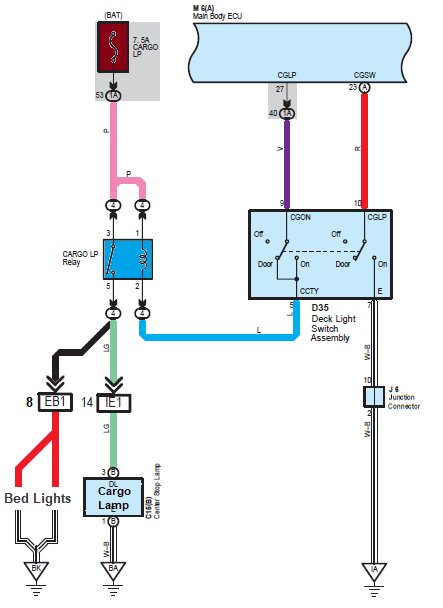

    None on the drawing your quoting.
    The wire from the relay to the Cargo lamp forks to the Bed Lamp connector also.
    CH4x4 doesn't sell a compatible switch for door-off-on select that I'm aware of.

    TRDSport10 and Brex69 like this.
  17. Sep 22, 2022 at 6:46 PM
    #77
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    This is pretty much the diagram that I needed, thanks. The switch I ordered is on/off only, I really don’t want them to come on when door is opened

  18. Sep 22, 2022 at 6:51 PM
    #78
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You'll need a DPDT switch just for ON-OFF. ECU needs (red wire) to go to ground when switch is "ON".

  19. Sep 22, 2022 at 6:57 PM
    #79
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    Welp, back to the drawing board lol. Shit can’t be easy anymore

  20. Sep 22, 2022 at 6:59 PM
    #80
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Well you could just tie blue (#5) to white with black runner (#7) with your aftermarket switch.:burp:
    On-OFF anytime so remember to turn OFF when engine off or get a tow service contract.
