Cargo Light Switch installation

Discussion in '3rd Gen. Tacomas (2016+)' started by JasonJason, Feb 8, 2021.

  1. Sep 22, 2022 at 7:03 PM
    #81
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4

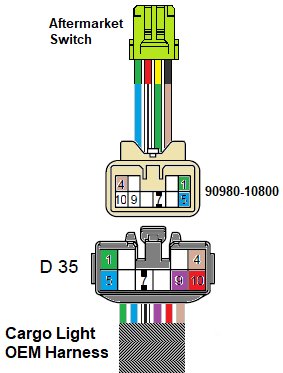

    That’s what I was thinking when I saw your diagram, tap in before the ECU.

  2. Sep 22, 2022 at 7:07 PM
    #82
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Sep 22, 2022
    Brex69 likes this.
  3. Sep 22, 2022 at 7:18 PM
    #83
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    That’ll help! Thanks

  4. Sep 22, 2022 at 7:23 PM
    #84
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    @kmorgan3 might be able assemble and sell the short harness.

  5. Sep 22, 2022 at 7:28 PM
    #85
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    I ordered the terminals and 90980-10800 plus I already have the crimpers for the terminals so hopefully I’m good to go

  6. Sep 22, 2022 at 7:29 PM
    #86
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Cool, PM him for the terminals and connector to the CH4x4 switch.

  7. Sep 22, 2022 at 7:35 PM
    #87
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4

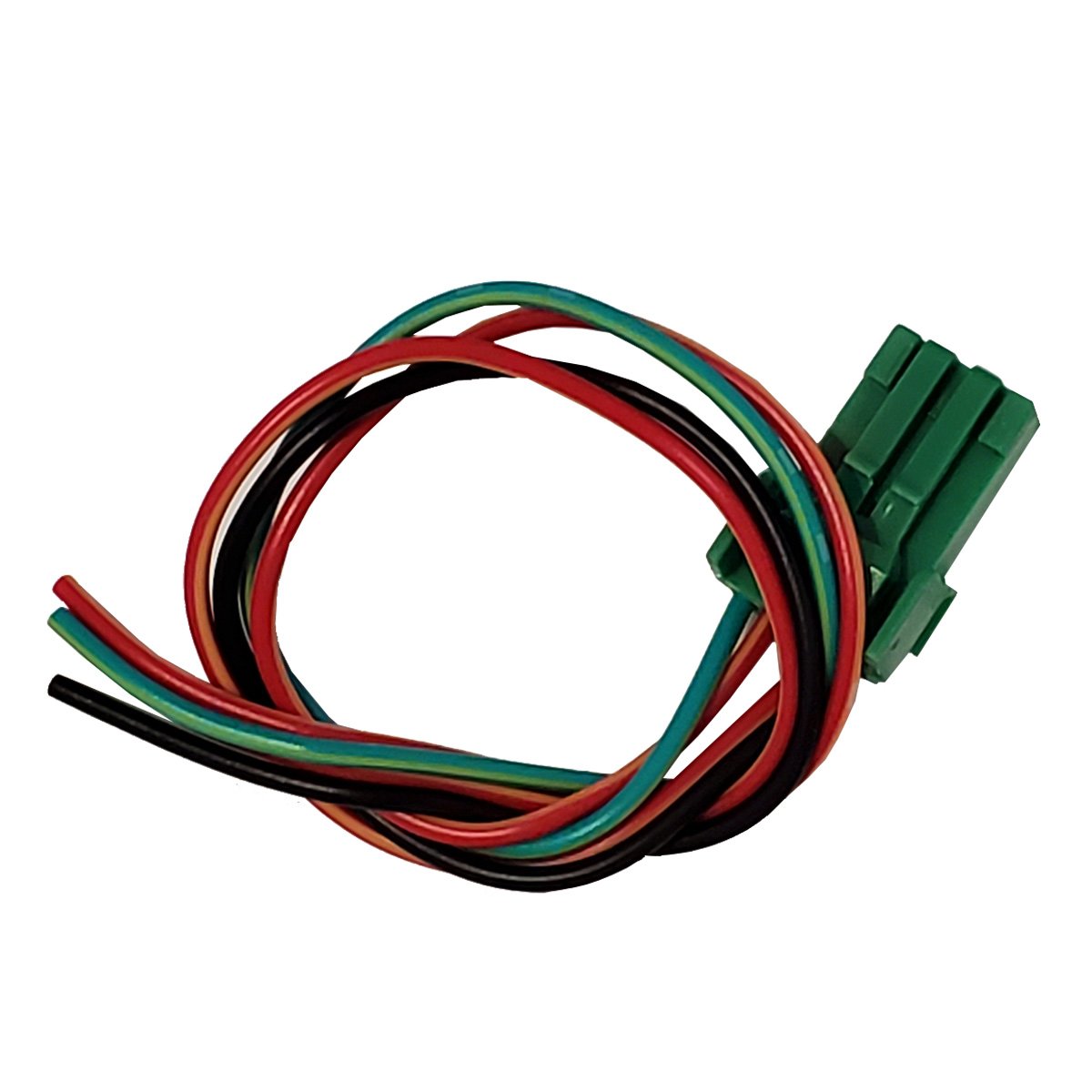

    The switch comes with a pig tail. I was amazed by how many different switches CH4x4 carries for the Toyota switch panels


  8. Sep 22, 2022 at 7:44 PM
    #88
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

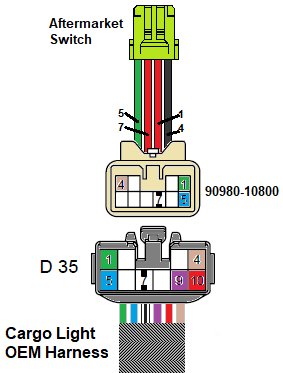

    Great, what's the legend on the switch? Crimp the 090 terminals to the wires then to the -10800.

  9. Sep 22, 2022 at 7:54 PM
    #89
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
  10. Sep 22, 2022 at 8:00 PM
    #90
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  11. Sep 22, 2022 at 8:44 PM
    #91
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    That makes it easy! Thanks

  12. Oct 4, 2022 at 1:43 PM
    #92
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    Ok so I got all the parts to hook up a switch to the bed lights. I am using the 90980-10800 housing and the correct terminals connected to the factory cargo light switch harness and am using a CH4x4 on/off switch shown in post 89.
    The switch works fine, turns lights on/off BUT the “lights on” indicator on the switch works opposite as it should, it’s on when light are off and off when lights are on, if I reverse the wires the switch works but indicator light doesn’t light up at all. I am using the white/black and blue wires on the factory harness. I’m thinking that because the relay uses a ground to open it’s causing the indicator light on the switch to work opposite. Any ideas?

  13. Oct 4, 2022 at 2:00 PM
    #93
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    And the switch illumination wires are where?

  14. Oct 4, 2022 at 2:08 PM
    #94
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

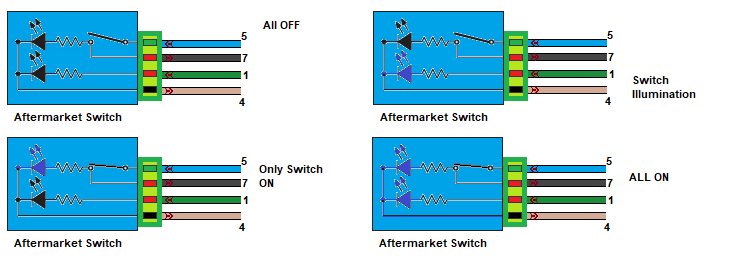

    Most likely the input wire is reversed (on PCB). Switch Legend could be erroneous. You'll need to verify the switch away from the vehicle. 9vDC battery will work.

  15. Oct 4, 2022 at 2:32 PM
    #95
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  16. Oct 4, 2022 at 2:34 PM
    #96
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    4,269
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner
    No way to get switch illumination working with a custom switch for ground switched circuits. You’d have to drive a relay to switch the circuit so that the custom switch is effectively power switching. Or live without the indicator.

    Brex69 likes this.
  17. Oct 4, 2022 at 2:35 PM
    #97
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Ask Kyle...we've done some extensive testing and it works...

  18. Oct 4, 2022 at 2:35 PM
    #98
    Brex69

    Brex69 Well-Known Member

    Joined:
    Dec 30, 2021
    Member:
    #385906
    Messages:
    363
    Gender:
    Male
    Vehicle:
    2020 Tacoma SR 4x4
    It is illuminated two ways, when headlights are on the "Bed Lights" text on the switch lights up, I have that going to the green wire on harness and it works as it should, when the switch is in the ON position and the bed lights are on the picture of the bed on the switch lights up indicating the lights are on, when switched off the indicator light turns off, mine is working opposite.

  19. Oct 4, 2022 at 2:35 PM
    #99
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    4,269
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner
    Either that or redo the switch such that the indicator feeds from external power and add a 5th input

    Rocket23 likes this.
  20. Oct 4, 2022 at 2:36 PM
    #100
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    4,269
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner
    Interesting.
